- Type:Powered Pallet Truck
- Product Type:electric forklift
- Fork size:920*100*40mm
- Load Centre:500mm
- Wheelbase:1068mm
- Service Weight:2550kg
- Certificate:ISO/CE
- Power type:AC
- Turning Radius:1325mm
- Ground clearance:90mm
- After Warranty Service:Online support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Japan
- Local Service Location:Malaysia
- Local Service Location:UAE
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Warehouse
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2515*1090*1980mm
- Certification:CE/ISO

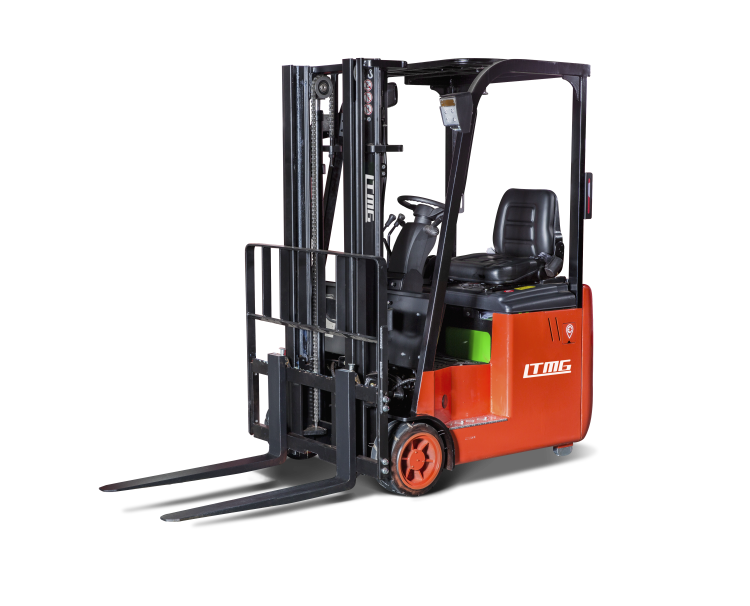

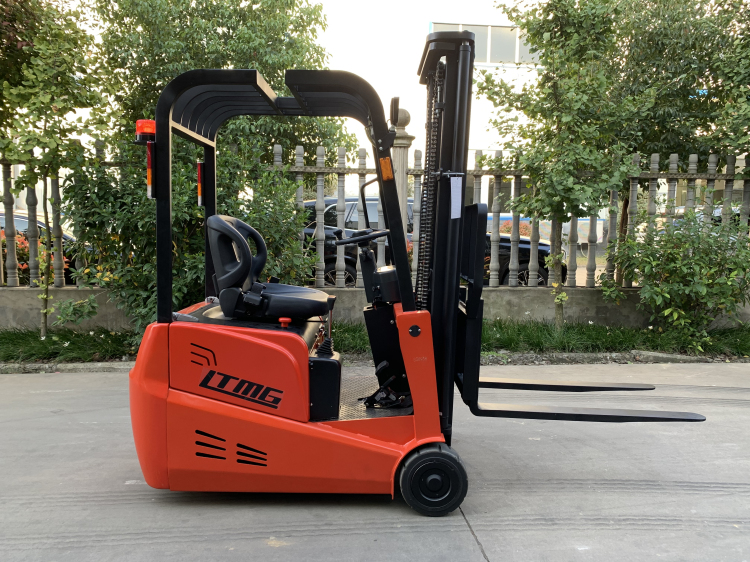

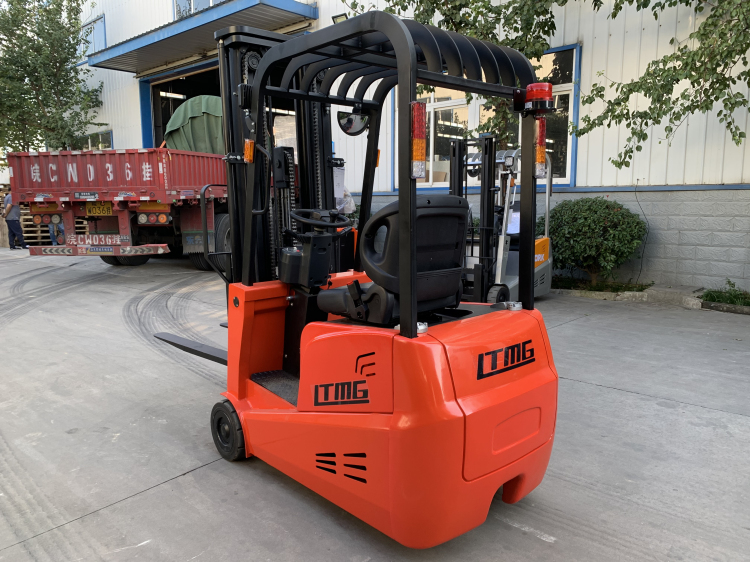

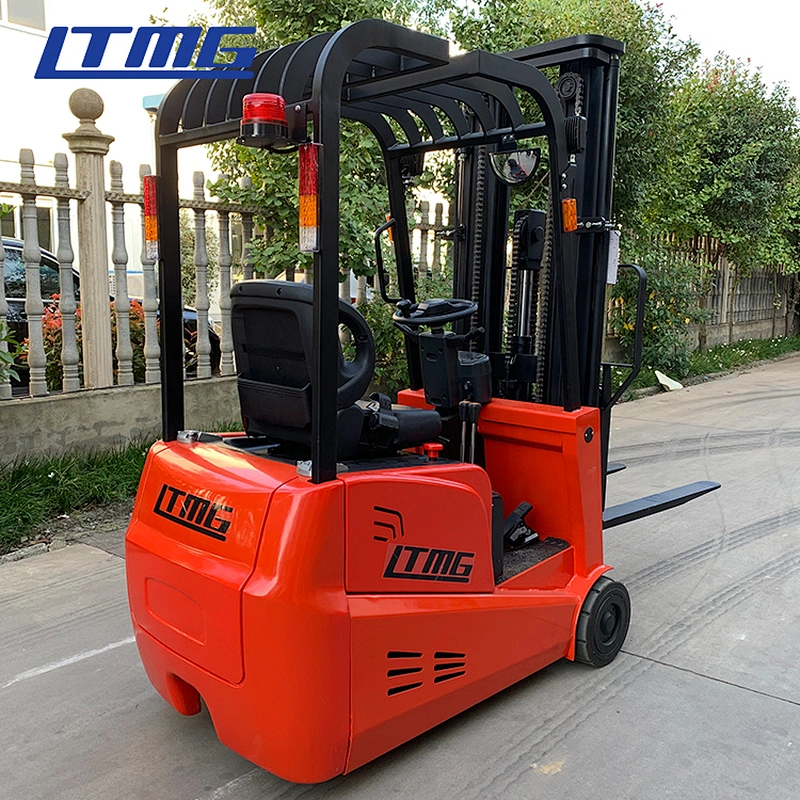

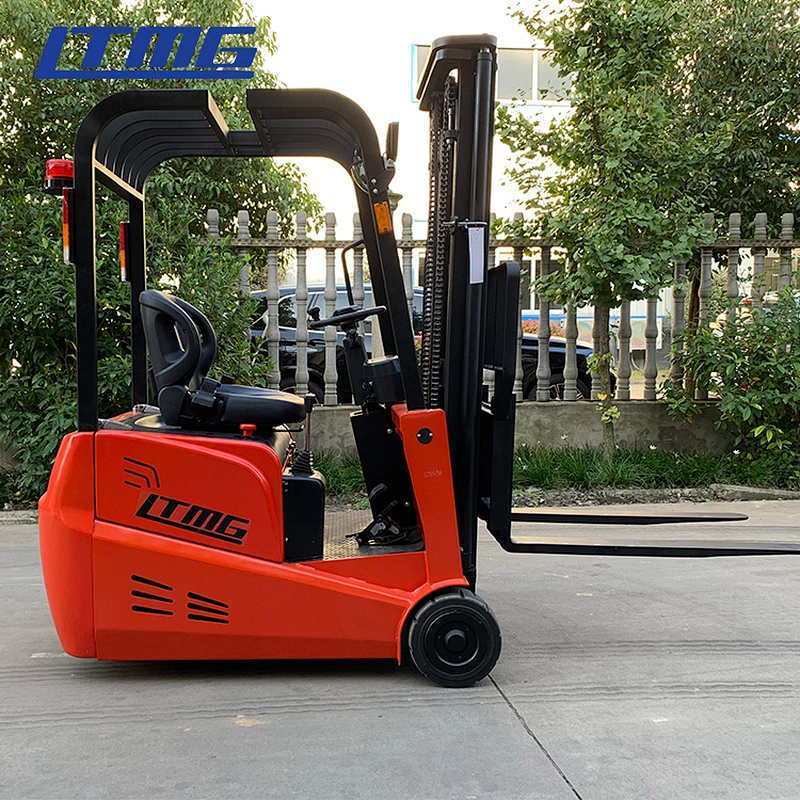

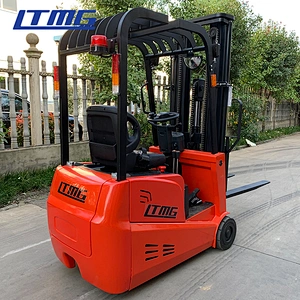

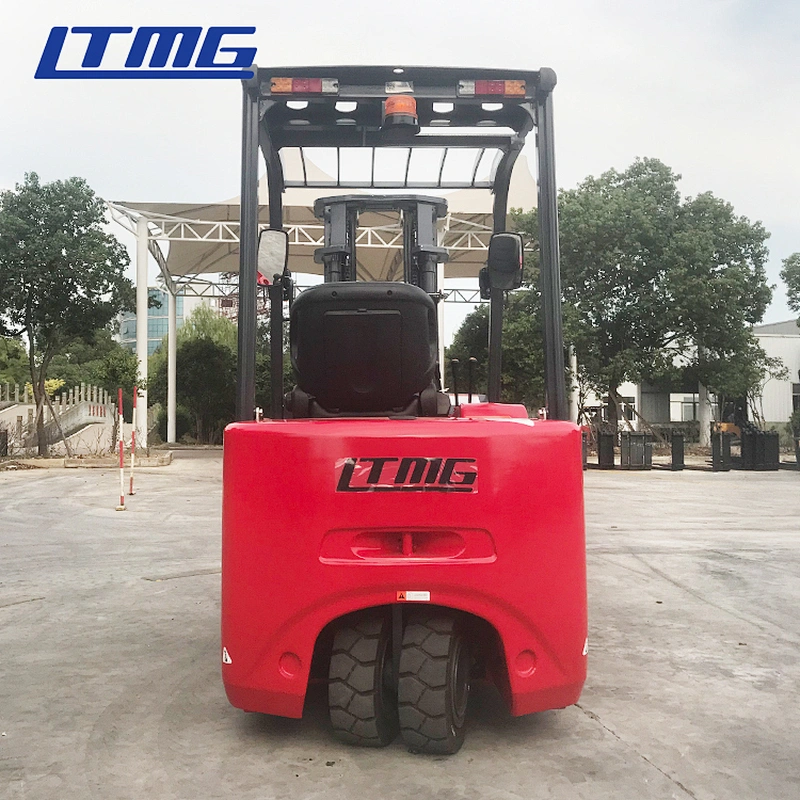

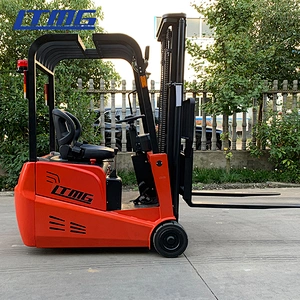

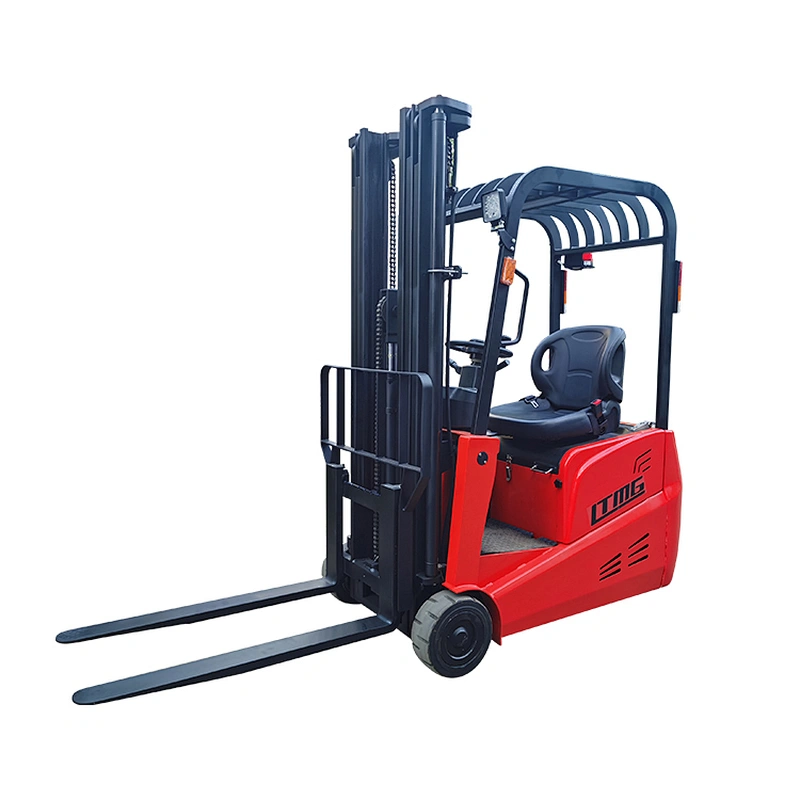

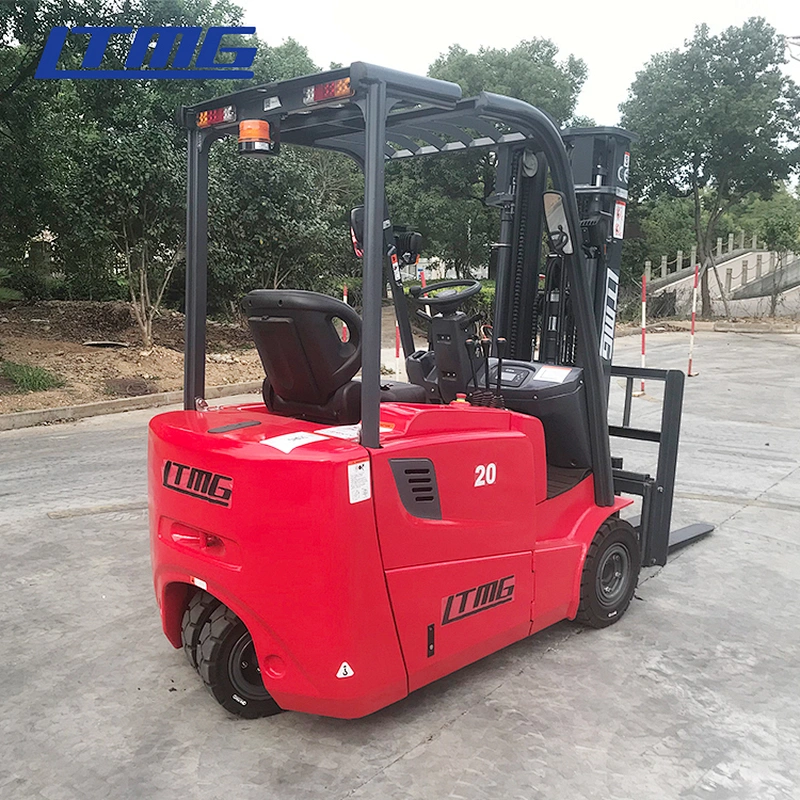

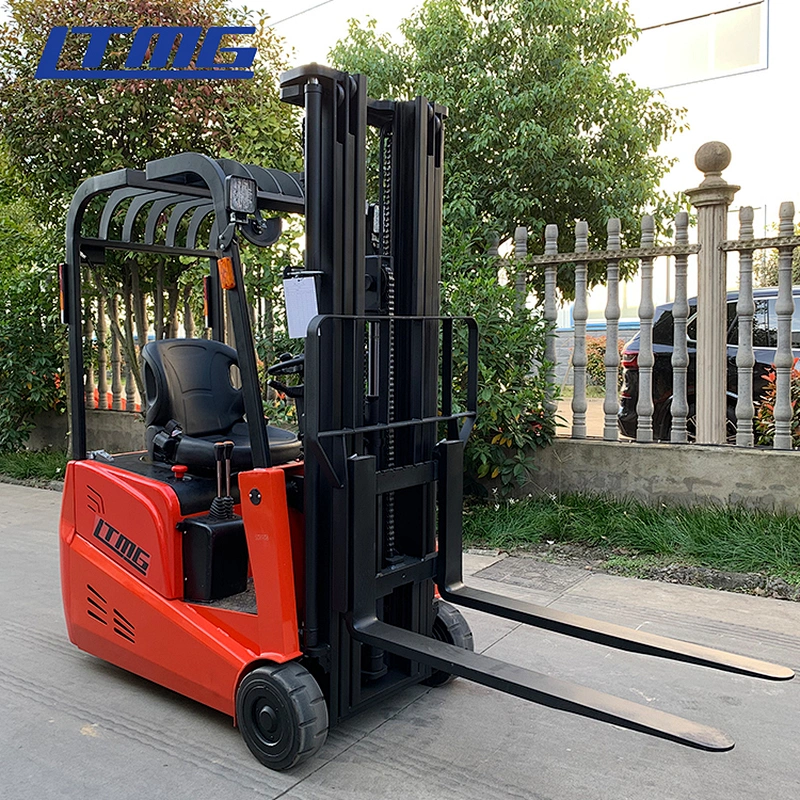

Extremelysmall turning radius ,It is suitable light for industry, electronics,texitiles and other industries,Applicable to the lifting work between floors elevators . It can enter the ordinary cargo ladder carrying goods with aturning radius of
about 1.3meters.It can be transported,stacked and turned in a narrow space.
It is a light,small and high performance electric balanced forklift..
about 1.3meters.It can be transported,stacked and turned in a narrow space.
It is a light,small and high performance electric balanced forklift..
Distinguishing mark | ||||||
Drive unit | Electrics | |||||
Operator type | seated | |||||
rated capacity | Q | t | 1.5 | |||
Load center distance | c | mm | 500 | |||
Load distance,centre of drive axle to fork | x | mm | 270 | |||
Wheelbase | y | mm | 1068 | |||
Weight | ||||||
Service weight (include battery) | kg | 2550 | ||||
Axle loading, laden front wheels/drive steering wheels | kg | 3650/400 | ||||
Axle loading, unladen front wheels/drive steering wheels | kg | 1015/1535 | ||||
Types,Chassis | ||||||
Tyre type, front wheels/drive steering wheels | solid rubber | |||||
Tyre size, front wheels(diameter×width) | mm | 343×170 | ||||
Tyre size, drive steering wheels(diameter×width) | mm | 16×6-8(420×154) | ||||
Tread, front wheels | b10 | mm | 890 | |||
Dimensions | ||||||
Tilt of mast/fork carriage forward/backward | α/ β (°) | 5/ 5 | ||||
Height, mast lowered | h1 | mm | 1980 | |||
Free lift(load backrest) | h2 | mm | 100 | |||
Lift height | h3 | mm | 3000 | |||
Height, mast extended | h4 | mm | 4054 | |||
Height of overhead guard (cabin) | h6 | mm | 1995 | |||
Seat height | h7 | mm | 985 | |||
Tow center of pin height | h10 | mm | 660 | |||
Overall length | l1 | mm | 2515 | |||
Length to face of forks | l2 | mm | 1595 | |||
Overall width | b1/ b2 | mm | 1090 | |||
Fork dimensions | s/ e/ l | mm | 40×100×920 | |||
Fork carriage width | b3 | mm | 1040 | |||
Ground clearance, laden, below mast | m1 | mm | 90 | |||
The minimum ground clearance of frame | m2 | mm | 90 | |||
Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2930 | |||
Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 3050 | |||
Turning radius | Wa | mm | 1325 | |||
Performance data | ||||||
Travel speed, laden/unladen | km/ h | 6.0/8.0 | ||||
Lifting speed, laden/unladen | m/ s | 0.2/ 0.3 | ||||
Lowering speed, laden/unladen | m/ s | 0.25/ 0.22 | ||||
Max. drawbar pull, laden/unladen (time) | N | 5.0/7.0 | ||||
Gradeability,laden/unladen | % | 6/8.0 | ||||
Service brake type | Hydraulic / Mechanical | |||||
Electric-engine | ||||||
Drive motor rating S2 60 min | kW | 6.5 | ||||
Lift motor rating at S3 15% | kW | 5.5 | ||||
Battery voltage/nominal capacity K5 | V/ Ah | 48/160 | ||||
Battery weight | kg | 180 | ||||
Addition data | ||||||
Type of drive unit | AC | |||||
Steering type | Electronic steering | |||||
