- Controller:American Curtis
- Item Name:mini 2 ton 2000kg electric forklift with 5m mast and side shift
- Load center:500mm
- website:www.xlteng.com
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:48V/560Ah
- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2070mm
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Applicable Industries:warehouse logistics
- Max. Lifting Height:5m
- Brand Name:LTMG
- Place of Origin:CN;ZHE
- Overall Dimensions:3350*1150*1995mm
- Fork Width:120mm
- Fork Length:1070mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0
Machine application
Product Description

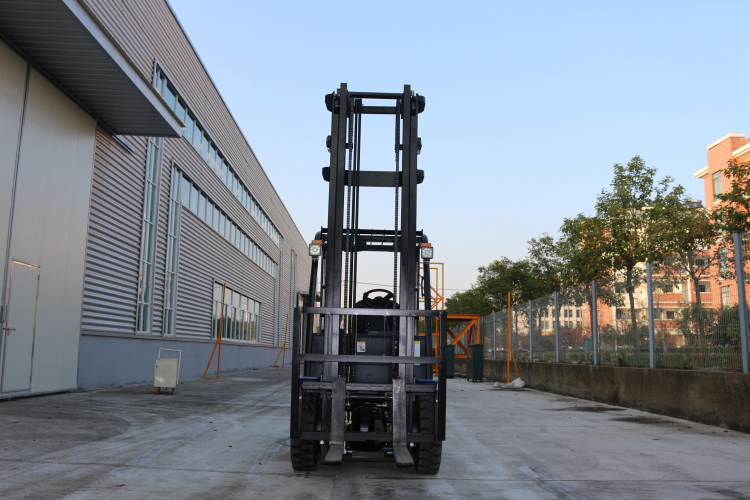

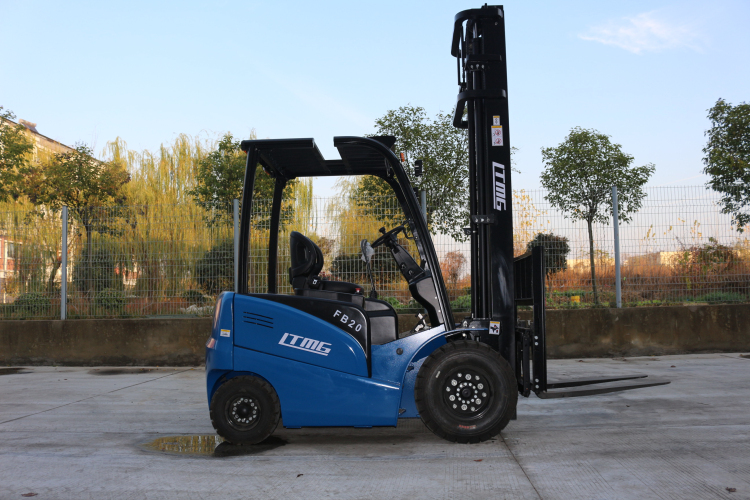

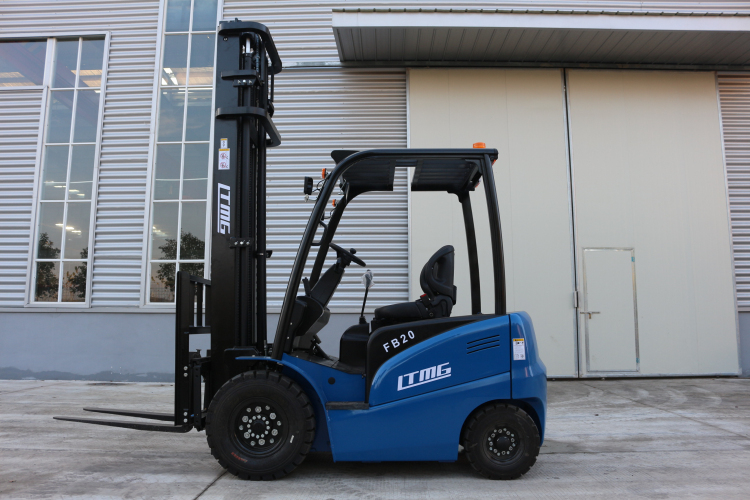

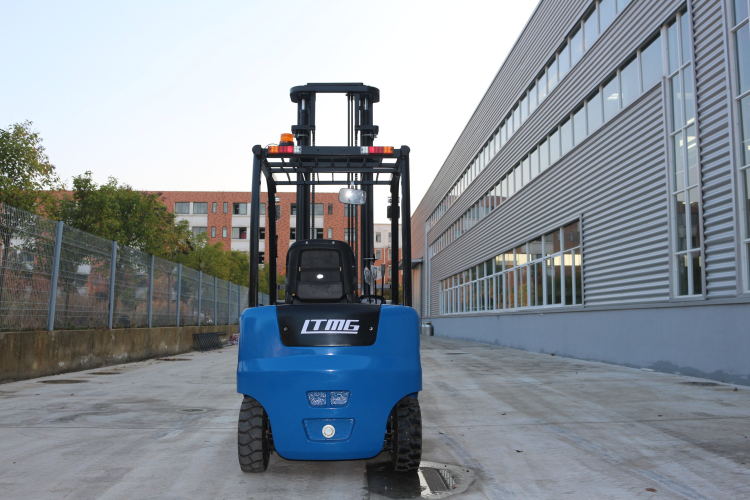

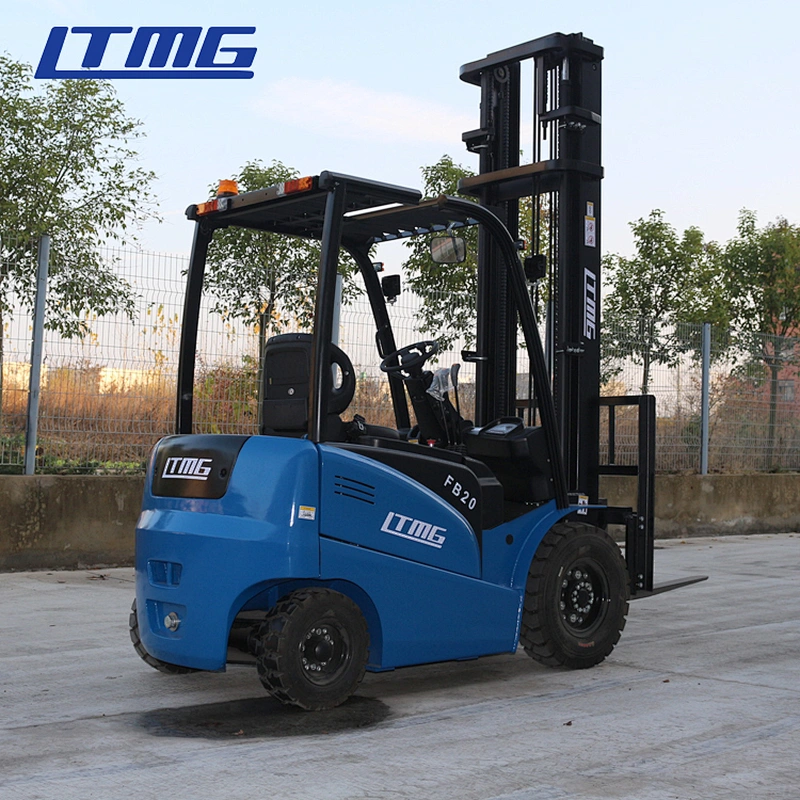

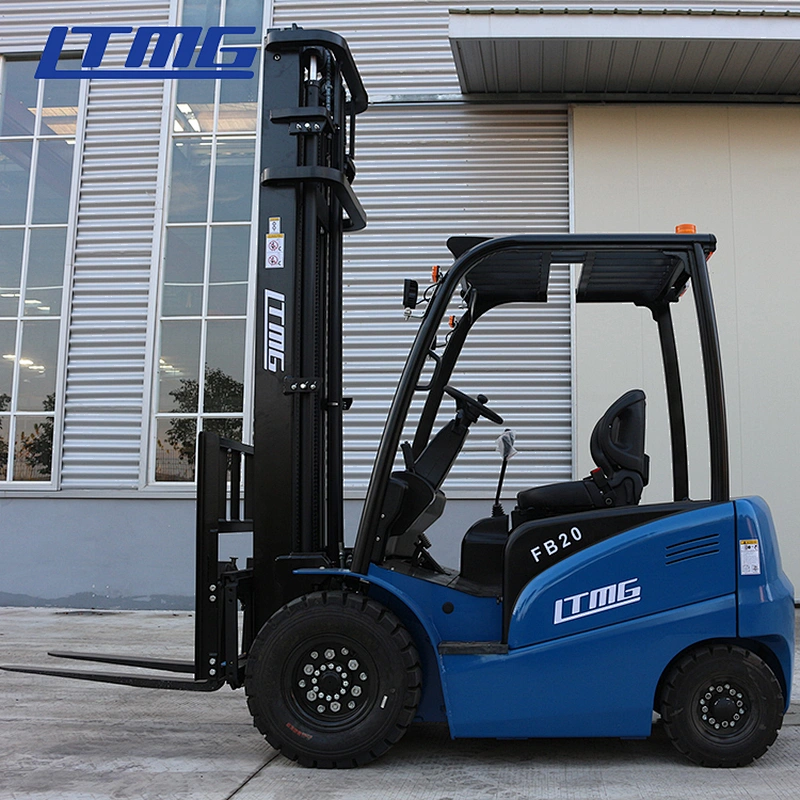

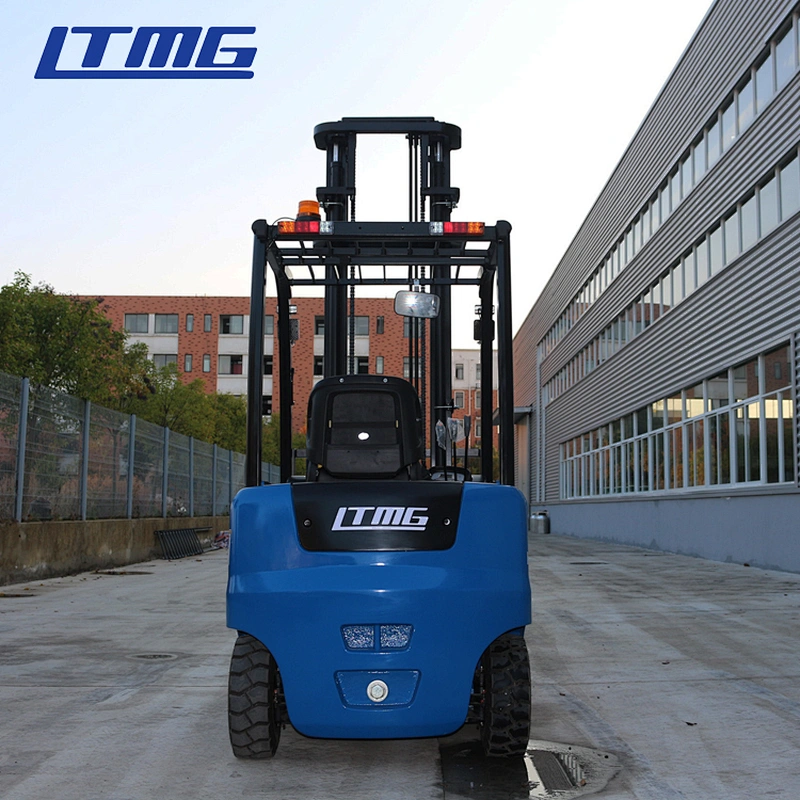

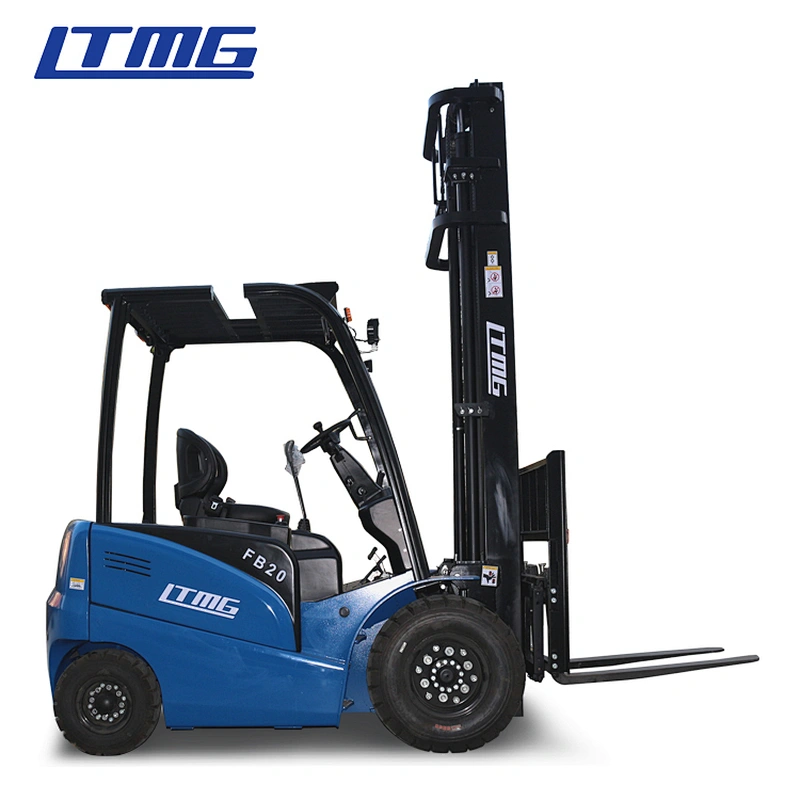

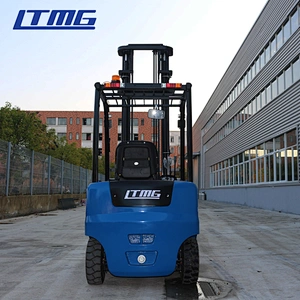

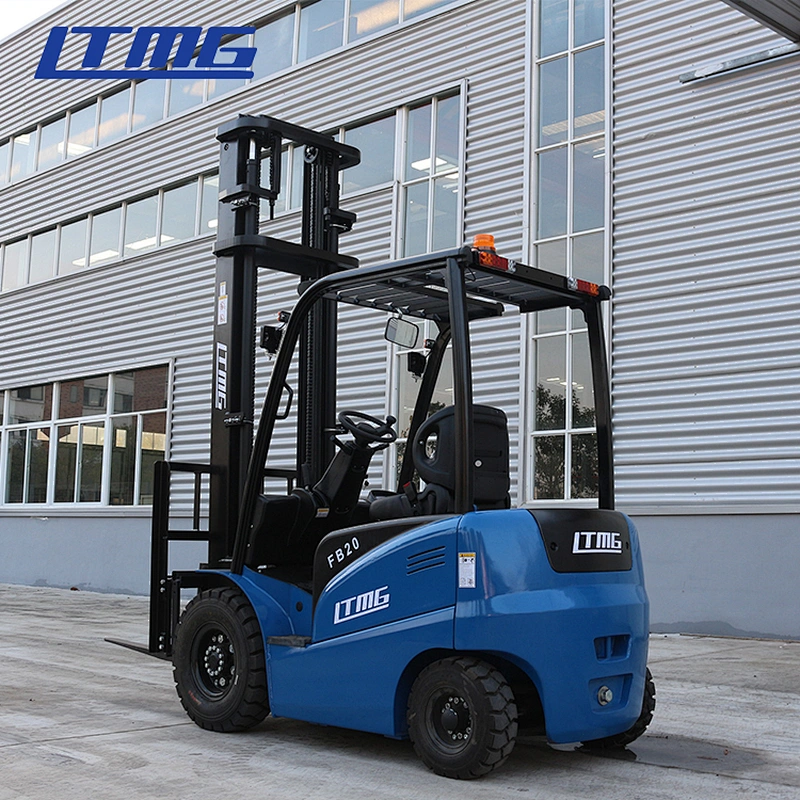

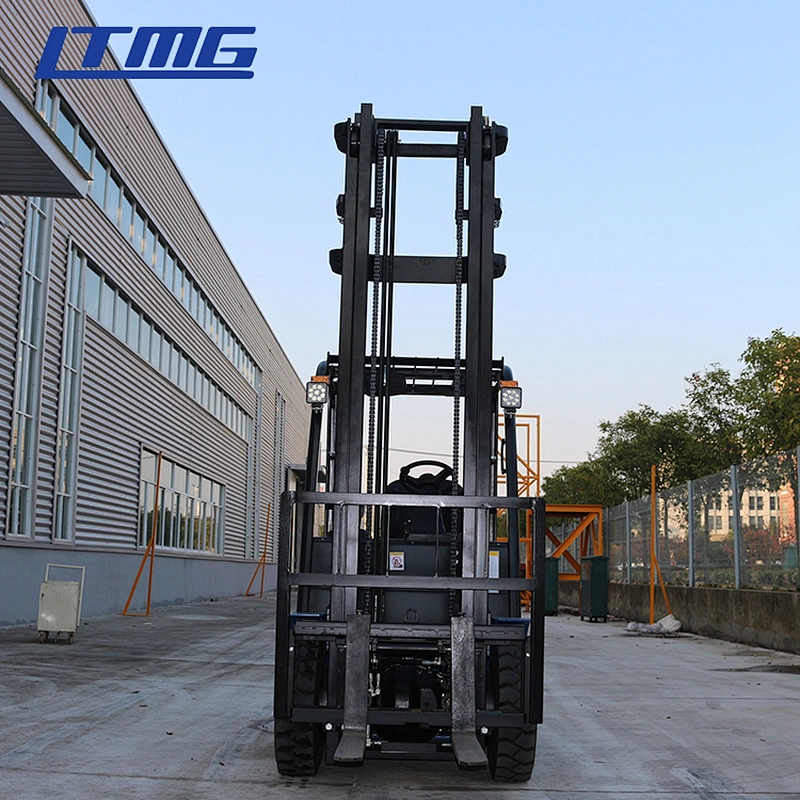

LTMG small mini 2 ton 2000kg electric forklift with 5m mast and side shift
Lifting capacity: 2 ton
5m two stage mast
Length of fork: 1670mm
Pneumatic tires

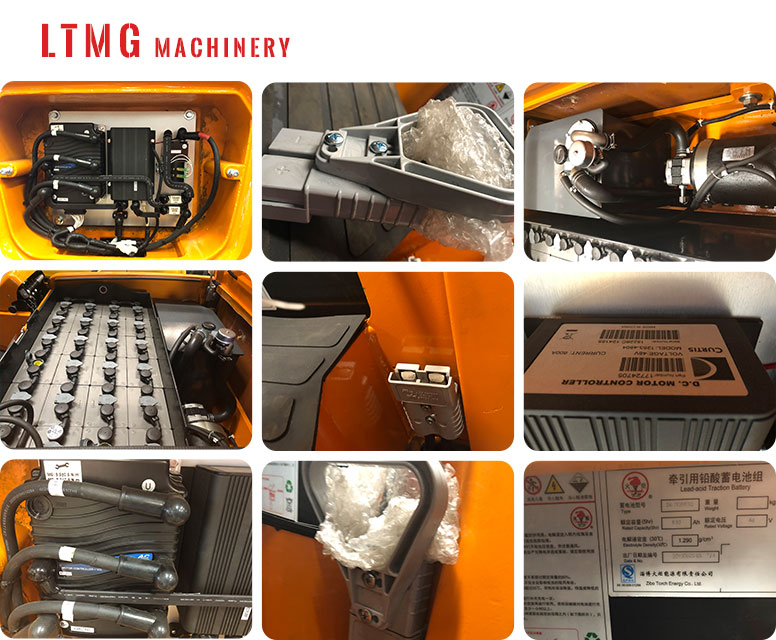

Curtis controller
Side shift
optional:fork positioner, cabin with heater, Air conditioner,warning light, paper roll clamp.block clamp,etc.
Specification of LTMG small mini 2 ton 2000kg electric forklift with 5m mast | ||||
Brand | LTMG | |||
Model | FB20 | |||
Operation type | car type | |||
Load capacity | kg | 2000 | ||
Load center | mm | 500 | ||
Weight with battery | kg | 4400 | ||
Tire,chassis | ||||
Tire Type | Pneumatic | |||
Size | ||||
Mast tilt,Forward/backward | α/β(°) | 6/12 | ||
Mast height after mast fall | mm | 1995 | ||
Free lift height | mm | 100 | ||
Standard Mast height | mm | 3000 | ||
Overhead guard height | mm | 2220 | ||
Overall length | mm | 3350 | ||
Vehicle width | mm | 1150 | ||
Fork size | mm | 1070 X120 X40 | ||
Channel width,with 1000X1200mm pallet | mm | 4210 | ||
Channel width,with 800X1200mm pallet | mm | 4260 | ||
Turning radius | mm | 2100 | ||
Performance | ||||
Walking speed,loaded/withoutload | km/h | 13/13.5 | ||
lifting speed,loaded/load | m/s | 0.3/0.45 | ||
Dropping speed loaded/without load | m/s | 0.44/0.435 | ||
Maximum traction,loaded | N | 17000 | ||
Max grade ability,loaded/without load | % | 10.5/14 | ||
Drive | ||||
Drive motor power | kw | 11 | ||
Drive motor power | kw | 8.6 | ||
Level voltage/Capacitance | V/Ah | 48/630 | ||
Others | ||||
Drive System | DC/AC | |||
Electrical control system | Curtis from America | |||
Packing & Delivery

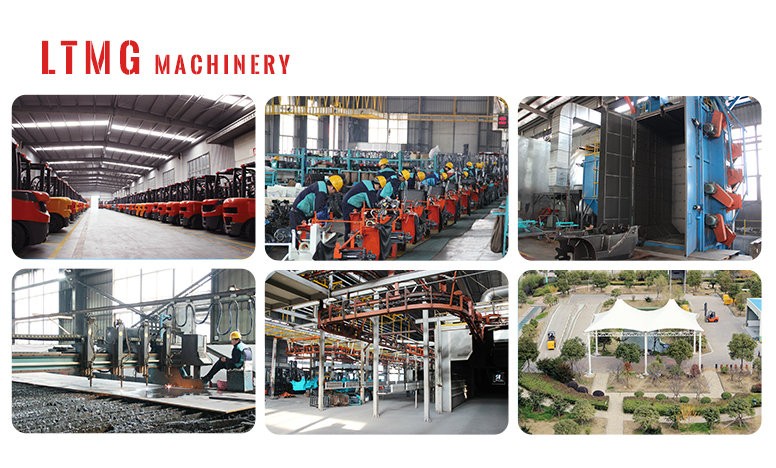

About LTMG
Customer Photos
LTMG Service
After-sale Service
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
