- After-sales Service Provided:Overseas third-party support available
- Warranty:1 year or 2000 working hours
- Tire Type:solid tires
- Turning Radius:1690mm
- Drive System:DC/AC
- Service Weight:3420kg
- Load Capacity:2000kg
- Load Center:500mm
- Lift Height:3000mm
- Max.Gradeability:15°
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:United Kingdom
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Russia
- Local Service Location:Argentina
- Local Service Location:South Korea
- Local Service Location:Colombia
- Local Service Location:Ukraine
- Local Service Location:Kyrgyzstan
- Local Service Location:Tajikistan
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:Viet Nam
- Showroom Location:Peru
- Showroom Location:Spain
- Showroom Location:Argentina
- Showroom Location:Bangladesh
- Showroom Location:Uzbekistan
- Showroom Location:Tajikistan
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Gearbox
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:120mm
- Overall Dimensions:2100*1100*2010mm
- Certification:CE/ISO9001:2008
Product Description

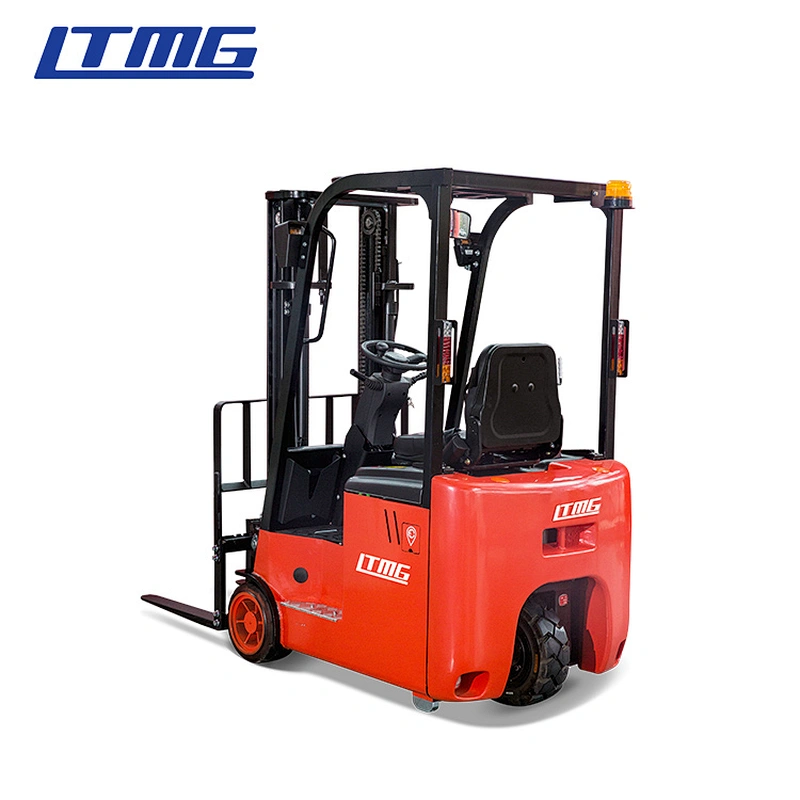

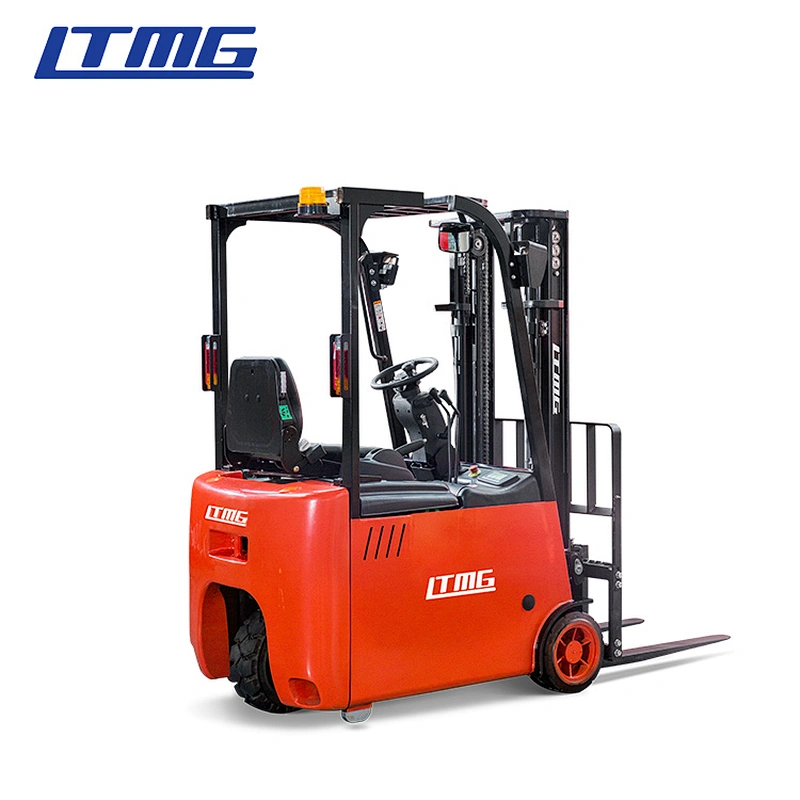

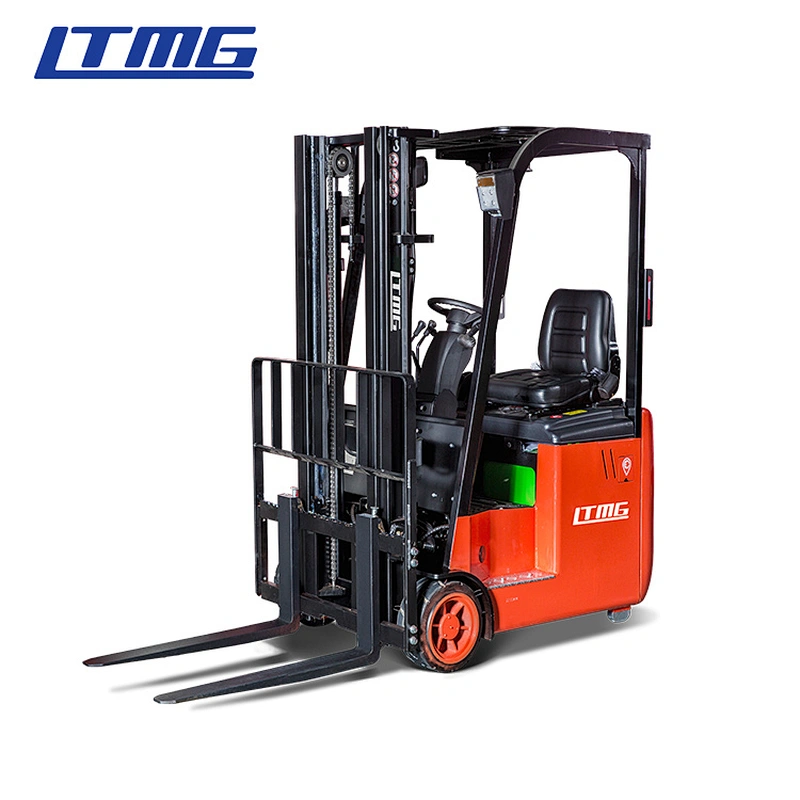

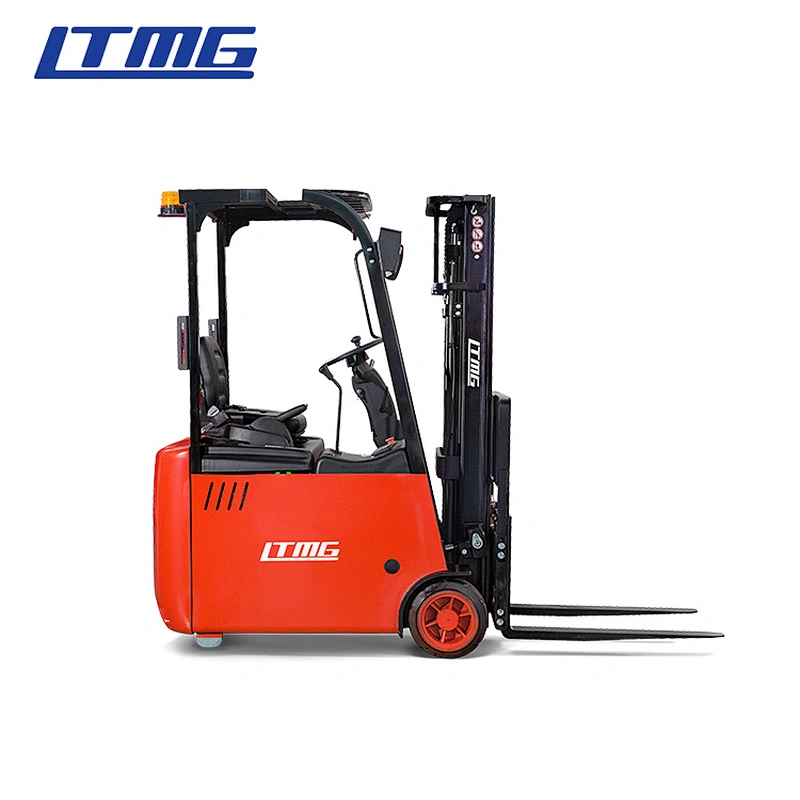

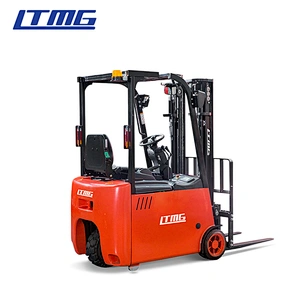

LTMG 1.5 ton 1.6 ton 48 volt Curtis controller 3 wheel electric forklift with solid tyres
Specification
The specification of 1.6 ton 1.8ton 2ton three wheel electric forklift with solid tyres | ||||||||
Model | FB16S | FB18S | FB20S | |||||
Power type | Electric | Electric | Electric | |||||
Rated Capacity | kg | 1600 | 1800 | 2000 | ||||
Load Centre | mm | 500 | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | 3000 | ||||
Fork Size(L×W×T ) | mm | 920×120×35 | 920×120×35 | 1070×120×40 | ||||
Mast Tilt Angle(F/R) | Deg | 6°/6° | 6°/6° | 6°/6° | ||||
Front Overhang(Wheel center to fork face) | mm | 390 | 390 | 395 | ||||
Tread (F/R) | mm | 924/208 | 924/208 | 924/208 | ||||
Ground Clearance(Bottom of mast) | mm | 90 | 90 | 90 | ||||
Fork Spread (Min./Max.) | mm | 240/970 | 240/970 | 240/970 | ||||
Length to face of fork(Without fork) | mm | 2100 | 2100 | 2105 | ||||
Overall Width | mm | 1100 | 1100 | 1100 | ||||
Mast Lowered Height | mm | 2010 | 2010 | 2010 | ||||
Mast Extended Height(With backrest) | mm | 3940 | 3940 | 3940 | ||||
Overhead Guard Height | mm | 2055 | 2055 | 2055 | ||||
Turning Radius(outside) | mm | 1690 | 1690 | 1690 | ||||
Min. insecting aisle | mm | 2300 | 2300 | 2300 | ||||
Travel Speed (Empty load) | km/h | 14 | 14 | 14 | ||||
Lifting Speed (Full load) | mm/s | 340 | 320 | 300 | ||||
Max. Gradeability | % | 15 | 15 | 15 | ||||
Front Tire | 18×7-8 | 18×7-8 | 18×7-8 | |||||
Rear Tire | 16×6-8 | 16×6-8 | 16×6-8 | |||||
Wheelbase | mm | 1460 | 1460 | 1460 | ||||
Service Weight | kg | 3420 | 3520 | 3760 | ||||
Driven Motor | kw | 2×4.5 | 2×4.5 | 2×4.5 | ||||
Lift Motor | kw | 8.6 | 8.6 | 8.6 | ||||
Battery Voltage/Capacity | V/Ah | 48/490 | 48/490 | 48/560 | ||||
Controller Manufacturer | CURTIS | CURTIS | CURTIS | |||||
Controller Type | AC | AC | AC | |||||
Operating Pressure for Attachment | Mpa | 14.5 | 14.5 | 14.5 | ||||

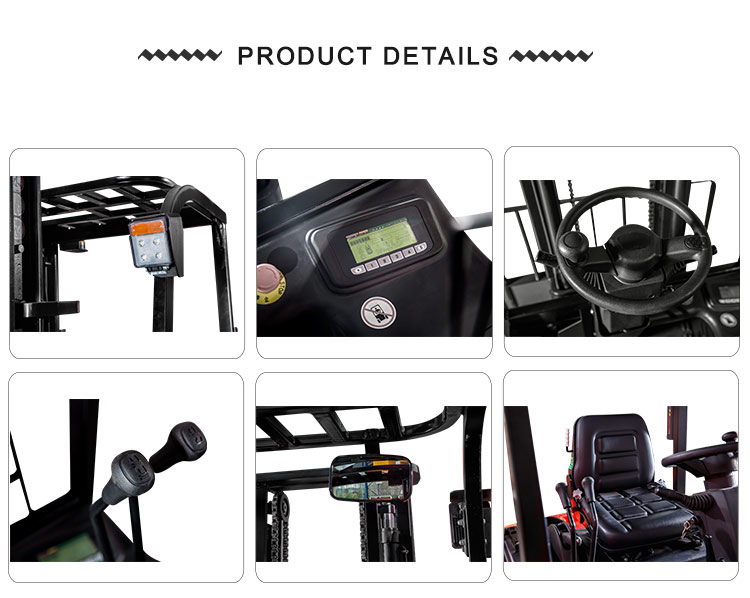

Product Features
1.Equipped with original imported American Curtis electric control system.
2.High voltage and large capacity battery can supply the forklift with strong power.
3.Imported brand Accelerator and Power Connector.
4.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
5.Fully enclosed instrument panel cover.
6.Battery side-take function.
Packing & Delivery
Certificate
Exhibition and Clients

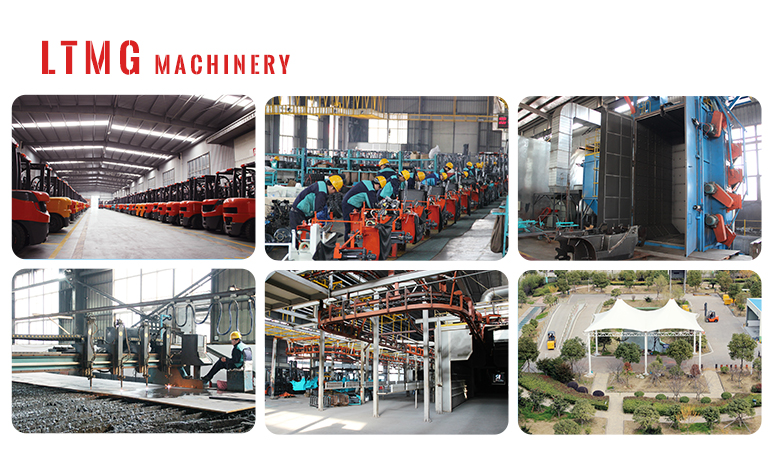

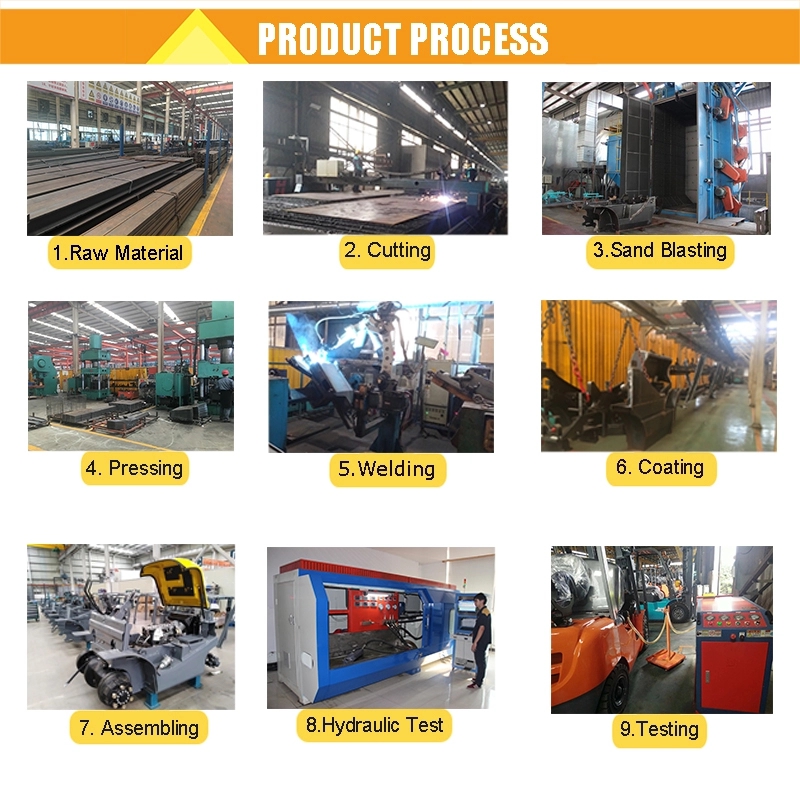

Our Company
Our Service
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
