- Warranty:One Year or 2000 working hours
- Truck weight:4660kg
- Options:Side shifter, full free mast, fork positionzer
- Wheel base:1600mm
- Color:Customized
- Ground clearence:140mm
- Rated load:3000kg
- Service brake:Hydraulic-foot pedal
- Turning raduis(outside):2140mm
- Fork Size:1070*125*45mm
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:Russia
- Local Service Location:Argentina
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Argentina
- Showroom Location:Sri Lanka
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Max. Lifting Height:3000mm
- Place of Origin:CN
- Brand Name:LTMG
- Overall Dimensions:2510*1225*2075mm
- Fork Width:125mm
- Fork Length:1070mm
- Min. Lifting Height:0mm
- Certification:CE/ISO9001:2008

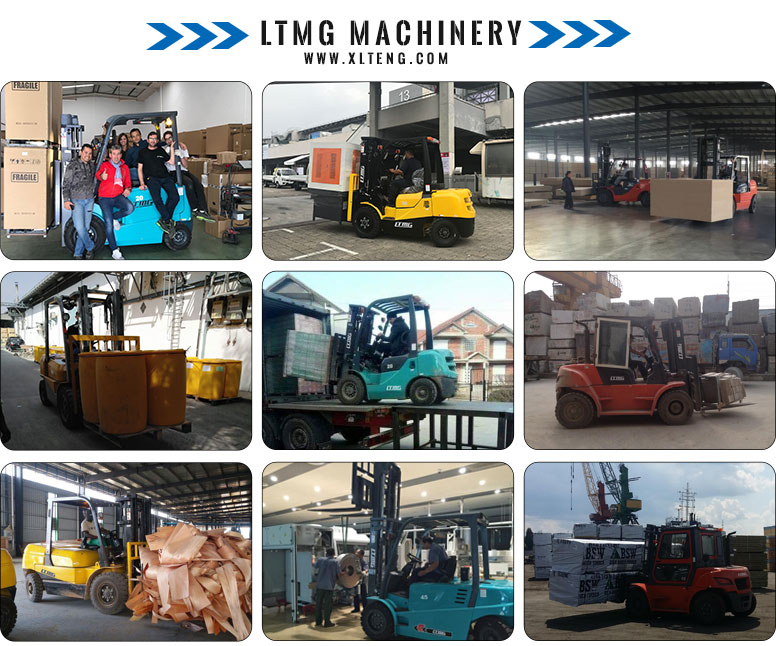

LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
LTMG provide 1.5-12 ton electric forklift
Product Features

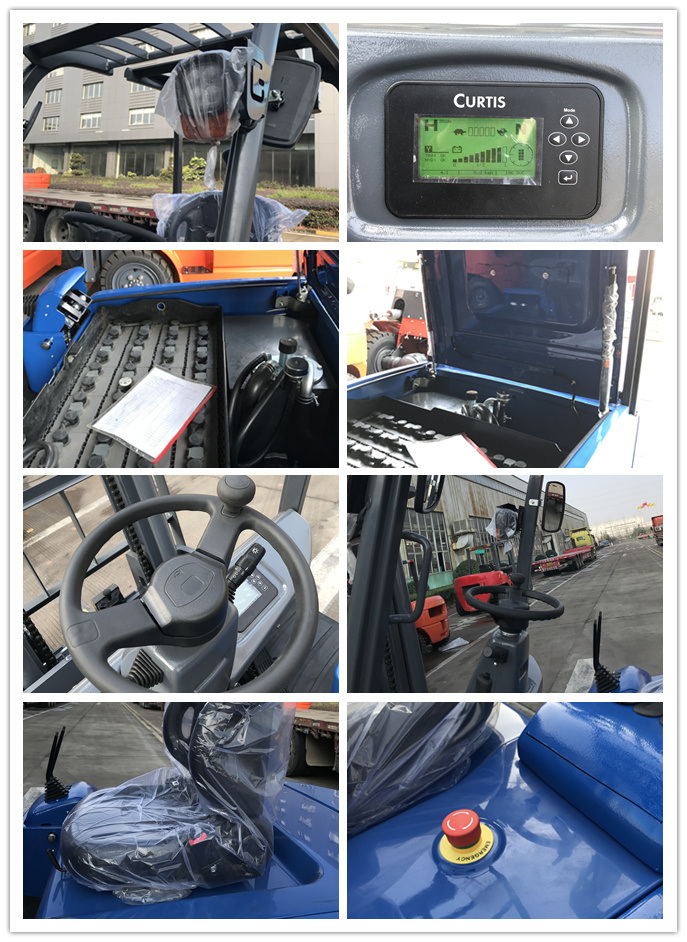

- Equipped with original imported American Curtis electric control system
- GS & HOPPECKE battery group is optional-Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals, Toyota seat with safety belt,and so on.
- Lithium battery optional.Give you a full battery in 3 hours.

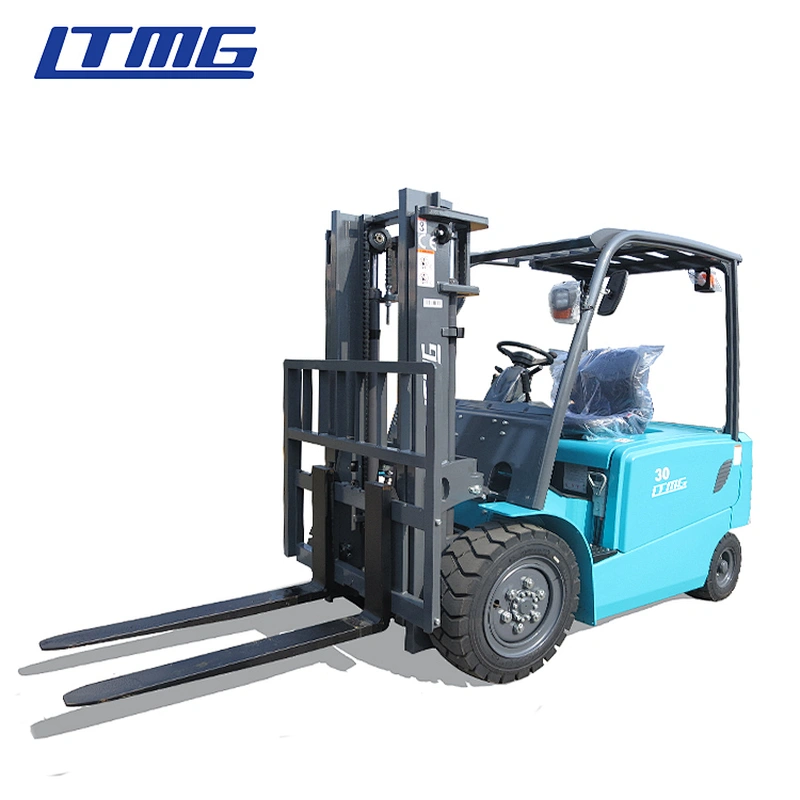

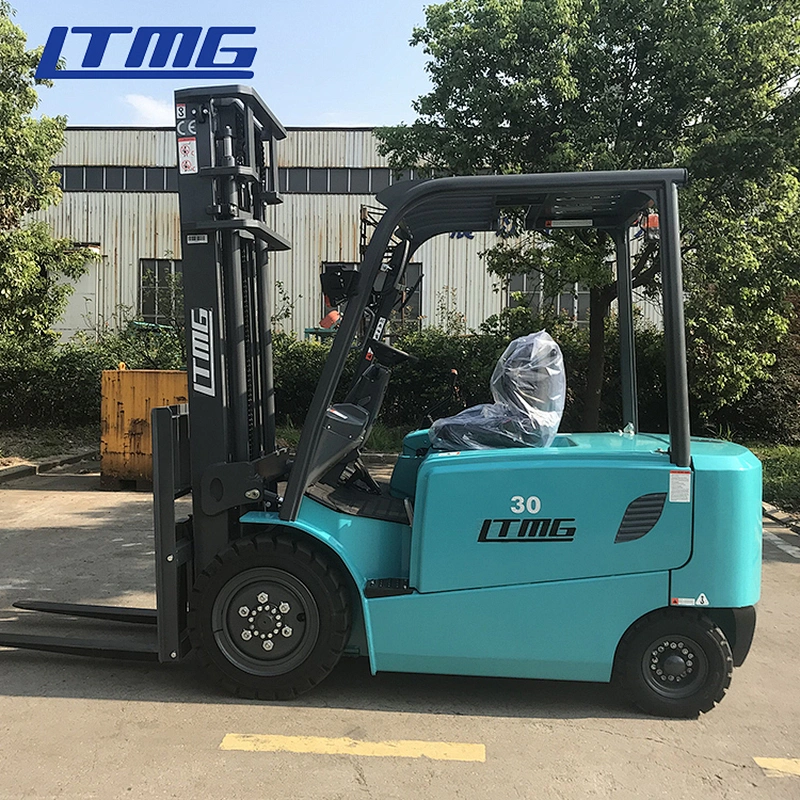

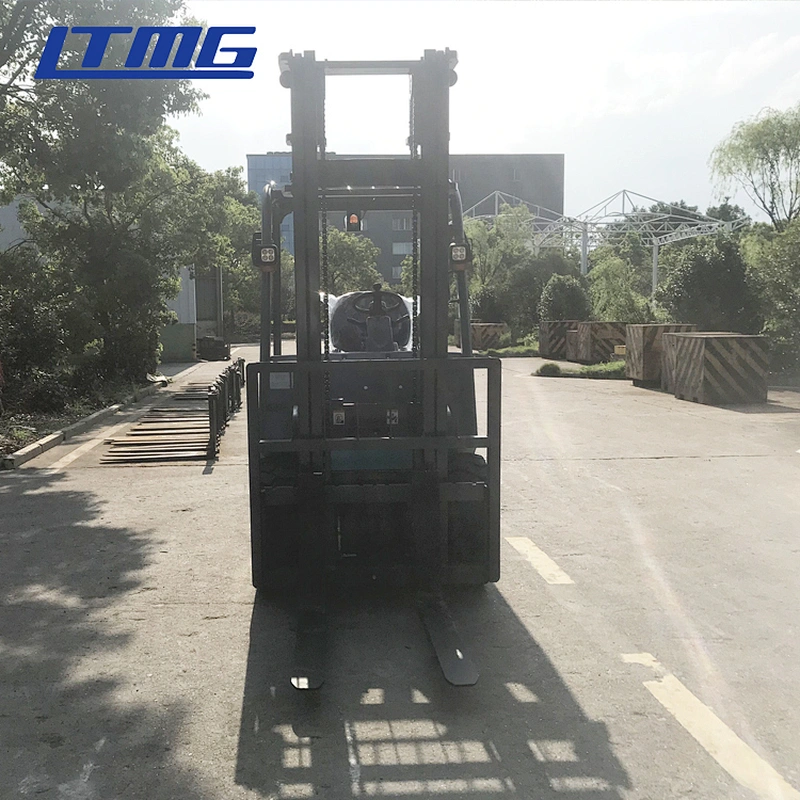

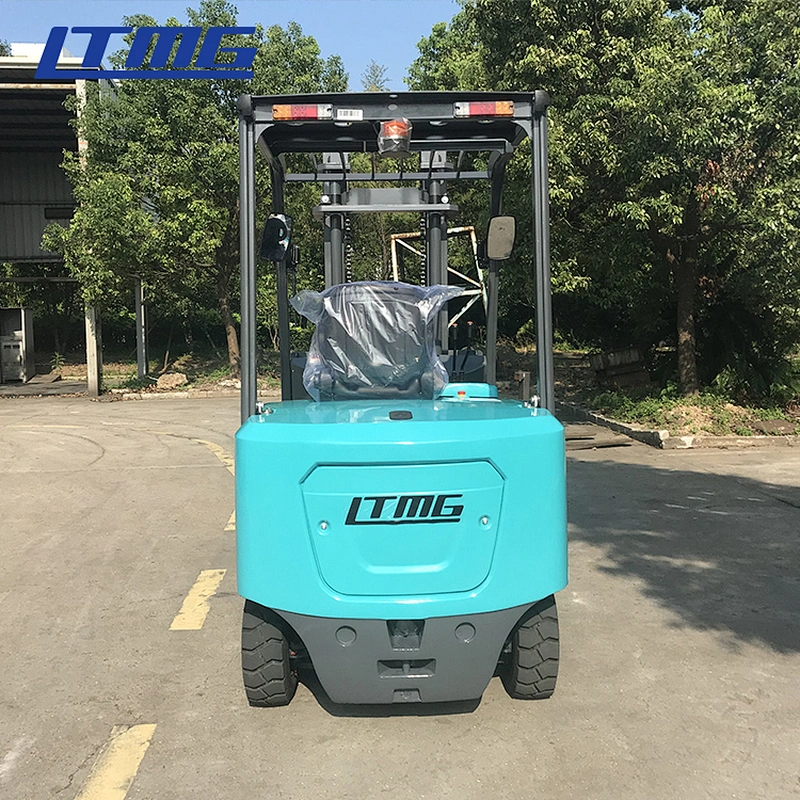

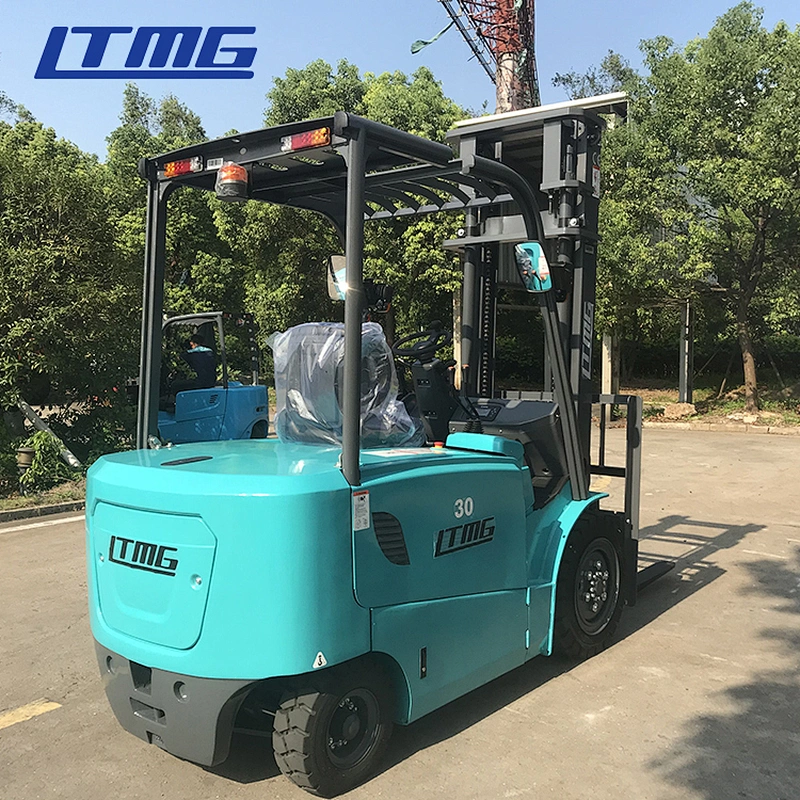

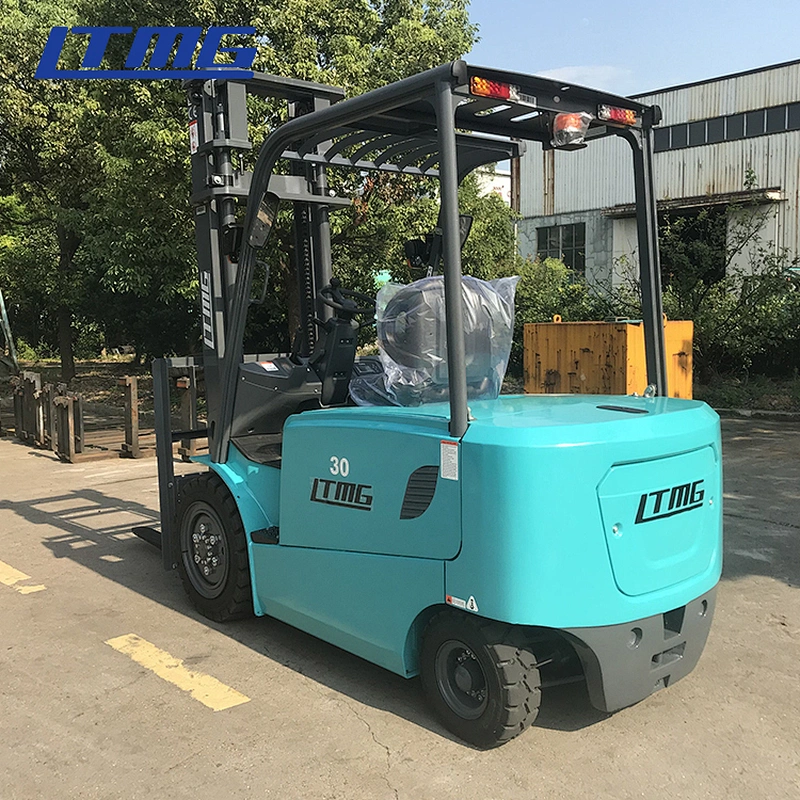

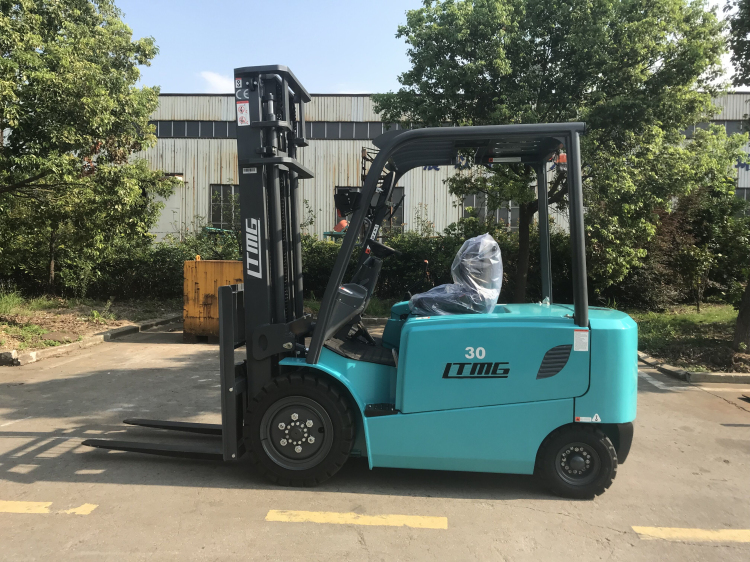

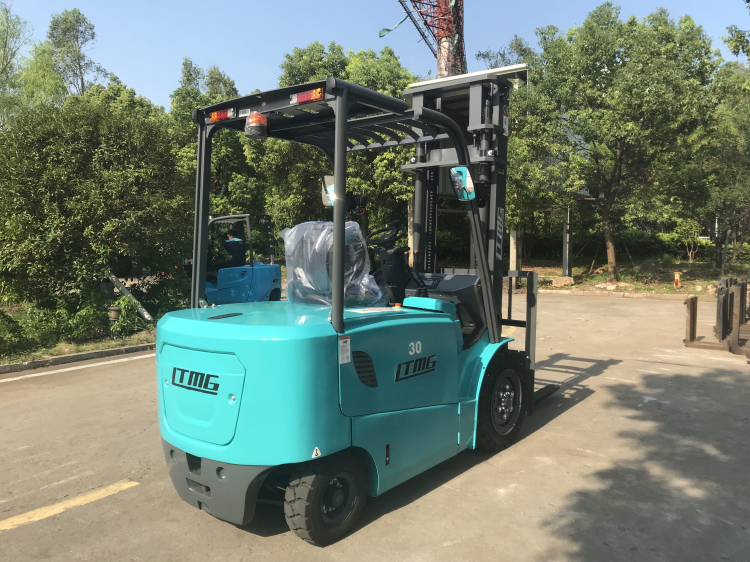

Specifications of 3 ton electric forklift | ||||||
Manufacturer | LTMG | |||||
Model | FB30 | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Battery | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel(x=driving) | Front/rear | 2X/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 165 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2510 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised | With backrest | mm | 4250 | |||
Height to head guard | mm | 2190 | ||||
Turning raduis(outside) | mm | 2140 | ||||
Load distance | mm | 480 | ||||
Min. right angle stacking aisle | not add load length&clearence | mm | 2625 | |||
Speed | Max Travelling full load | km/h | 13.5 | |||
Max Travelling no load | km/h | 15 | ||||
Lifting full load | mm/s | 240 | ||||
Lifting no load | mm/s | 450 | ||||
Gradeability | full load | % | 12.5 | |||
Truck weight(with standard battery) | kg | 4660 | ||||
Weight distribution | Full load front/rear | kg | 6770/890 | |||
No load front/rear | kg | 1885/2775 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28*9-15-12PR | ||||
rear axle | 18*7-8-14PR | |||||
Wheelbase | mm | 1600 | ||||
Tread | Front/rear | mm | 1000/950 | |||
Ground clearence | At lowest point(mast) | mm | 140 | |||
Frame | mm | 120 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brak | Mechanical-hand lever | |||||
Lead-Acid Battery | Voltage/capacity | V/AH | 72/480 | |||
Lithium battery(optional) | Voltage/capacity | V/AH | 76.8/315 | |||
Weight with box (standard) | kg | 1220 | ||||
Electric motor | AC Driving motor | kw | 16.6 | |||
DC Hydraulic driving motor | kw | 10 | ||||
AC Hydraulic driving motor (as option) | kw | 13.4 | ||||
Control type | Driving AC , lifting DC | |||||
Driving AC , lifting AC(as option ) | ||||||
Operating pressure | kg/cm² | 175 | ||||
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://www.xlteng.com/ (Group)
http://www.ltma-forklift.com/ (Forklift)
http://www.ltma-loader.com/ (Loader)
http://www.airport-gse.com/ (Airport GSE)
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate
