- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- Condition:New
- Place of Origin:CN;ZHE
- Type:Powered Pallet Truck
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Brand Name:LTMG
- Max. Lifting Height:7050mm
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2780mm*1150mm*2270mm
- Certification:CE/ISO9001:2008
- After-sales Service Provided:Overseas third-party support available
- Overall Length:2780mm
- Ground Clearance:50mm
- Load Centre:500mm
- Product Name:2 Ton Articulated Electric Forklift Work in Narrow Aisle
- Item:2 Ton Articulated Electric Forklift
- Loading Capacity:2000kg
- Tire:Pneumatic
- Power type:Electric Power
- Warranty:1 Year/2000 Working Hours

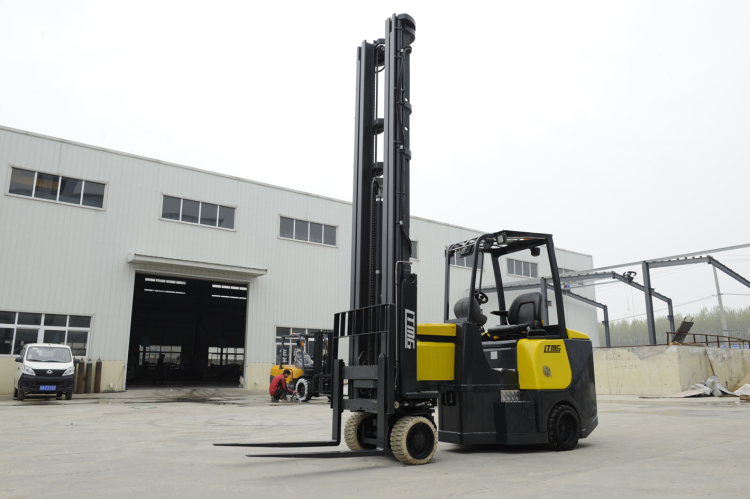

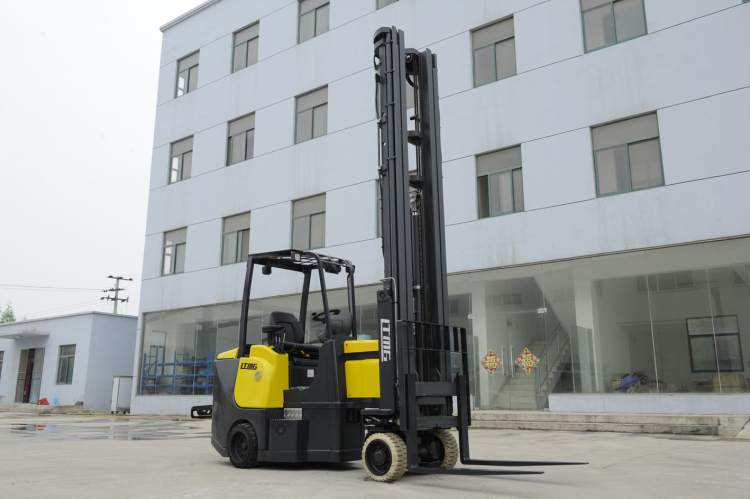

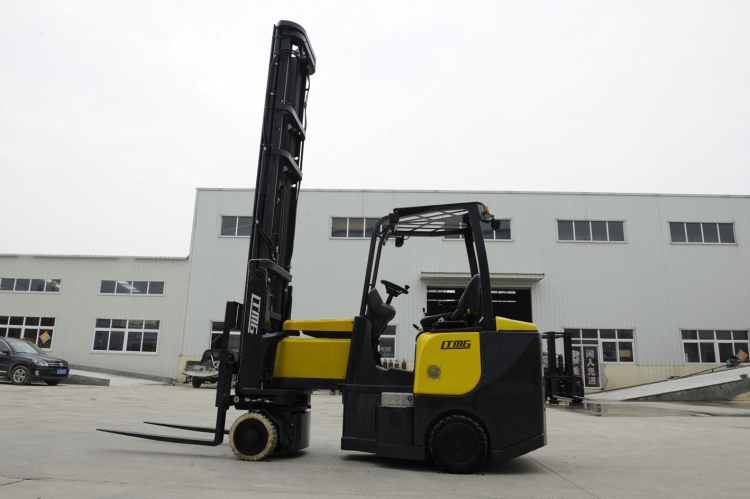

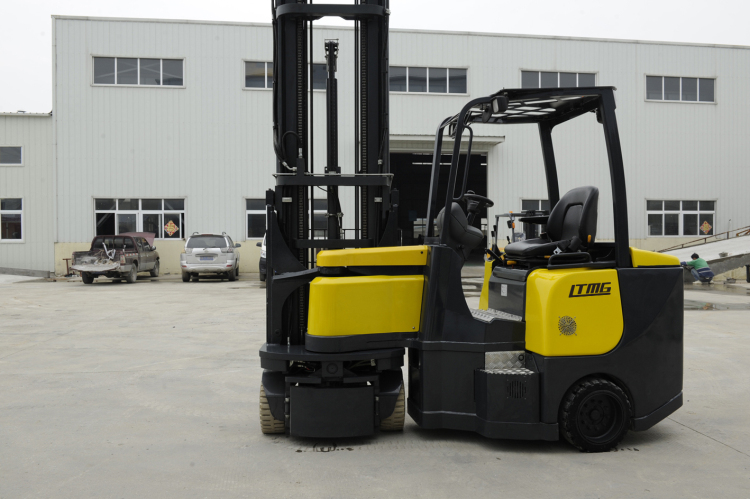

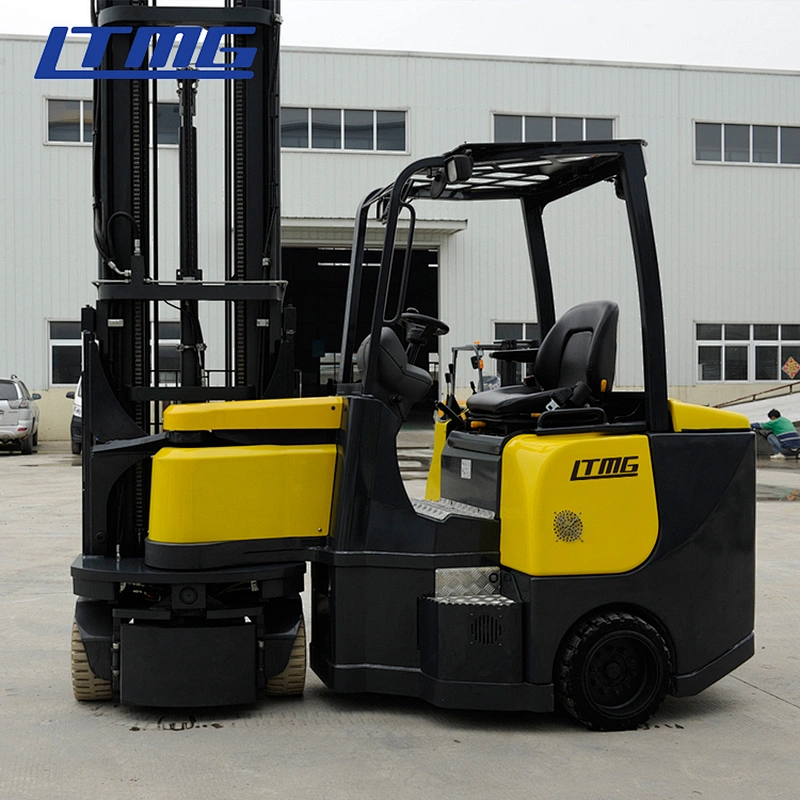

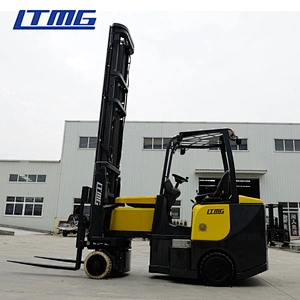

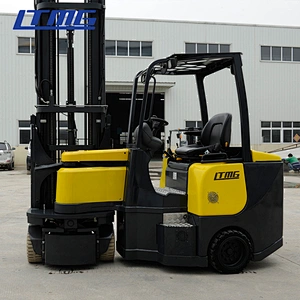

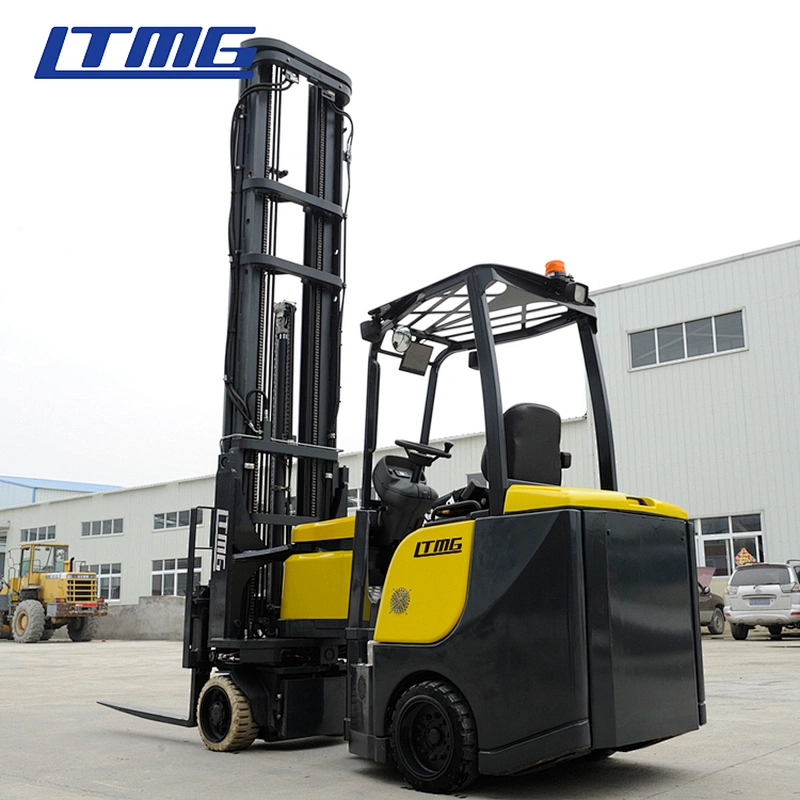

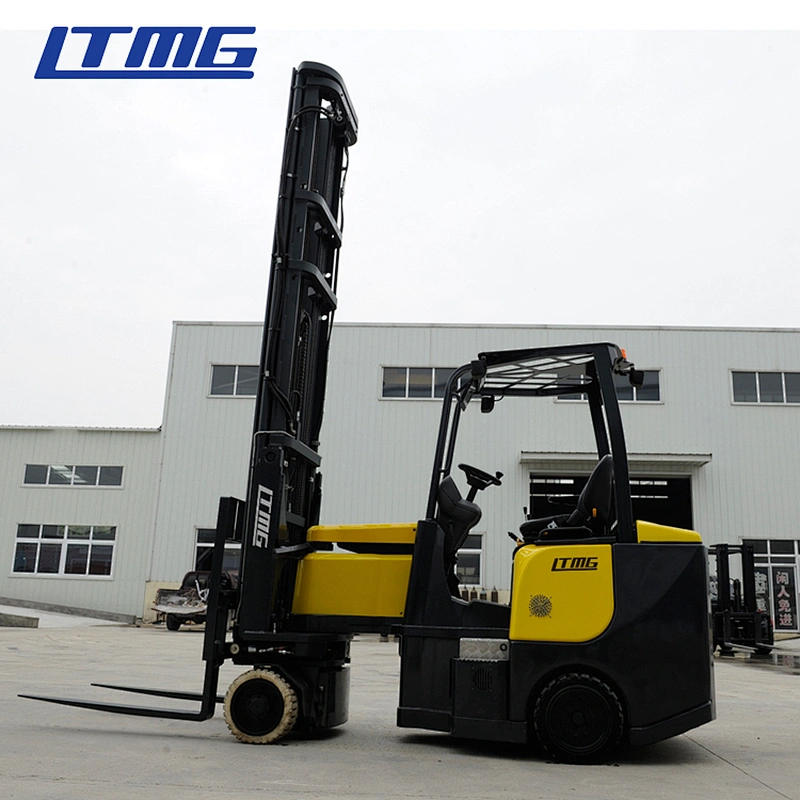

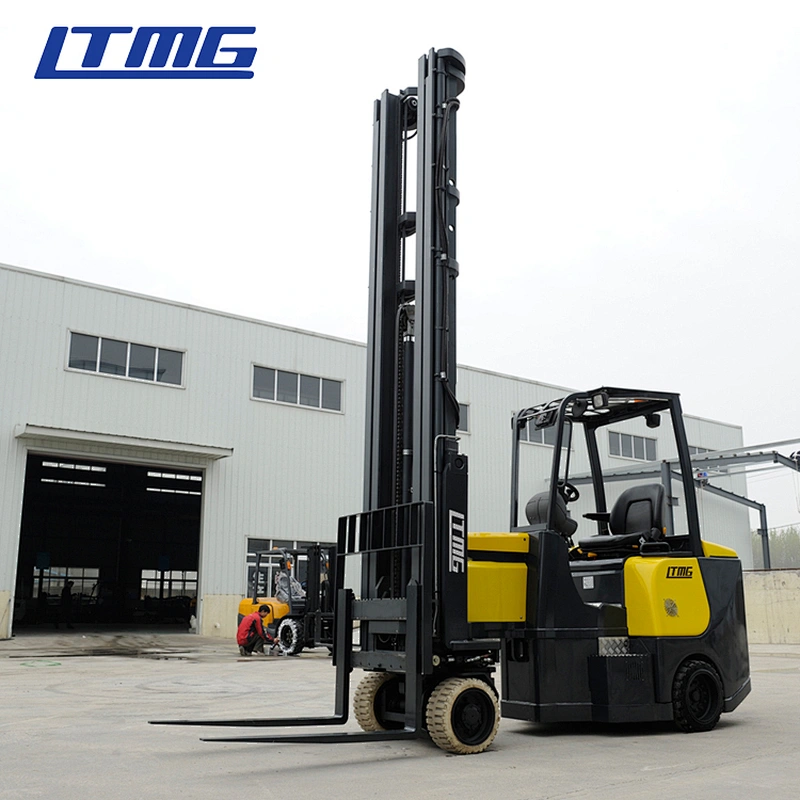

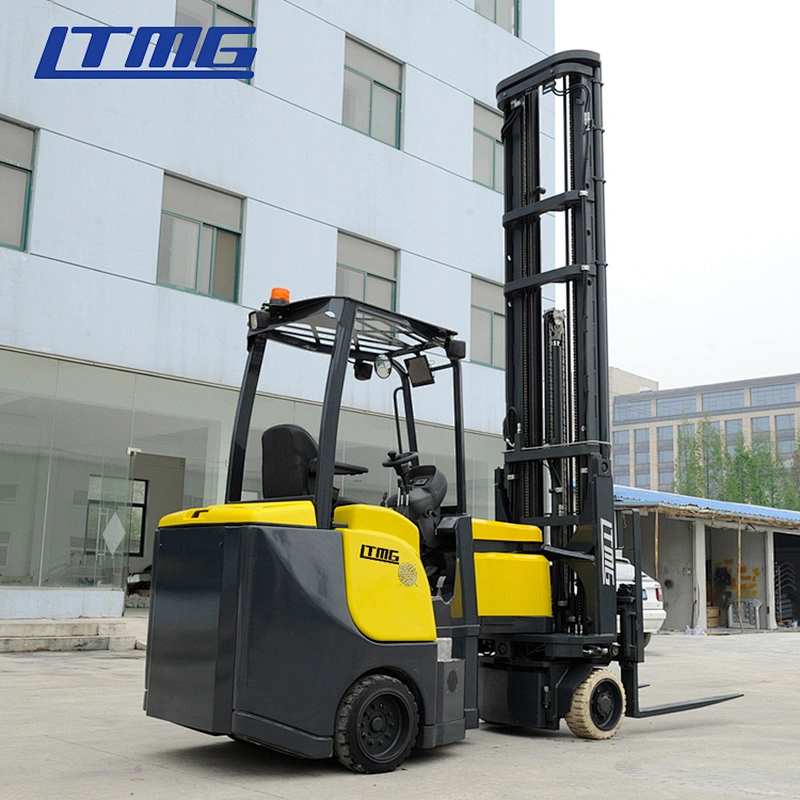

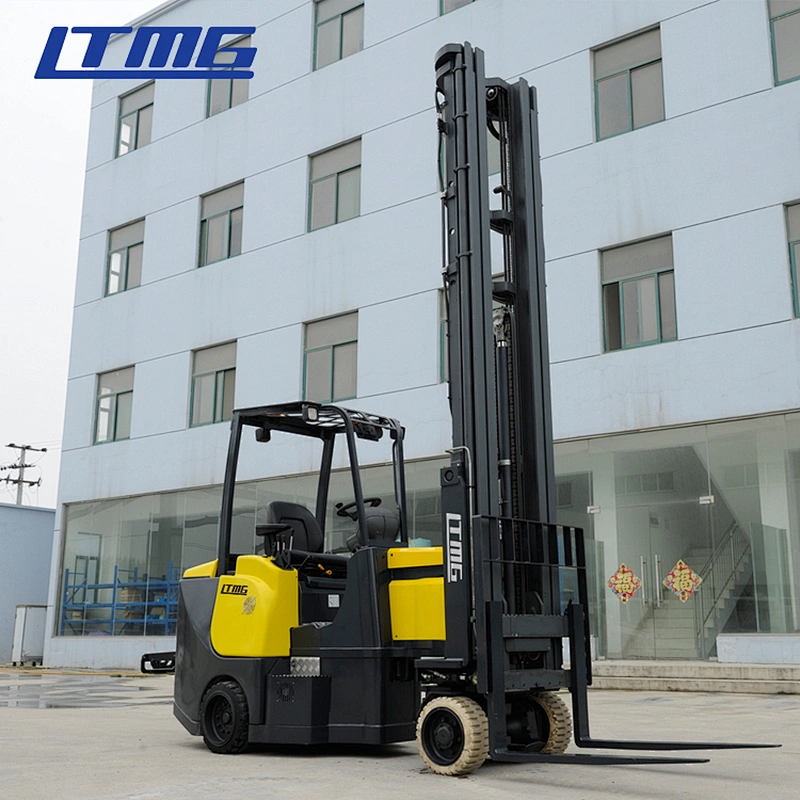

2 Ton Articulated Electric Forklift Work in Narrow Aisle
2 Ton Articulated Electric Forklift Work in Narrow Aisle
| 1 | Lift Height mm | 4750 | 7050 | |
| 2 | Free Lift mm | 1536 | 2346 | |
| 3 | Closed Height mm | 2398 | 3298 | |
| 4 | Extended Height mm | 5163 | 7913 | |
| 5 | Mast Range mm | 4300-9050 | 7050-12400 | |
| 6 | Overall Length mm | 2780 | ||
| 7 | Ground Clearance mm | 50 | ||
| 8 | Overhead Guard height mm | 2270 | ||
| 9 | Chassis Width Rear mm | 1220 | 1400 | |
| 10 | Chassis Width Front mm | 980 | ||
| 11 | Load Centre mm | 500 | ||
| 12 | Wheel Base mm | 1735 | ||
| 13 | Seat Height mm | 1220 | ||
| 14 | Mast Tilt(back/fwd) ° | 3/1 | ||
| 15 | Capacity kg | 2000 | ||
| 16 | Ground Speed km/h | 16 | ||
| 17 | Lift Speed (Laden/unladen) m/s | 0.4/0.5 | ||
| 18 | Front Tyre size mm | 412*174 | ||
| 19 | Rear Tyre size mm | 457*150 | ||
| 20 | Gradeability (Laden/unladen) % | 12/15 | ||
| 21 | Battery Voltage/Capacity/Engine V/Ah | 48V/775/930Ah | ||
| 22 | Weight of Truck less battery kg | 5310 | ||
| 23 | Weight of Truck including the battery kg | 6900 | ||
| 24 | Standard Color | Yellow/Grey/Red | ||
| 25 | Seat | KAB | ||
| 26 | Drive Type | 19.5kw AC Traction motor | ||
Click here for more product information

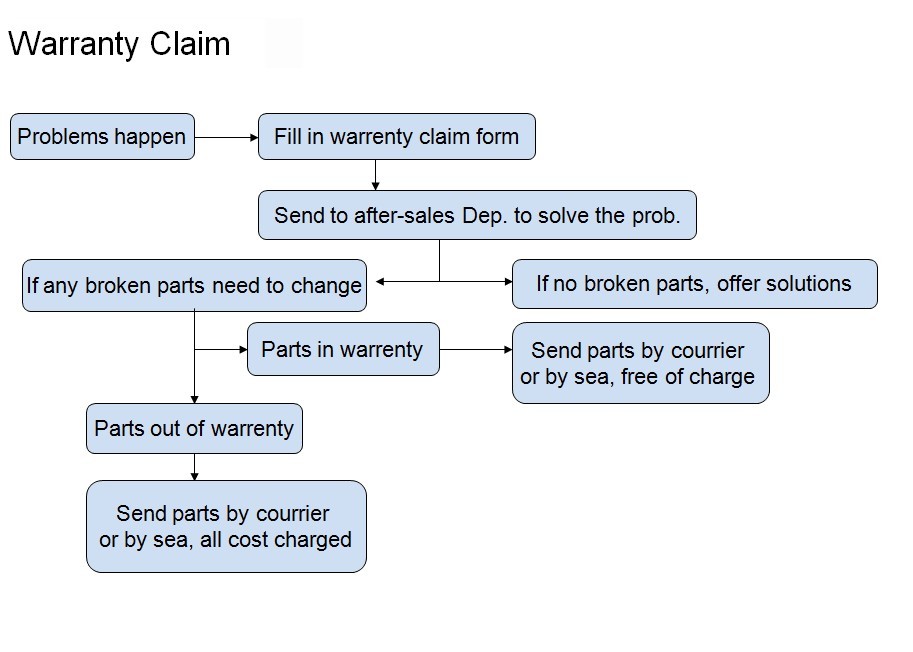

After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 30 days.
