- Warranty:1 Year/2000 Working Hours
- Product Name:1.5 ton 2 ton electric forklift with lithium battery
- Color:Customer Demanded
- Item:1.5 ton electric forklift
- Voltage/capacity:48V/450Ah
- Wheel base:1380mm
- Turning raduis:1956mm
- Brand:LTMG
- Max. lifting height:3000mm
- Ground clearence:115mm
- Applicable Industries:Construction works
- Applicable Industries:materials handing equipment
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2140*1080*2015mm
- Certification:CE/ISO9001

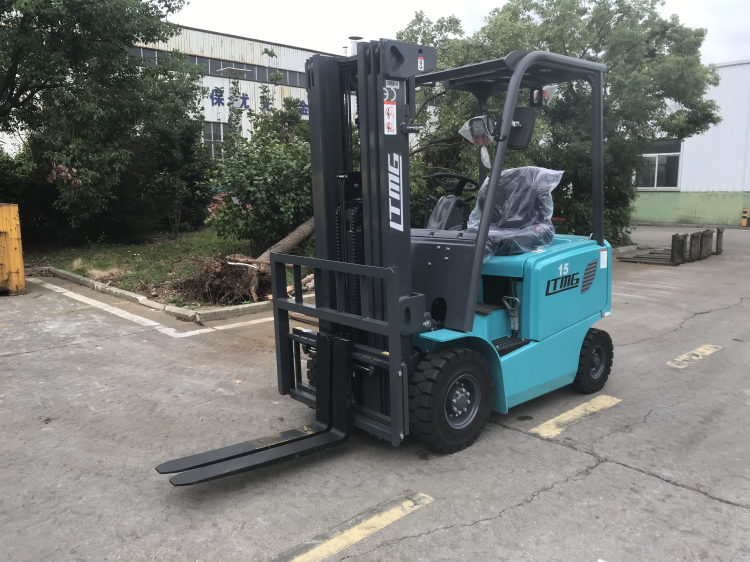

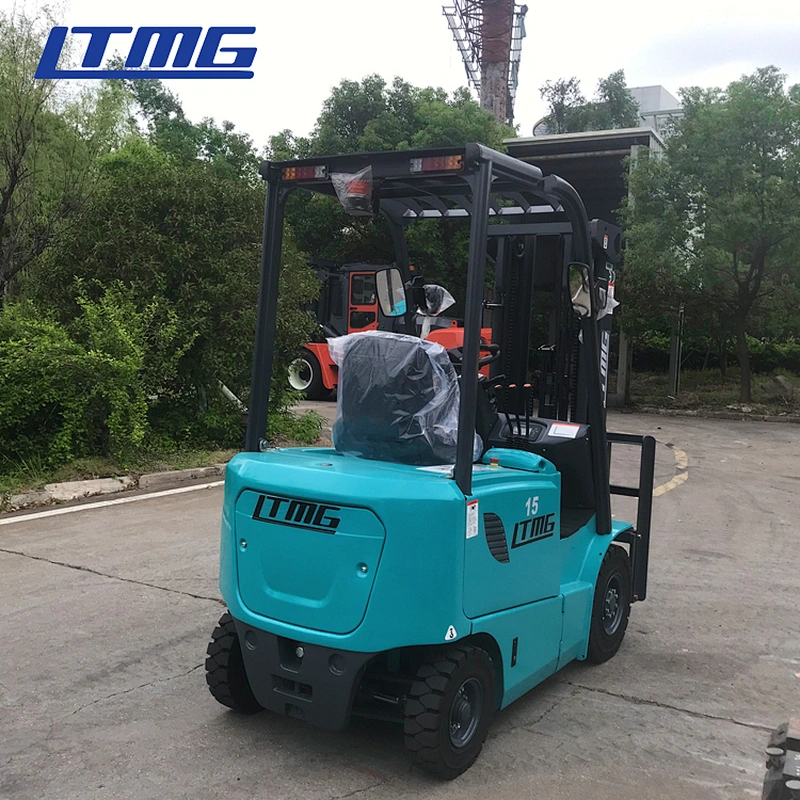

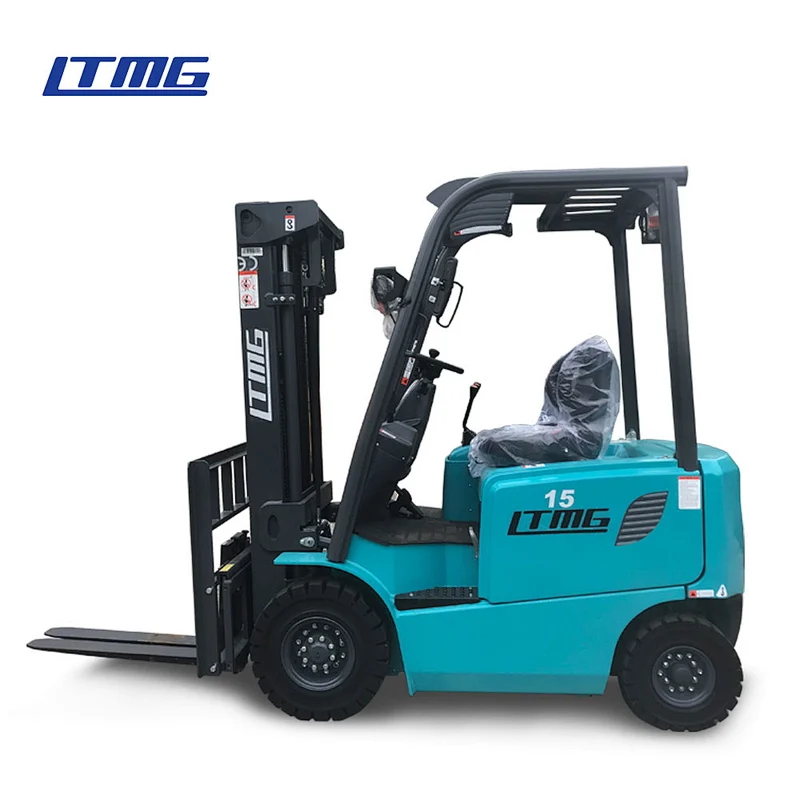

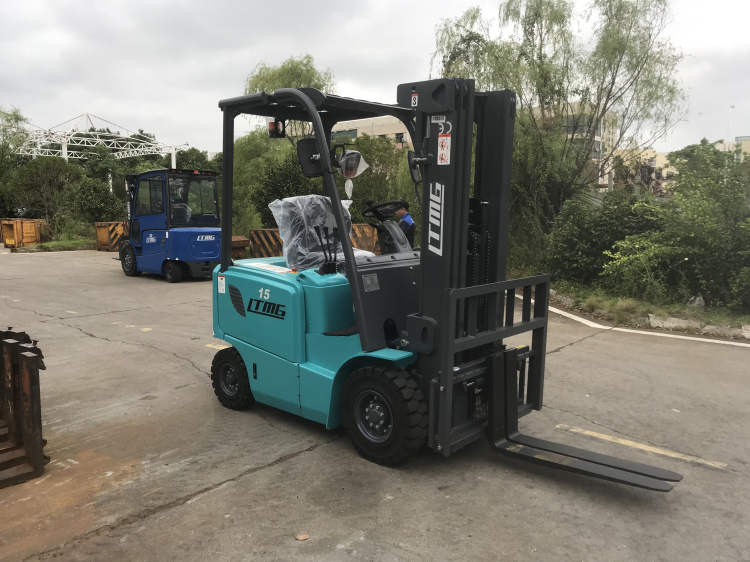

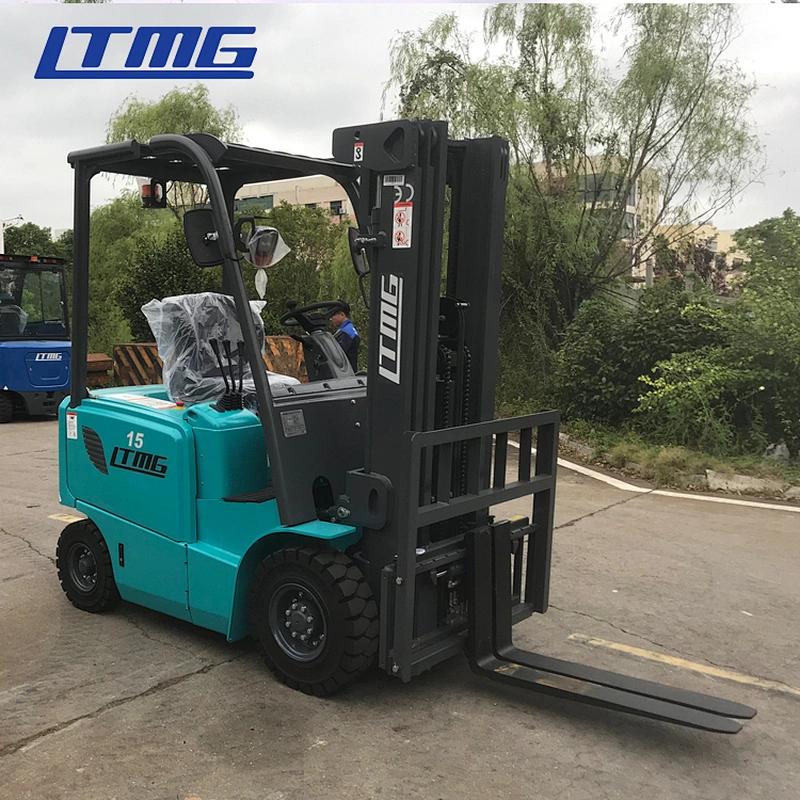

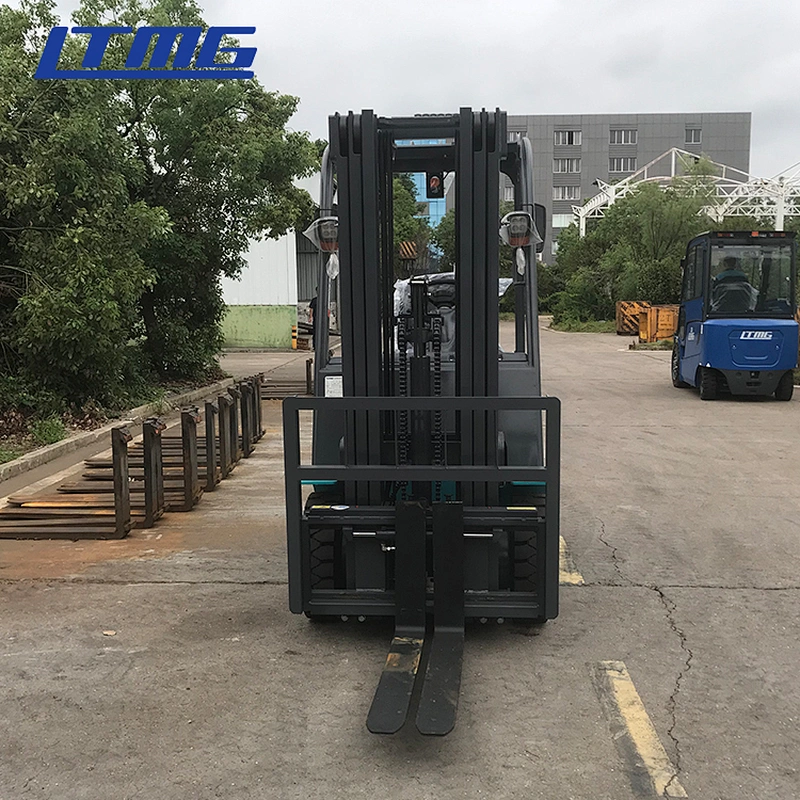

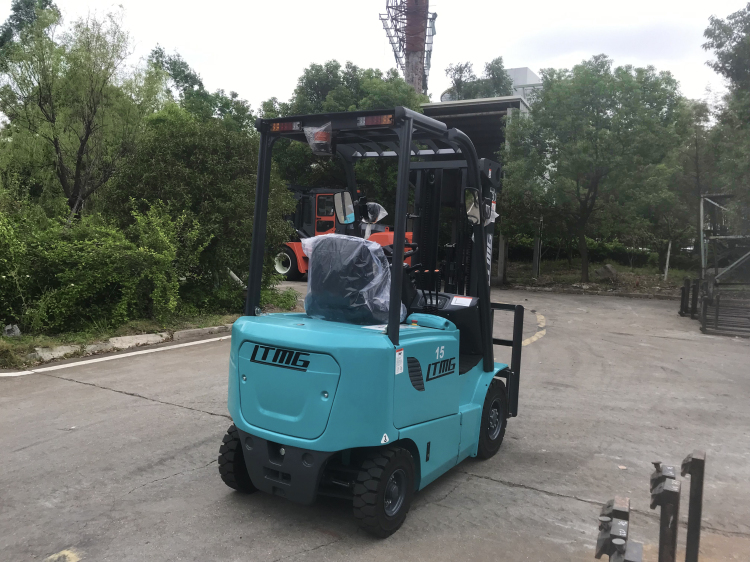

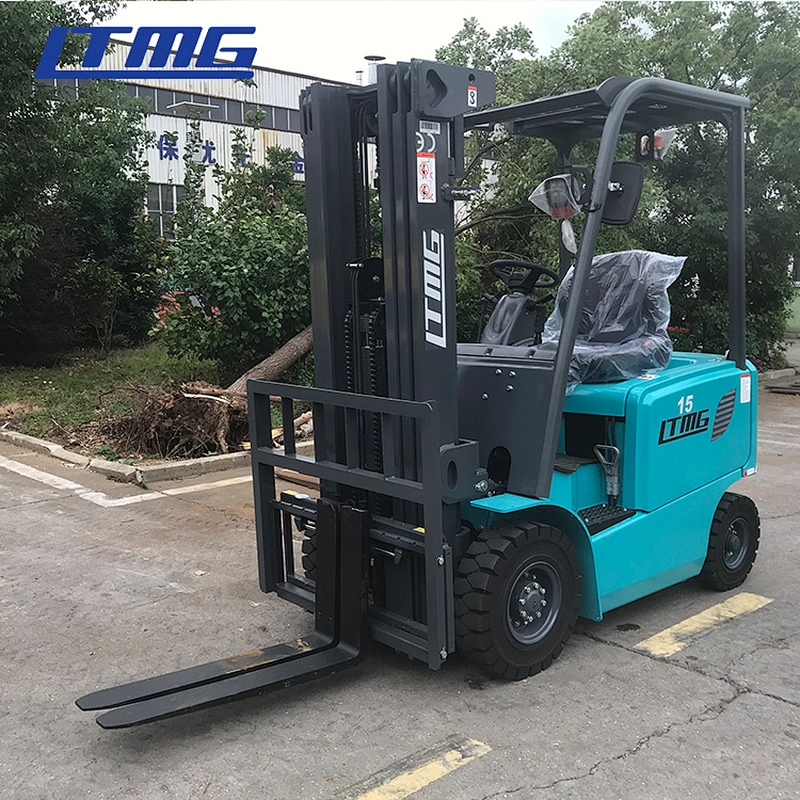

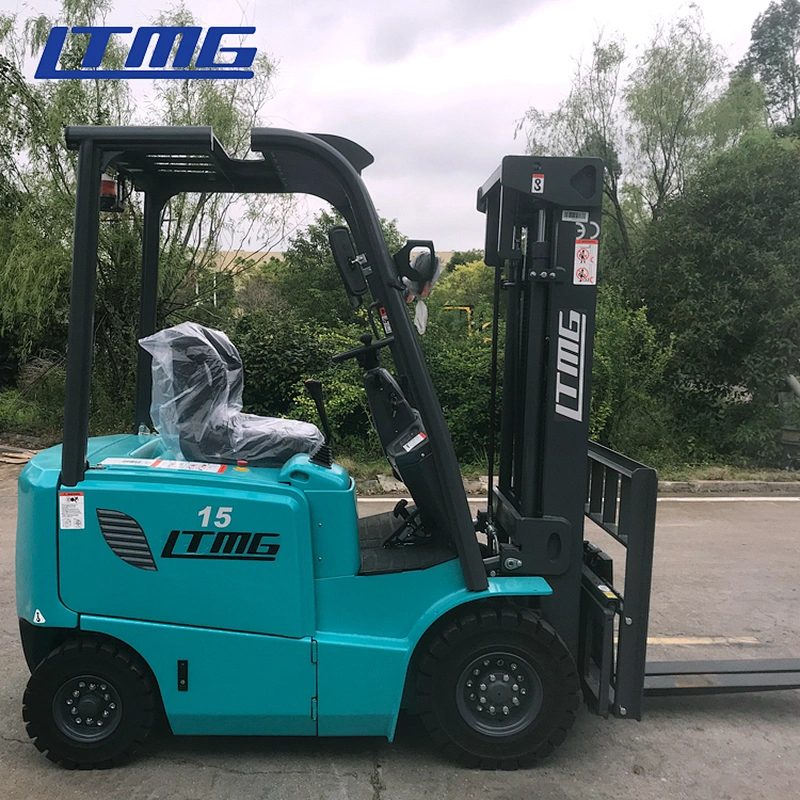

China new style mini 1.5 ton 2 ton electric forklift truck with lithium battery
1.Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3. Economical, environmentally friendly. it won't be emissions, and does not produce noise. In the running process does not produce carbon monoxide, carbon dioxide, nitrogen oxide or other causes of global warming and air pollution harmful gases. And it has longer service life.
The specification of 1.5 ton small electric forklift truck | ||||||||||
Features | 1 | Manufacturer | LTMG | |||||||
2 | Model | FB15 | ||||||||
3 | Load capacity | kg | 1500 | |||||||
4 | Load center | mm | 500 | |||||||
5 | Power unit | Battery ,diesel ,gasoline | Battery | |||||||
6 | Operator type | Driver/seat | ||||||||
7 | Tire type | Front/rear | PNEUMATIC | |||||||
8 | Wheel | Number Front/rear | 2X/2 | |||||||
Dimension | 9 | Max. lifting height | mm | 3000 | ||||||
10 | Free lift | mm | 150 | |||||||
11 | Fork size | L*W*T | mm | 920*122*45 | ||||||
12 | Tilt range | Mast forward/backward | deg | 6-12 | ||||||
13 | Overall length(without fork) | mm | 2150 | |||||||
14 | Total width | mm | 1090 | |||||||
15 | Mast height (fork lowering) | mm | 1995 | |||||||
16 | Overall height fork raised | With backrest | mm | 3945 | ||||||
17 | Height to head guard | mm | 2170 | |||||||
18 | Turning raduis(outside) | mm | 1950 | |||||||
19 | Front face of fork to front axle | mm | 445 | |||||||
20 | Min. right angle stacking aisle | not add load length&clearence | mm | 1935 | ||||||
Performance | 21 | Speed | Max Travelling full/no load | km/h | 13/14.5 | |||||
22 | Lifting full load | mm/s | 240 | |||||||
23 | Lifting no load | mm/s | 450 | |||||||
25 | Gradeability | full load | % | 12.5 | ||||||
Weight | 26 | Truck weight | kg | 3170 | ||||||
27 | Weight distribution | Full load front/rear | kg | 2425/895 | ||||||
28 | No load front/rear | kg | 1025/1395 | |||||||
Frame | 29 | Tires | Number | front/rear | 2/2 | |||||
30 | Model | front axle | 6.50-10-10PR | |||||||
31 | rear axle | 5.00-8-10PR | ||||||||
32 | Wheelbase | mm | 1380 | |||||||
33 | Tread | Front/rear | mm | 955/950 | ||||||
34 | Ground clearence | At lowest point(mast) | mm | 110 | ||||||
Frame | mm | 115 | ||||||||
35 | Brake | Service brake | Hydraulic-foot peda | |||||||
Parking brake | Mechanical lever | |||||||||
36 | Battery | Voltage/capacity | V/AH/5hr | 48V-440 | ||||||
37 | Weight (standard) | kg | 500 | |||||||
38 | Electric motor | Driving motor | kw/60min | 8 | ||||||
39 | Hydraulic driving motor | kw/5min | 8.6 | |||||||
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
