- Rated Capacity:2.5 ton
- Load Center:500mm
- Fork Size:1070*122*40mm
- Type:2.5 ton electric forklift
- Wheel base:1400mm
- Power type:Battery Operated
- Lifting Height:3000mm - 6000mm
- Controller:Curtis AC controller
- Color:Customer Demanded
- Warranty:One Year or 2000 working hours
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Home Use
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:logistics transportation
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Russia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Local Service Location:Kyrgyzstan
- Local Service Location:Nigeria
- Local Service Location:Tajikistan
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:Russia
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:Romania
- Showroom Location:Kazakhstan
- Showroom Location:Kyrgyzstan
- Showroom Location:Tajikistan
- Showroom Location:Australia
- Showroom Location:Morocco
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2285*1150*1995mm
- Certification:CE/ISO9001:2008
Product Specification

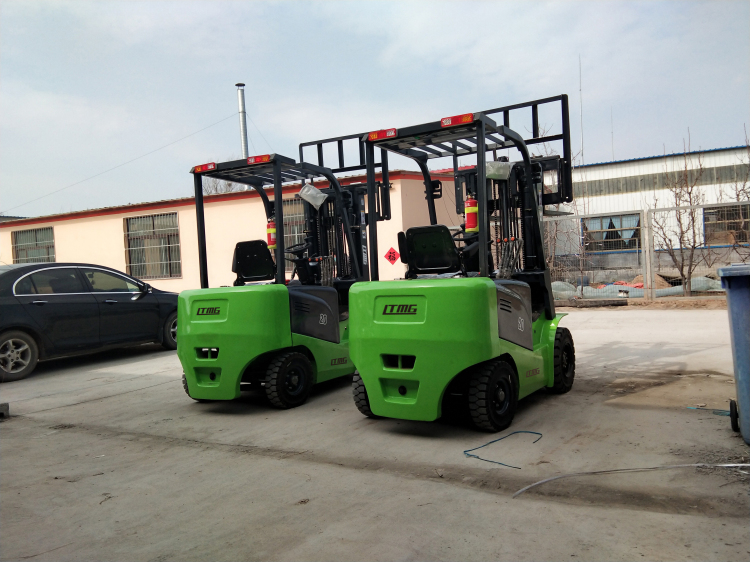

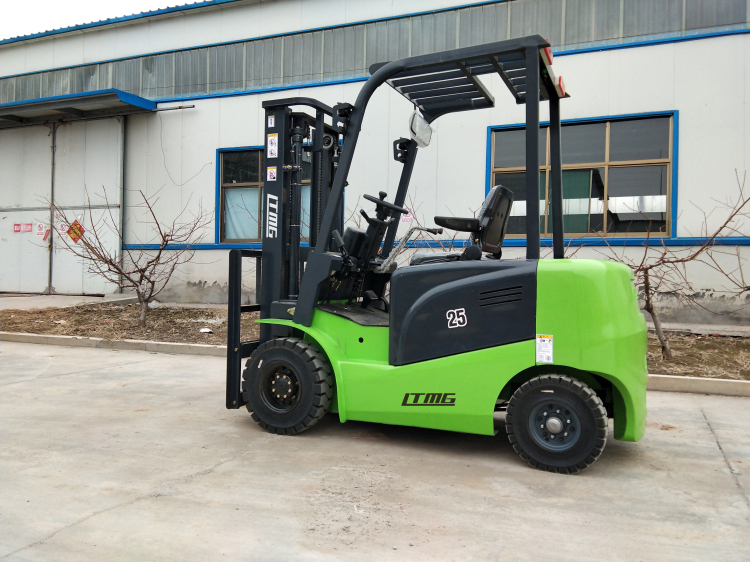

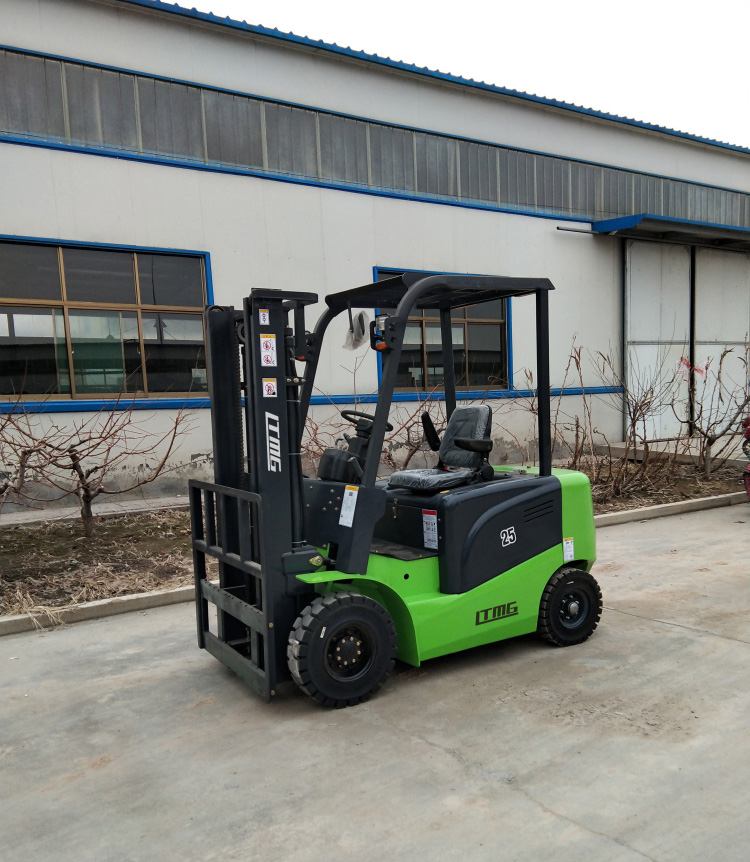

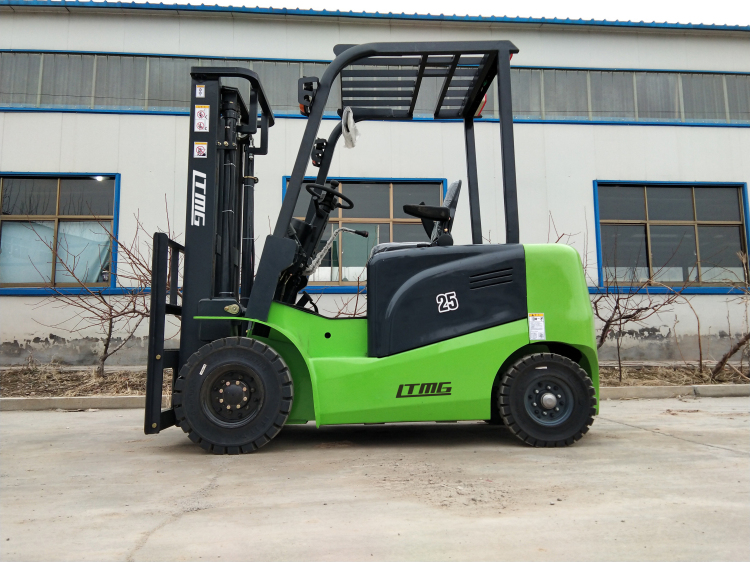

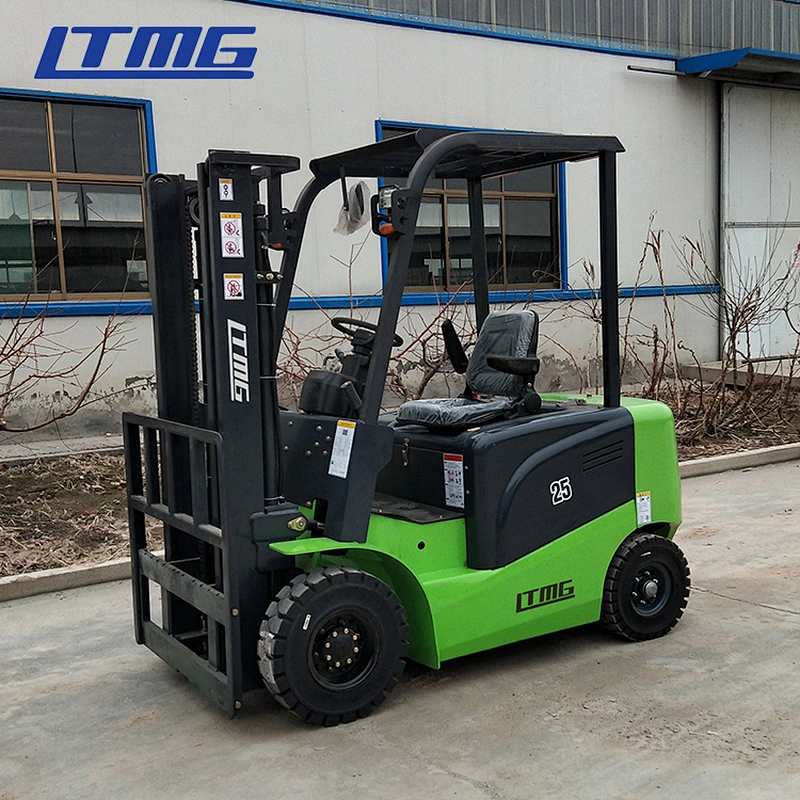

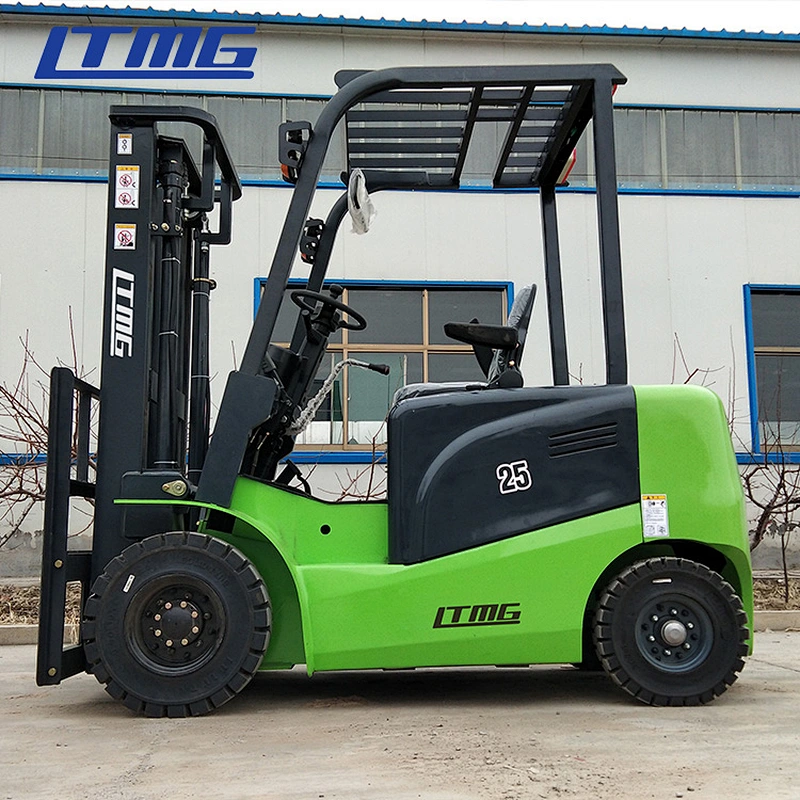

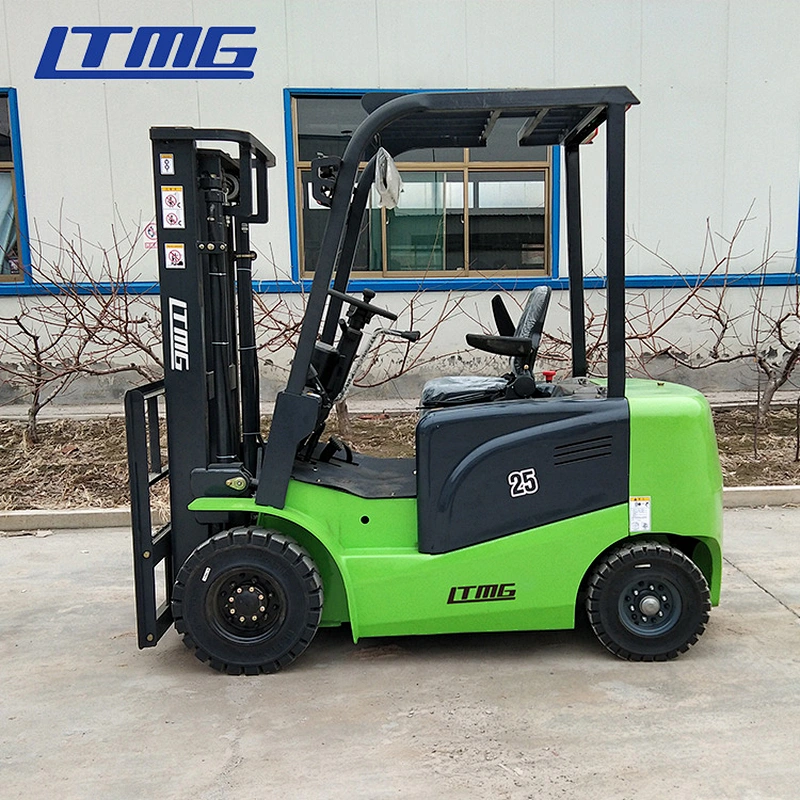

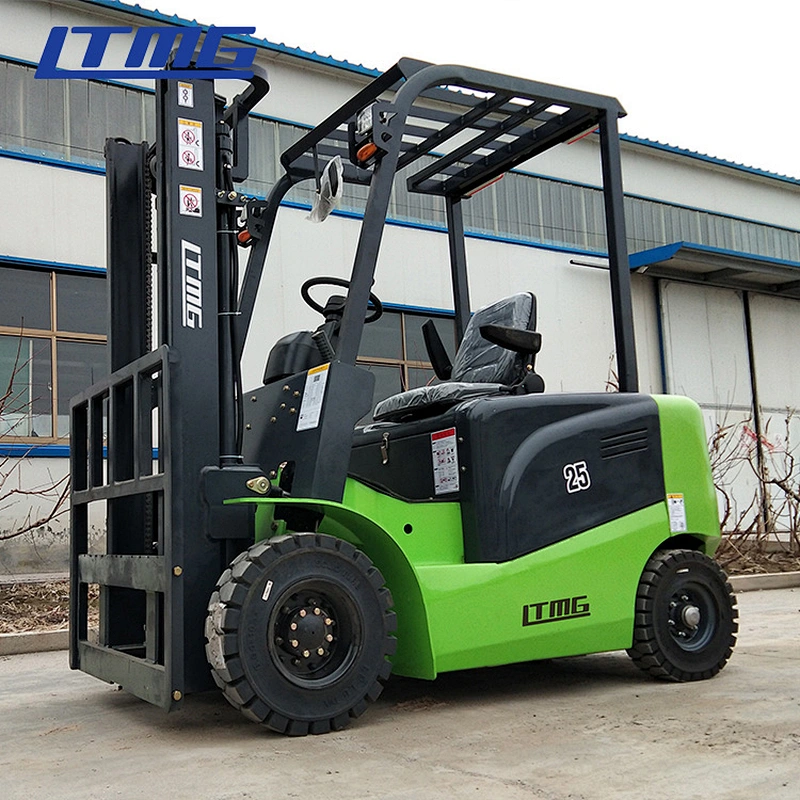

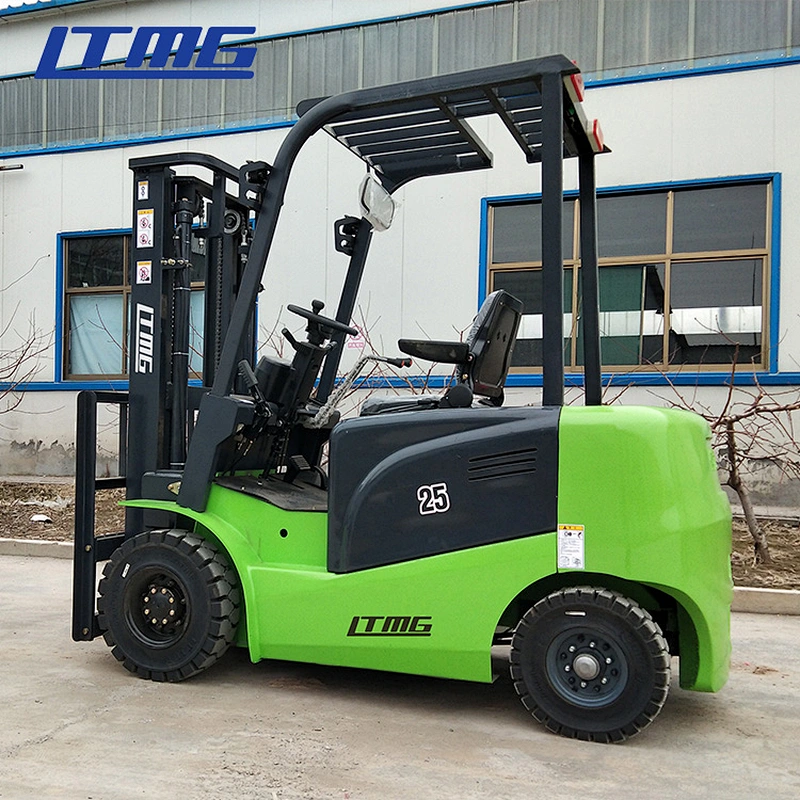

LTMG 2.5 ton electrical forklift FB25
The specification of LTMG 2.5 ton electric forklift FB25 | ||||||
Specification | Model | FB25 | ||||
Load capacity | 2500 kg | |||||
Load center | 500 mm | |||||
Power unit | Battery | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel(x=driving),Front/rear | 2X/2 | |||||
Dimensions | Max. lifting height | 3000 mm | ||||
Free lift | 160 mm | |||||
Fork size(L*W*T) | 1070*122*40 mm | |||||
Tilt range(Mast forward/backward) | 6/12 deg | |||||
Overall length(without fork) | 2285 mm | |||||
Total width | 1150 mm | |||||
Mast height (fork lowering) | 1995 mm | |||||
Overall height fork raised(With backrest ) | 4030 mm | |||||
Height to head guard | 2145 mm | |||||
Turning raduis(outside) | 2000 mm | |||||
Load distance | 445 mm | |||||
Min. right angle stacking aisle(not add load length & clearence) | 2445 mm | |||||
Performance | Max Travelling speed (full load) | 13.5 km/h | ||||
Max Travelling speed (no load) | 14.5 km/h | |||||
Lifting speed (full load) | 240 mm/s | |||||
Lifting speed (no load) | 450 mm/s | |||||
Gradeability (full load ) | 12.50% | |||||
Weight | Truck weight(with standard battery) | 3820 kg | ||||
Weight distribution(full load,front/rear) | 5425/895 kg | |||||
Weight distribution(no load,front/rear) | 1425/2395 kg | |||||
Chassis & Wheels | Tire number(front/rear ) | 2/2 | ||||
Tire model(front axle ) | 21*8-9-16PR | |||||
Tire model(rear axle ) | 18*7-8-14PR | |||||
Wheelbase | 1400 mm | |||||
Tread(Front/rear ) | 955/950 mm | |||||
Ground clearence:At lowest point(mast) | 110 mm | |||||
Service brake | Hydraulic-foot pedal | |||||
Parking brak | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 48V-450(V/AH/5hr) | ||||
Weight with box (standard) | 825 kg | |||||
Electric motor | AC Driving motor | 11 kw | ||||
DC Hydraulic driving motor | 8.6 kw | |||||
Control type | Driving AC , lifting DC | |||||
Driving AC , lifting AC(as option ) | ||||||
Operating pressure | 175 kg/cm² | |||||
Features
1.Original imported electric control system.
2.High voltage and large capacity battery.
3.Imported Accelerator and Power Connector brand.
3.Imported Accelerator and Power Connector brand.
4.Fully enclosed instrument panel cover. 5.Battery side-take function.

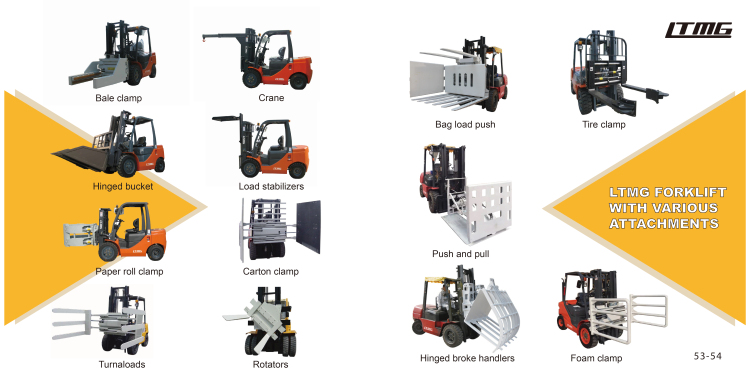

LTMG has several attachments for your every use!

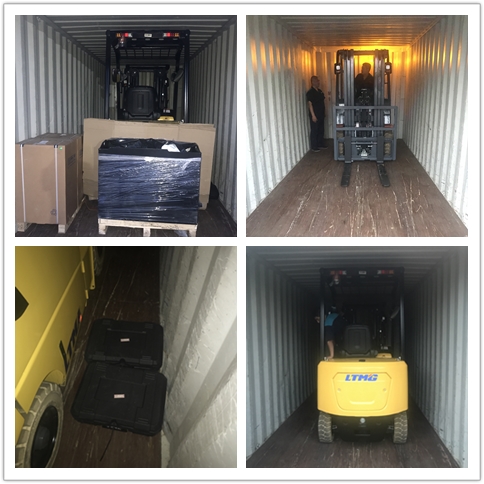

Product packaging
Certificate
Exhibition and Clients
Our Service
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Our Company
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
