- Type:Powered Pallet Truck
- Load center:500mm
- Wheel base:1380mm
- Turning raduis(outside):2100mm
- Max. lifting height:3000mm
- Ground clearence:110mm
- Tire type:Air tires(Solid is optional)
- Color:customized
- Voltage/capacity:48V/630Ah
- Item Type:minni electric forklift
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:India
- Local Service Location:Australia
- Local Service Location:UAE
- Local Service Location:Colombia
- Local Service Location:Algeria
- Local Service Location:Bangladesh
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Algeria
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Overall Dimensions:3350*1150*1995mm
- Fork Width:120mm
- Fork Length:1070mm
- Min. Lifting Height:0mm
- Certification:CE/ISO9001:2008
Main Features
1.Super low Non-slip pedal
2.High-strengthoverheadguard
3.Adjustable steering wheel and safety seat.
4.Humanized righ- side hydraulic opeartion handle and emergency power- off button.
5.Full-view mast and fork carriage ensure operator's excellent operation vision.
6.American Curtis controller. The controller is directly fixed in the balanced weight to lead better heat dissipation.

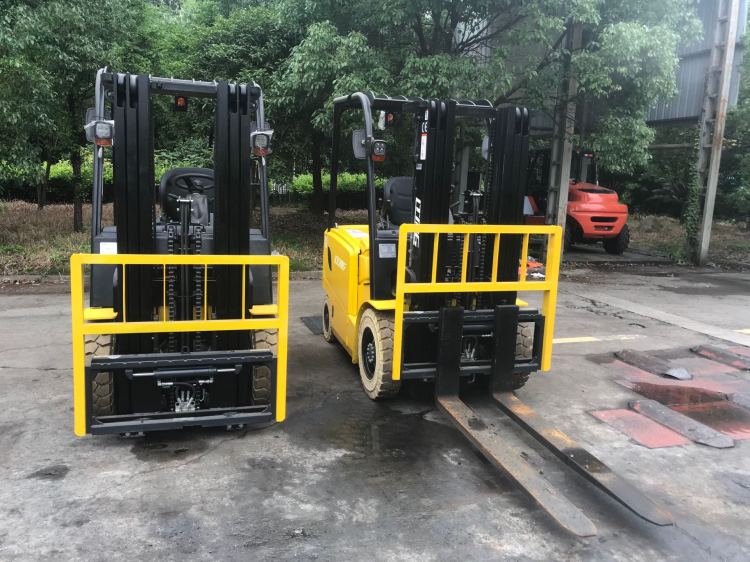

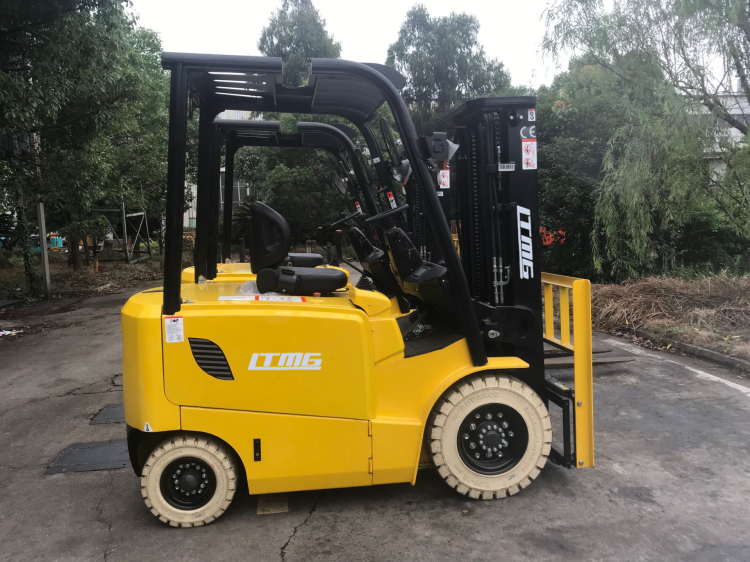

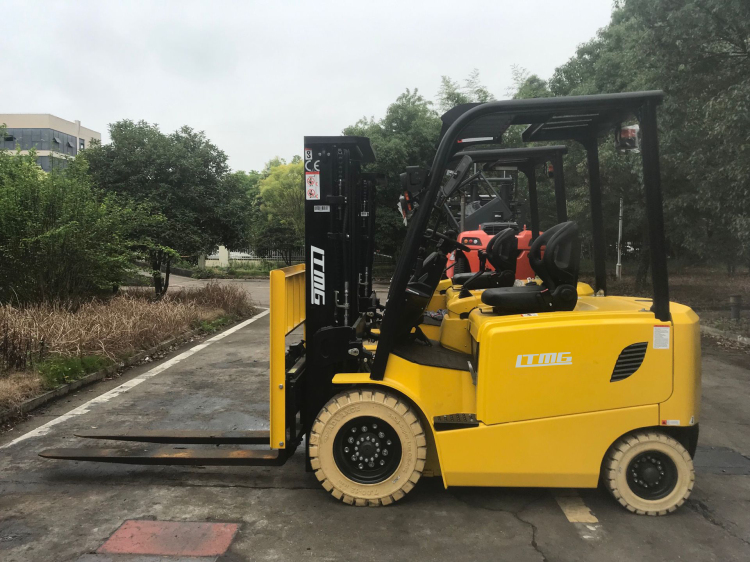

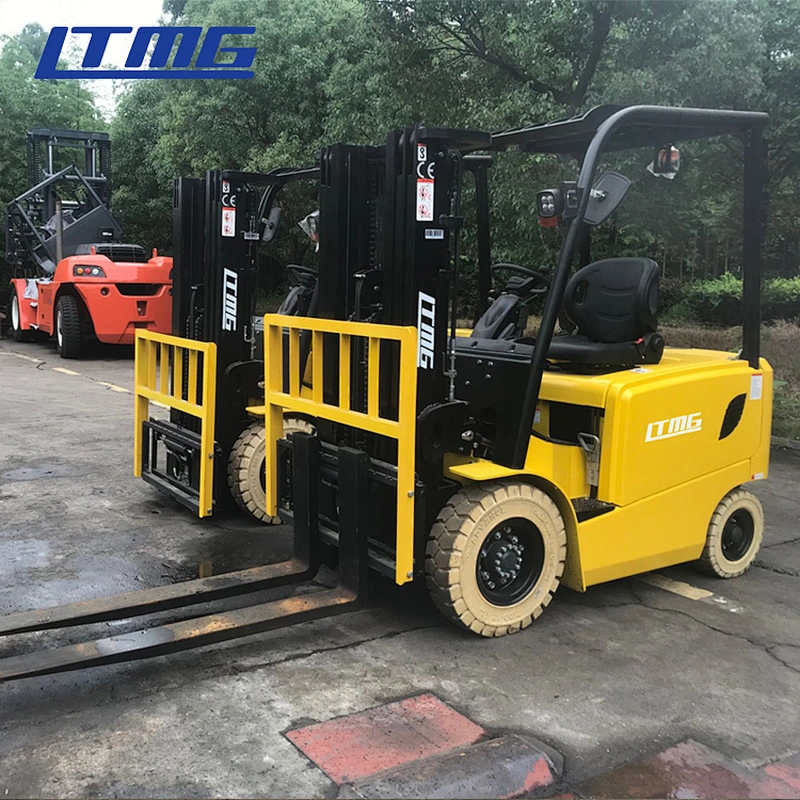

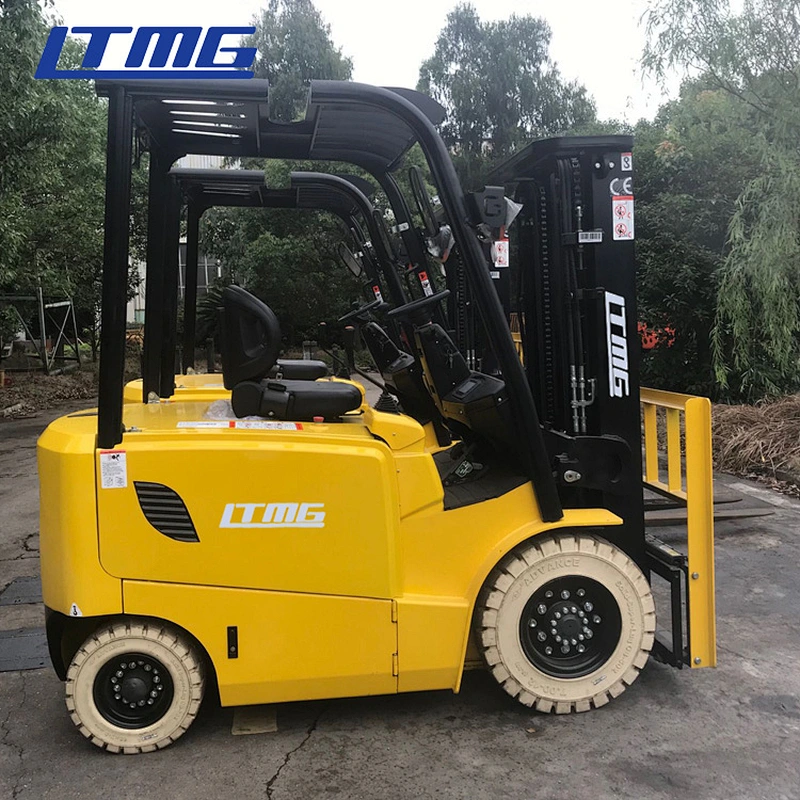

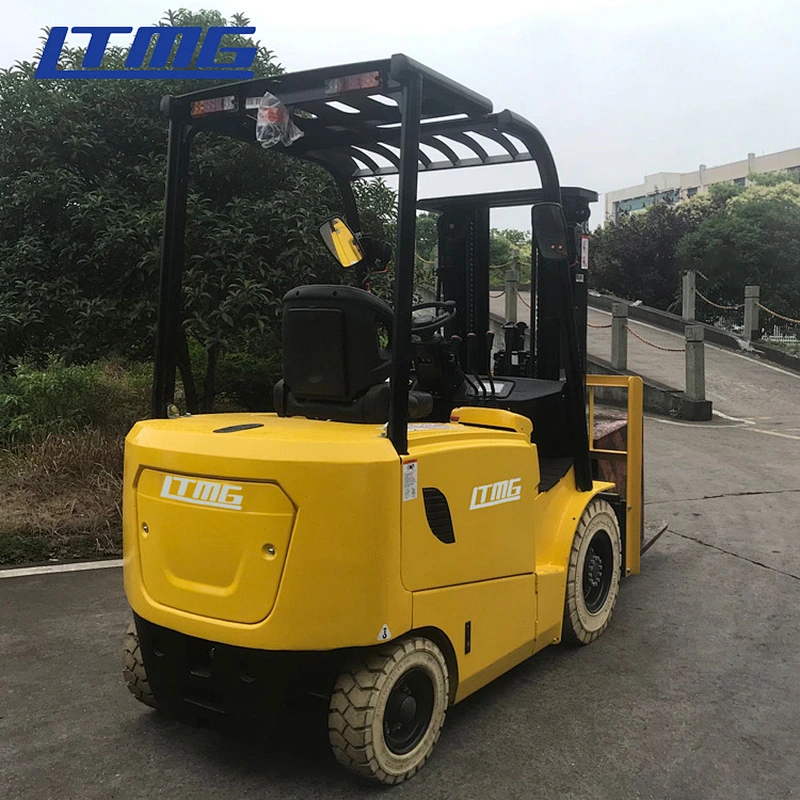

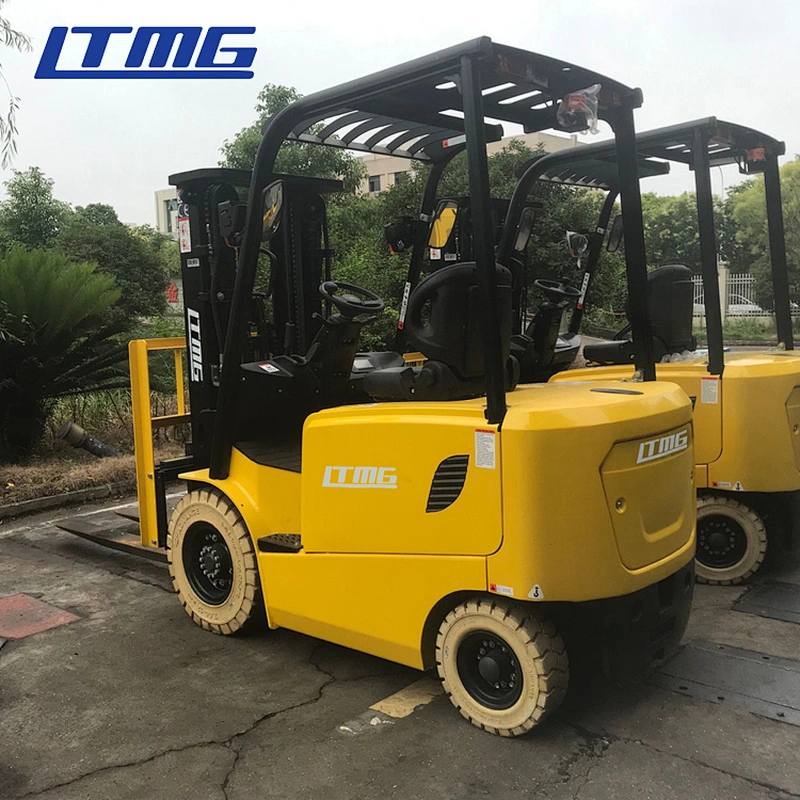

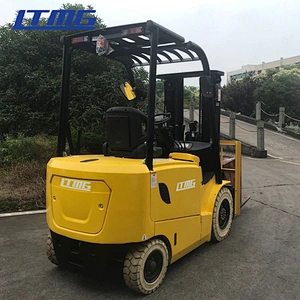

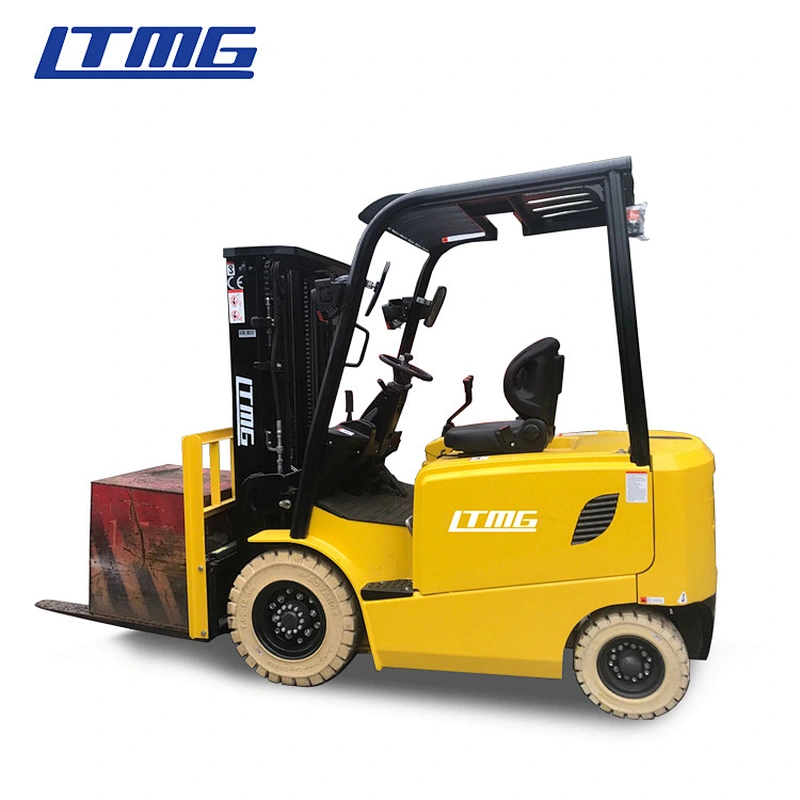

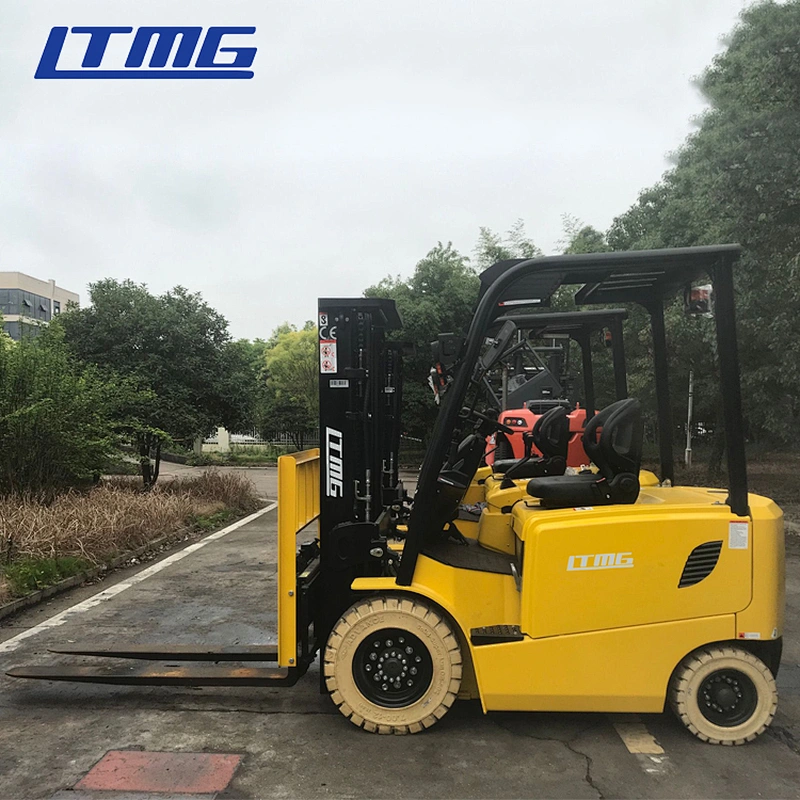

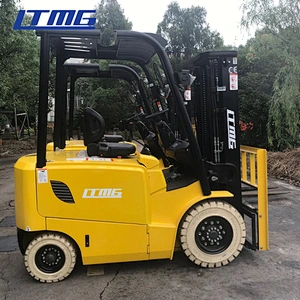

Specifications of 2 ton Small battery powered electric forklift AC motor controller forklift price | ||||
Brand | LTMG | |||
Model | FB20 | |||
Operation type | seated type | |||
Load capacity | kg | 2000 | ||
Load center | mm | 500 | ||
Weight with battery | kg | 4400 | ||
Tire,chassis | ||||
Tire Type | Pneumatic | |||
Size | ||||
Mast tilt,Forward/backward | α/β(°) | 6/12 | ||
Mast height after mast fall | mm | 1995 | ||
Free lift height | mm | 100 | ||
Standard Mast height | mm | 3000 | ||
Overhead guard height | mm | 2220 | ||
Overall length | mm | 3350 | ||
Vehicle width | mm | 1150 | ||
Fork size | mm | 1070 X120 X40 | ||
Channel width,with 1000X1200mm pallet | mm | 4210 | ||
Channel width,with 800X1200mm pallet | mm | 4260 | ||
Turning radius | mm | 2100 | ||
Performance | ||||
Walking speed,loaded/withoutload | km/h | 13/13.5 | ||
lifting speed,loaded/load | m/s | 0.3/0.45 | ||
Dropping speed loaded/without load | m/s | 0.44/0.435 | ||
Maximum traction,loaded | N | 17000 | ||
Max grade ability,loaded/without load | % | 10.5/14 | ||
Drive | ||||
Drive motor power | kw | 11 | ||
Drive motor power | kw | 8.6 | ||
Level voltage/Capacitance | V/Ah | 48/630 | ||
Others | ||||
Drive System | DC/AC | |||
Electrical control system | Curtis from America | |||
After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
