- Product Name:LTMG mini electric forklift 2 ton 3 ton forklift truck electric price
- Type:electric forklift with side shifter
- Rated Capacity:2000kg
- Lift Height:3000mm
- Mast Tilt Angle F/R:6/12
- Wheelbase:1510mm
- Controller:CURTIS
- Mast:Triplex
- Battery capacity:48V/560 Ah
- optional:side shift, cabin, fork positioner, fork extension. etc
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:France
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:Fujian,China
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070
- Fork Width:120
- Overall Dimensions:2360*1160*2240
- Certification:CE/ISO9001:2008
Product Description
LTMG mini electric forklift 2 ton 3 ton 4 ton 5 ton forklift truck electric price

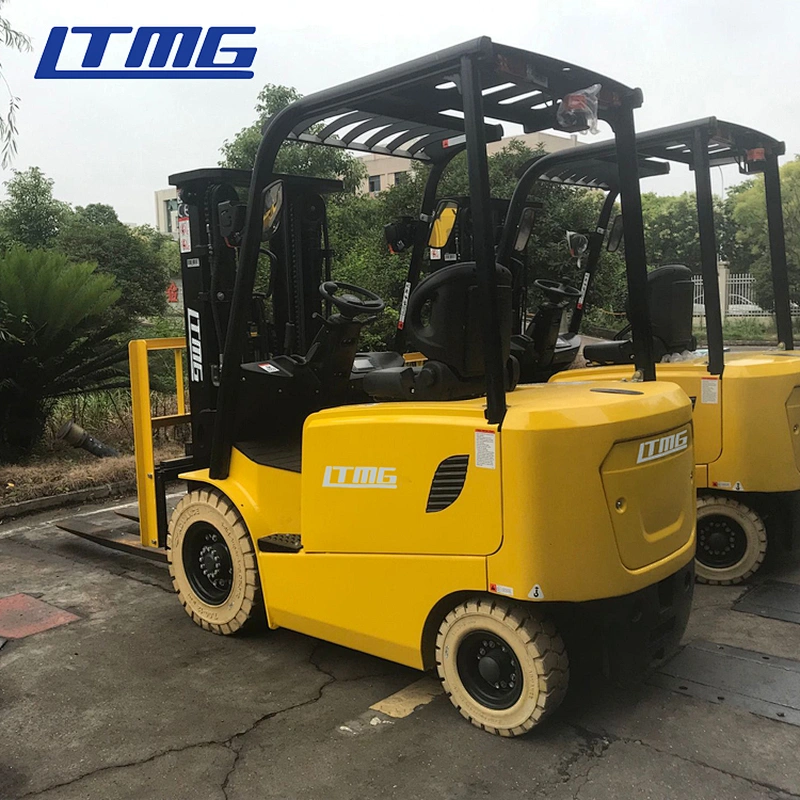

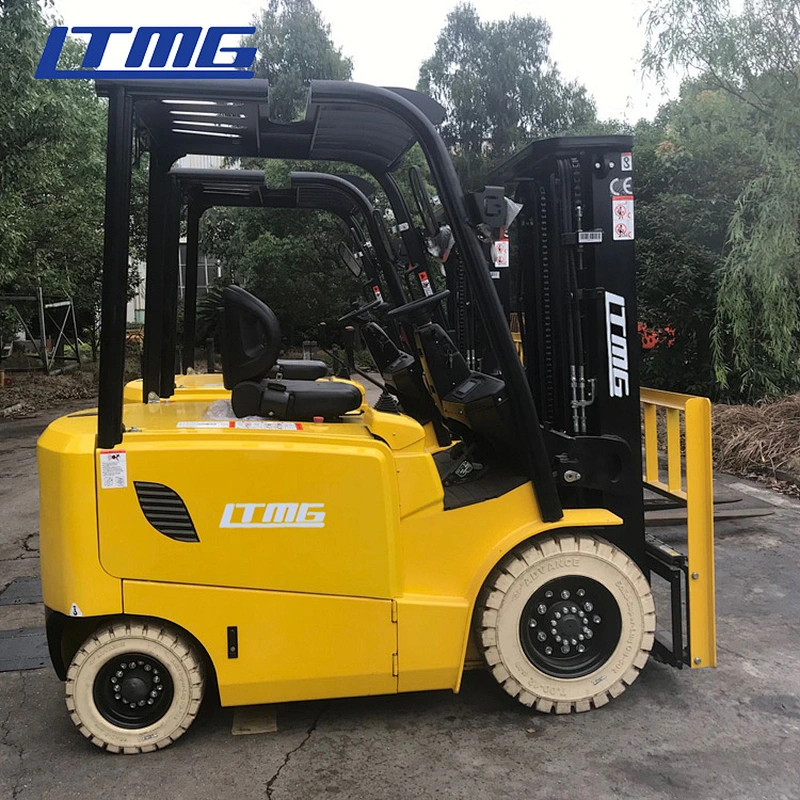

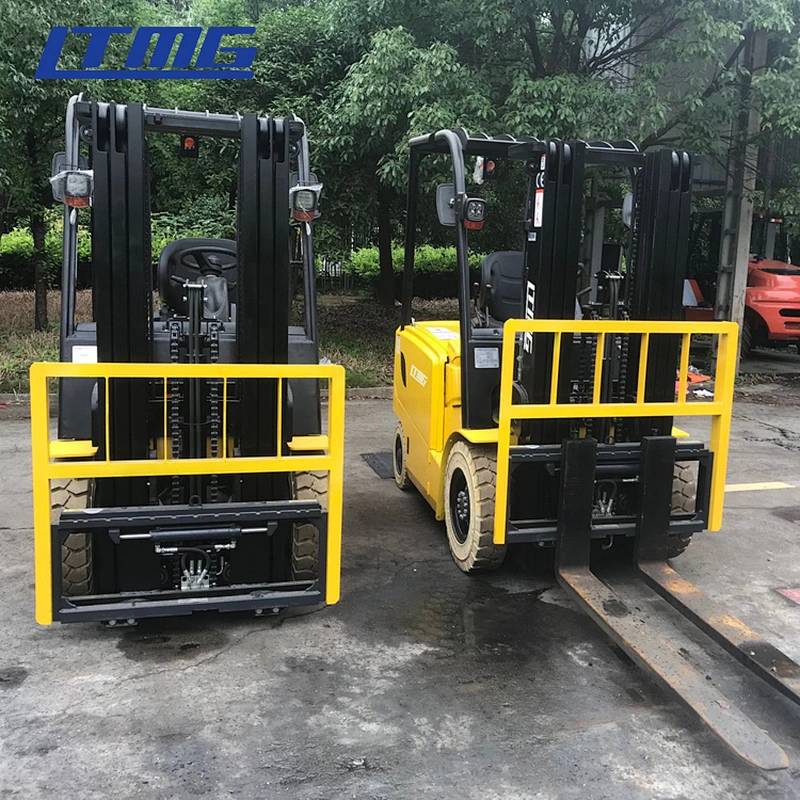

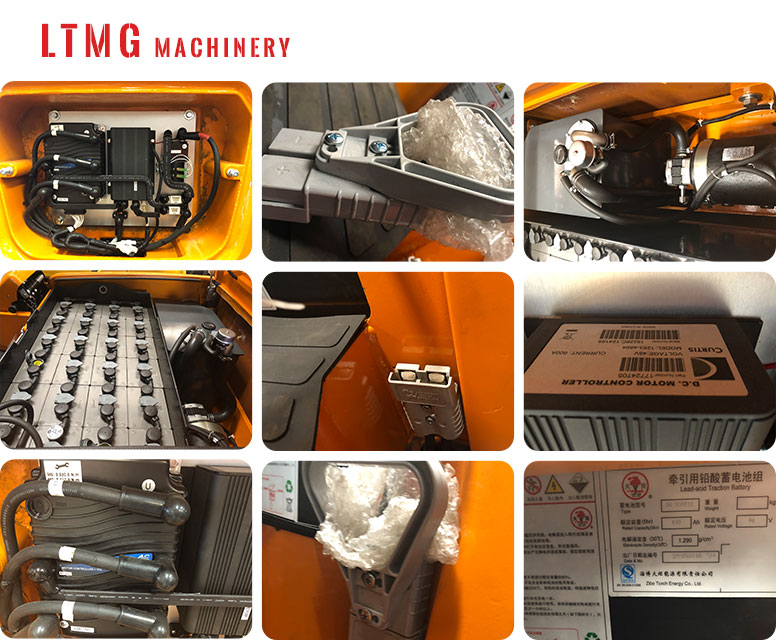

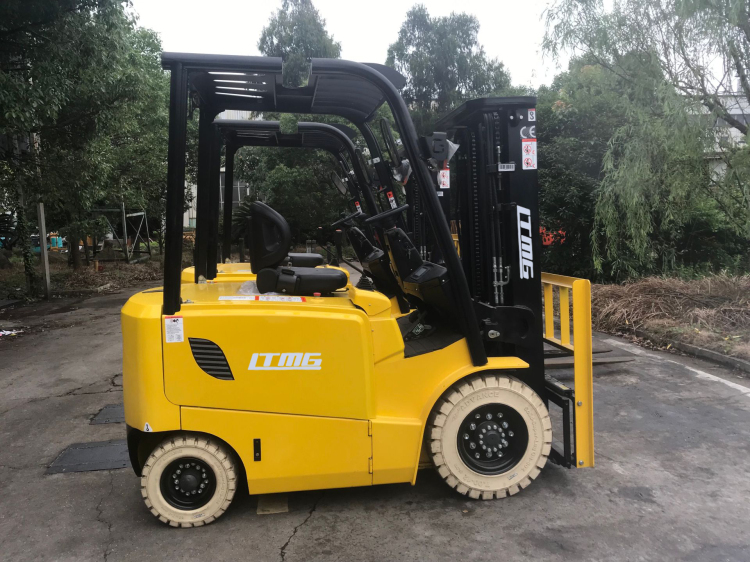

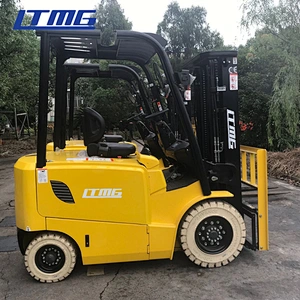

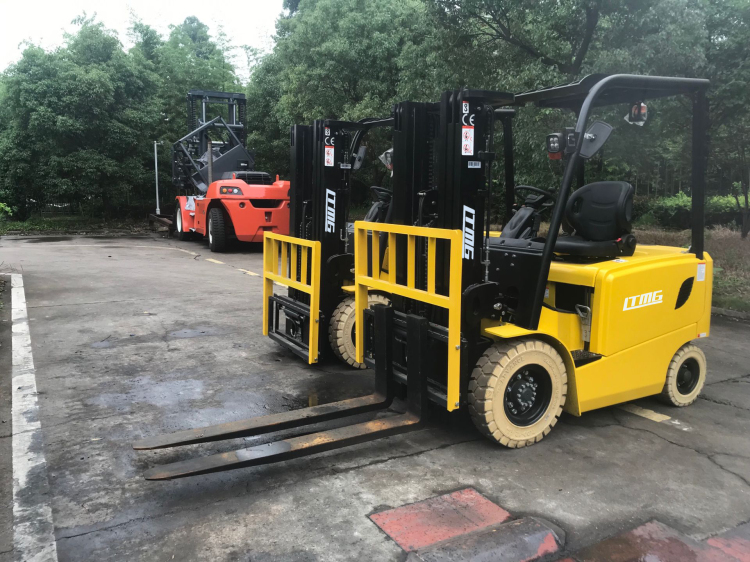

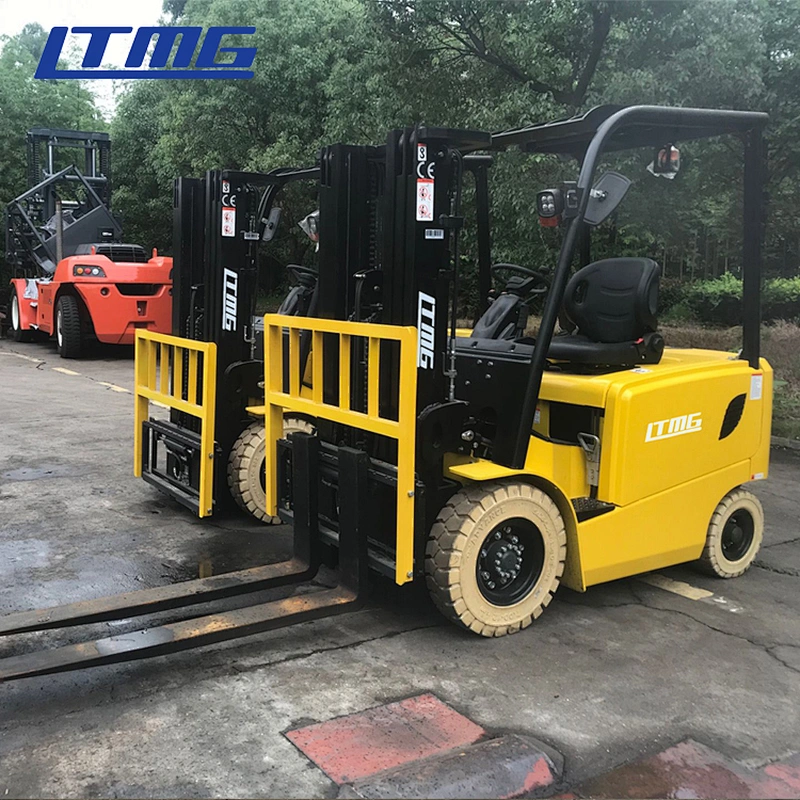

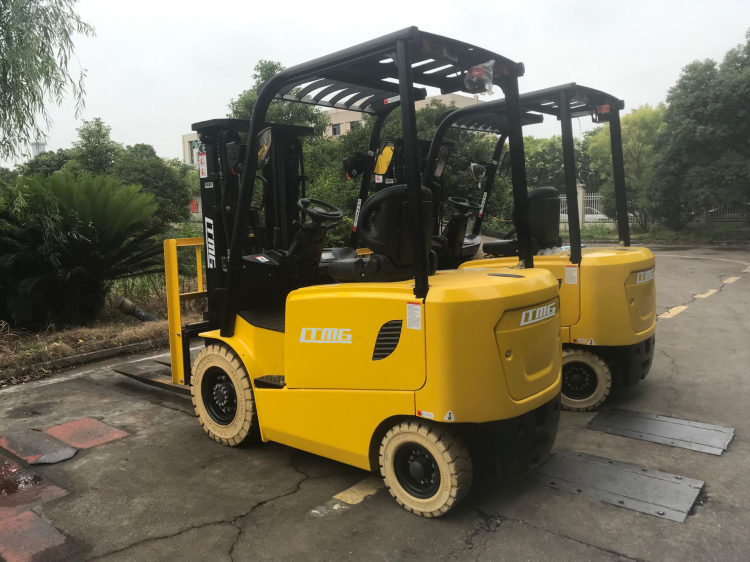

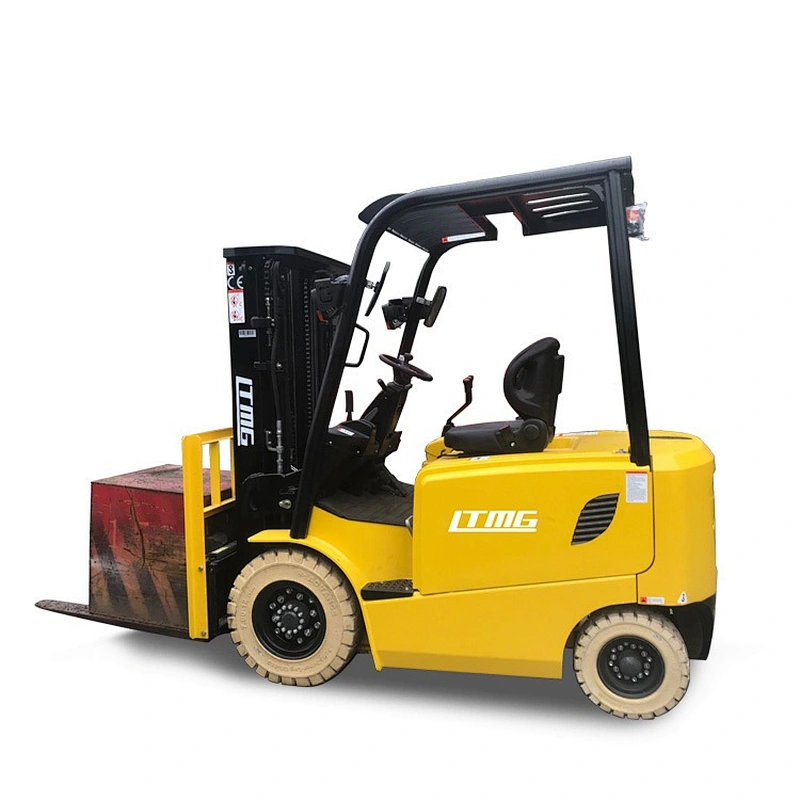

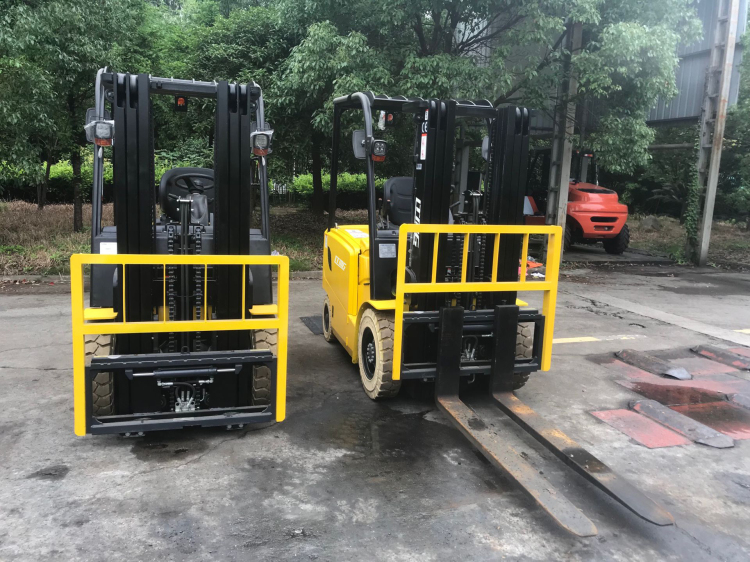

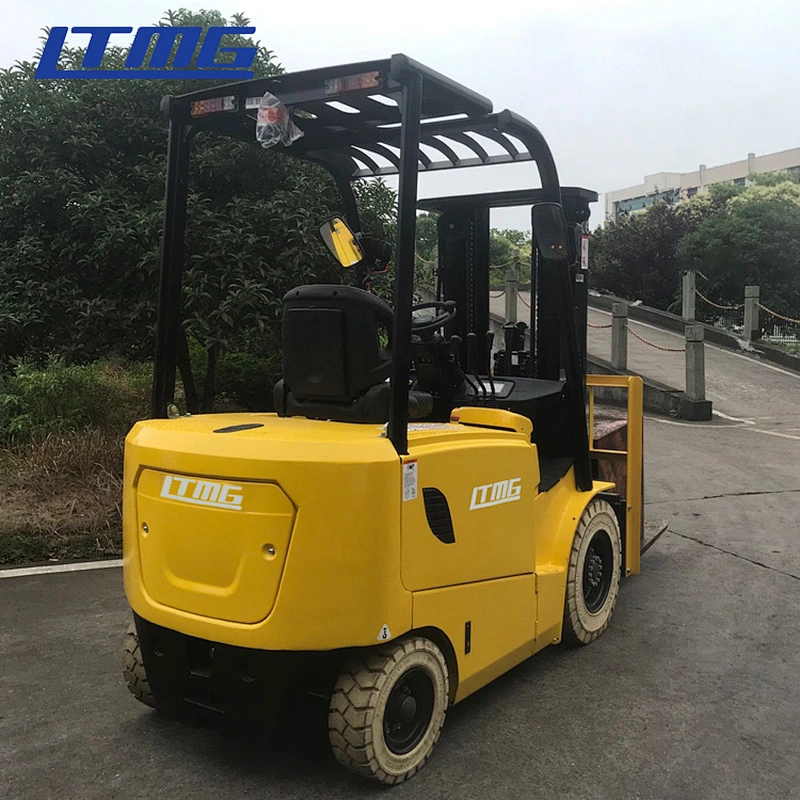

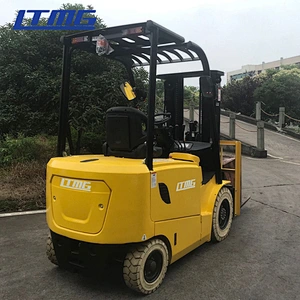

Detail images
Specification
Model | FB20 | |
Rated Capacity | kg | 2000 |
Load Centre | mm | 500 |
Lift Height | mm | 3000 |
Fork Size (L×W×T) | mm | 1070×120×40 |
Mast Tilt Angle F/R | Deg | 6/12 |
Length to fork face of fork (Without fork) | mm | 2360 |
Overall Width | mm | 1160 |
Mast Lowered Height | mm | 2055 |
Mast Extended Height (With backrest) | mm | 3960 |
Overhead Guard Height | mm | 2240 |
Turning Radius (outside) | mm | 2075 |
Front Overhang (Wheel center to fork face) | mm | 465 |
Tread (Front/Rear) | mm | 960/950 |
Ground Clearance (Bottom of mast) | mm | 110 |
Wheelbase | mm | 1510 |
Fork Spread (Min./Max) | mm | 240/1040 |
Travel Speed | km/h | 14 |
Lifting Speed (Full load) | mm/s | 300 |
Max. Gradeability | % | 15 |
Service Weight | kg | 4170 |
Front Tire×2 | 7.00-12-12PR | |
Rear Tire×2 | 18×7-8-14PR | |
Driven Motor | kw | 11 |
Lift Motor | kw | 8.6 |
Battery Standard | V/Ah | 48/560 |
Controller Manufacturer | CURTIS AC | |
Operating Pressure for Attachment | Mpa | 18 |
LTMG mini electric forklift 2 ton 3 ton 4 ton 5 ton forklift truck
Product Features
Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers’ requirements. Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
Equipped with full set of LED lamps, which are brighter and energy saving
Redesigned hydraulic control levers positioned next to seat to make operators feel comfortable.
Factory&Company

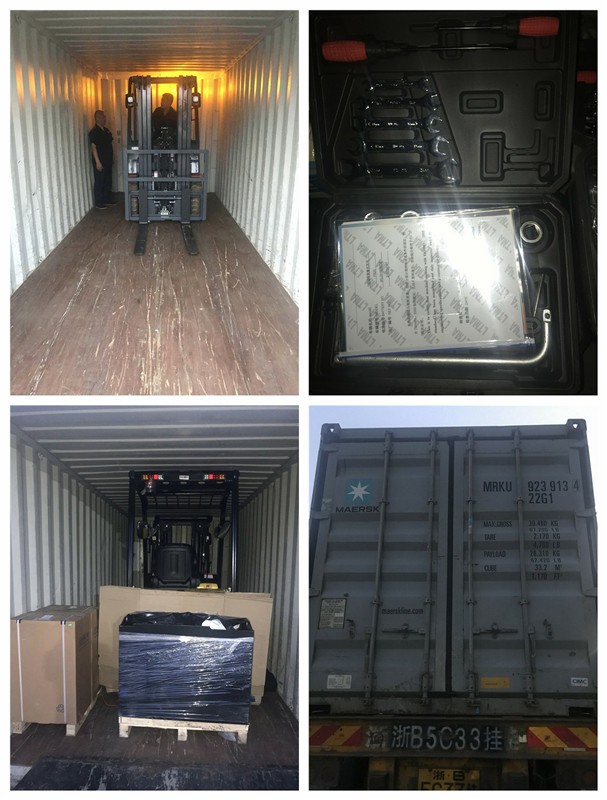

Packing & Delivery
Machine application
Exhibition and Clients
After-Sales Service
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
