- Controller:American Curtis
- Item Name:4 wheel electric forklift 3 ton 3.5 ton 5 ton elektrikli forklift
- Load center:500mm
- website:www.xlteng.com
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:80V/500Ah

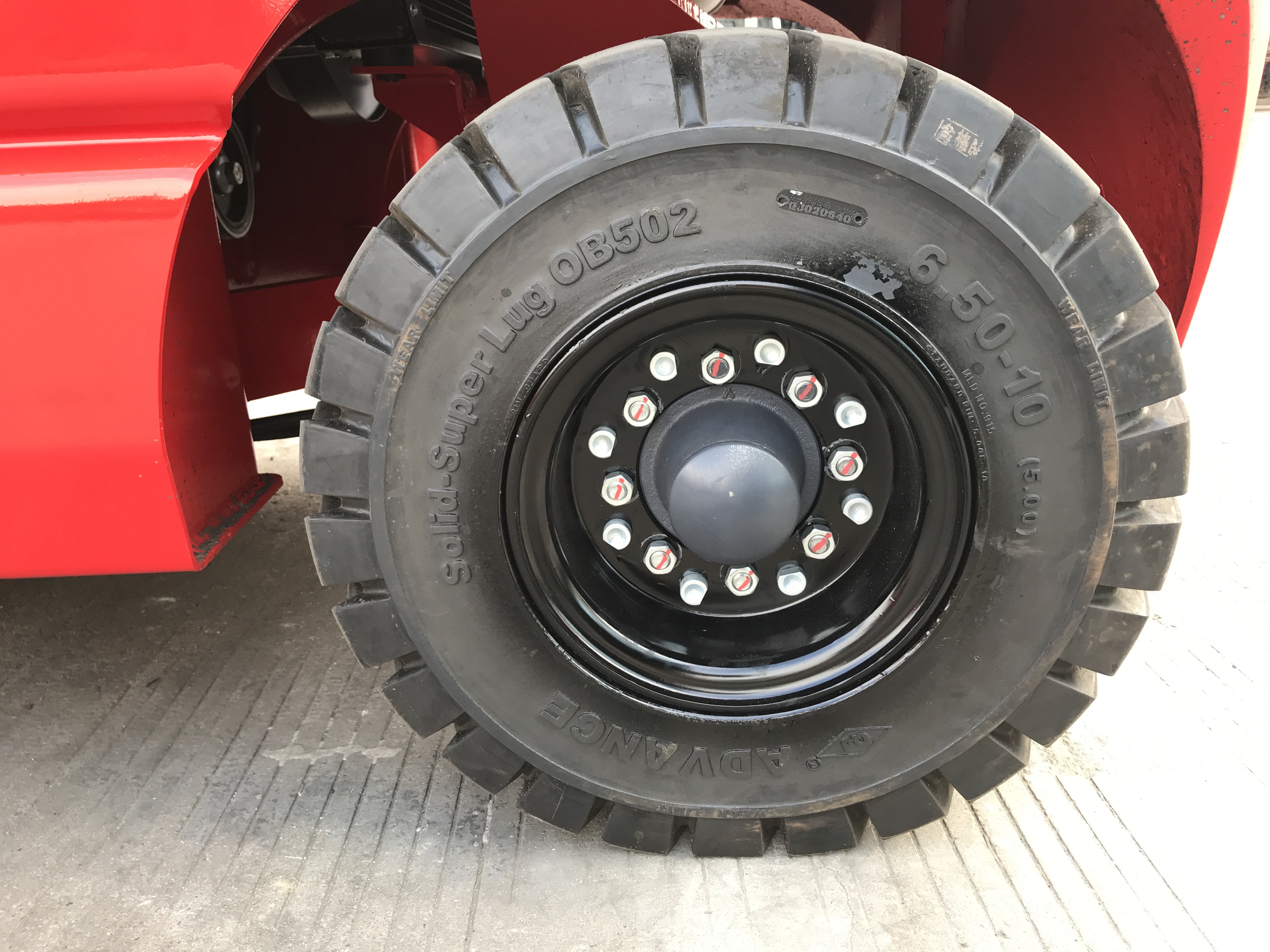

- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2070mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Applicable Industries:warehouse logistics
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Overall Dimensions:3350*1150*1995mm
- Fork Width:120mm
- Fork Length:1070mm
- Min. Lifting Height:0
- Certification:CE/ISO9001:2008

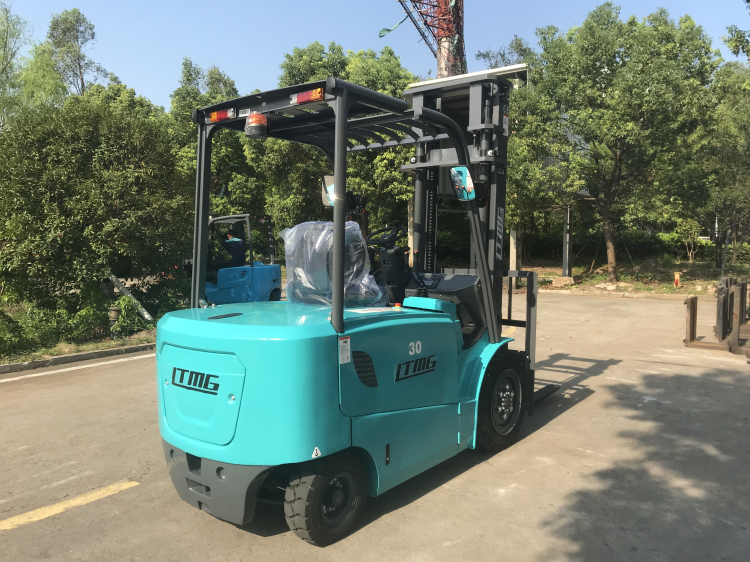

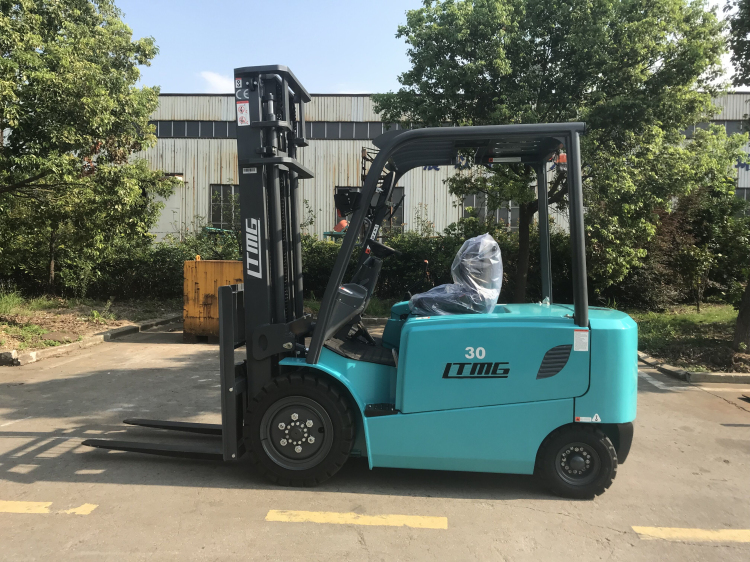

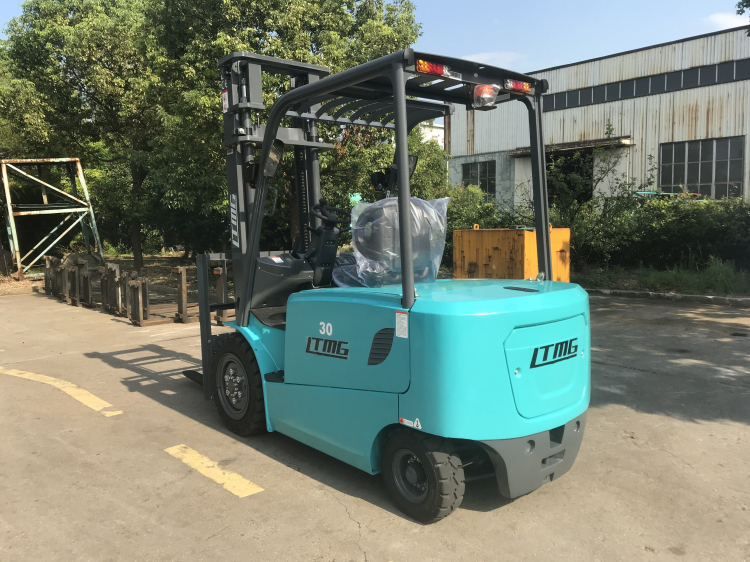

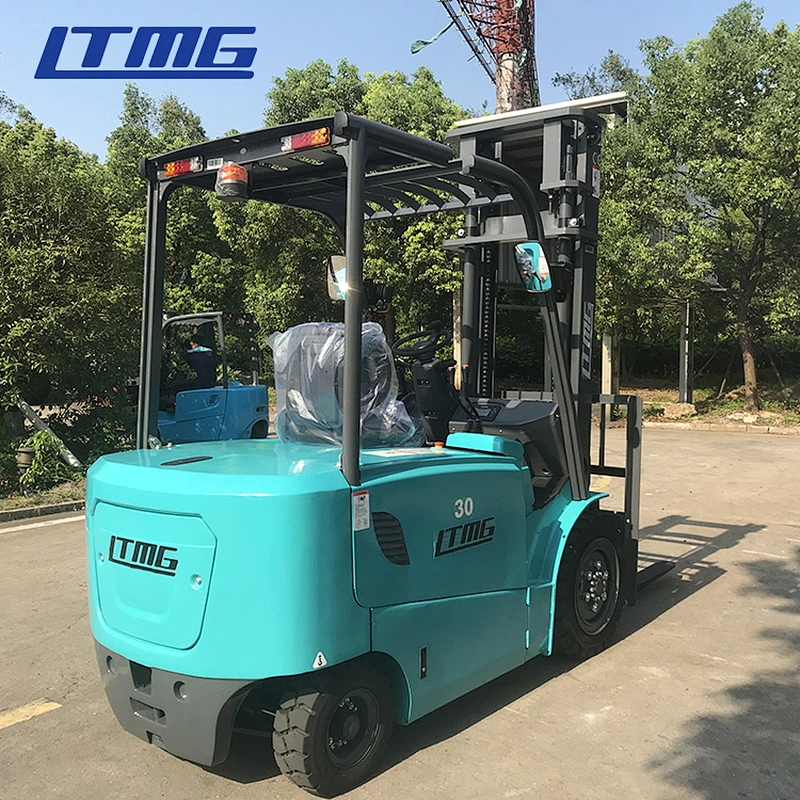

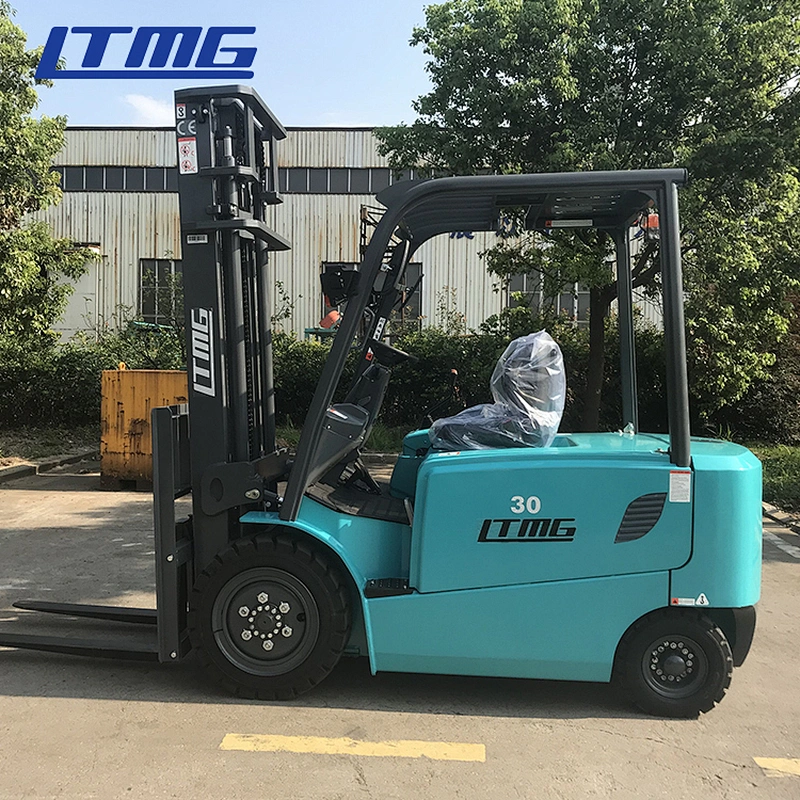

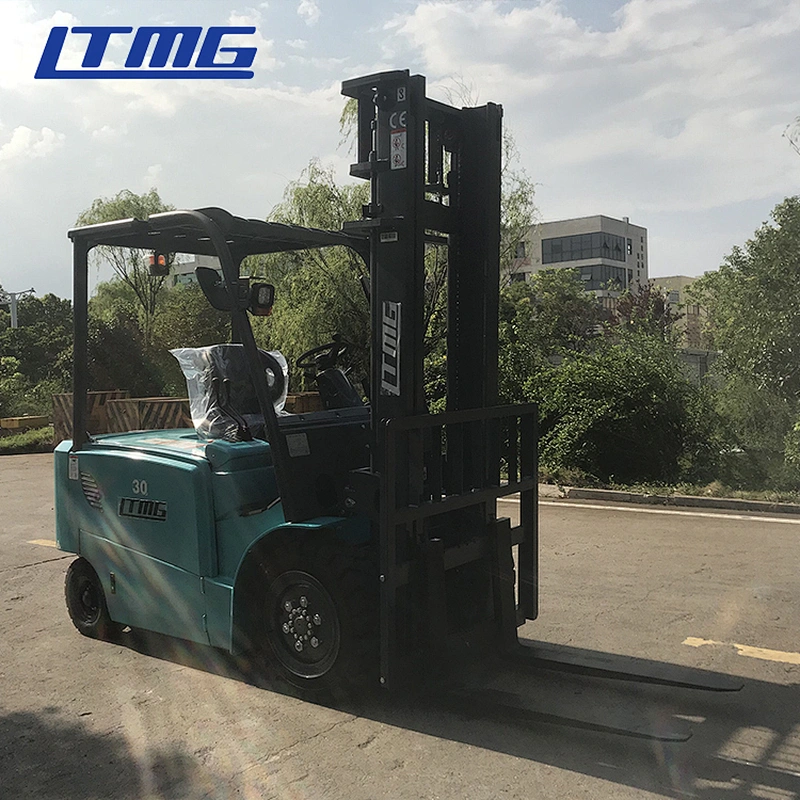

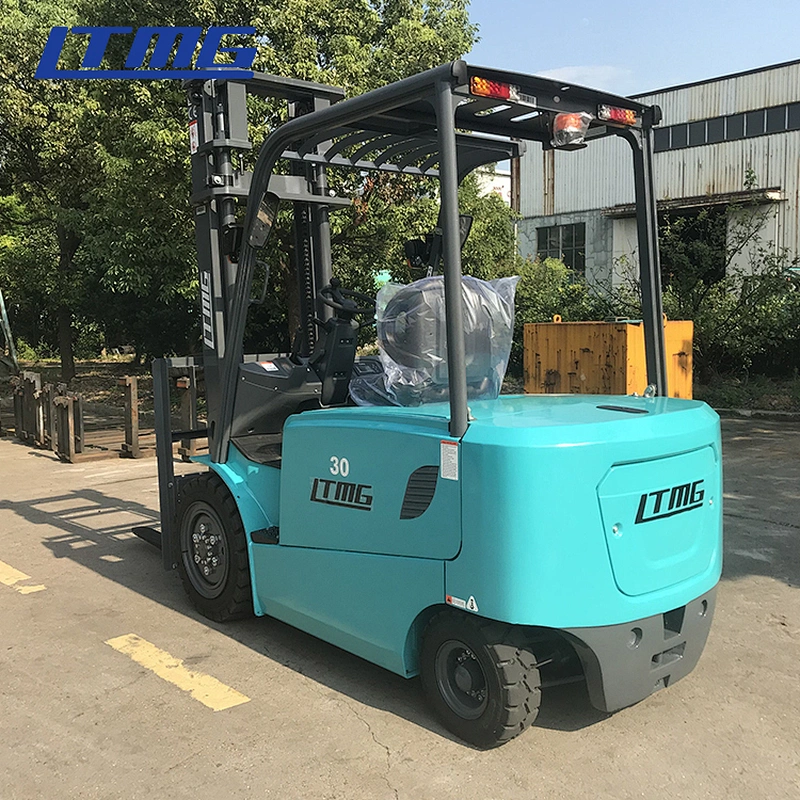

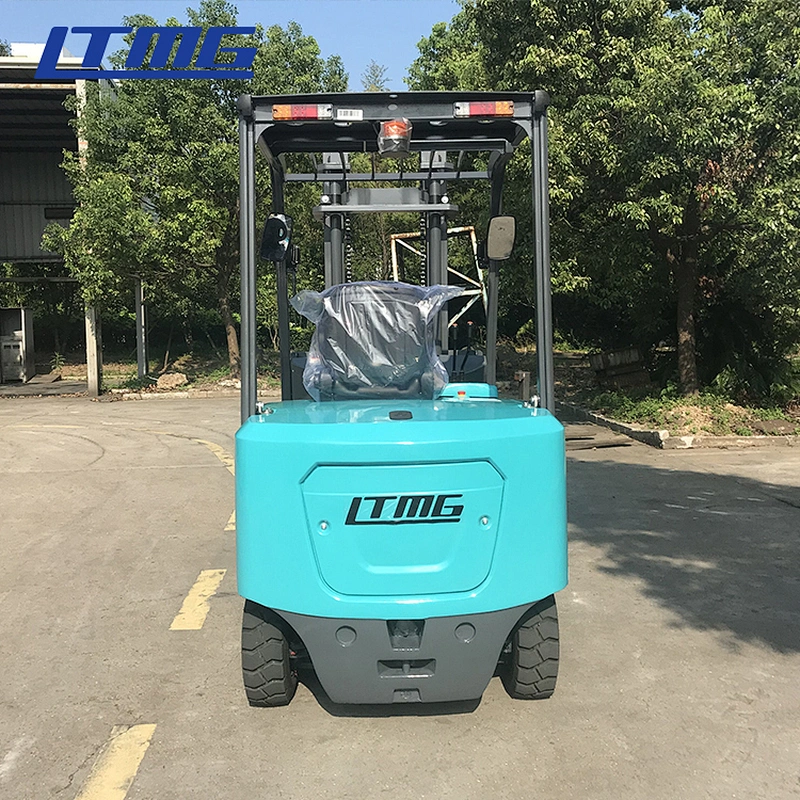

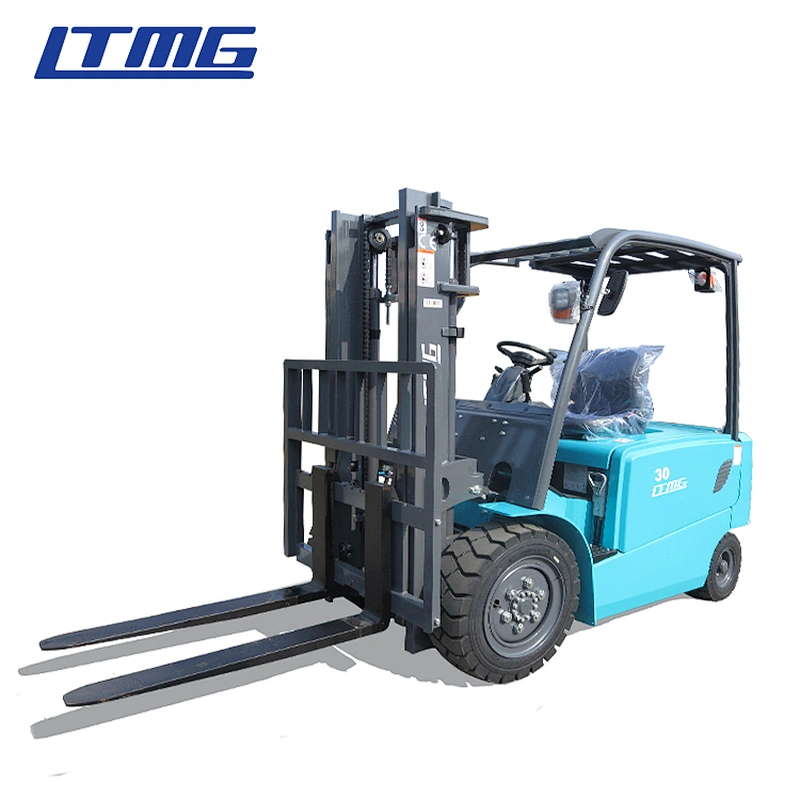

The specification of 4 wheel electric forklift 3 ton elektrikli forklift with battery charger 380V | ||||||||
General | Model | FB20 | FB30 | |||||
Rated Capacity | kg | 2000 | 3000 | |||||
Load Centre | mm | 500 | 500 | |||||
Lift Height | mm | 3000 | 3000 | |||||
Fork Size (L×W×T) | mm | 1070×120×40 | 1070×125×45 | |||||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 | |||||
Characteristic&Dimensions | Length to fork face of fork (Without fork) | mm | 2360 | 2610 | ||||
Overall Width | mm | 1160 | 1230 | |||||
Mast Lowered Height | mm | 2055 | 2110 | |||||
Mast Extended Height (With backrest) | mm | 3960 | 4180 | |||||
Overhead Guard Height | mm | 2240 | 2250 | |||||
Turning Radius (outside) | mm | 2075 | 2350 | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | 480 | |||||
Tread (Front/Rear) | mm | 960/950 | 1000/980 | |||||
Ground Clearance (Bottom of mast) | mm | 110 | 140 | |||||
Wheelbase | mm | 1510 | 1700 | |||||
Fork Spread (Min./Max) | mm | 240/1040 | 250/1100 | |||||
Performance | Travel Speed | km/h | 14 | 14 | ||||
Lifting Speed (Full load) | mm/s | 300 | 300 | |||||
Max. Gradeability | % | 15 | 15 | |||||
Service Weight | kg | 4170 | 5100 | |||||
Front Tire×2 | 7.00-12-12PR | 28×9-15-12PR | ||||||
Rear Tire×2 | 18×7-8-14PR | 18×7-8-14PR | ||||||
Driven | Driven Motor | kw | 11 | 15 | ||||
Lift Motor | kw | 8.6 | 12 | |||||
Battery Standard | V/Ah | 48/560 | 80/500 | |||||
Controller Manufacturer | CURTIS AC | CURTIS AC | ||||||
Operating Pressure for Attachment | Mpa | 18 | 18 | |||||
1.Super low Non-slip pedal
2. High-strength overhead guard
3.Adjustable steering wheel and safety seat.
4.Humanized righ- side hydraulic opeartion handle and emergency power- off button.
5.Full-view mast and fork carriage ensure operator's excellent operation vision.

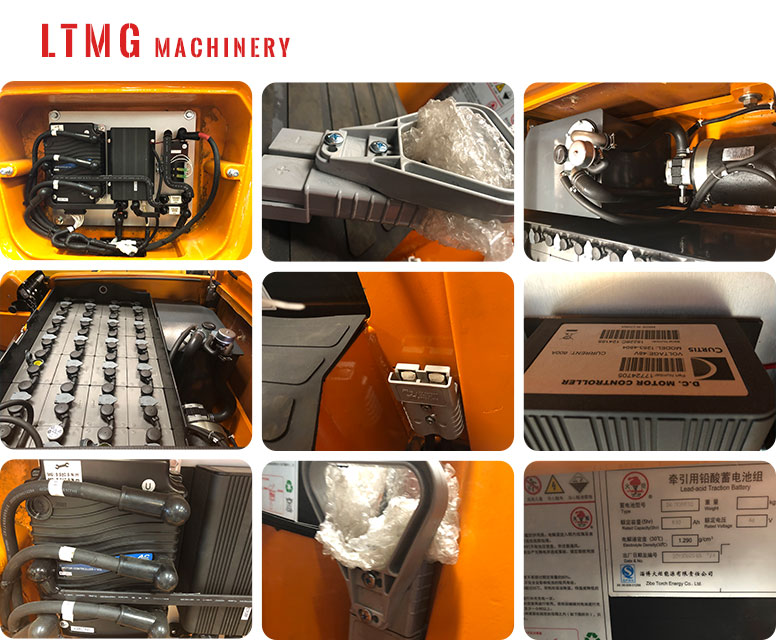

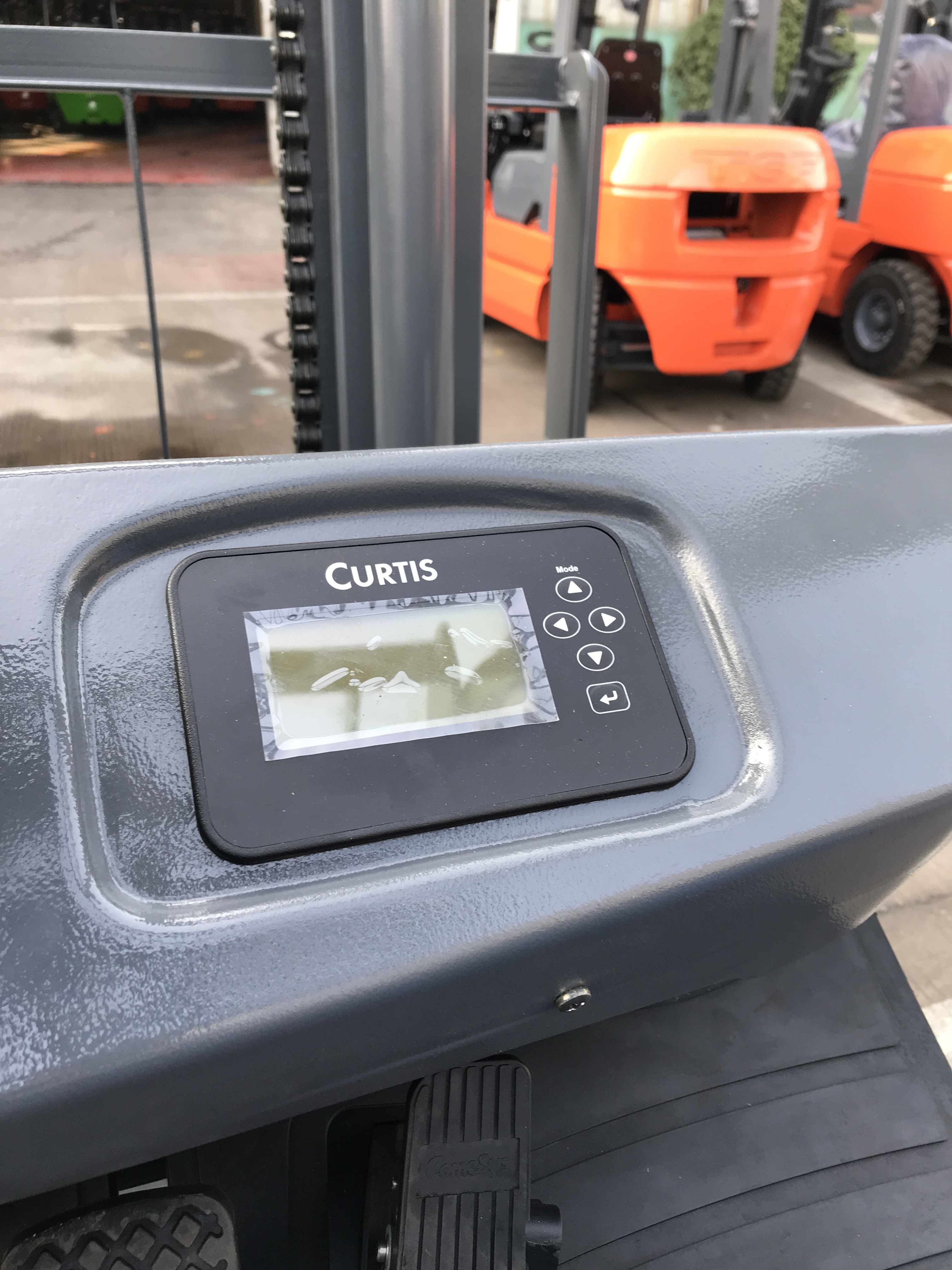

6.American Curtis controller. The controller is directly fixed in the balanced weight to lead better heat dissipation.
After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
