- Controller:American Curtis

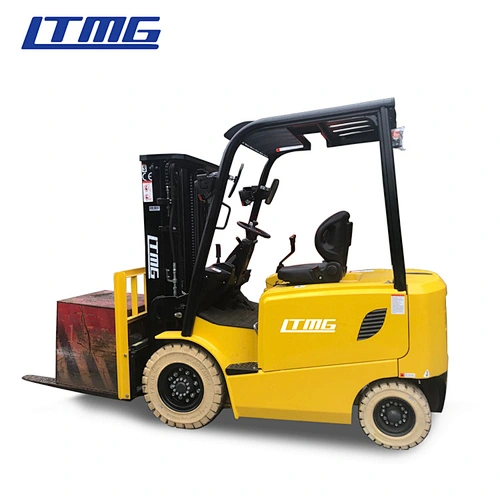

- Item Name:1.5ton 2 ton 3ton small electric forklift with triplex mast
- Load center:500mm
- website:www.xlteng.com
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:80V/500Ah
- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2070mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Applicable Industries:warehouse logistics
- Max. Lifting Height:6m
- Brand Name:LTMG
- Place of Origin:CN;ZHE
- Overall Dimensions:3350*1150*1995mm
- Fork Width:120mm
- Fork Length:1070mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0
Machine application
Product Description

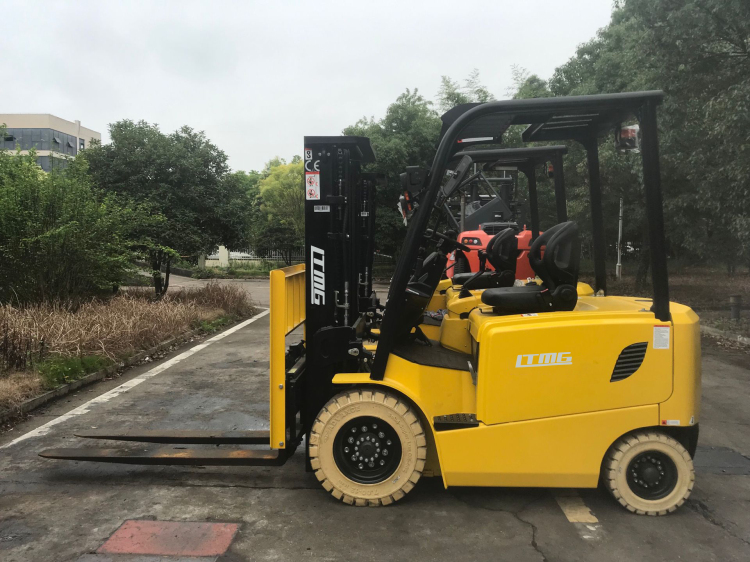

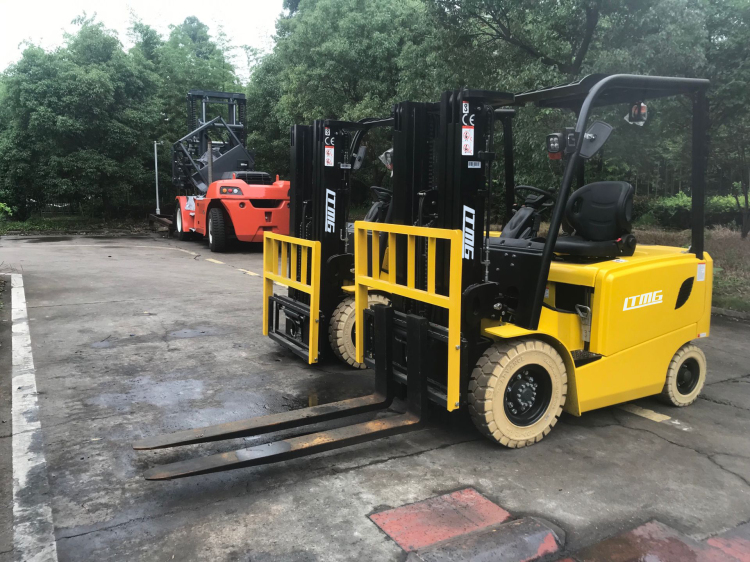

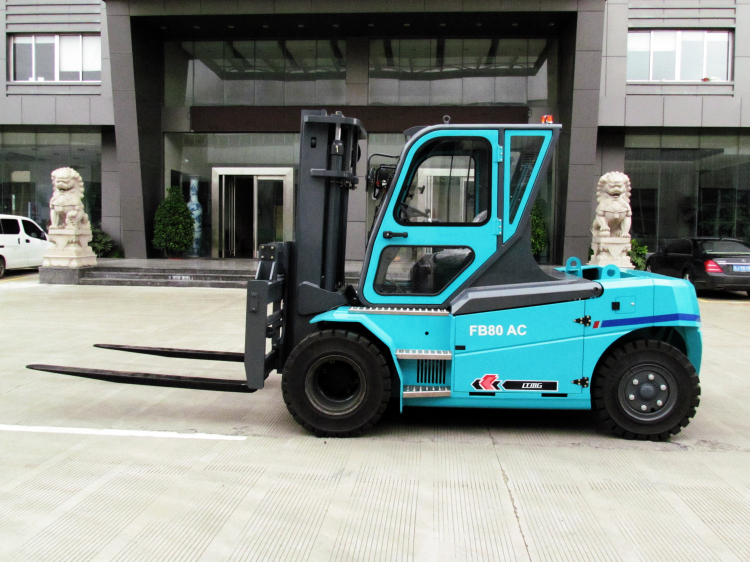

1.5-12 ton Electric Forklift

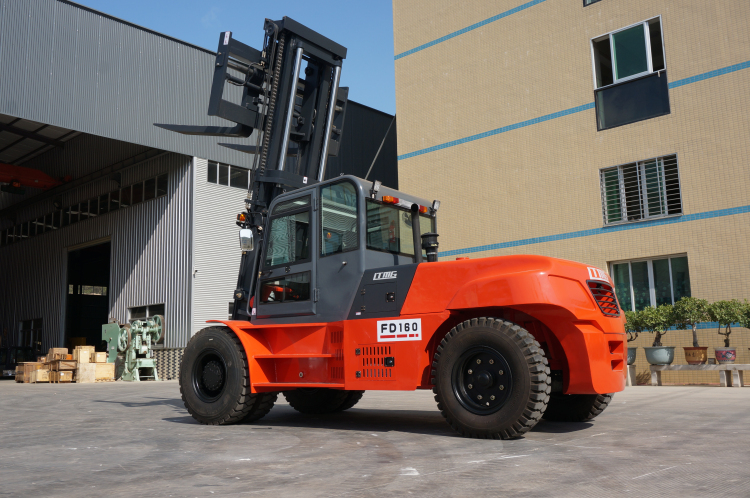

1.5-48 ton Diesel forklift
1.5-7 ton LPG/Gasoline forklift

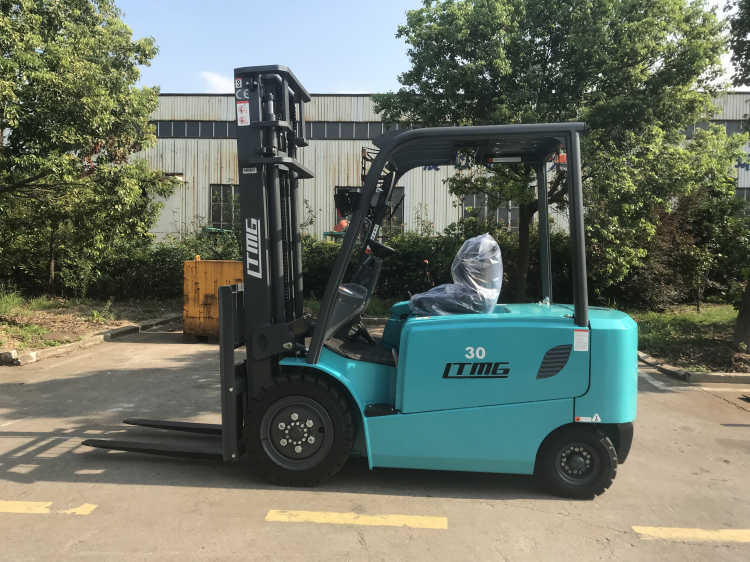

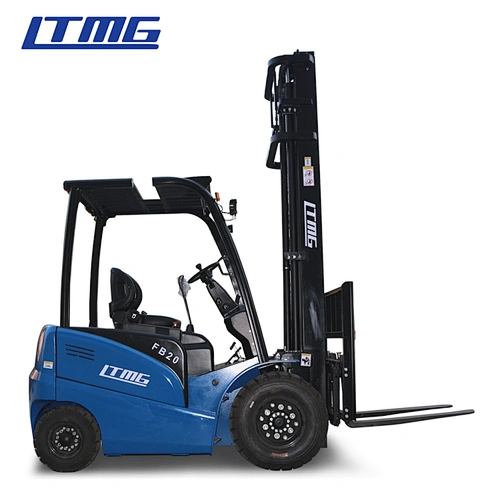

The specification of the 2ton 3ton electric forklift | ||||||||
General | Model | FB20 | FB30 | |||||
Rated Capacity | kg | 2000 | 3000 | |||||
Load Centre | mm | 500 | 500 | |||||
Lift Height | mm | 3000 | 3000 | |||||
Fork Size (L×W×T) | mm | 1070×120×40 | 1070×125×45 | |||||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 | |||||
Characteristic&Dimensions | Length to fork face of fork (Without fork) | mm | 2360 | 2610 | ||||
Overall Width | mm | 1160 | 1230 | |||||
Mast Lowered Height | mm | 2055 | 2110 | |||||
Mast Extended Height (With backrest) | mm | 3960 | 4180 | |||||
Overhead Guard Height | mm | 2240 | 2250 | |||||
Turning Radius (outside) | mm | 2075 | 2350 | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | 480 | |||||
Tread (Front/Rear) | mm | 960/950 | 1000/980 | |||||
Ground Clearance (Bottom of mast) | mm | 110 | 140 | |||||
Wheelbase | mm | 1510 | 1700 | |||||
Fork Spread (Min./Max) | mm | 240/1040 | 250/1100 | |||||
Performance | Travel Speed | km/h | 14 | 14 | ||||
Lifting Speed (Full load) | mm/s | 300 | 300 | |||||
Max. Gradeability | % | 15 | 15 | |||||
Service Weight | kg | 4170 | 5100 | |||||
Front Tire×2 | 7.00-12-12PR | 28×9-15-12PR | ||||||
Rear Tire×2 | 18×7-8-14PR | 18×7-8-14PR | ||||||
Driven | Driven Motor | kw | 11 | 15 | ||||
Lift Motor | kw | 8.6 | 12 | |||||
Battery Standard | V/Ah | 48/560 | 80/500 | |||||
Controller Manufacturer | CURTIS AC | CURTIS AC | ||||||
Operating Pressure for Attachment | Mpa | 18 | 18 | |||||

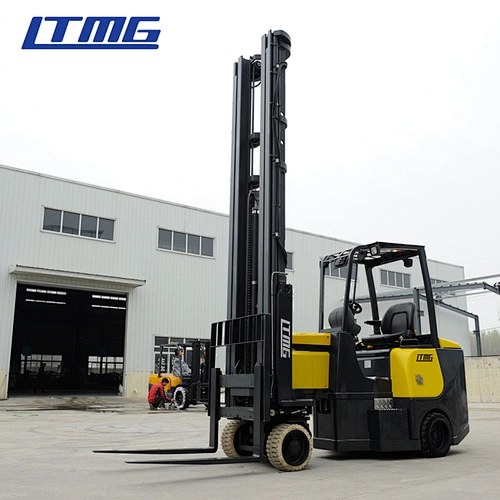

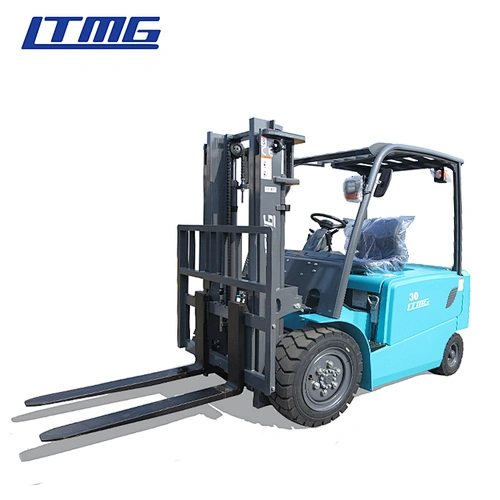

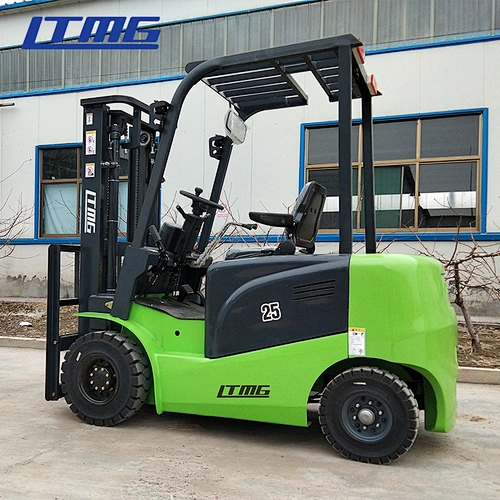

LTMG Hot sale top8
Product Features

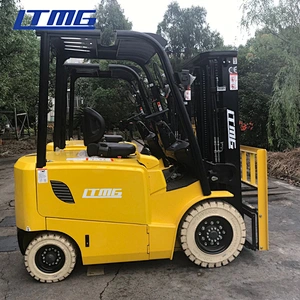

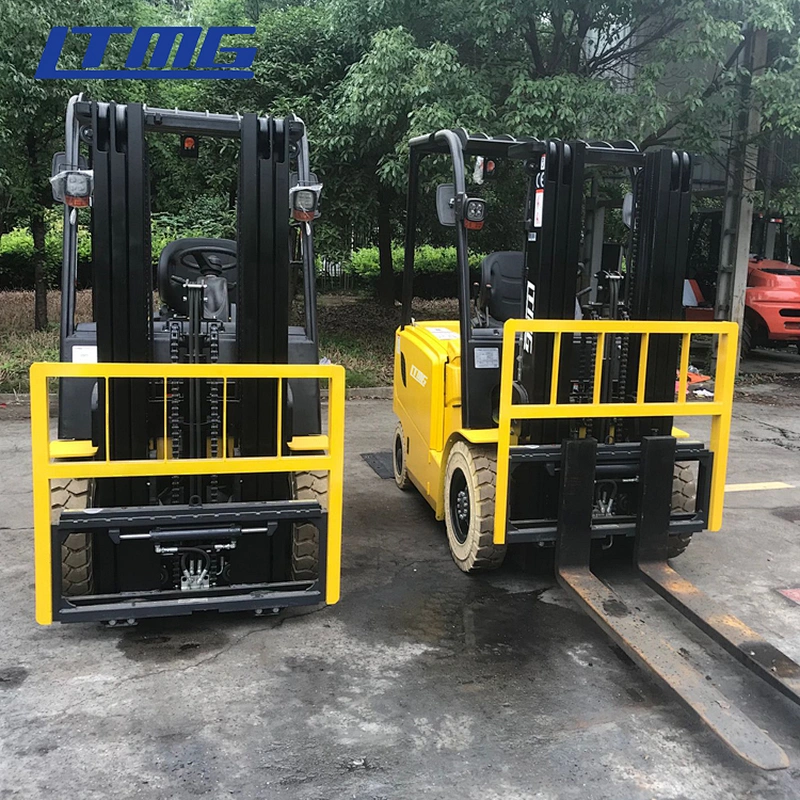

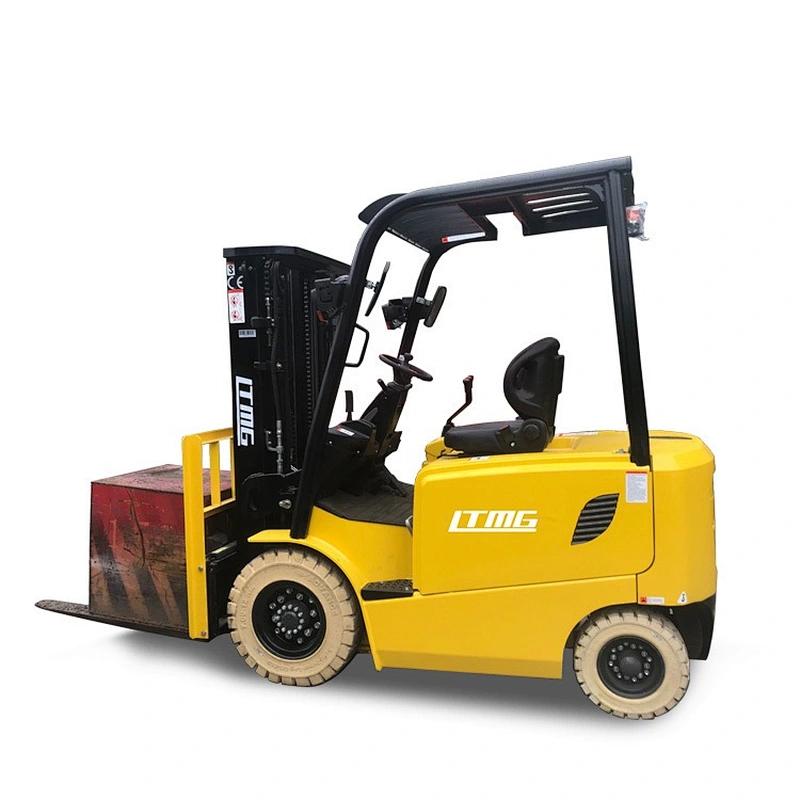

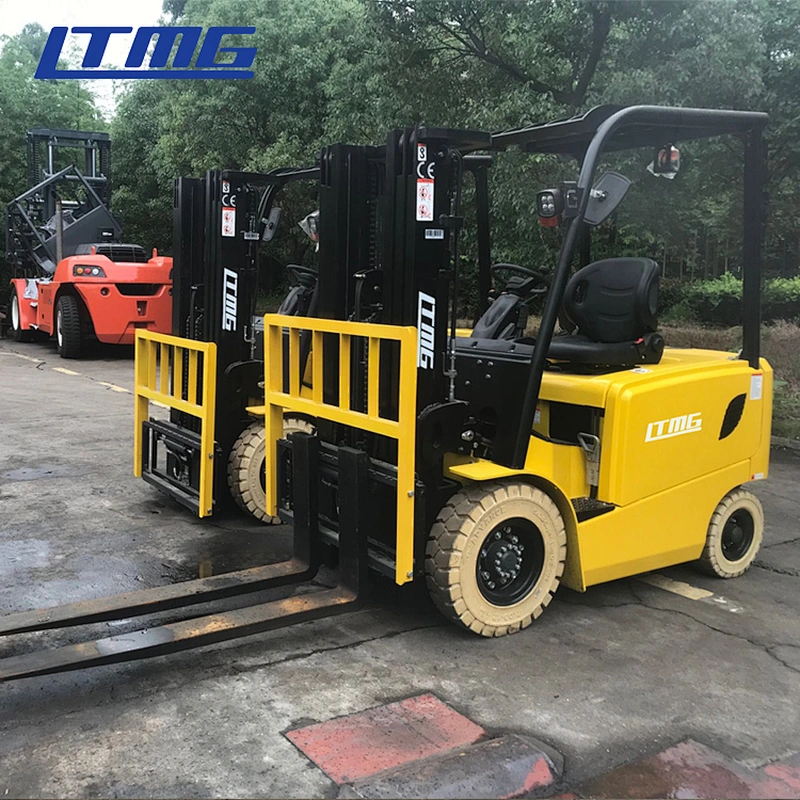

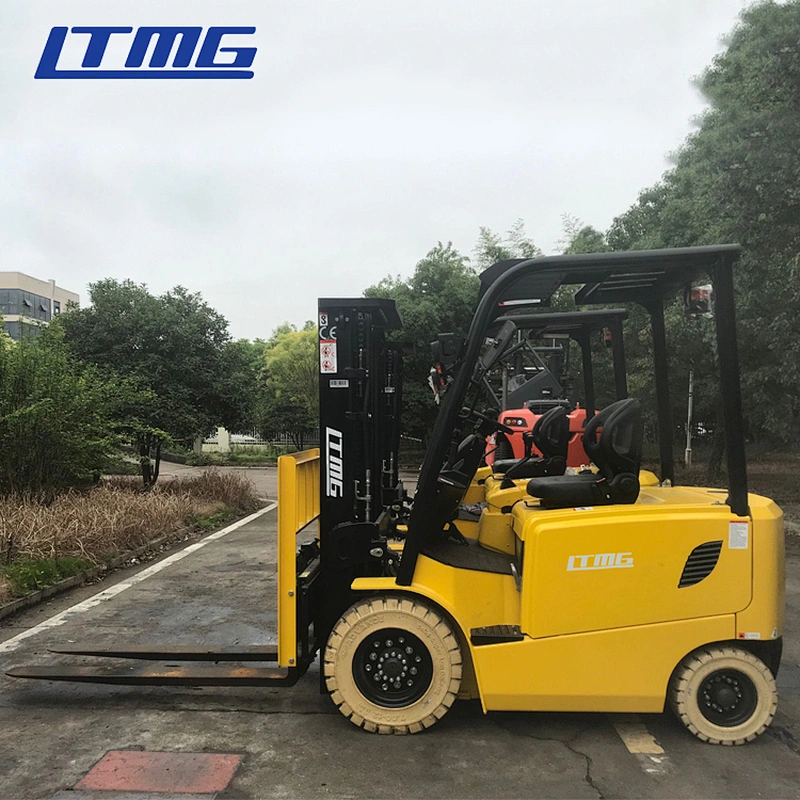

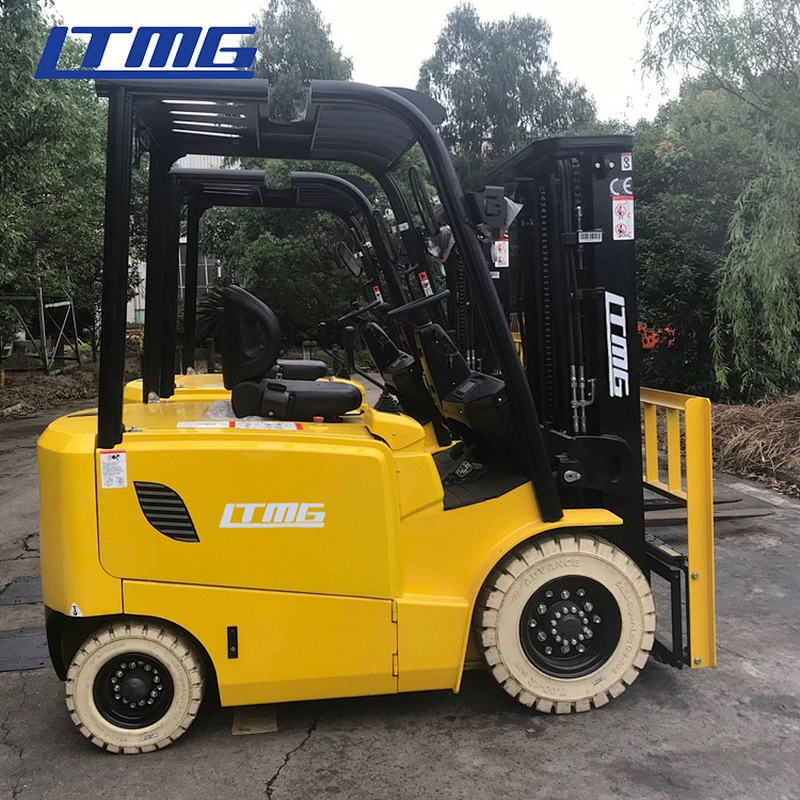

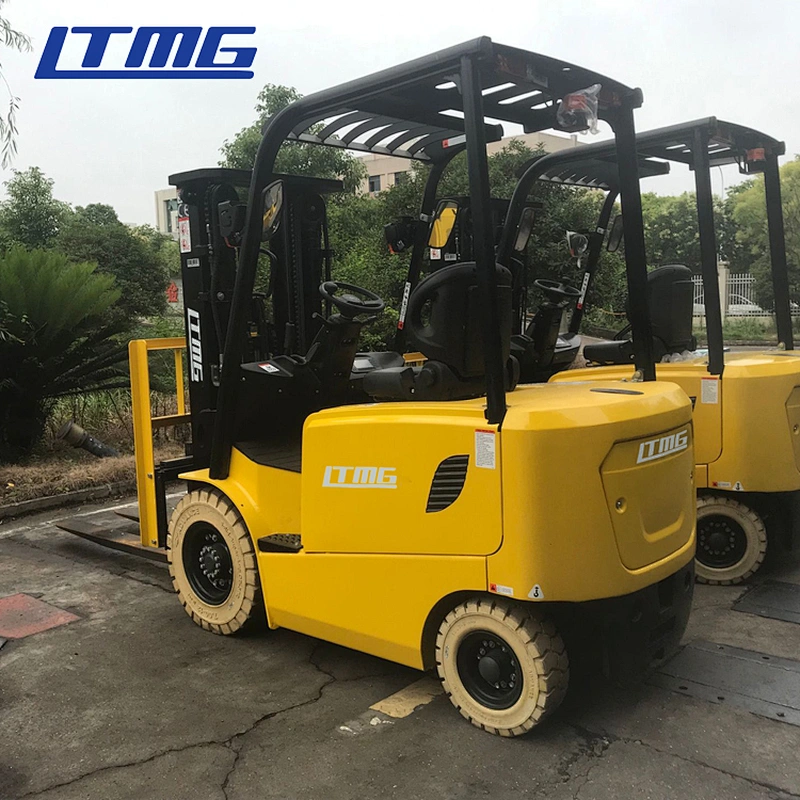

Special configuration for cold room
1.Solid rubber tire
2.Protection IP54 motor, IP66 contactor, IP65 controller
3.Electrical components are placed inside the balance weight, waterproof and easy to maintain
4.All harnesses adopt AMP waterproof plug-in
5.The directional switch is equipped with relays, and the multi-way valve microswitch is specially waterproof, which can adapt to the environment of minus 30℃
6.Add iron shield to protect the overhead guard, prevent frozen slag and goods to drop suddenly, increase security
7.Low temperature oil products, such as shell haili S1M32 (refrigerated -15 ℃) or shell delishi S2V32 (refrigerated -25 ℃) low viscosity hydraulic oil and gl-585w / 90 (-12 ℃) or gl-580w / 90 (-26 ℃) high load gear oil

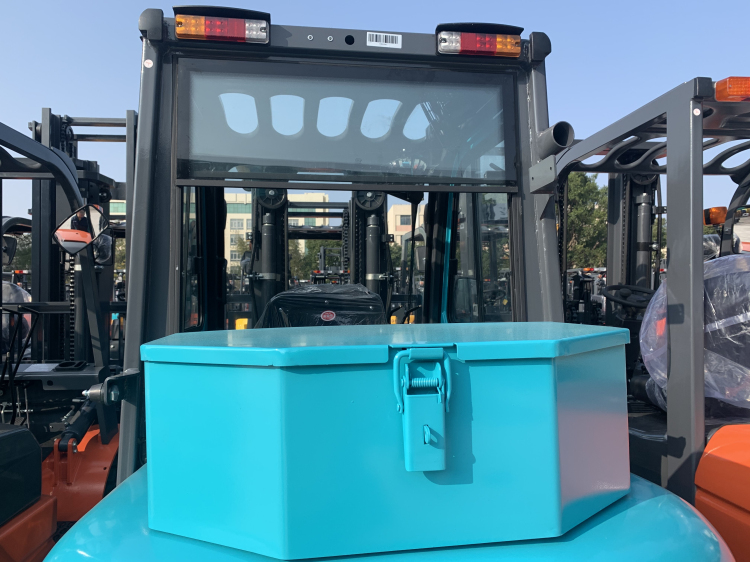

Tool kit

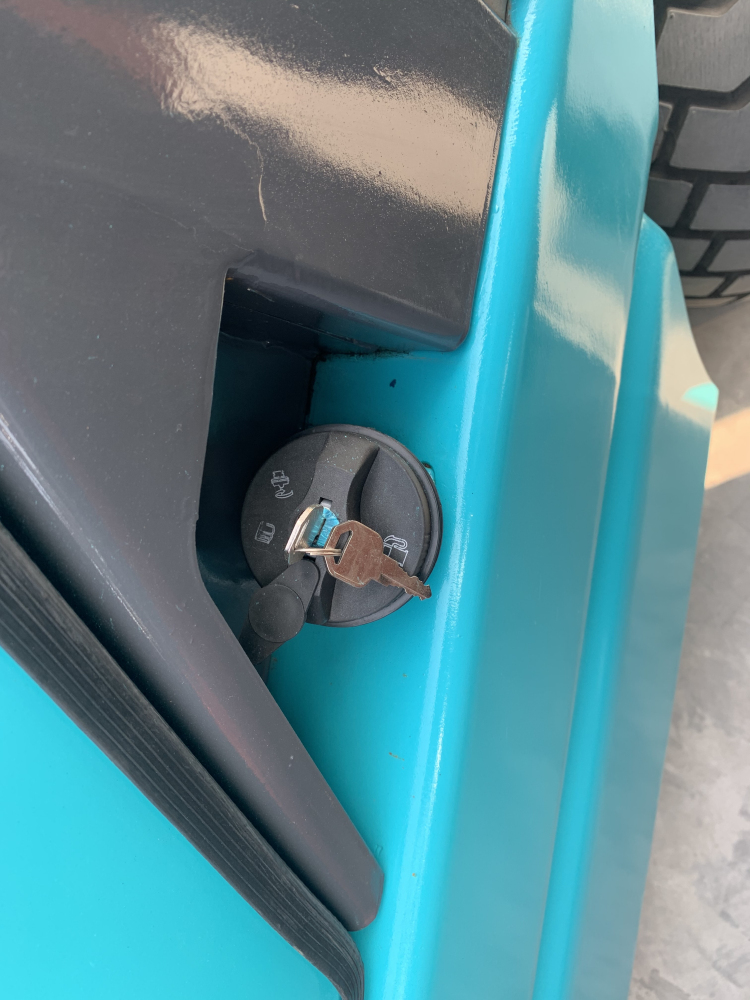

Oil tank cap with key

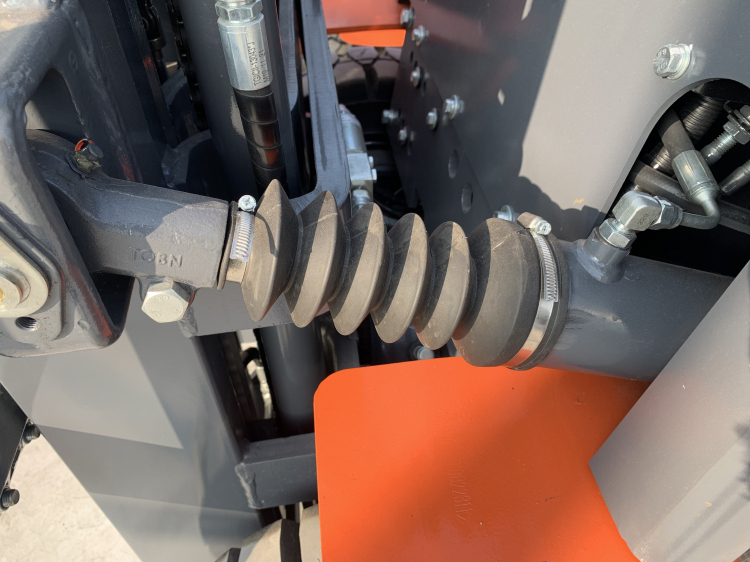

Cylinder protector

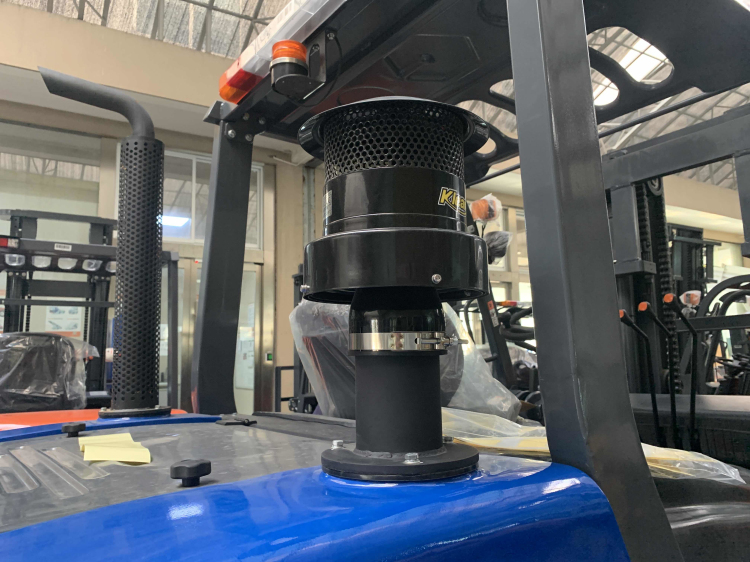

Double Air-Filter (suitable for the Large- tonnage forklift )
Packing & Delivery

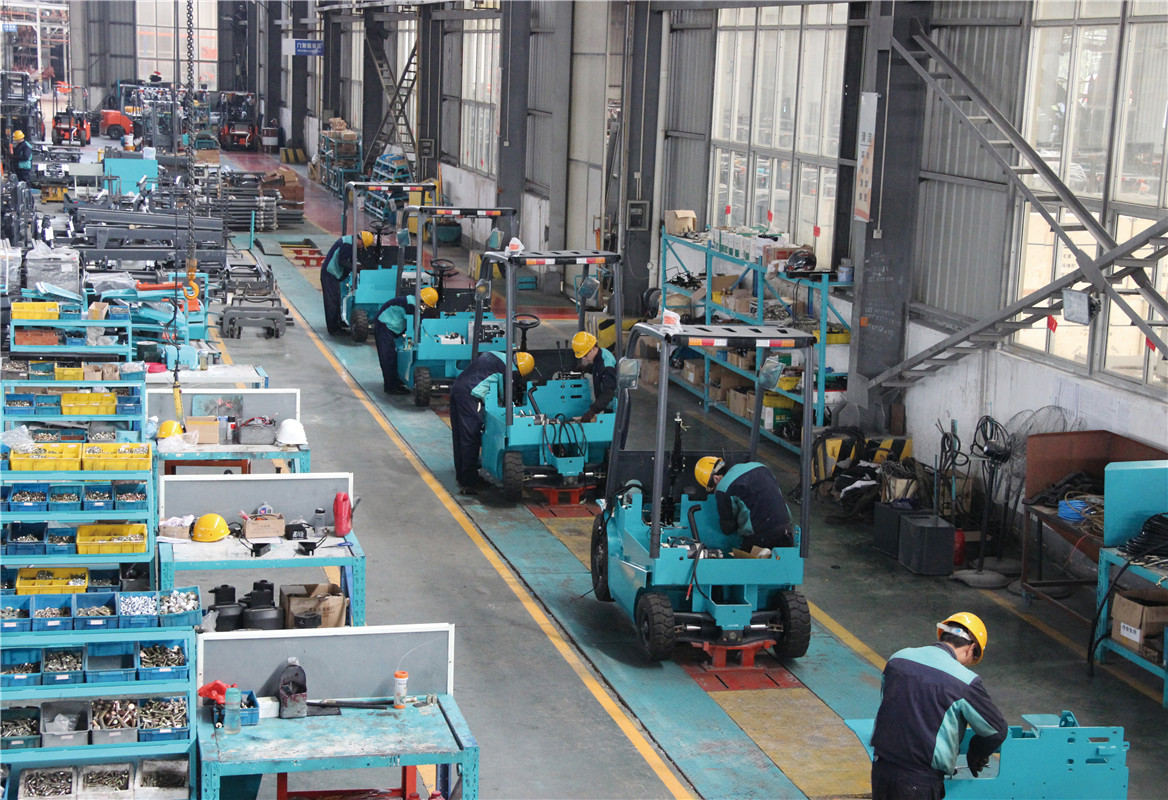

About LTMG

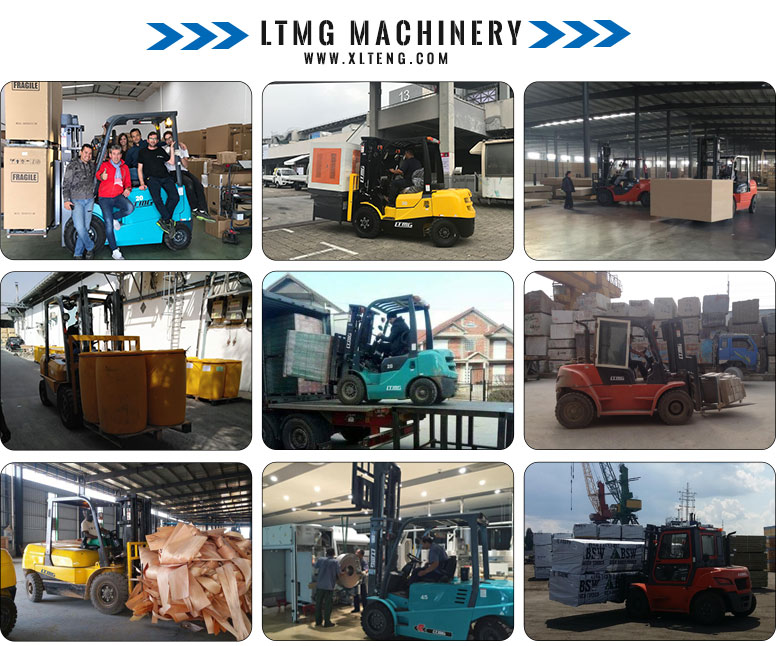

Customer Photos
LTMG Service
After-sale Service
LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
