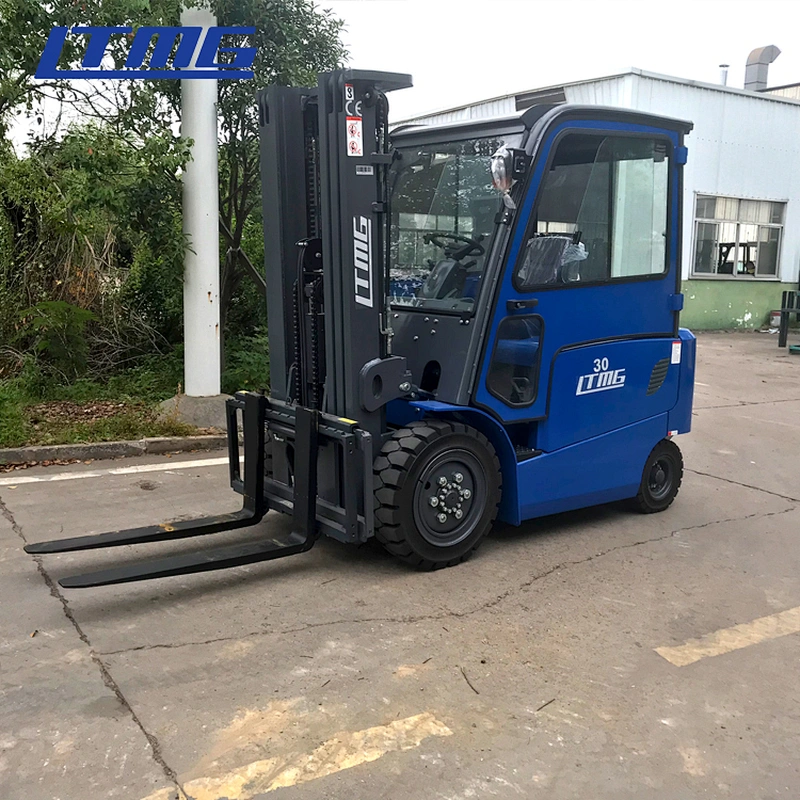

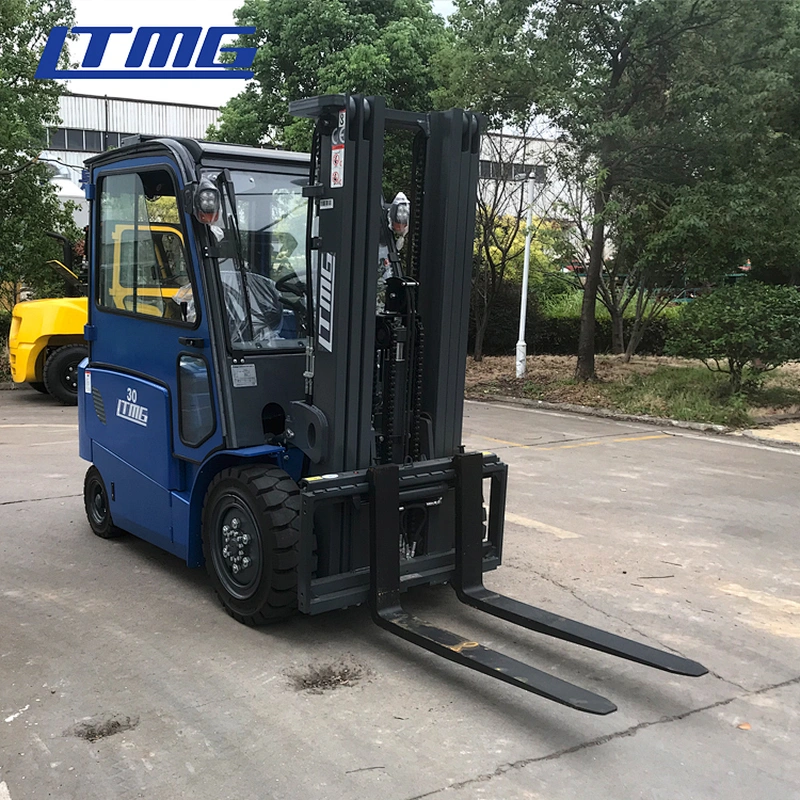

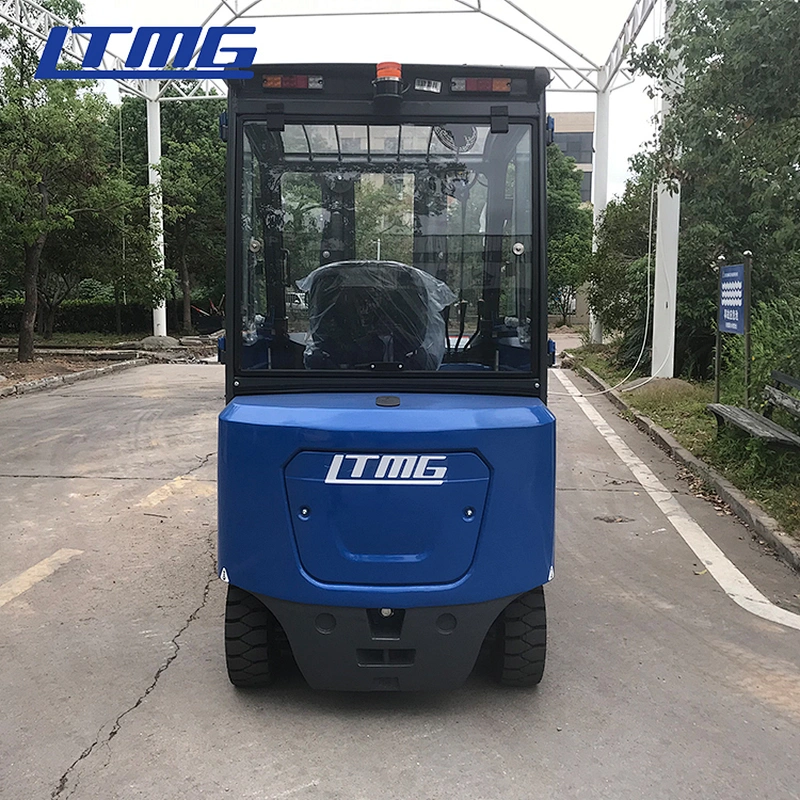

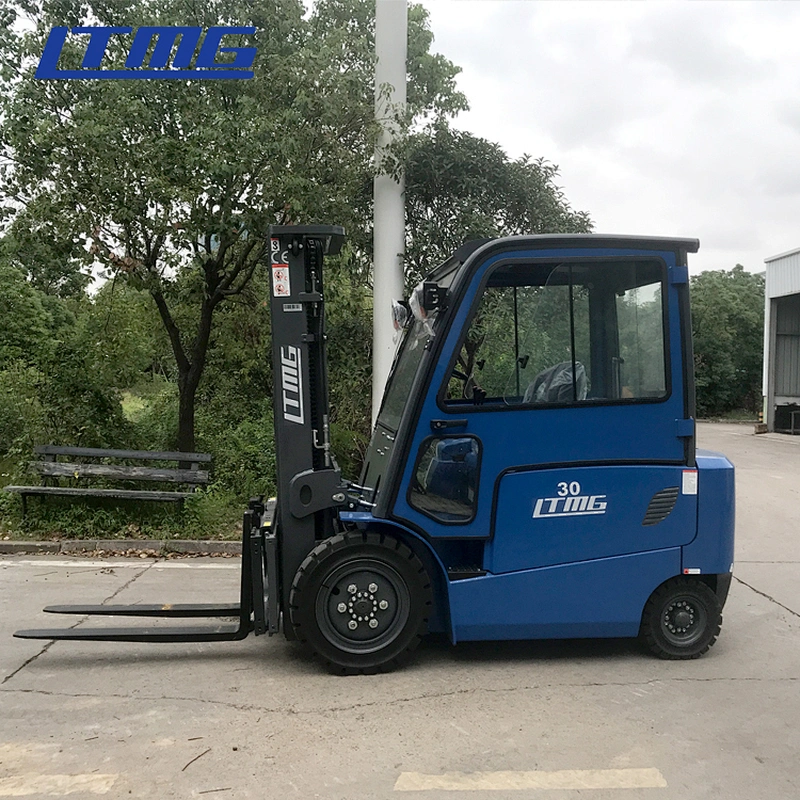

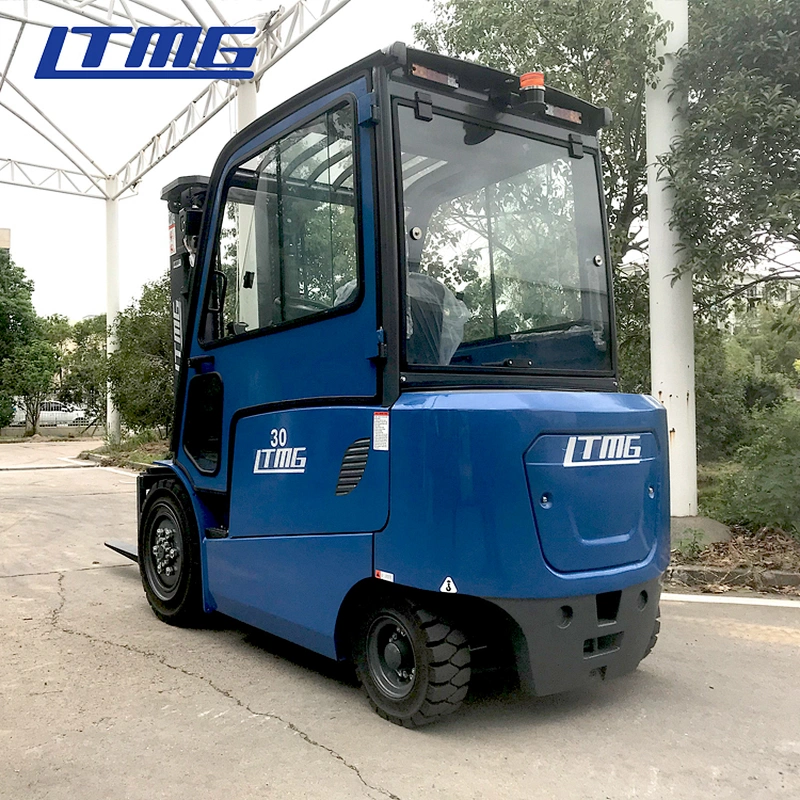

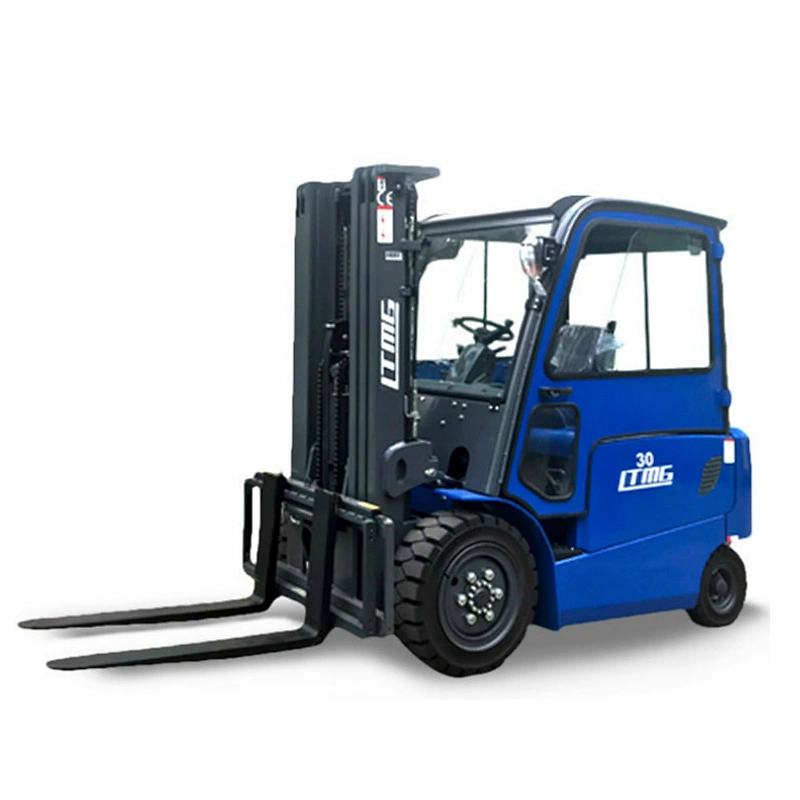

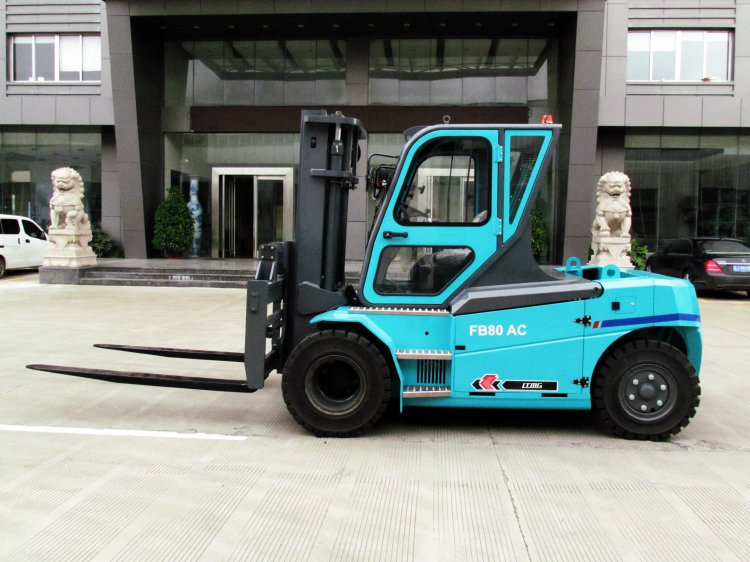

ltmg pedestrian electric forklift 1.5ton 2ton 3ton 5ton 8ton 1.5 ton 2 ton 3 ton 5 ton 8 ton electric forklift with sideshift

ltmg pedestrian electric forklift 1.5ton 2ton 3ton 5ton 8ton 1.5 ton 2 ton 3 ton 5 ton 8 ton electric forklift with sideshift

Price:: US $ 9012.00-9499.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 200.0 unit / Year
Country of Origin: Ningbo port, China

Quantity:

Product Description

Controller:American Curtis
Item Name:1.5ton 2 ton 3ton small electric forklift with triplex mast
Load center:500mm
website:www.xlteng.com
Max. lifting height:6000 mm
Ground clearence:110mm
Voltage/capacity:80V/500Ah
Tire type:Pneumatic tires(Solid is optional)
Load Centre:500mm
Mast lowered height:2070mm
Applicable Industries:Building Material Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:Turkey
Local Service Location:Brazil
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:South Africa
Local Service Location:Ukraine
Showroom Location:Brazil
Showroom Location:Thailand
Showroom Location:Australia
Condition:New
Power Souce:AC Motor
Warranty:1 Year
After-sales Service Provided:Field maintenance and repair service
Applicable Industries:warehouse logistics
Max. Lifting Height:6m
Place of Origin:CN;ZHE
Brand Name:LTMG
Overall Dimensions:3350*1150*1995mm
Fork Width:120mm
Fork Length:1070mm
Min. Lifting Height:0
Certification:CE/ISO9001:2008

Machine application

Product Description

1.5-12 ton Electric Forklift

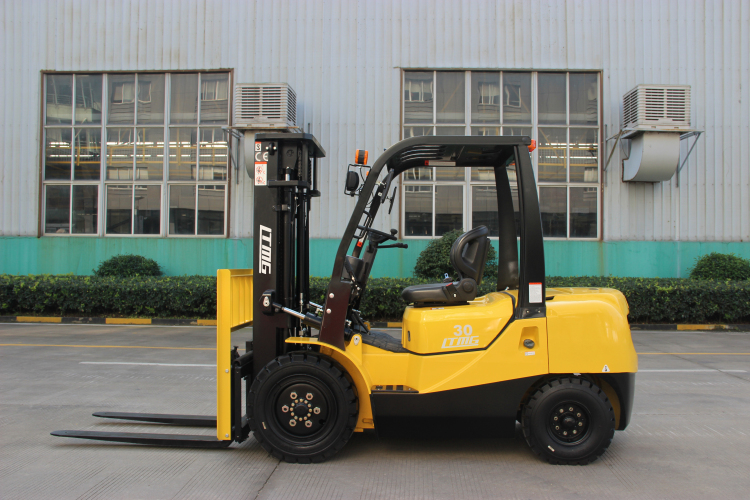

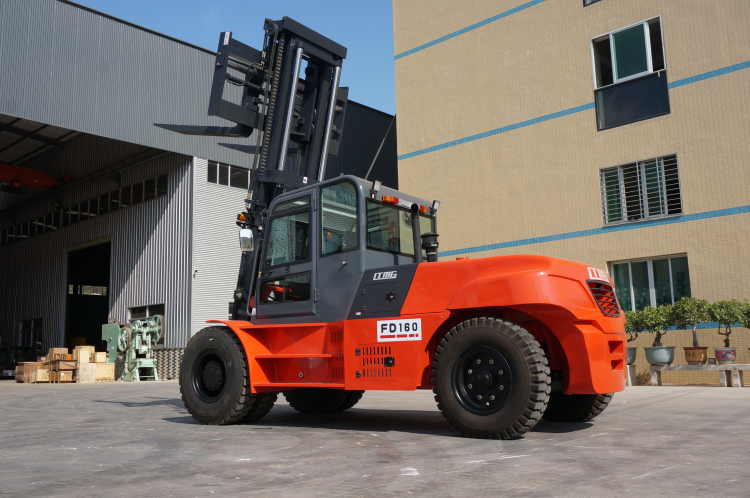

1.5-48 ton Diesel forklift

1.5-7 ton LPG/Gasoline forklift

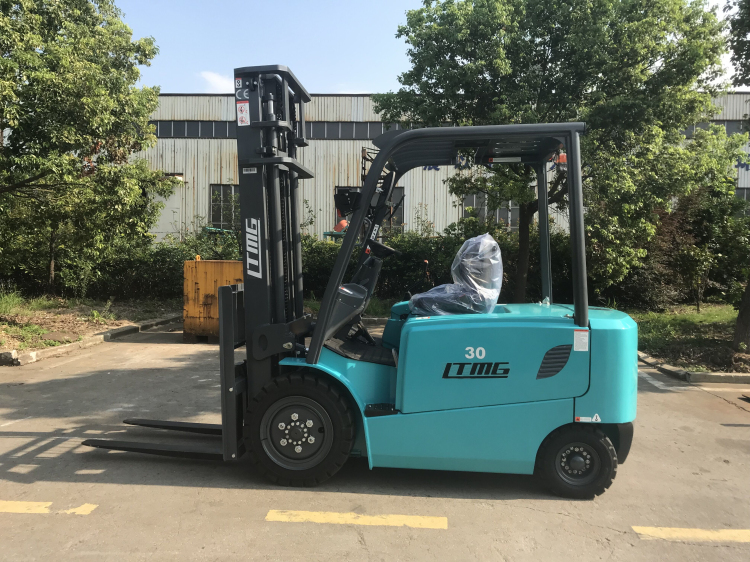

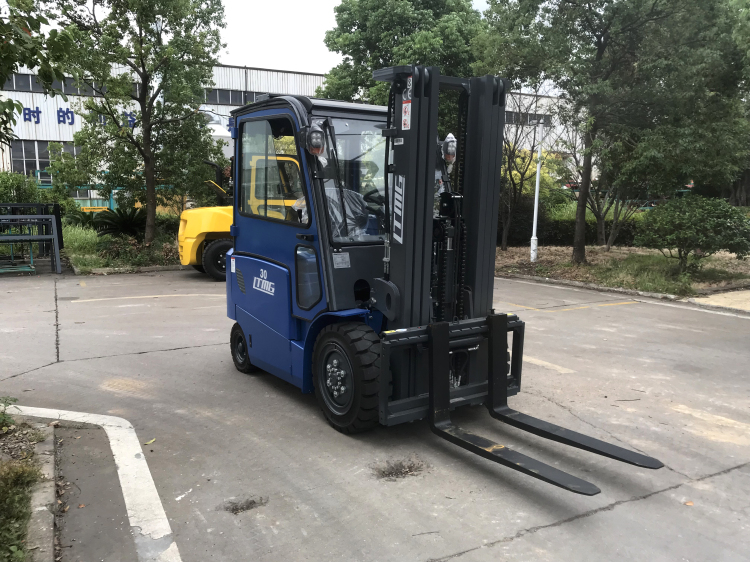

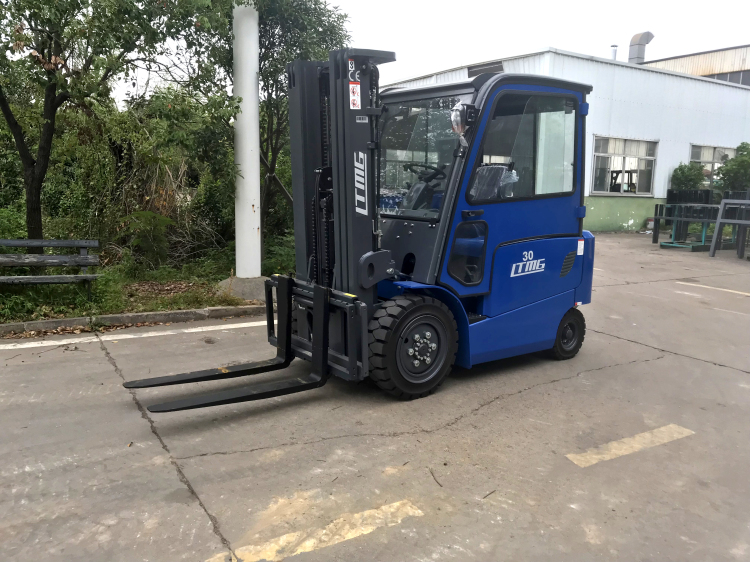

The specification of the 2ton 3ton electric forklift
General	Model		FB20	FB30
		Rated Capacity	kg	2000	3000
		Load Centre	mm	500	500
		Lift Height	mm	3000	3000
		Fork Size (L×W×T)	mm	1070×120×40	1070×125×45
		Mast Tilt Angle F/R (α°/β°)	Deg	6/12	6/12
Characteristic&Dimensions	Length to fork face of fork (Without fork)	mm	2360	2610
		Overall Width	mm	1160	1230
		Mast Lowered Height	mm	2055	2110
		Mast Extended Height (With backrest)	mm	3960	4180
		Overhead Guard Height	mm	2240	2250
		Turning Radius (outside)	mm	2075	2350
		Front Overhang (Wheel center to fork face)	mm	465	480
		Tread (Front/Rear)	mm	960/950	1000/980
		Ground Clearance (Bottom of mast)	mm	110	140
		Wheelbase	mm	1510	1700
		Fork Spread (Min./Max)	mm	240/1040	250/1100
Performance	Travel Speed	km/h	14	14
		Lifting Speed (Full load)	mm/s	300	300
		Max. Gradeability	%	15	15
		Service Weight	kg	4170	5100
		Front Tire×2		7.00-12-12PR	28×9-15-12PR
		Rear Tire×2		18×7-8-14PR	18×7-8-14PR
Driven	Driven Motor	kw	11	15
		Lift Motor	kw	8.6	12
		Battery Standard	V/Ah	48/560	80/500
		Controller Manufacturer		CURTIS AC	CURTIS AC
		Operating Pressure for Attachment	Mpa	18	18

LTMG Hot sale top8

Product Features

1.Super low Non-slip pedal

2. High-strength overhead guard

3.Adjustable steering wheel and safety seat.

4.Humanized righ- side hydraulic opeartion handle and emergency power- off button.

5.Full-view mast and fork carriage ensure operator's excellent operation vision.

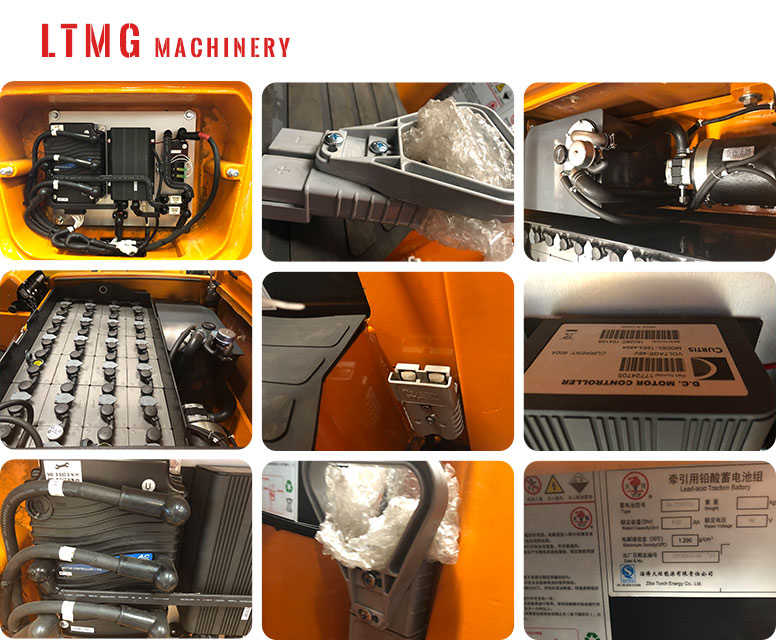

6.American Curtis controller. The controller is directly fixed in the balanced weight to lead better heat dissipation.

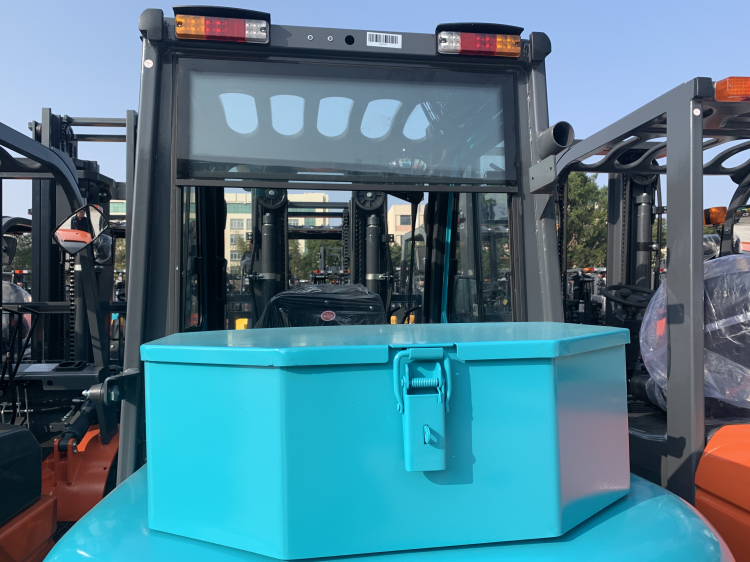

Tool kit

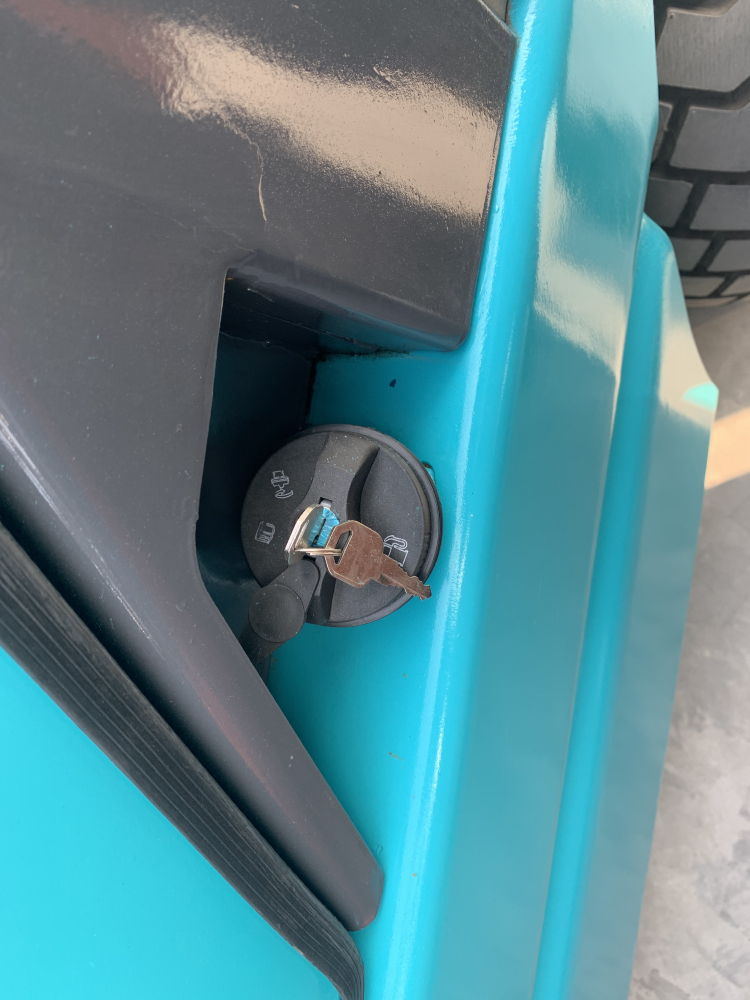

Oil tank cap with key

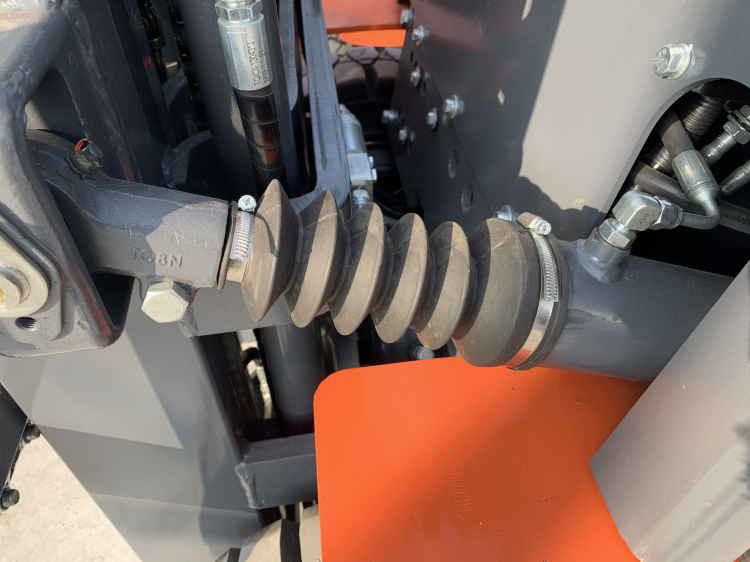

Cylinder protector

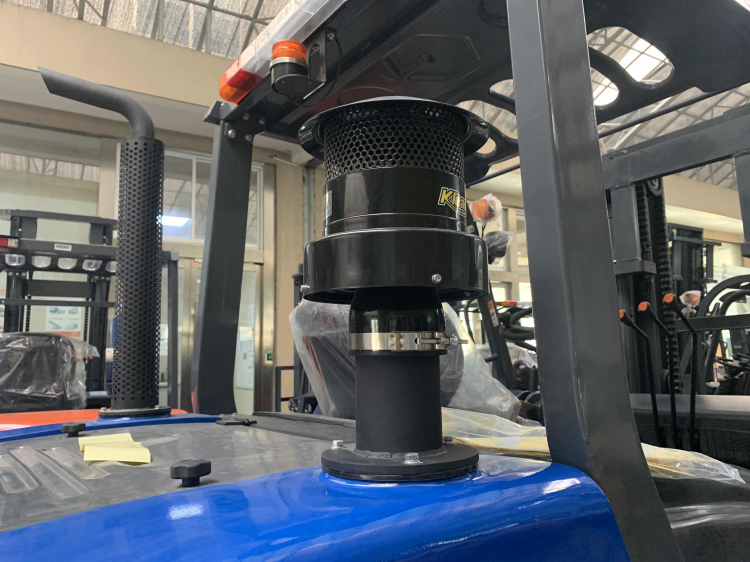

Double Air-Filter (suitable for the Large- tonnage forklift )

Packing & Delivery

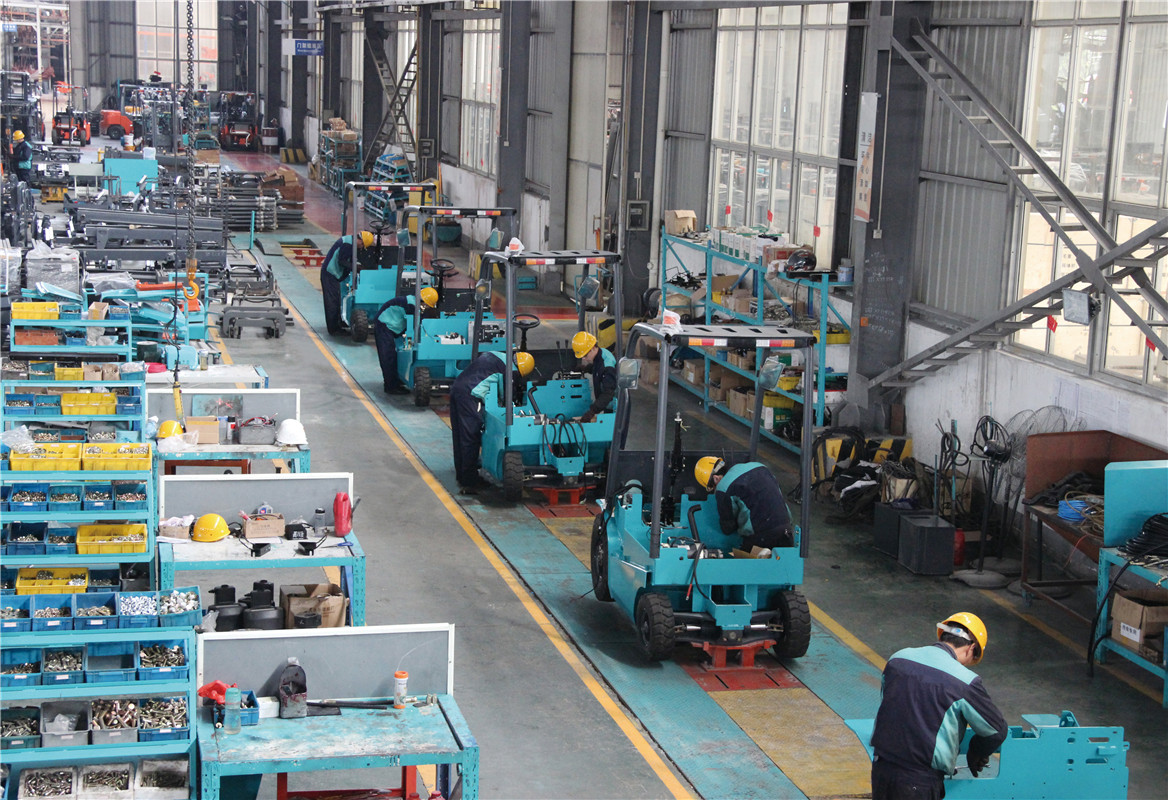

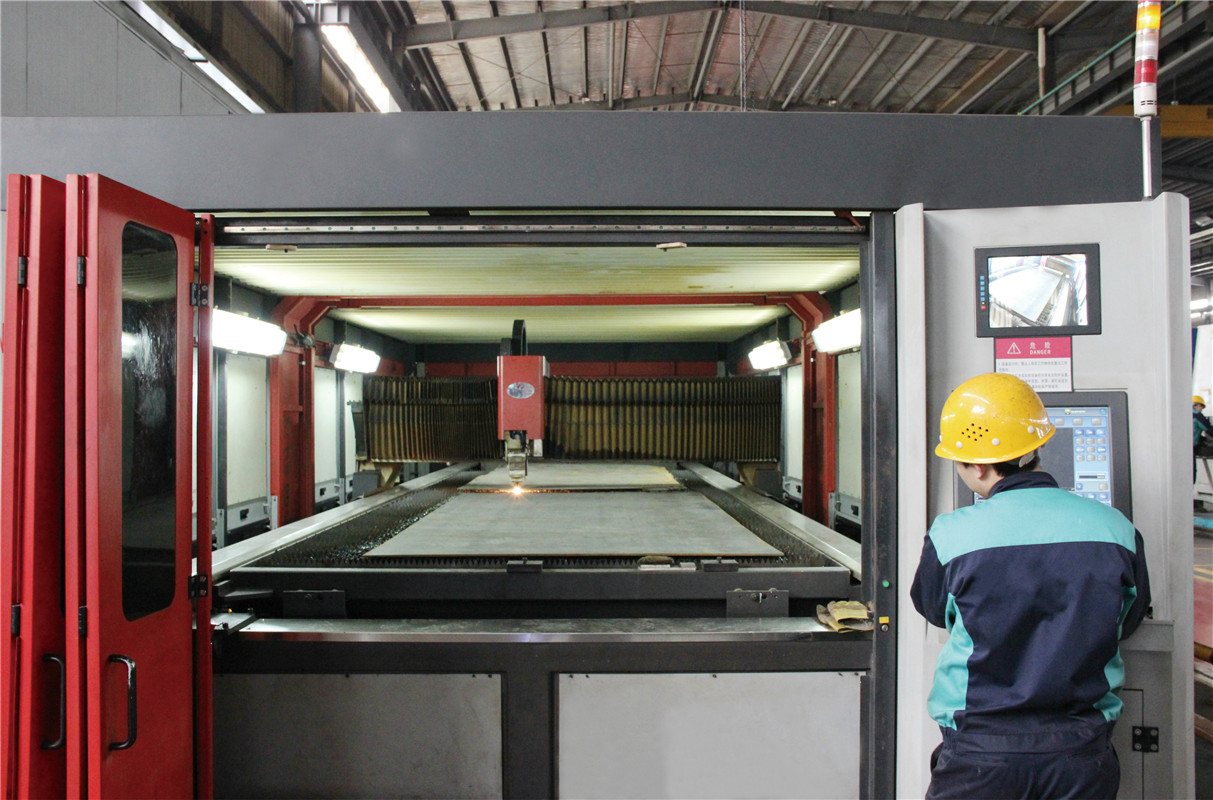

About LTMG

Customer Photos

LTMG Service

After-sale Service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
