- Controller:American Curtis

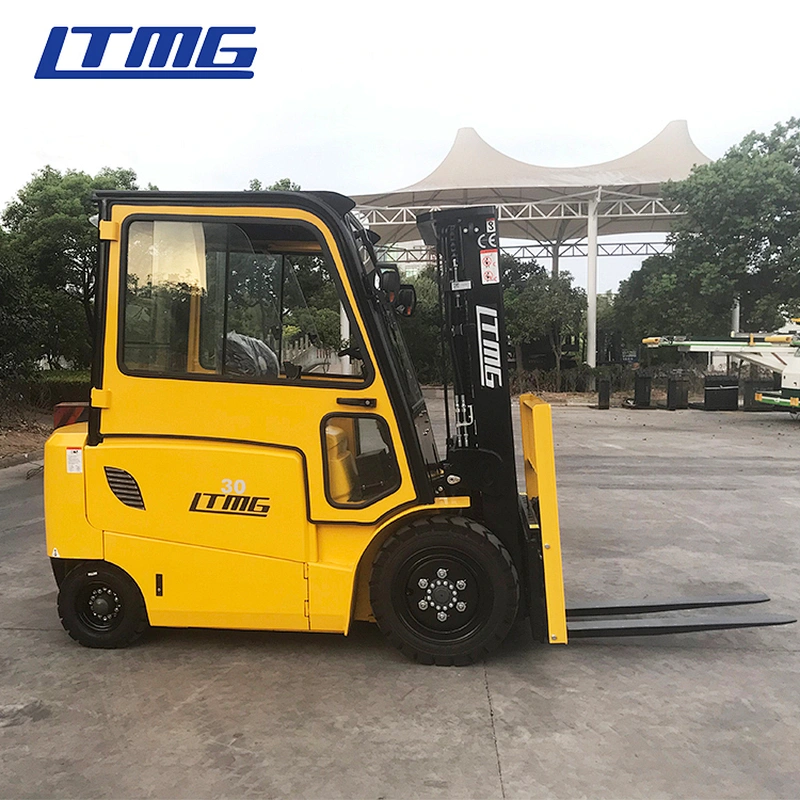

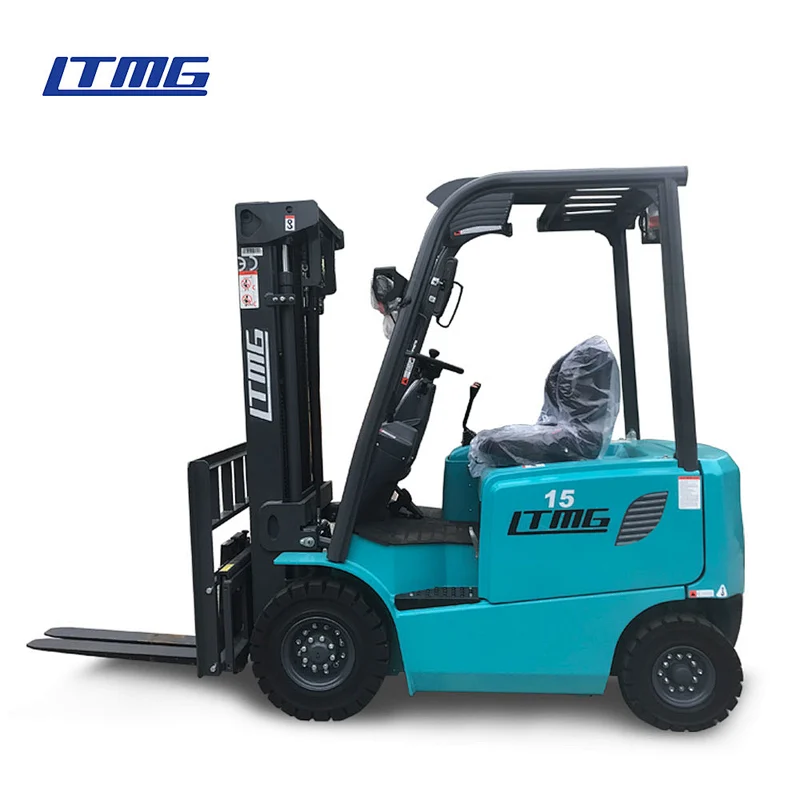

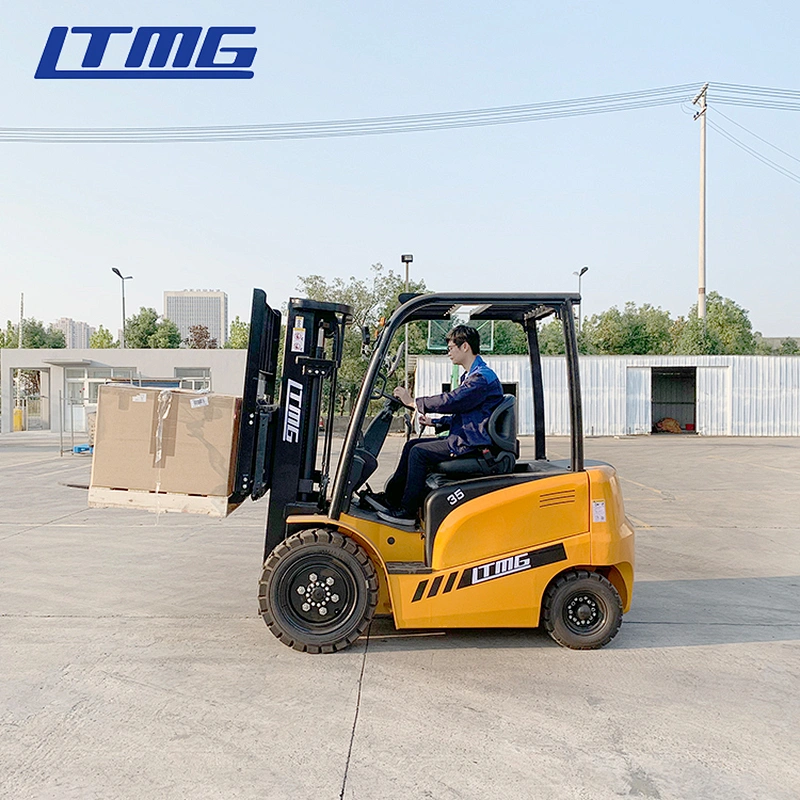

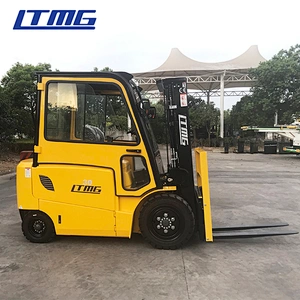

- Item Name:electric forklift 2.5 ton 3 ton 3.5 ton counterbalance forklift price
- Load center:500mm
- website:www.ltmg.cn
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:80V/500Ah
- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2070mm
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Canada
- Showroom Location:Turkey
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Romania
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Malaysia
- Showroom Location:Australia
- Showroom Location:Morocco
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;ZHE
- Applicable Industries:Building Material Shops
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:warehouse logistics
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:120mm
- Overall Dimensions:3350*1150*1995mm
- Certification:CE/ISO9001:2008
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agentsand 21after sales center around the world can supply LTMG professional after-sale service.All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Detail clauses and policies please check our website and product certificate.

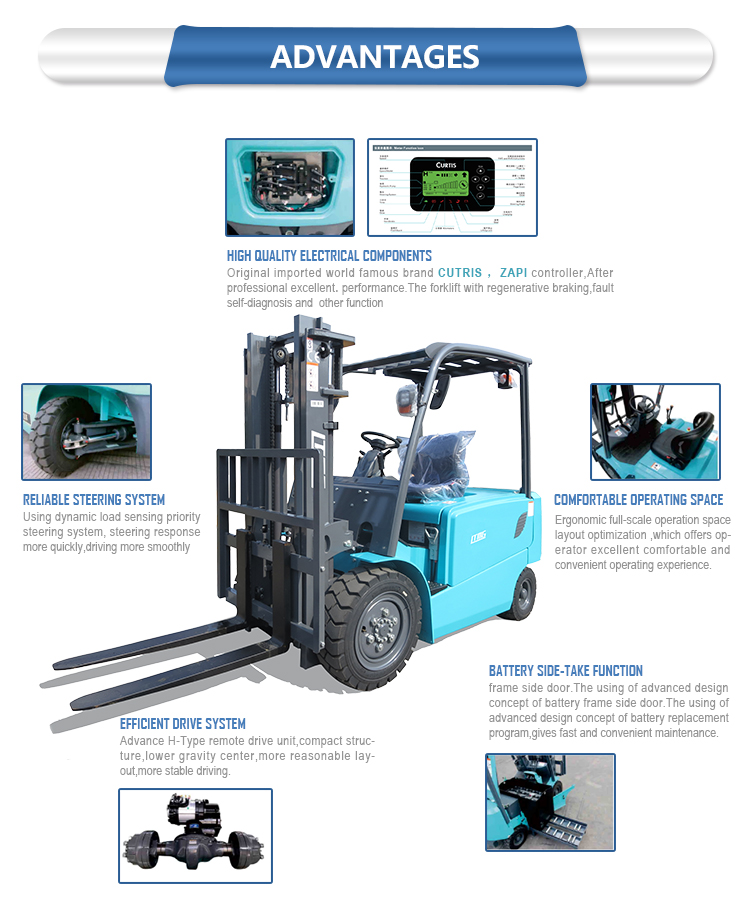

1.Equipped with original imported American Curtis electric controlsystem.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyota comfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyota comfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.
The specification of 3 ton electric forklift FB30 | ||||||
Manufacturer | LTMG | |||||
Model | FB30 | |||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Battery | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel(x=driving) | Front/rear | 2X/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 165 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2510 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised | With backrest | mm | 4250 | |||
Height to head guard | mm | 2190 | ||||
Turning raduis(outside) | mm | 2140 | ||||
Load distance | mm | 480 | ||||
Min. right angle stacking aisle | not add load length&clearence | mm | 2625 | |||
Speed | Max Travelling full load | km/h | 13.5 | |||
Max Travelling no load | km/h | 15 | ||||
Lifting full load | mm/s | 240 | ||||
Lifting no load | mm/s | 450 | ||||
Gradeability | full load | % | 12.5 | |||
Truck weight(with standard battery) | kg | 4660 | ||||
Weight distribution | Full load front/rear | kg | 6770/890 | |||
No load front/rear | kg | 1885/2775 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28*9-15-12PR | ||||
rear axle | 18*7-8-14PR | |||||
Wheelbase | mm | 1600 | ||||
Tread | Front/rear | mm | 1000/950 | |||
Ground clearence | At lowest point(mast) | mm | 140 | |||
Frame | mm | 120 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brak | Mechanical-hand lever | |||||
Lead-Acid Battery | Voltage/capacity | V/AH | 72/480 | |||
Lithium battery(optional) | Voltage/capacity | V/AH | 76.8/315 | |||
Weight with box (standard) | kg | 1220 | ||||
Electric motor | AC Driving motor | kw | 16.6 | |||
DC Hydraulic driving motor | kw | 10 | ||||
AC Hydraulic driving motor (as option) | kw | 13.4 | ||||
Control type | Driving AC , lifting DC | |||||
Driving AC , lifting AC(as option ) | ||||||
Operating pressure | kg/cm² | 175 | ||||
