- After-sales Service:Provided
- Color:Customized

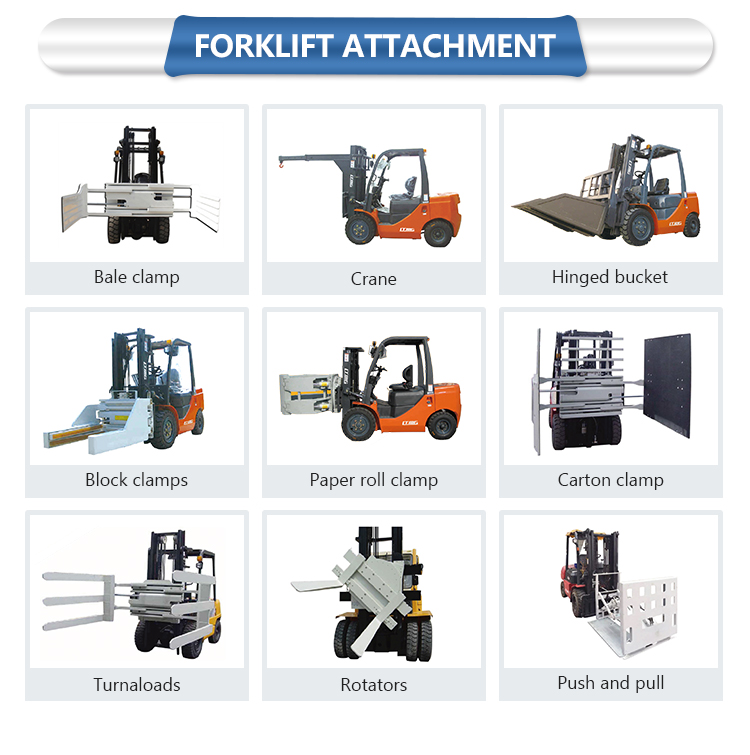

- Optional:side shifter, AC,longer forks, etc
- Load center:500mm
- Wheel base:1380mm
- Turning raduis:1956mm
- Battery:48V/450Ah
- Ground clearence:110mm
- Max.lift height:3000mm
- Controller:CURTIS or ZAPI
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Argentina
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Argentina
- Showroom Location:Colombia
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Bearing
- Core Components:Pump
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:135mm
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2140*1080*2015mm
- Certification:CE/ISO9001:2008

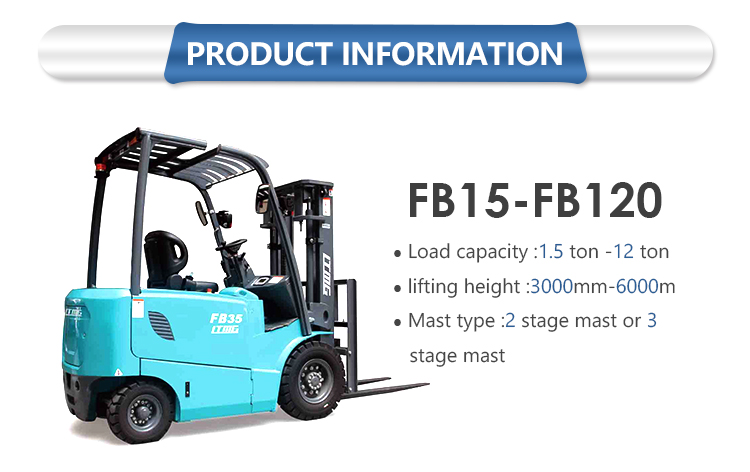

General | Model | FB15 | FB20 | FB30 | |
Load Capacity | kg | 1500 | 2000 | 3000 | |
Load Centre | mm | 500 | 500 | 500 | |
Lifting height | mm | 3000 | 3000 | 3000 | |
Fork size | mm | 920*120*35 | 1070*120*40 | 1070*125*45 | |
Mast tilt angle | deg | 6/12 | 6/12 | 6/12 | |
Characteristic & Demensions | Length to fork face of fork(without fork) | mm | 2190 | 2360 | 2610 |
Overall width | mm | 1090 | 1160 | 1230 | |
Mast lowered height | mm | 1995 | 2055 | 2110 | |
Mast extended height(with backrest) | mm | 3940 | 3960 | 4180 | |
Overahear guard height | mm | 2195 | 2240 | 2250 | |
Turning radius(outside) | mm | 2010 | 2075 | 2350 | |
Front overhang(Wheel center to fork face) | mm | 420 | 465 | 480 | |
Tread(Front&Rear) | mm | 890/920 | 960/950 | 1000/980 | |
Ground clearance(Bottom of mast) | mm | 110 | 110 | 140 | |
Wheel base | mm | 1420 | 1510 | 1700 | |
Fork spread(Full load) | mm | 240/970 | 240/1040 | 250/1100 | |
Perfprmance | Travel speed | km/h | 14 | 14 | 14 |
Lifting speed(full load) | mm/s | 320 | 300 | 300 | |
Max gradeability | % | 15 | 15 | 15 | |
Service weight | kg | 3070 | 4170 | 5100 | |
Front tire | 6.50-10-10PR | 7.00-12-12PR | 28*9-15-12PR | ||
Rear tire | 5.00-8-10PR | 18*7-8-14PR | 18*7-8-14PR | ||
Driven | Driven motor | kw | 8 | 11 | 15 |
Lift motor | kw | 8.6 | 8.6 | 12 | |
Battery standard | V/ah | 48/400 | 48/560 | 80/500 | |
Controller manufacturer | Curtis AC | Curtis AC | Curtis AC | ||
Operating pressure for attachment | Mpa | 14.5 | 18 | 18 |
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
