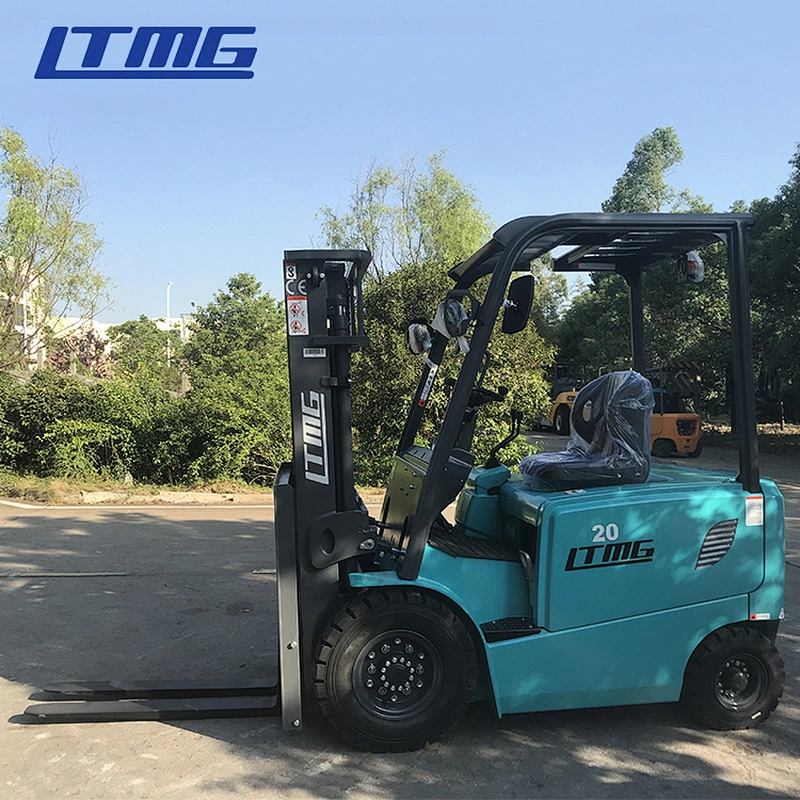

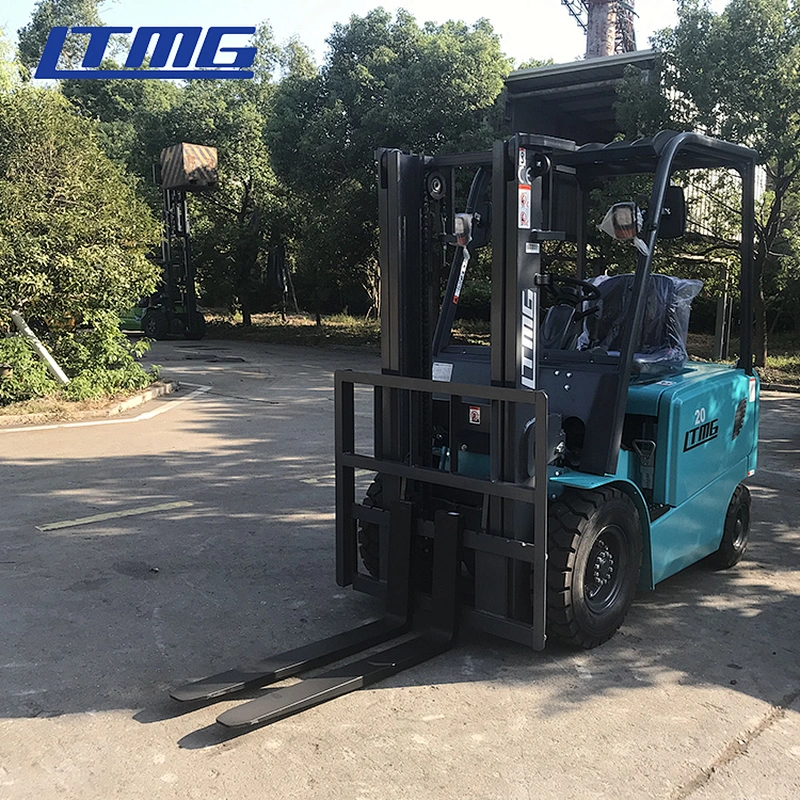

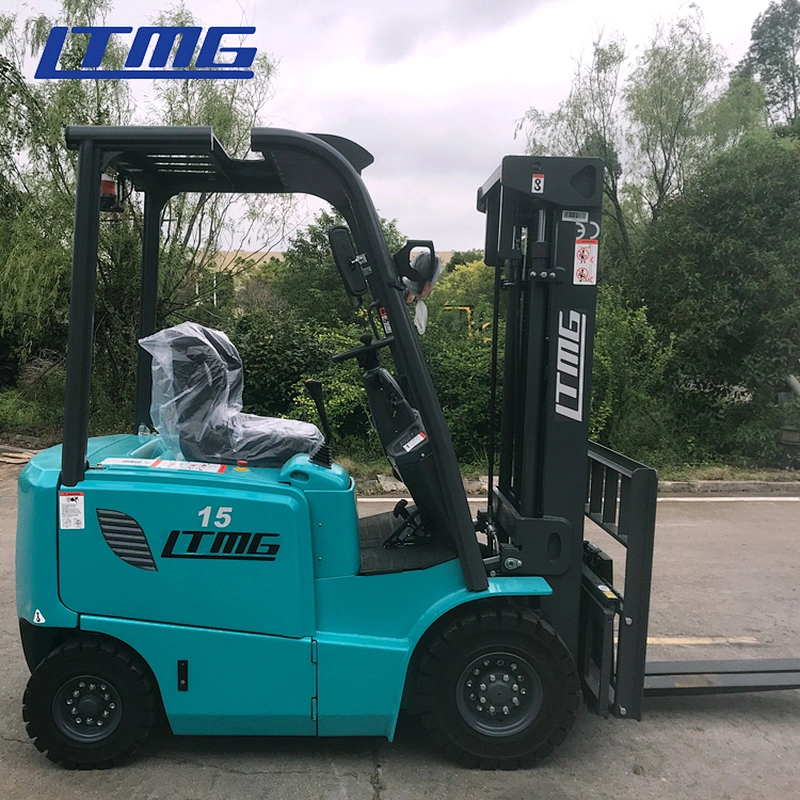

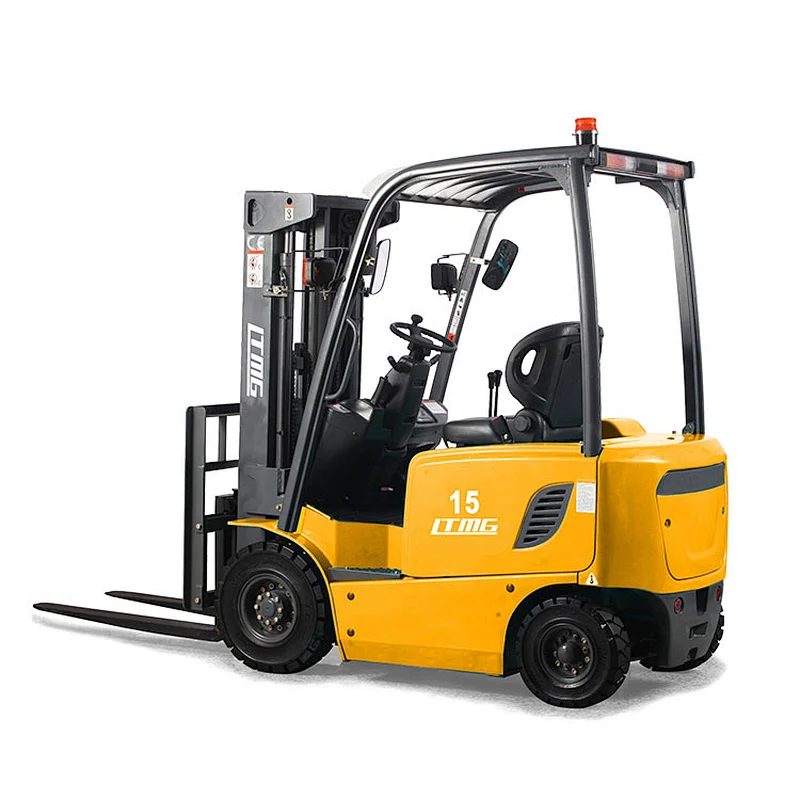

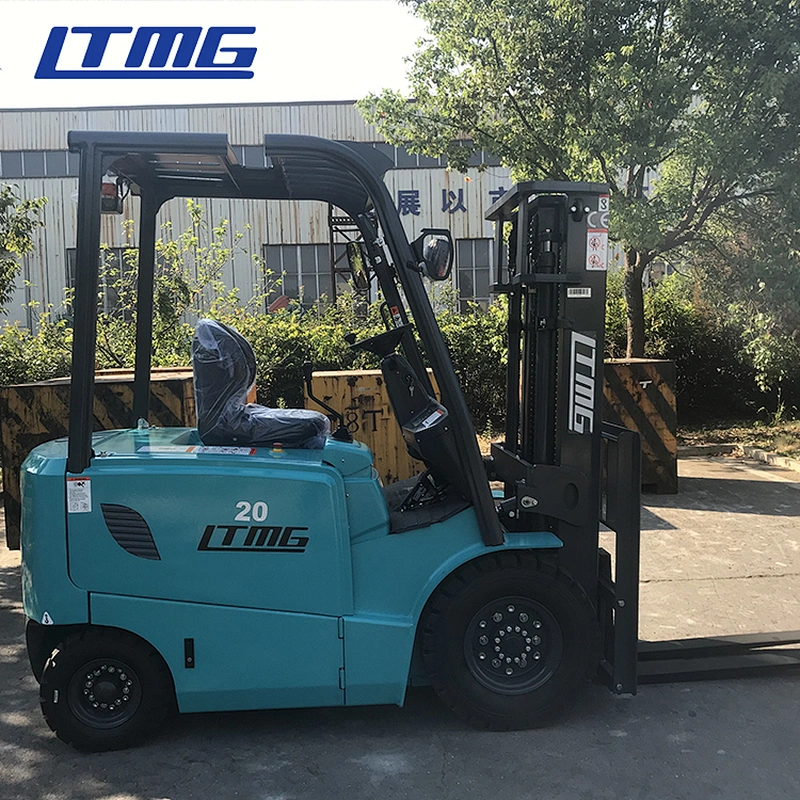

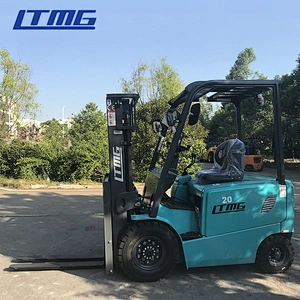

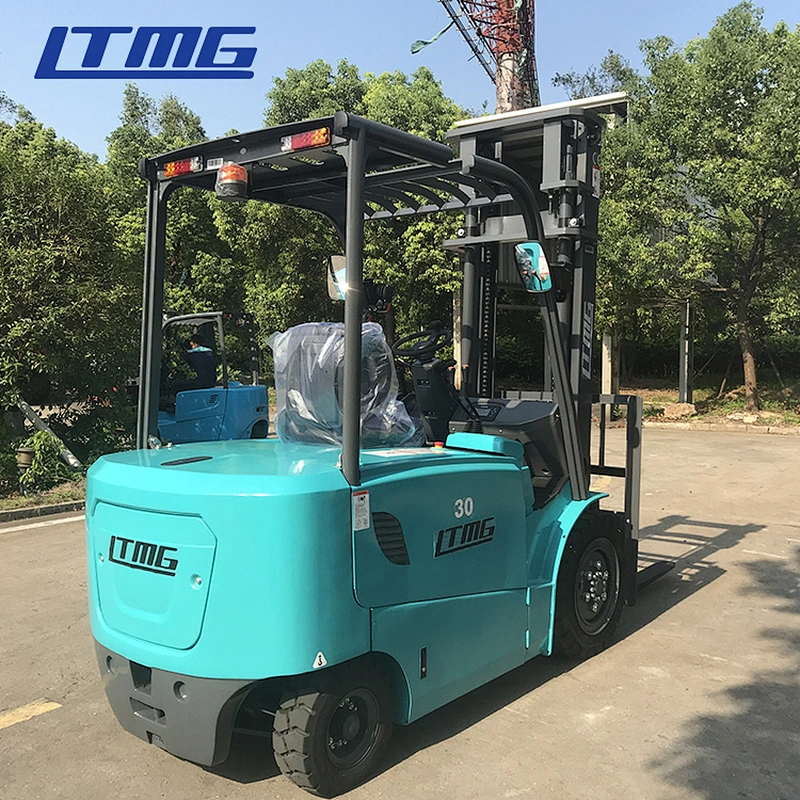

LTMG Battery Forklift Truck 1.5 ton 5 ton 4 ton 3.5 ton 3 ton 2.5 ton 2 ton Electric Forklift with Curtis Controller

LTMG Battery Forklift Truck 1.5 ton 5 ton 4 ton 3.5 ton 3 ton 2.5 ton 2 ton Electric Forklift with Curtis Controller

Price:: US $ 5981.00-15733.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 600.0 unit / Month
Country of Origin: Ningbo

Quantity:

Product Description

Product type:electric forklift
Item:2 ton electric forklift
Mast:2 Stage/3 Stage
Controller:Curtis AC Controller
Battery capacity:48V/560Ah
Wheelbase:1510mm
Turning raduis(outside):2075mm
Self weight:4170kg
Tire type:Pneumatic/Solid
Other optional:Side shifter, Fork positioner, Enclosed cabin, etc
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Home Use
Applicable Industries:Food Shop
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Spare parts
Local Service Location:Brazil
Local Service Location:Mexico
Local Service Location:Spain
Local Service Location:Malaysia
Local Service Location:Australia
Local Service Location:Kenya
Local Service Location:Chile
Local Service Location:UAE
Local Service Location:Colombia
Local Service Location:Algeria
Local Service Location:Bangladesh
Local Service Location:South Africa
Showroom Location:United States
Showroom Location:Philippines
Showroom Location:Brazil
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:Colombia
Condition:New
Power Souce:AC Motor
Warranty:1 Year
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
Warranty of core components:2 years
Core Components:Motor
Core Components:Gear
Place of Origin:CN;ZHE
Brand Name:LTMG
Min. Lifting Height:0
Fork Length:1070mm
Fork Width:120mm
Overall Dimensions:2360*1160*2240mm
Certification:CE/ISO9001:2008

LTMG always treat after-sale service as important as sale.

Nowadays more than 50 agentsand 21after sales center around the world can supply LTMG professional after-sale service.All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

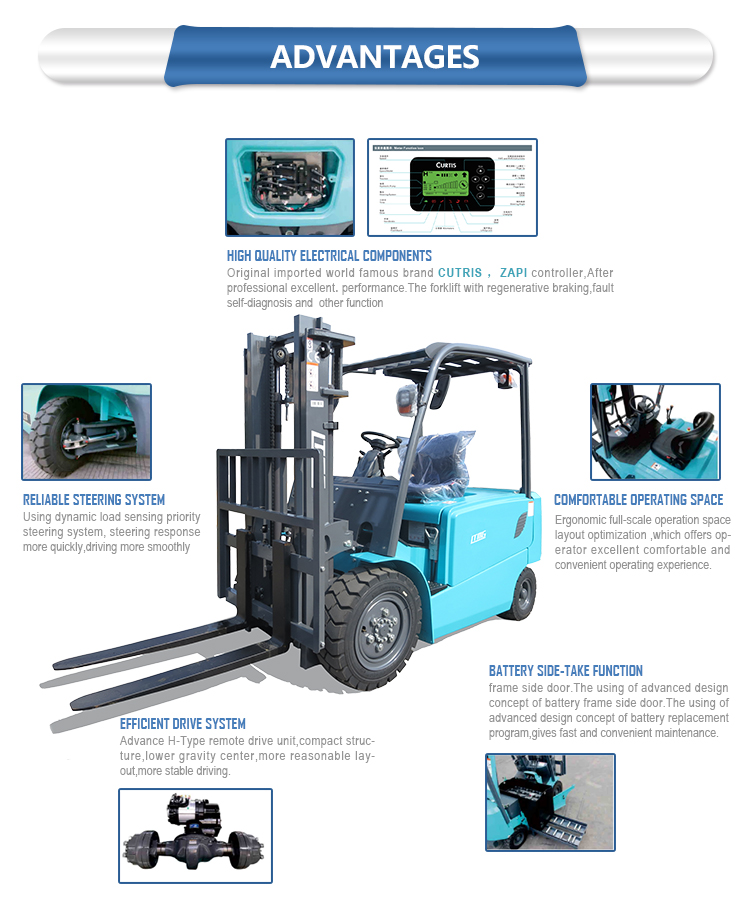

1.Equipped with original imported American Curtis electric controlsystem.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyota comfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.

Model		FB10	FB15	FB18	FB20	FB25	FB30
Power type		Electric	Electric	Electric	Electric	Electric	Electric
Rated capacity		1000	1500	1800	2000	2500	3000
Load center		500	500	500	500	500	500
Tire
Tire type		Pneumatic tire
Quantity of wheels		2 X /2
Tires Size		16×6-8/15×4.5-8	6.50-10-12PR/5.00-8-8PR			23×9-10/18×7-8		28X9--15-12PR/18X7-8-14PR
Driving brake		Hydraulic-pedal
Paking brake		Mechanical-manual
Dismission
Tilting Angles	α/β（°）	6/12	6/12	6/12	6/12	6/12	6~12
Height of mast	mm	1875	1995	1995	1995	1995	2120
Max.lift height of mast	mm	3900	4025	4025	4045	4045	4160
Free lift height	mm	140	140	140	150	150	150
Max.lift height of fork	mm	3000
Front-wheel Overhead	mm	2100	2100	2100	2098	2098	2092
Length(without fork)	mm	1950	2035	2035	2353	2353	2507
Front overhang	mm	350	400	400	440	440	475
Rear overhang	mm	300	335	335	384	384	432
Wheelbase	mm	1200	1360	1360	1360	1500	1600
Min.ground clearance	mm	110	110	110	110	110	110
Tread(front/rear)	mm	800/820	912/920	912/920	970/950	970/950	1000/970
Overall width	mm	1000	1150	1150	1150	1170	1250
Fork size	mm	920x100x35	920x100x40	920x100x40	1070X120X40	1070X120X40	1070x125x45
Minimum right Angle stacking channel width	mm	3250	3797	3797	4040	4040	4105
Min mum urn radius	mm	1800	1997	1997	2172	2172	2360
Capacity
Max driving speed	km/h	9·11	10·12	10~12	12~13	12~13	12~13
Max Lifting speed	mm/s	240-450	240-450	240~450	320~450	320~450	300-400
Max lowering speed	mm/s	480/420	480/420	480~420	476~426	476~426	260-390
Maxmum tractive force	N	6300	8600	8800	12300	12800	15600
Max.grade ability	%	12~15	12~15	12~15	13~15	13~15	14-15
Drive
Drive motor power	kw	4	5.5	5.5	7.5	7.5	13
Hoisting motor power	kw	5	5	6	6	8	13.5
Level voltage/Capacitance	V/Ah	48/320	48/360	48/400	48/400	48/450	48/560
Other
Drive System	Full AC
electric control system	Curtis
Total weight	KG	2200	2800	2980	3600	3900	4950

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
