- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Place of Origin:CN
- Type:Powered Pallet Truck
- Power Souce:AC Motor
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Applicable Industries:Warehouse
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:120mm
- Overall Dimensions:2105*1100*2055mm
- Certification:CE/ISO

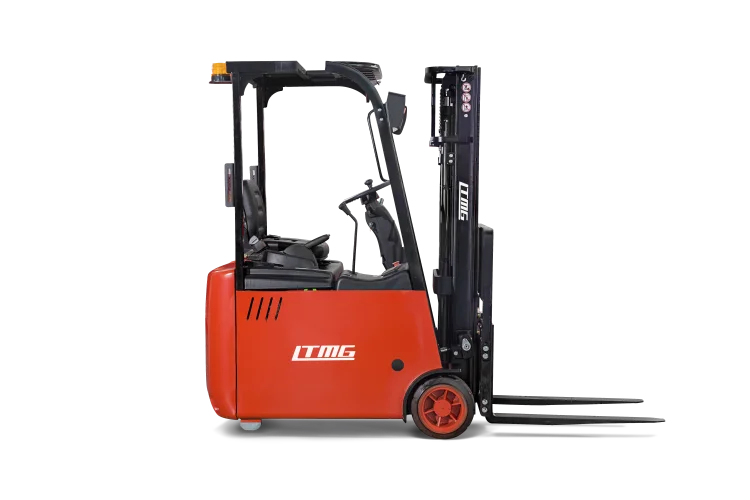

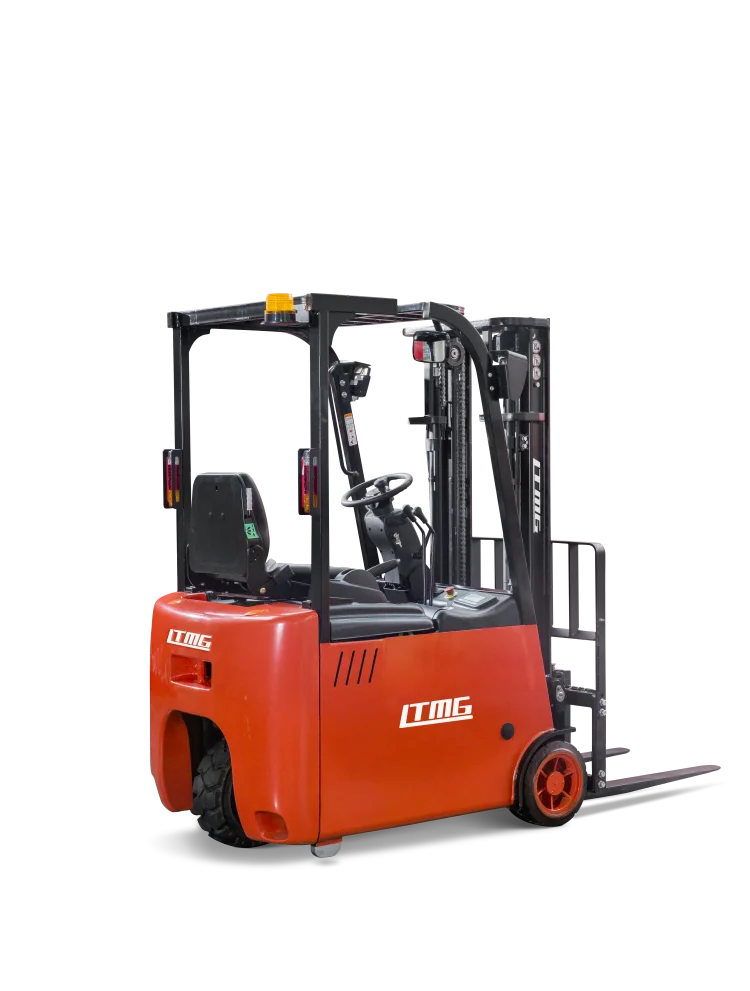

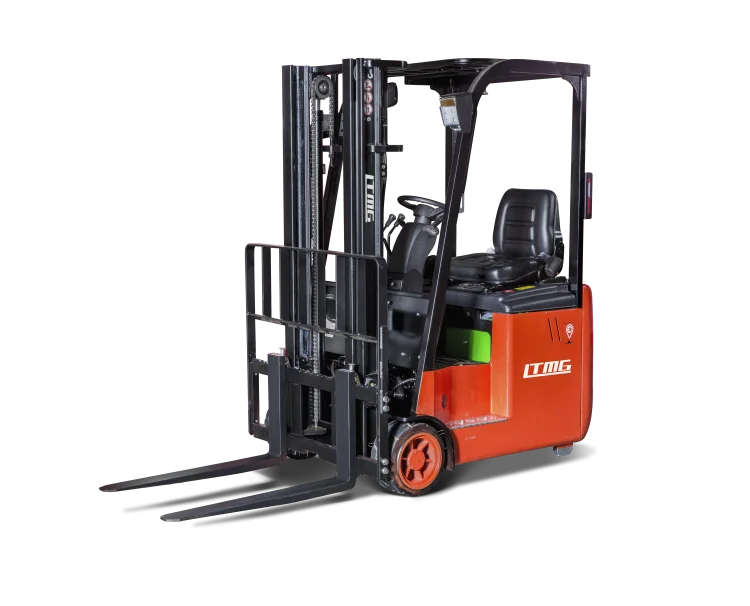

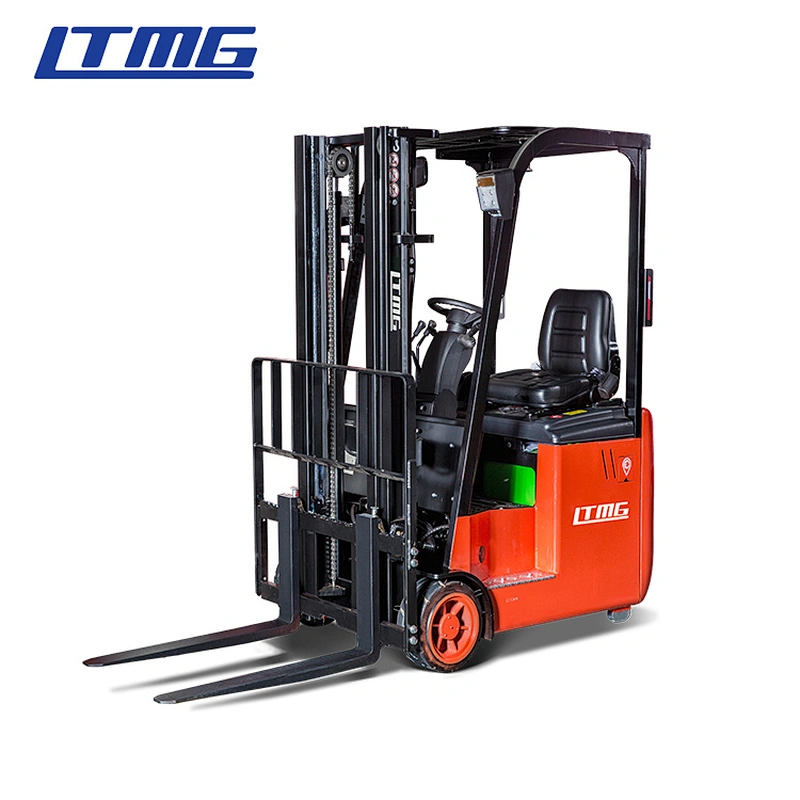

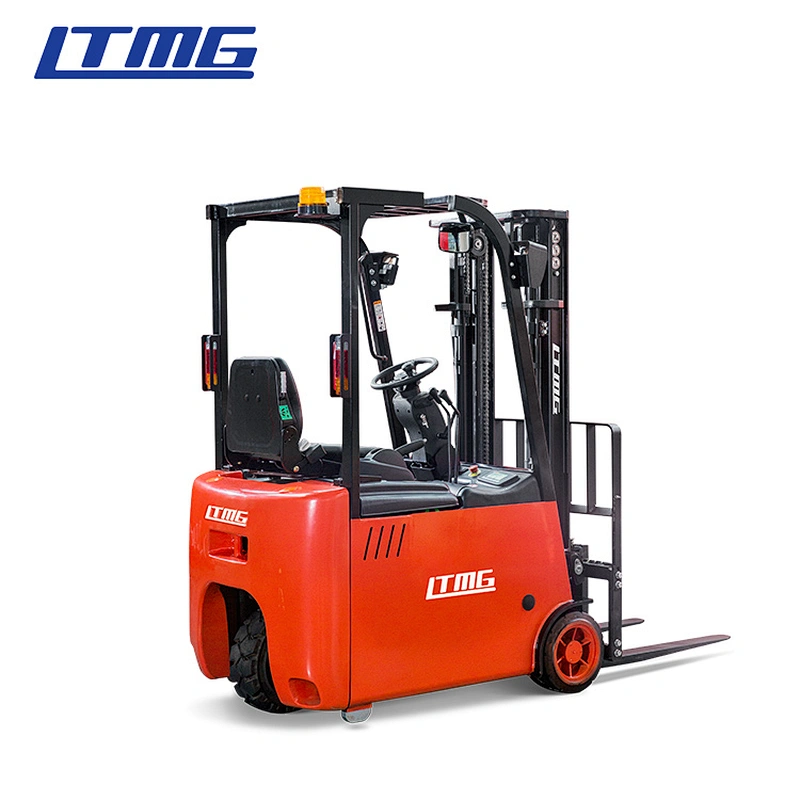

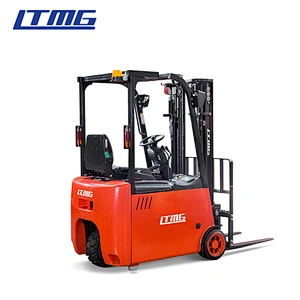

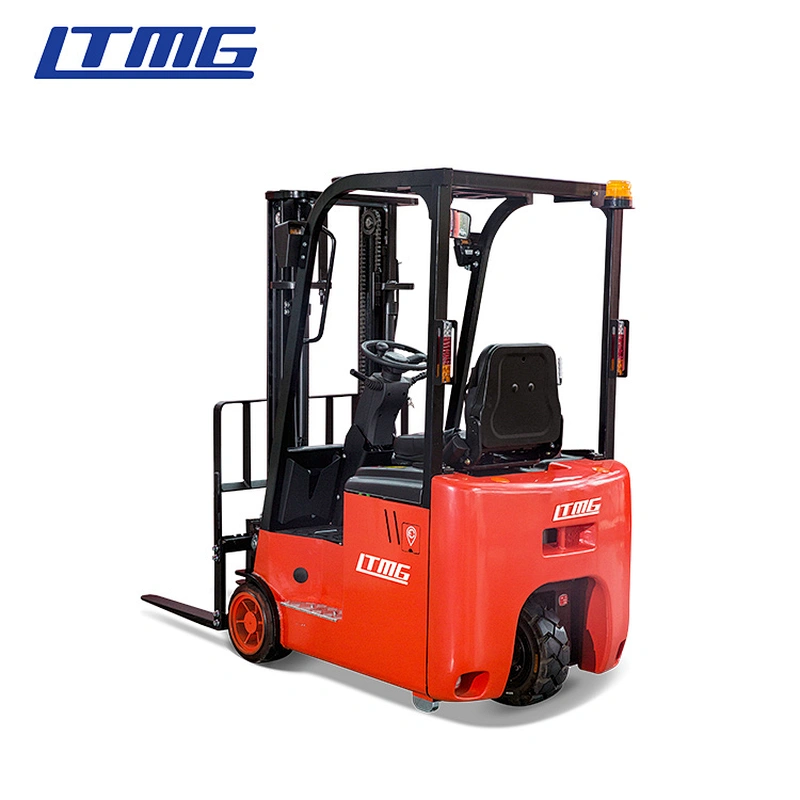

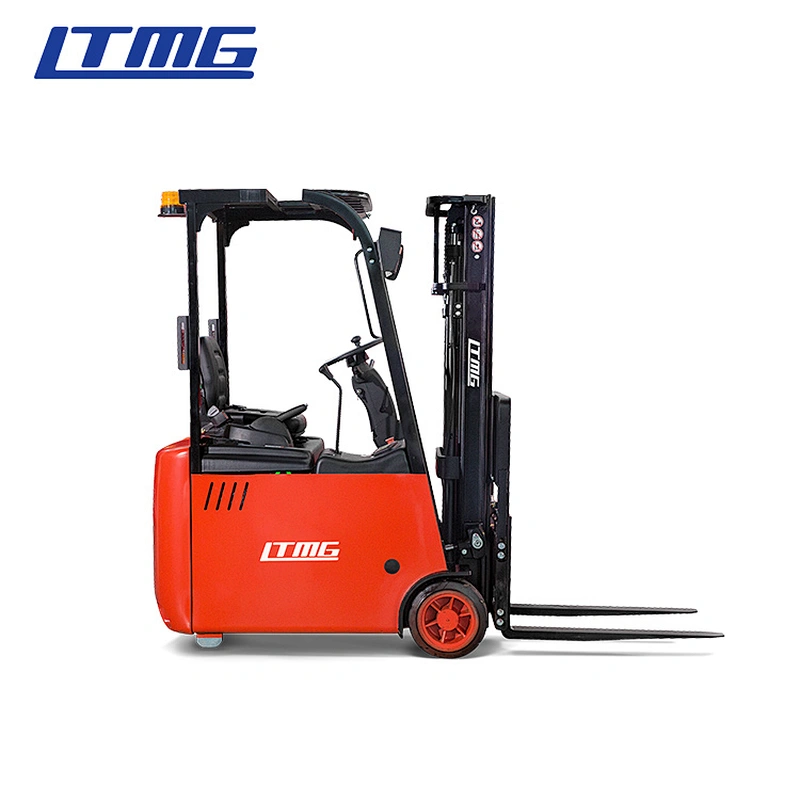

LTMG 3-wheel 1.6 ton electric forklift truck with Curtis controller
The specification of LTMG 3-wheel 1.6 ton 1.8 ton 2 ton electric forklift | ||||||||||
Model | FB16S | FB18S | FB20S | |||||||
Power type | Electric | Electric | Electric | |||||||
Rated Capacity | kg | 1600 | 1800 | 2000 | ||||||
Load Centre | mm | 500 | 500 | 500 | ||||||
Lift Height | mm | 3000 | 3000 | 3000 | ||||||
Fork Size | L×W×T | mm | 920×120×35 | 920×120×35 | 1070×120×40 | |||||
Mast Tilt Angle | F/R(α°/β°) | Deg | 6°/6° | 6°/6° | 6°/6° | |||||
Front Overhang(Wheel center to fork face) | mm | 390 | 390 | 395 | ||||||
Tread | (F/R) | mm | 924/208 | 924/208 | 924/208 | |||||
Ground Clearance(Bottom of mast) | mm | 90 | 90 | 90 | ||||||
Fork Spread | Min./Max. | mm | 240/970 | 240/970 | 240/970 | |||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2100 | 2100 | 2105 | |||||
Overall Width | mm | 1100 | 1100 | 1100 | ||||||
Mast Lowered Height | mm | 2010 | 2010 | 2010 | ||||||
Mast Extended Height(With backrest) | mm | 3940 | 3940 | 3940 | ||||||
Overhead Guard Height | mm | 2055 | 2055 | 2055 | ||||||
Turning Radius(outside) | mm | 1690 | 1690 | 1690 | ||||||
Min. insecting aisle | mm | 2300 | 2300 | 2300 | ||||||
Speed | Travel (Empty load) | km/h | 14 | 14 | 14 | |||||
Lifting (Full load) | mm/s | 340 | 320 | 300 | ||||||
Max. Gradeability | % | 15 | 15 | 15 | ||||||
Tire | Front | 18×7-8 | 18×7-8 | 18×7-8 | ||||||
Rear | 16×6-8 | 16×6-8 | 16×6-8 | |||||||
Wheelbase | mm | 1460 | 1460 | 1460 | ||||||
Service Weight | kg | 3420 | 3520 | 3760 | ||||||
Motor | Driven Motor | kw | 2×4.5 | 2×4.5 | 2×4.5 | |||||
Lift Motor | kw | 8.6 | 8.6 | 8.6 | ||||||
Battery | Voltage/Capacity | V/Ah | 48/490 | 48/490 | 48/560 | |||||
Controller | Manufacturer | CURTIS | CURTIS | CURTIS | ||||||
Type | AC | AC | AC | |||||||
Operating Pressure for Attachment | Mpa | 14.5 | 14.5 | 14.5 | ||||||

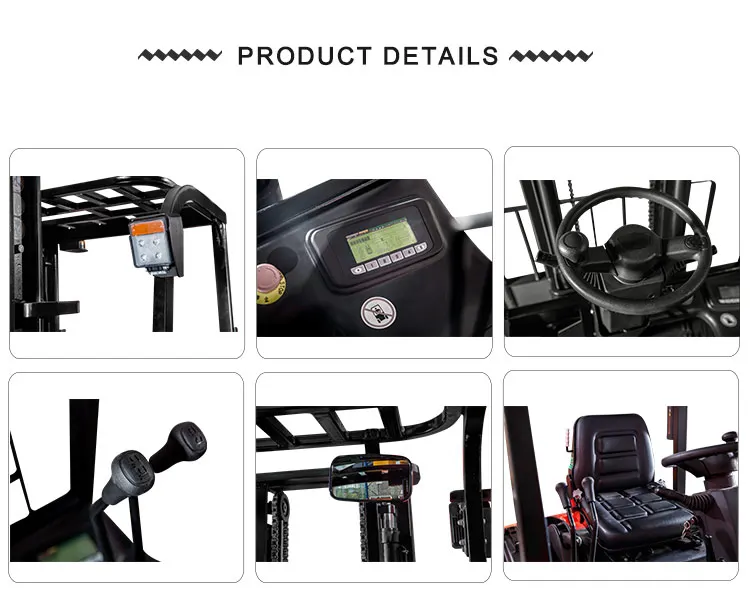

1. Curtis Full-AC controllers
2. Imported multifunction LCD instrument
3. Imported Full-AC double motors drive unit

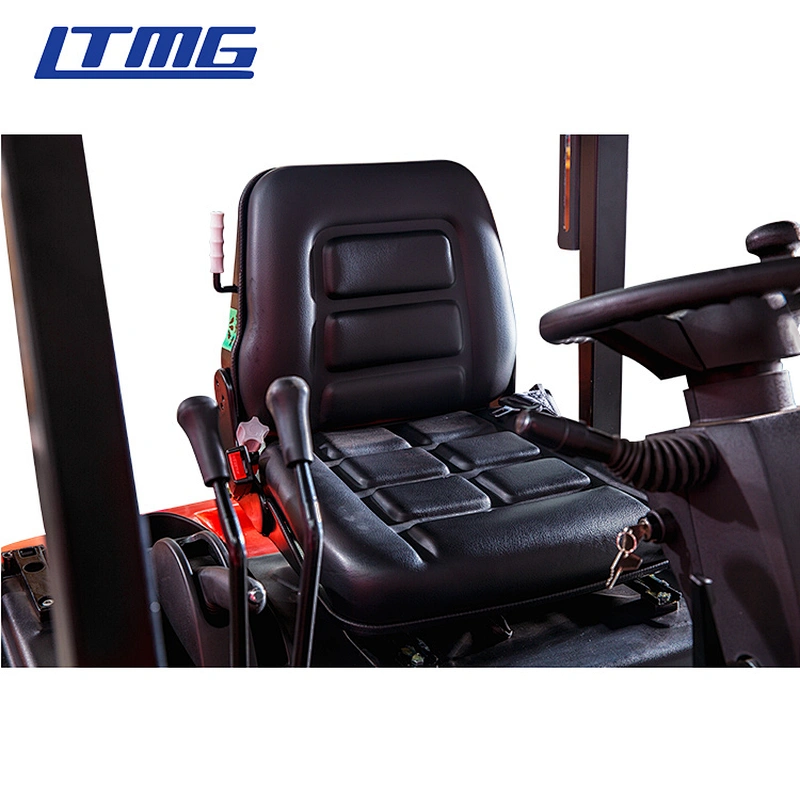

4. Steering column adjustment system
5. Single rear wheel, flexible steering
6. Short turning radius, more suitable for narrow aisle operation
7. In stock, ready to ship.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
