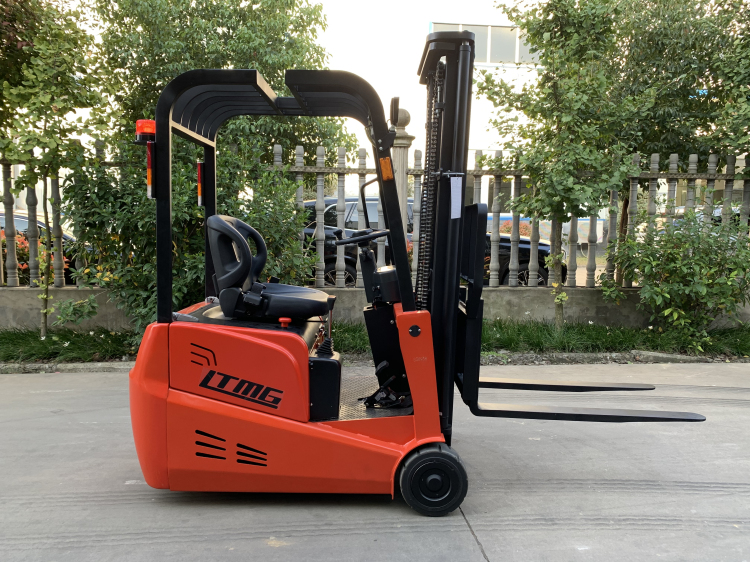

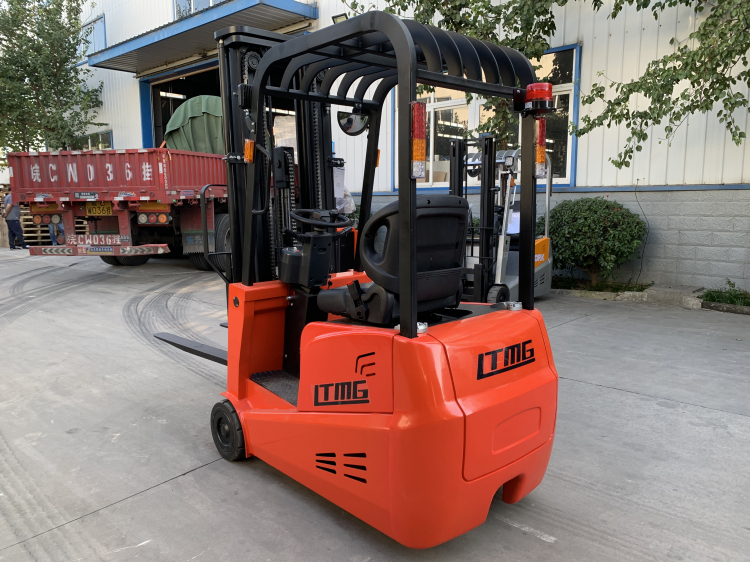

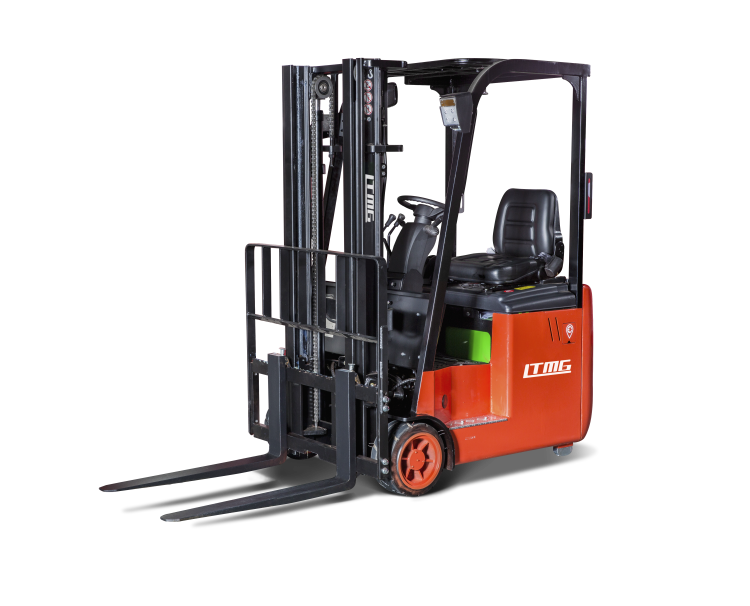

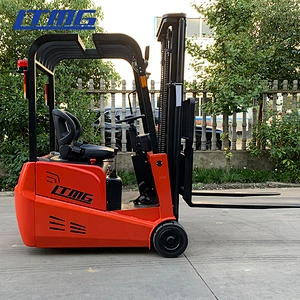

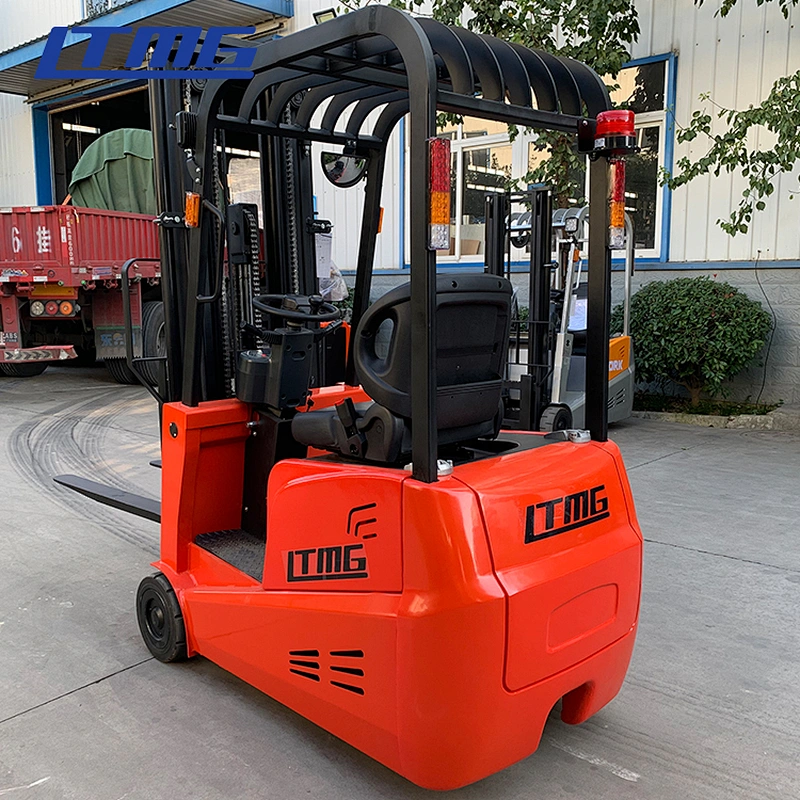

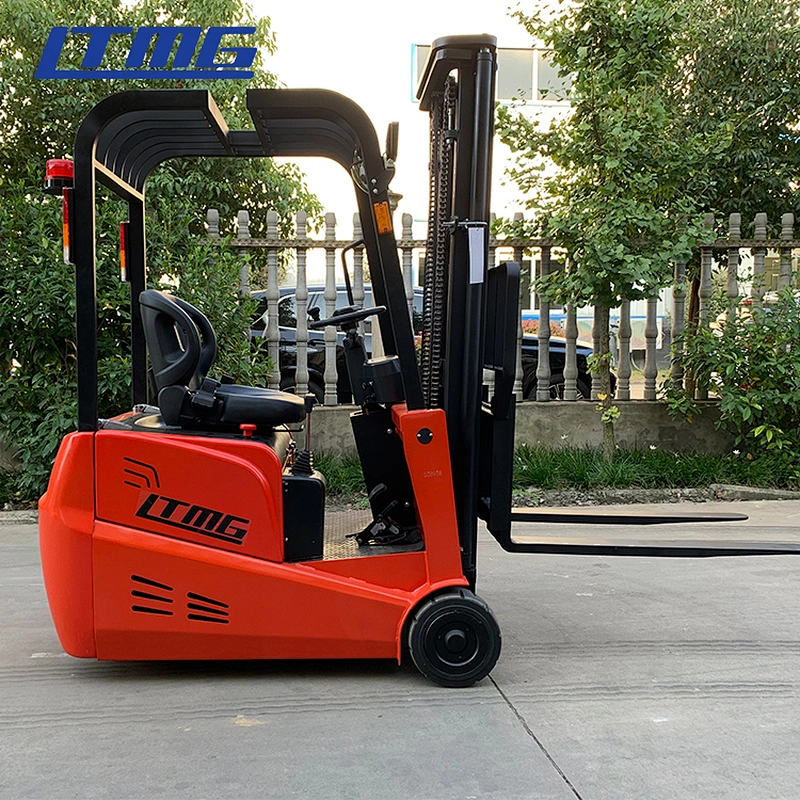

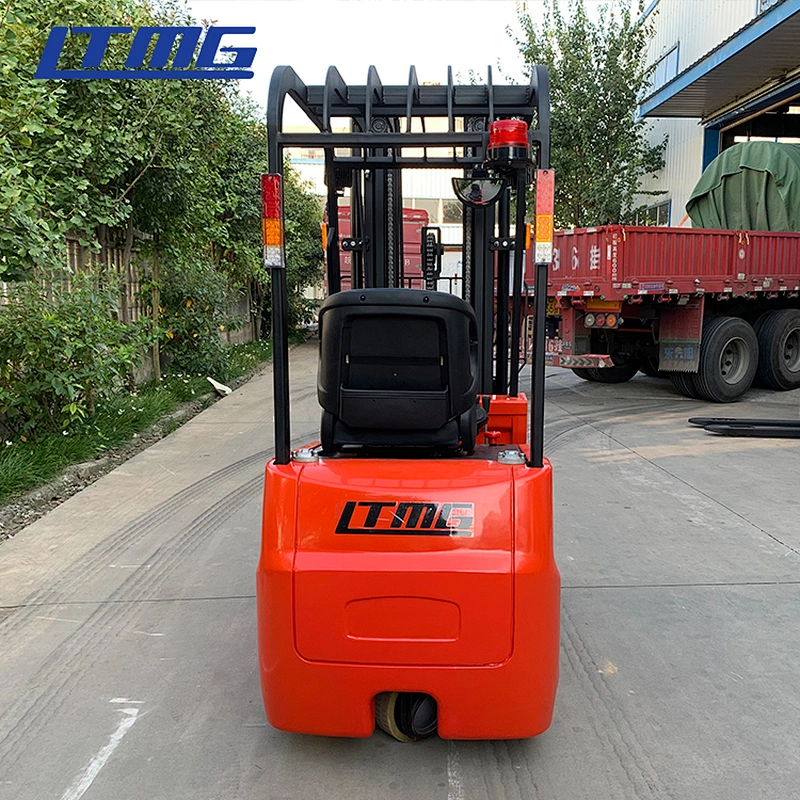

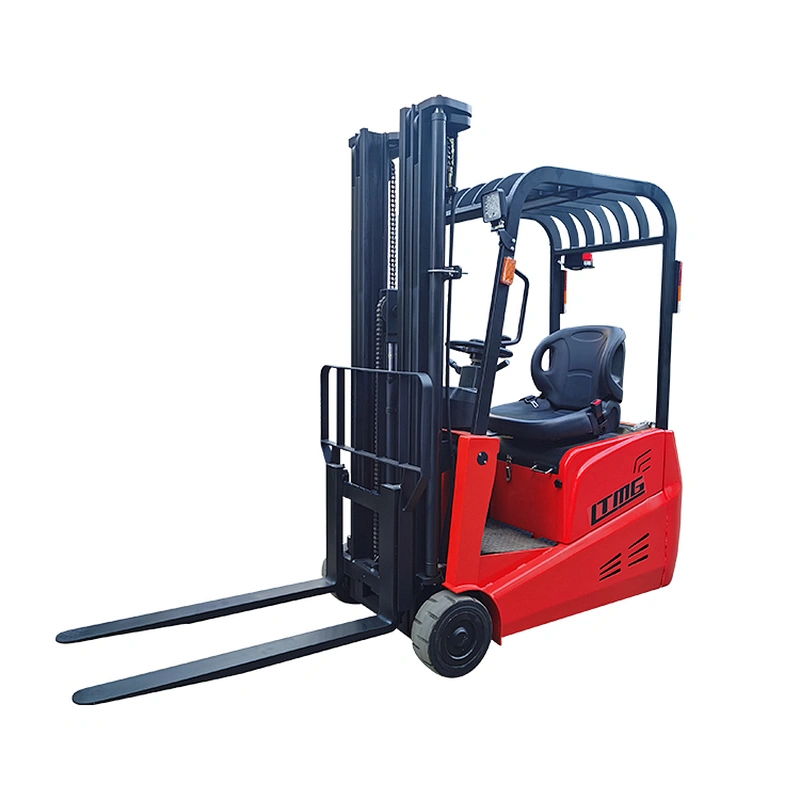

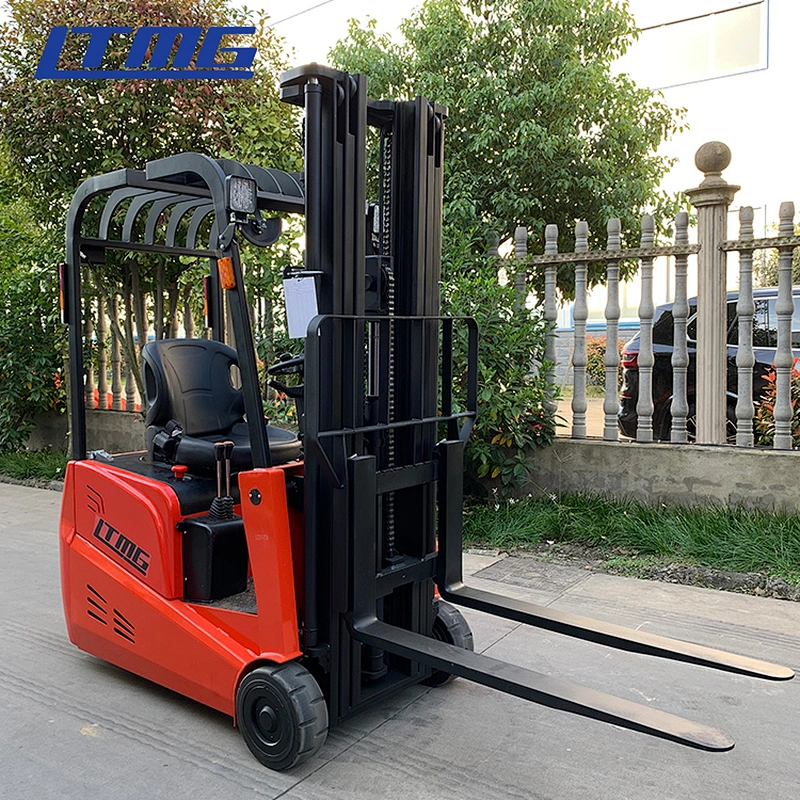

- product name:3-Wheel Battery Forklift 1.5 Ton Electric Forklift
- Product Type:electric forklift
- Fork size:920*100*40mm
- Load Centre:500mm
- Wheelbase:1068mm
- Service Weight:2550kg
- Certificate:ISO/CE
- Power type:AC
- Turning Radius:1325mm
- Ground clearance:90mm
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Viet Nam
- Local Service Location:Indonesia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Bangladesh
- Local Service Location:Kazakhstan
- Showroom Location:Viet Nam
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Kyrgyzstan
- Showroom Location:Tajikistan
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Motor
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Warehouse
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2515*1090*1980mm
- Certification:CE/ISO
about 1.3meters.It can be transported,stacked and turned in a narrow space.
It is a light,small and high performance electric balanced forklift..
Distinguishing mark | ||||||
Drive unit | Electrics | |||||
Operator type | seated | |||||
rated capacity | Q | t | 1.5 | |||
Load center distance | c | mm | 500 | |||
Load distance,centre of drive axle to fork | x | mm | 270 | |||
Wheelbase | y | mm | 1068 | |||
Weight | ||||||
Service weight (include battery) | kg | 2550 | ||||
Axle loading, laden front wheels/drive steering wheels | kg | 3650/400 | ||||
Axle loading, unladen front wheels/drive steering wheels | kg | 1015/1535 | ||||
Types,Chassis | ||||||
Tyre type, front wheels/drive steering wheels | solid rubber | |||||
Tyre size, front wheels(diameter×width) | mm | 343×170 | ||||
Tyre size, drive steering wheels(diameter×width) | mm | 16×6-8(420×154) | ||||
Tread, front wheels | b10 | mm | 890 | |||
Dimensions | ||||||
Tilt of mast/fork carriage forward/backward | α/ β (°) | 5/ 5 | ||||
Height, mast lowered | h1 | mm | 1980 | |||
Free lift(load backrest) | h2 | mm | 100 | |||
Lift height | h3 | mm | 3000 | |||
Height, mast extended | h4 | mm | 4054 | |||
Height of overhead guard (cabin) | h6 | mm | 1995 | |||
Seat height | h7 | mm | 985 | |||
Tow center of pin height | h10 | mm | 660 | |||
Overall length | l1 | mm | 2515 | |||
Length to face of forks | l2 | mm | 1595 | |||
Overall width | b1/ b2 | mm | 1090 | |||
Fork dimensions | s/ e/ l | mm | 40×100×920 | |||
Fork carriage width | b3 | mm | 1040 | |||
Ground clearance, laden, below mast | m1 | mm | 90 | |||
The minimum ground clearance of frame | m2 | mm | 90 | |||
Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2930 | |||
Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 3050 | |||
Turning radius | Wa | mm | 1325 | |||
Performance data | ||||||
Travel speed, laden/unladen | km/ h | 6.0/8.0 | ||||
Lifting speed, laden/unladen | m/ s | 0.2/ 0.3 | ||||
Lowering speed, laden/unladen | m/ s | 0.25/ 0.22 | ||||
Max. drawbar pull, laden/unladen (time) | N | 5.0/7.0 | ||||
Gradeability,laden/unladen | % | 6/8.0 | ||||
Service brake type | Hydraulic / Mechanical | |||||
Electric-engine | ||||||
Drive motor rating S2 60 min | kW | 6.5 | ||||
Lift motor rating at S3 15% | kW | 5.5 | ||||
Battery voltage/nominal capacity K5 | V/ Ah | 48/160 | ||||
Battery weight | kg | 180 | ||||
Addition data | ||||||
Type of drive unit | AC | |||||
Steering type | Electronic steering | |||||
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
