- Type:Powered Pallet Truck
- Fork Size:1070*122*40mm
- optional:battery capacity, mast
- Wechat/WhatsApp:086 185 5926 7215

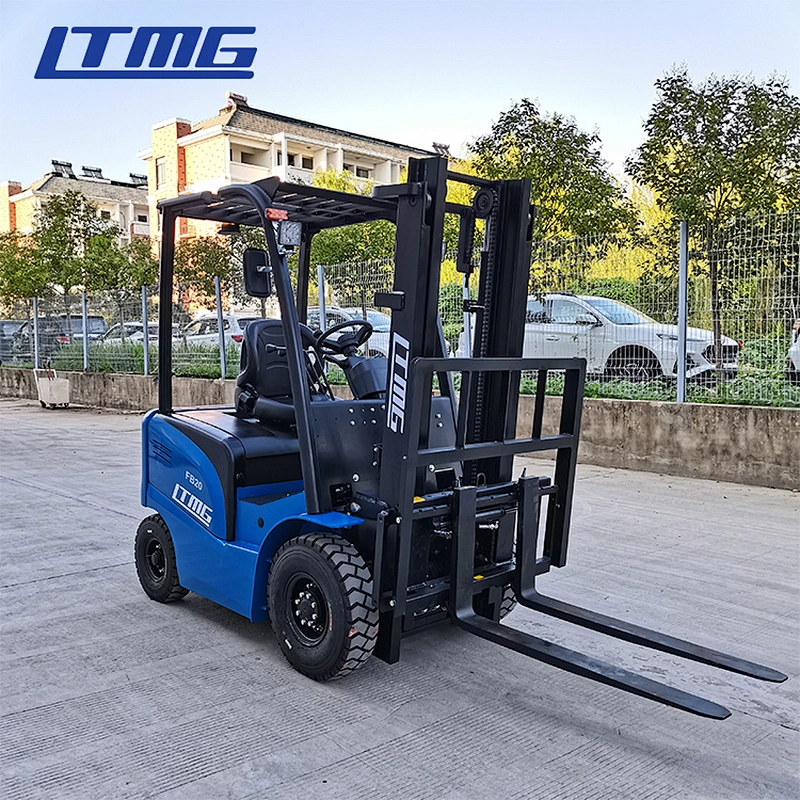

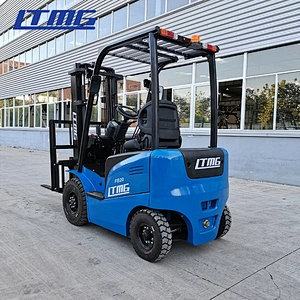

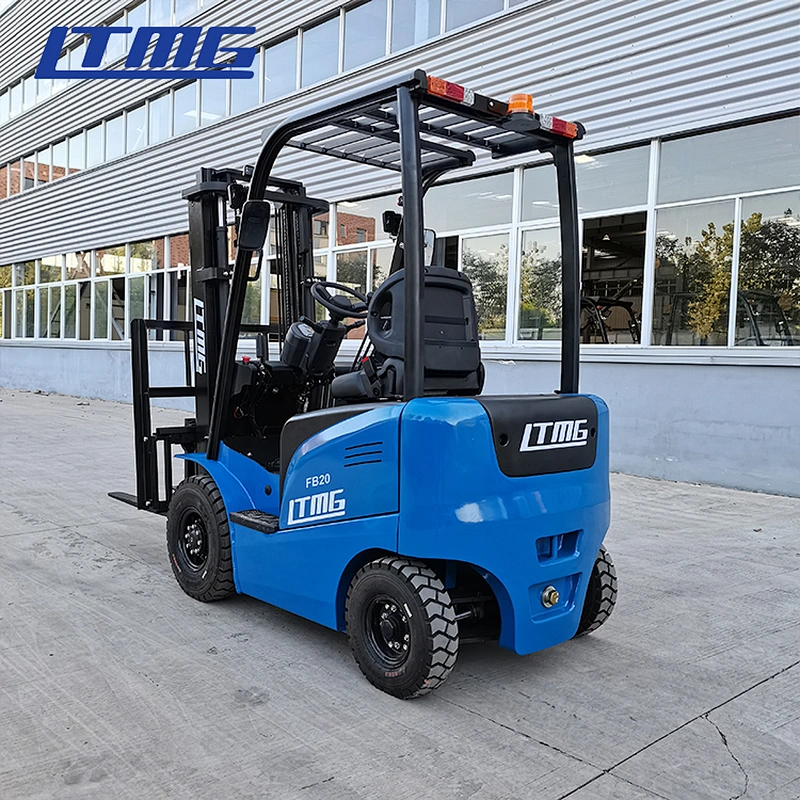

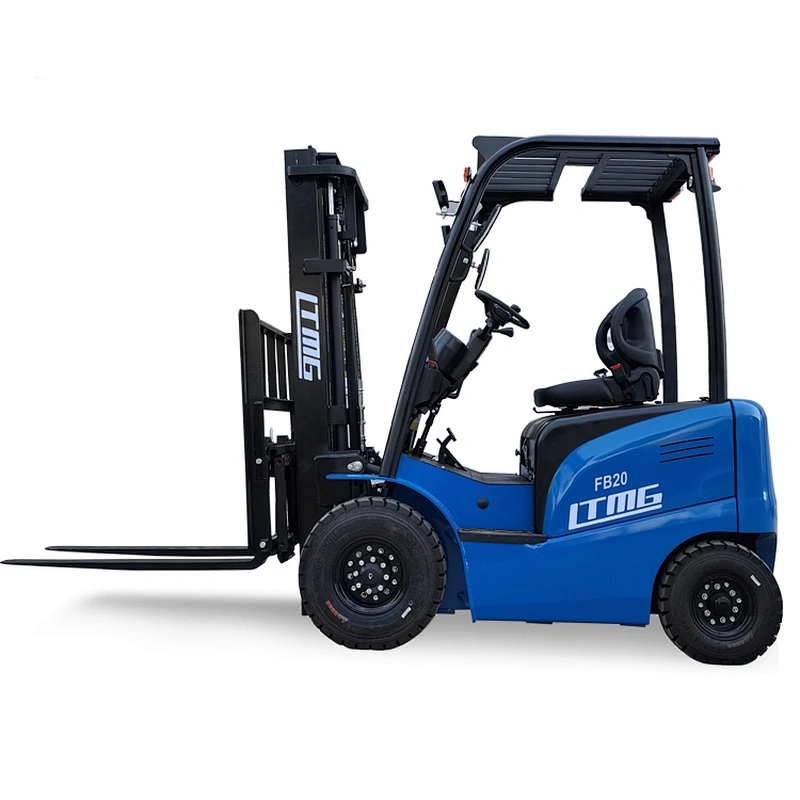

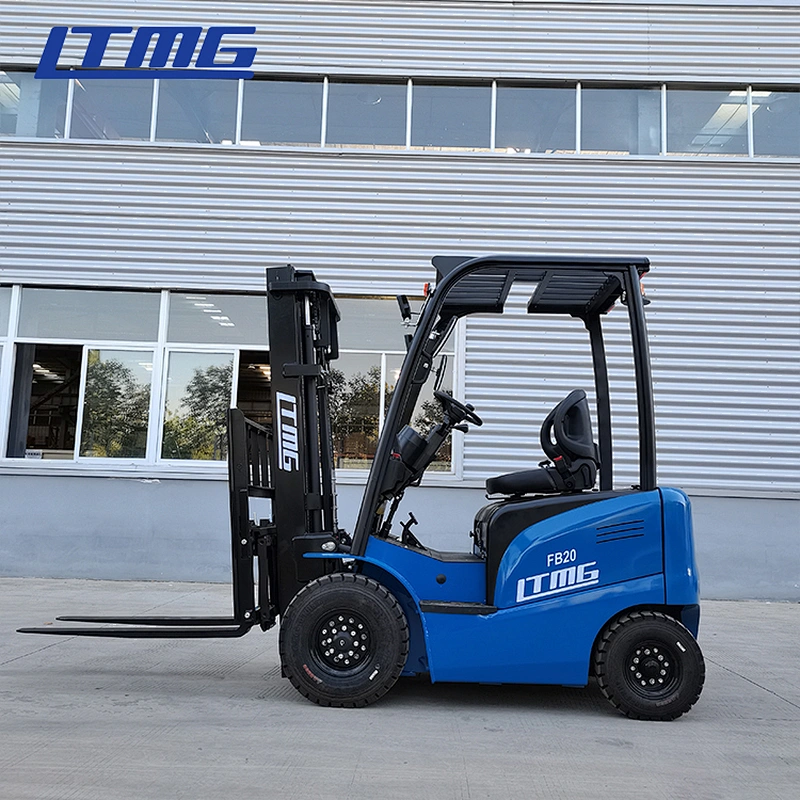

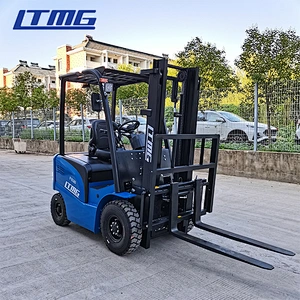

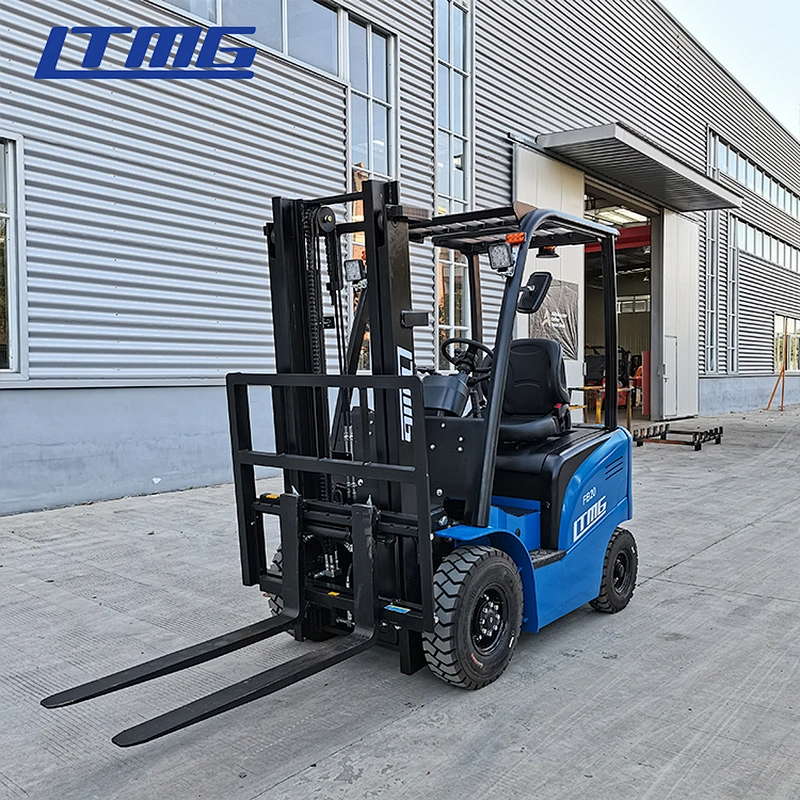

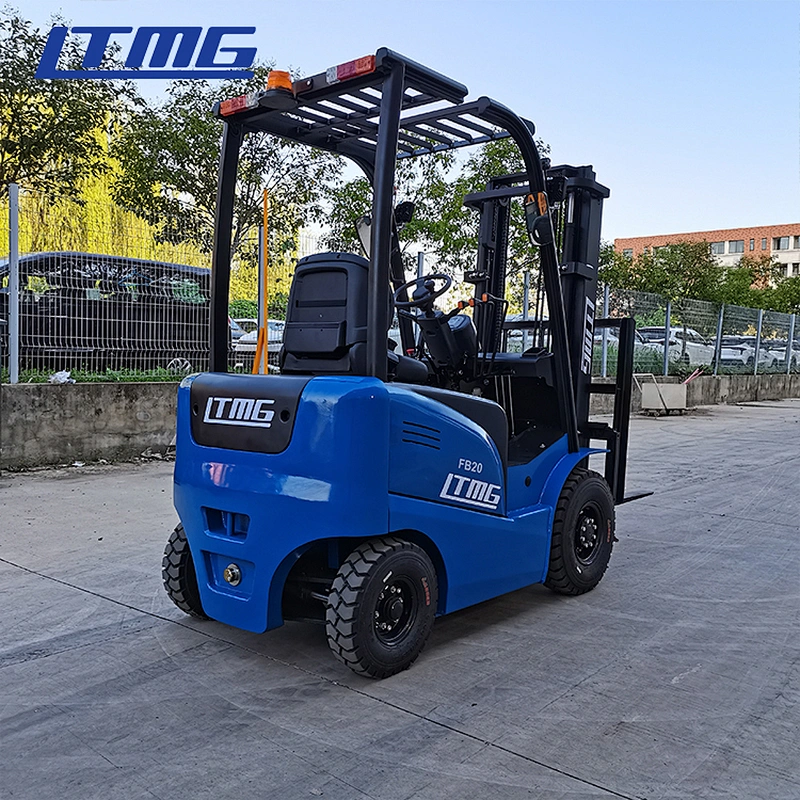

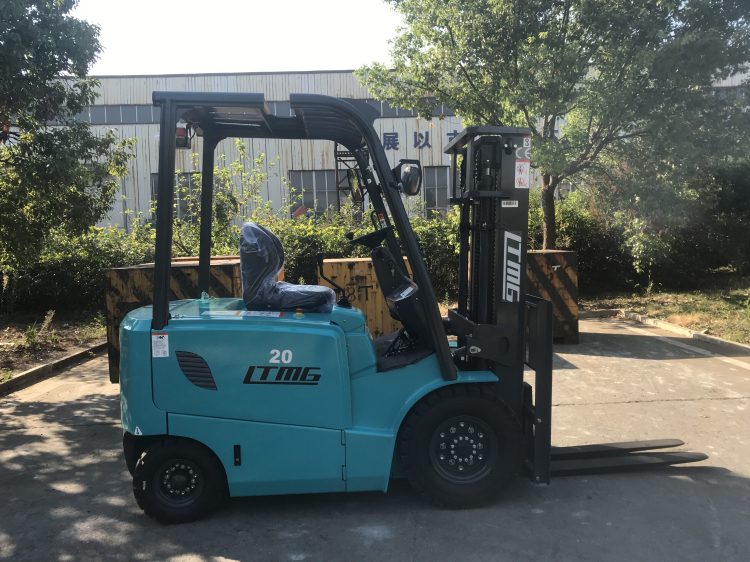

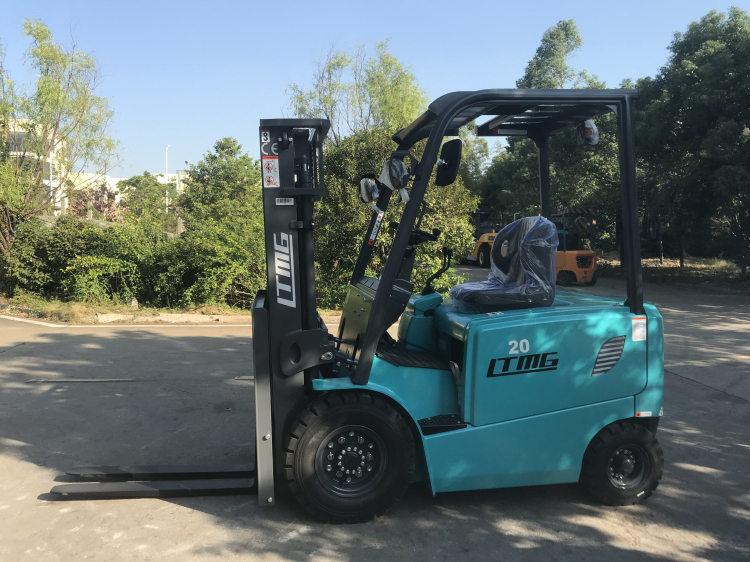

- Product Name:2 ton electric forklift with white solid tires work in cold storage
- battery capacity:560ah
- Loading Capacity:2000kg
- Tire:Pneumatic
- Power type:Electric Power
- Model:fb20
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Pakistan
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Motor
- Core Components:Bearing
- Core Components:Engine
- Place of Origin:CN;ZHE
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2245mm*1150mm*1995mm
- Certification:CE/ISO9001:2008
- Marketing Type:Hot Product 2020

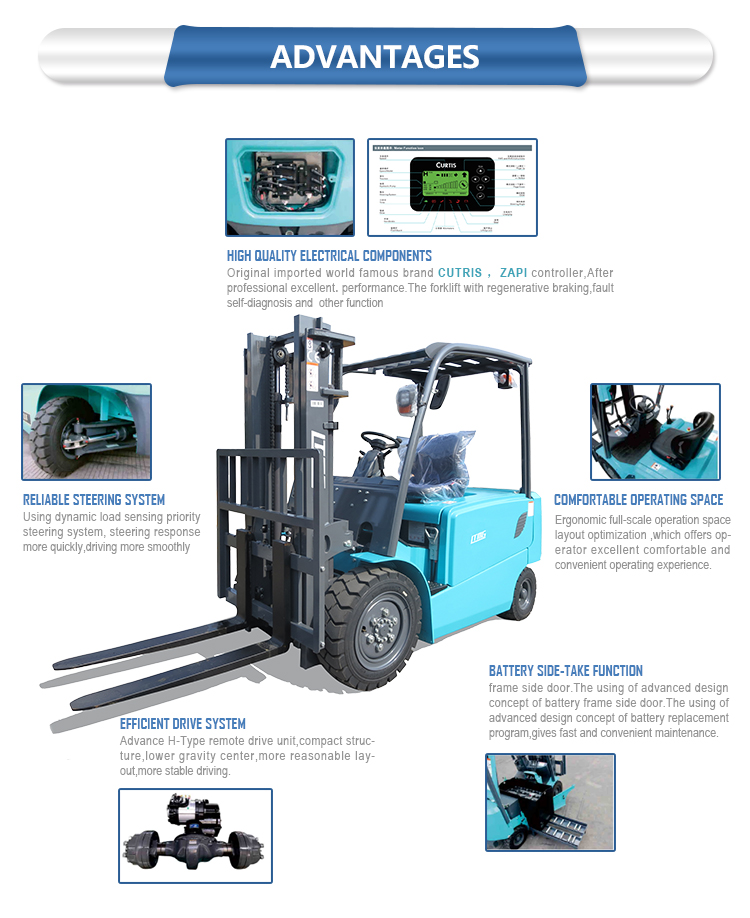

1.Equipped with original imported American Curtis electric controlsystem.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyota comfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyota comfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.
Specifications of 2 ton electric forklift | ||||
Brand | LTMG | |||
Model | FB20 | |||
Operation type | car type | |||
Load capacity | kg | 2000 | ||
Load center | mm | 500 | ||
Weight with battery | kg | 4400 | ||
Tire,chassis | ||||
Tire Type | Pneumatic | |||
Size | ||||
Mast tilt,Forward/backward | α/β(°) | 6/12 | ||
Mast height after mast fall | mm | 1995 | ||
Free lift height | mm | 100 | ||
Standard Mast height | mm | 3000 | ||
Overhead guard height | mm | 2220 | ||
Overall length | mm | 3350 | ||
Vehicle width | mm | 1150 | ||
Fork size | mm | 1070 X120 X40 | ||
Channel width,with 1000X1200mm pallet | mm | 4210 | ||
Channel width,with 800X1200mm pallet | mm | 4260 | ||
Turning radius | mm | 2100 | ||
Performance | ||||
Walking speed,loaded/withoutload | km/h | 13/13.5 | ||
lifting speed,loaded/load | m/s | 0.3/0.45 | ||
Dropping speed loaded/without load | m/s | 0.44/0.435 | ||
Maximum traction,loaded | N | 17000 | ||
Max grade ability,loaded/without load | % | 10.5/14 | ||
Drive | ||||
Drive motor power | kw | 11 | ||
Drive motor power | kw | 8.6 | ||
Level voltage/Capacitance | V/Ah | 48/630 | ||
Others | ||||
Drive System | DC/AC | |||
Electrical control system | Curtis from America | |||
