- Product Type:electric forklift
- Load Center:600mm
- Mast:duplex mast/triplex mast
- Controller:Curtis/ZAPI
- Battery capacity:80V/1150Ah
- Ground clearance:200mm
- Wheel base:2450mm
- Turning radius:3350mm
- Self weight:12780kg
- control system:Full AC control
- Applicable Industries:Construction works
- After Warranty Service:Spare parts
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:United Kingdom
- Showroom Location:United States
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Applicable Industries:Material handling
- Max. Lifting Height:3m-7m
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Overall Dimensions:3780*2200*2600mm
- Fork Width:150mm
- Fork Length:1220mm
- Min. Lifting Height:0
- Certification:CE/ISO9001:2008

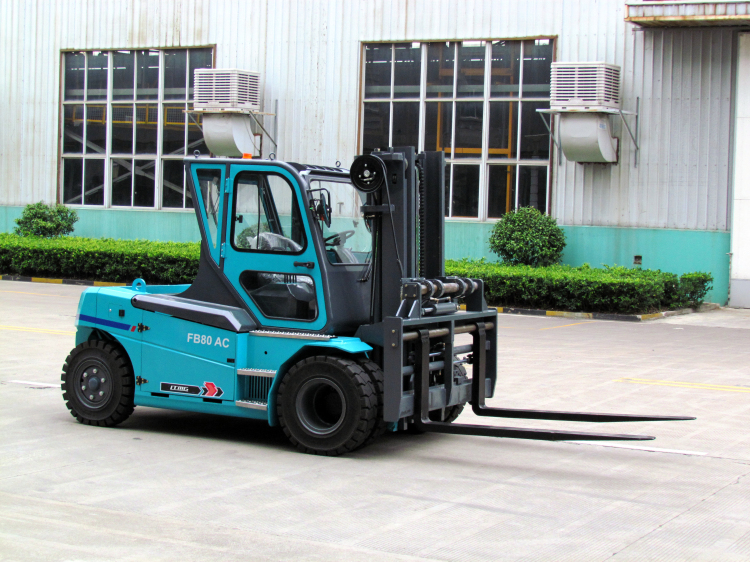

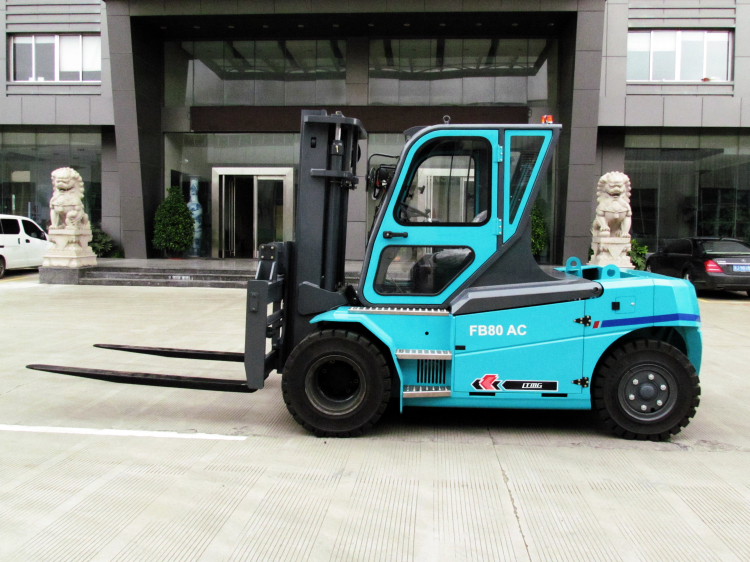

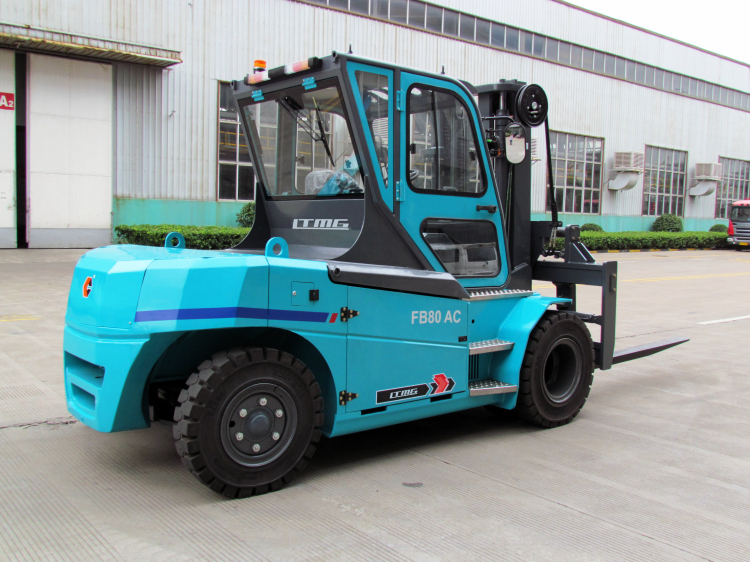

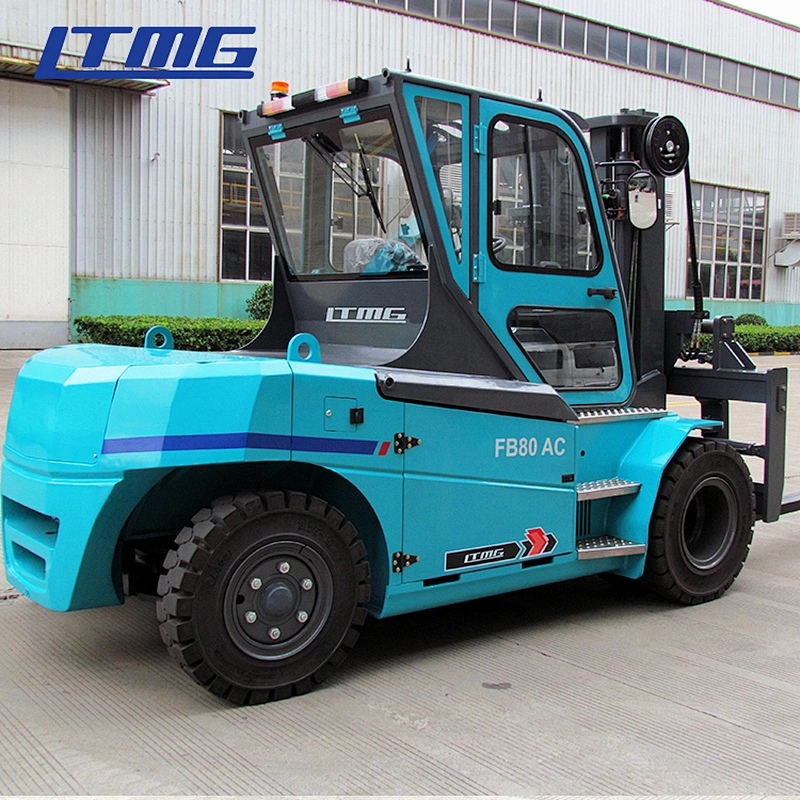

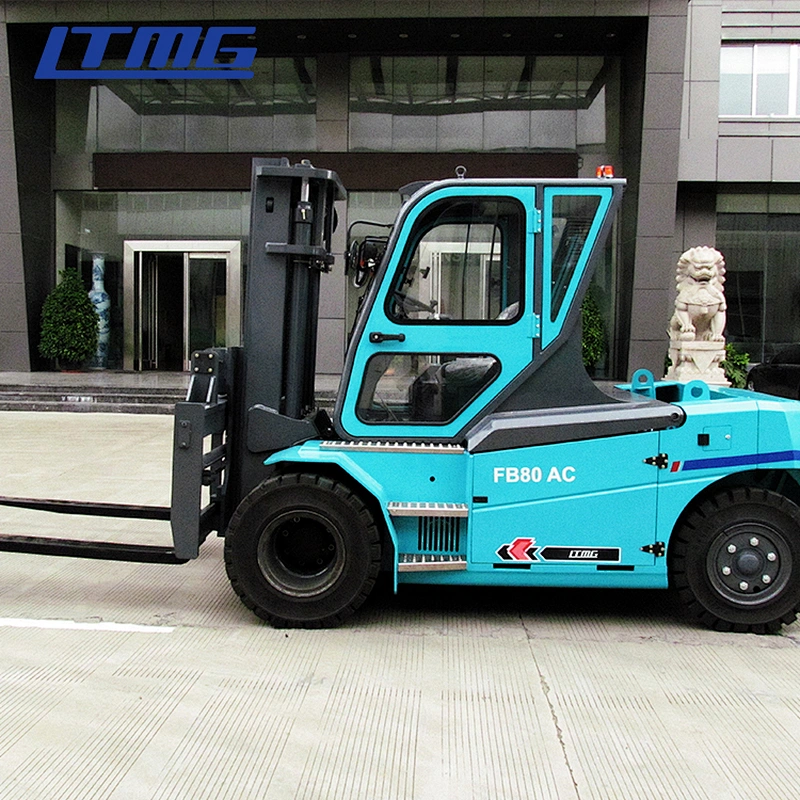

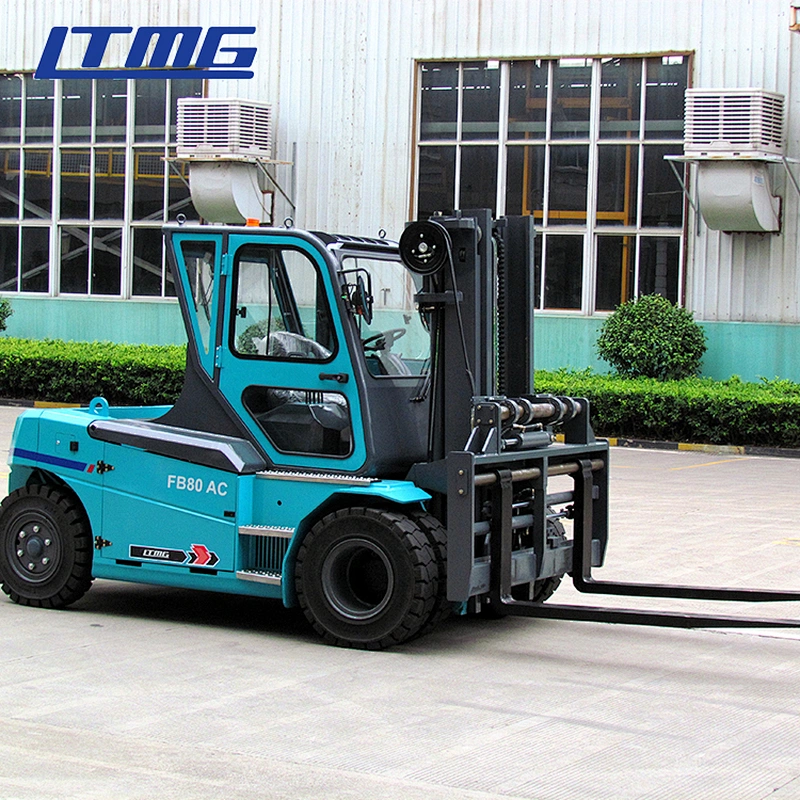

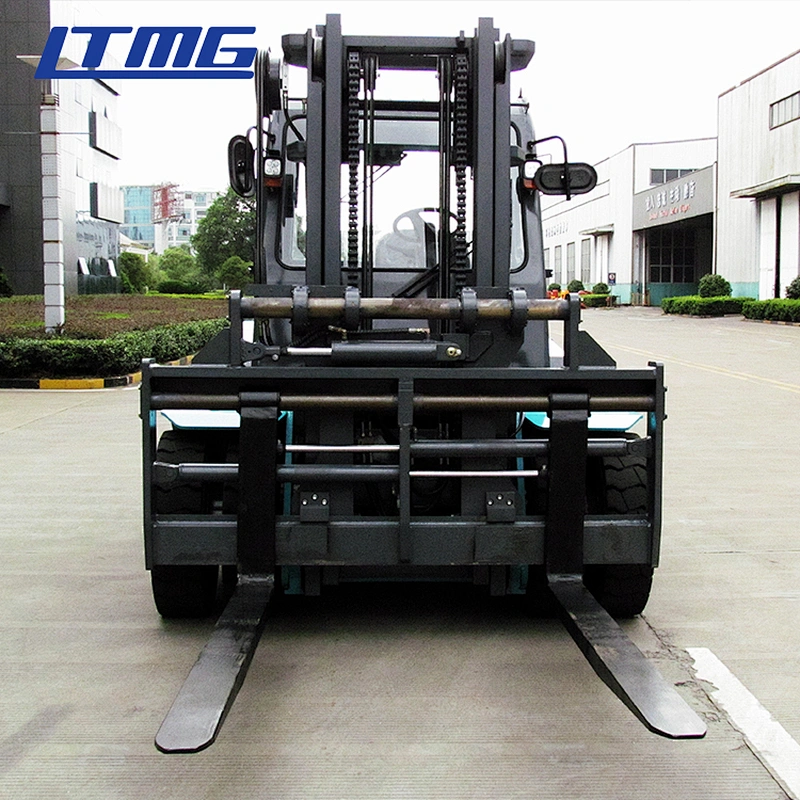

The specification of LTMG 5 ton electric forklift | ||||||
General | Model | FB80 | ||||
Rated Capacity | kg | 8000 | ||||
Load Centre | mm | 600 | ||||
Lift Height | mm | 3000 | ||||
Fork Size (L×W×T) | mm | 1220×150×70 | ||||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 | ||||
Characteristic&Dimensions | Length to face of fork (Without fork) | mm | 3780 | |||
Overall Width | mm | 2200 | ||||
Mast Lowered Height | mm | 2600 | ||||
Mast Extended Height (With backrest) | mm | 4400 | ||||
Overhead Guard Height | mm | 2500 | ||||
Turning Radius (outside) | mm | 3350 | ||||
Front Overhang (Wheel center to fork face) | mm | 685 | ||||
Tread (Front/Rear) | mm | 1650/1718 | ||||
Ground Clearance (Bottom of mast) | mm | 200 | ||||
Wheelbase | mm | 2450 | ||||
Fork Spread (Min./Max) | mm | 300/2000 | ||||
Performance | Travel Speed | km/h | 14 | |||
Lifting Speed (Full load) | mm/s | 300 | ||||
Max. Gradeability | % | 10 | ||||
Service Weight | kg | 12780 | ||||
Front Tire | 9.00-16-14PR | |||||
Rear Tire | 8.25-15-14PR | |||||
Driven | Driven Motor | kw | 14×2 | |||
Lift Motor | kw | 25×2 | ||||
Battery Standard | V/Ah | 80/1150 | ||||
Controller Manufacturer | CURTIS AC | |||||
Operating Pressure for Attachment | Mpa | 18 | ||||
1. Equipped with original imported American Curtis electric control system.
2. High voltage and large capacity battery can supply the forklift with strong power.
3. Equipped with famous brand parts, like Shimadzu pump and valve, Eatonpipe,Nok hydraulic cylinder seals, Toyota seat with safety belt,and so on.
4. Imported brand Accelerator and Power Connector.
5. Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.ImportedKESSLERDouble drive axle, full AC controls (Driving and Lifting are both AC controls).
7. Fully enclosed instrument panel cover.
8. Battery side-take function.
LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

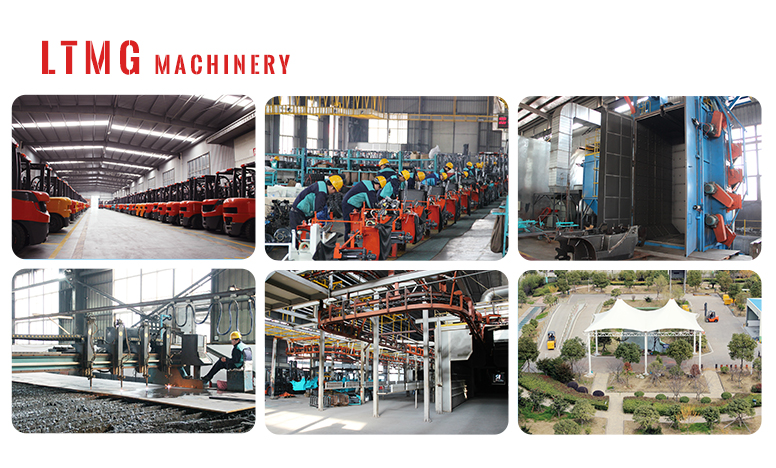

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 100 countries and regions around the world.
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
