- Controller:American Curtis
- Item Name:electric forklift 2.5 ton 3 ton 3.5 ton counterbalance forklift price
- Load center:500mm
- website:www.ltmg.cn
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:48V/560Ah
- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2055mm
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Canada
- Showroom Location:Turkey
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:UAE
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Romania
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Malaysia
- Showroom Location:Australia
- Showroom Location:Morocco
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;ZHE
- Applicable Industries:Building Material Shops
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:warehouse logistics
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:120mm
- Overall Dimensions:3350*1150*1995mm
- Certification:CE/ISO9001:2008
LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agentsand 21after sales center around the world can supply LTMG professional after-sale service.All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Detail clauses and policies please check our website and product certificate.

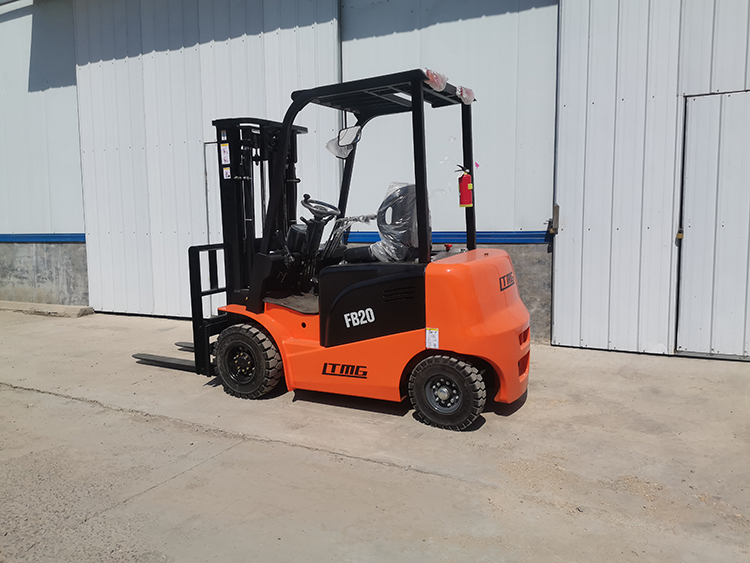

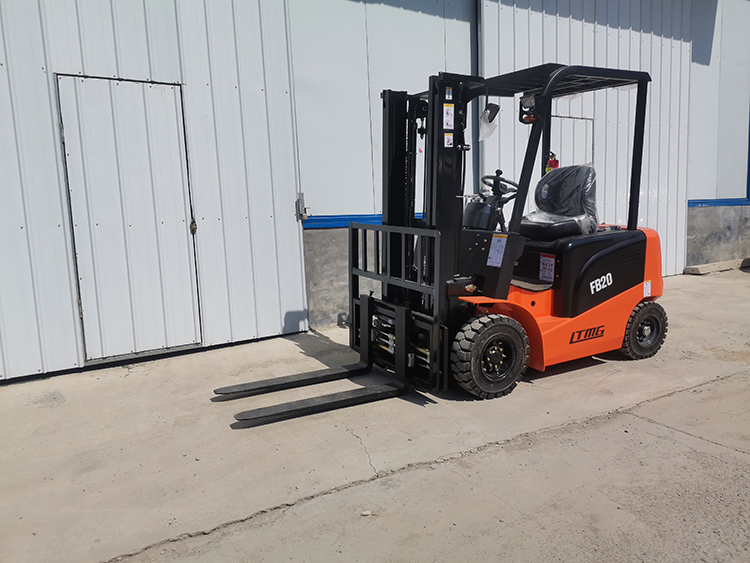

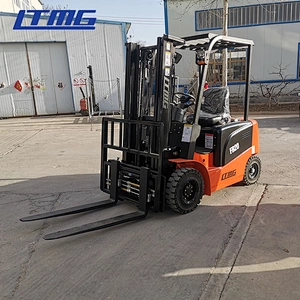

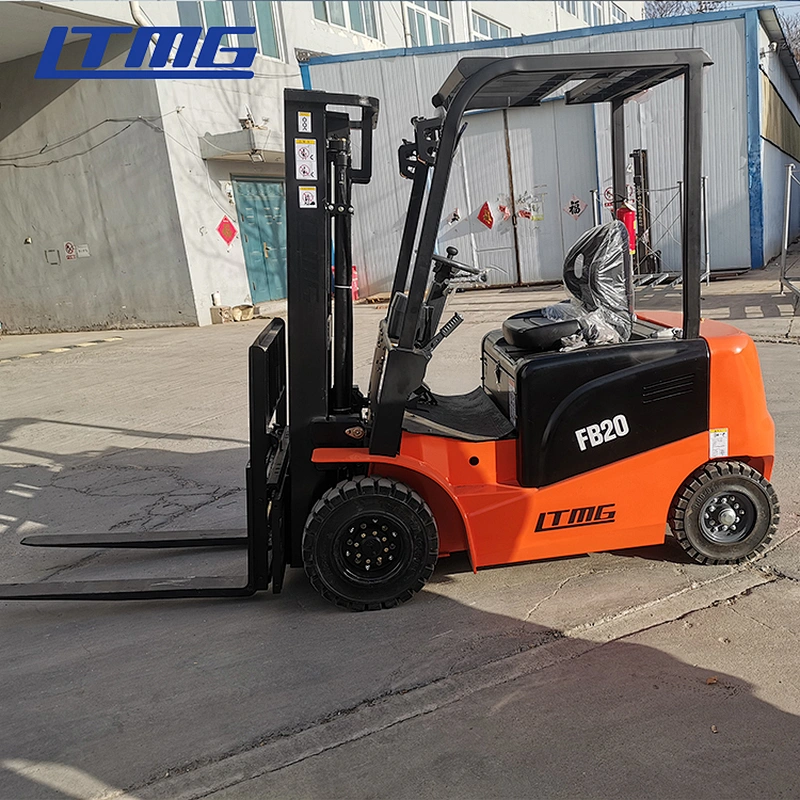

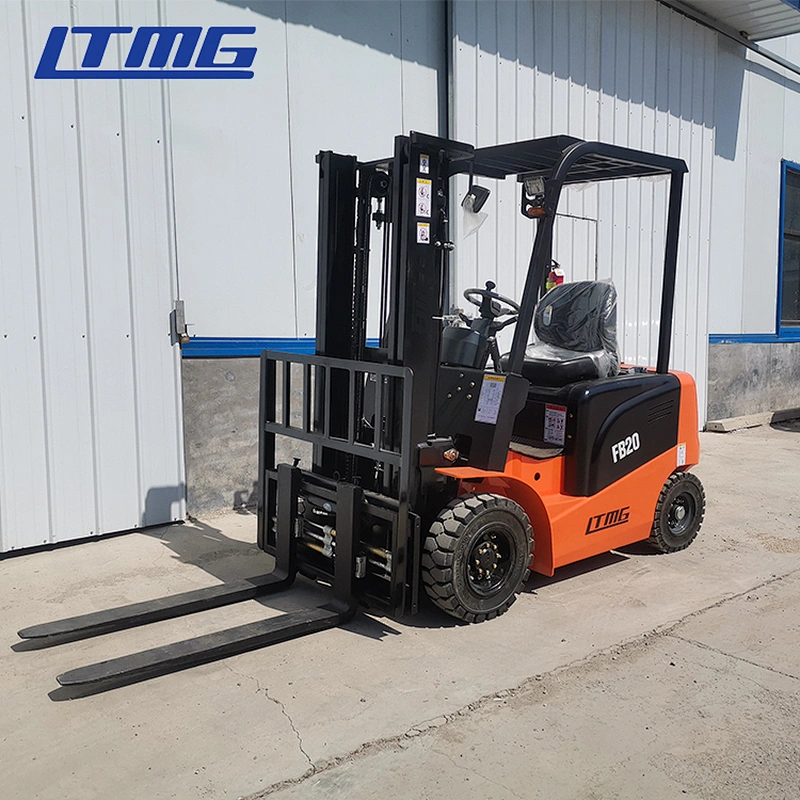

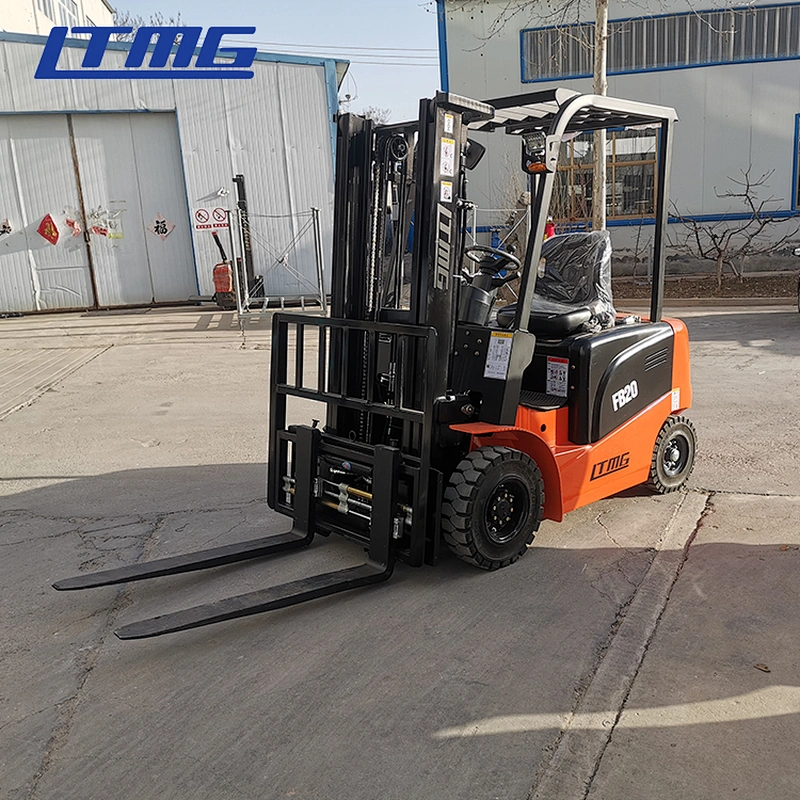

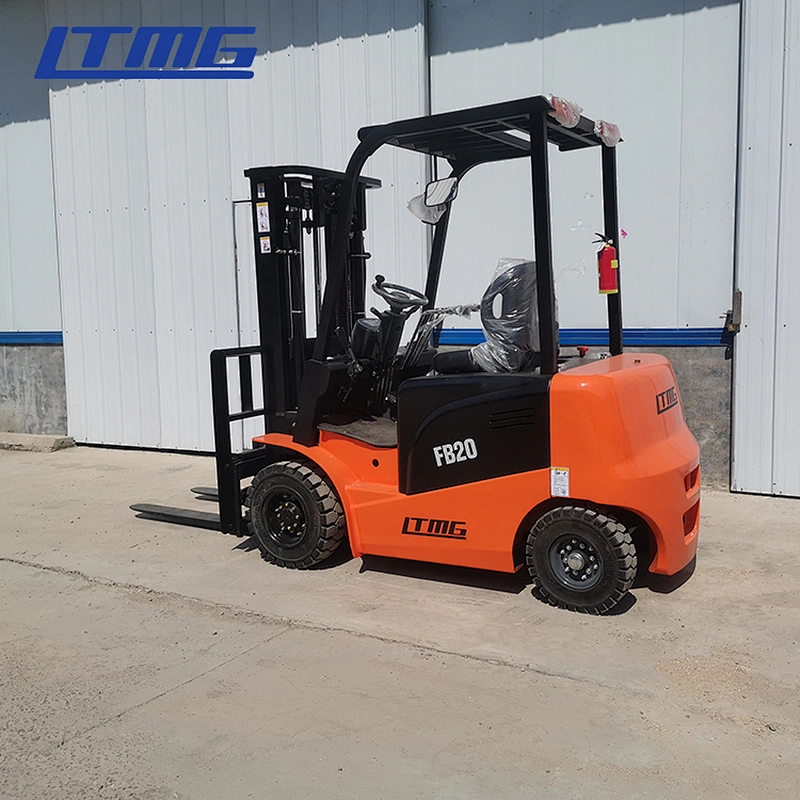

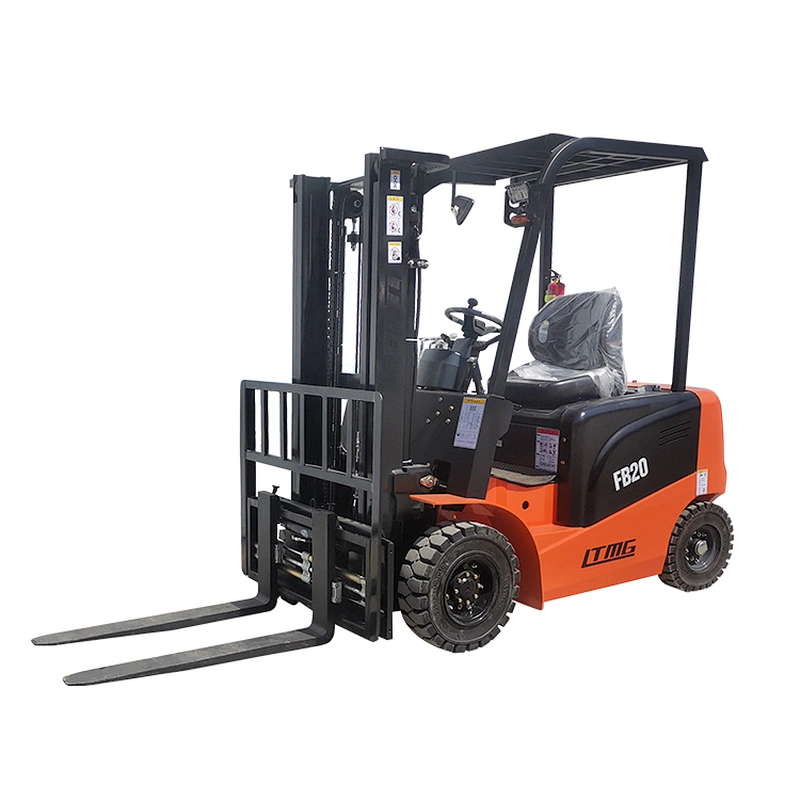

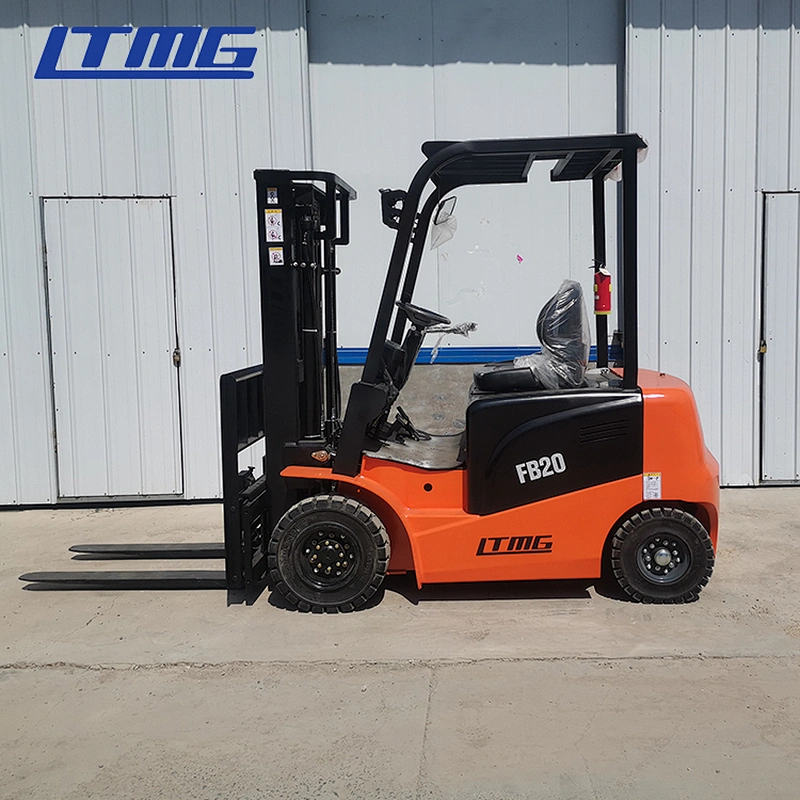

The specification of 2 ton electric forklift FB20 | ||||
Model | FB20 | |||
Rated Capacity | kg | 2000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size (L×W×T) | mm | 1070×120×40 | ||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | ||
Length to fork face of fork (Without fork) | mm | 2360 | ||
Overall Width | mm | 1160 | ||
Mast Lowered Height | mm | 2055 | ||
Mast Extended Height (With backrest) | mm | 3960 | ||
Overhead Guard Height | mm | 2240 | ||
Turning Radius (outside) | mm | 2075 | ||
Front Overhang (Wheel center to fork face) | mm | 465 | ||
Tread (Front/Rear) | mm | 960/950 | ||
Ground Clearance (Bottom of mast) | mm | 110 | ||
Wheelbase | mm | 1510 | ||
Fork Spread (Min./Max) | mm | 240/1040 | ||
Travel Speed | km/h | 14 | ||
Lifting Speed (Full load) | mm/s | 300 | ||
Max. Gradeability | % | 15 | ||
Service Weight | kg | 4170 | ||
Front Tire×2 | 7.00-12-12PR | |||
Rear Tire×2 | 18×7-8-14PR | |||
Driven Motor | kw | 11 | ||
Lift Motor | kw | 8.6 | ||
Battery Standard | V/Ah | 48/560 | ||
Controller Manufacturer | CURTIS AC | |||
Operating Pressure for Attachment | Mpa | 18 | ||
