- Type:Powered Pallet Truck
- After-sales Service Provided:Overseas third-party support available
- Power unit:Battery
- Load center:500mm
- Wheel base:1600mm
- Turning raduis(outside):2140mm
- Battery:48V/500Ah
- Ground clearence:120mm
- Max. lifting height:3000mm
- Controller:Curtis controller
- Applicable Industries:Printing Shops
- Applicable Industries:Advertising Company
- After Warranty Service:Online support
- Local Service Location:Philippines
- Local Service Location:Thailand
- Local Service Location:Algeria
- Showroom Location:Philippines
- Showroom Location:Kenya
- Showroom Location:Argentina
- Showroom Location:Algeria
- Showroom Location:South Africa
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:920mm
- Fork Width:125mm
- Overall Dimensions:2510*1225*2075mm
- Certification:CE/ISO9001:2008
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents and 21after sales center around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.

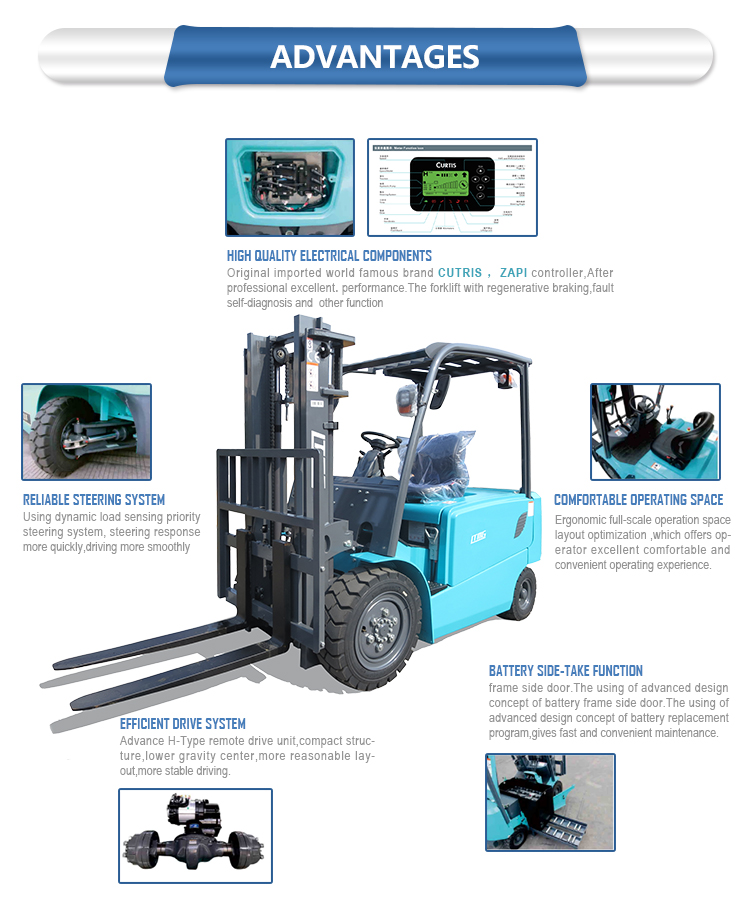

1.Equipped with original imported American Curtis electric control system.
2.famous brand battery for you choose such as Zibo Tianneng .HOPPECKE battery group,high voltage and large capacity which can supply the forklift with strong power.
3.Toyotacomfortable seat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.
7.Battery side-take function.
General | Model | FB15 | FB18 | |
Rated Capacity | kg | 1500 | 1800 | |
Load Centre | mm | 500 | 500 | |
Lift Height | mm | 3000 | 3000 | |
Fork Size (L×W×T) | mm | 920×120×35 | 920×120×35 | |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 | |
Characteristic&Dimensions | Length to fork face of fork (Without fork) | mm | 2190 | 2190 |
Overall Width | mm | 1090 | 1090 | |
Mast Lowered Height | mm | 1995 | 1995 | |
Mast Extended Height (With backrest) | mm | 3940 | 3940 | |
Overhead Guard Height | mm | 2195 | 2195 | |
Turning Radius (outside) | mm | 2010 | 2010 | |
Front Overhang (Wheel center to fork face) | mm | 420 | 420 | |
Tread (Front/Rear) | mm | 890/920 | 890/920 | |
Ground Clearance (Bottom of mast) | mm | 110 | 110 | |
Wheelbase | mm | 1420 | 1420 | |
Fork Spread (Min./Max) | mm | 240/970 | 240/970 | |
Performance | Travel Speed | km/h | 14 | 14 |
Lifting Speed (Full load) | mm/s | 320 | 300 | |
Max. Gradeability | % | 15 | 15 | |
Service Weight | kg | 3070 | 3070 | |
Front Tire×2 | 6.50-10-10PR | 6.50-10-10PR | ||
Rear Tire×2 | 5.00-8-10PR | 5.00-8-10PR | ||
Driven | Driven Motor | kw | 8 | 8 |
Lift Motor | kw | 8.6 | 8.6 | |
Battery Standard | V/Ah | 48/400 | 48/450 | |
Controller Manufacturer | CURTIS AC | CURTIS AC | ||
Operating Pressure for Attachment | Mpa | 14.5 | 14.5 |
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
