- Controller:American Curtis

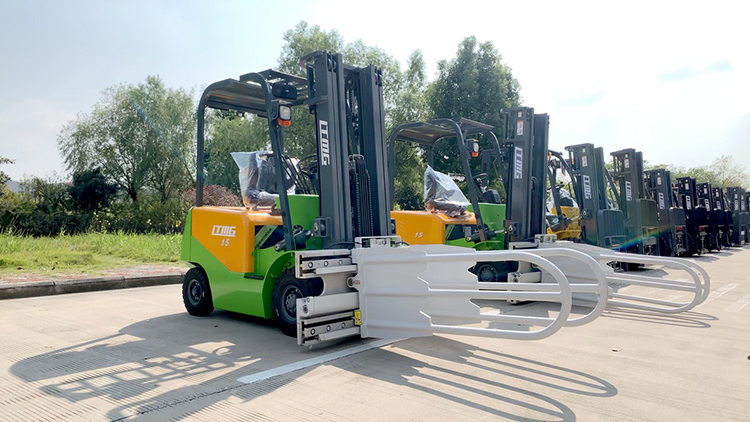

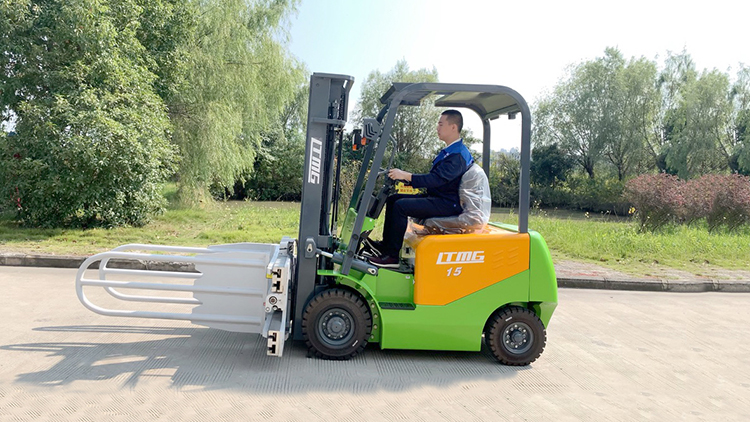

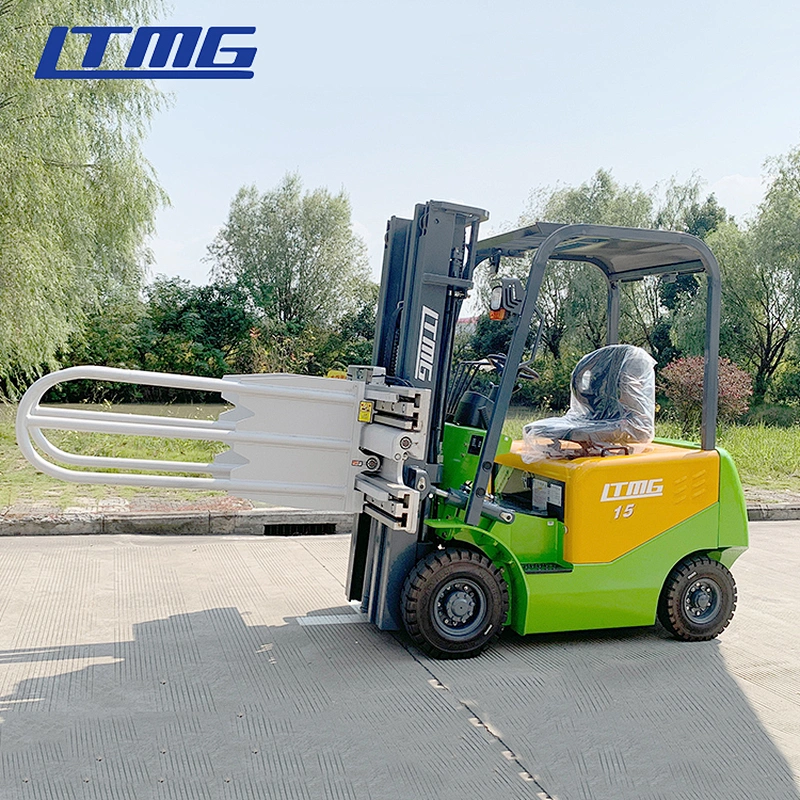

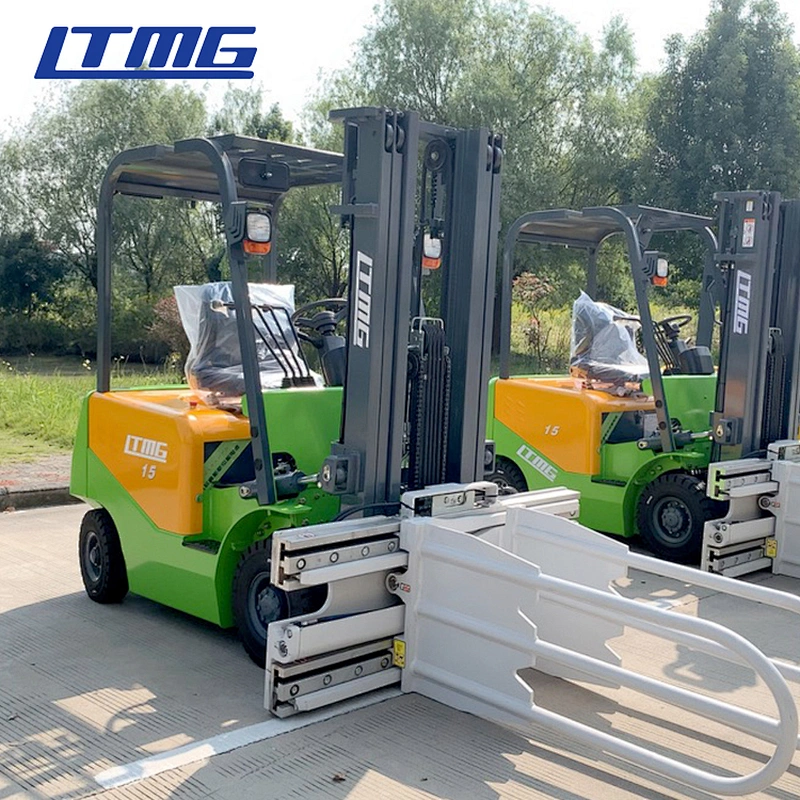

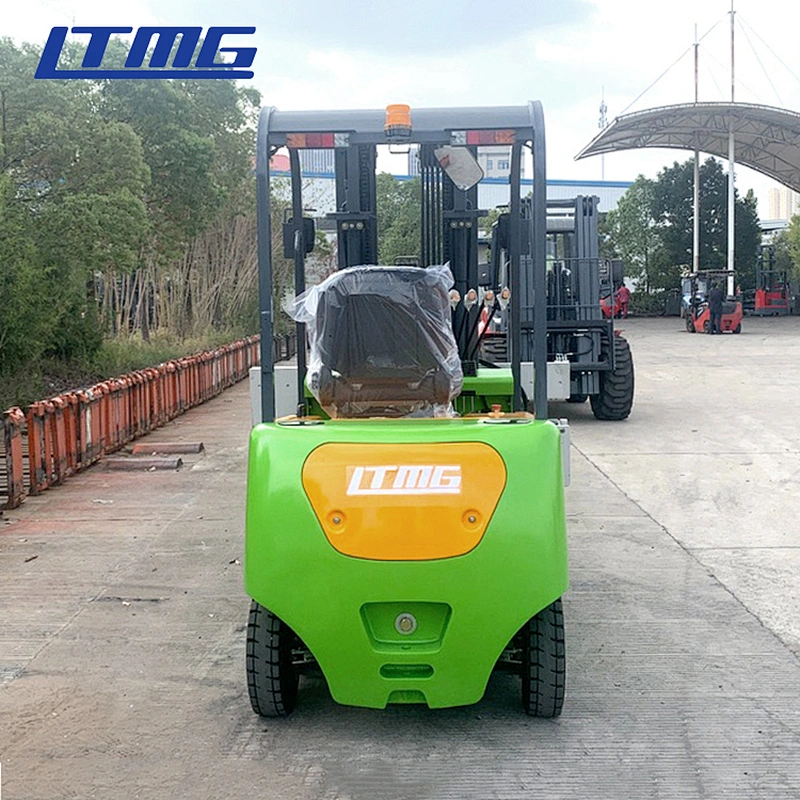

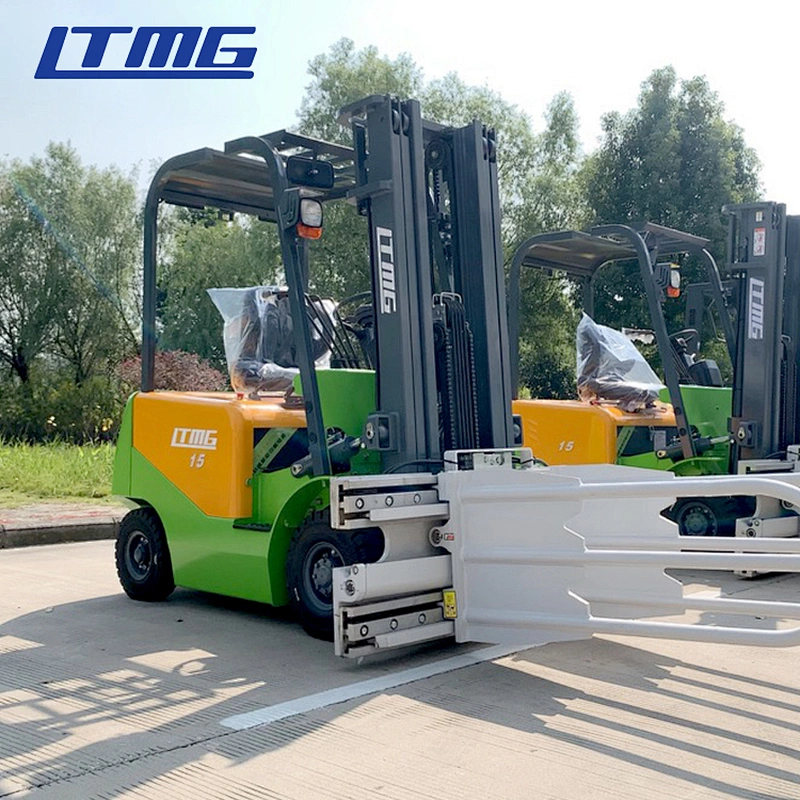

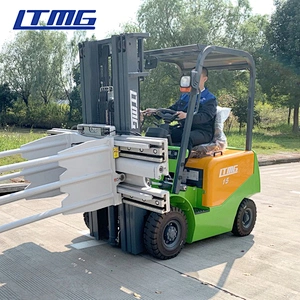

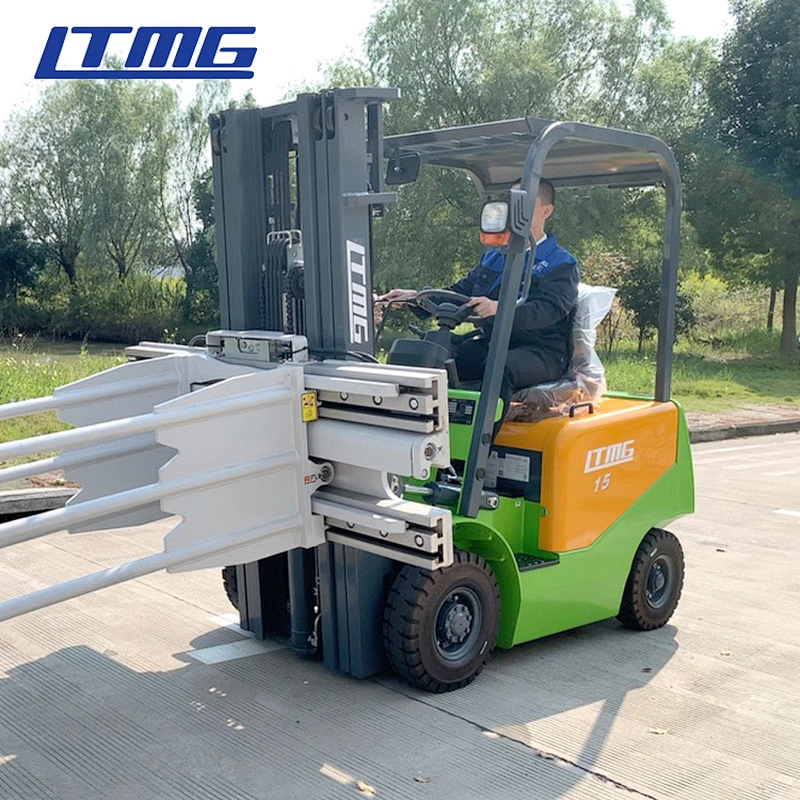

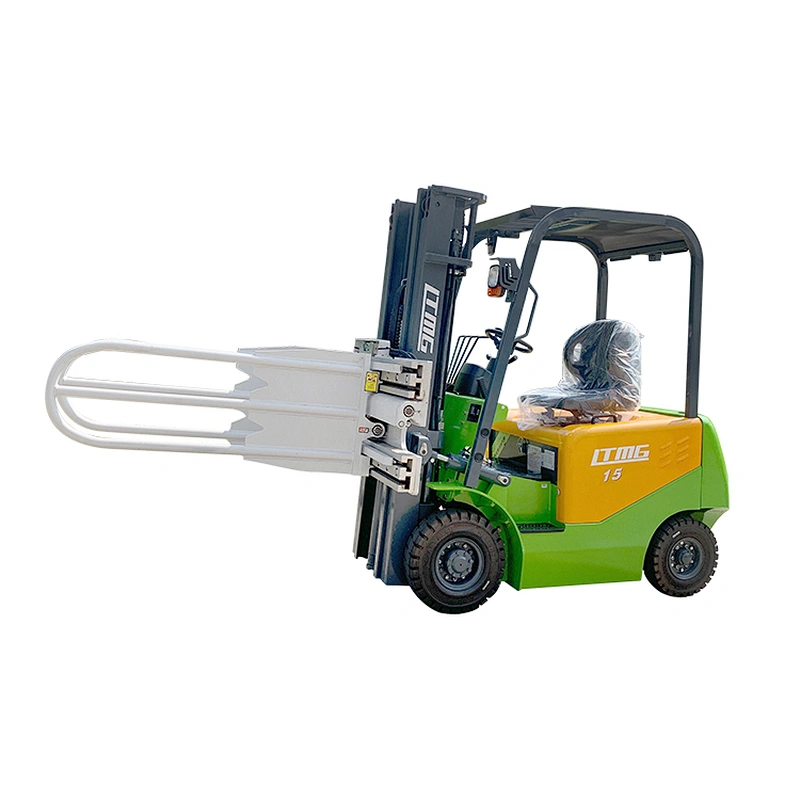

- Item Name:1.5ton electric forklift with foam rubber clamp
- Load center:500mm
- website:www.xlteng.com
- Max. lifting height:6000 mm
- Ground clearence:110mm
- Voltage/capacity:80V/500Ah
- Tire type:Pneumatic tires(Solid is optional)
- Load Centre:500mm
- Mast lowered height:2070mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:warehouse logistics
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:120mm
- Overall Dimensions:3350*1150*1995mm
- Certification:CE/ISO9001:2008

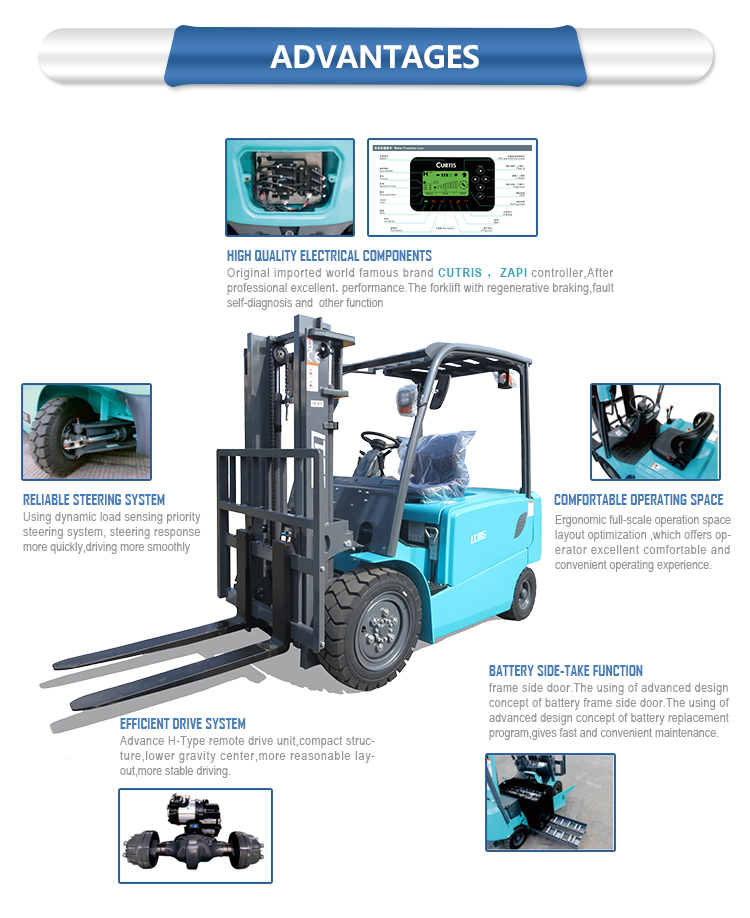

1. Equipped with original imported American Curtis electric control system.
2. Famous brand battery for you choose such as Zibo Tianneng. HOPPECKE battery group, high voltage and large capacity which can supply the forklift with strong power.
3. Toyota comfortable seat with safety belt.
4. Imported brand Accelerator and Power Connector.
5. Dynamic load sensing priority steering system and efficient drive system (Advance H-Type remote drive unit make driving more stable).
6. Fully enclosed instrument panel cover.
7. Battery side-take function.
The specification of the 2ton 3ton electric forklift | ||||||||
General | Model | FB20 | FB30 | |||||
Rated Capacity | kg | 2000 | 3000 | |||||
Load Centre | mm | 500 | 500 | |||||
Lift Height | mm | 3000 | 3000 | |||||
Fork Size (L×W×T) | mm | 1070×120×40 | 1070×125×45 | |||||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 | |||||
Characteristic&Dimensions | Length to fork face of fork (Without fork) | mm | 2360 | 2610 | ||||
Overall Width | mm | 1160 | 1230 | |||||
Mast Lowered Height | mm | 2055 | 2110 | |||||
Mast Extended Height (With backrest) | mm | 3960 | 4180 | |||||
Overhead Guard Height | mm | 2240 | 2250 | |||||
Turning Radius (outside) | mm | 2075 | 2350 | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | 480 | |||||
Tread (Front/Rear) | mm | 960/950 | 1000/980 | |||||
Ground Clearance (Bottom of mast) | mm | 110 | 140 | |||||
Wheelbase | mm | 1510 | 1700 | |||||
Fork Spread (Min./Max) | mm | 240/1040 | 250/1100 | |||||
Performance | Travel Speed | km/h | 14 | 14 | ||||
Lifting Speed (Full load) | mm/s | 300 | 300 | |||||
Max. Gradeability | % | 15 | 15 | |||||
Service Weight | kg | 4170 | 5100 | |||||
Front Tire×2 | 7.00-12-12PR | 28×9-15-12PR | ||||||
Rear Tire×2 | 18×7-8-14PR | 18×7-8-14PR | ||||||
Driven | Driven Motor | kw | 11 | 15 | ||||
Lift Motor | kw | 8.6 | 12 | |||||
Battery Standard | V/Ah | 48/560 | 80/500 | |||||
Controller Manufacturer | CURTIS AC | CURTIS AC | ||||||
Operating Pressure for Attachment | Mpa | 18 | 18 | |||||
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents and 21 after sales center around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
