- Type:electric forklift
- Product Name:electric forklift 3.5 ton
- Wheel base:1600mm
- Ground clearence:120mm
- Fork size:1070x125x50mm
- Turning raduis(outside):2140mm
- Controller:Curtis
- Battery Voltage/capacity:80V/550Ah

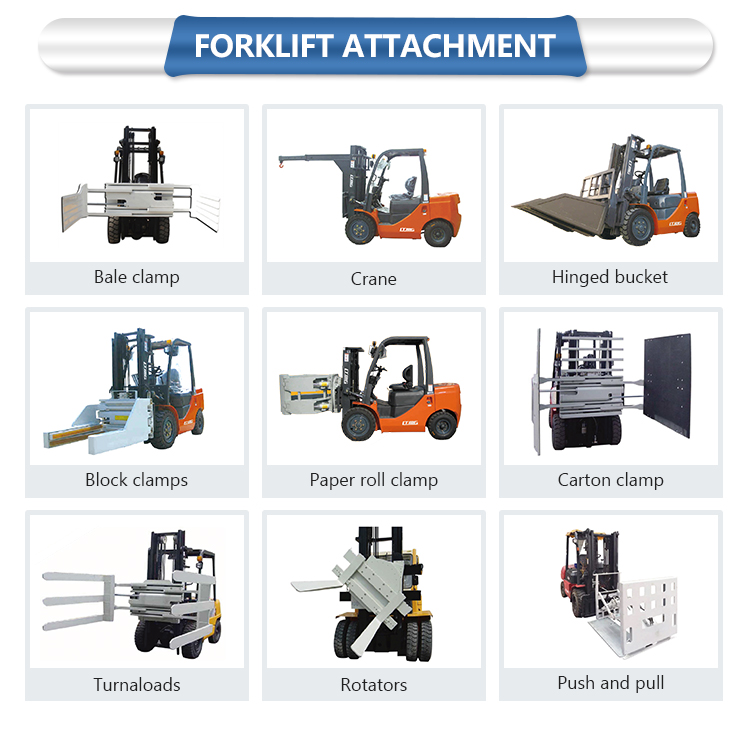

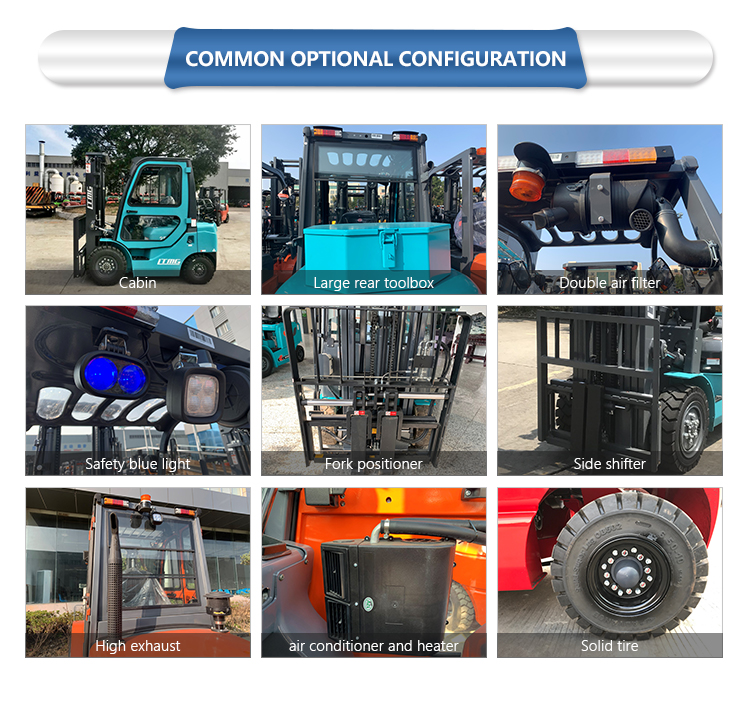

- Optional:Solid tires/Side shifter/closed cabin
- color:customized
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Philippines
- Local Service Location:Indonesia
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Colombia
- Showroom Location:Philippines
- Showroom Location:Chile
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Motor
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2610*1230*2250mm
- Certification:CE/ISO9001

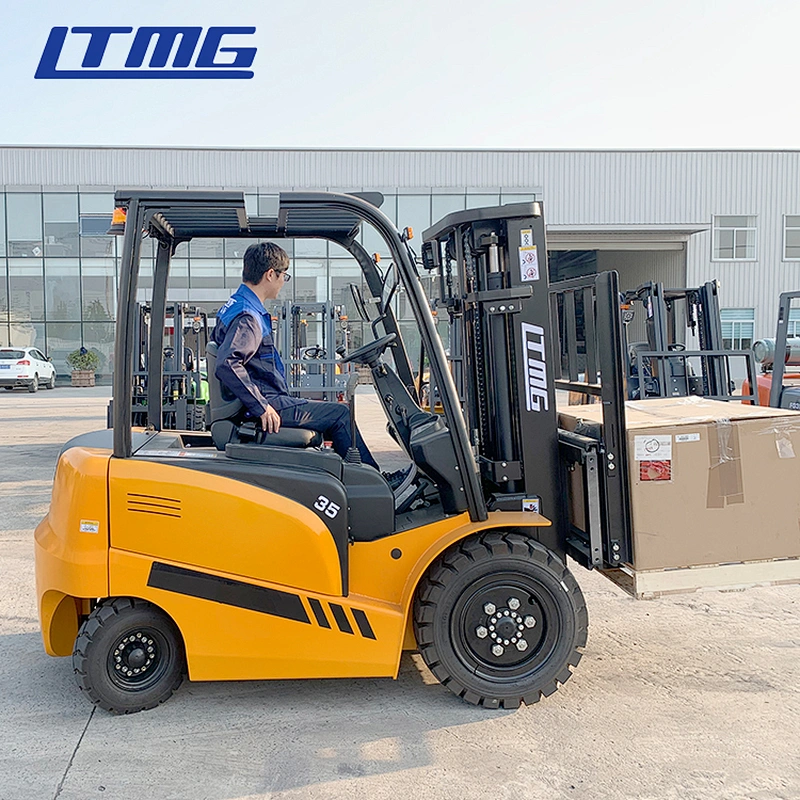

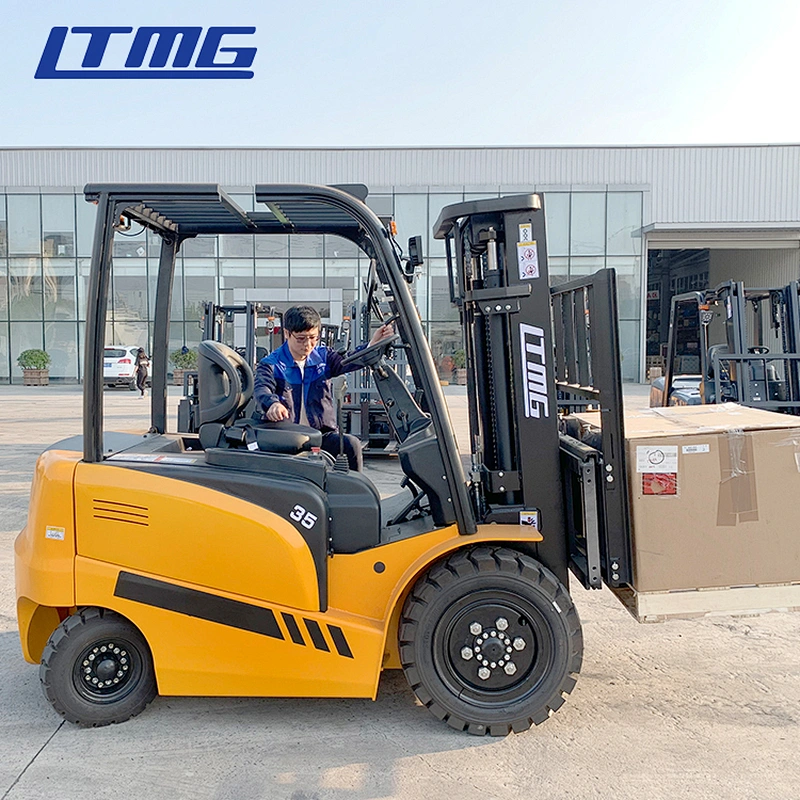

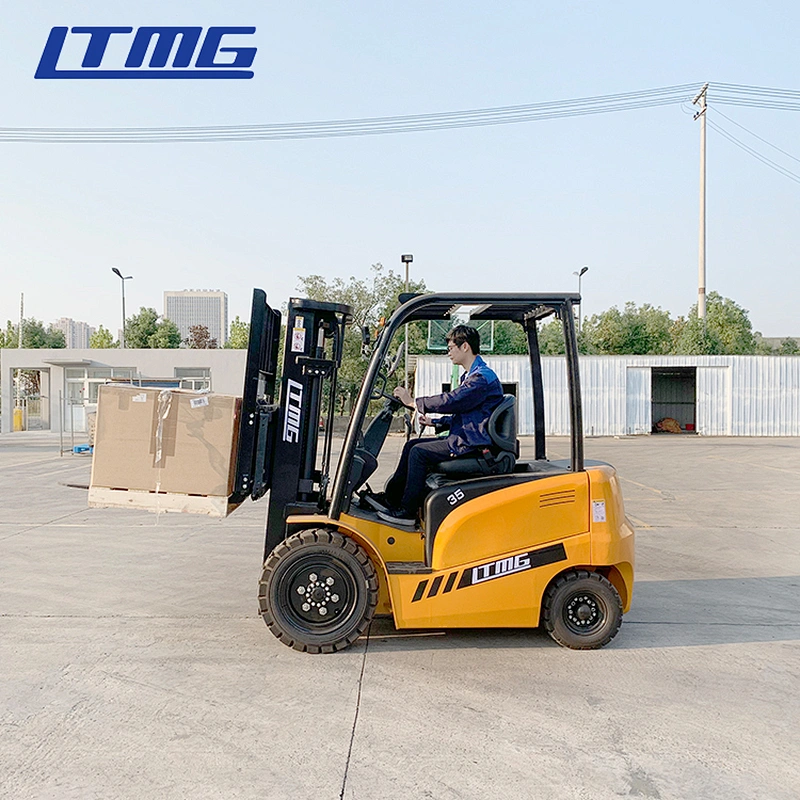

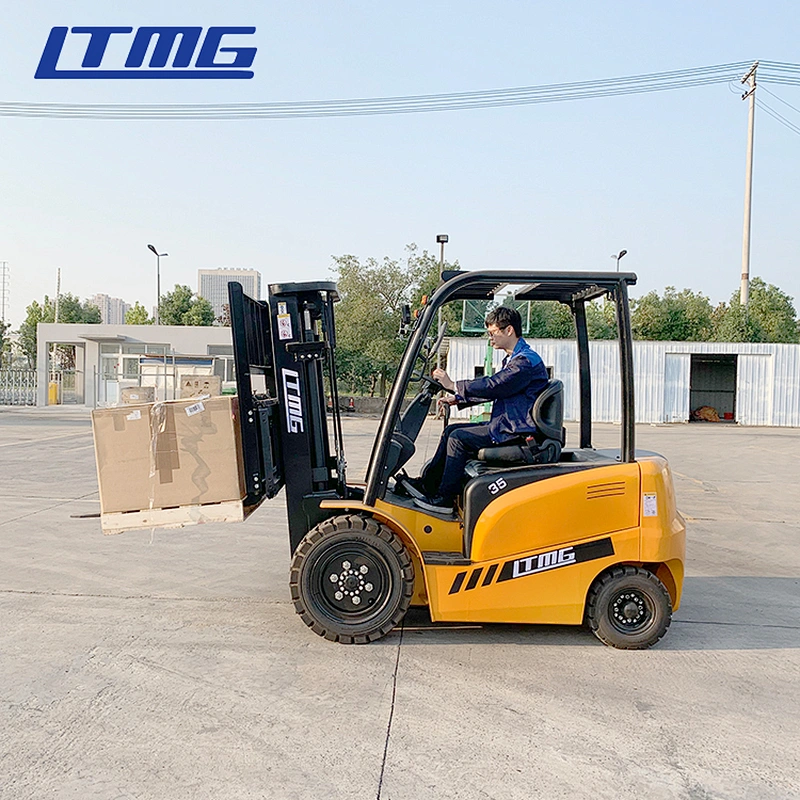

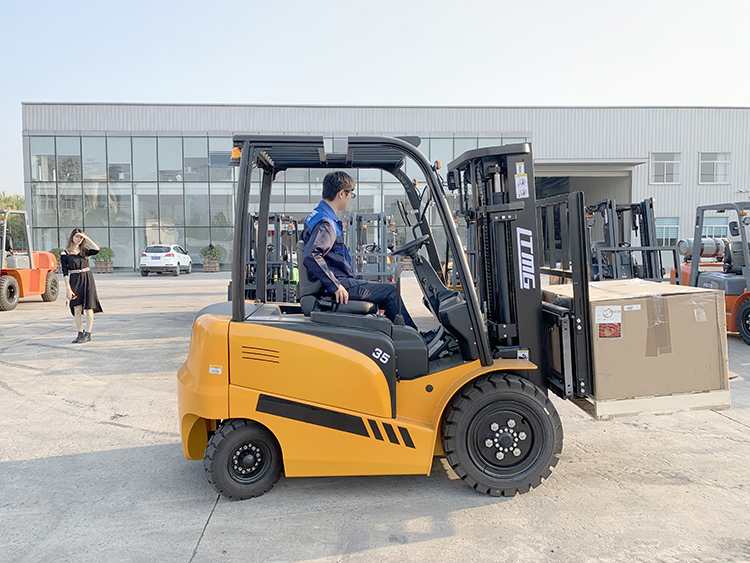

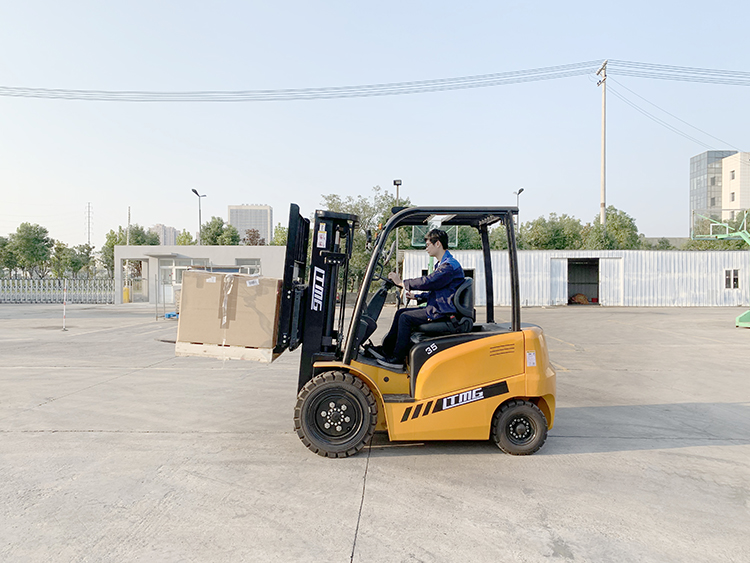

The specificaion of LTMG 3.5 ton electric forklift | ||||
Model | FB35 | |||
Rated Capacity | kg | 3500 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size (L×W×T) | mm | 1070×125×45 | ||
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | ||
Length to fork face of fork (Without fork) | mm | 2615 | ||
Overall Width | mm | 1230 | ||
Mast Lowered Height | mm | 2110 | ||
Mast Extended Height (With backrest) | mm | 4180 | ||
Overhead Guard Height | mm | 2250 | ||
Turning Radius (outside) | mm | 2350 | ||
Front Overhang (Wheel center to fork face) | mm | 485 | ||
Tread (Front/Rear) | mm | 1000/980 | ||
Ground Clearance (Bottom of mast) | mm | 140 | ||
Wheelbase | mm | 1700 | ||
Fork Spread (Min./Max) | mm | 250/1100 | ||
Travel Speed | km/h | 14 | ||
Lifting Speed (Full load) | mm/s | 300 | ||
Max. Gradeability | % | 15 | ||
Service Weight | kg | 5100 | ||
Front Tire×2 | 28×9-15-12PR | |||
Rear Tire×2 | 18×7-8-14PR | |||
Driven Motor | kw | 15 | ||
Lift Motor | kw | 12 | ||
Battery Standard | V/Ah | 80/550 | ||
Controller Manufacturer | CURTIS AC | |||
Operating Pressure for Attachment | Mpa | 18 | ||
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
