- Product type:electric forklift
- Item:forklift diferansiyel
- Mast:2 Stage/3 Stage
- Controller:Curtis AC Controller
- Battery capacity:48V/560Ah
- Wheelbase:1510mm
- Turning raduis(outside):2075mm
- Self weight:4170kg
- Tire type:Pneumatic/Solid

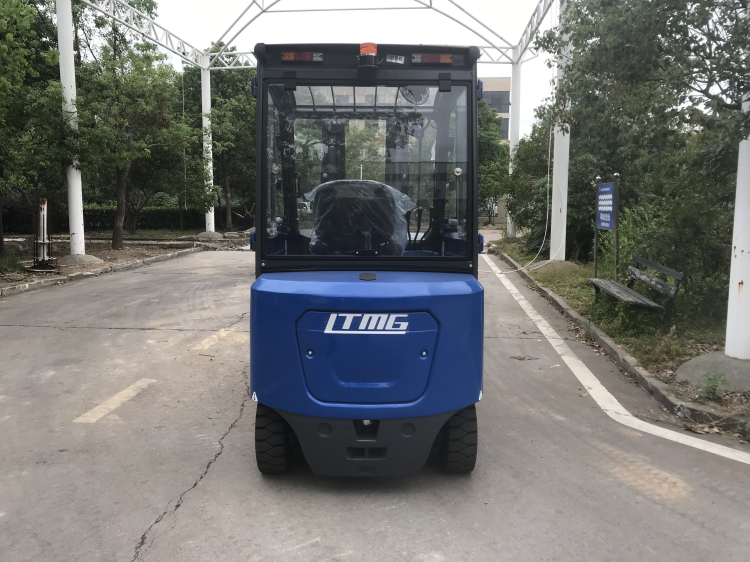

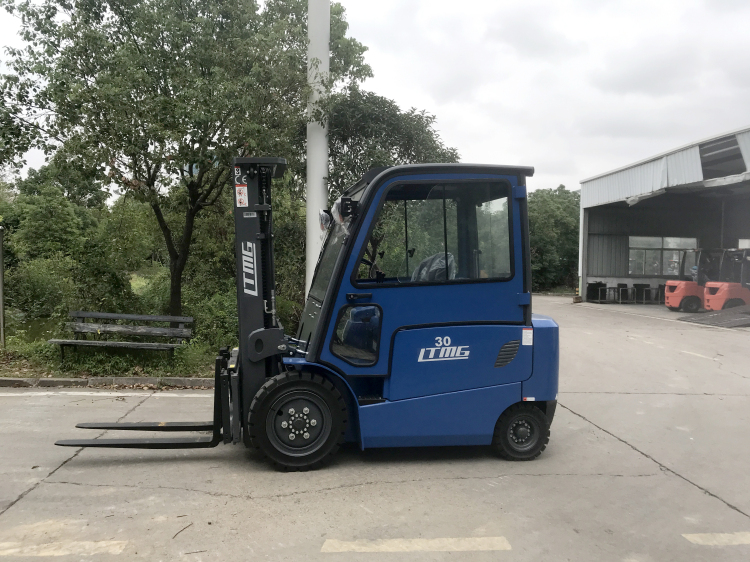

- Other optional:Side shifter, Fork positioner, Enclosed cabin, etc
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Colombia
- Local Service Location:Sri Lanka
- Local Service Location:Romania
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Pakistan
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Romania
- Showroom Location:Bangladesh
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Overall Dimensions:2360*1160*2240mm
- Fork Width:120mm
- Fork Length:1070mm
- Min. Lifting Height:0
- Certification:CE/ISO9001:2008

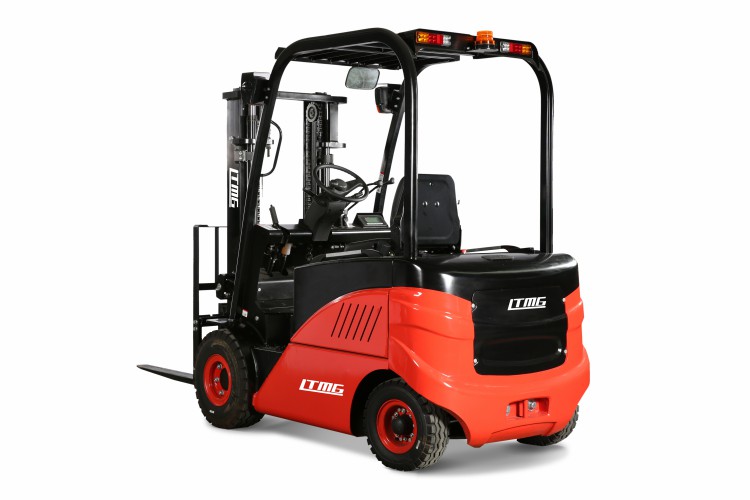

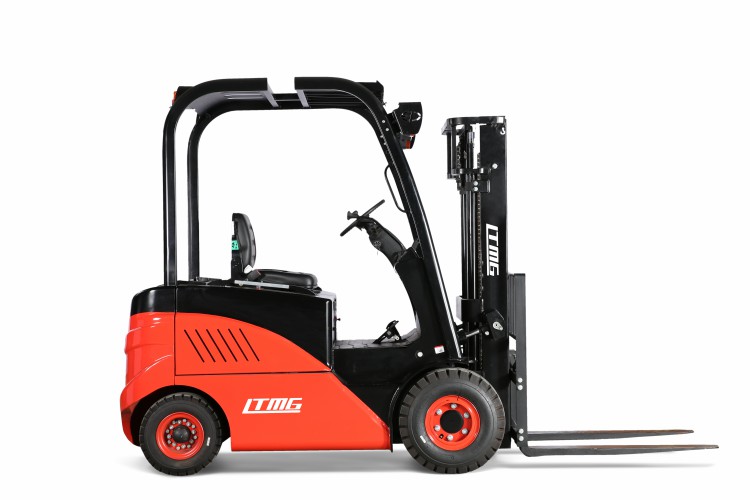

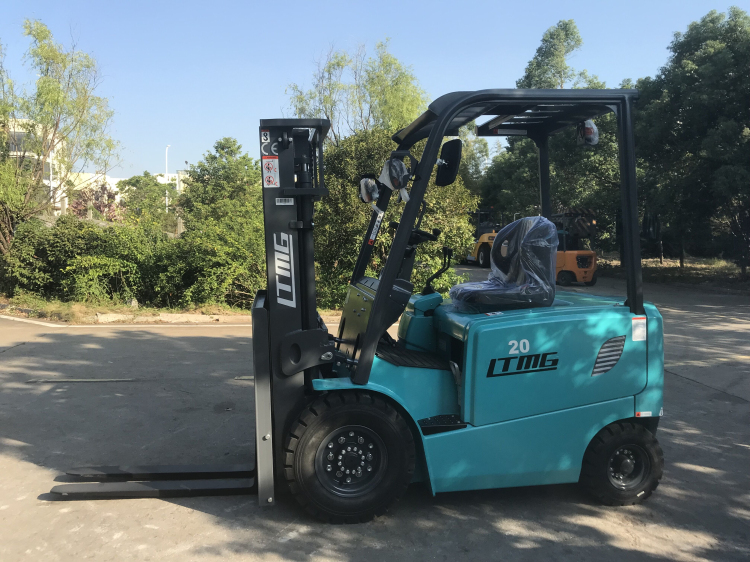

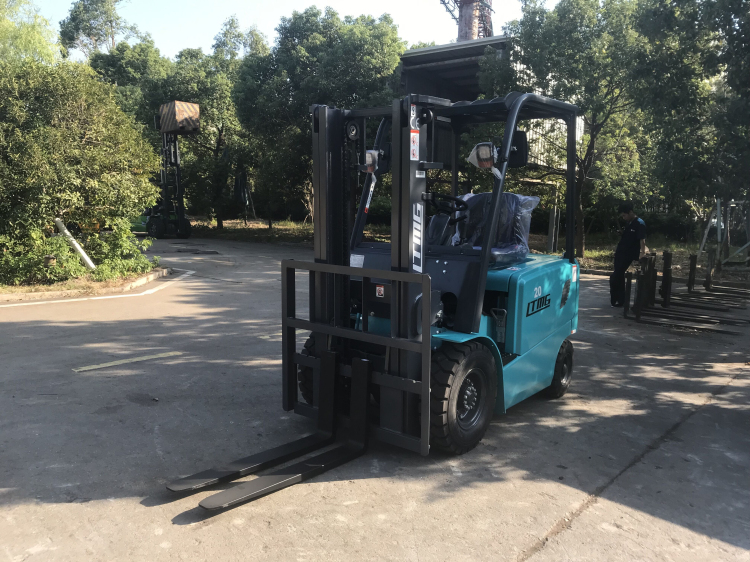

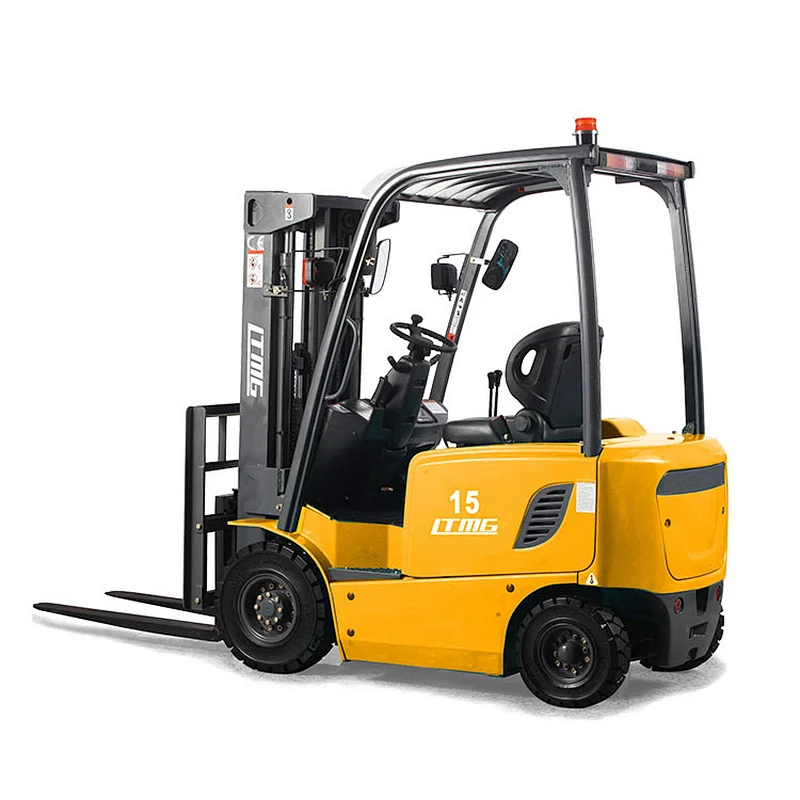

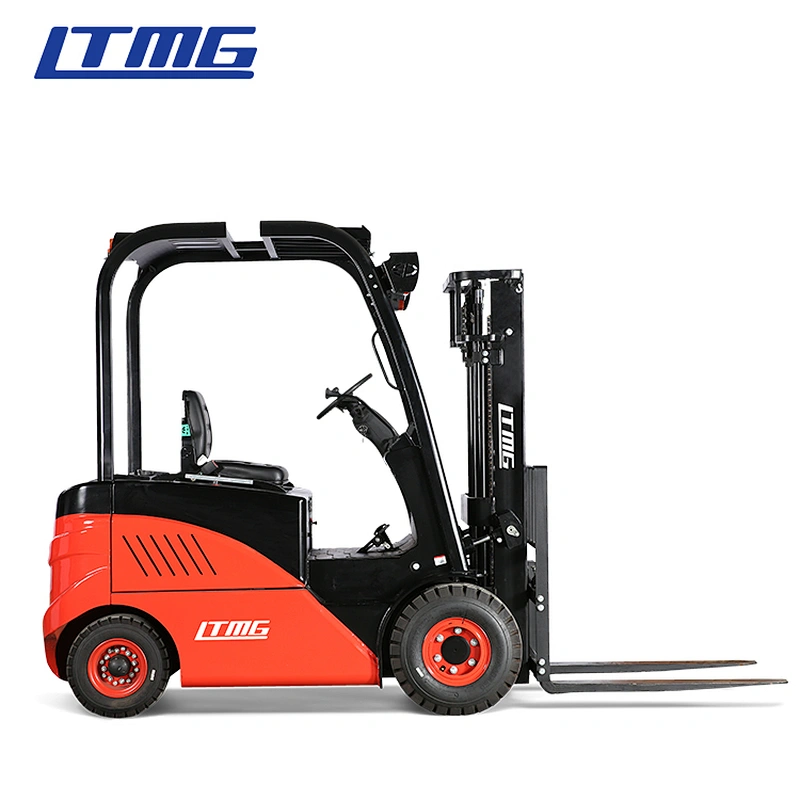

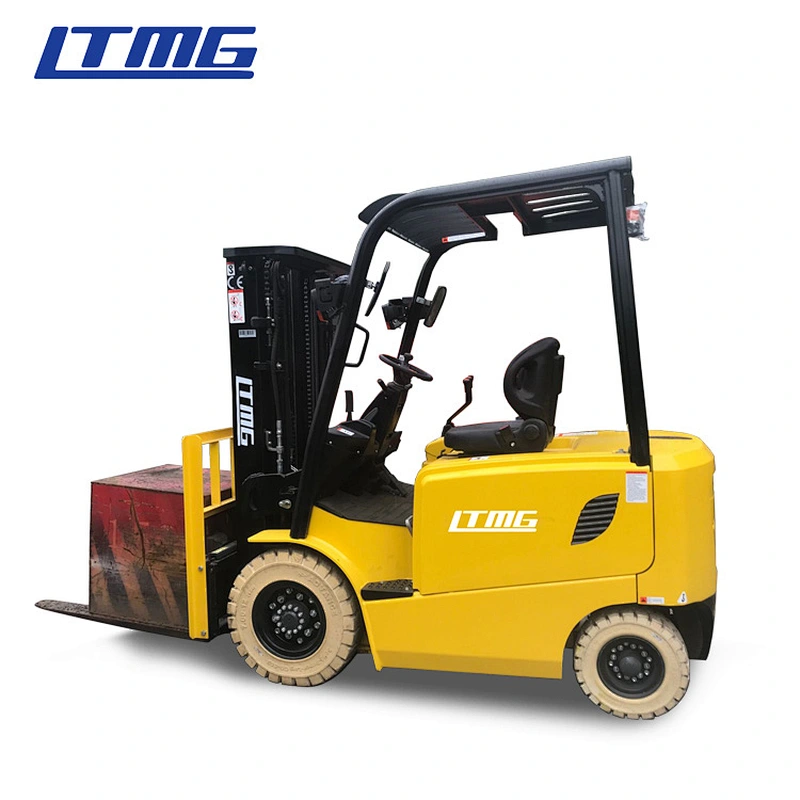

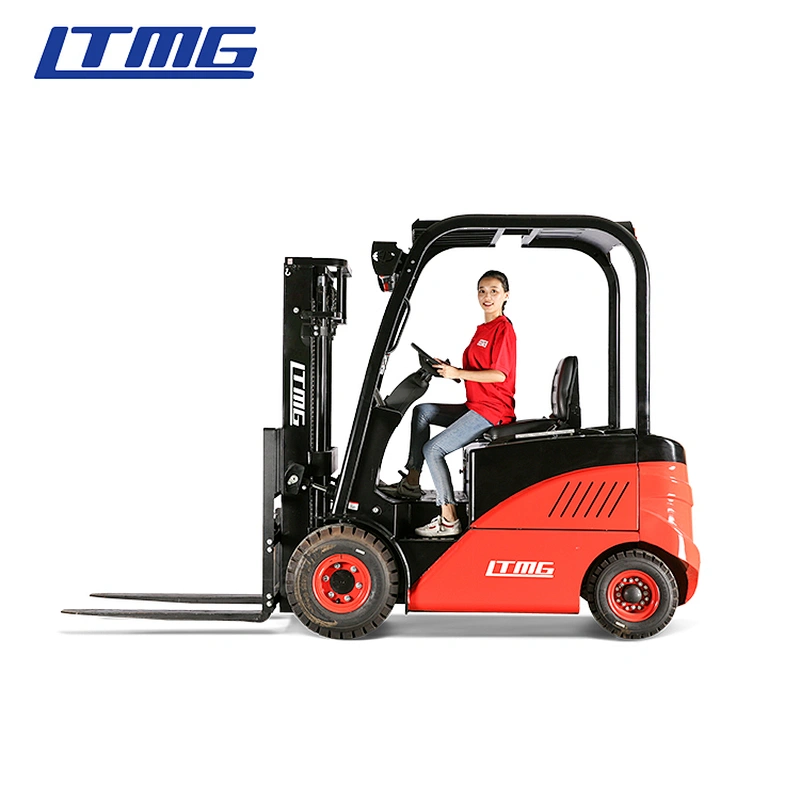

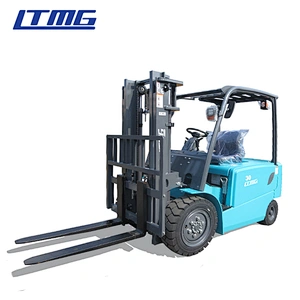

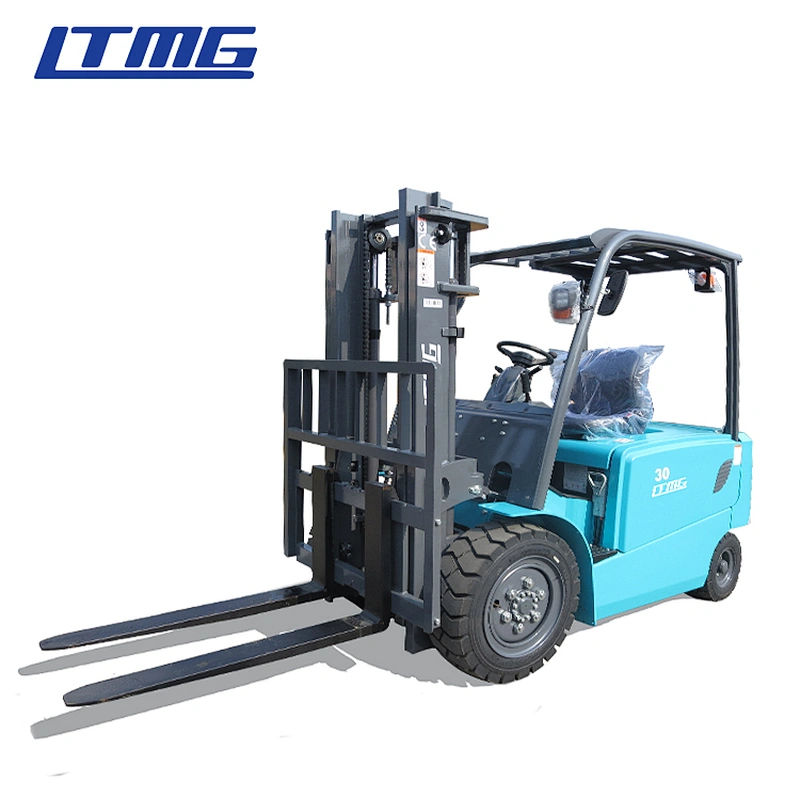

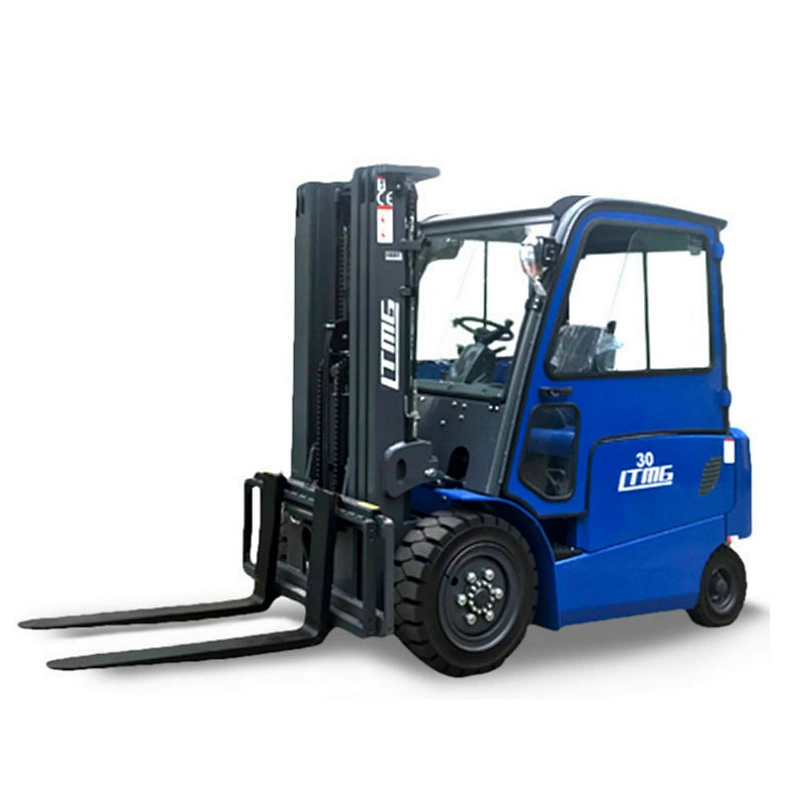

forklift diferansiyel 1.5 ton 2 ton 2.5 ton 3 ton electric forklift for sale
Specification of forklift diferansiyel 1.5 ton 2 ton 2.5 ton 3 ton electric forklift for sale | ||||||
Specification | Model | FB25 | ||||
Load capacity | 2500 kg | |||||
Load center | 500 mm | |||||
Power unit | Battery | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel(x=driving),Front/rear | 2X/2 | |||||
Dimensions | Max. lifting height | 4500 mm | ||||
Free lift | 160 mm | |||||
Fork size(L*W*T) | 1070*122*40 mm | |||||
Tilt range(Mast forward/backward) | 6/12 deg | |||||
Overall length(without fork) | 2285 mm | |||||
Total width | 1150 mm | |||||
Mast height (fork lowering) | 1995 mm | |||||
Overall height fork raised(With backrest ) | 4030 mm | |||||
Height to head guard | 2145 mm | |||||
Turning raduis(outside) | 2000 mm | |||||
Load distance | 445 mm | |||||
Min. right angle stacking aisle(not add load length & clearence) | 2445 mm | |||||
Performance | Max Travelling speed (full load) | 13.5 km/h | ||||
Max Travelling speed (no load) | 14.5 km/h | |||||
Lifting speed (full load) | 240 mm/s | |||||
Lifting speed (no load) | 450 mm/s | |||||
Gradeability (full load ) | 12.5% | |||||
Weight | Truck weight(with standard battery) | 3820 kg | ||||
Weight distribution(full load,front/rear) | 5425/895 kg | |||||
Weight distribution(no load,front/rear) | 1425/2395 kg | |||||
Chassis & Wheels | Tire number(front/rear ) | 2/2 | ||||
Tire model(front axle ) | 21*8-9-16PR | |||||
Tire model(rear axle ) | 18*7-8-14PR | |||||
Wheelbase | 1400 mm | |||||
Tread(Front/rear ) | 955/950 mm | |||||
Ground clearence:At lowest point(mast) | 110 mm | |||||
Service brake | Hydraulic-foot pedal | |||||
Parking brak | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 48V-450(V/AH/5hr) | ||||
Weight with box (standard) | 825 kg | |||||
Electric motor | AC Driving motor | 11 kw | ||||
DC Hydraulic driving motor | 8.6 kw | |||||
Control type | Driving AC , lifting DC Driving AC , lifting AC(as option ) | |||||
Operating pressure | 175 kg/cm² | |||||

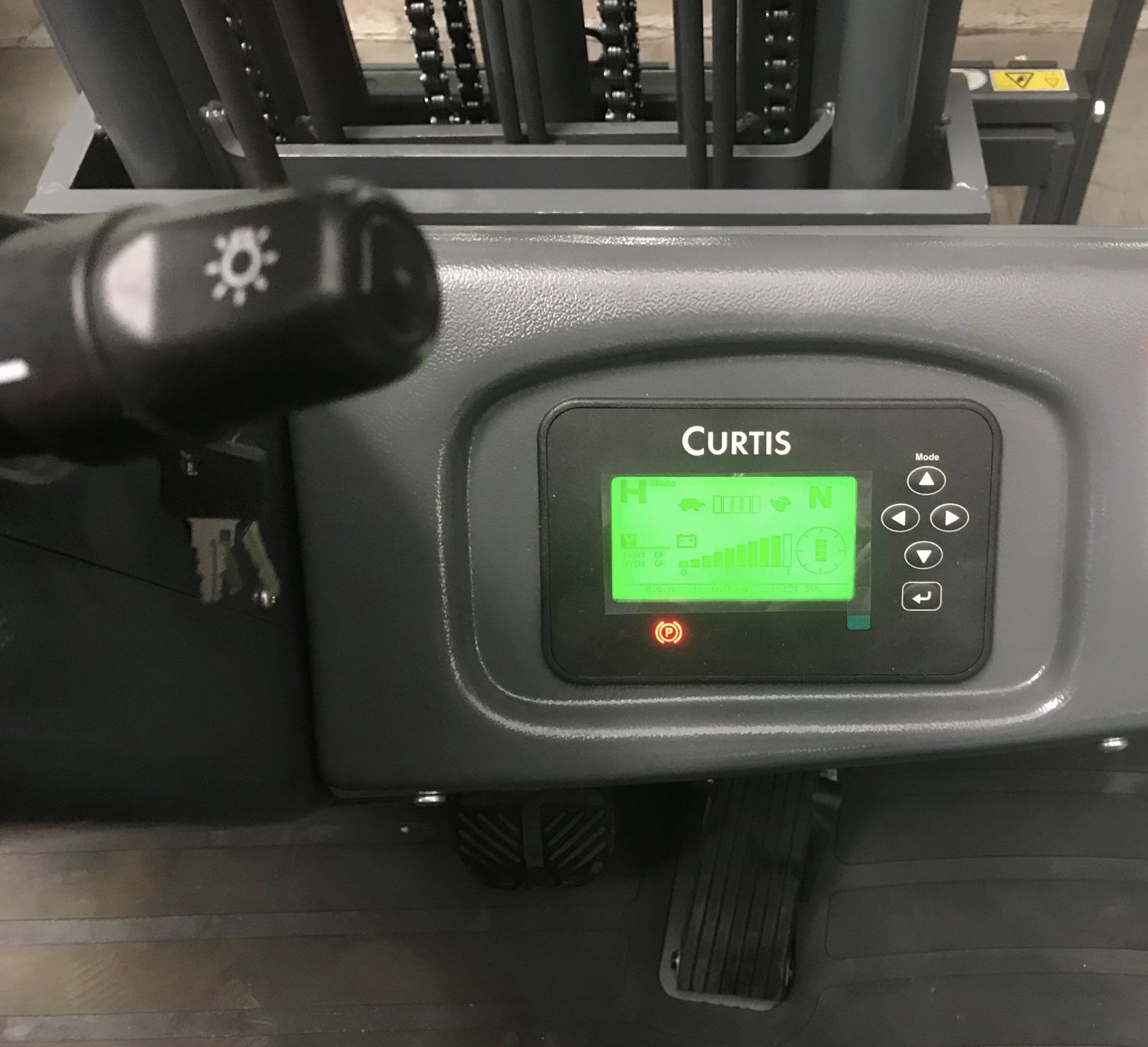

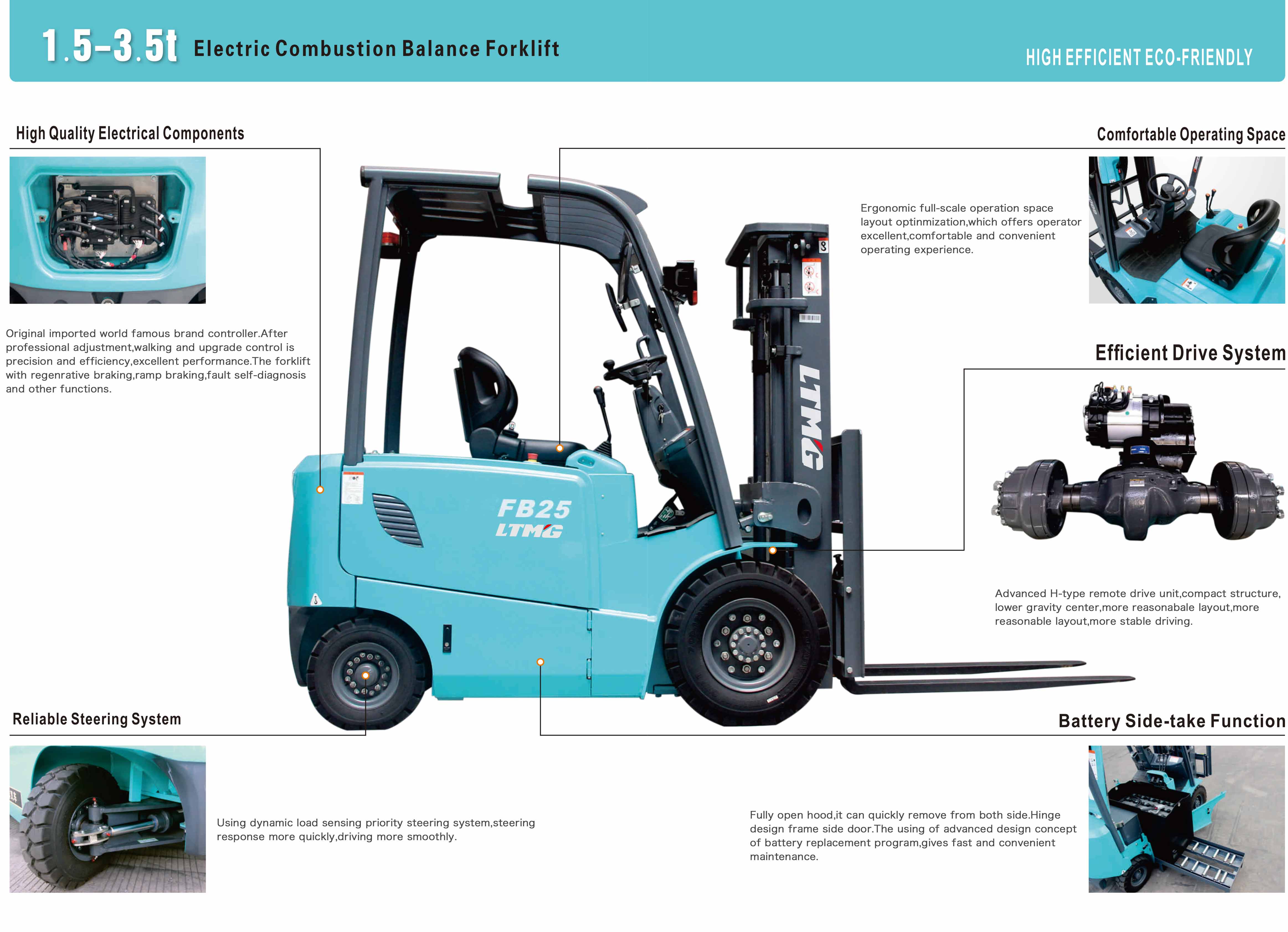

1.Equipped with original imported American Curtis electric control system.
2.GS&HOPPECKE battery group, high voltage and large capacity which can supply the forklift with strong power.

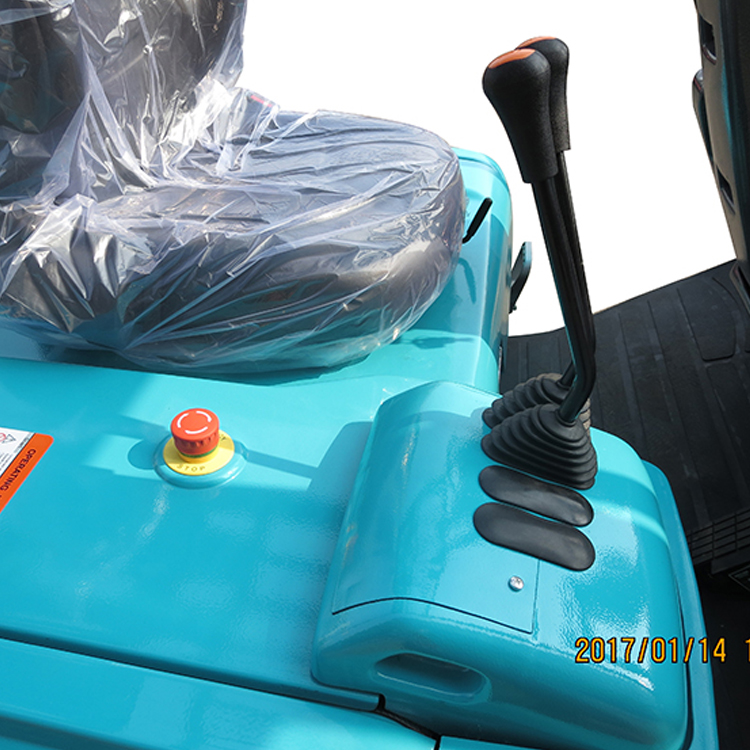

3.Toyotacomfortableseat with safety belt.
4.Imported brand Accelerator and Power Connector.
5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more stable).
6.Fully enclosed instrument panel cover.

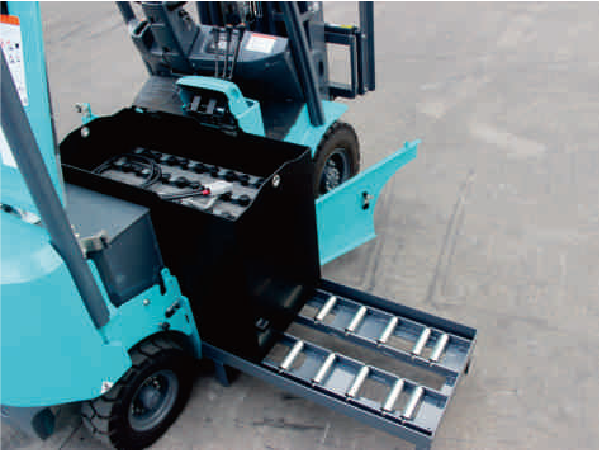

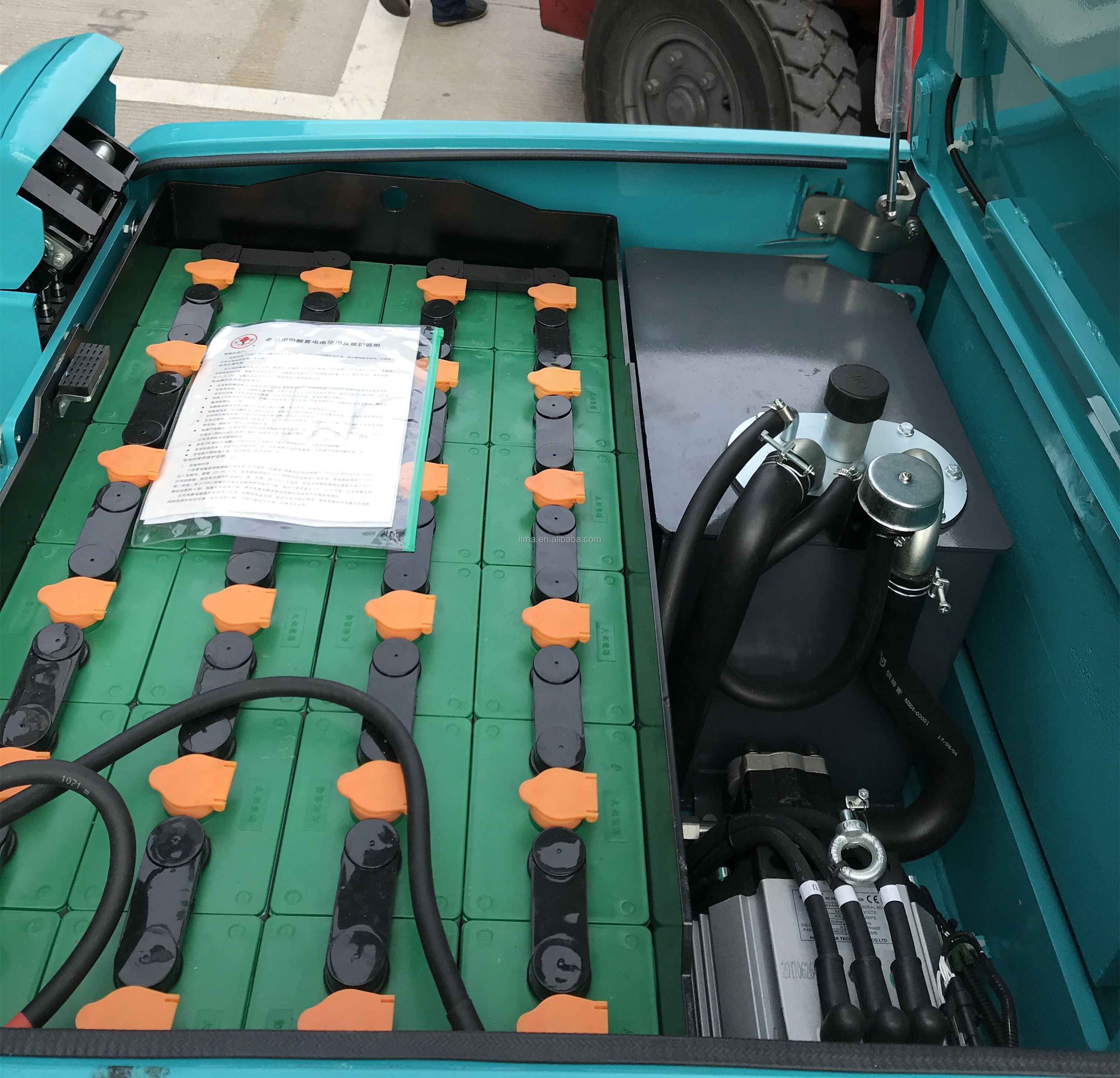

7.Battery side-take function.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
