- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Spain
- Local Service Location:Japan
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Canada
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Kenya
- Showroom Location:UAE
- Condition:New
- Power Souce:AC Motor
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Max. Lifting Height:6 meter
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:3140*1600*2255
- Certification:CE&ISO9001

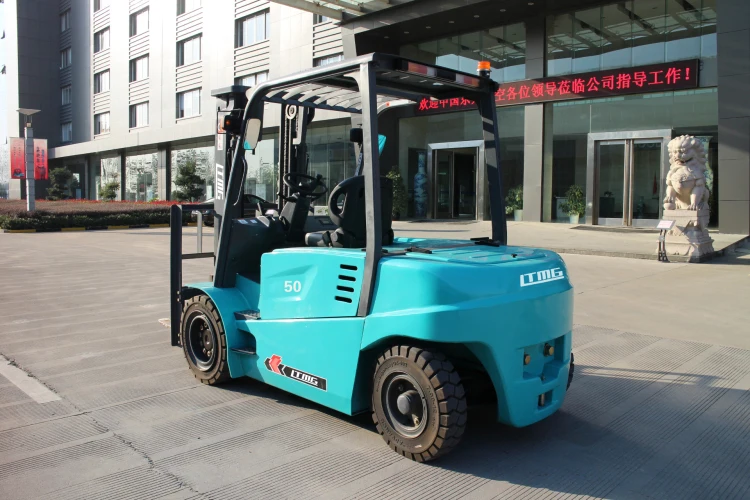

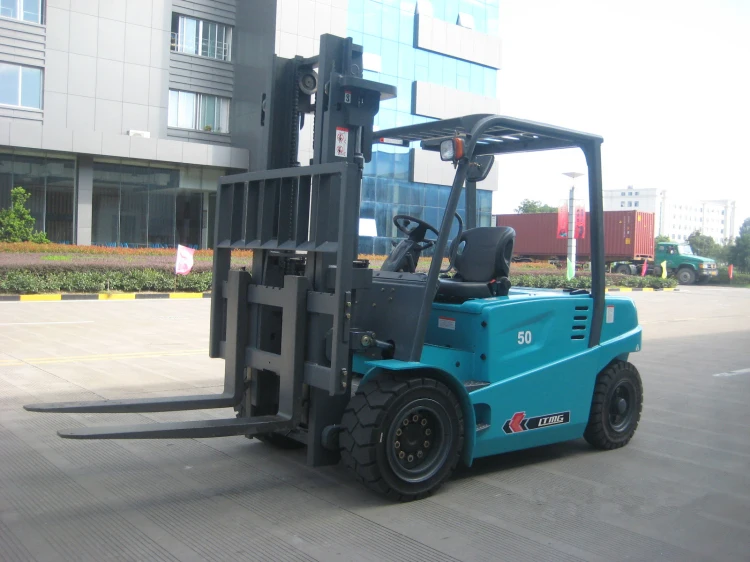

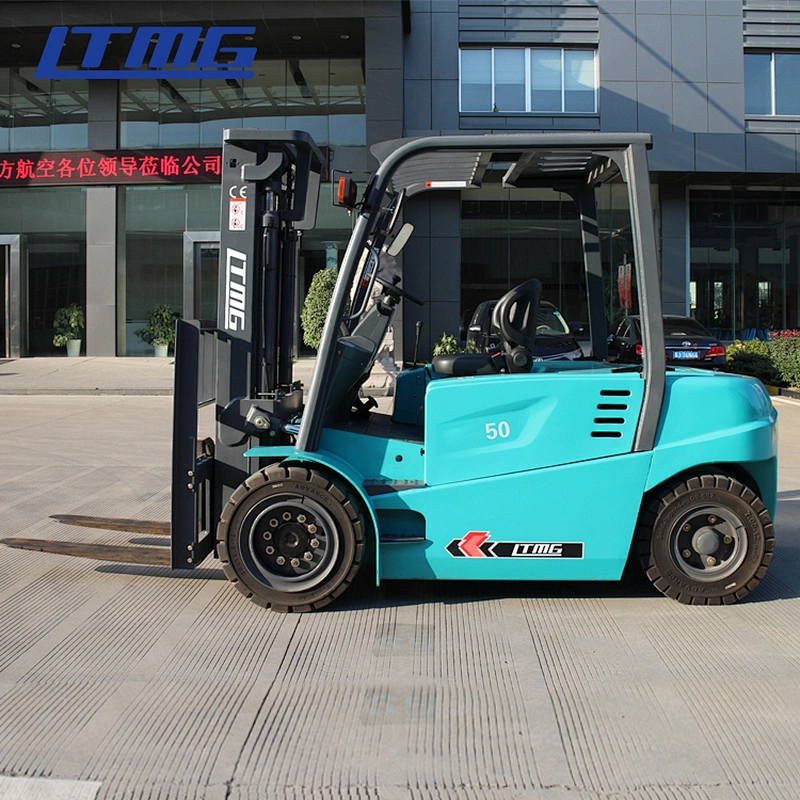

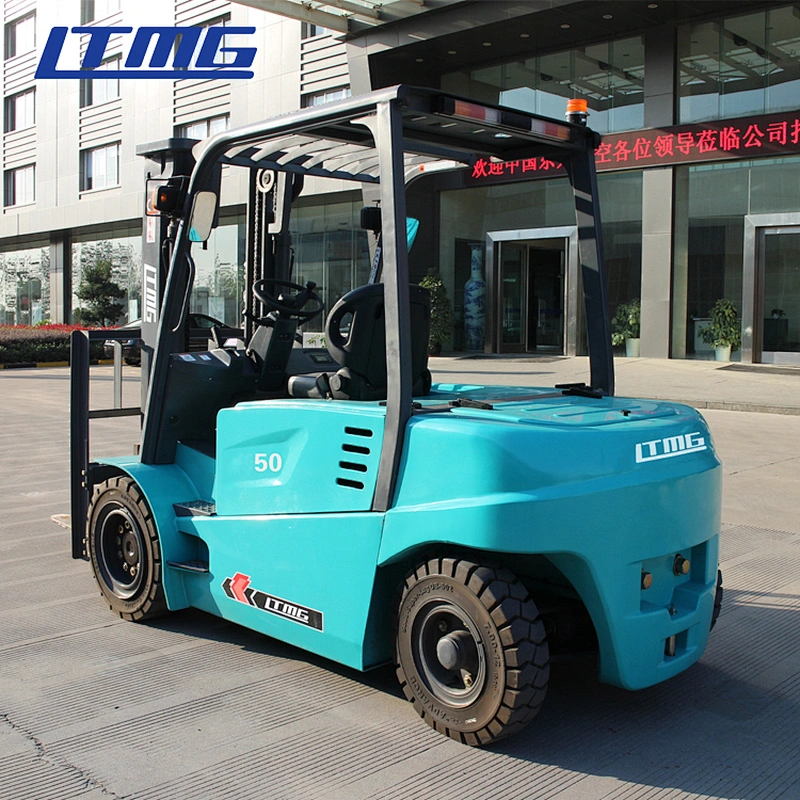

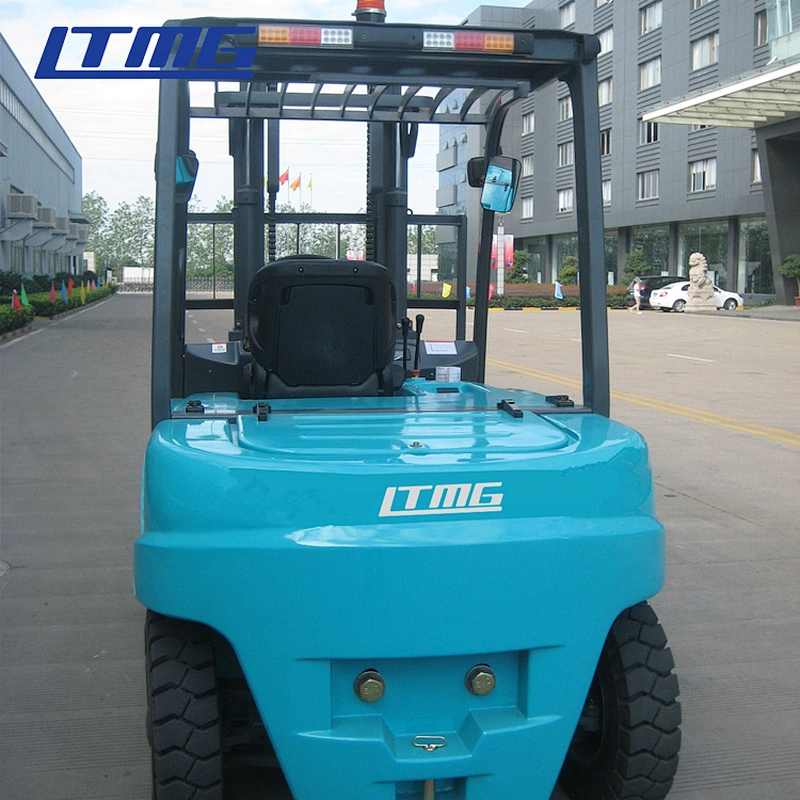

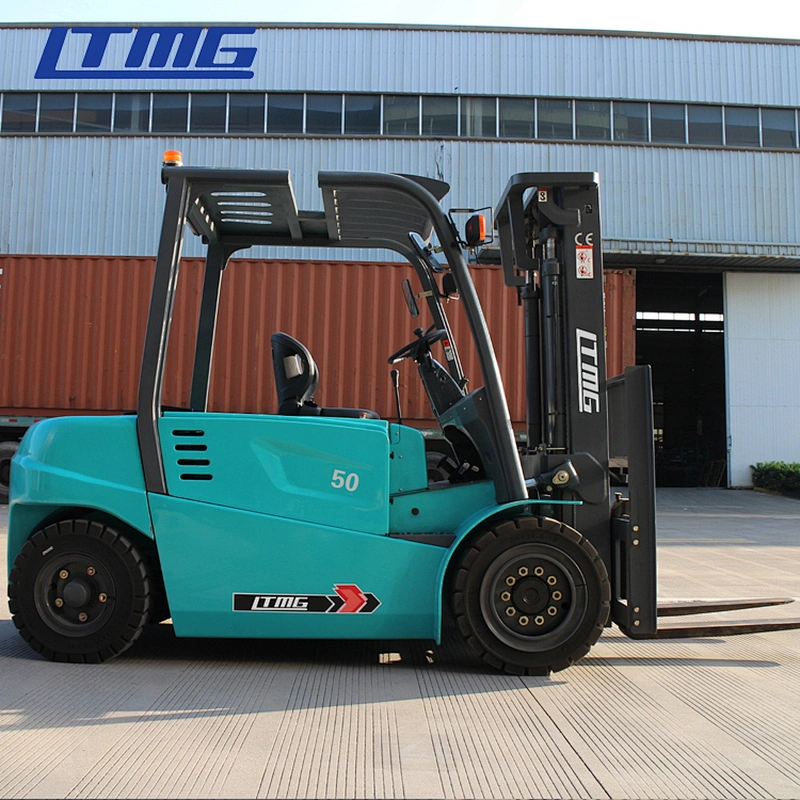

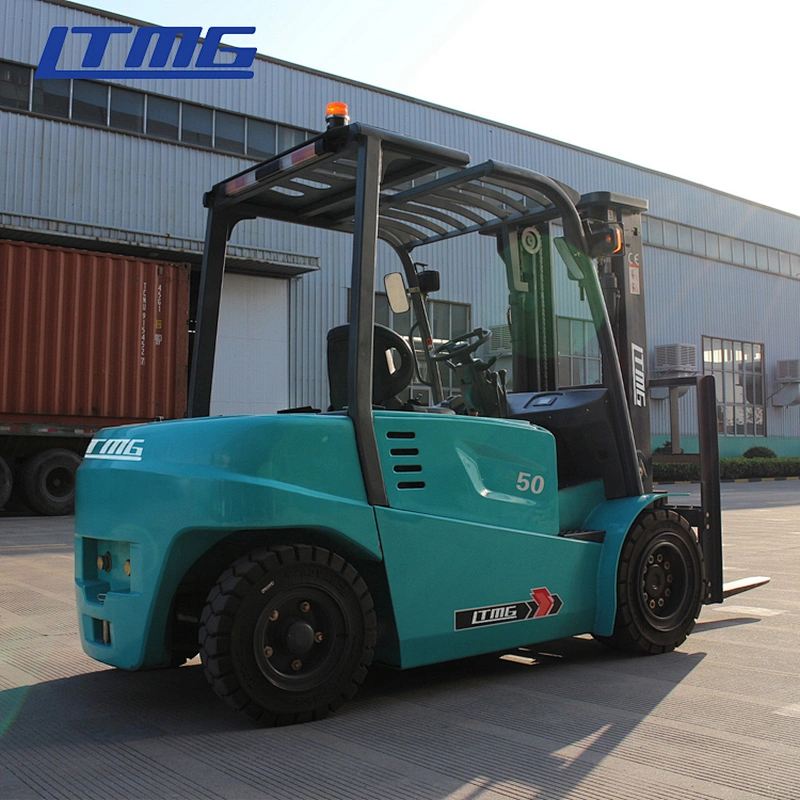

Product Show
Product Parameter
Model | FB50 | FB60 | |
Rated Capacity | kg | 5000 | 6000 |
Load Centre | mm | 500 | 500 |
Lift Height | mm | 3000 | 3000 |
Fork Size (L×W×T) | mm | 1070×150×50 | 1070×150×50 |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/9 | 6/9 |
Length to fork face of fork (Without fork) | mm | 3140 | 3140 |
Overall Width | mm | 1600 | 1600 |
Mast Lowered Height | mm | 2270 | 2270 |
Mast Extended Height (With backrest) | mm | 4165 | 4165 |
Overhead Guard Height | mm | 2255 | 2255 |
Turning Radius (outside) | mm | 2817 | 2817 |
Front Overhang (Wheel center to fork face) | mm | 579 | 579 |
Tread (Front/Rear) | mm | 1280/1190 | 1280/1190 |
Ground Clearance (Bottom of mast) | mm | 170 | 170 |
Wheelbase | mm | 2000 | 2000 |
Fork Spread (Min./Max) | mm | 300/1380 | 300/1380 |
Travel Speed | km/h | 14 | 14 |
Lifting Speed (Full load) | mm/s | 280 | 260 |
Max. Gradeability | % | 15 | 15 |
Service Weight | kg | 7970 | 8460 |
Front Tire×2 | 2.8*12.5-15PR | 2.8-12.5-12PR | |
Rear Tire×2 | 7.00-12-12PR | 18×7-8-14PR | |
Driven Motor | kw | 11*2 | 11*2 |
Lift Motor | kw | 12*2 | 12*2 |
Battery Standard | V/Ah | 80/700 | 80/800 |
Controller Manufacturer | CURTIS AC | CURTIS AC | |
Operating Pressure for Attachment | Mpa | 18 | 18 |
Product Advantage
Intelligent liquid crystal instrument
it can display the vehicle's running status,fault detection and other human-machine interaction information, and efficiently reflect the real-time status of the vehicle
Reliable steering system
Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.
Comfortable operating space
The inclined cylinder sinks into the frame, effectively improving the dustproof ability of the cylinder, providing wide space for the driver's feet to move.

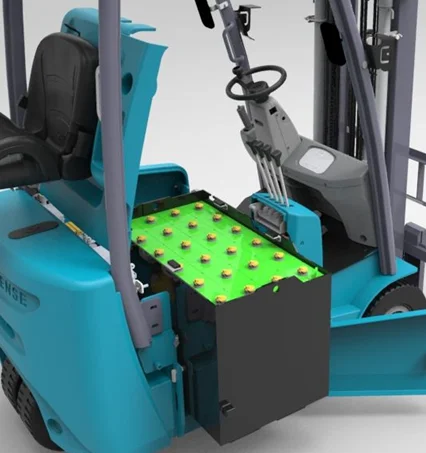

Battery side-take function
Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

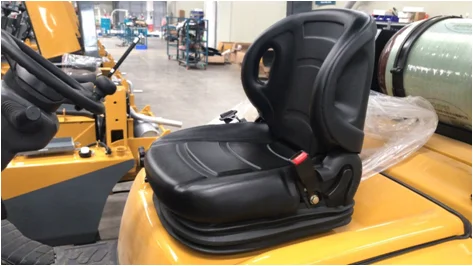

Seat
New suspension adjustable seat makes the long time operating more comfortable

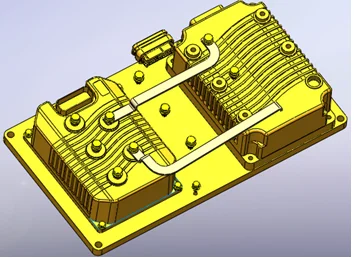

Curtis Controller
Walking and upgrade control is precision and efficiency,excellent performance.The froklift with regenerative braking,ramp braking,fault self-diagnosis and other functions.
Optional
1.Curtis controller
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
1.Curtis controller
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Related Products
Diesel Forklift

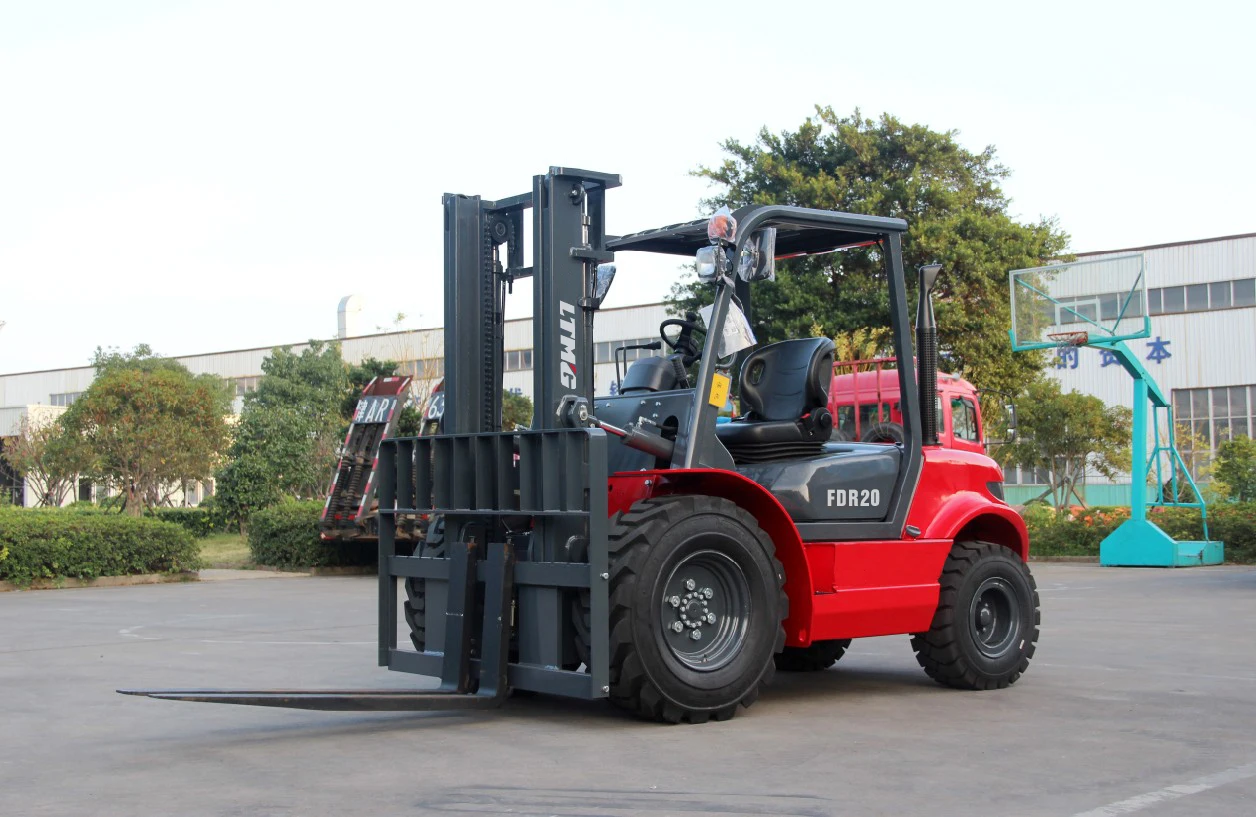

Rough Terrain Forklift

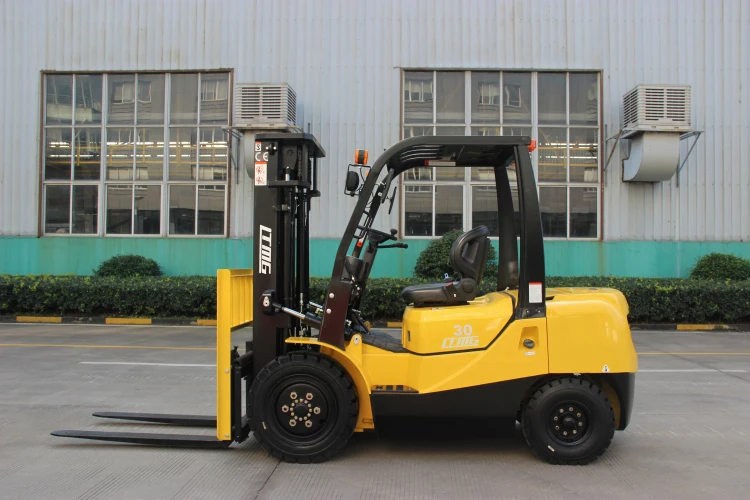

LPG&Gasoline Forklift

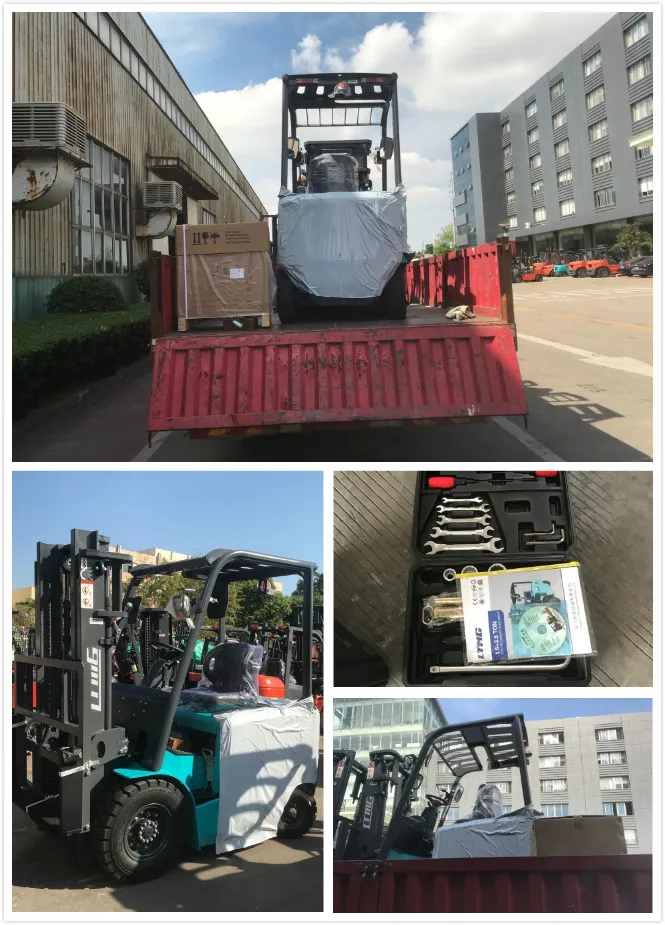

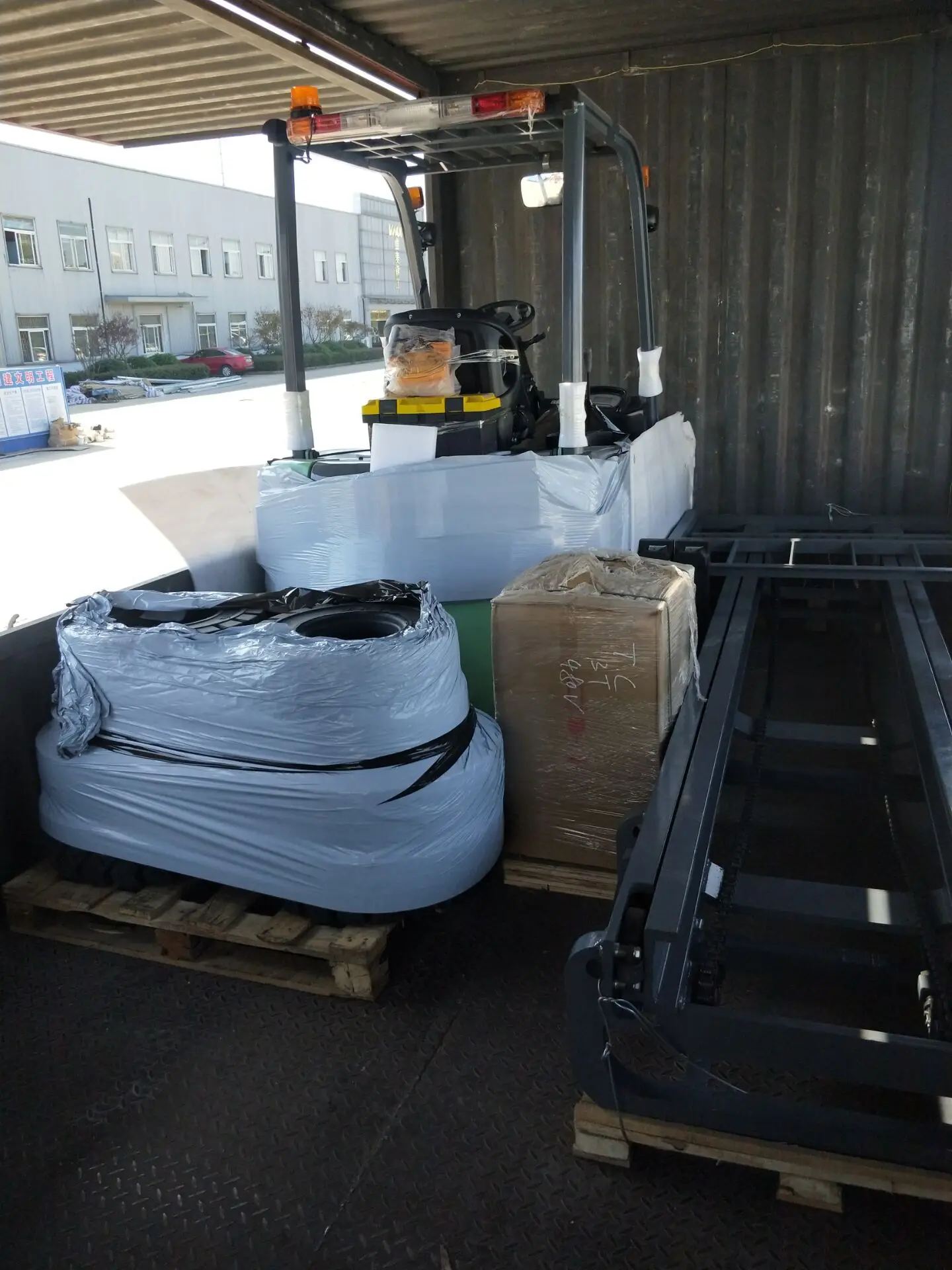

Packing&Shipping

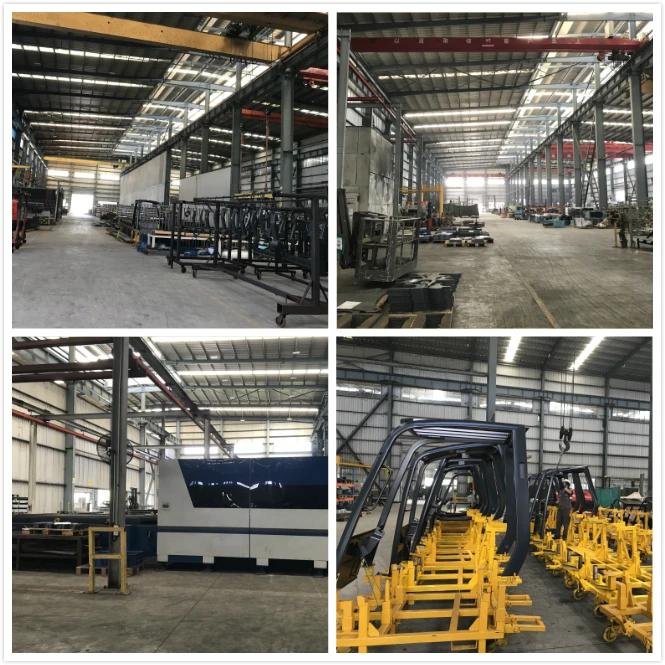

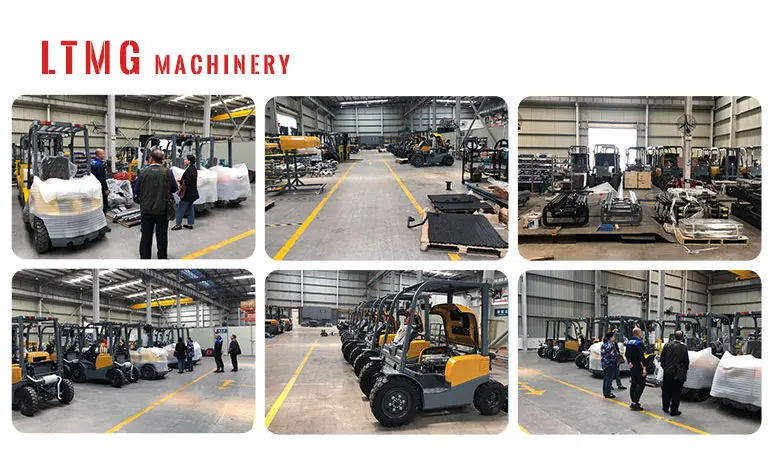

Company Introduction
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .

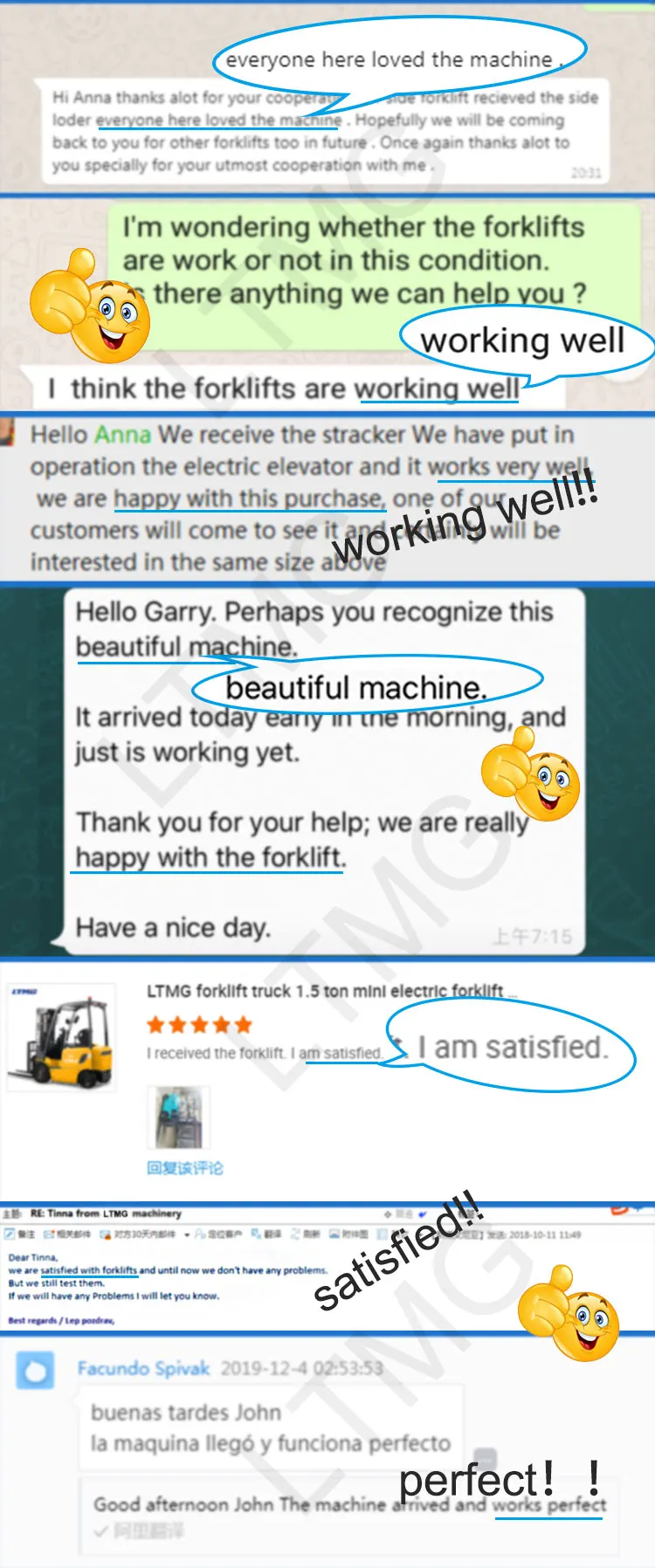

Customer
