- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Condition:New
- Place of Origin:CN;FUJ
- Type:Powered Pallet Truck
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2245*1150*1995mm
- Certification:CE/ISO9001:2008
- Warranty:One Year or 2000 working hours, which occurs earlier
- Color:Customer Demanded
- Item:mini 2 ton electric forklift
- Load Center:500mm
- Fork Size:1070*122*40mm
- Standard lifting height:3000mm
- Free lift:160mm
- Wheel base:1400mm
- Turning raduis(outside):1980mm
- Gradeability:12.5%

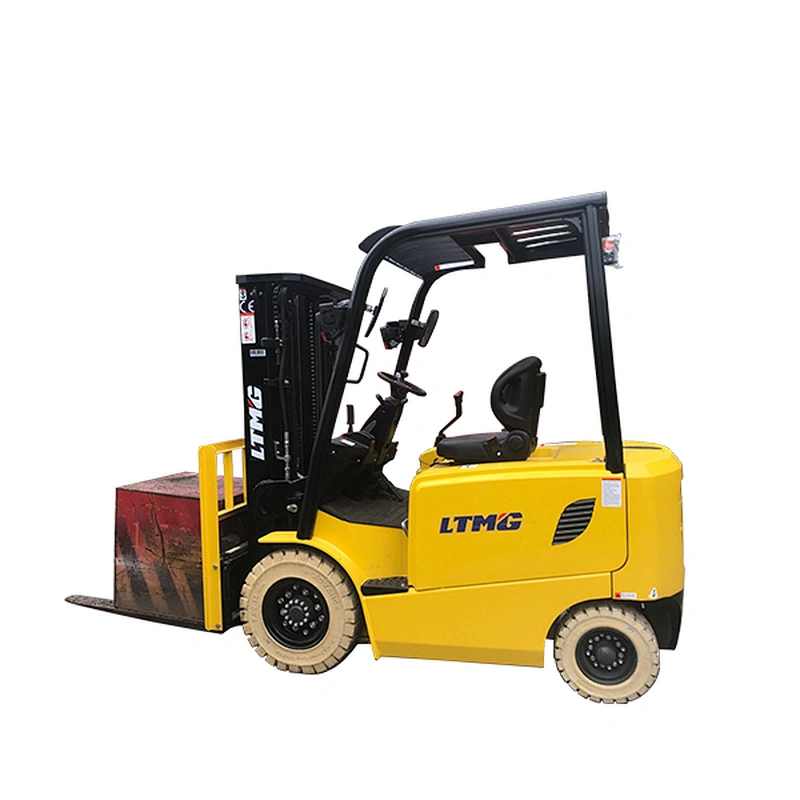

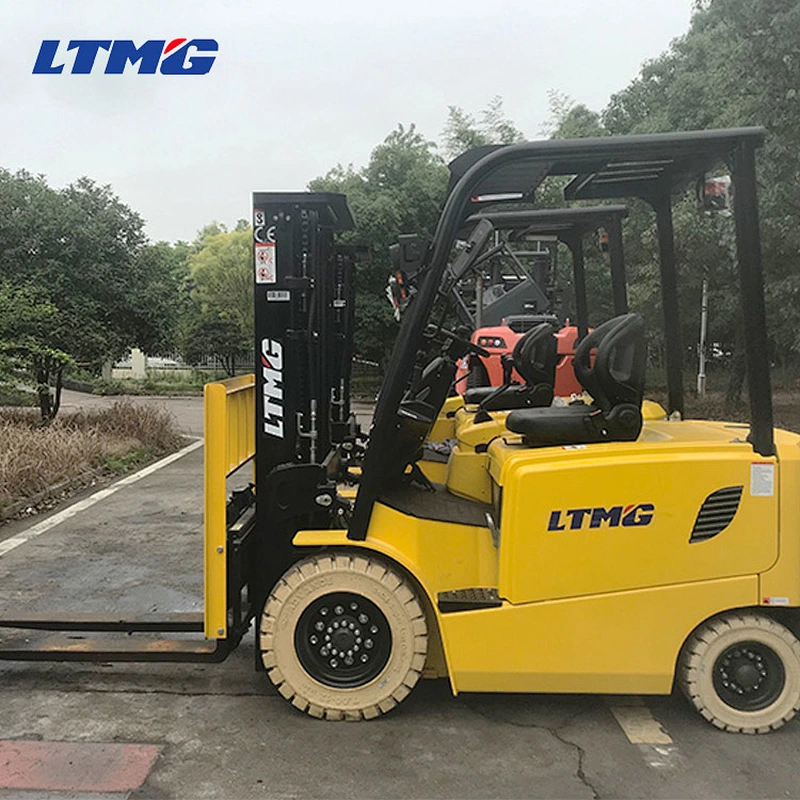

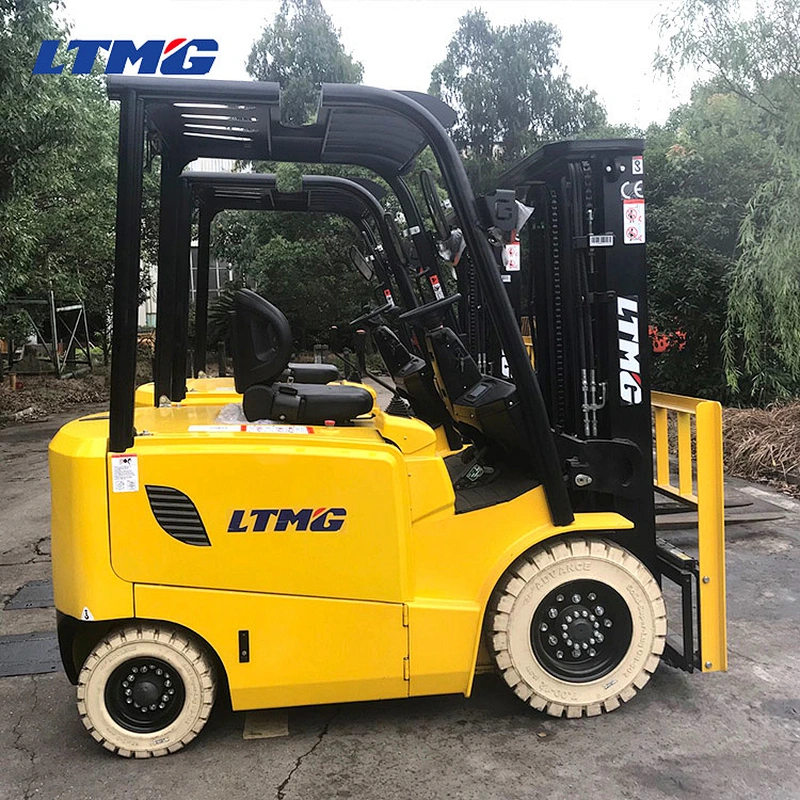

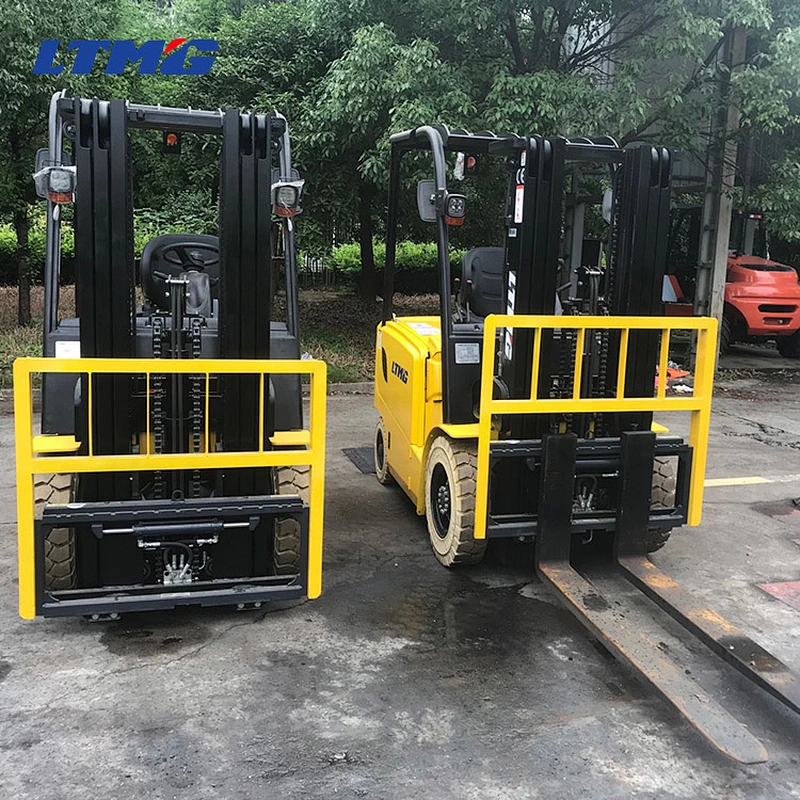

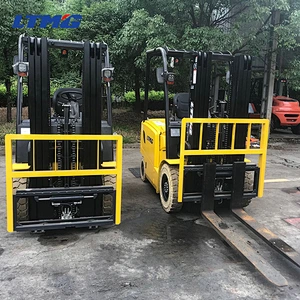

China wholesale product hydraulic control mini 2 ton electric forklift
How to choose a forklift?
Load Capacity:
1) the higher you are lifting a load the lower the capacity will become.
2) if you add an attachment this will also effect the unit's capacity.
3) Non-standard over sized goods will cause load centre move forward to effect capacity.
Lift Height & Collapsed Height:
besides how high you want to lift up your material, you also need to pay attention to forklift collapsed height for reasons: low doors you need to passby, ceillings in the building you are working, ceillings in the trucks you are loading/unloading.
Environment:
1) depending on enviroment in door or outdoor: diesel, gas/LPG or battery forklift
2) ground in good condition or with stones or scraps everywhere: what types of tire is proper, air tires, solid tires or no-marking tires?
3) special environment: cold storage etc
Application:
whether or not an attachment needs for working.
Others:
Do I need to stack goods in narrow warehouse? right-angle stack aisle width
Do I need a pressure regulator valve when forklift reserved with 3rd or 4th valve for attachments?
What are the features of our products?
- Driver could easy to read and understand it according to the right instrument panel with clear meter display.
Equipped with original imported American Curtis electric control system;The controller is directly fixed in the balanced weight to lead better heat dissipation.
Redesigned hydraulic control levers positioned next toseat to make operators feel comfortable.
- The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.

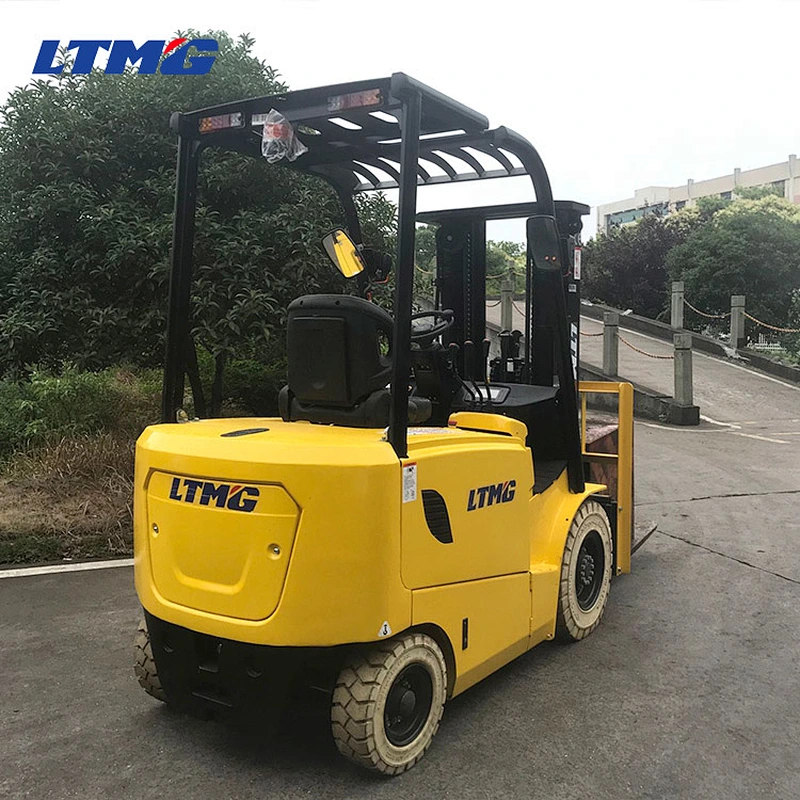

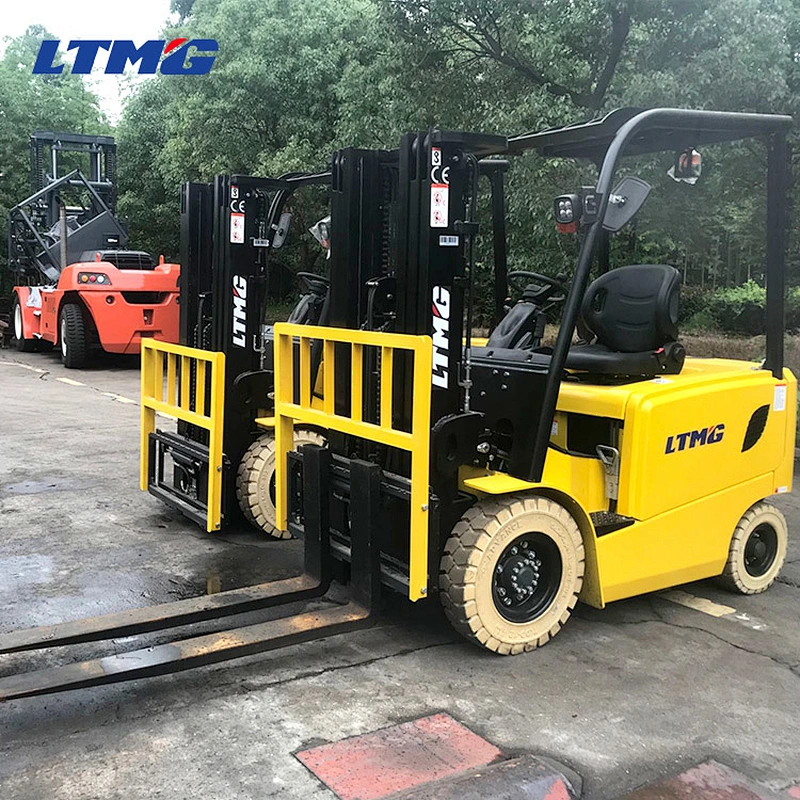

China wholesale product hydraulic control mini 2 ton electric forklift

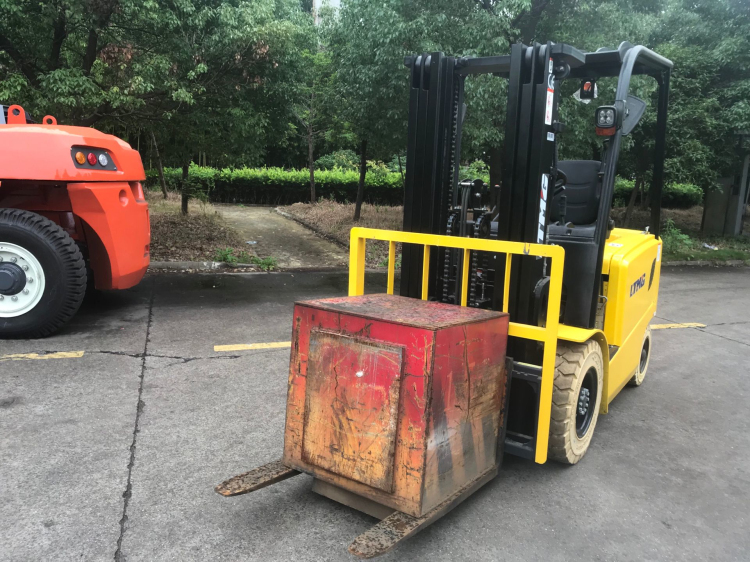

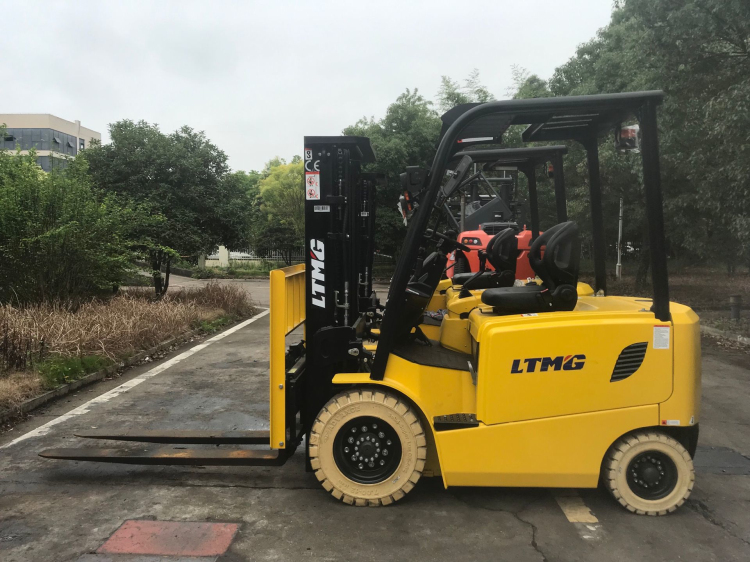

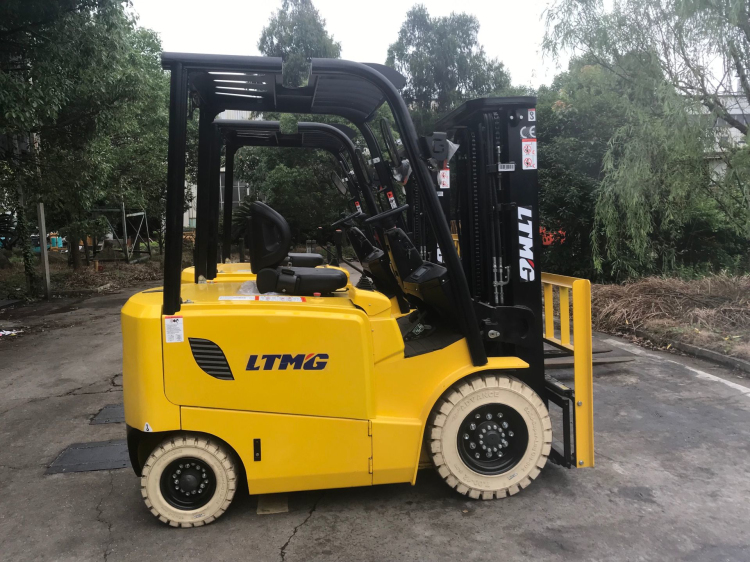

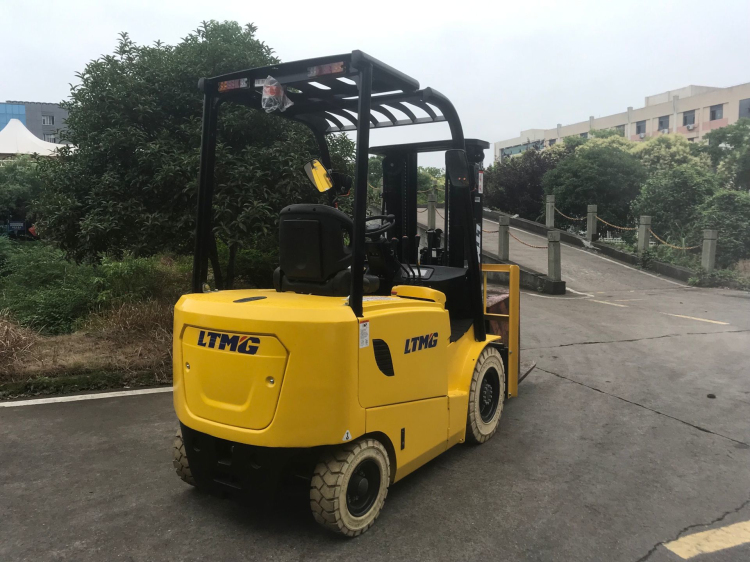

Specifications of China wholesale product hydraulic control mini 2 ton electric forklift :FB20
| Specifications | 1 | Manufacturer | LTMG | ||
| 2 | Model | FB20 | |||
| 3 | Load capacity | kg | 2000 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Battery | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | pneumatic | |||
| 8 | Wheel(x=driving) | Front/rear | 2X/2 | ||
| Dimensions | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 160 | ||
| 11 | Fork size | L*W*T | mm | 1070*122*40 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2245 | ||
| 14 | Total width | mm | 1150 | ||
| 15 | Mast height (fork lowering) | mm | 1995 | ||
| 16 | Overall height fork raised | With backrest | mm | 4030 | |
| 17 | Height to head guard | mm | 2145 | ||
| 18 | Turning raduis(outside) | mm | 1980 | ||
| 19 | Front overhang ( face of fork to front axle) | mm | 445 | ||
| 20 | Min. right angle stacking aisle | not add load length&clearence | mm | 2425 | |
| Performance | 21 | Speed | Max Travelling full load | km/h | 13.5 |
| Max Travelling no load | km/h | 15 | |||
| Lifting full load | mm/s | 240 | |||
| Lifting no load | mm/s | 450 | |||
| 22 | Gradeability | full load | % | 12.5 | |
| Weight | 23 | Truck weight(with standard battery) | kg | 3440 | |
| 24 | Weight distribution | Full load front/rear | kg | 4565/875 | |
| 25 | No load front/rear | kg | 1445/1995 | ||
| Chassis&Wheels | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 21*8-9-16PR | ||
| 31 | rear axle | 18*7-8-14PR | |||
| 32 | Wheelbase | mm | 1400 | ||
| 33 | Tread | Front/rear | mm | 955/950 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 110 | |
| Frame | mm | 115 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brak | Mechanical-hand lever | ||||
| Drive Line | 36 | Battery | Voltage/capacity | V/AH/5hr | 48V-450 |
| 37 | Weight with box (standard) | kg | 825 | ||
| 38 | Electric motor | AC Driving motor | kw | 11 | |
| 39 | DC Hydraulic driving motor | kw | 8.6 | ||
| 40 | AC Hydraulic driving motor (as option) | kw | 13 | ||
| 41 | Control type | Driving AC , lifting DC Driving AC , lifting AC(as option ) | |||
| 42 | Operating pressure | kg/cm² | 175 | ||

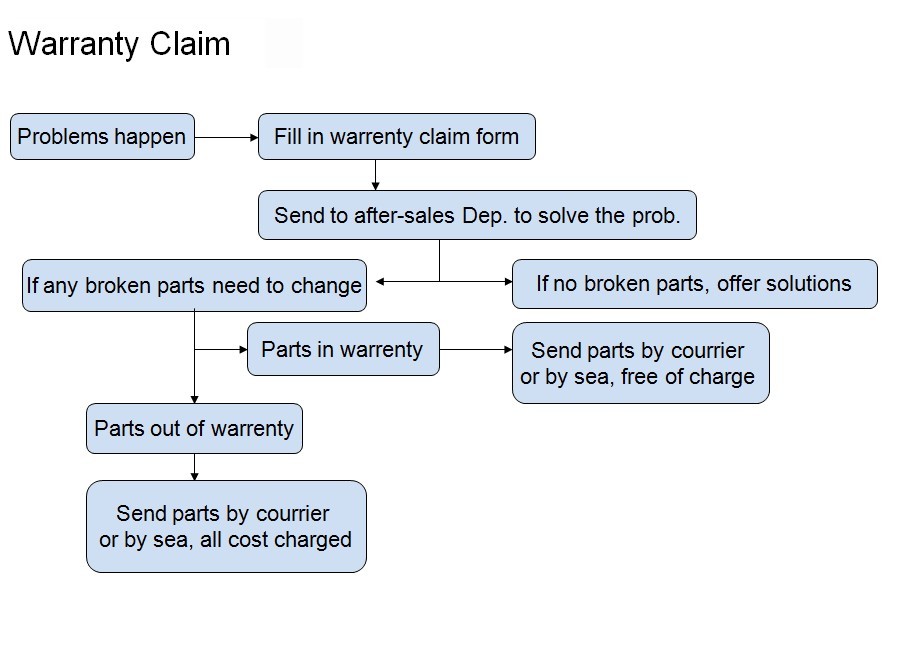

After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

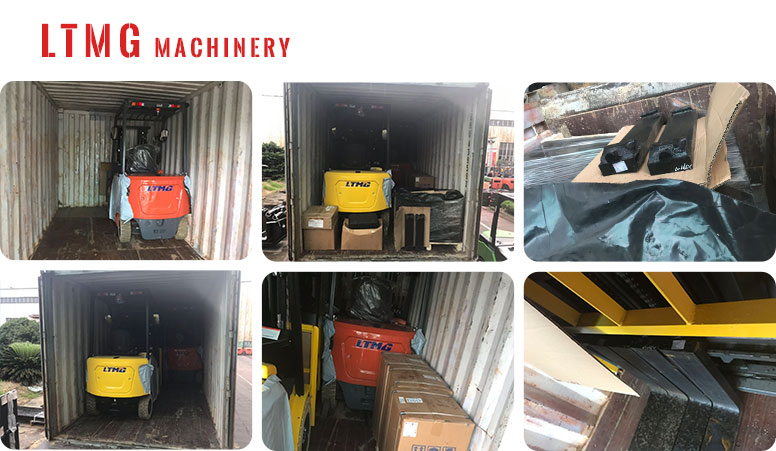

6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
8. How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
