- Type:Powered Pallet Truck
- Product Name:electric Forklift Truck
- Color:Customized Color
- Controller:Curtis AC Controller
- Mast:2-3 Stages
- Ground clearance:110mm
- Options:Side-shifter,rotator,forkpositioner
- Load Center:500mm
- Battery:80/500 V/Ah
- Tire:Pneumatic Standard or solid tire
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Online support
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Spain
- Local Service Location:Japan
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:South Africa
- Showroom Location:Canada
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Kenya
- Showroom Location:UAE
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Max. Lifting Height:6 meter
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Overall Dimensions:2360*1160*2055
- Fork Width:120mm
- Fork Length:1070mm
- Min. Lifting Height:0
- Certification:CE&ISO9001

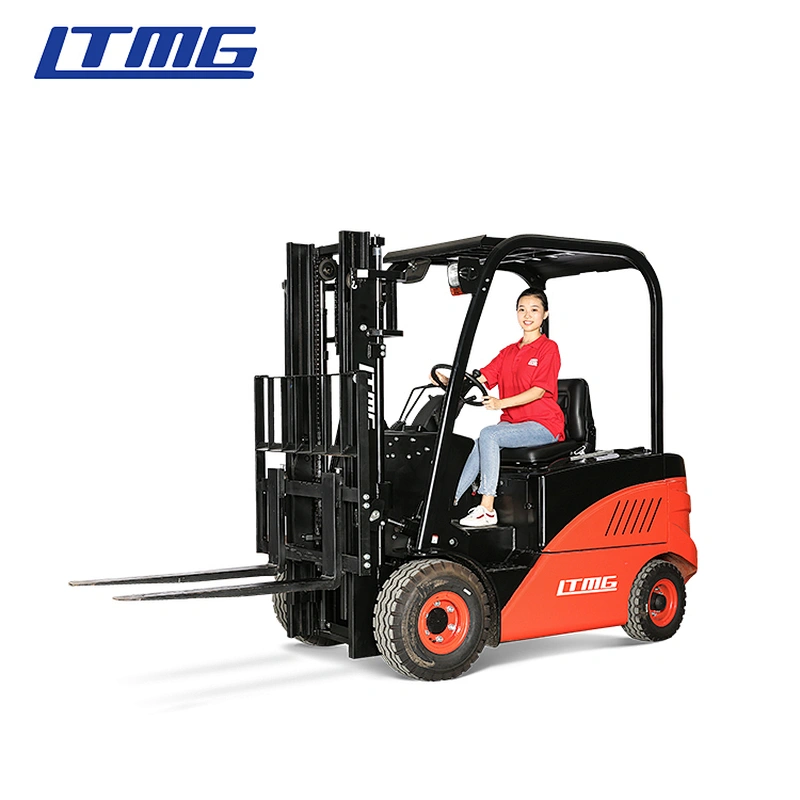

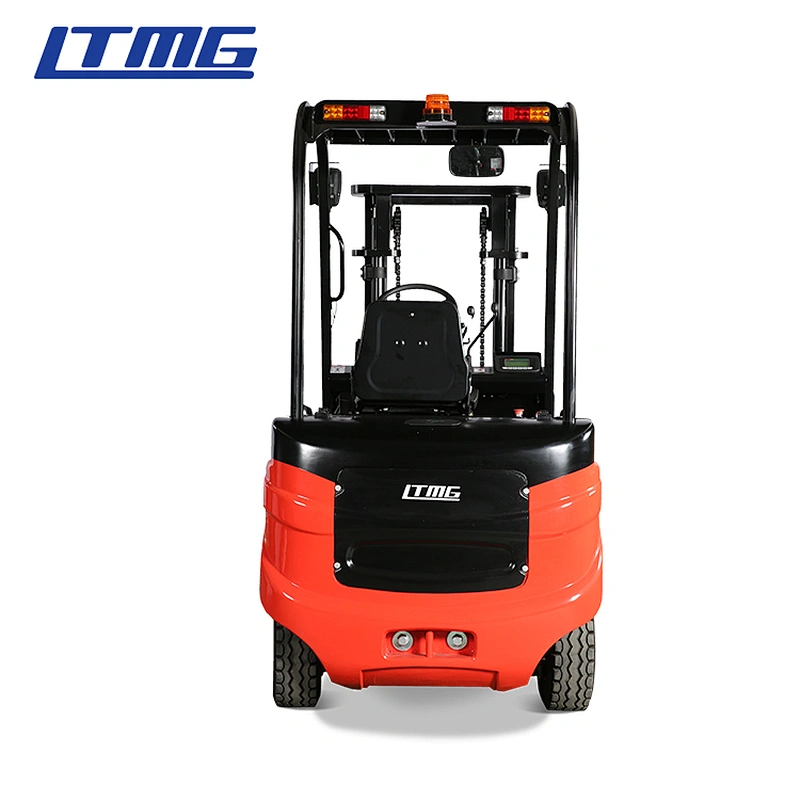

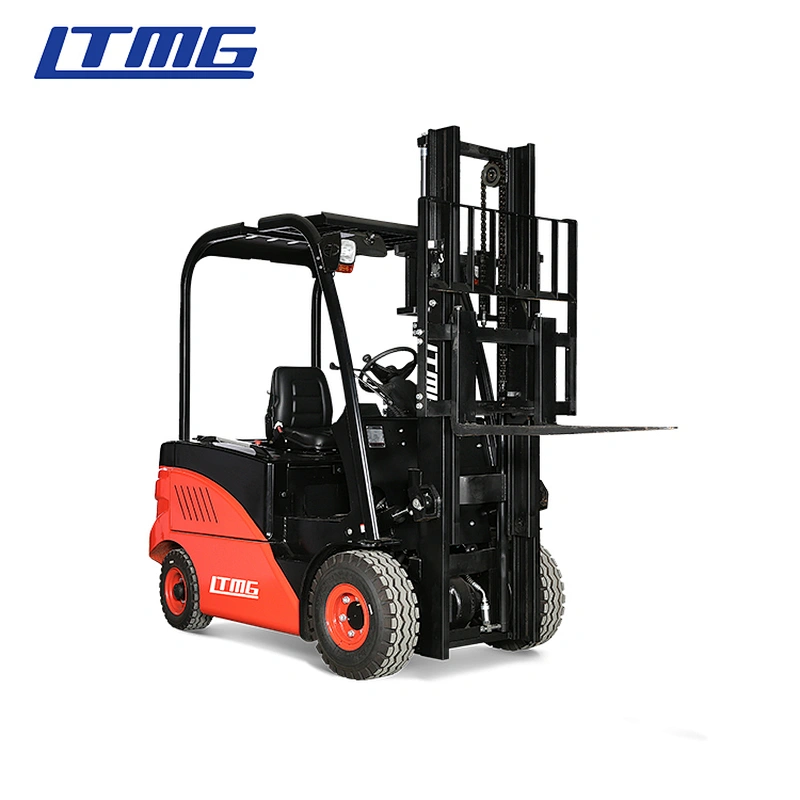

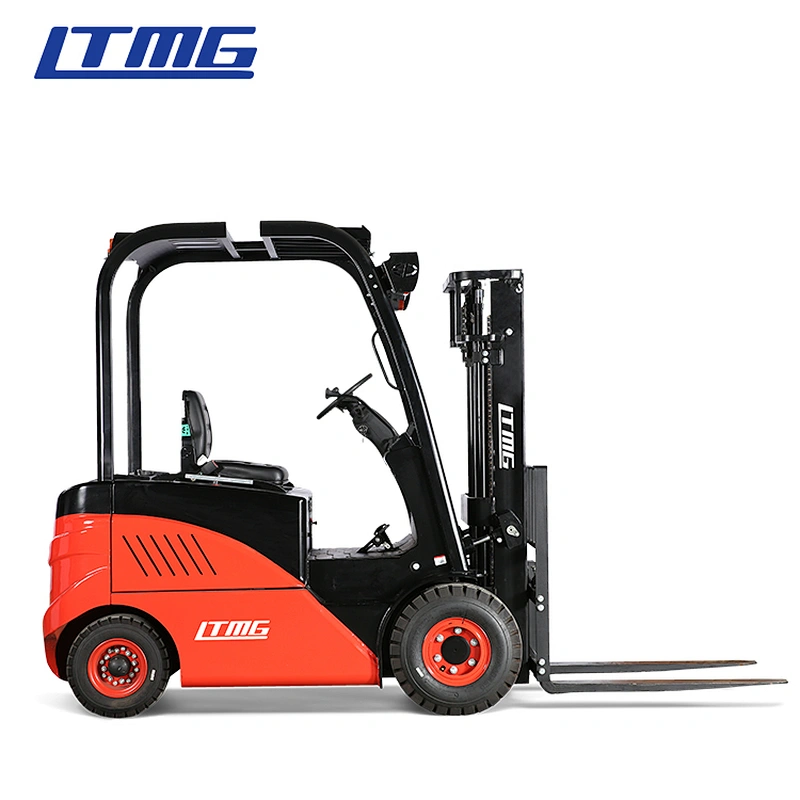

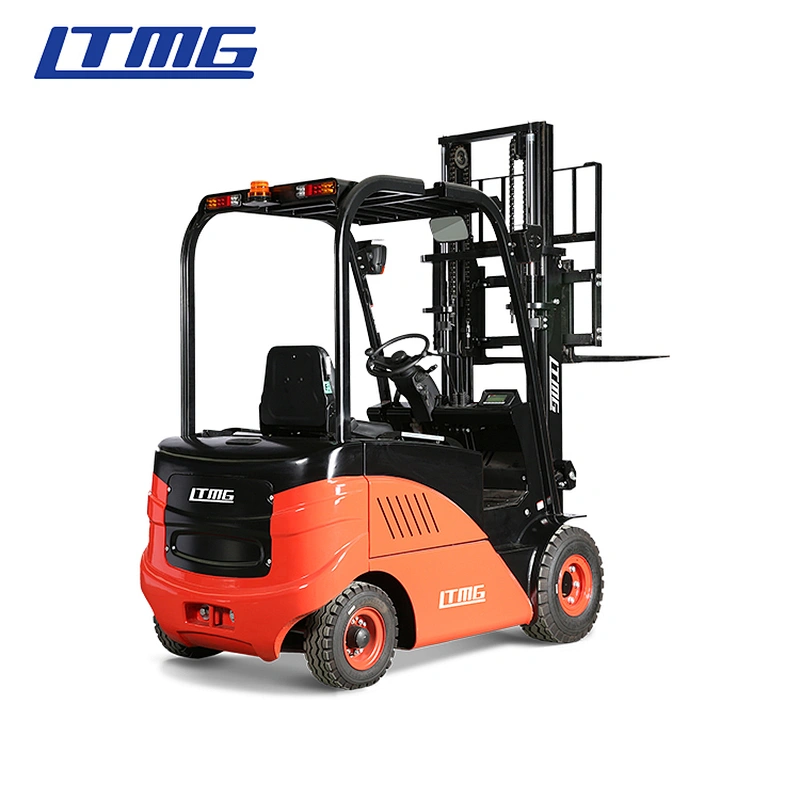

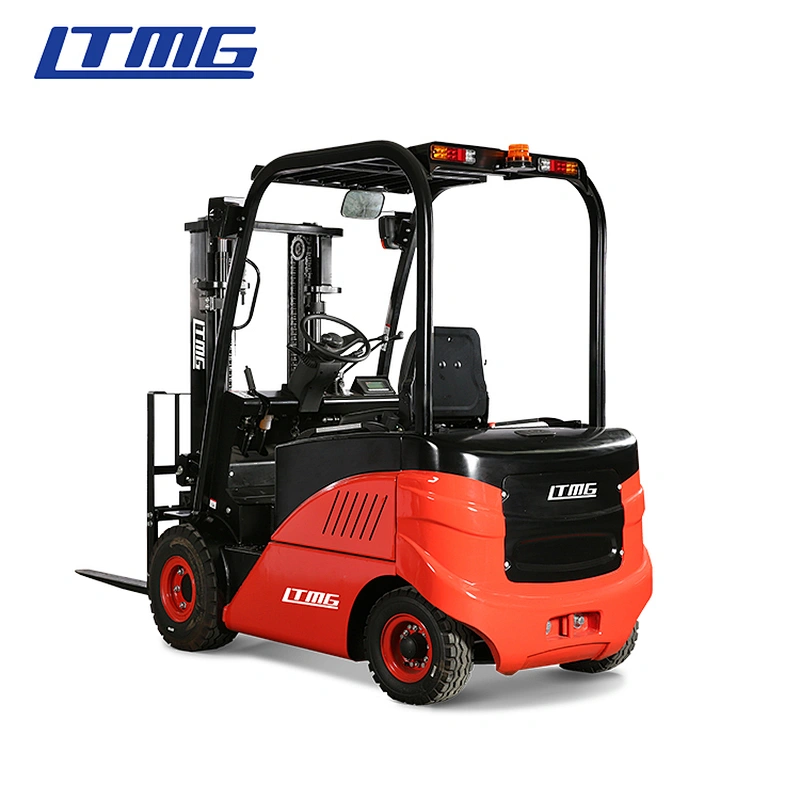

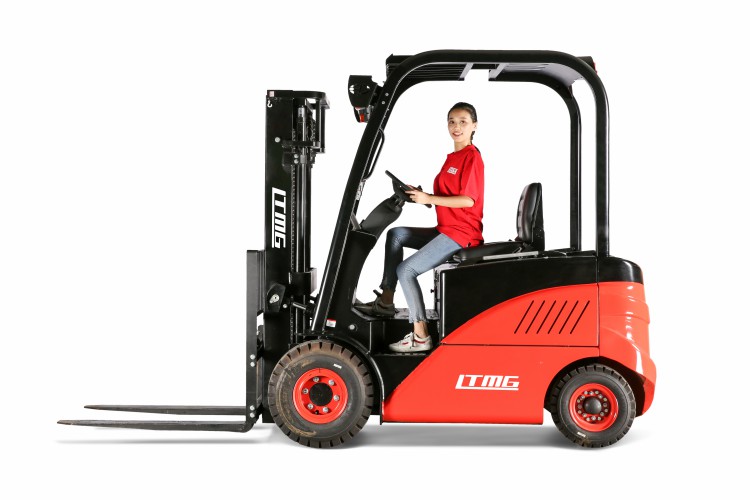

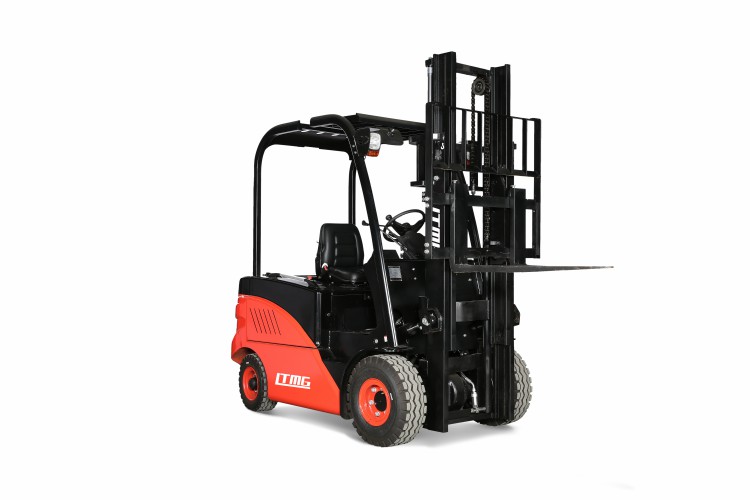

Product Show
Product Parameter
Model | FB20 | FB25 | |
Rated Capacity | kg | 2000 | 2500 |
Load Centre | mm | 500 | 500 |
Lift Height | mm | 3000 | 3000 |
Fork Size (L×W×T) | mm | 1070×120×40 | 1070×120×40 |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 | 6/12 |
Length to fork face of fork (Without fork) | mm | 2360 | 2360 |
Overall Width | mm | 1160 | 1160 |
Mast Lowered Height | mm | 2055 | 2055 |
Mast Extended Height (With backrest) | mm | 3960 | 3960 |
Overhead Guard Height | mm | 2240 | 2240 |
Turning Radius (outside) | mm | 2075 | 2075 |
Front Overhang (Wheel center to fork face) | mm | 465 | 465 |
Tread (Front/Rear) | mm | 960/950 | 960/950 |
Ground Clearance (Bottom of mast) | mm | 110 | 110 |
Wheelbase | mm | 1510 | 1510 |
Fork Spread (Min./Max) | mm | 240/1040 | 240/1040 |
Travel Speed | km/h | 14 | 14 |
Lifting Speed (Full load) | mm/s | 300 | 270 |
Max. Gradeability | % | 15 | 15 |
Service Weight | kg | 4170 | 4170 |
Front Tire×2 | 7.00-12-12PR | 7.00-12-12PR | |
Rear Tire×2 | 18×7-8-14PR | 18×7-8-14PR | |
Driven Motor | kw | 11 | 11 |
Lift Motor | kw | 8.6 | 8.6 |
Battery Standard | V/Ah | 48/560 | 48/630 |
Controller Manufacturer | CURTIS AC | CURTIS AC | |
Operating Pressure for Attachment | Mpa | 18 | 18 |
Product Advantage

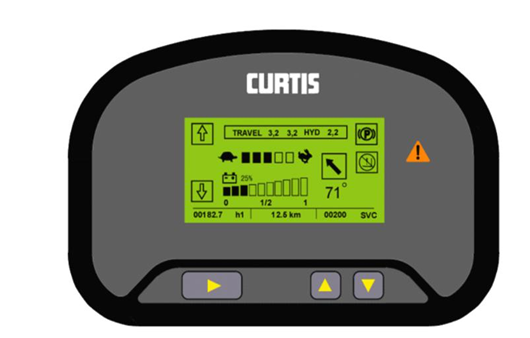

Intelligent liquid crystal instrument
it can display the vehicle's running status,fault detection and other human-machine interaction information, and efficiently reflect the real-time status of the vehicle
Reliable steering system
Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.

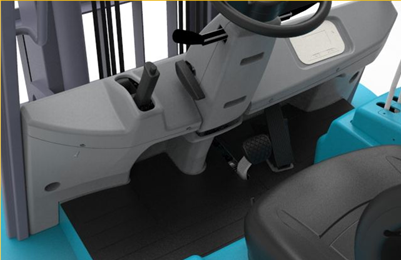

Comfortable operating space
The inclined cylinder sinks into the frame, effectively improving the dustproof ability of the cylinder, providing wide space for the driver's feet to move.

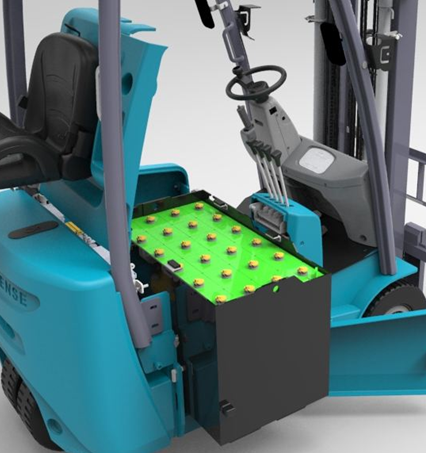

Battery side-take function
Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

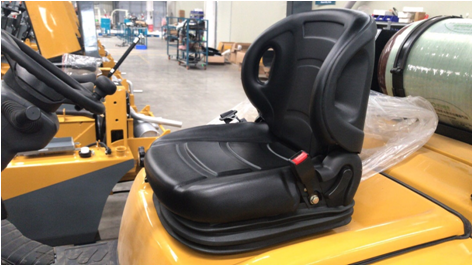

Seat
New suspension adjustable seat makes the long time operating more comfortable

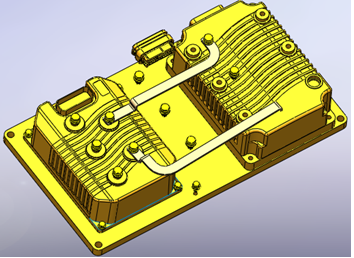

Curtis Controller
Walking and upgrade control is precision and efficiency,excellent performance.The froklift with regenerative braking,ramp braking,fault self-diagnosis and other functions.
Optional
1.Curtis controller
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
1.Curtis controller
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.
Related Products

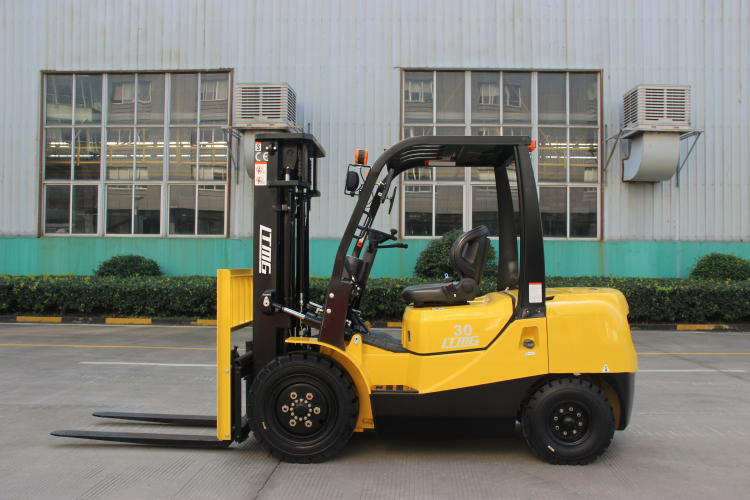

Diesel Forklift

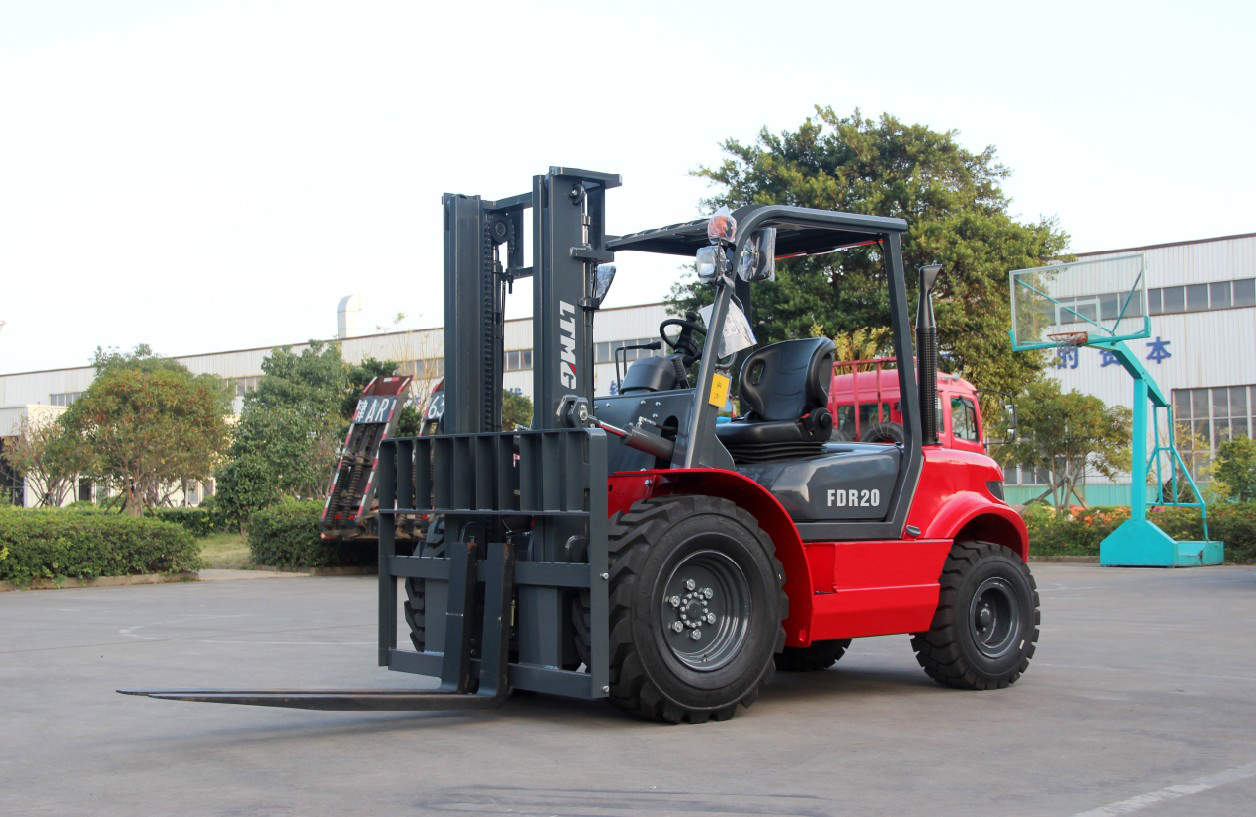

Rough Terrain Forklift

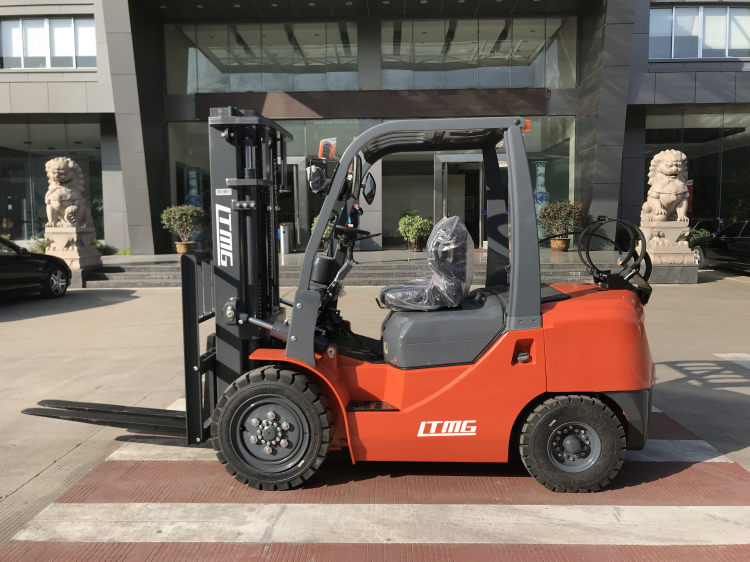

LPG&Gasoline Forklift

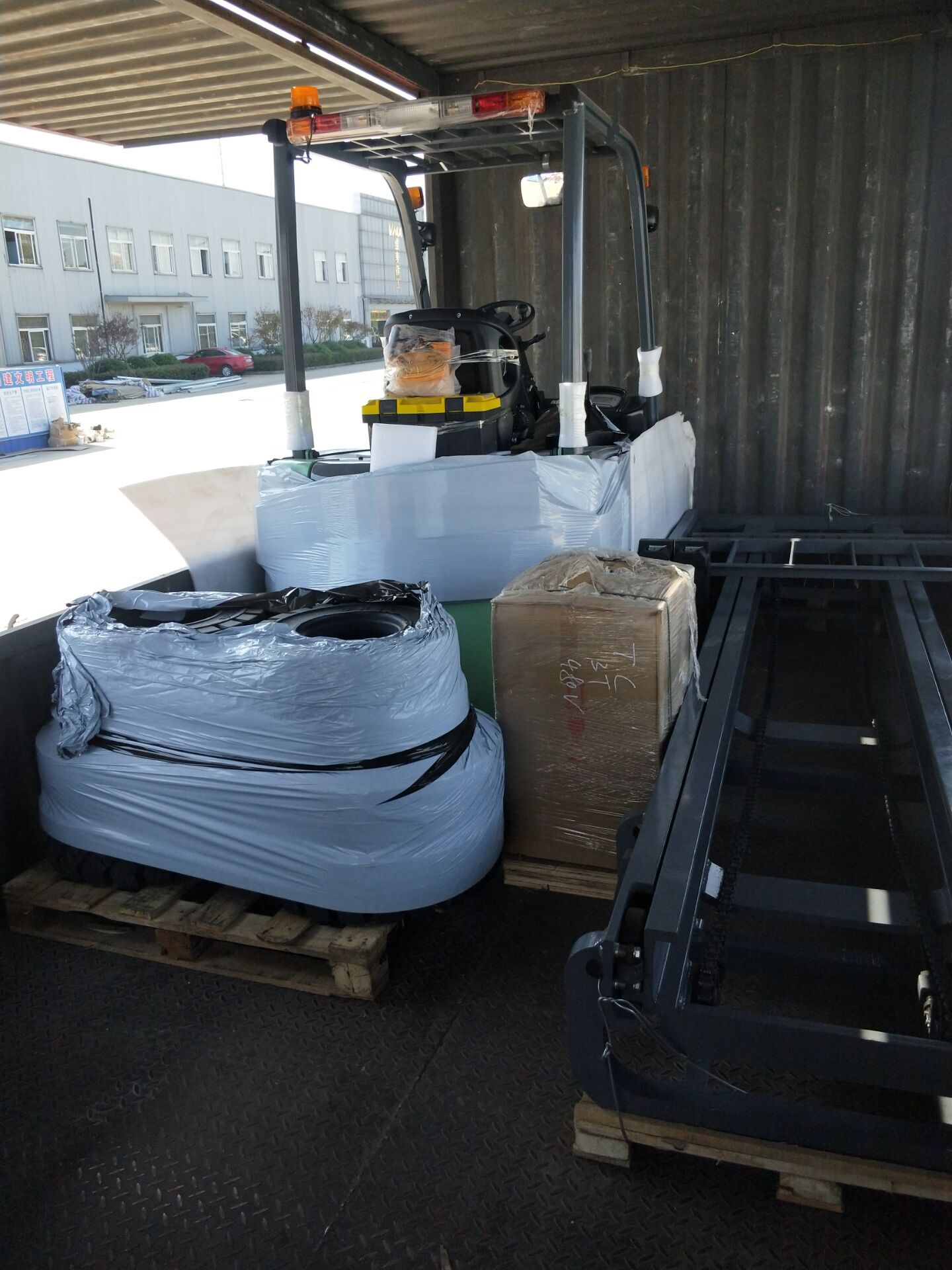

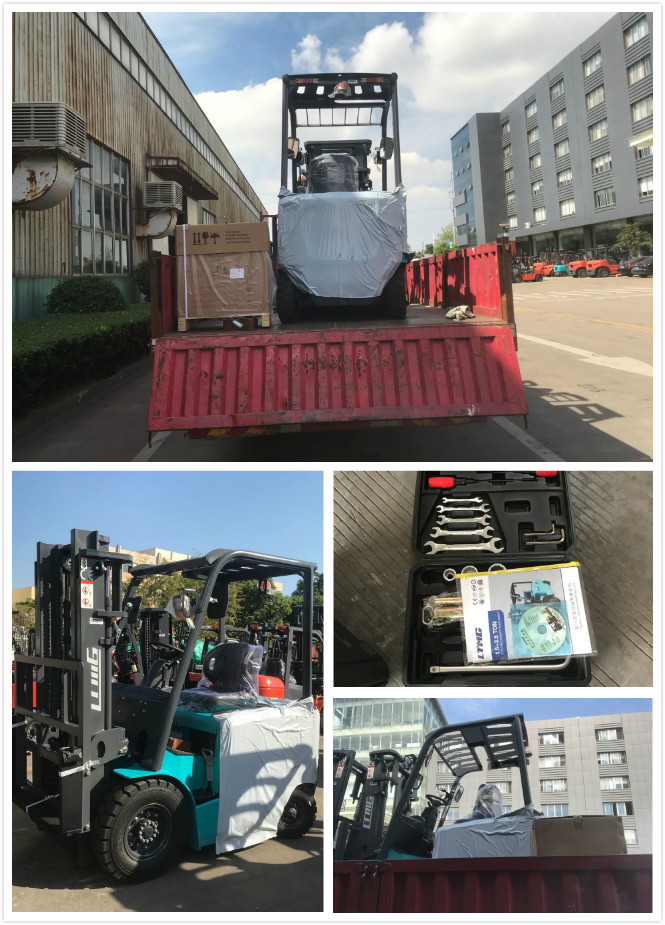

Packing&Shipping

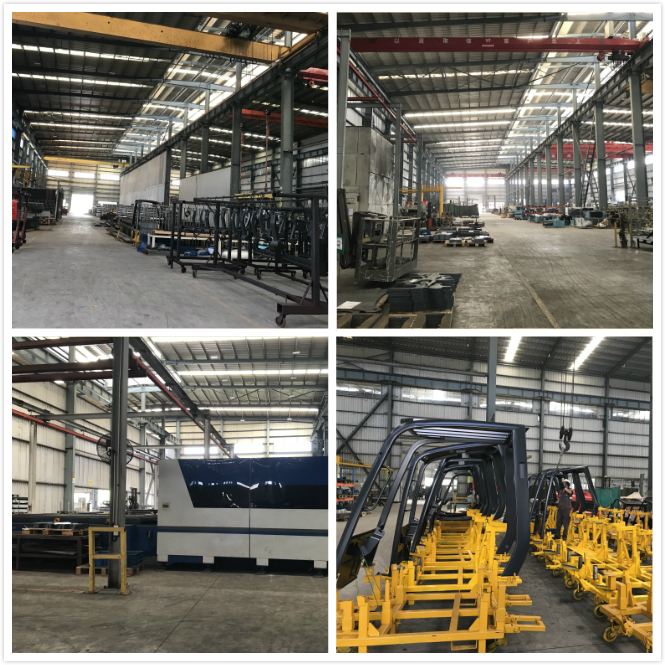

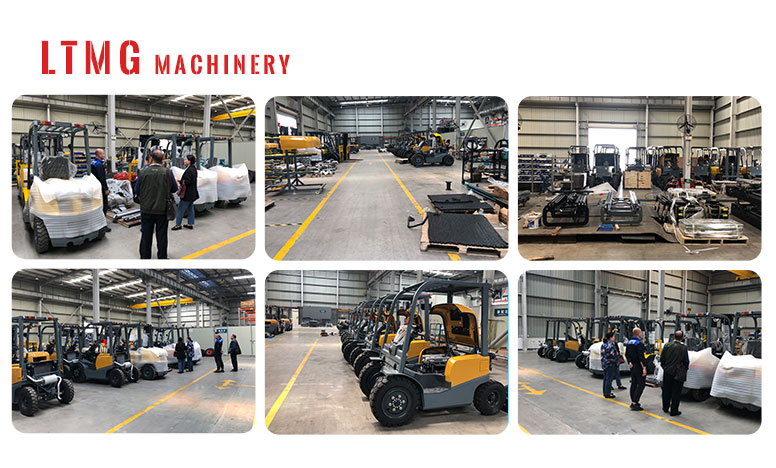

Company Introduction
