- Type:Powered Pallet Truck
- Product Type:electric forklift
- Fork size:920*100*35mm
- Load Centre:500mm
- Wheelbase:1250mm
- Service Weight:2100kg
- Certificate:ISO/CE
- Power type:AC
- Turning Radius:1495mm
- Ground clearance:86mm
- After Warranty Service:Online support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:United States
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Japan
- Local Service Location:Malaysia
- Local Service Location:UAE
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Warehouse
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2515*1090*1980mm
- Certification:CE/ISO

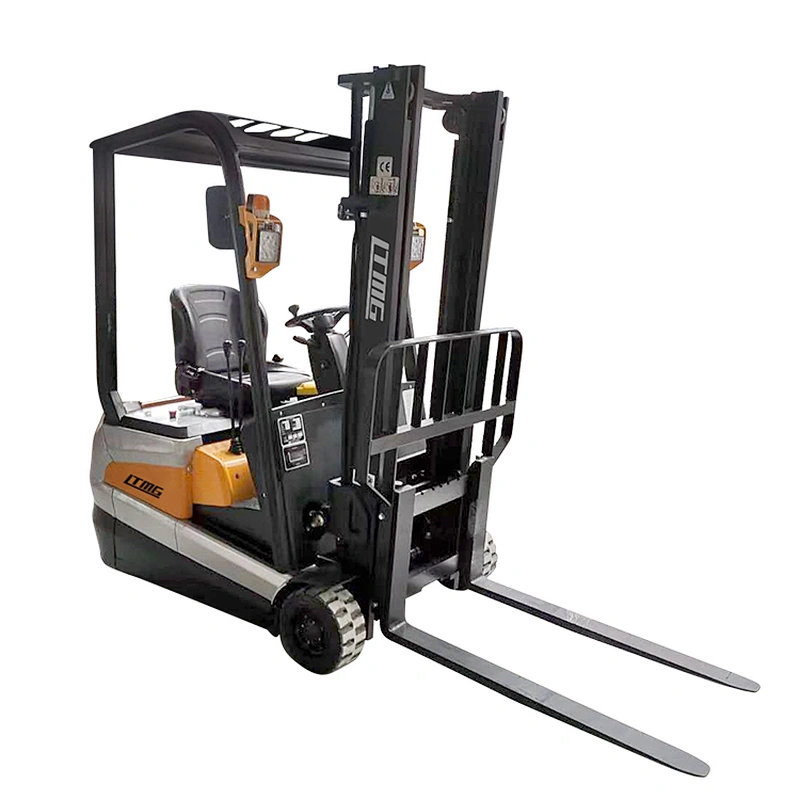

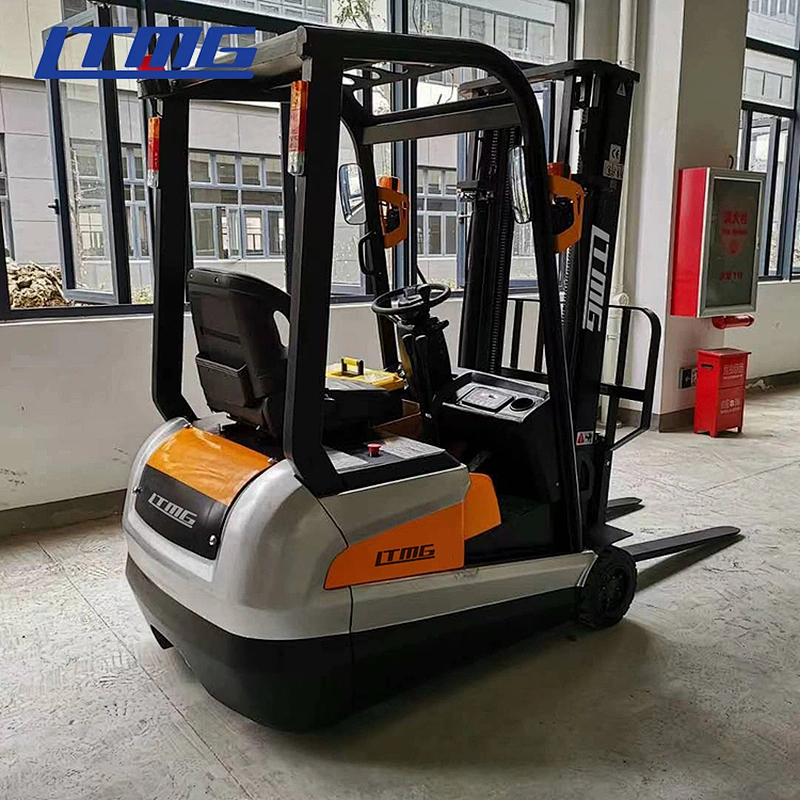

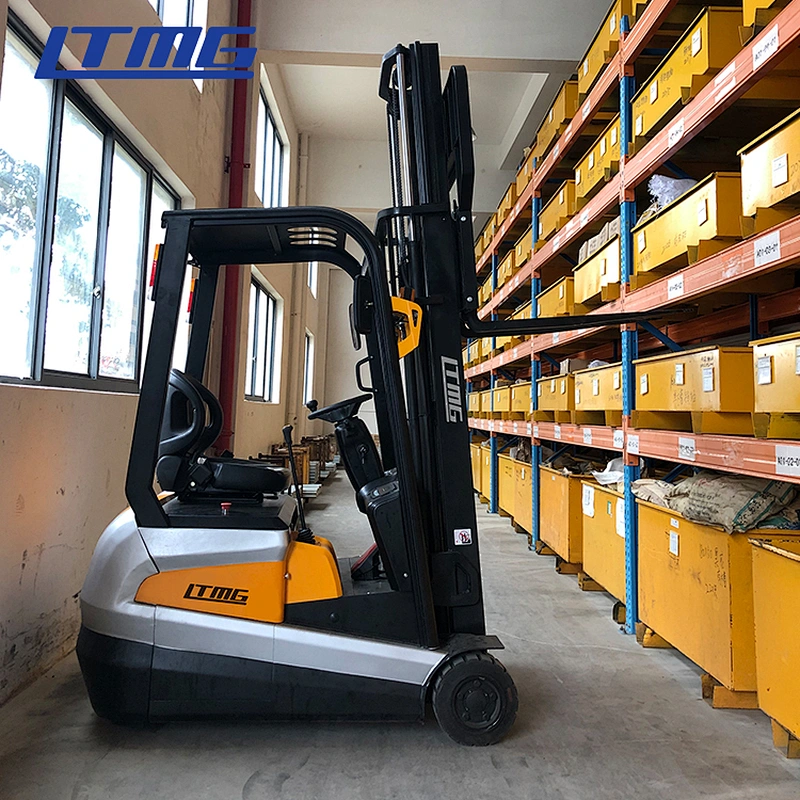

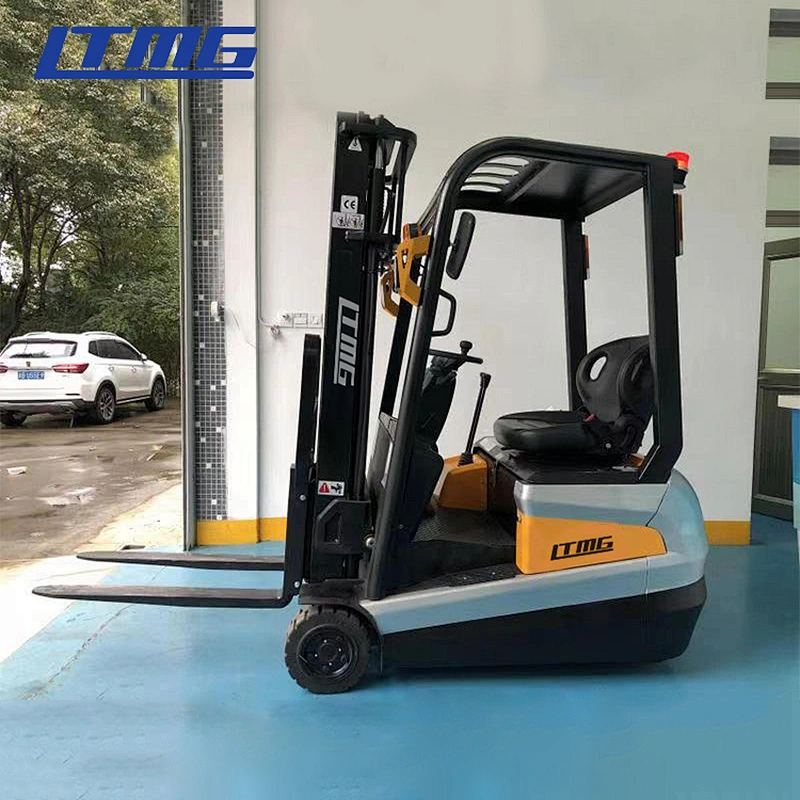

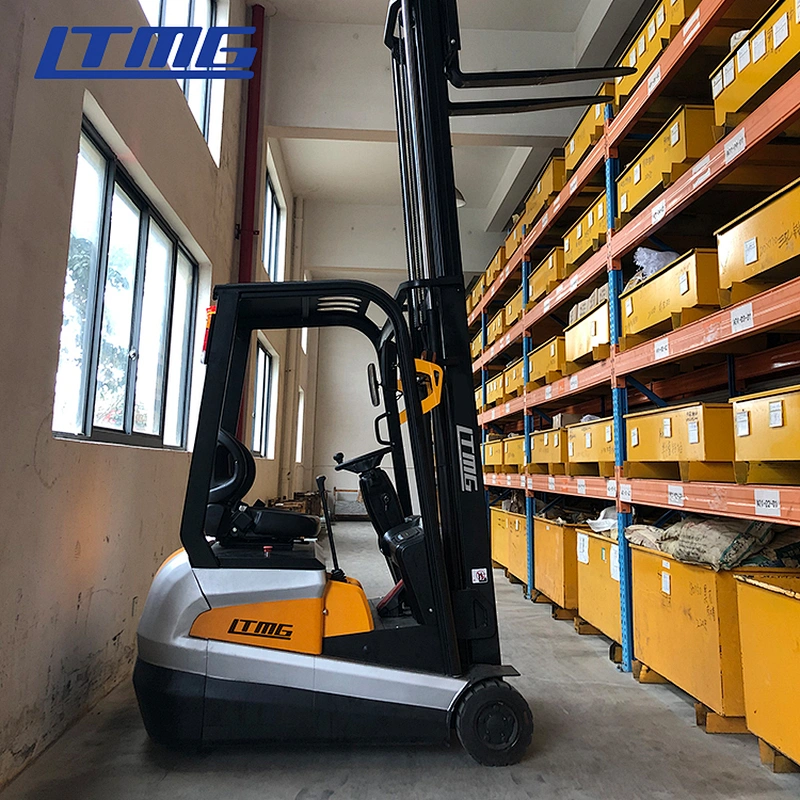

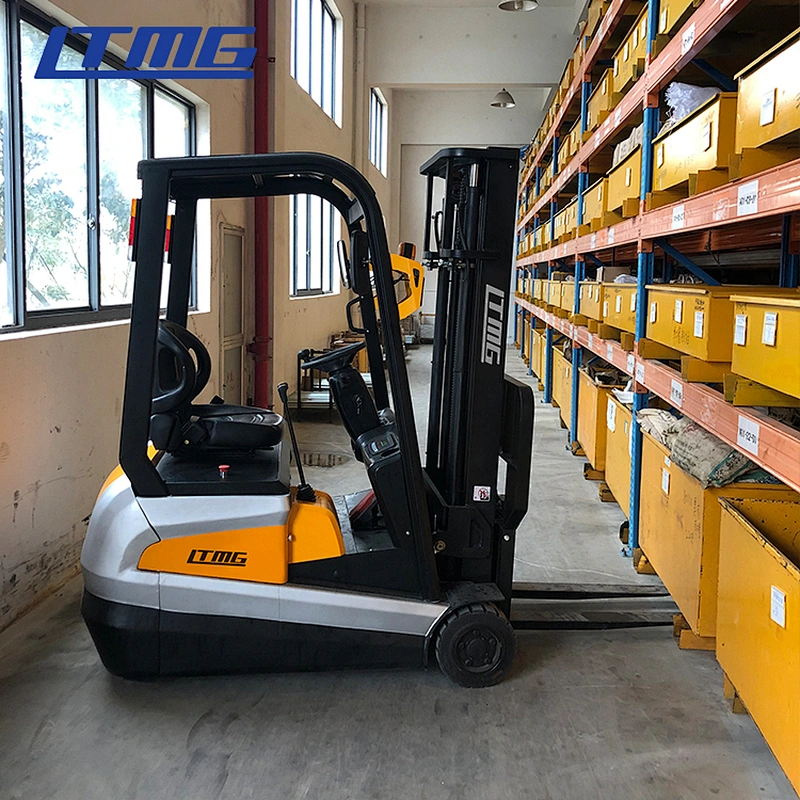

Extremelysmall turning radius ,It is suitable light for industry, electronics,texitiles and other industries,Applicable to the lifting work between floors elevators . It can enter the ordinary cargo ladder carrying goods with aturning radius of
about 1.3meters.It can be transported,stacked and turned in a narrow space.
It is a light,small and high performance electric balanced forklift..
about 1.3meters.It can be transported,stacked and turned in a narrow space.
It is a light,small and high performance electric balanced forklift..
General | 1 | Model | FB16S | |||
2 | Power type | Electric | ||||
3 | Rated Capacity | kg | 1600 | |||
4 | Load Centre | mm | 500 | |||
Characteristic&Dimensions | 5 | Lift Height | mm | 3000 | ||
6 | Fork Size | L×W×T | mm | 920×120×35 | ||
7 | Mast Tilt Angle | F/R（α°/β°） | Deg | 6°/6° | ||
8 | Front Overhang(Wheel center to fork face) | mm | 390 | |||
9 | Tread | (F/R) | mm | 924/208 | ||
10 | Ground Clearance(Bottom of mast) | mm | 90 | |||
11 | Fork Spread | Min./Max. | mm | 240/970 | ||
12 | Overall Dimension | Length to face of fork(Without fork) | mm | 2100 | ||
13 | Overall Width | mm | 1100 | |||
14 | Mast Lowered Height | mm | 2010 | |||
15 | Mast Extended Height(With backrest) | mm | 3940 | |||
16 | Overhead Guard Height | mm | 2055 | |||
17 | Turning Radius(outside) | mm | 1495 | |||
18 | Min. straight aisle width | mm | 3010 | |||
Performance | 19 | Speed | Travel (Empty load) | km/h | 14 | |
20 | Lifting (Full load) | mm/s | 340 | |||
21 | Max. Gradeability | % | 15 | |||
Chassis | 22 | Tire | Front | 18×7-8 | ||
23 | Rear | 16×6-8 | ||||
24 | Wheelbase | mm | 1460 | |||
25 | Service Weight | kg | 3420 | |||
Power & Transimission | 26 | Motor | Driven Motor | kw | 2.2 | |
27 | Lift Motor | kw | 3.3 | |||
28 | Battery | Voltage/Capacity | V/Ah | 24/320 | ||
29 | Controller | Manufacturer | CURTIS | |||
30 | Type | AC | ||||
31 | Operating Pressure for Attachment | Mpa | 14.5 | |||
