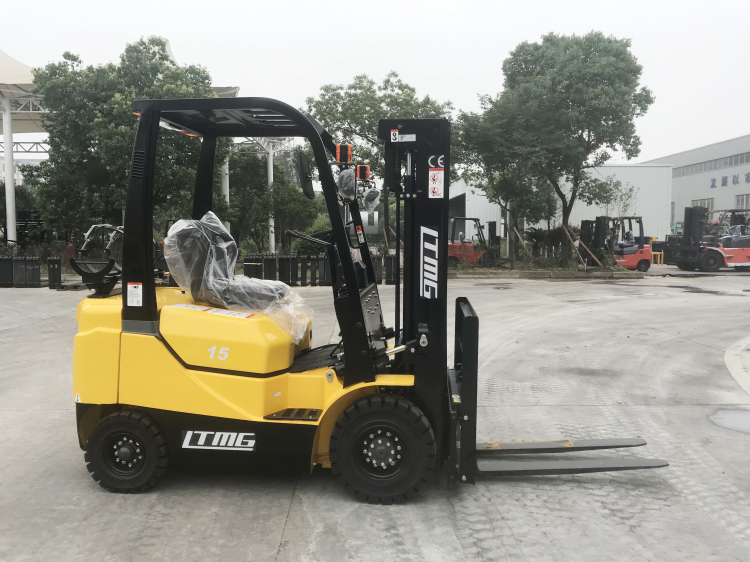

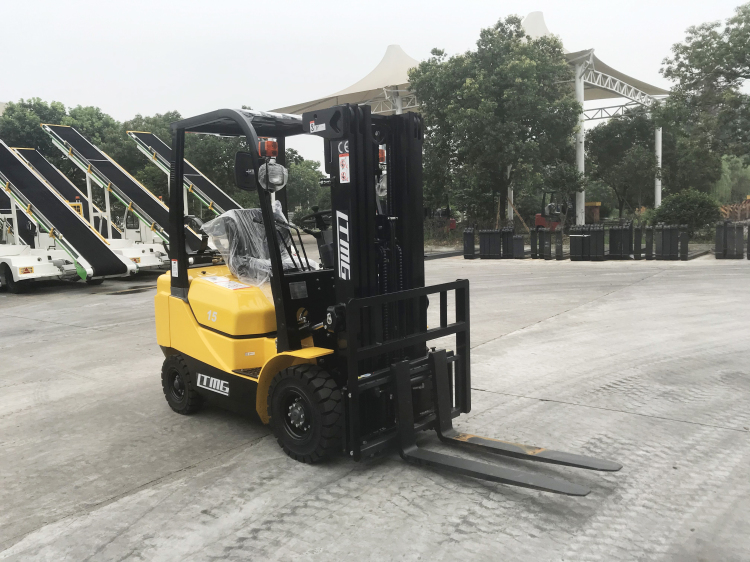

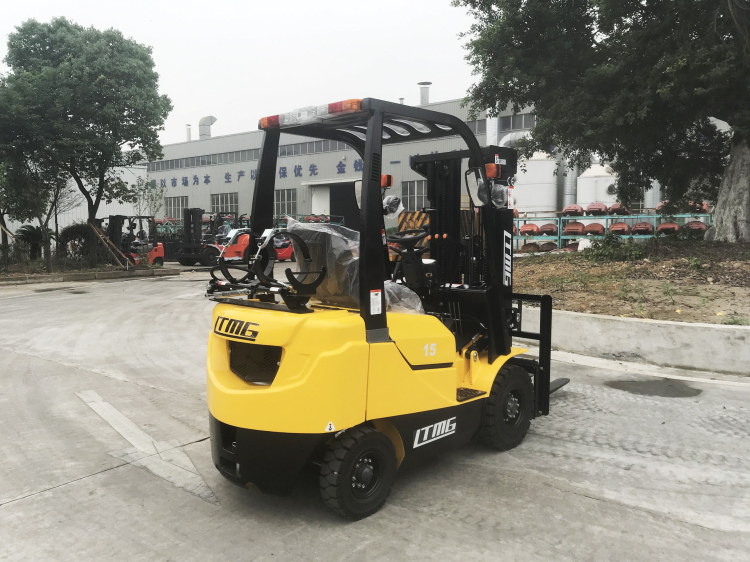

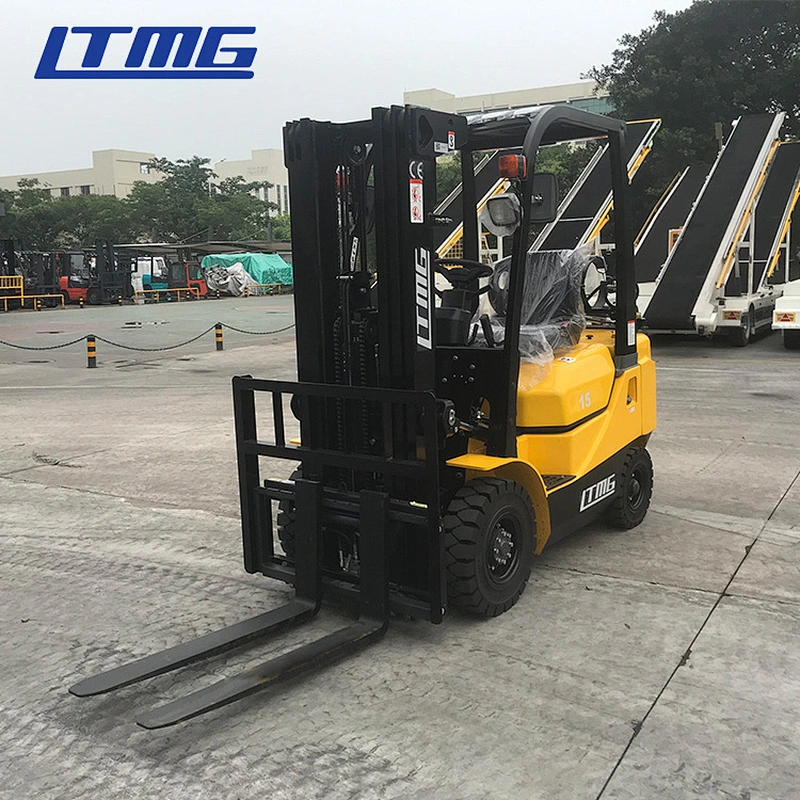

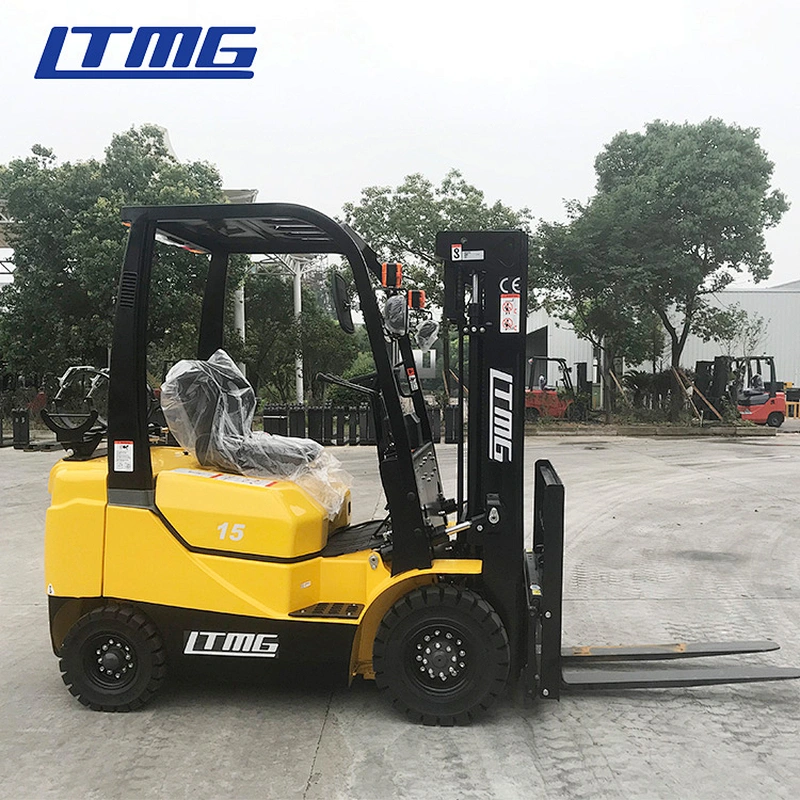

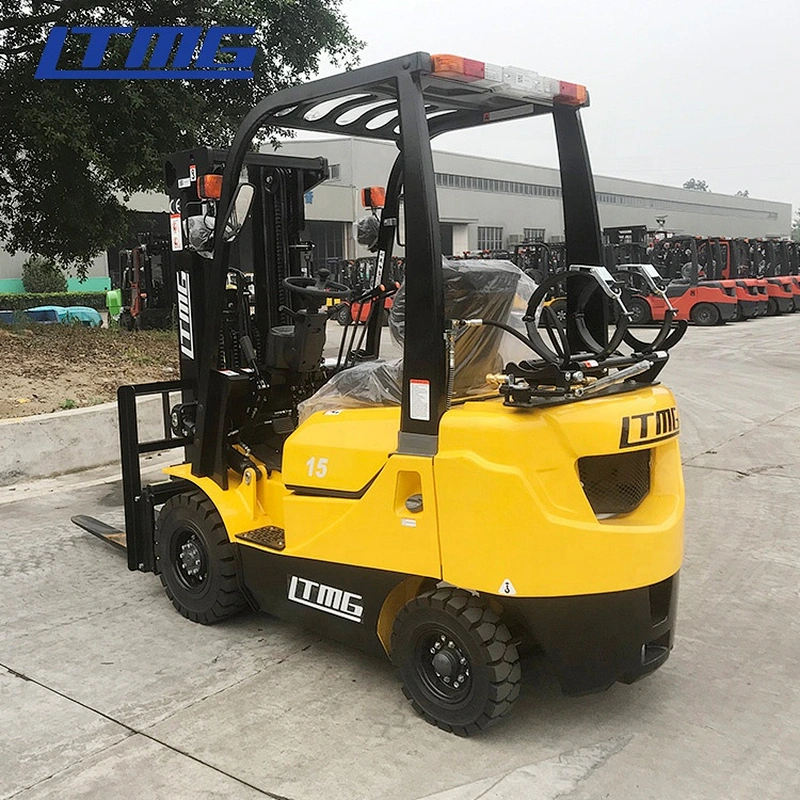

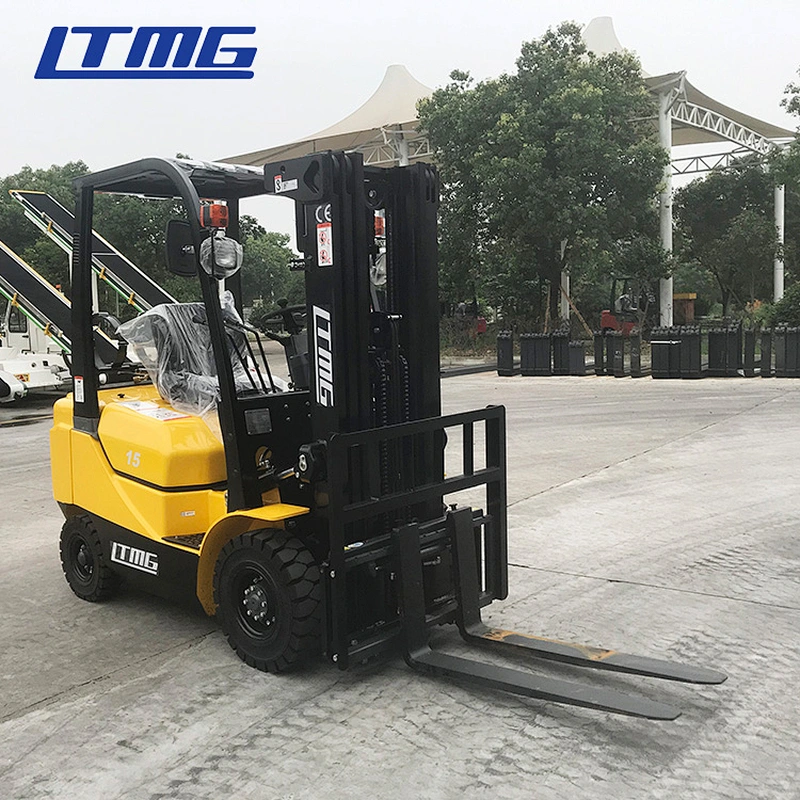

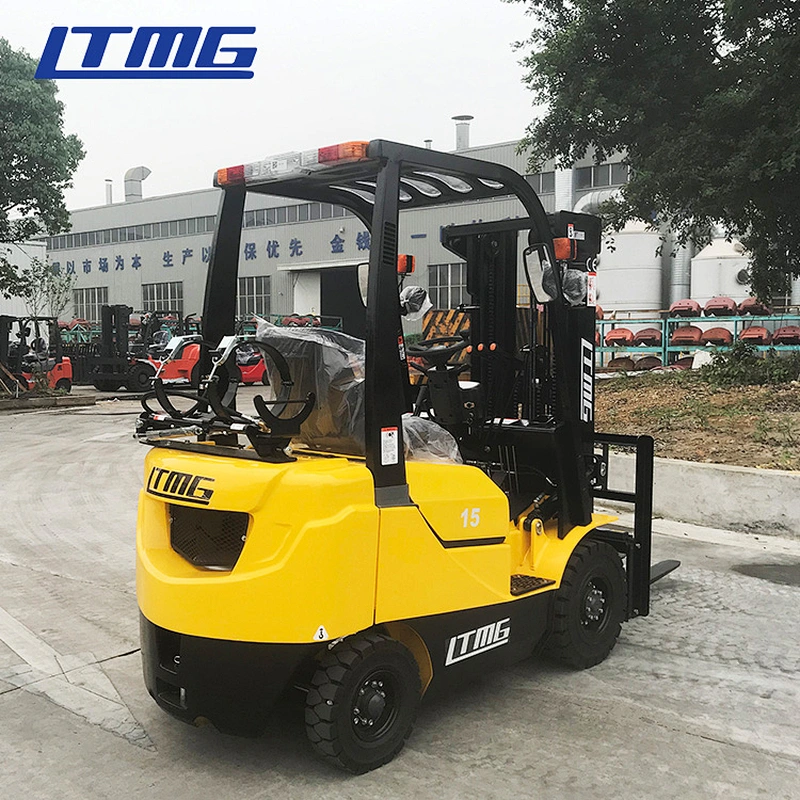

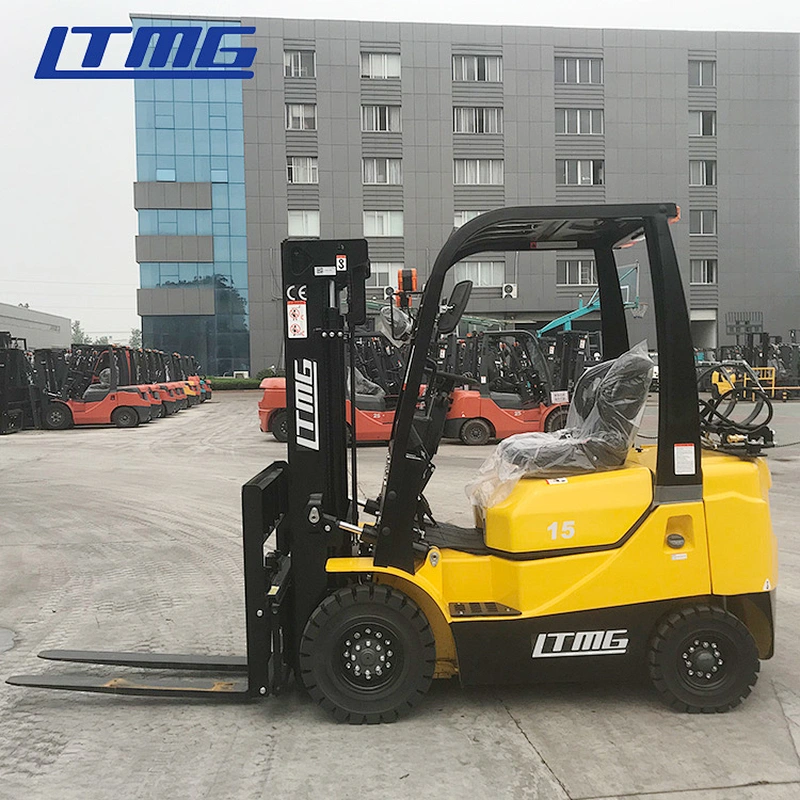

- Product Name:propane forklift lpg gas forklift 1.5t with 4.5m container mast
- Rated load:1500kg
- Brand:LTMG
- Fork size:920*100*35mm
- Item:small 1.5 ton lpg forklift
- Engine model:Nissan K21
- Free lift:155mm
- Wheel base:1425mm
- Mast:Triplex Mast
- Warranty:1 year or 2000 working hours
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Local Service Location:Nigeria
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Bearing
- Core Components:Engine
- Place of Origin:CN;FUJ
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Energy & Mining
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:920mm
- Fork Width:100mm
- Overall Dimensions:2245*1070*1995
- Certification:CE/ISO9001
Specification of propane forklift lpg gas forklift 1.5t with 4.5m container mast | ||||||
Manufacturer | LTMG | |||||
Model | FG15 | |||||
Load capacity | 1500 | |||||
Load center | 500 | |||||
Power unit | LPG/Gasoline | |||||
Operator type | Driver/seat | |||||
Tire type | Pnenumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | 4500 | |||||
Free lift | 155 | |||||
Fork size | L×W×T | 920*100*35 | ||||
Tilt range | Mast forward/backward | 6/12 | ||||
Overall length(without fork) | 2245 | |||||
Total width | 1070 | |||||
Mast height ( fork lowering) | 1995 | |||||
Overall height fork raised ( with backrest) | 4030 | |||||
Height to head guard | 2060 | |||||
Turning raduis(outside) | 2040 | |||||
Front face of fork to front axle | 395 | |||||
Min. right angle stacking aisle | 2435 | |||||
Speed | Max Travelling | full load | 14 | |||
no load | 14.5 | |||||
Lifting | full load | 440 | ||||
no load | 500 | |||||
Lowering | full load | 370 | ||||
no load | 530 | |||||
Max.drawbar pull | full/no load | 1130/690 | ||||
Gradeability at 1.6km/h | full/no load | 21/18 | ||||
Truck weight | 2550 | |||||
Weight | full load | front | 3580 | |||
distribution | ||||||
rear | 470 | |||||
no load | front | 1110 | ||||
rear | 1440 | |||||
front wheel | 6.50-10-10PR | |||||
rear wheel | 5.00-8-10PR | |||||
Wheelbase | 1425 | |||||
Tread | front | 890 | ||||
rear | 900 | |||||
Ground | At lowest point(mast) | 115 | ||||
clearence | ||||||
Frame | 105 | |||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 12/80 | ||||
Engine | Model | Nissan K21 | ||||
Rated power | 47/2250(34.6/2250) | |||||
Rated torque | 15.7/1600(153/1600) | |||||
Number of cylinders | 4 | |||||
Placement | 2.065 | |||||
Fuel tank capacity | 50 | |||||
Transmission | Speed forward/backward | 1-1 power shift T/M | ||||
Operating pressure | Hydraulic system pressure | 180 | ||||
