- LPG&gasoline Engine:Nissan&PSI
- Color:Customer Demanded
- Load capacity:2500kg
- Fork size:1070*122*40mm
- Wheel base:1600mm
- Load Center:500mm
- Free lift:160mm
- Cab with A/C:Optional
- Ground clearance:120mm
- Operator Type:LPG&gasoline
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Pakistan
- Local Service Location:Australia
- Local Service Location:Kenya
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Peru
- Showroom Location:Pakistan
- Showroom Location:Spain
- Showroom Location:Argentina
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Uzbekistan
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN
- Brand Name:LTMG
- Min. Lifting Height:110mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2530*1150*1995
- Certification:CE/ISO9001
Product Description

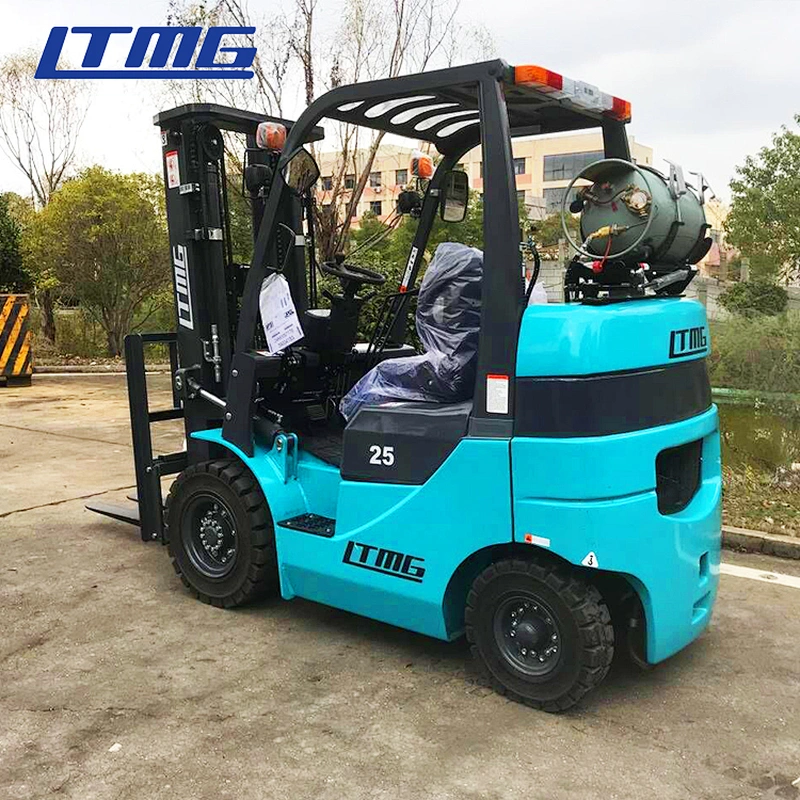

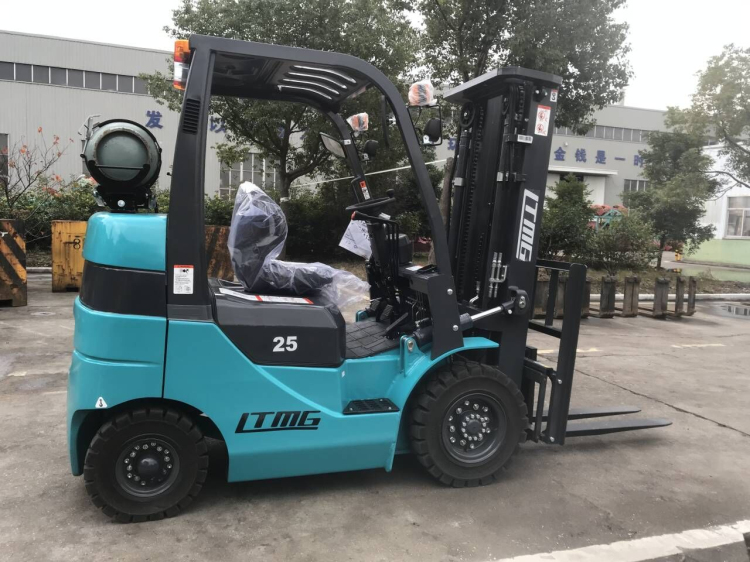

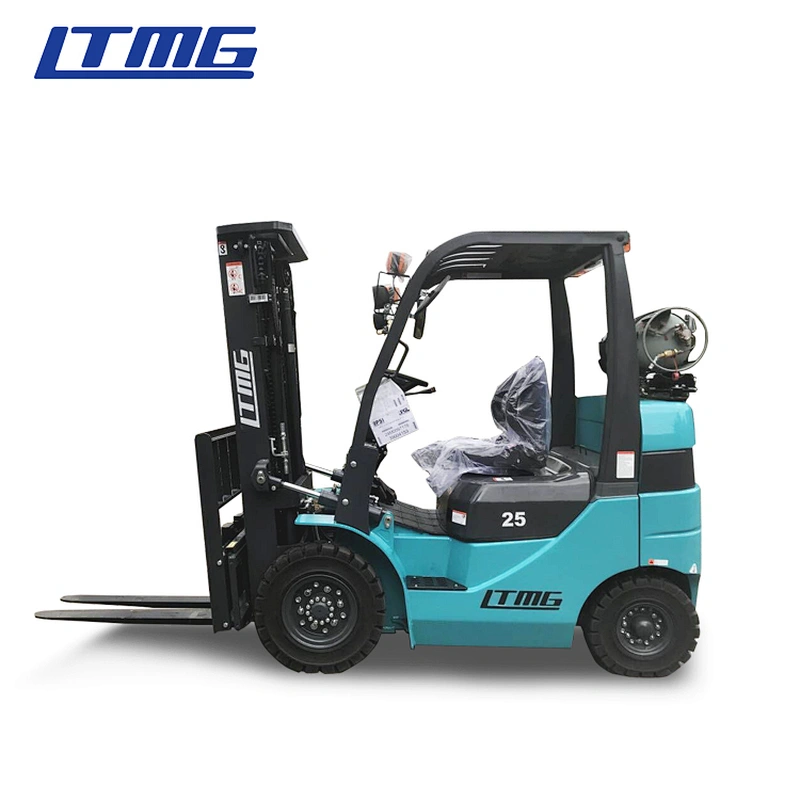

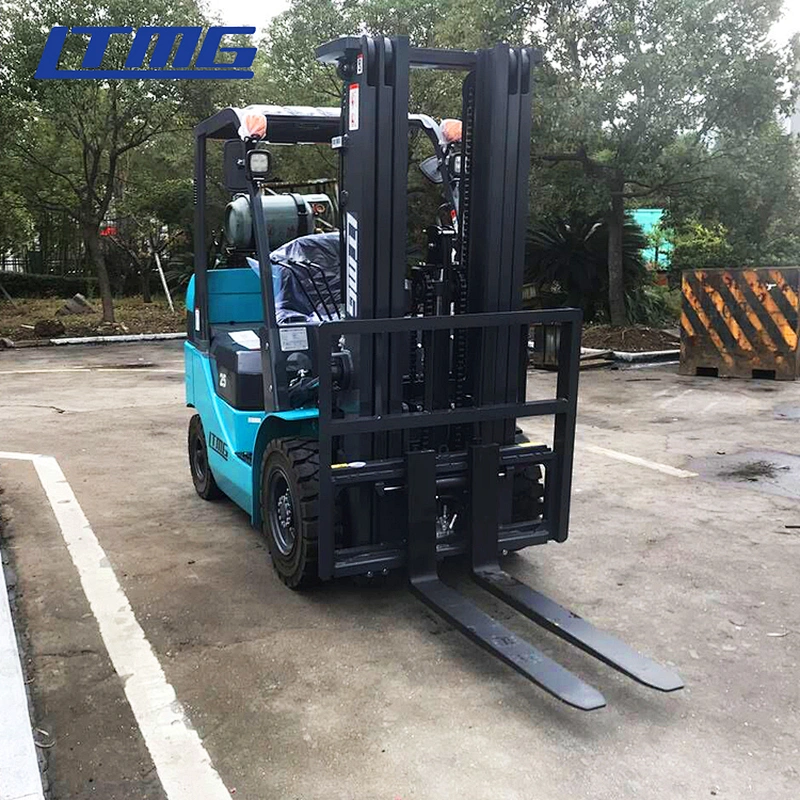

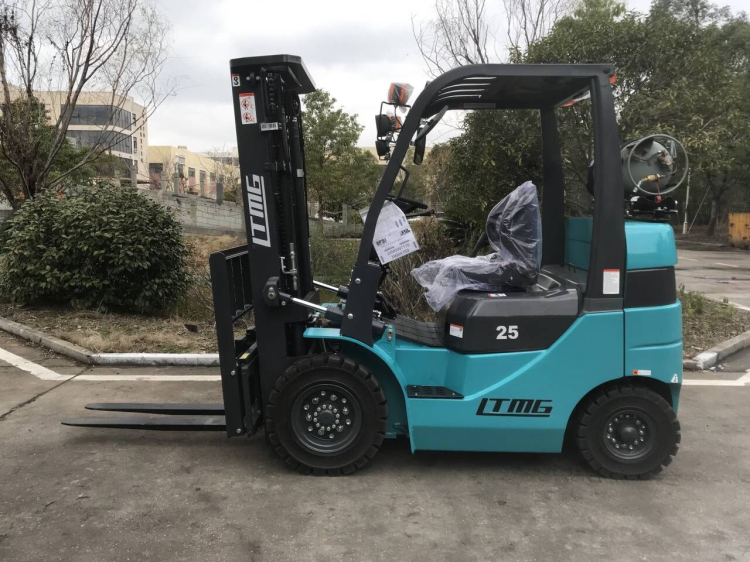

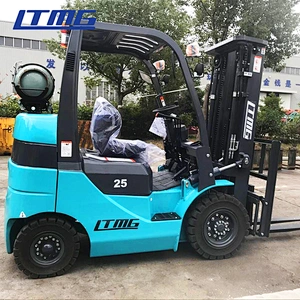

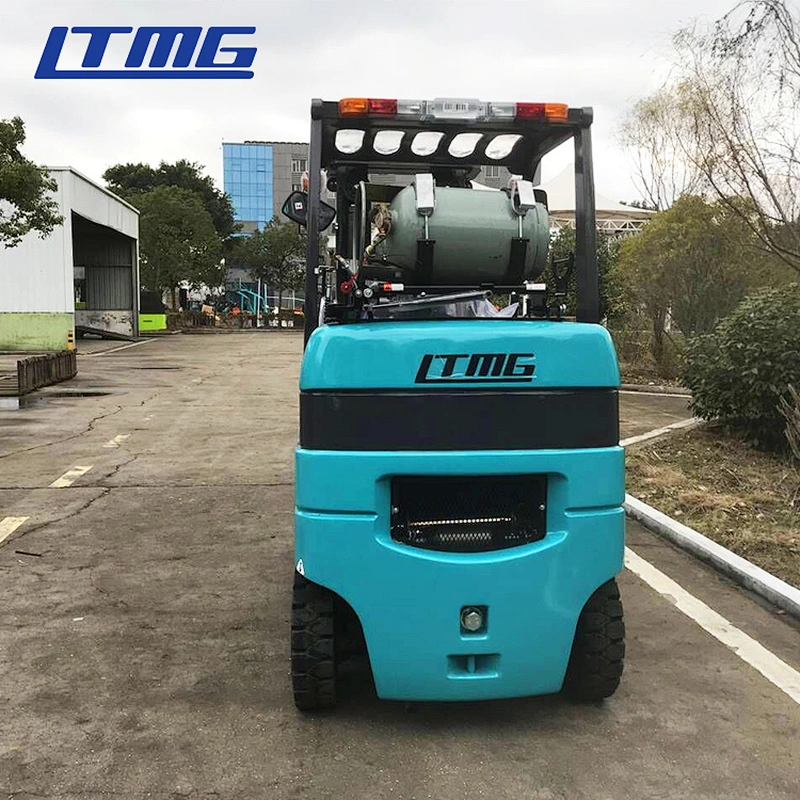

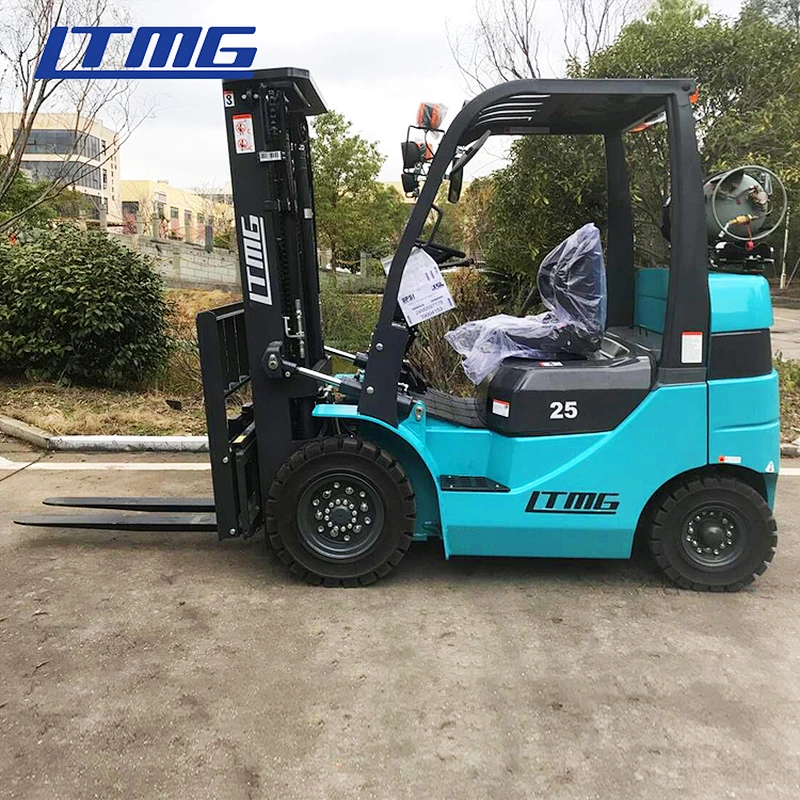

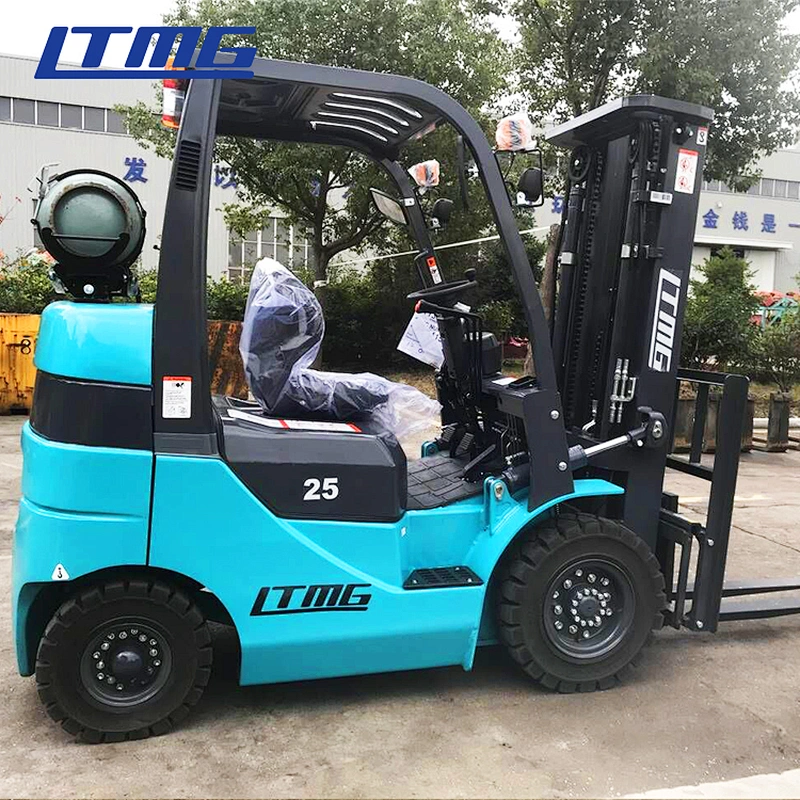

2t 3t 2.5t LPG Forklift Truck 2 ton 3 ton 2.5 ton LPG Forklift Truck with Side Shifter

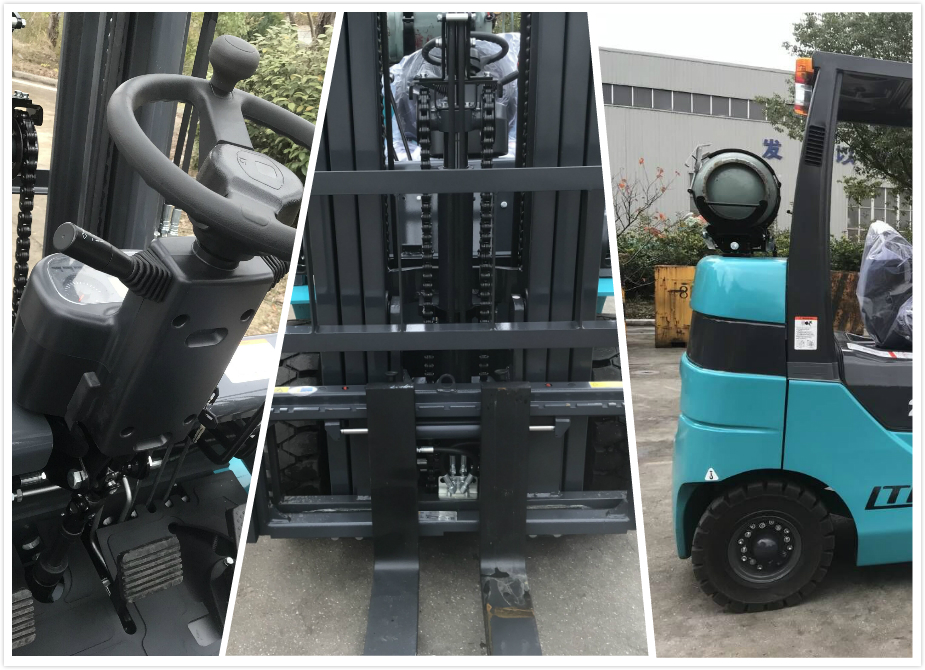

-Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
-Equipped with full set of LED lamps, which are brighter and energy saving
Model | FG20 | FG25 | |||||
Power Type | LPG & Gasoline | LPG & Gasoline | |||||
Rated Capacity | kg | 2000 | 2500 | ||||
Load Centre | mm | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 445 | 445 | ||||
Ground Clearance（Bottom of mast） | mm | 80 | 80 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2355 | 2355 | |||
Overall Width | mm | 1110 | 1110 | ||||
Mast Lowered Height | mm | 2070 | 2070 | ||||
Mast Extended Height(With backrest) | mm | 4070 | 4070 | ||||
Overhead Guard Height | mm | 2080 | 2080 | ||||
Turning Radius (outside) | mm | 2110 | 2110 | ||||
Speed | Travel (Full load) | km/h | 17 | 17 | |||
Lifting (Full load) | mm/s | 530 | 530 | ||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | ||||
Tire | Front | mm | 21*7*15 | 21*7*15 | |||
Rear | mm | 16(1/4)*6*11(1/4) | 16(1/4)*6*11(1/4) | ||||
Wheelbase | mm | 1400 | 1400 | ||||
Service weight | kg | 3445 | 3655 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |||
Engine | Model | GM 3.0 | |||||
Manufacture | PSI | ||||||
Rated output/r.p.m. | kw | 40/2500 | |||||
Rated torque/r.p.m. | N·m | 200/1600 | |||||
No.of Cylinder | 4 | ||||||
Bore×Stroke | mm | 101.6X91.44 | |||||
Displacement | cc | 3000 | |||||
Fuel Tank Capacity | L | 60 | |||||
Transmission | Type | Hydraulic | |||||
Stage | FWD/RVS | 2/2 | |||||

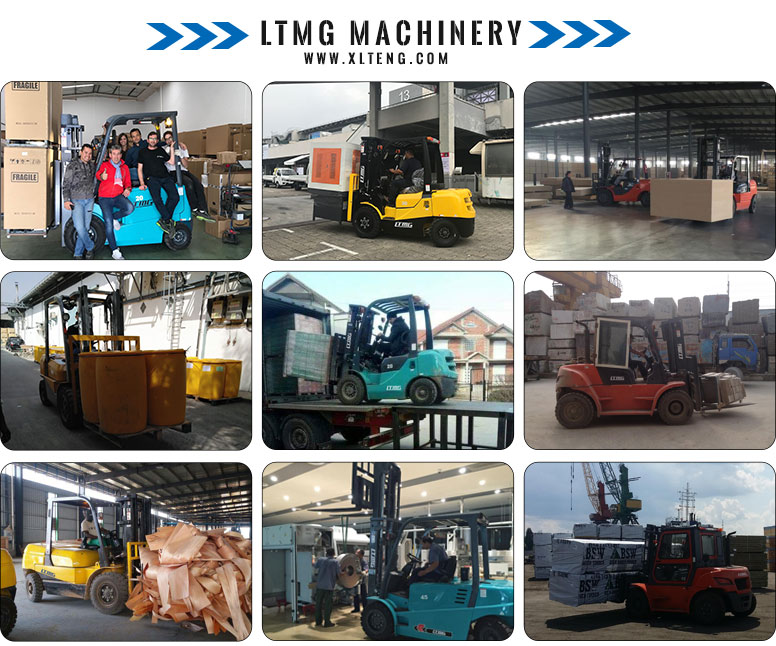

Machine application

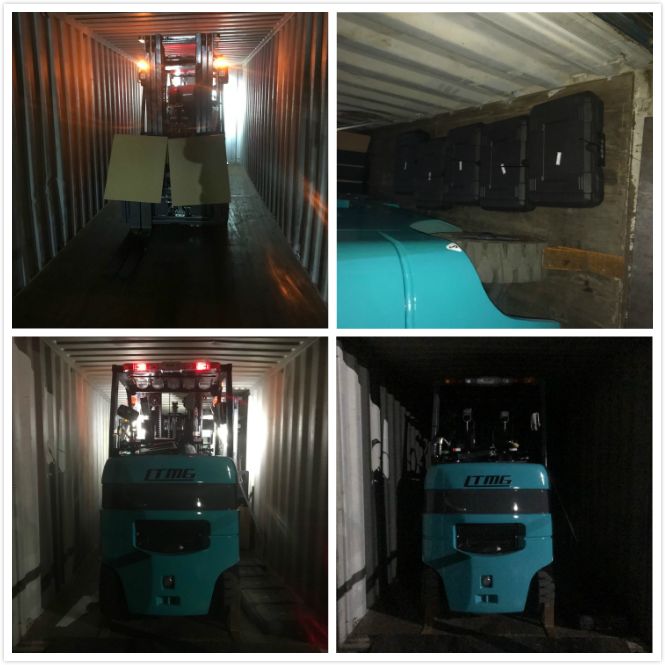

Shipping & Packaging

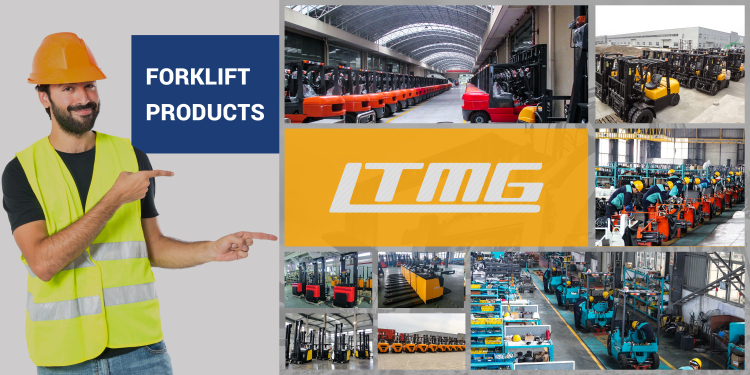

Our factory
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG,battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.),wheel excavators and so on .
Customers Show
After-Sales Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
