- Type:Powered Pallet Truck

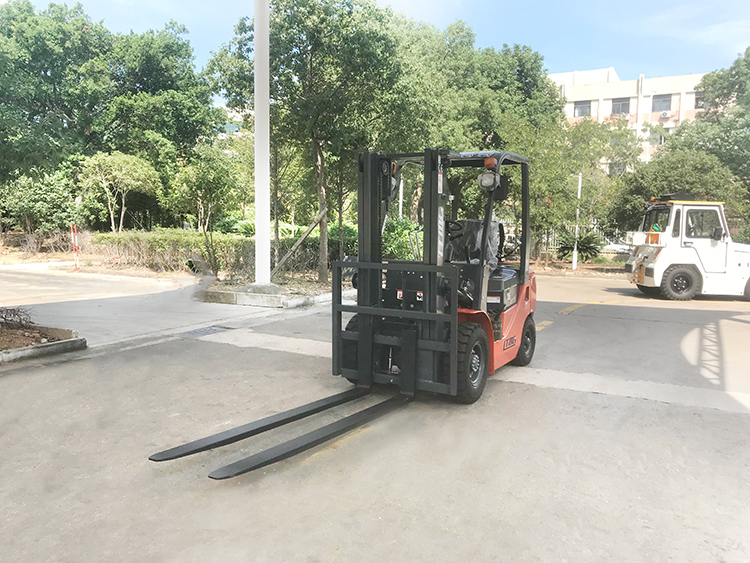

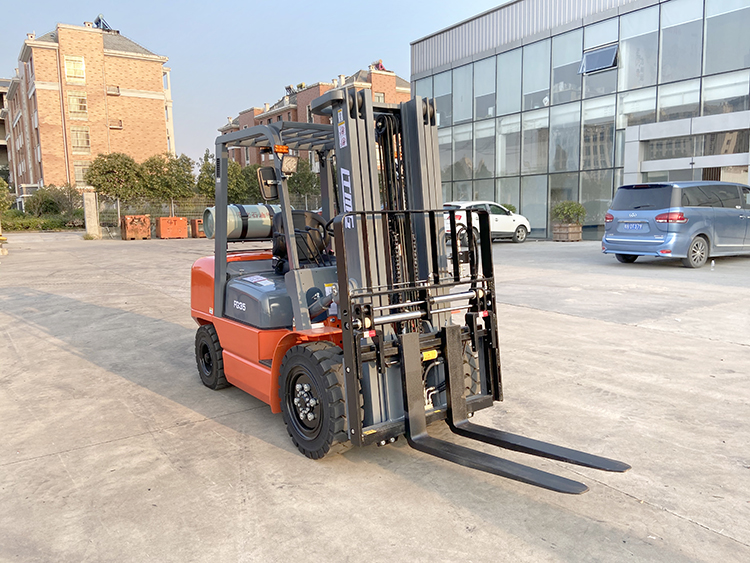

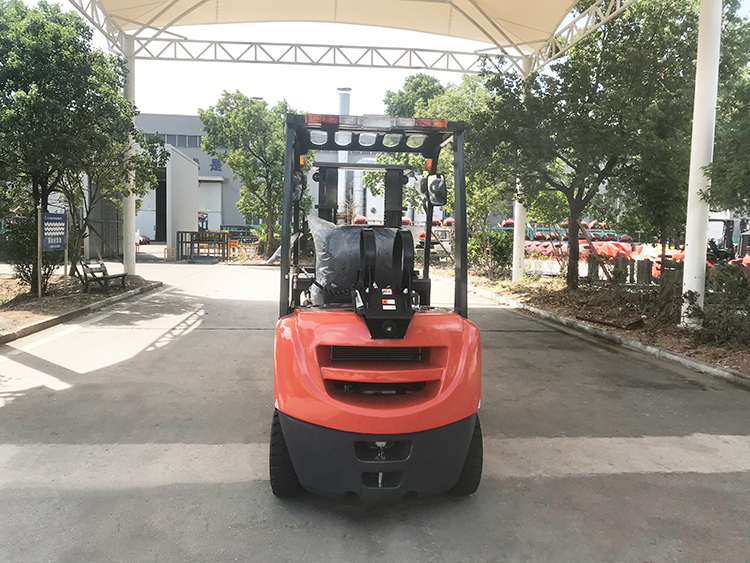

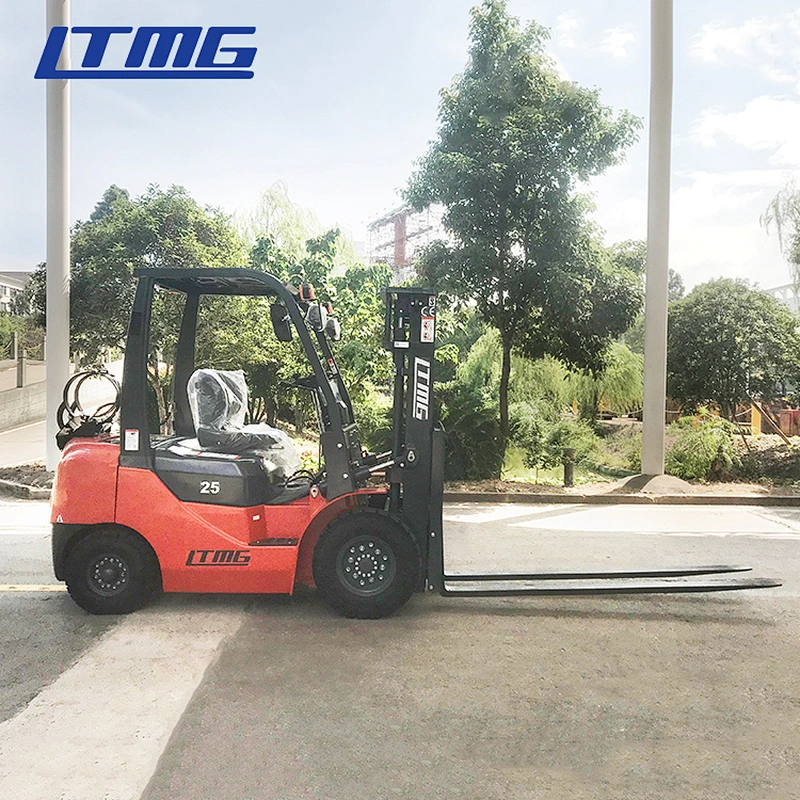

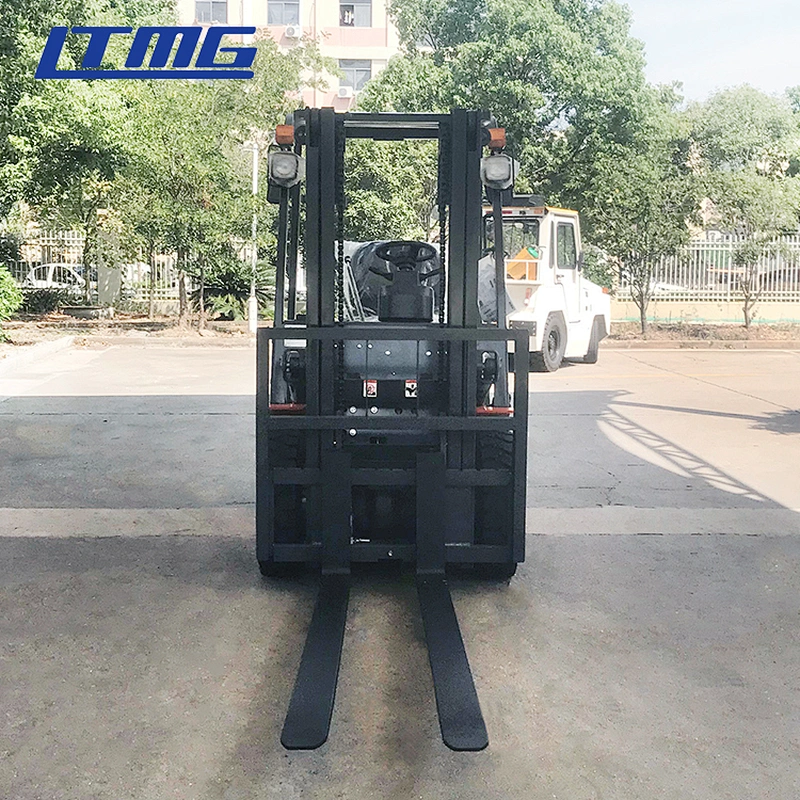

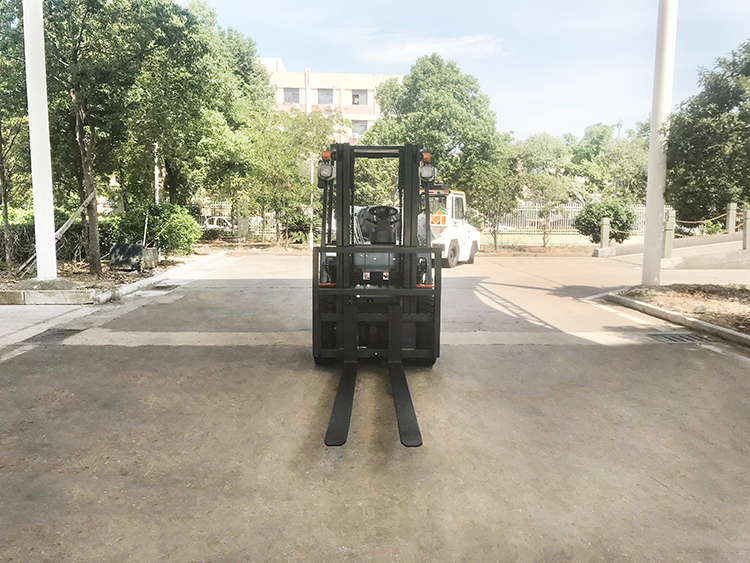

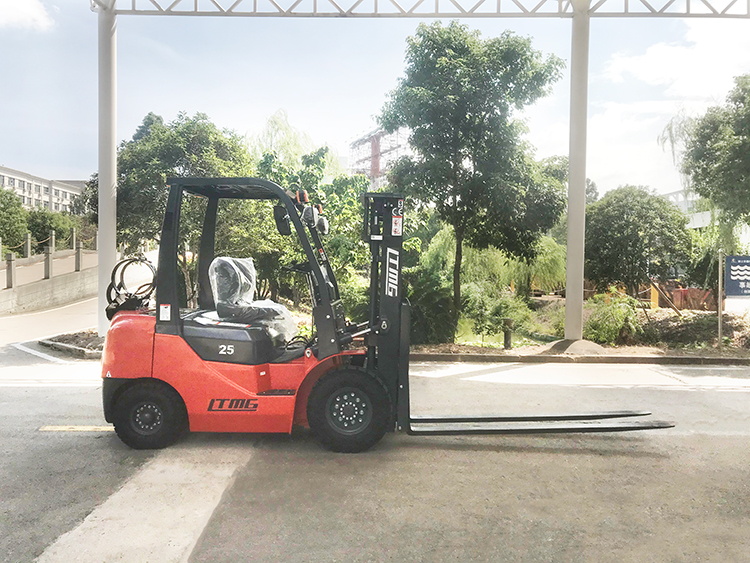

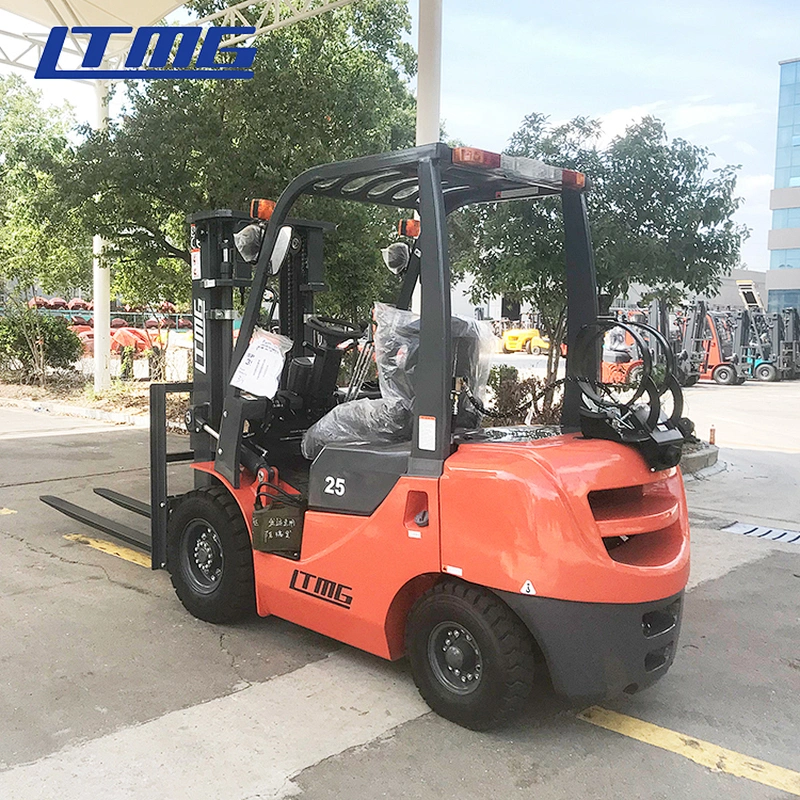

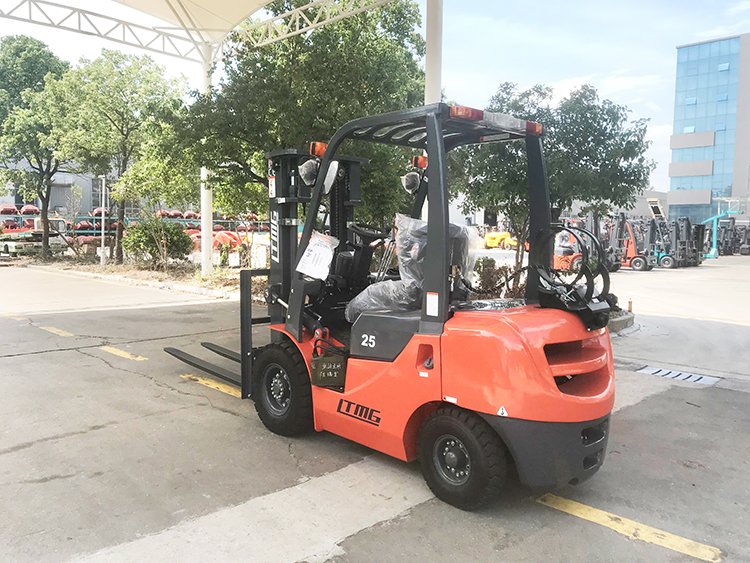

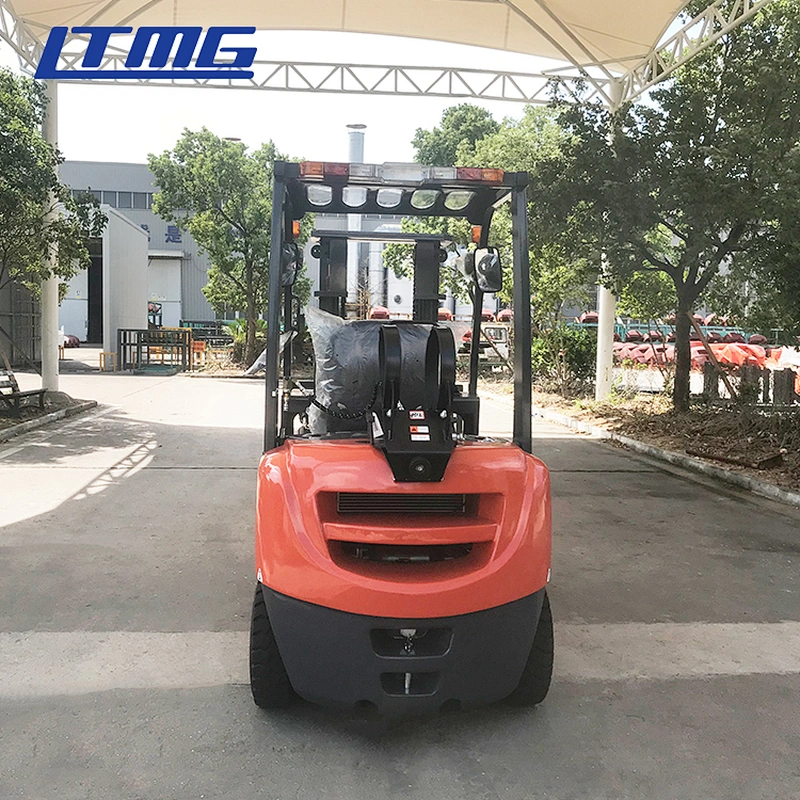

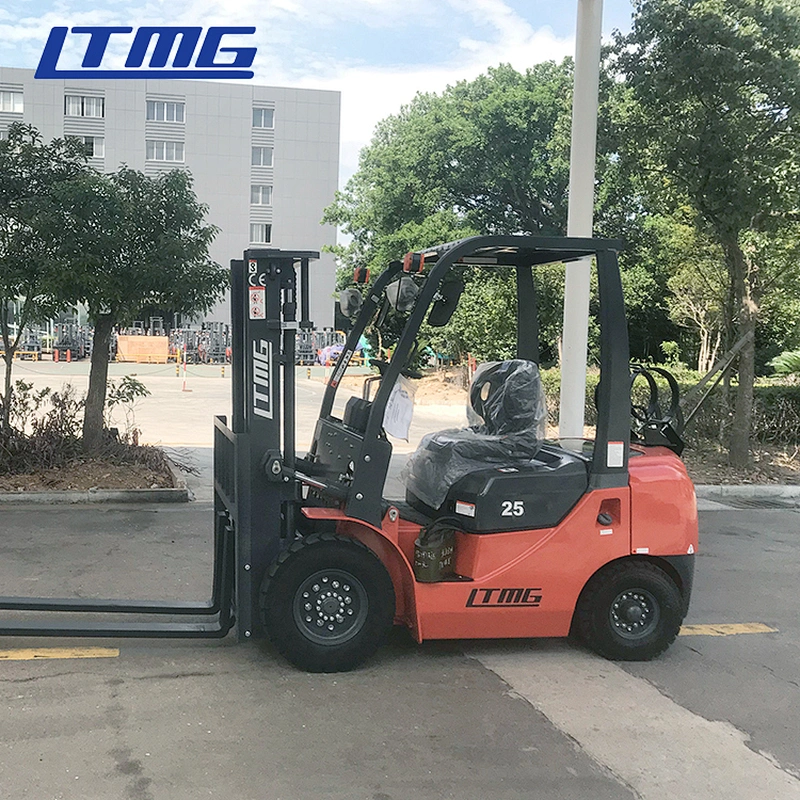

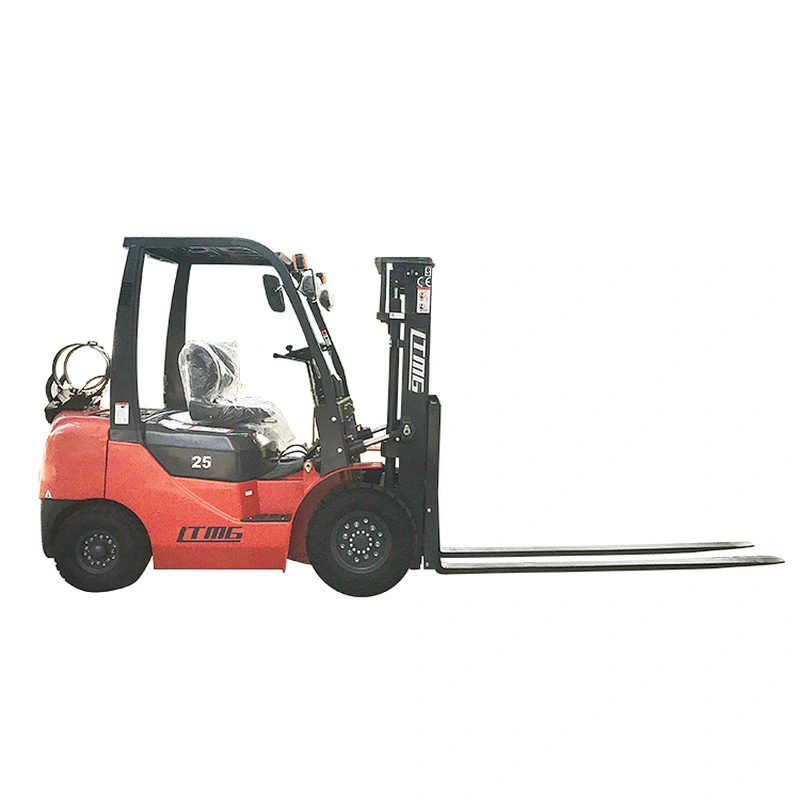

- Product Name:EPA approval engine 2.5 ton 3 ton lpg forklift suitable for USA market
- Power type:LPG Gasoline Forklift
- Color:Customer Demanded
- Loading Capacity:2500kgs
- Engine:Nissan K25
- Mast:2 Stage/3 Stage
- Tire:Pneumatic
- Model:FG
- Load Center:500 Mm
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Condition:New
- Power Souce:AC Motor
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2530*1150*1995
- Certification:CE/ISO
The specification of 3 ton LPG forklift | ||||||||
Model | FG25 | |||||||
Power Type | LPG & Gasoline | |||||||
Rated Capacity | kg | 2500 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×120×40 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | ||||||
Ground Clearance(Bottom of mast) | mm | 110 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | |||||
Overall Width | mm | 1150 | ||||||
Mast Lowered Height | mm | 2070 | ||||||
Mast Extended Height(With backrest) | mm | 4070 | ||||||
Overhead Guard Height | mm | 2070 | ||||||
Turning Radius (outside) | mm | 2310 | ||||||
Speed | Travel (Empty load) | km/h | 19 | |||||
Lifting (Full load) | mm/s | 530 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 7.00-12-12PR | |||||
Rear | mm | 6.00-9-10PR | ||||||
Wheelbase | mm | 1600 | ||||||
Service weight | kg | 3790 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||
Engine | Model | K25 | ||||||
Manufacture | GCT (NISSAN) | |||||||
Rated output/r.p.m. | kw | 35.6/2100 | ||||||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 89×100 | ||||||
Displacement | cc | 2488 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
