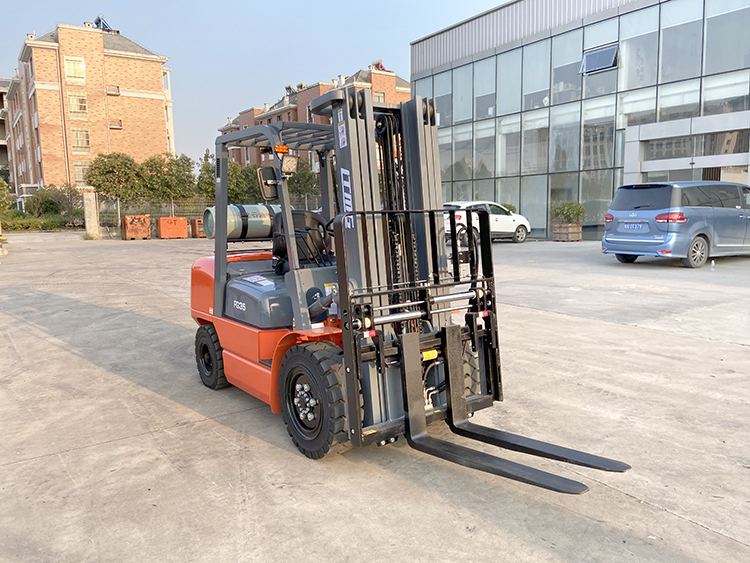

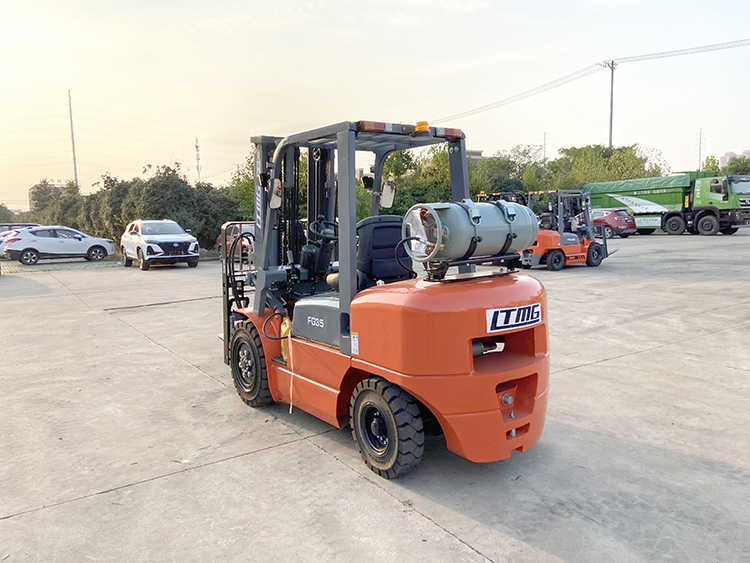

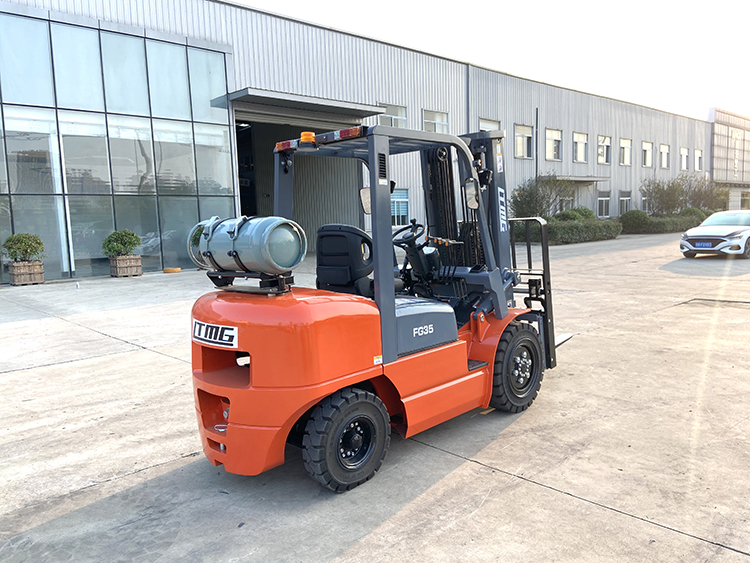

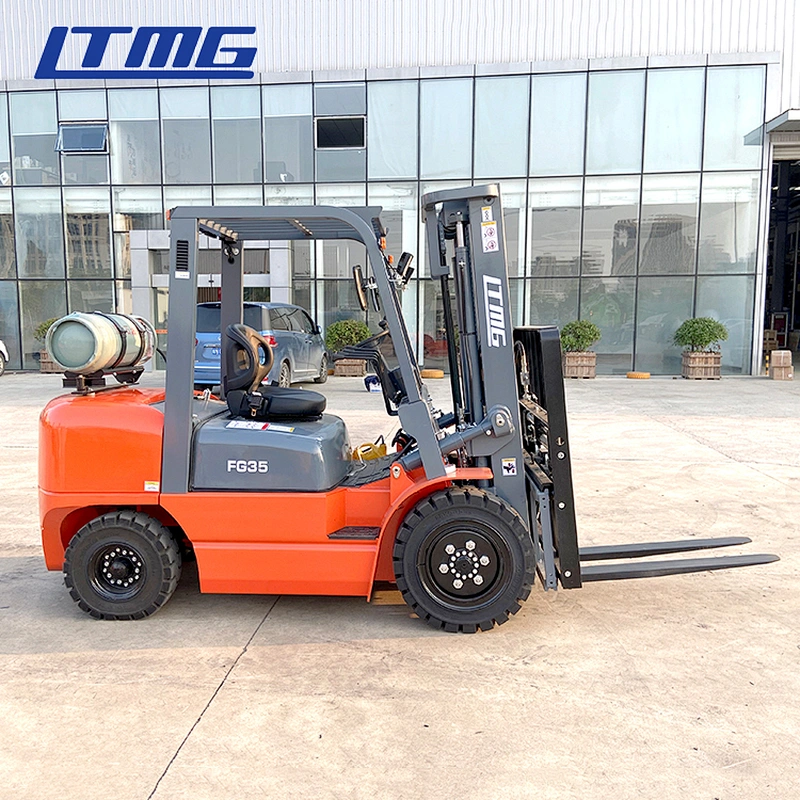

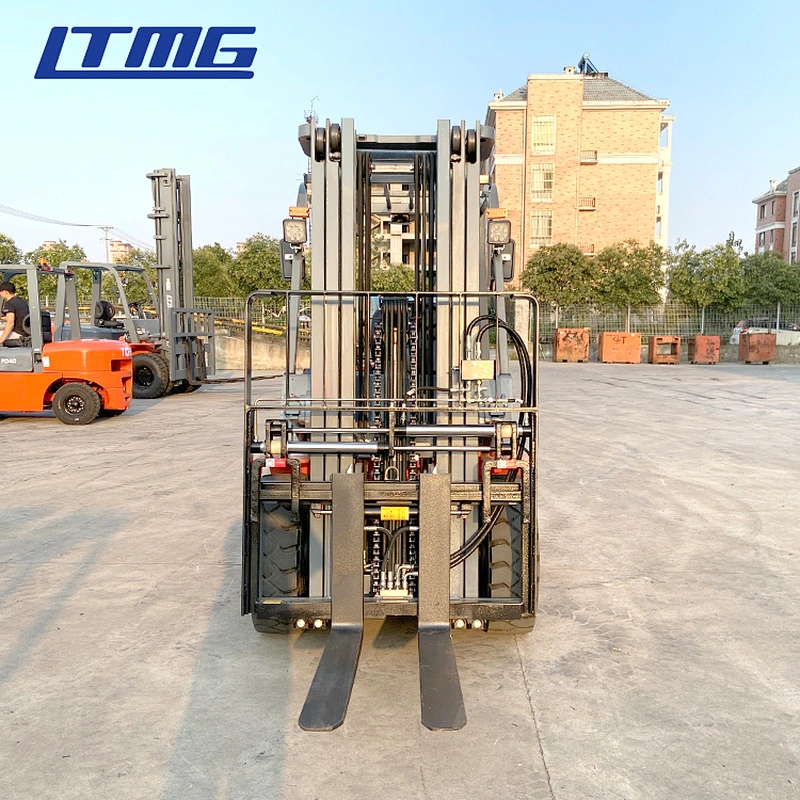

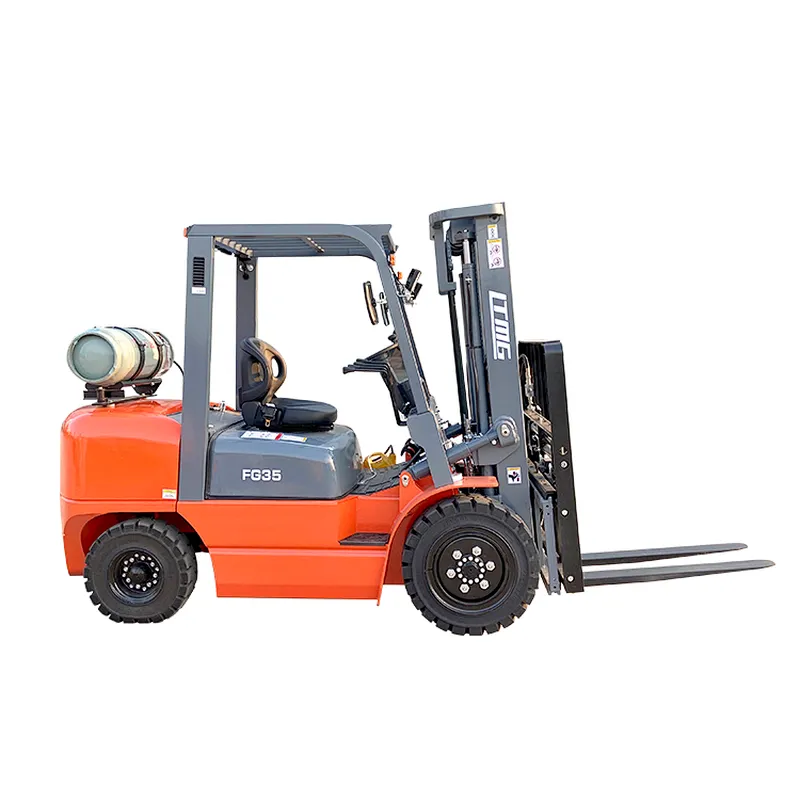

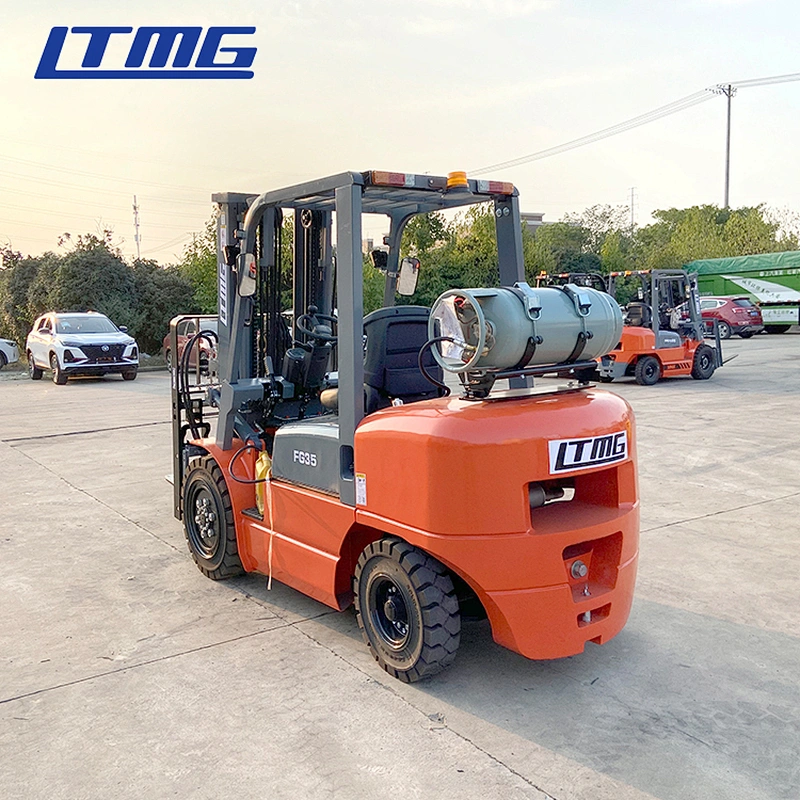

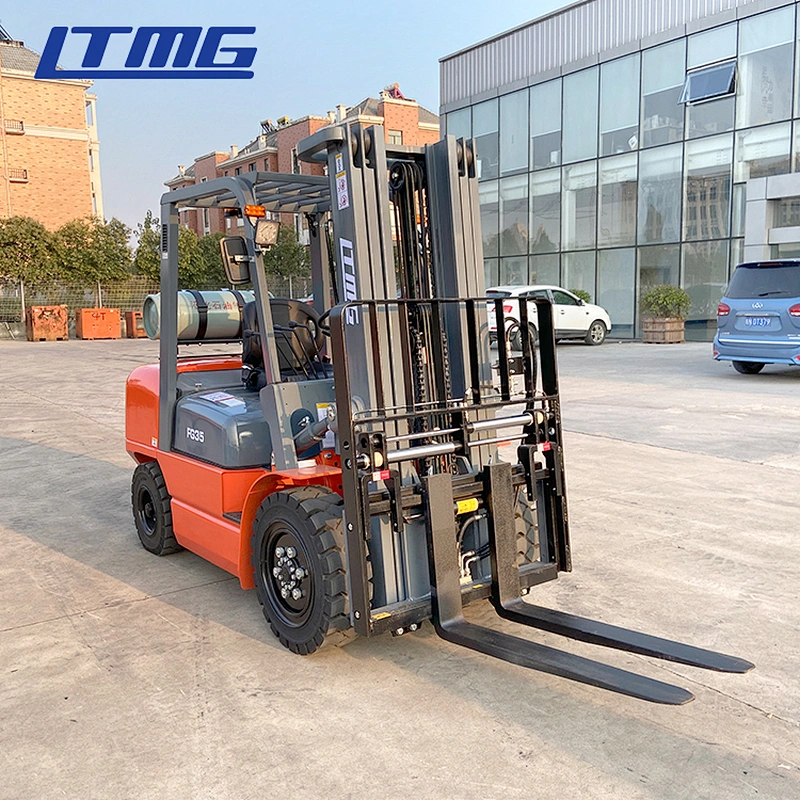

- Product Name:LTMG forklift truck 3 ton 3.5 ton lpg gas forklift price
- Item:3.5 ton lpg forklift
- Engine model:Nissan engine/ Chinese engine
- Power type:LPG Gas Forklift
- Turning radius:2460 mm
- Feature:propane forklift
- mast:2 Stage/ 3 Stage
- Fork size:1070*125*50 mm
- Ground clearance:120mm
- Color:Customer Demanded
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Philippines
- Local Service Location:Indonesia
- Local Service Location:Kenya
- Local Service Location:Romania
- Showroom Location:Philippines
- Showroom Location:Peru
- Showroom Location:Chile
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:120m
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2660*1225*2075mm
- Certification:CE/ISO9001
Specification of 3.5 ton LPG gas Forklift | ||||||
Manufacturer | LTMG | |||||
Power shift T/M | FG35 | |||||
Manual shift T/M | FG35 | |||||
Load capacity | kg | 3500 | ||||
Load center | mm | 500 | ||||
Power unit | Gasoline | |||||
Operator type | Driver/seat | |||||
Tire type | Front/rear | Pneumatic | ||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*50 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2720 | ||||
Total width | mm | 1285 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised | With backrest | mm | 4250 | |||
Height to head guard | mm | 2140 | ||||
Turning radius(outside) | mm | 2460 | ||||
Front face of fork to front axle | mm | 485 | ||||
Min. right angle stacking aisle | without load length&clearance | mm | 2940 | |||
Max Travelling full/no load | km/h | 18/19.5 | ||||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/420 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1800/1000 | |||
Manual shift T/M full/no load | kg | 1900/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 17/20 | |||
Manual shift T/M full/no load | % | 17/20 | ||||
Truck weight | kg | 4610 | ||||
Weight distribution | Full load front/rear | kg | 7260/850 | |||
No load front/rear | kg | 1840/2770 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1060/970 | |||
Ground clearance | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/60 | |||
Model | Nissan K25 | |||||
Rated power | PS(kw/rpm) | 51/2300(37.4/2300) | ||||
Rated torque | kg-m max.(N.m) | 18/1600(177/1600) | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.488 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 power shift T/M | |||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |||
After-sale Service
Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
