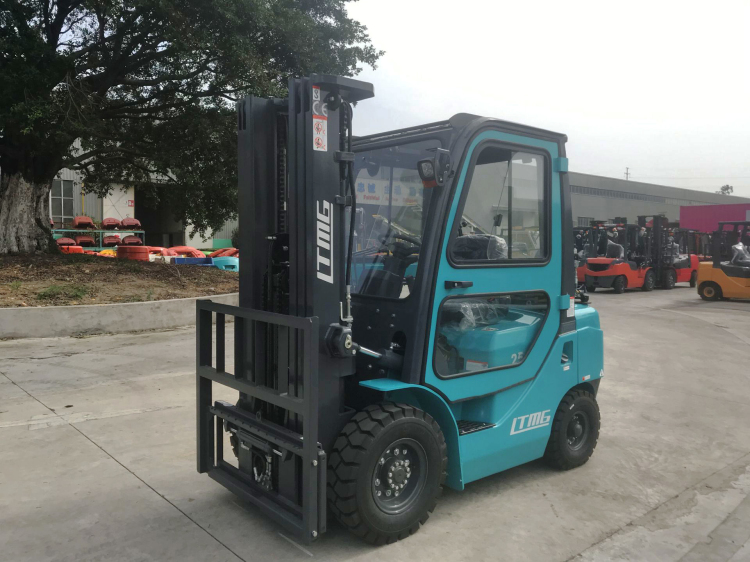

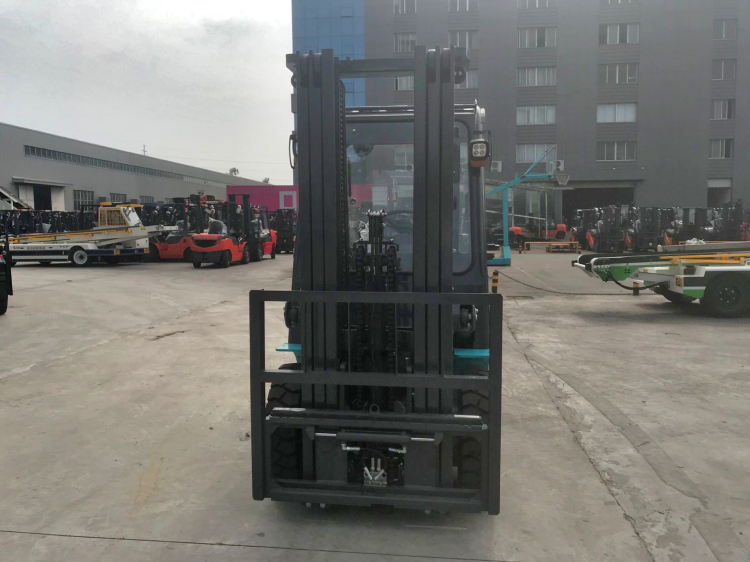

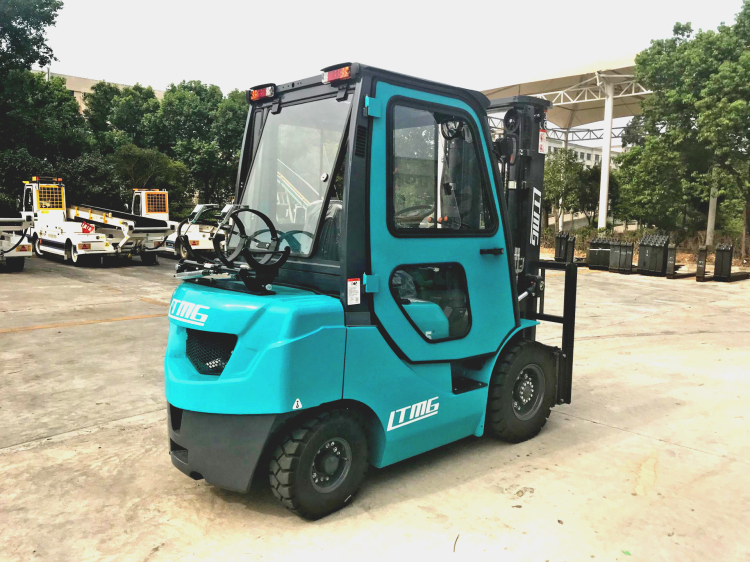

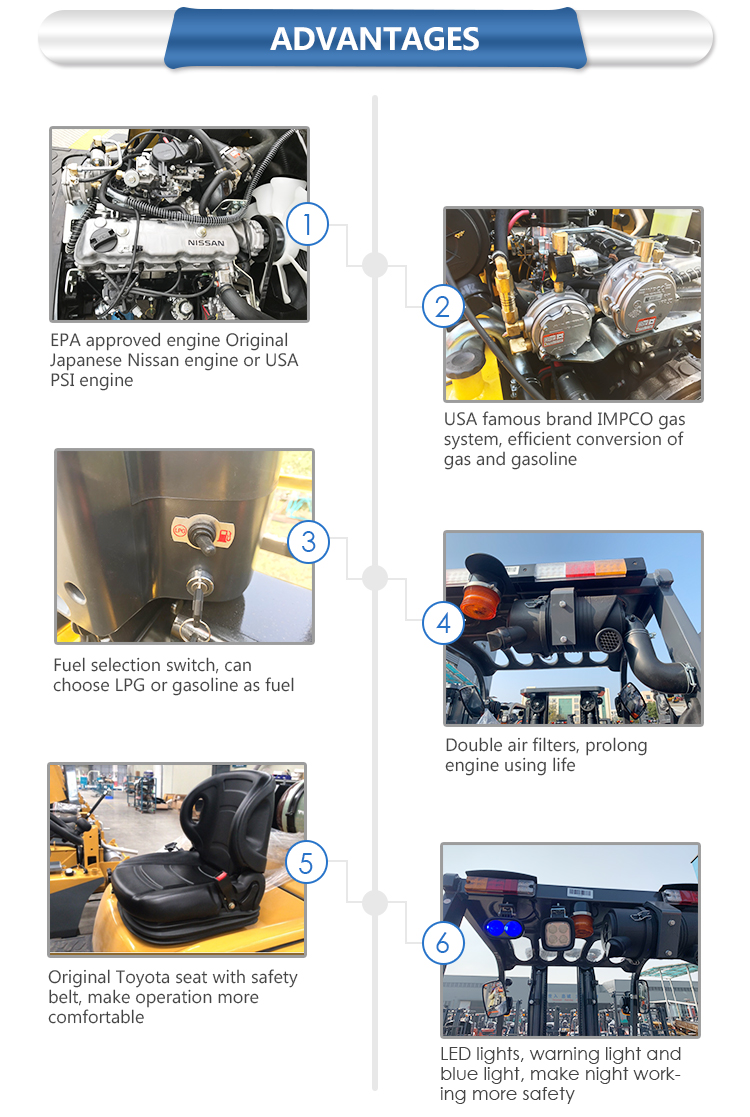

- LPG&gasoline Engine:Nissan&PSI
- Color:Customer Demanded
- Load capacity:2500kg
- Fork size:1070*122*40mm
- Wheel base:1600mm
- Load Center:500mm
- Free lift:160mm
- Cab with A/C:Optional
- Ground clearance:120mm
- Operator Type:LPG&gasoline
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Pakistan
- Local Service Location:Australia
- Local Service Location:Kenya
- Local Service Location:Argentina
- Local Service Location:UAE
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Peru
- Showroom Location:Pakistan
- Showroom Location:Spain
- Showroom Location:Argentina
- Showroom Location:Colombia
- Showroom Location:Sri Lanka
- Showroom Location:Uzbekistan
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2530*1150*1995
- Certification:CE/ISO9001

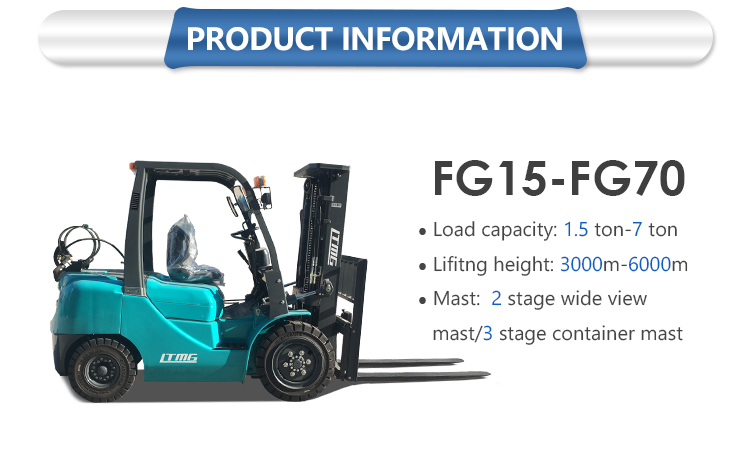

The specification of 3 ton LPG forklift | ||||||||
Model | FG25 | |||||||
Power Type | LPG & Gasoline | |||||||
Rated Capacity | kg | 2500 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×120×40 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 465 | ||||||
Ground Clearance(Bottom of mast) | mm | 110 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | |||||
Overall Width | mm | 1150 | ||||||
Mast Lowered Height | mm | 2070 | ||||||
Mast Extended Height(With backrest) | mm | 4070 | ||||||
Overhead Guard Height | mm | 2070 | ||||||
Turning Radius (outside) | mm | 2310 | ||||||
Speed | Travel (Empty load) | km/h | 19 | |||||
Lifting (Full load) | mm/s | 530 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 7.00-12-12PR | |||||
Rear | mm | 6.00-9-10PR | ||||||
Wheelbase | mm | 1600 | ||||||
Service weight | kg | 3790 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||
Engine | Model | K25 | ||||||
Manufacture | GCT (NISSAN) | |||||||
Rated output/r.p.m. | kw | 35.6/2100 | ||||||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 89×100 | ||||||
Displacement | cc | 2488 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
