- Type:Manual Pallet Truck
- Item:3t forklift
- Warranty:1 year or 2000 working hours,which occurs first
- Website:www.xlteng.com
- Mast:2 Stage/3 Stage
- Engine:Nissan K25 engine
- Free lift:150mm
- Optional:side shifter | solid tires | cab | Triplex mast
- Wheelbase:1700mm
- Brand:LTMG
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:Italy
- Local Service Location:France
- Local Service Location:Germany
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Malaysia
- Local Service Location:UAE
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:UAE
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Condition:New
- Power Souce:Gasoline Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Overall Dimensions:2705*1225*2075
- Fork Width:125mm
- Fork Length:1070mm
- Min. Lifting Height:0mm
- Certification:CE/ISO9001:2008

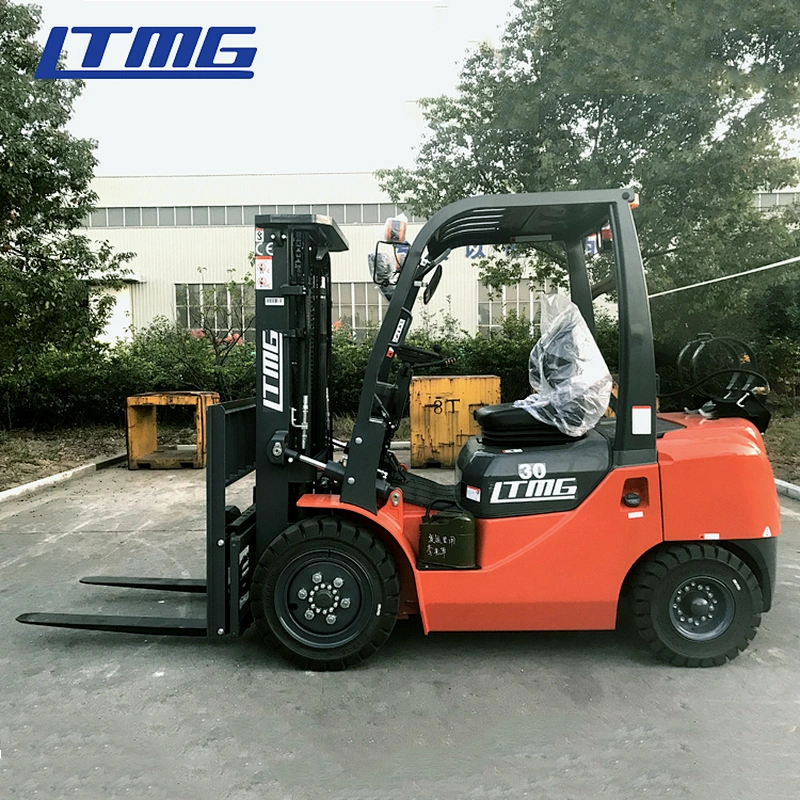

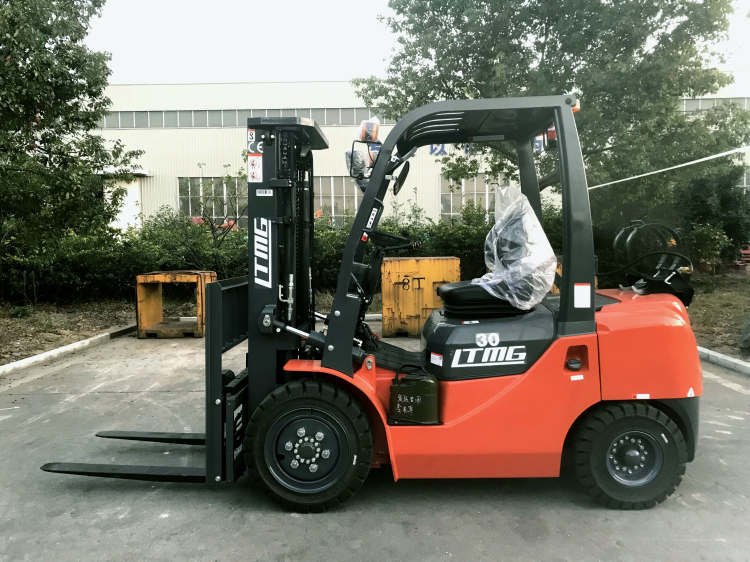

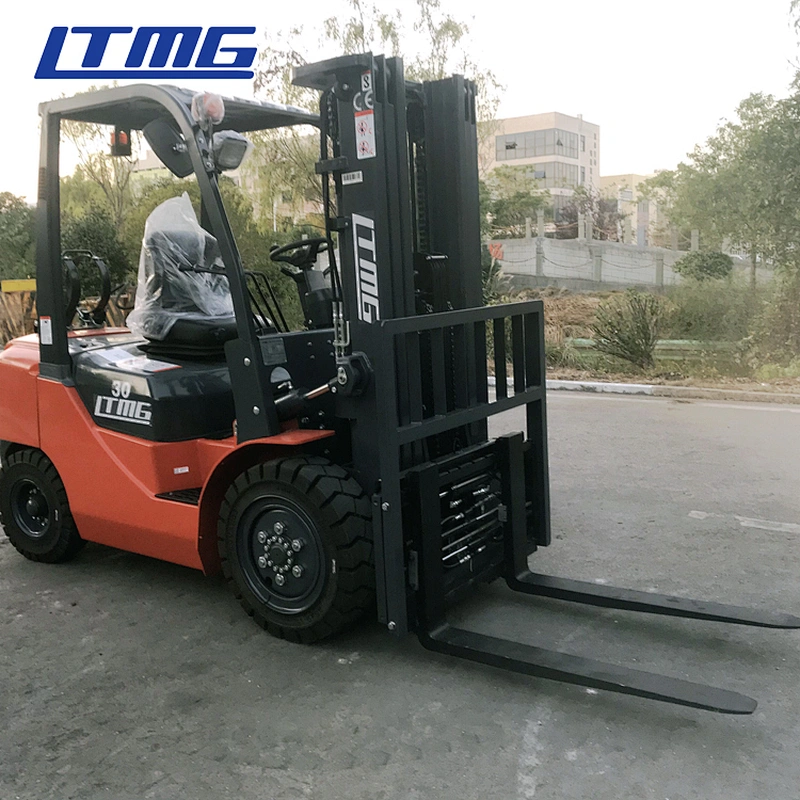

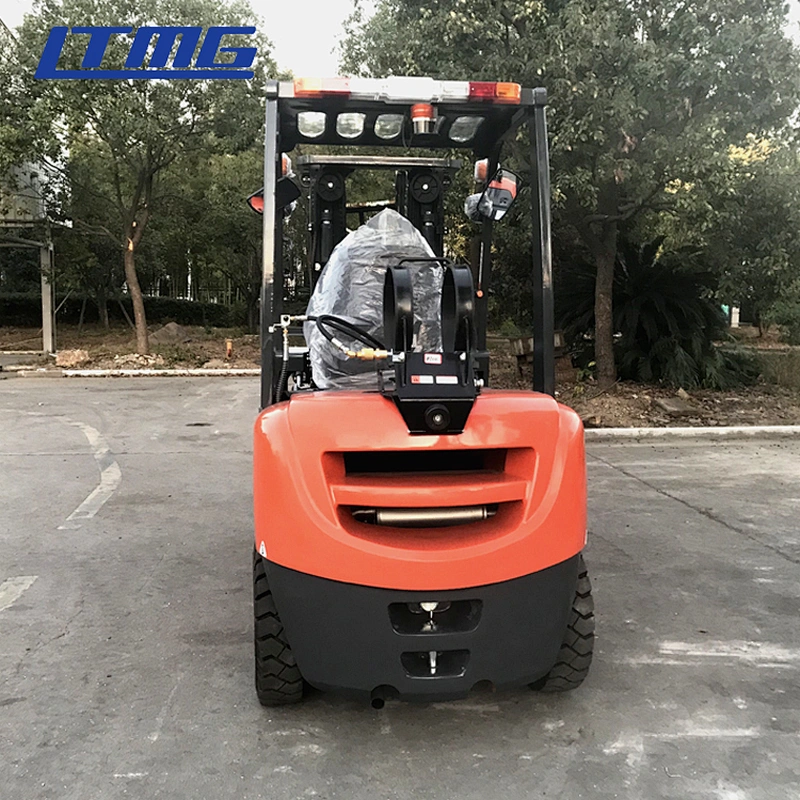

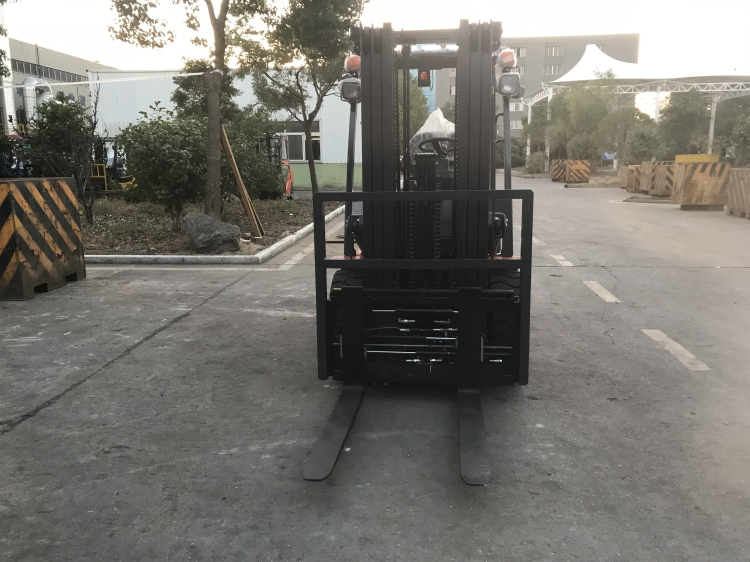

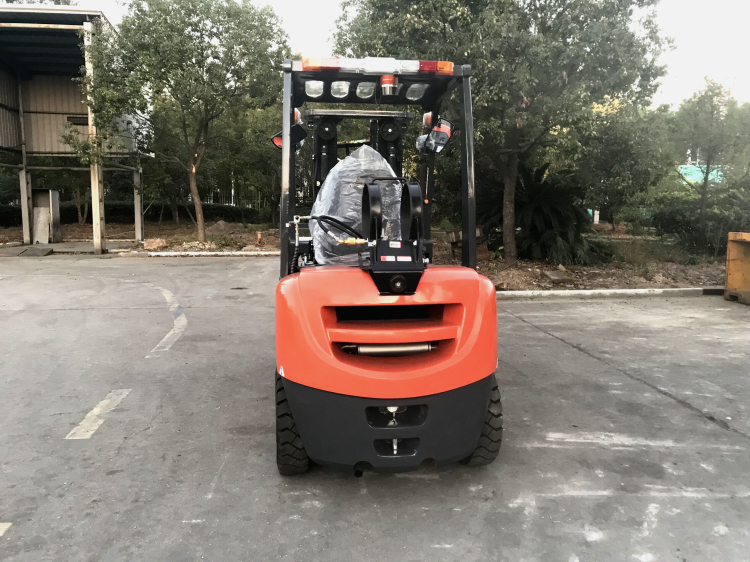

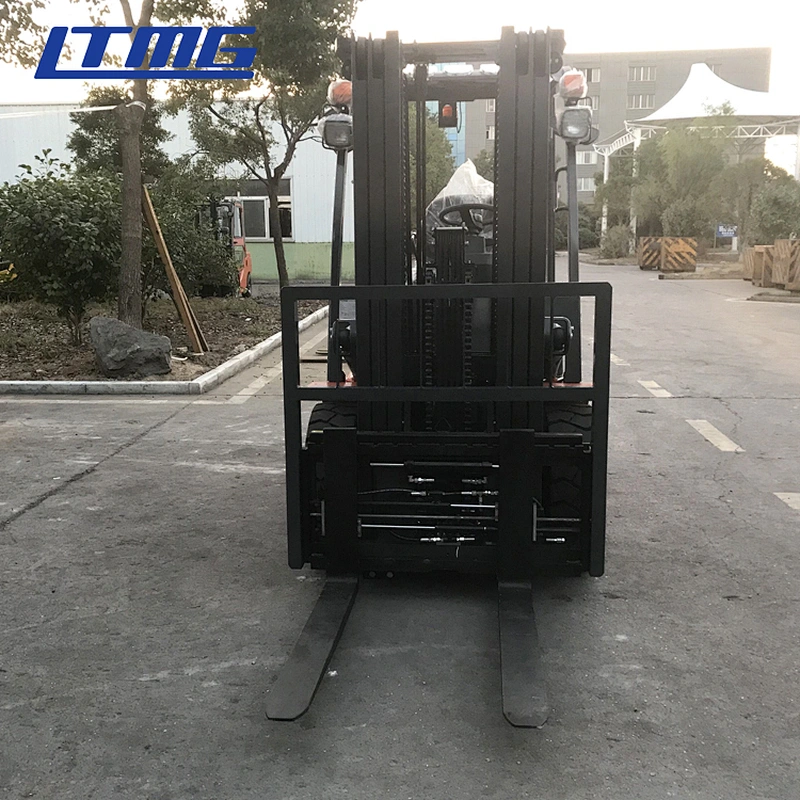

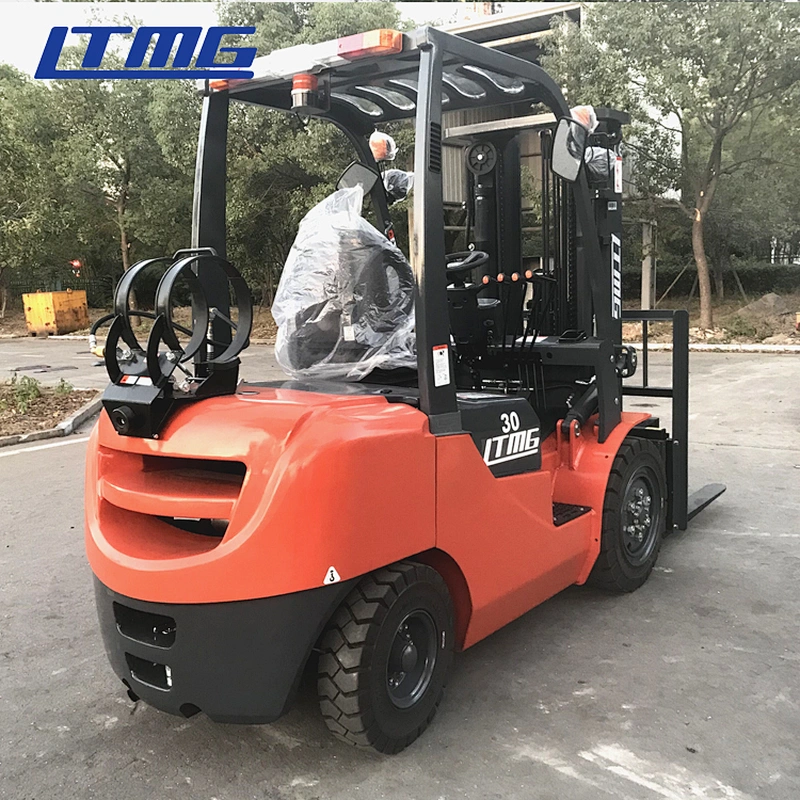

3Ton LPG forklift FG30
The Specification of 3ton LPG forklift | ||||
Model | FG30 | |||
Power Type | LPG & Gasoline | |||
Rated Capacity | kg | 3000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×125×45 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 480 | ||
Ground Clearance（Bottom of mast） | mm | 140 | ||
Length to face of fork(Without fork) | mm | 2730 | ||
Overall Width | mm | 1225 | ||
Mast Lowered Height | mm | 2115 | ||
Mast Extended Height(With backrest) | mm | 4150 | ||
Overhead Guard Height | mm | 2090 | ||
Turning Radius (outside) | mm | 2440 | ||
Travel Speed(Full load) | km/h | 20 | ||
Lifting Speed(Full load) | mm/s | 510 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 28×9-15-12PR | ||
Rear Tire | mm | 6.50-10-10PR | ||
Wheelbase | mm | 1700 | ||
Service weight | kg | 4300 | ||
Battery(Voltage/Capacity) | V/Ah | 12/80 | ||

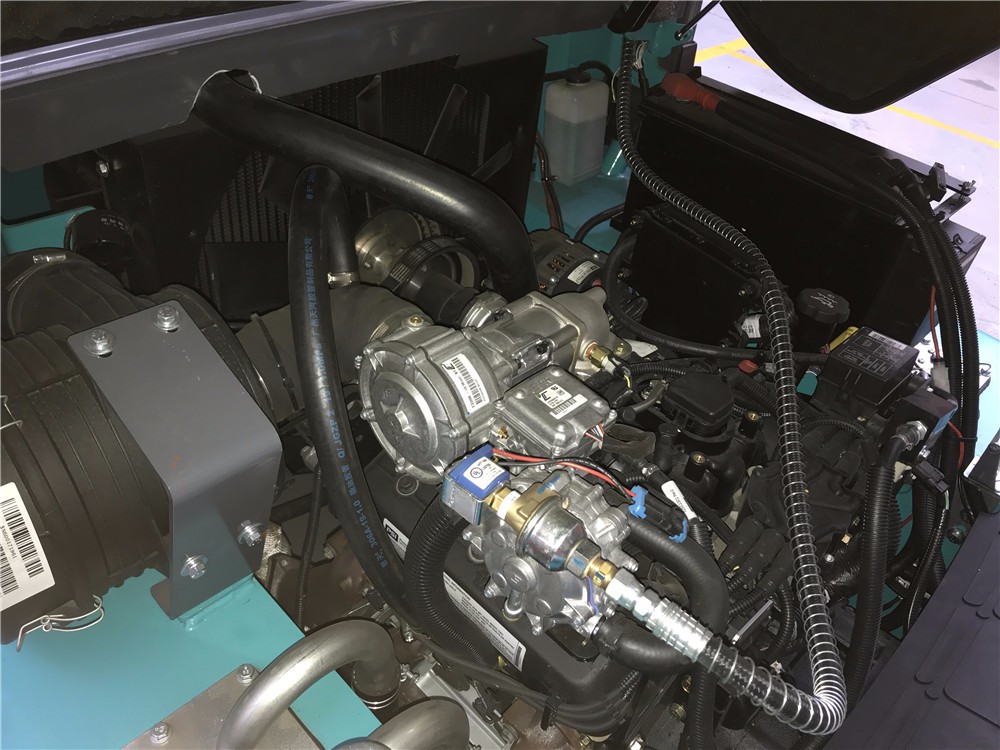

Engine Model | K25 | |||
Manufacture | GCT (NISSAN) | |||
Rated output/r.p.m. | kw | 35.6/2100 | ||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||
No.of Cylinder | 4 | |||
Bore×Stroke | mm | 89×100 | ||
Displacement | cc | 2488 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 1/1 | ||
Standard Configuration
1. The Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
2. Electric-hydraulic Directional Control Valve
3.Give priority to the system and improve work efficiency at work
4. Duplex Mast Lifting Height 3000mm
5. PneumaticTyres
6.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
7. A set of spare parts and some quick -wearing parts free for customers

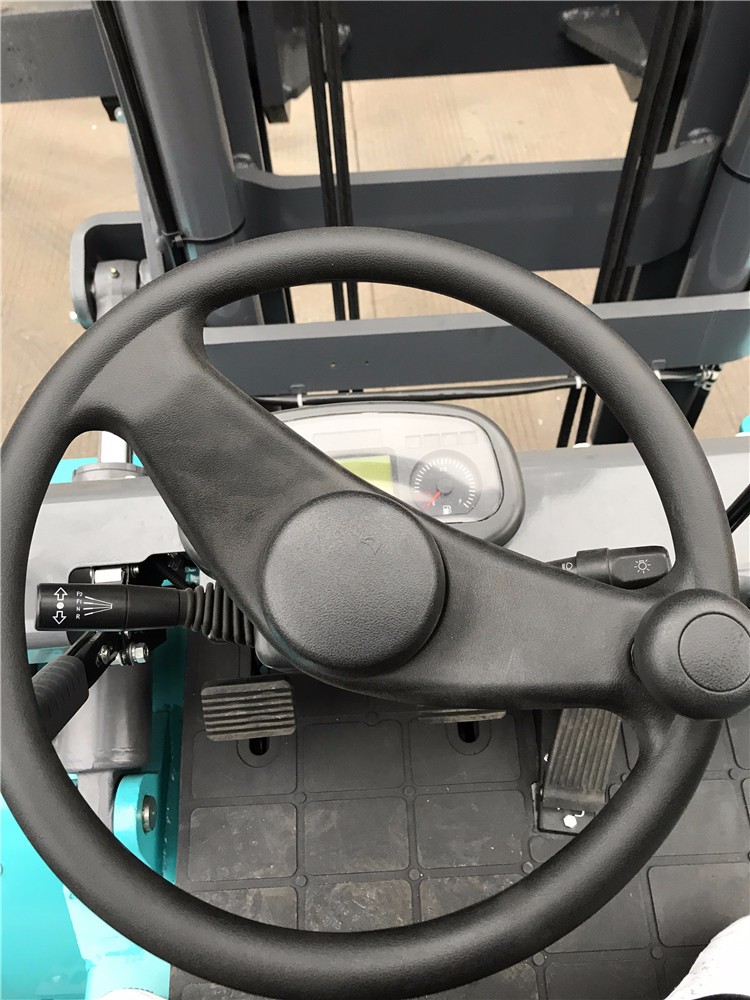

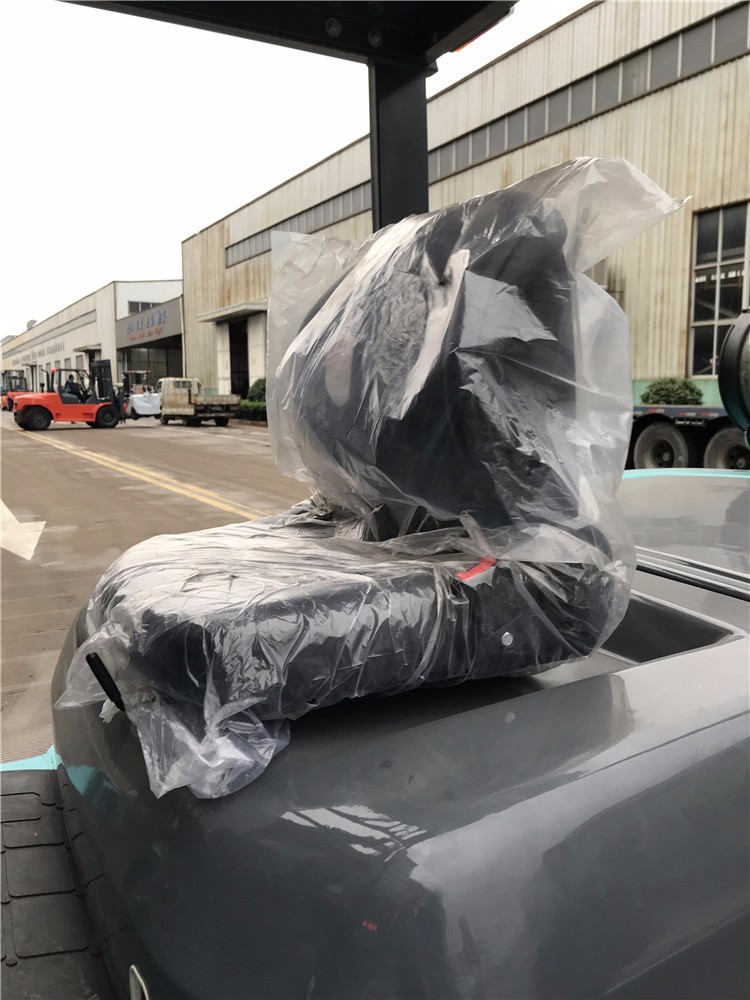

8.Original Toyota seat Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
Optional Equipments
1.Lifting Height 3m-7m
2.Full-free Duplex or Triplex Mast

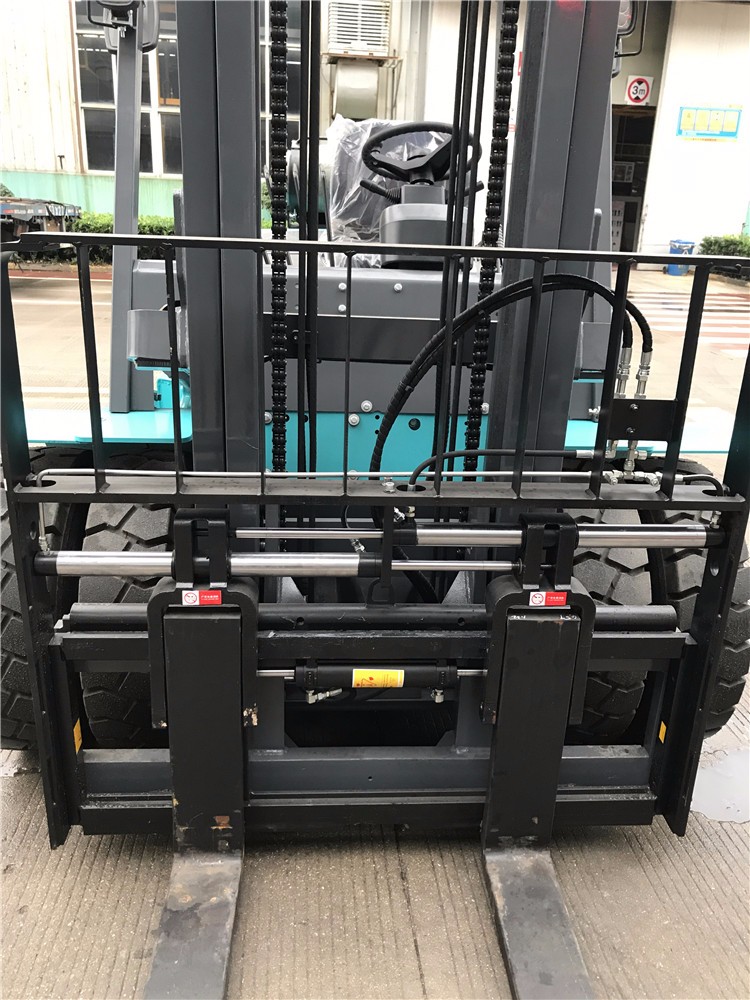

3.Side Shift, Solid Tyres, fork positioner ,Suspension Seat
4.Driver's Cabin, ROPS Cabin ,Driving recorder Customized Color and air -conditioner etc.
5.attachment: paper roll clamp , bale clampe ,rotator , block clamp ect.
LTMG grants our clients a twelve-month-periodor2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
