- Engine:Nissan K25
- Warranty:1 Year OR 2000 working hours
- Load center:500mm

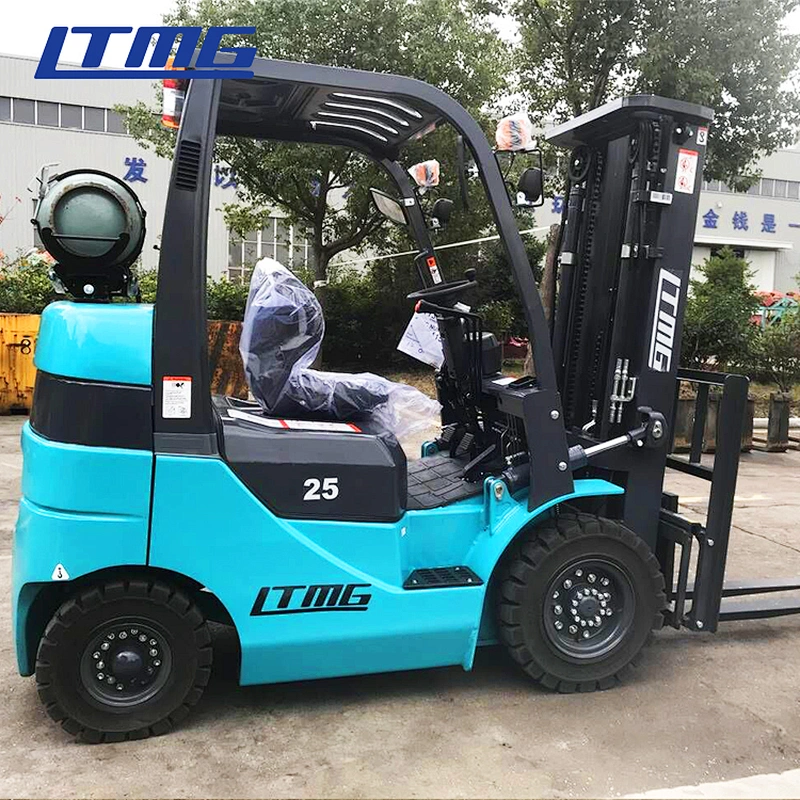

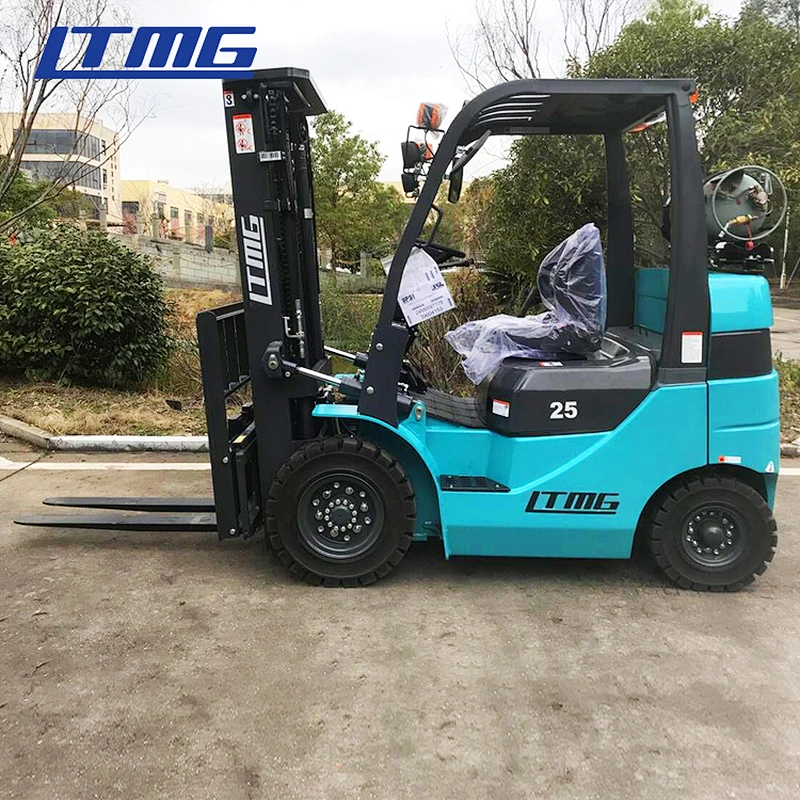

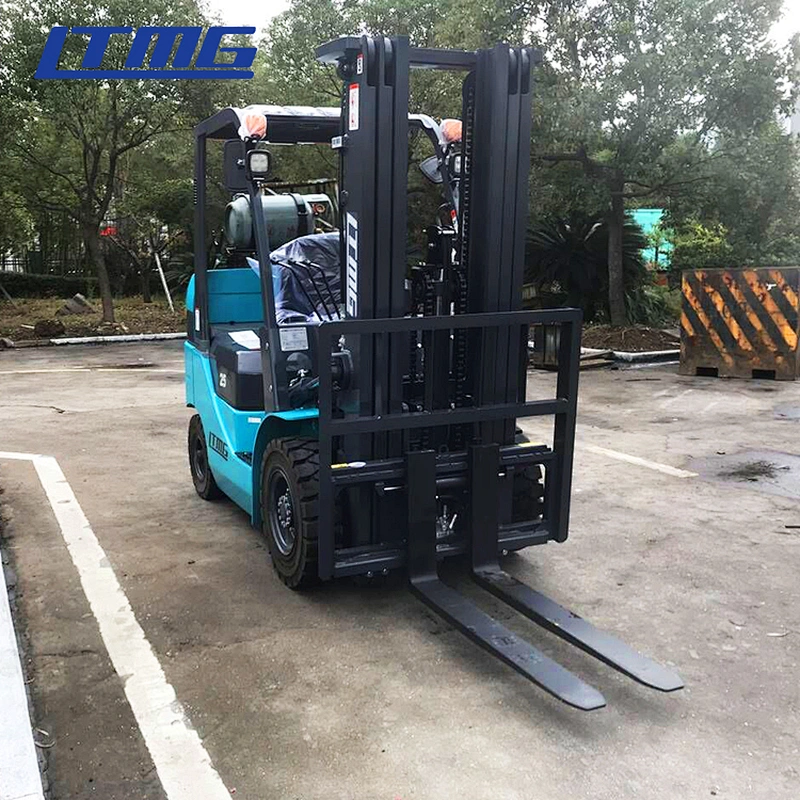

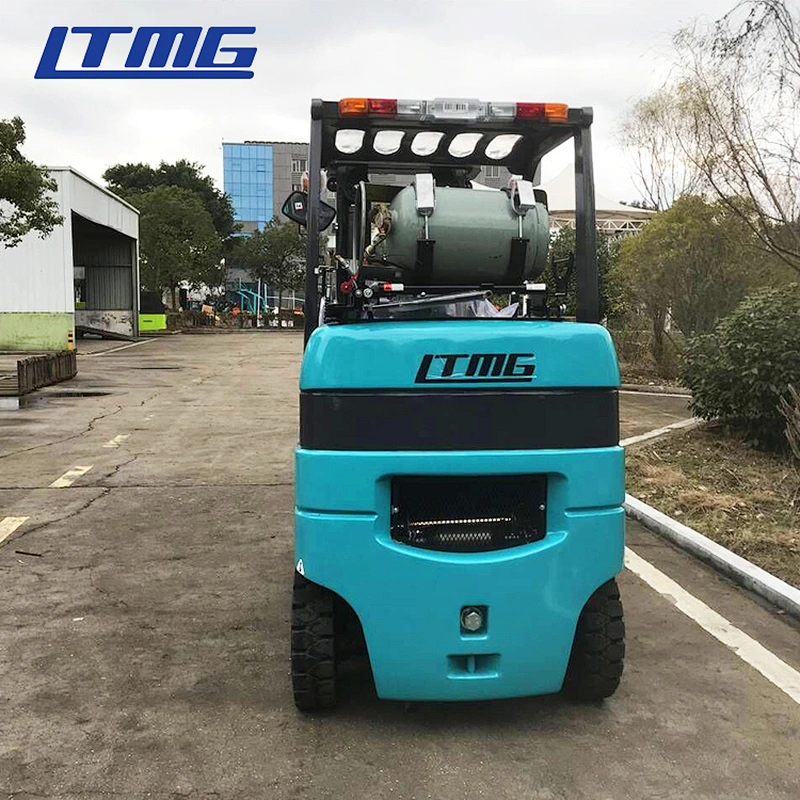

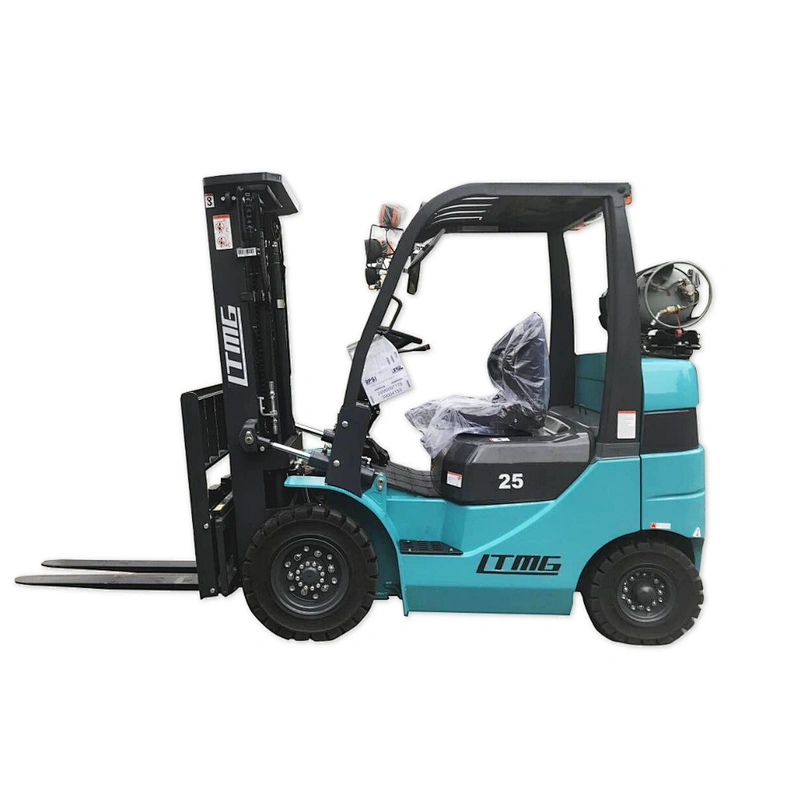

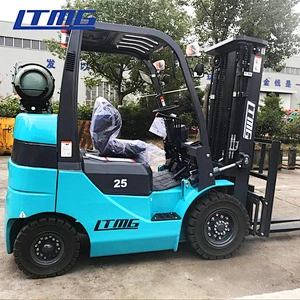

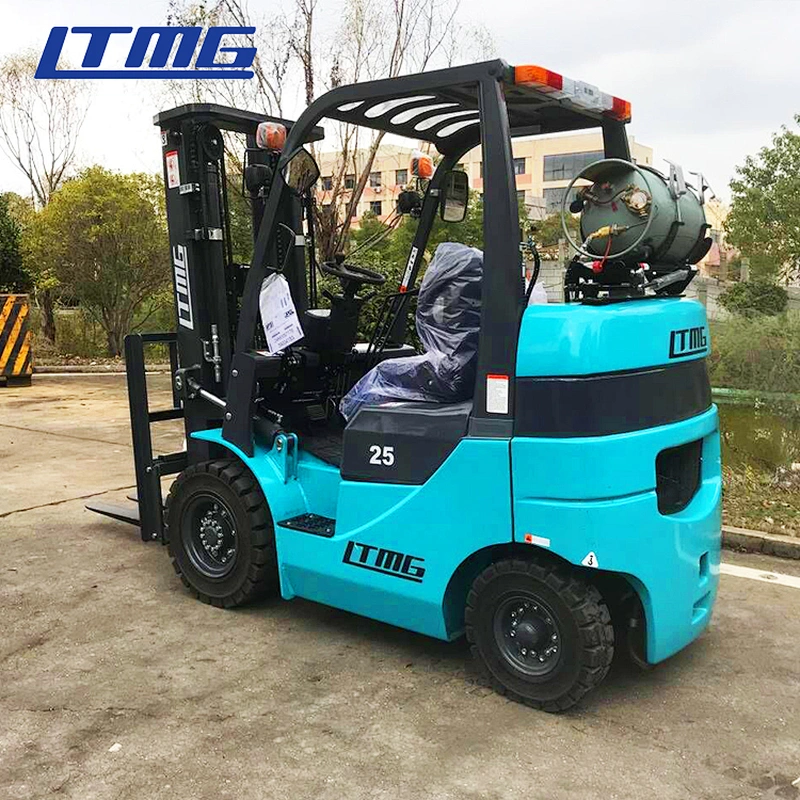

- Item:2.5 ton lpg gasoline forklift
- Truck weight:4300 kgs
- Fork Size:1070*125*45mm
- Mast lowered height:2115mm
- Load Centre:500mm
- Optional:Fork positioner/ full free mast, cab etc.
- mast type:duplex or triplex mast
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Applicable Industries:warehouse logistics
- Max. Lifting Height:3m
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Overall Dimensions:5800*2200*3015mm
- Fork Width:125mm
- Fork Length:1070mm
- Min. Lifting Height:0mm
- Certification:CE/ISO9001:2008

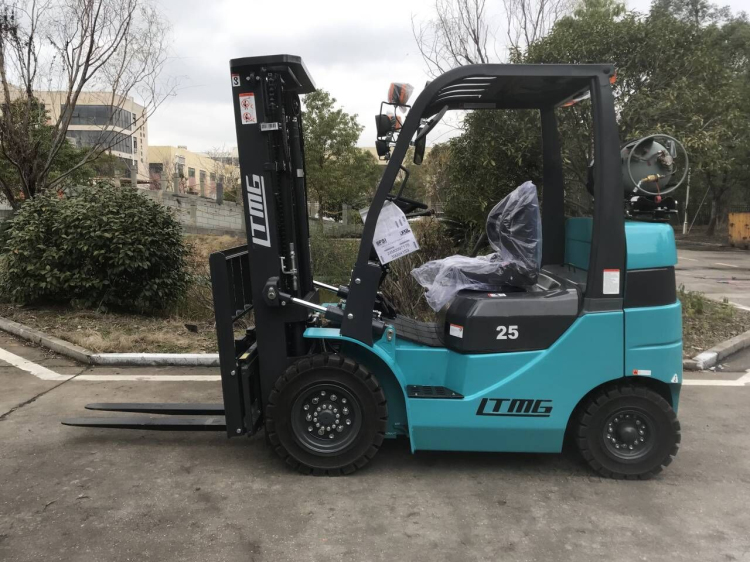

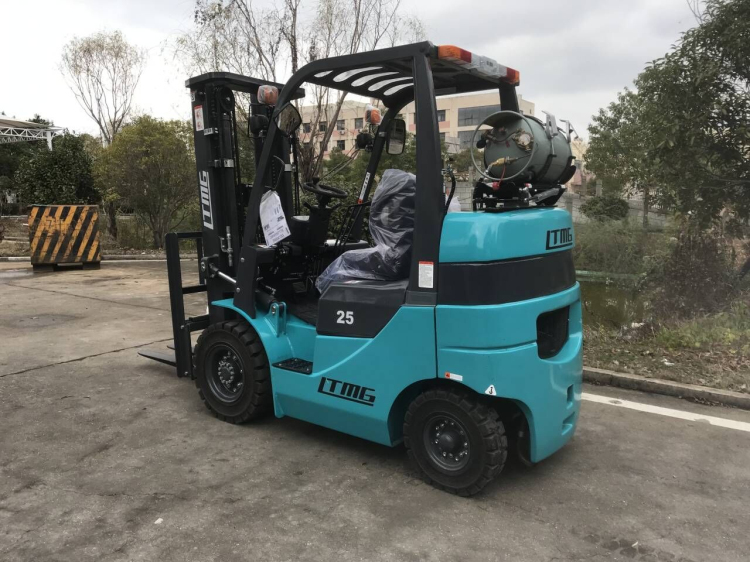

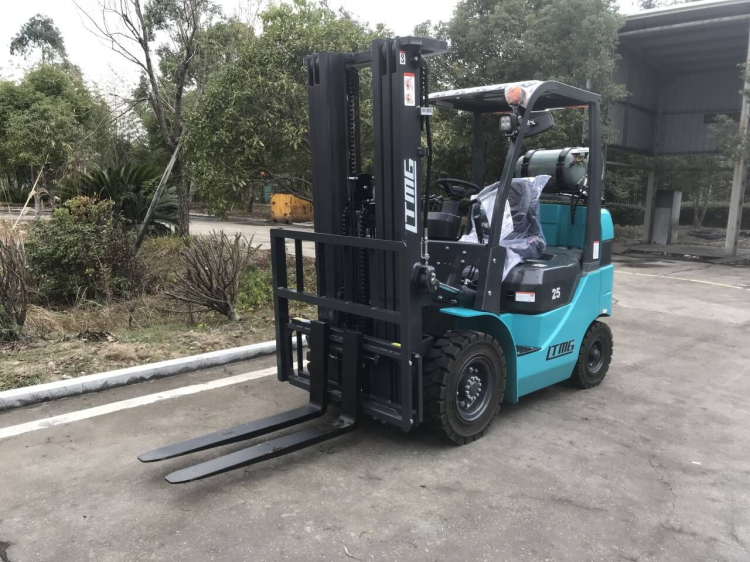

The Specification of 2.5ton LPG forklift | ||||
Model | FG25 | |||
Power Type | LPG & Gasoline | |||
Rated Capacity | kg | 2500 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×125×45 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 480 | ||
Ground Clearance（Bottom of mast） | mm | 140 | ||
Length to face of fork(Without fork) | mm | 2730 | ||
Overall Width | mm | 1225 | ||
Mast Lowered Height | mm | 2115 | ||
Mast Extended Height(With backrest) | mm | 4150 | ||
Overhead Guard Height | mm | 2090 | ||
Turning Radius (outside) | mm | 2440 | ||
Travel Speed(Full load) | km/h | 20 | ||
Lifting Speed(Full load) | mm/s | 510 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 28×9-15-12PR | ||
Rear Tire | mm | 6.50-10-10PR | ||
Wheelbase | mm | 1700 | ||
Service weight | kg | 4300 | ||
Battery(Voltage/Capacity) | V/Ah | 12/80 | ||

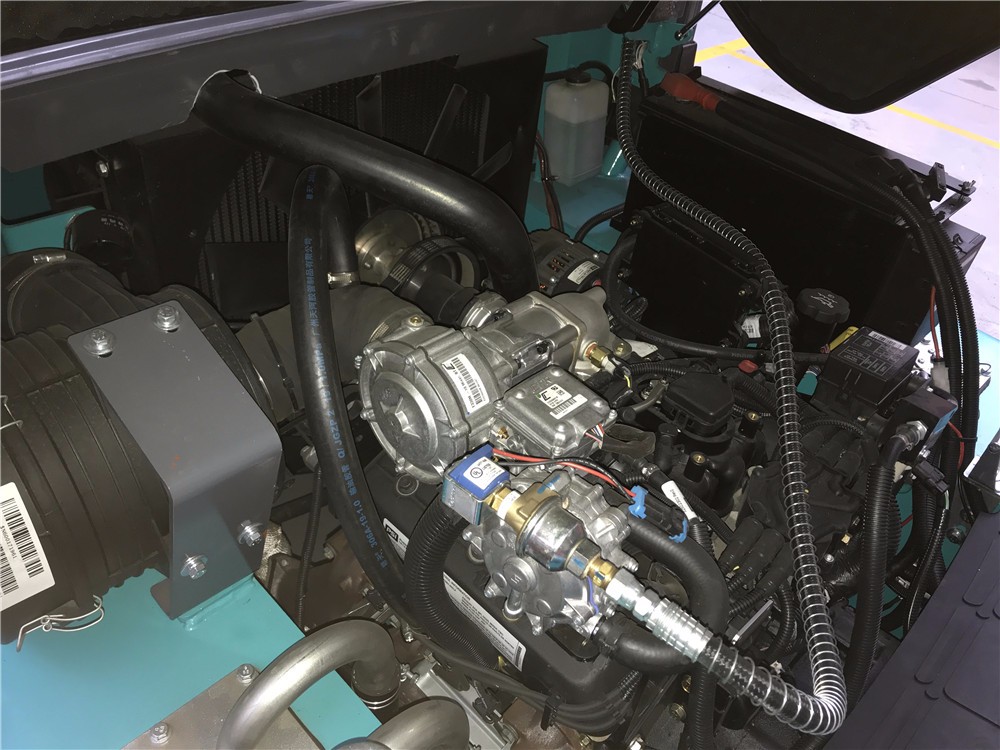

Engine Model | K25 | |||
Manufacture | GCT (NISSAN) | |||
Rated output/r.p.m. | kw | 35.6/2100 | ||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||
No.of Cylinder | 4 | |||
Bore×Stroke | mm | 89×100 | ||
Displacement | cc | 2488 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 1/1 | ||
Standard Configuration of our Forklift
1. The Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
2. Electric-hydraulic Directional Control Valve
3.Give priority to the system and improve work efficiency at work
4. Duplex Mast Lifting Height 3000mm
5. PneumaticTyres
6.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
7. A set of spare parts and some quick -wearing parts free for customers

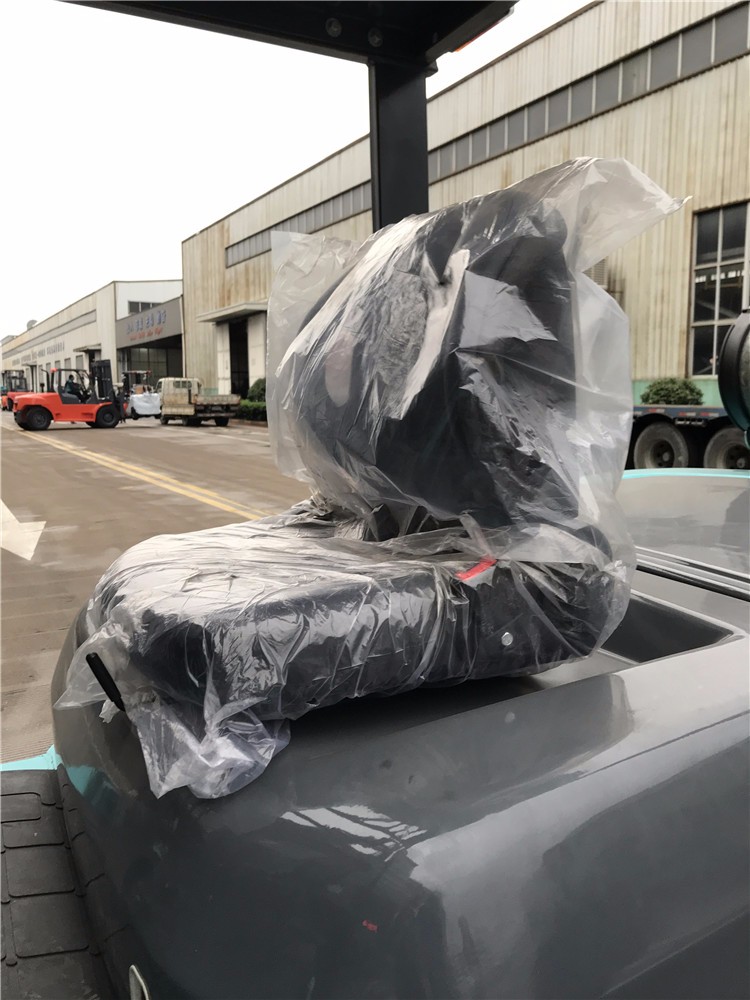

8.Original Toyota seat Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
Optional Equipments
1.Lifting Height 3m-7m
2.Full-free Duplex or Triplex Mast

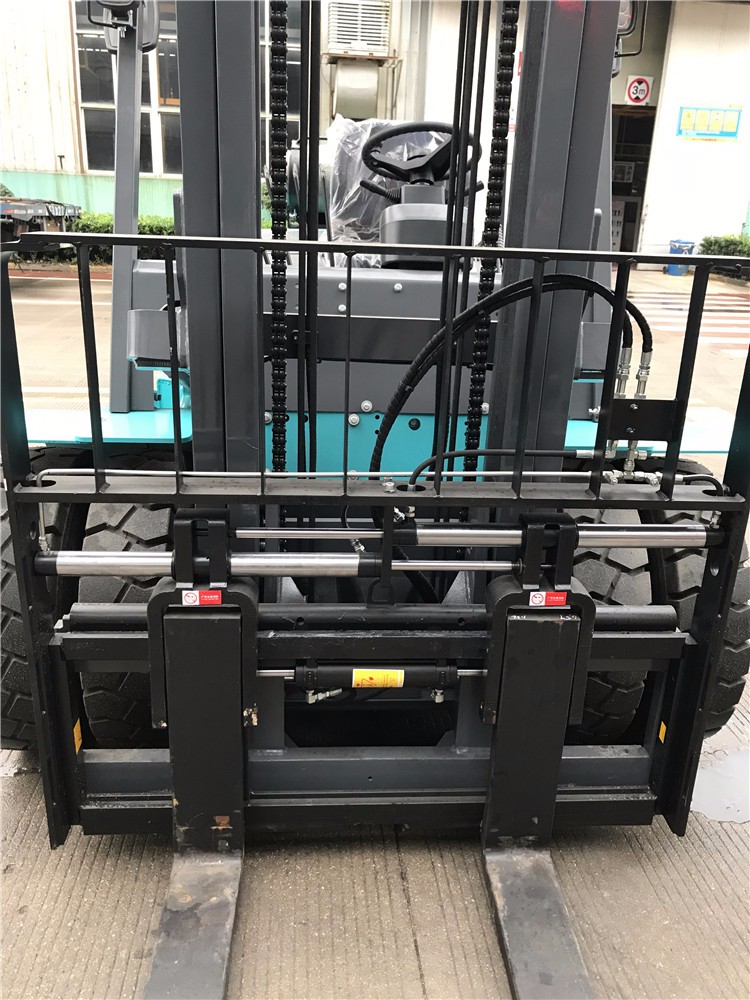

3.Side Shift, Solid Tyres, fork positioner ,Suspension Seat
4.Driver's Cabin, ROPS Cabin ,Driving recorder Customized Color and air -conditioner etc.
5.attachment: paper roll clamp , bale clampe ,rotator , block clamp ect.
After-sale Service
LTMG grants our clients a twelve-month-periodor2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
1.What's the Certificate do you have?

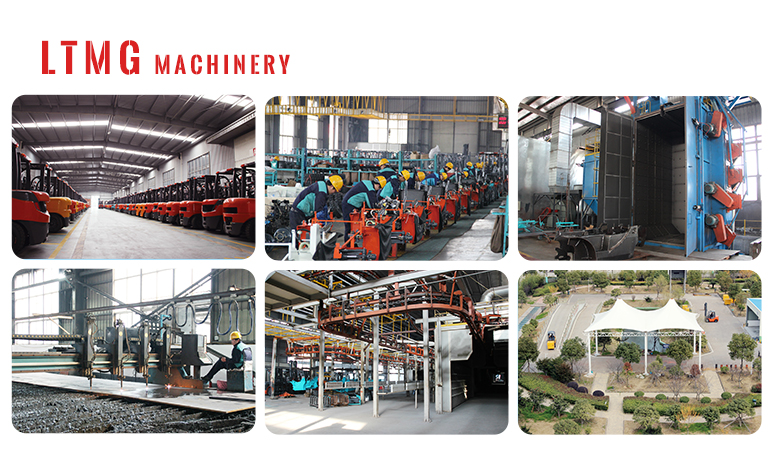

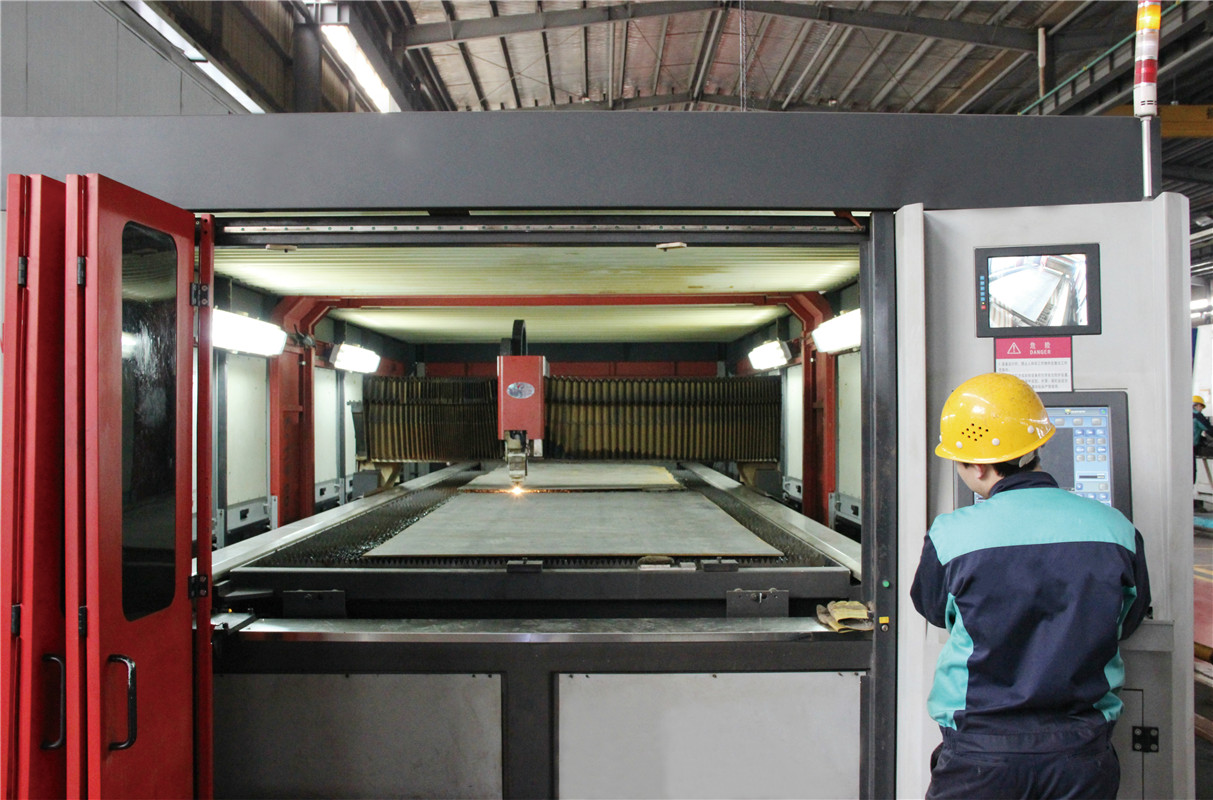

LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

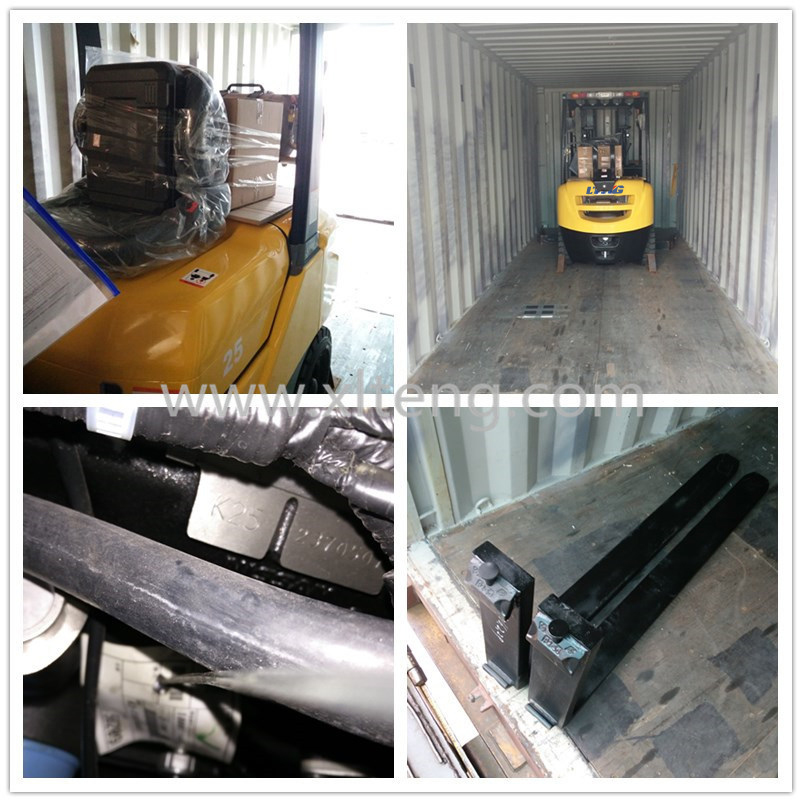

6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
Welcome to contact us for further questions!
