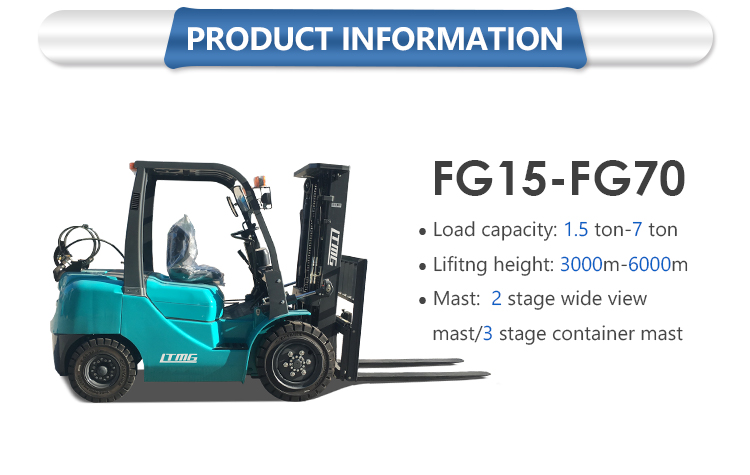

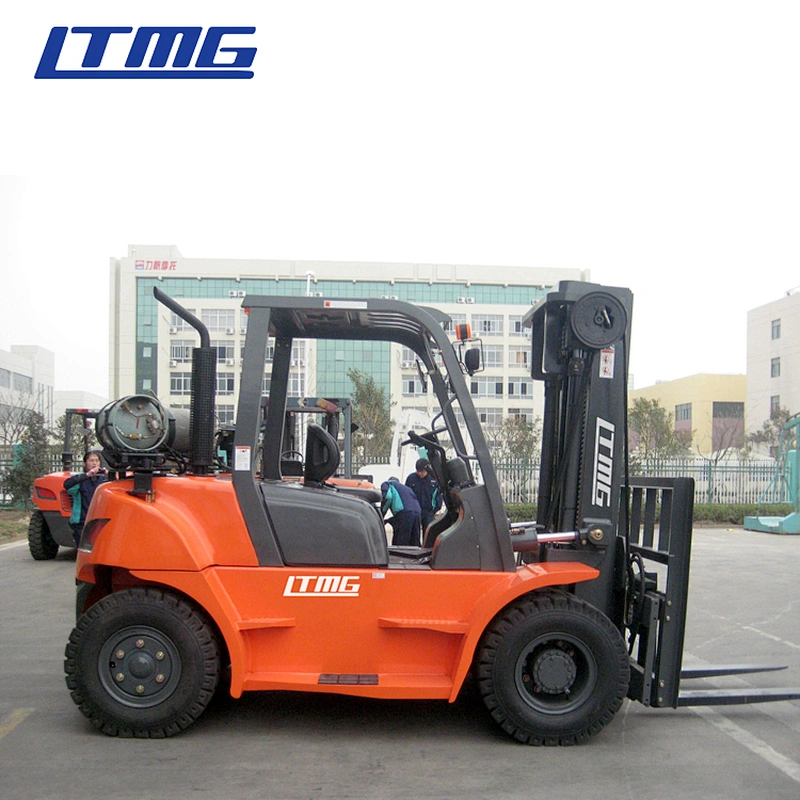

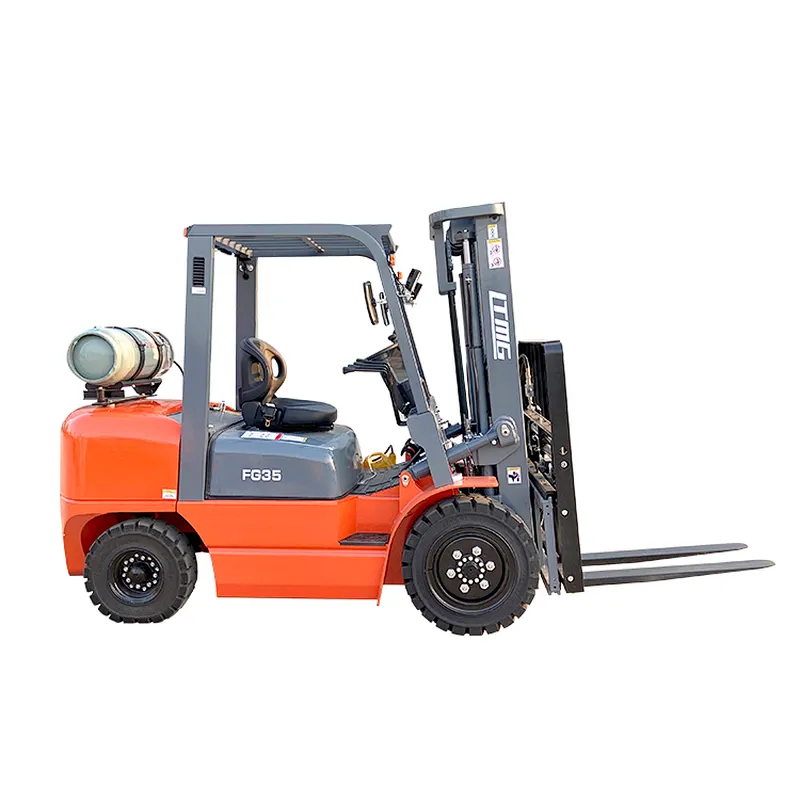

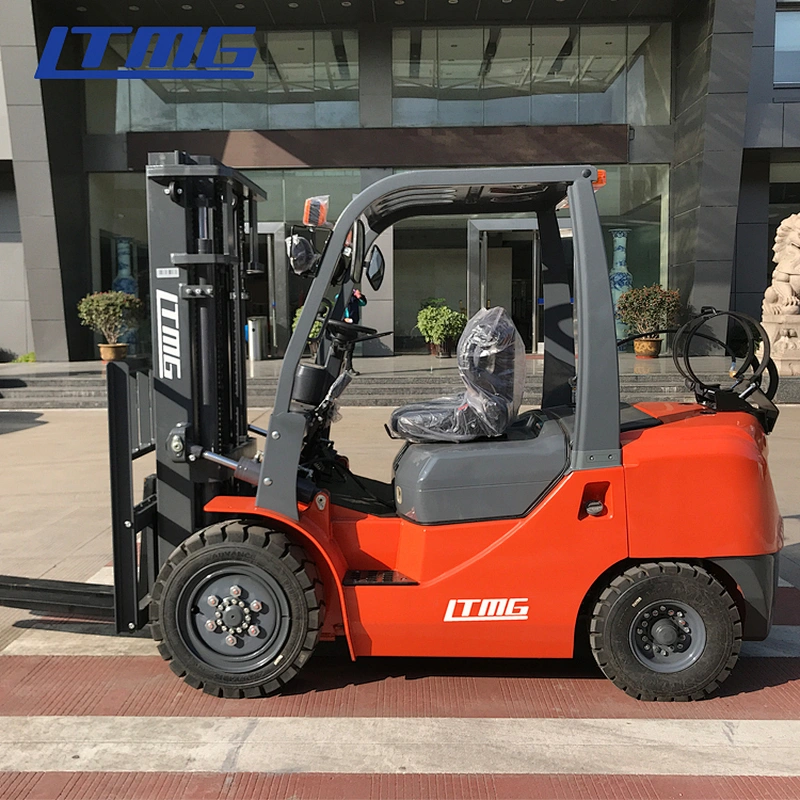

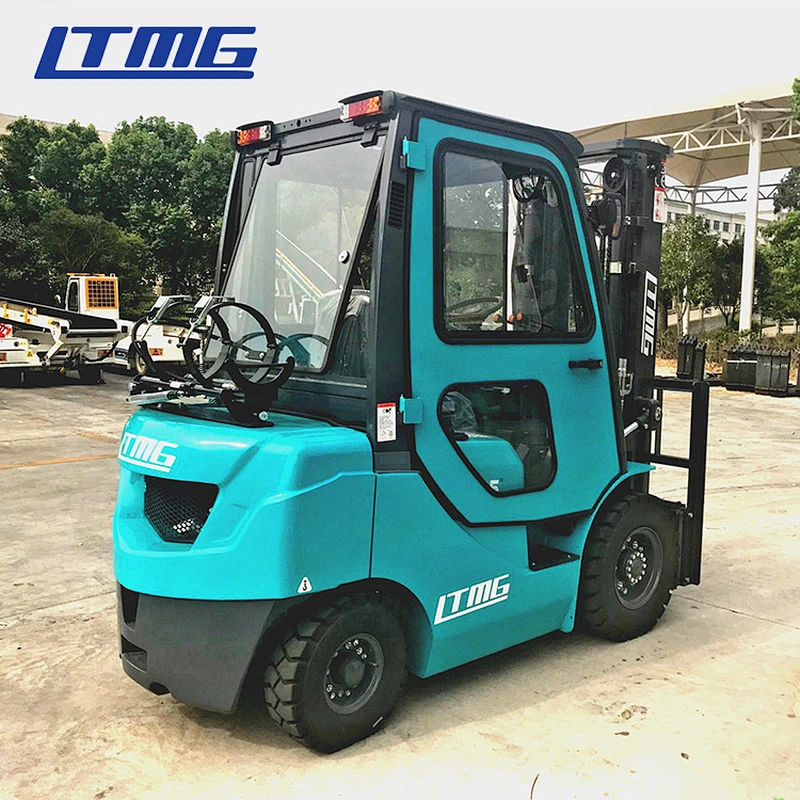

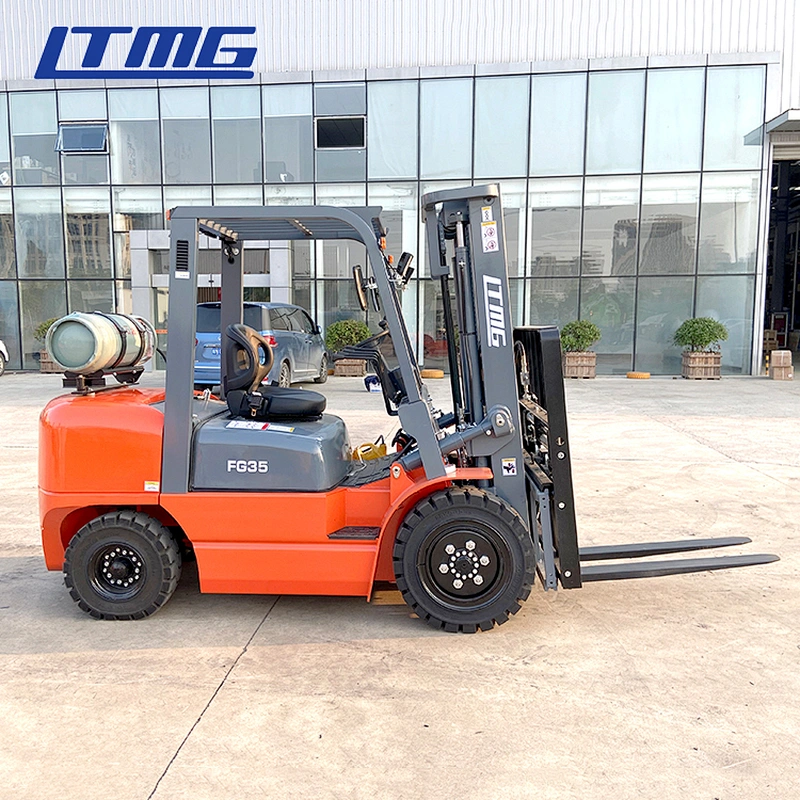

- Product Name:Dual Fuel LPG & Gasoline 2 ton 2.5 ton 3 ton 3.5 ton Gas Forklift
- Product Type:gas forklift
- Mast:2 Stage/3 Stage
- Engine:Nissan K25
- Load center:500mm
- Tires:Pneumatic tires/Solid tires
- Transmission:Hydraulic Transmission
- Wheelbase:1700mm
- Lifting height:0 - 6000mm

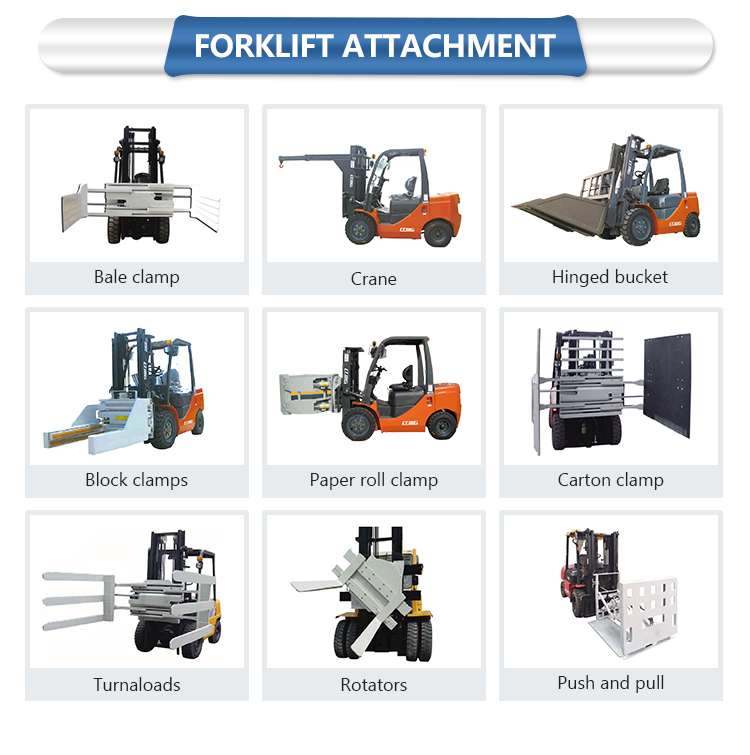

- Optional:Fork positioner/ full free mast, cab etc.
- Applicable Industries:Hotels
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Viet Nam
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Egypt
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Power Souce:LP Gas Engine
- Warranty:2 years
- After-sales Service Provided:Field maintenance and repair service
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Motor
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:5800*2200*3015mm
- Certification:CE/ISO9001:2008
The specification of 3 ton LPG forklift | ||||||||
Model | FG30 | |||||||
Power Type | LPG & Gasoline | |||||||
Rated Capacity | kg | 3000 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×125×45 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 480 | ||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | |||||
Overall Width | mm | 1225 | ||||||
Mast Lowered Height | mm | 2115 | ||||||
Mast Extended Height(With backrest) | mm | 4150 | ||||||
Overhead Guard Height | mm | 2090 | ||||||
Turning Radius (outside) | mm | 2440 | ||||||
Speed | Travel (Empty load) | km/h | 20 | |||||
Lifting (Full load) | mm/s | 510 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 28×9-15-12PR | |||||
Rear | mm | 6.50-10-10PR | ||||||
Wheelbase | mm | 1700 | ||||||
Service weight | kg | 4300 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||

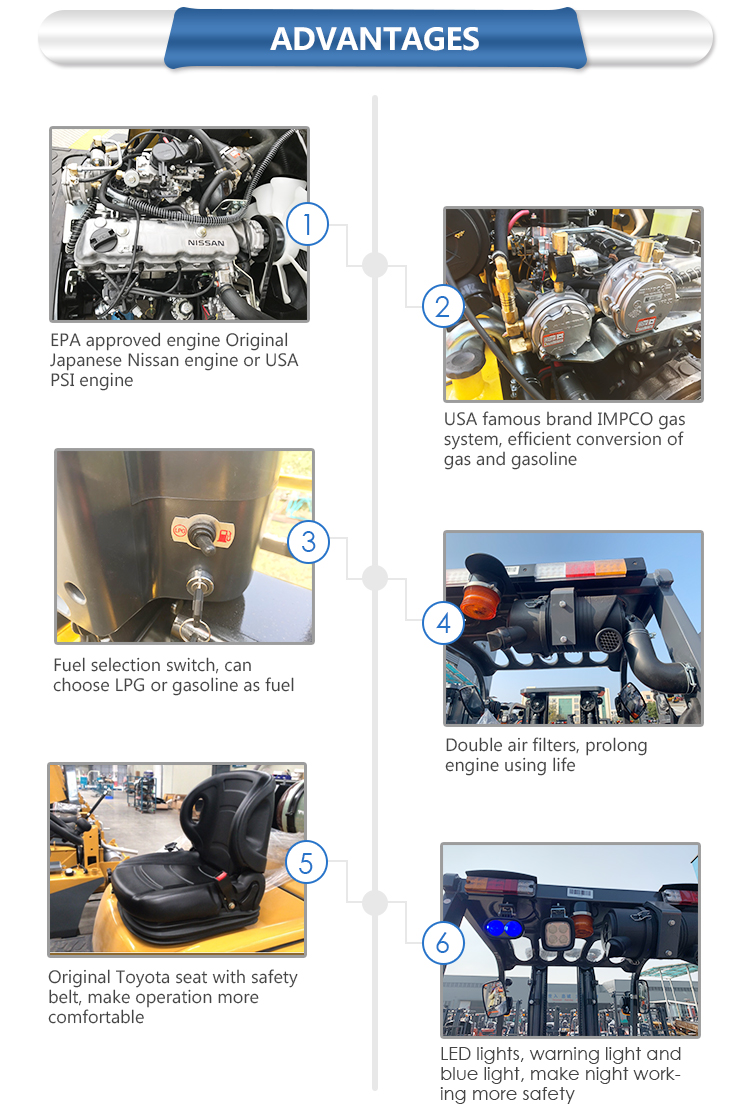

Engine | Model | K25 | ||||||
Manufacture | GCT (NISSAN) | |||||||
Rated output/r.p.m. | kw | 35.6/2100 | ||||||
Rated torque/r.p.m. | N·m | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 89×100 | ||||||
Displacement | cc | 2488 | ||||||
Fuel Tank Capacity | L | 60 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||
