- Rated Capacity:3.8 ton
- Load Center:500mm
- Lifting Height:3000mm
- Turning Radius (outside):2570mm
- Engine:Chinese Xinchai / Japanese Isuzu or Mitsubishi
- Mast:2 Stage/3 Stage
- Tire:Pneumatc tires or Solid tires
- Transmission type:Hydraulic
- Color:Customized Color
- Options:Mast, Side shifter, Fork positioner, Cabin, Air conditioner
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Turkey
- Local Service Location:Italy
- Local Service Location:Viet Nam
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:Mexico
- Local Service Location:Spain
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Local Service Location:Kyrgyzstan
- Showroom Location:Turkey
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Viet Nam
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:Mexico
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Argentina
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Kyrgyzstan
- Showroom Location:Nigeria
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:2150mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2835*1230*2150
- Certification:CE/ISO9001
Product Description

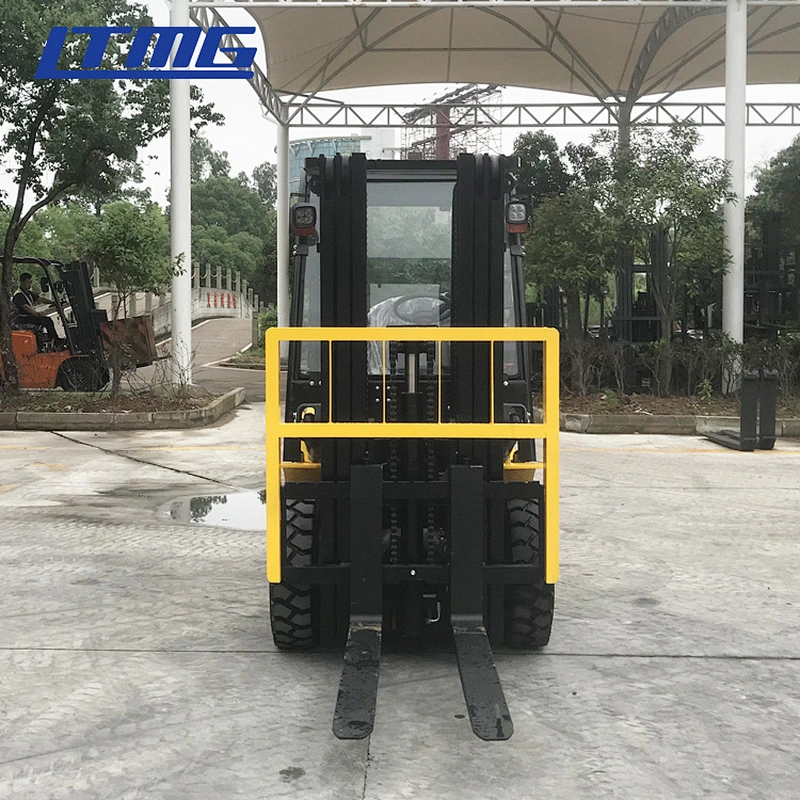

LTMG EUROV emission s engine3.8ton Diesel forklift FD38

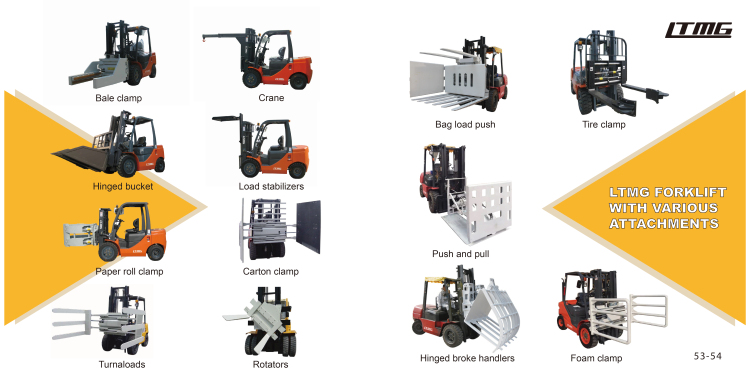

Attachments
LTMG has different attachemnts for your every requirement!

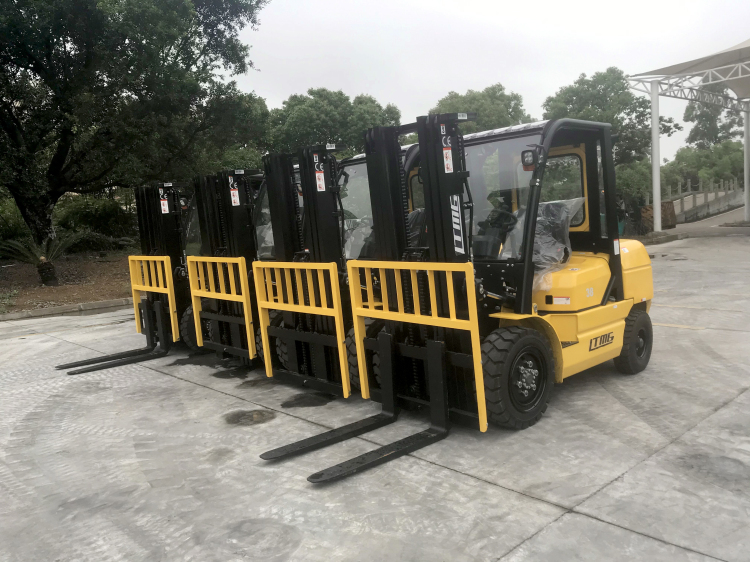

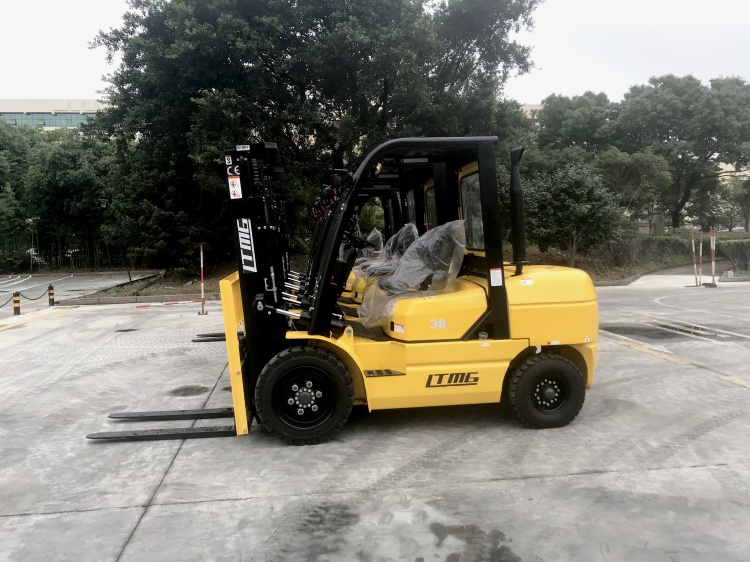

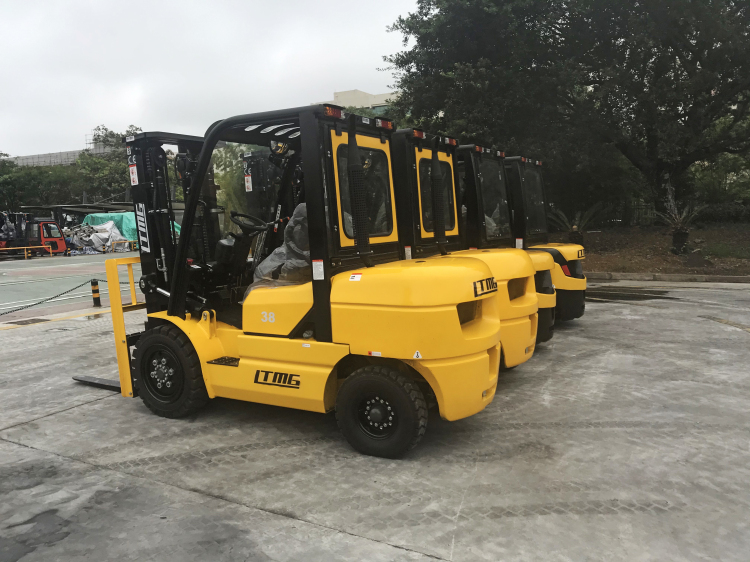

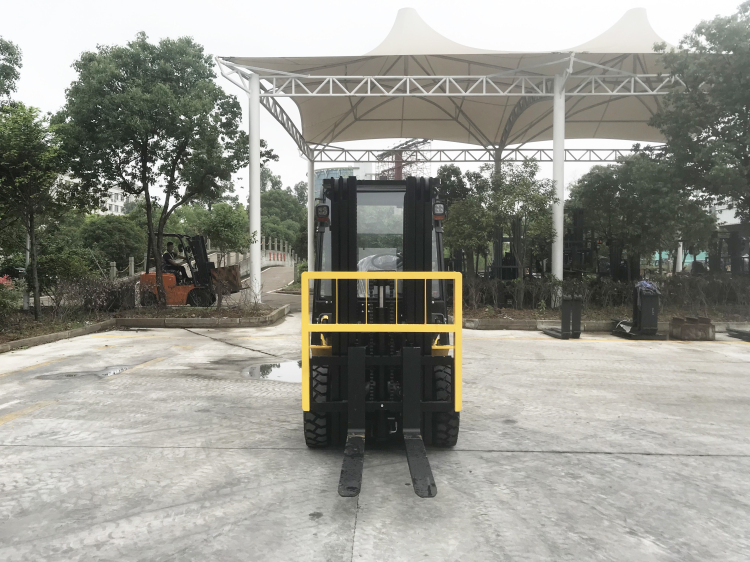

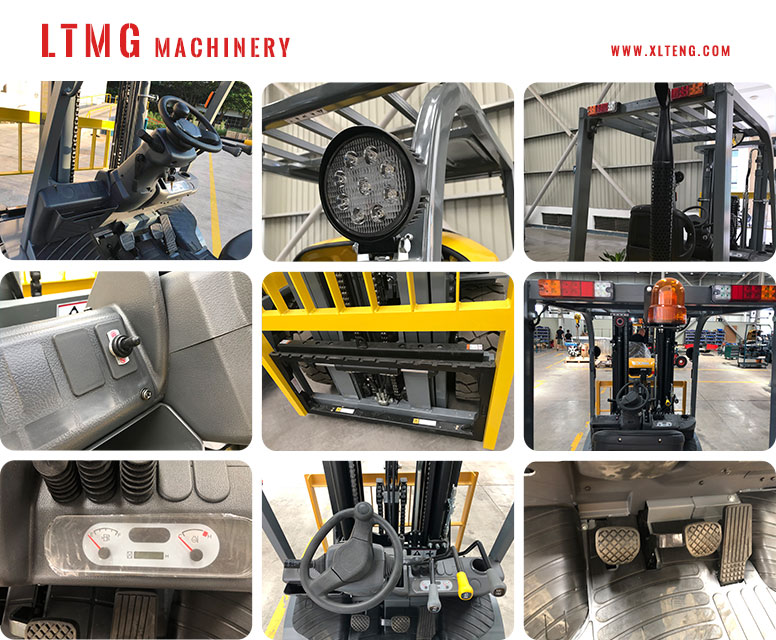

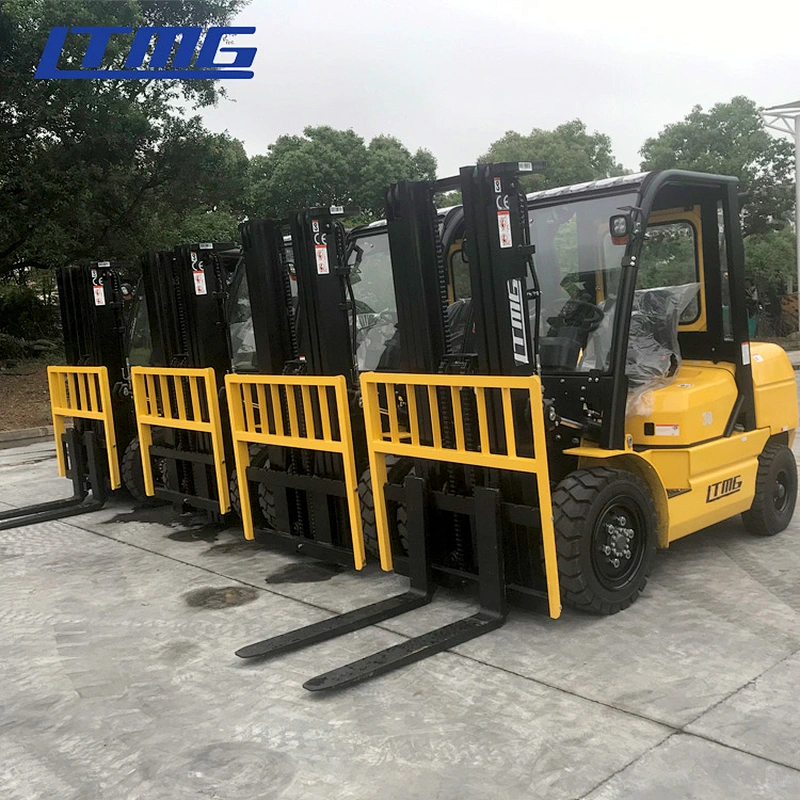

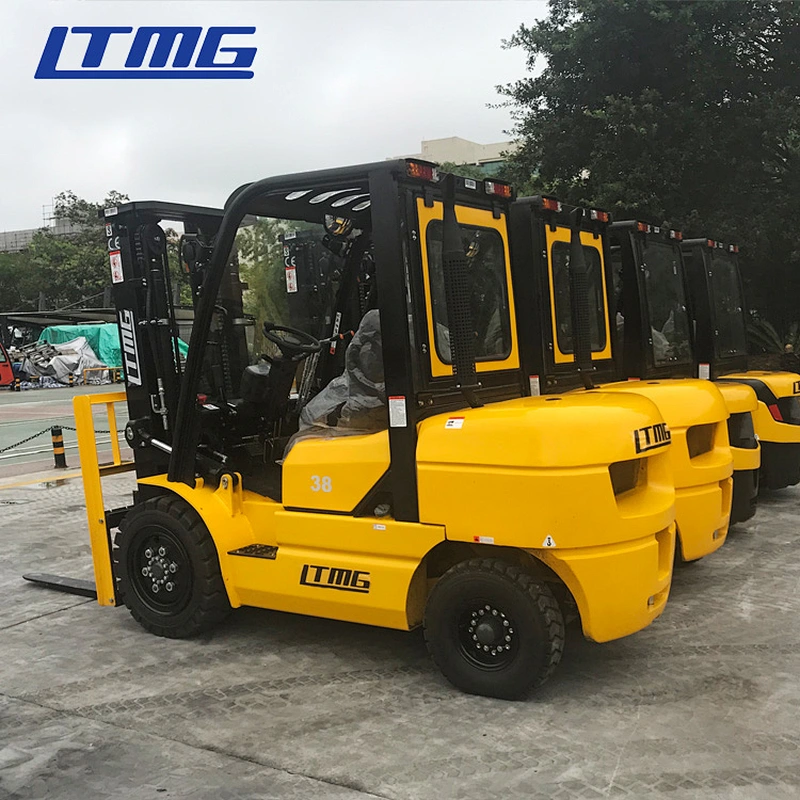

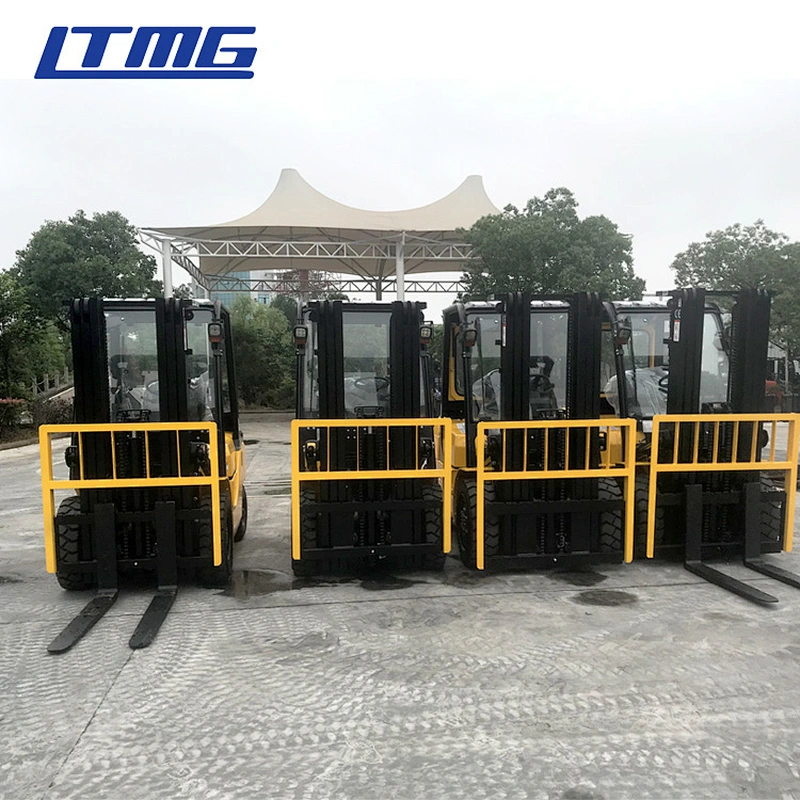

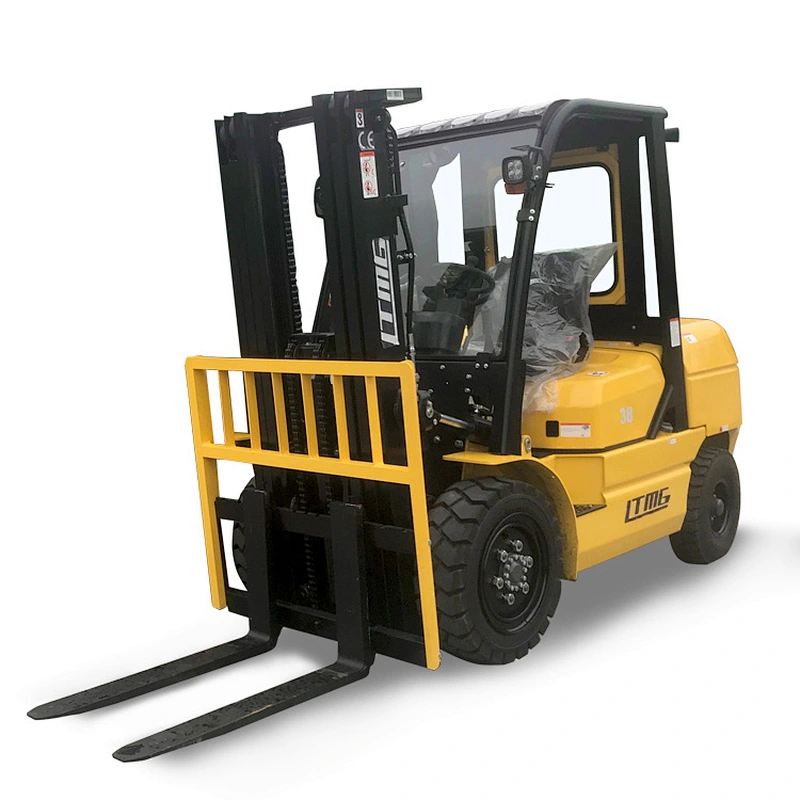

Detail images
Specification
The specification of LTMG EUROV emission s engine3.8ton Diesel forklift FD38 | ||||||||
Model | FD38 | |||||||
Power Type | Diesel | |||||||
Rated Capacity | kg | 3800 | ||||||
Load Centre | mm | 500 | ||||||
Lift Height | mm | 3000 | ||||||
Fork Size | L×W×T | mm | 1070×125×50 | |||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 485 | ||||||
Ground Clearance（Bottom of mast） | mm | 140 | ||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2835 | |||||
Overall Width | mm | 1230 | ||||||
Mast Lowered Height | mm | 2150 | ||||||
Mast Extended Height(With backrest) | mm | 4175 | ||||||
Overhead Guard Height | mm | 2110 | ||||||
Turning Radius (outside) | mm | 2570 | ||||||
Speed | Travel (Empty load) | km/h | 20 | |||||
Lifting (Full load) | mm/s | 430 | ||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||
Tire | Front | mm | 28×9-15-12PR | |||||
Rear | mm | 6.50-10-10PR | ||||||
Wheelbase | mm | 1800 | ||||||
Service weight | kg | 4900 | ||||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||||
Engine | Model | 4JG2PE-01 | ||||||
Manufacture | ISUZU | |||||||
Rated output/r.p.m. | kw | 46/2450 | ||||||
Rated torque/r.p.m. | N·m | 184.7/1600-1800 | ||||||
No.of Cylinder | 4 | |||||||
Bore×Stroke | mm | 95.4*107 | ||||||
Displacement | cc | 3059 | ||||||
Fuel Tank Capacity | L | 70 | ||||||
Transmission | Type | Hydraulic | ||||||
Stage | FWD/RVS | 1/1 | ||||||

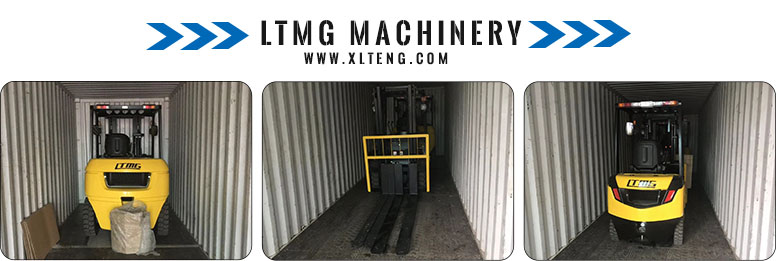

Packing & Delivery
Exhibition and Clients
Our Service
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

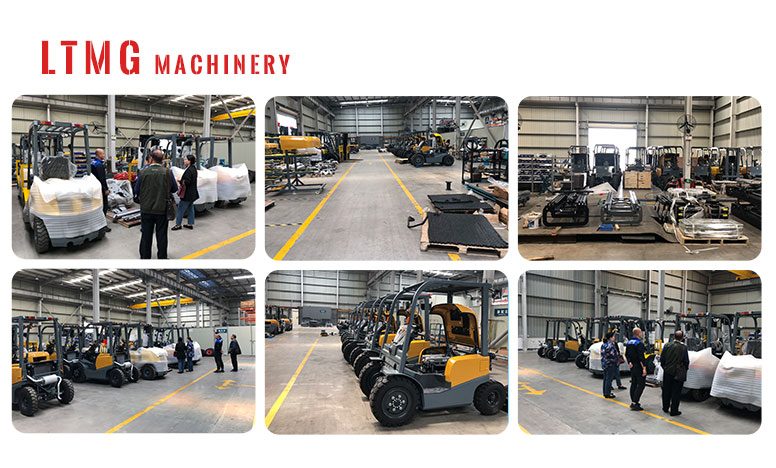

Our Company
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
