- Rated Capacity:1500Kg
- Load Centre:500mm
- Lifting Height:3000mm
- Mask Tilt Angle(F/R):6/12 degree
- Max Gradeability:20%
- Service Weight:2820Kg
- Wheel Base:1400mm
- Engine model:Chinese Engine(or ISUZU Optional)
- Transmission:Hydraulic(Mechanical optional)
- optional:Mast, Side shifter, Fork positioner, Cabin, Air conditioner
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Port
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Brazil
- Showroom Location:Kenya
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:110mm
- Fork Length:920mm
- Fork Width:120mm
- Overall Dimensions:2285x1086x2040
- Certification:CE/ISO9001
Product Description

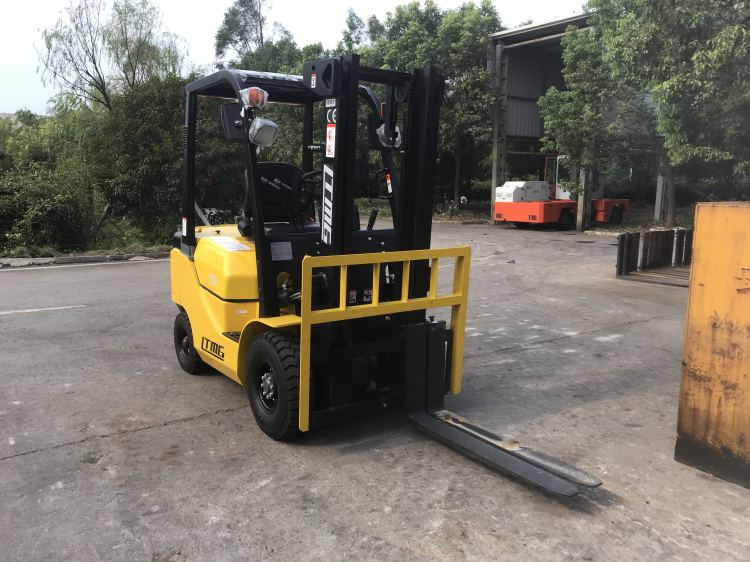

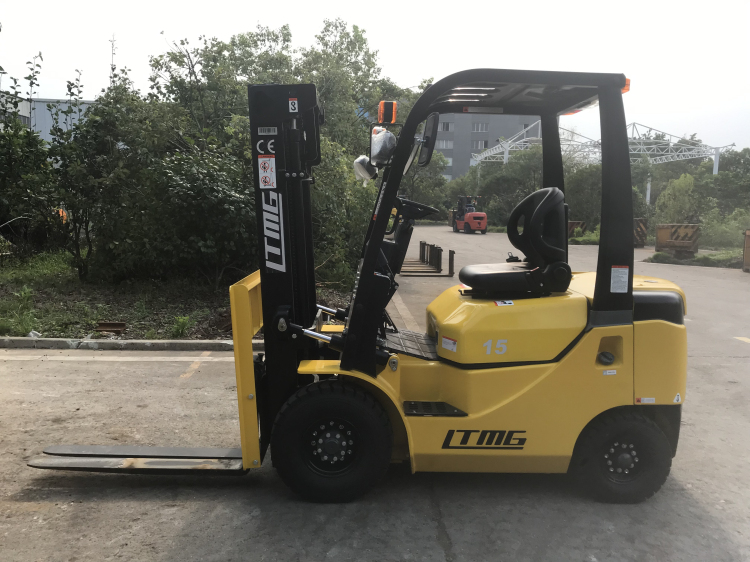

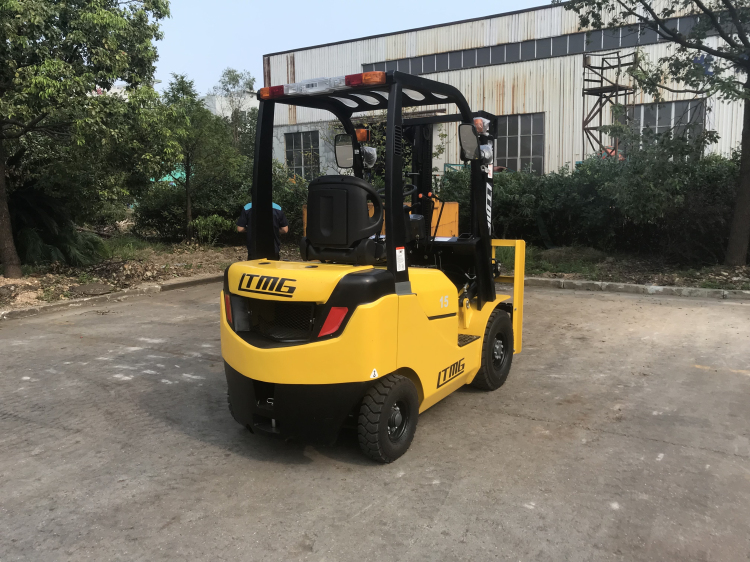

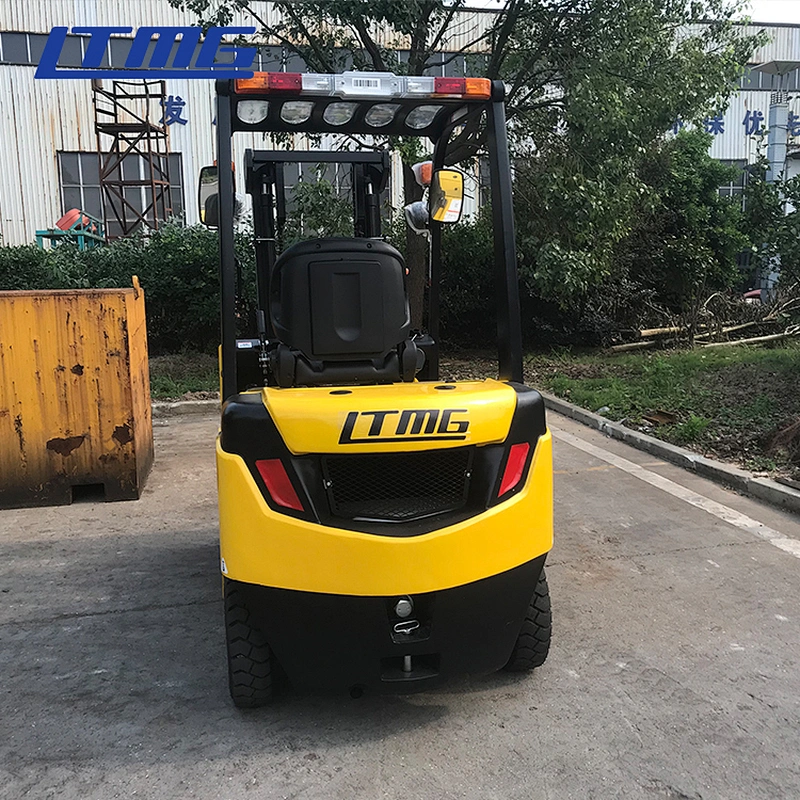

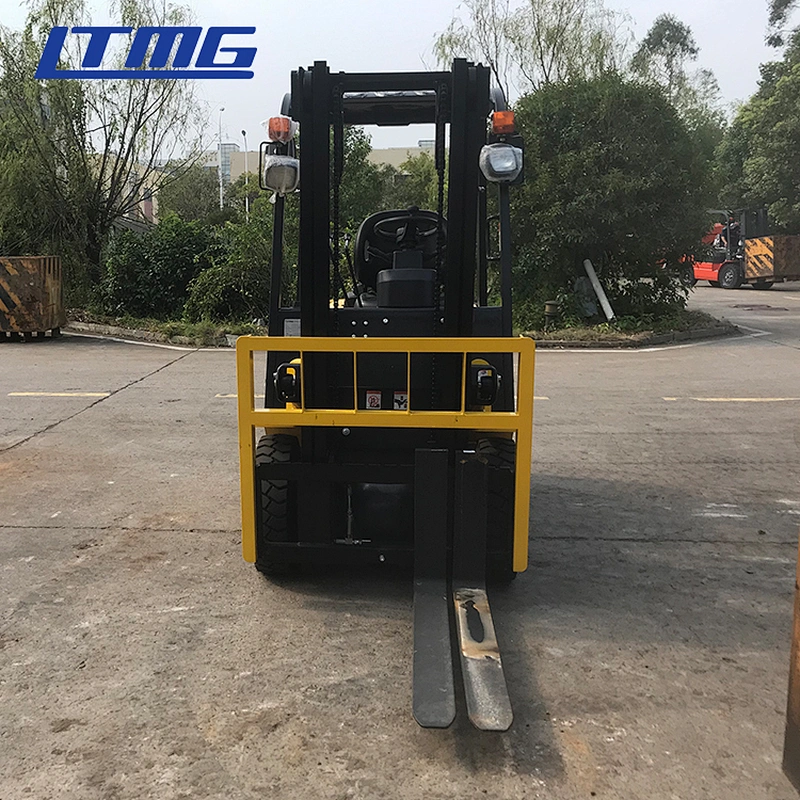

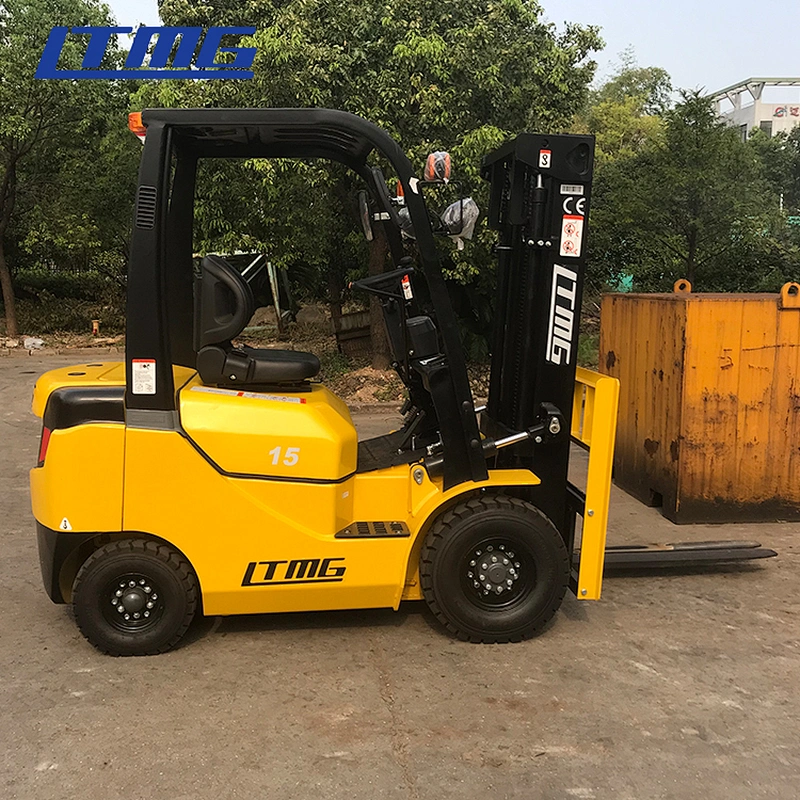

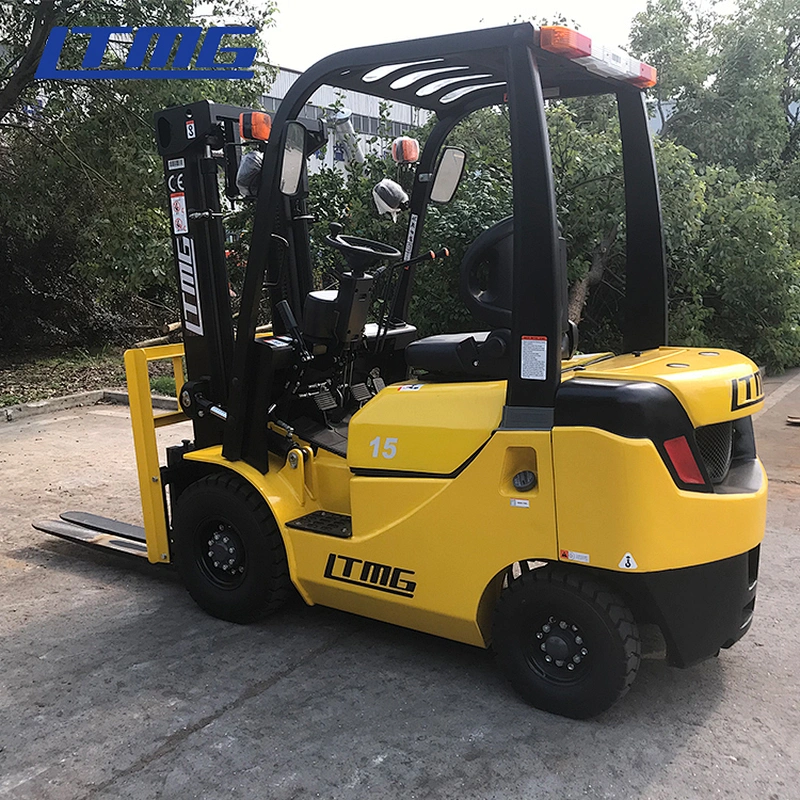

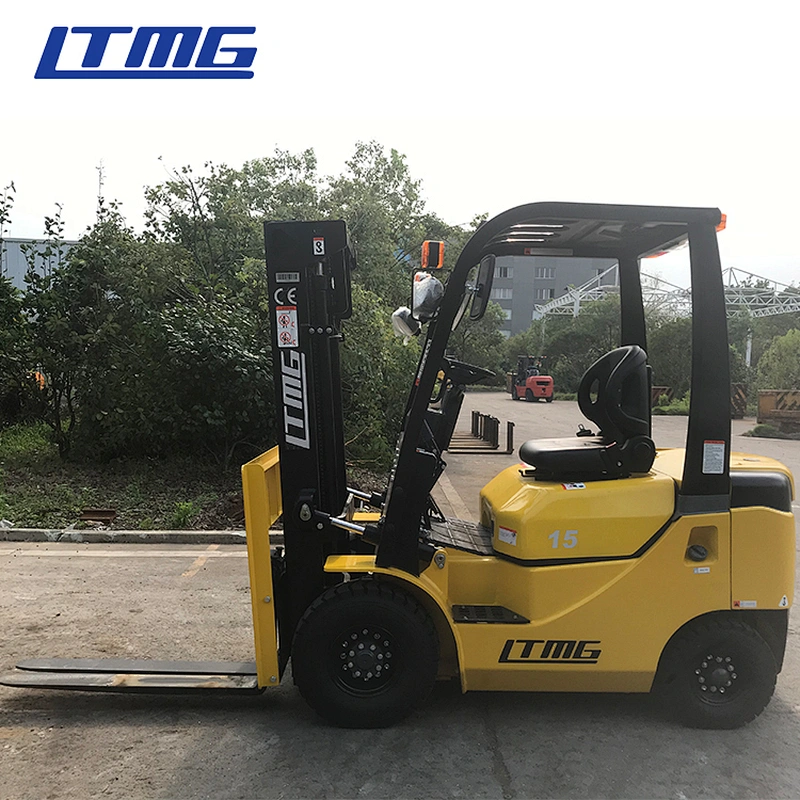

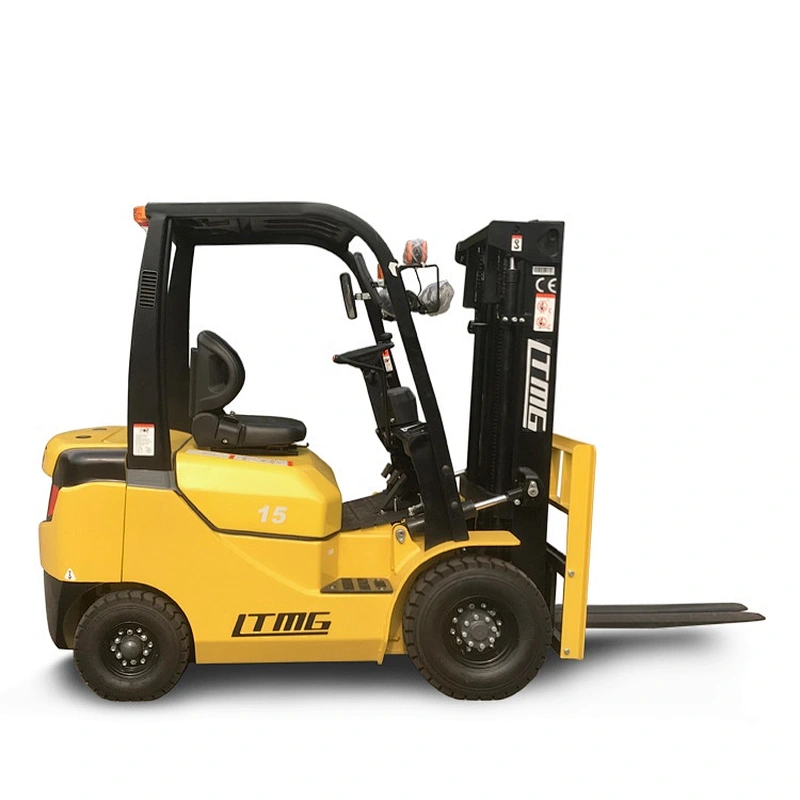

Chinese brand LTMG forklift mini 1.5 ton 2 ton 3 ton 4 ton 5 ton diesel forklift
LTMG High Quality 1.5 ton Forklift to 40 ton heavy duty forklift widely used in Port, Mining Site, Storage, Logistics and other heavy material handling cases.
As one of the top 5 suppliers of forklift and 2019 GMV Champion of this industry, LTMG's forklift has won highly reputation from customers, and its great quality and over 30 oversea after-sales services agents give our customers best reliable experience.
Optioncal Configuration
·Engine:Original japan ISUZU engine, Mitsubishi engine, Yanmar engine, EPA , Euro III engine
·Transmission: Mechanical transmission, Chinese Hydraulic Transmission, Okamura transmission
·Lifting Height: 3~6M optional
·Mast Type: 2 stage Normal Mast, full free 2 stage/duplex mast, and full free 3 stage/triplex mast optional, adopt German imported channel with advanced welding processing, high stable, durability, expand visibility of operators.
·Transmission: Mechanical transmission, Chinese Hydraulic Transmission, Okamura transmission
·Lifting Height: 3~6M optional
·Mast Type: 2 stage Normal Mast, full free 2 stage/duplex mast, and full free 3 stage/triplex mast optional, adopt German imported channel with advanced welding processing, high stable, durability, expand visibility of operators.
·Fork Length: customized by your request(please consider the load capacity reduction as per your actual application)
·Other Configurations: Side Shifter , Solid Tyres, Fork Positioner, Suspension Seat
·Comfort Configurations: Air Condition, Air Heater, Driver's Cab, LED Lights, Joystick, customized color etc.
·Other Configurations: Side Shifter , Solid Tyres, Fork Positioner, Suspension Seat
·Comfort Configurations: Air Condition, Air Heater, Driver's Cab, LED Lights, Joystick, customized color etc.
Optional Attachments:
-Bag Load Push -Crane
-Hinged Bucket -Load Stablizers
-Paper Roll Clamp -Turnaloads
-Rotators -Tire Clamp
-Bale Clamp -Push and Pull
-Carton Clamp -Hinged Broke Handlers
-Foam Clamp...
Specification
Model | FD15 | |||||
Power Type | Diesel | |||||
Rated Capacity | kg | 1500 | ||||
Load Centre | mm | 500 | ||||
Lift Height | mm | 3000 | ||||
Fork Size | L×W×T | mm | 920×120×35 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 410 | ||||
Ground Clearance（Bottom of mast） | mm | 110 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2285 | |||
Overall Width | mm | 1086 | ||||
Mast Lowered Height | mm | 1995 | ||||
Mast Extended Height(With backrest) | mm | 3940 | ||||
Overhead Guard Height | mm | 2040 | ||||
Turning Radius (outside) | mm | 2055 | ||||
Speed | Travel (Full load) | km/h | 15 | |||
Lifting (Full load) | mm/s | 450 | ||||
Max.Gradeability (No load/Full load) | % | 20 | ||||
Tire | Front | mm | 6.50-10-12PR | |||
Rear | mm | 5.00-8-10PR | ||||
Wheelbase | mm | 1400 | ||||
Service weight | kg | 2820 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||
Engine | Model | C240 | ||||
Manufacture | ISUZU | |||||
Rated output/r.p.m. | kw | 35.4/2500 | ||||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||||
No.of Cylinder | 4 | |||||
Bore×Stroke | mm | 86×102 | ||||
Displacement | cc | 2369 | ||||
Fuel Tank Capacity | L | 45 | ||||
Transmission | Type | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | ||||

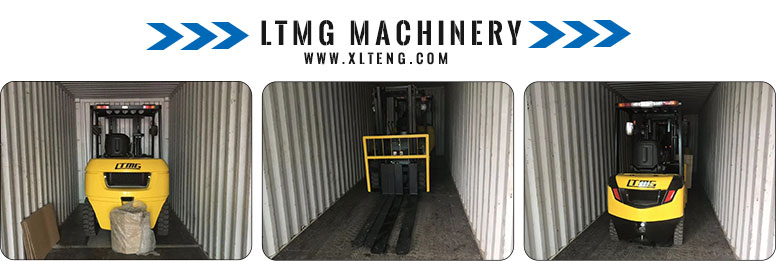

Packing & Delivery
Company Profile
Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.LTMG has many patents, including the application of H-type transverse drive unit and dynamic load-sensing priority steering system, which makes our equipment industry-leading in terms of energy consumption and safety.
FAQ
1. What Certificate do you have?LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. 2. Can you customize and design as the clients' requirement?LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.The colors can be painted as client's need.3. How long is the warranty of your products?Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.4. Can you produce the products labeled with the client's brand?With the authorization of the brand, we can OEM for our clients. 5. What payment terms do you accept?Normally 30% T/T in advance as deposit, balance paid before shipment.100% L/C at sight issued by world famous bank with good faith is also available.6. Delivery time:Standard configuration products are always in stock. The production period of Customizing products is 30 days.
