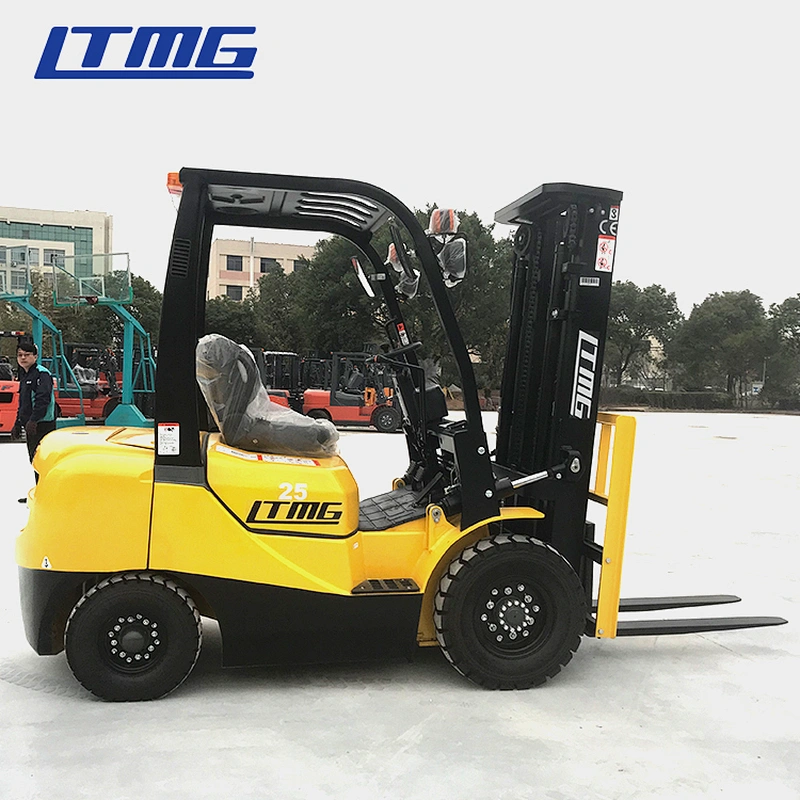

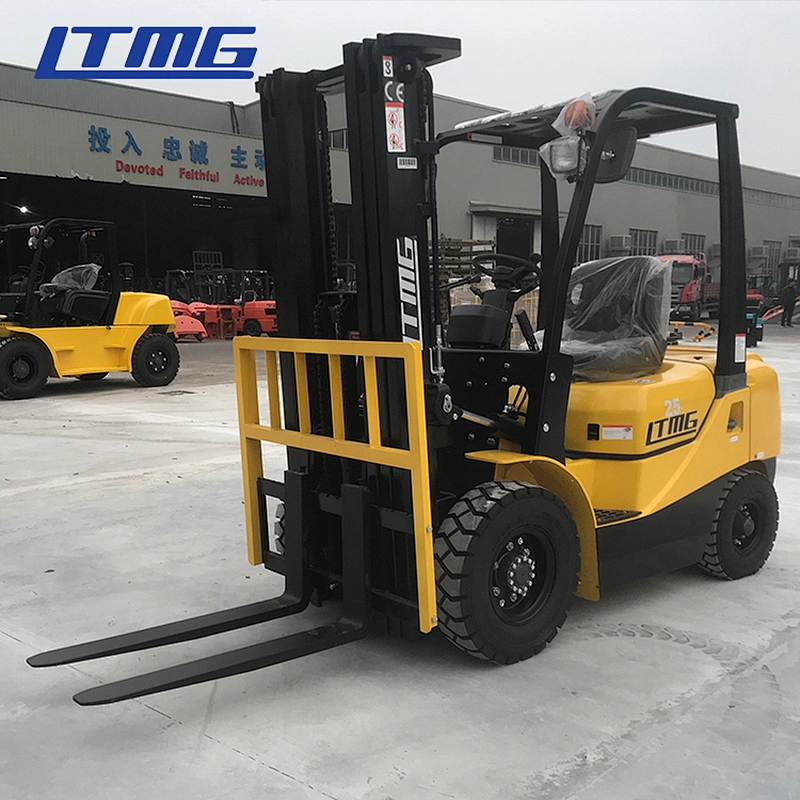

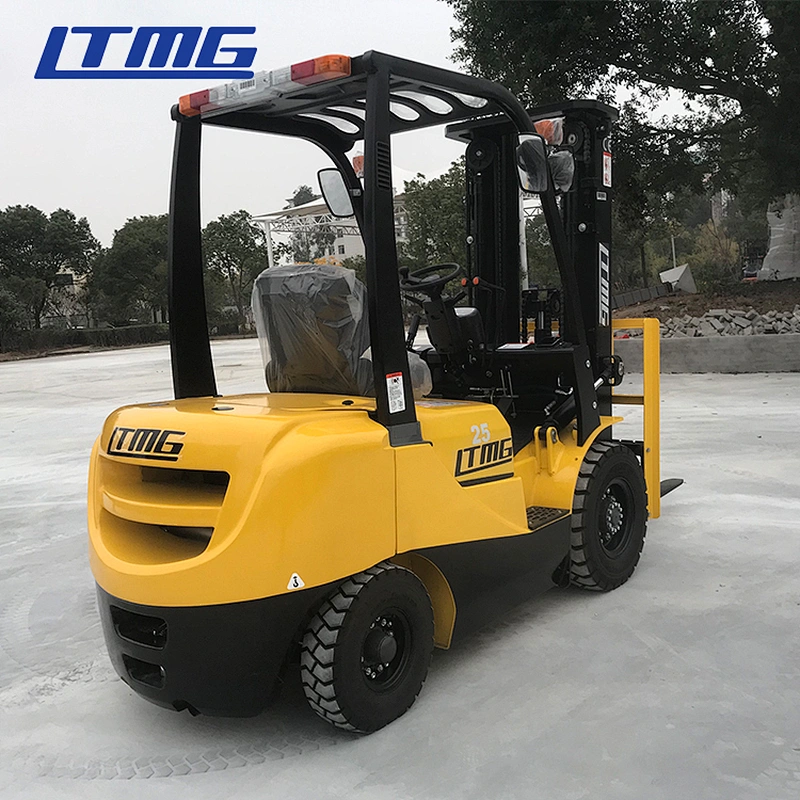

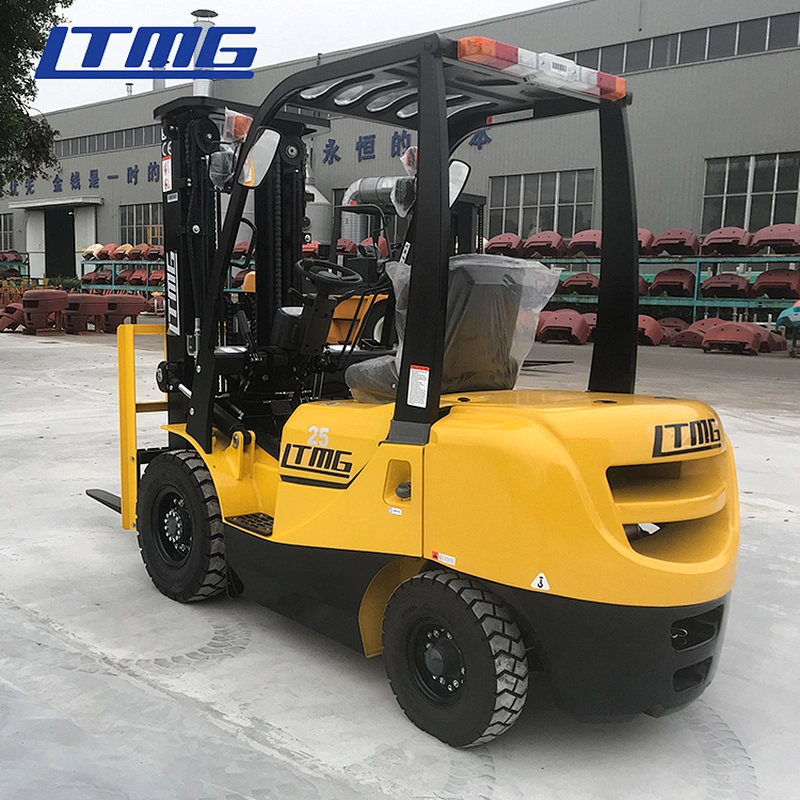

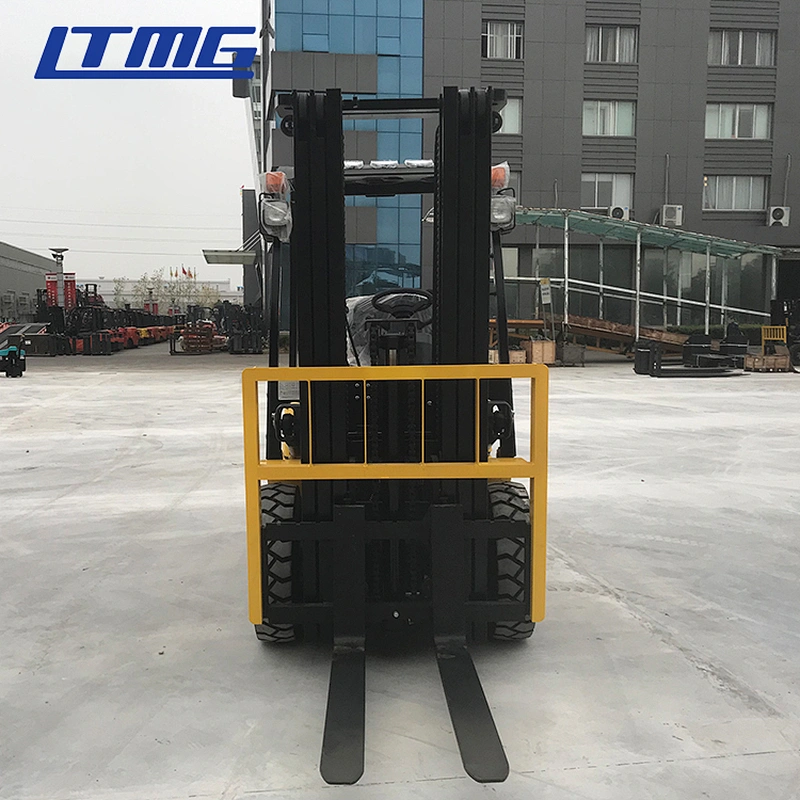

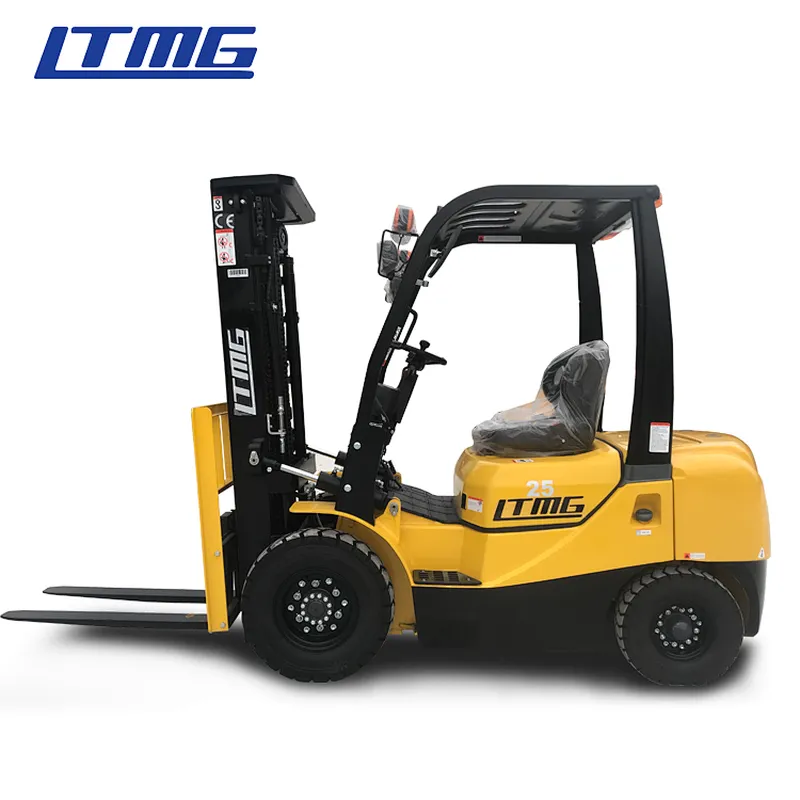

LTMG montacargas 2 ton 2.5 ton diesel forklift hydraulic counterbalance forklift

LTMG montacargas 2 ton 2.5 ton diesel forklift hydraulic counterbalance forklift

Price:: US $ 7217.00-7717.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 500.0 unit / Month
Country of Origin: Chinese port

Quantity:

Product Description

Brand:LTMG
Color:Customized
Load Center:500mm
Product Name:2 ton 3 ton diesel forklift warehouse forklift for sale
Mast:2 Stage/3 Stage
Free lift:150mm
Fork Length:1070mm
Wheelbase:1700mm
Transmission type:Automatic Transmission

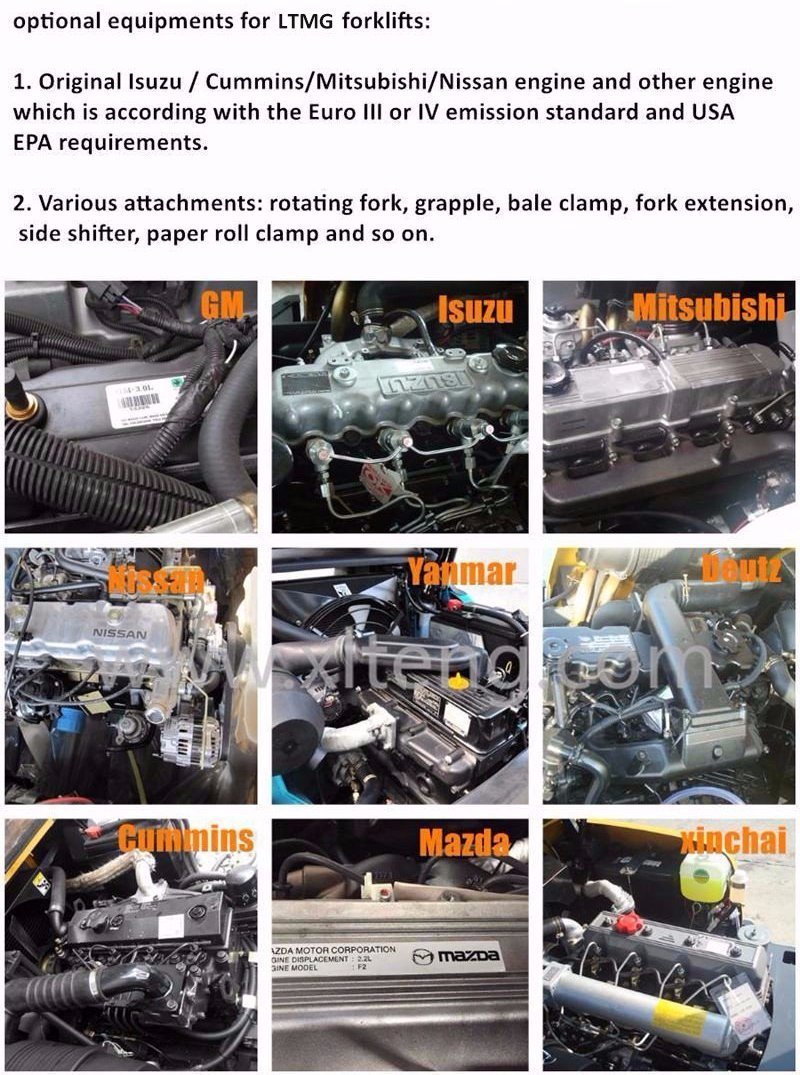

optional:side shift, lifting height, enclosed cab, etc
Applicable Industries:Hotels
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Restaurant
Applicable Industries:Retail
Applicable Industries:Printing Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:United States
Local Service Location:France
Local Service Location:Peru
Local Service Location:India
Local Service Location:Mexico
Local Service Location:Russia
Local Service Location:Morocco
Local Service Location:Kenya
Local Service Location:Argentina
Local Service Location:Chile
Local Service Location:Algeria
Local Service Location:Romania
Local Service Location:South Africa
Local Service Location:Ukraine
Local Service Location:Uzbekistan
Showroom Location:Canada
Showroom Location:United States
Showroom Location:Italy
Showroom Location:France
Showroom Location:Viet Nam
Showroom Location:Brazil
Showroom Location:Indonesia
Showroom Location:Thailand
Showroom Location:Kenya
Showroom Location:South Korea
Showroom Location:UAE
Showroom Location:Algeria
Showroom Location:Romania
Showroom Location:South Africa
Showroom Location:Nigeria
Showroom Location:Tajikistan
Showroom Location:Australia
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Free spare parts
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Pressure vessel
Core Components:Motor
Core Components:Bearing
Core Components:Gear
Core Components:Pump
Core Components:Gearbox
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Min. Lifting Height:3000mm
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:2705*1225*2075
Certification:CE/ISO9001

Product Description

Specification

Model				FD20	FD25
Power type				Diesel	Diesel
Rated capacity			kg	2000	2500
Load center			mm	500	500
Lift height			mm	3000	3000
Fork size	LWT	mm	107012040	107012040
Mast tilt Angle	F/R	Deg	6°/12°	6°/12°
Front overhang(Wheel center to fork face)			mm	465	465
Ground clearance(Bottom of mast)			mm	110	110
Overall Dimension	Length to face of fork(without fork)	mm	2595	2595
		Overall width	mm	1150	1150
		Mast lowered height	mm	2070	2070
		Mast extended height(with backrest)	mm	4070	4070
		Overhead guard height	mm	2070	2070
Turning radius(outside)			mm	2310	2310
Speed	Travel(Full load)	Km/h	19	19
Speed		Lifting(Full load)	mm/s	530	530
Max gradeability(No load/Full load)			%	20	20
Tire	Front	mm	7.00-12-12PR	7.00-12-12PR
Tire		Rear	mm	6.00-9-10PR	6.00-9-10PR
Wheelbase			mm	1600	1600
Service weight			kg	3590	3790
Battery	Voltage/Capacity	V/ah	12/80	12/80
Engine	Model		C240	C240
		Manufacture		Isuzu	Isuzu
		Rated output/rpm	Kw	35.4/2500	35.4/2500
		Rated torque/rpm	N.m	137.7/1800	137.7/1800
		No of cylinder		4	4
		Bore*stroke	mm	86*102	86*102
		Displacement	cc	2369	2369
		Fuel tank	L	60	60
Transmission	Type		Hydraulic	Hydraulic
Transmission		Stage FWD/RVS		1/1	1/1

1.The most reasonable system matching after repeated verification

2.Selection of domestic first-line brands or imported brands parts

3.After 400 hours of continuous enhancement test

4.Adopt high quality automobile paint and advanced paint treatment equipment to ensure the quality of paint

5.Establish detailed process control system to ensure quality

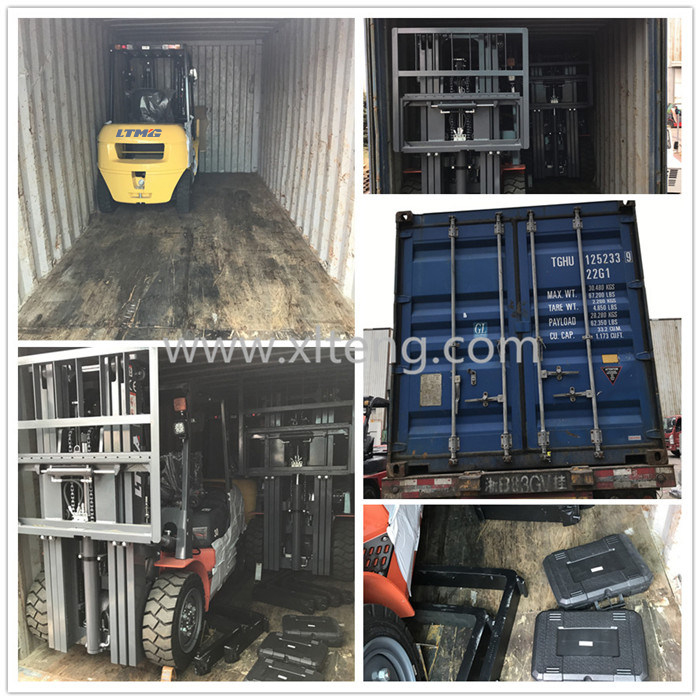

Packing & Delivery

Exhibition and Clients

Our Service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

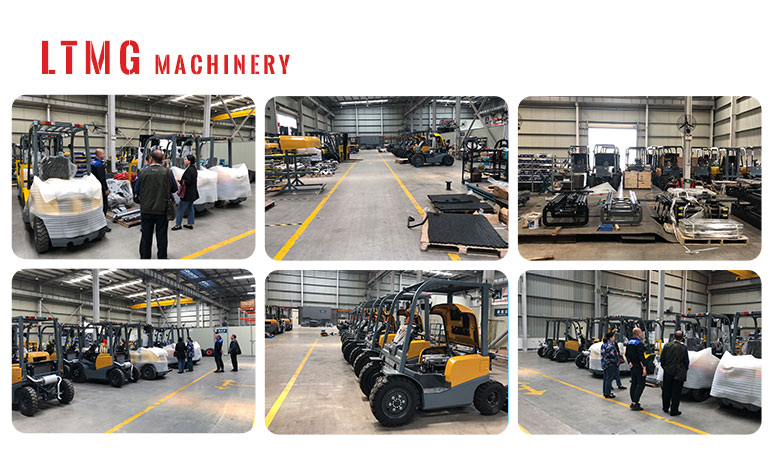

Our Company

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
