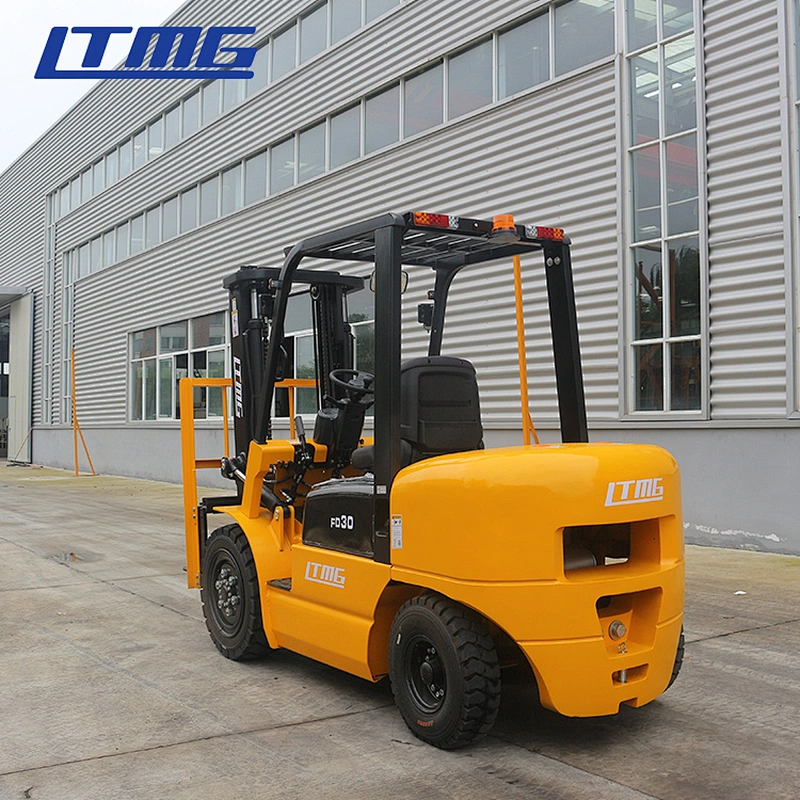

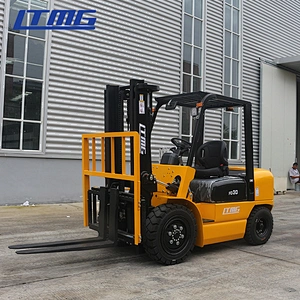

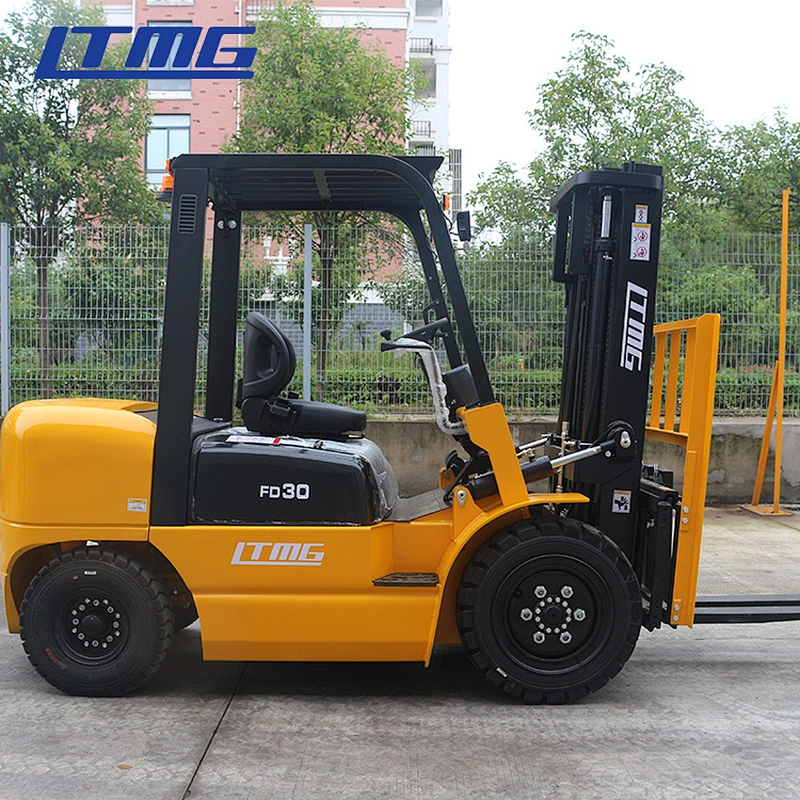

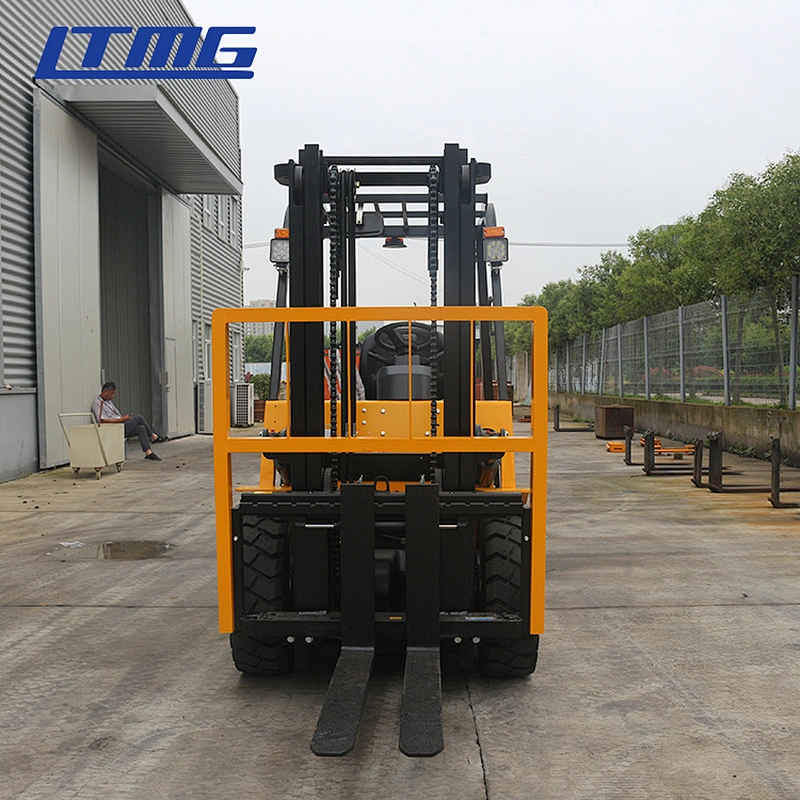

China forklift truck solid tyre optional 1.5t 1.8t 2t 2.5t 3t diesel forklift 3 ton hydraulic forklift for sale

China forklift truck solid tyre optional 1.5t 1.8t 2t 2.5t 3t diesel forklift 3 ton hydraulic forklift for sale

Price:: US $ 7620.00-7720.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 300.0 unit / Month
Country of Origin: Chinese port

Quantity:

Product Description

Rated Capacity:3000kg
Load Center:500mm
Fork Size:1070*125*45mm
Wheelbase:1700mm
Engine:XINCHAI or Japanese engines
Ground Clearance:120mm
Turning radius:2445mm
Battery:12V/80Ah
Truck Weight:4380kg
Max.Gradeability:20%
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
Local Service Location:Canada
Local Service Location:France
Local Service Location:Saudi Arabia
Local Service Location:Pakistan
Local Service Location:Spain
Local Service Location:Malaysia
Local Service Location:Kenya
Local Service Location:Algeria
Local Service Location:Sri Lanka
Local Service Location:Ukraine
Local Service Location:Tajikistan
Showroom Location:Canada
Showroom Location:United States
Showroom Location:France
Showroom Location:Saudi Arabia
Showroom Location:Mexico
Showroom Location:Russia
Showroom Location:Kenya
Showroom Location:Chile
Showroom Location:Algeria
Showroom Location:Nigeria
Showroom Location:Tajikistan
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Video technical support
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Core Components:Bearing
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Min. Lifting Height:0 m
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:2705*1225*2075
Certification:CE ISO

Product Description

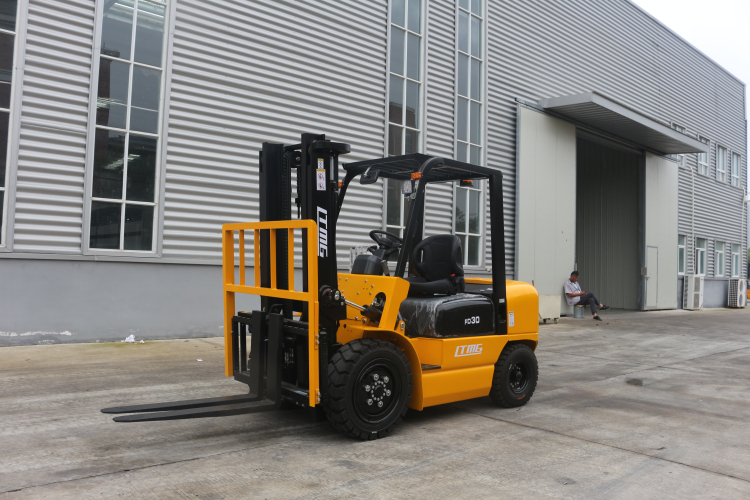

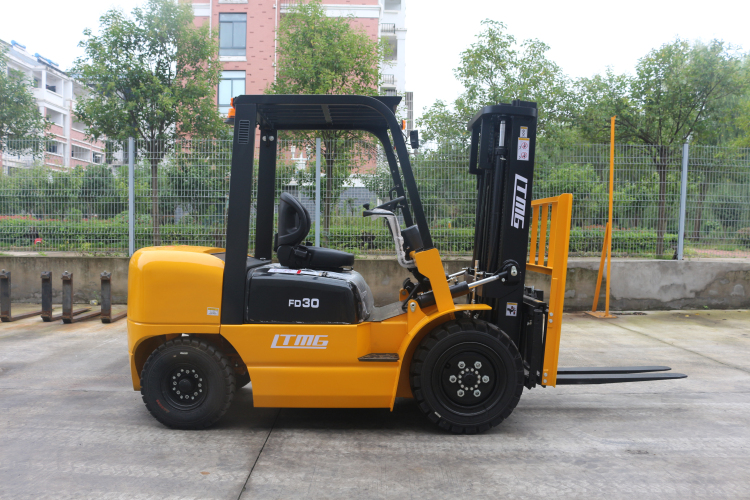

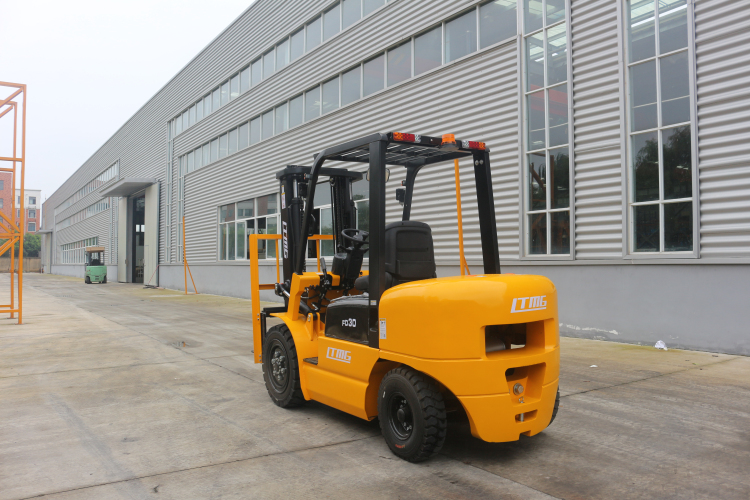

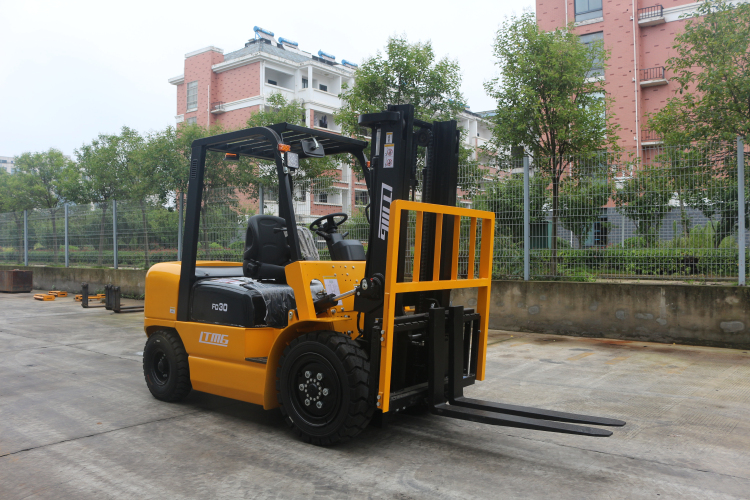

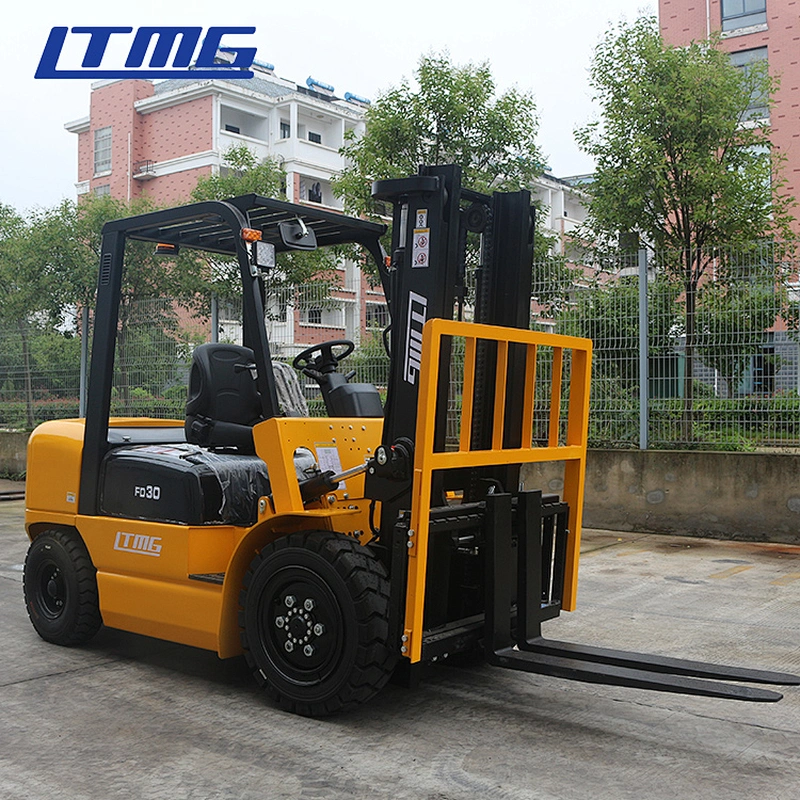

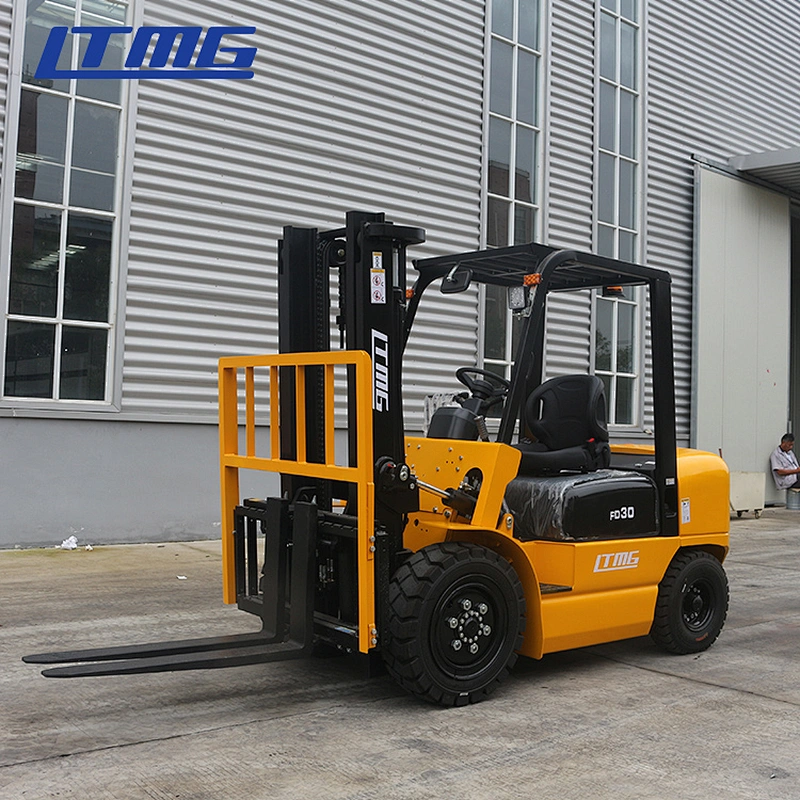

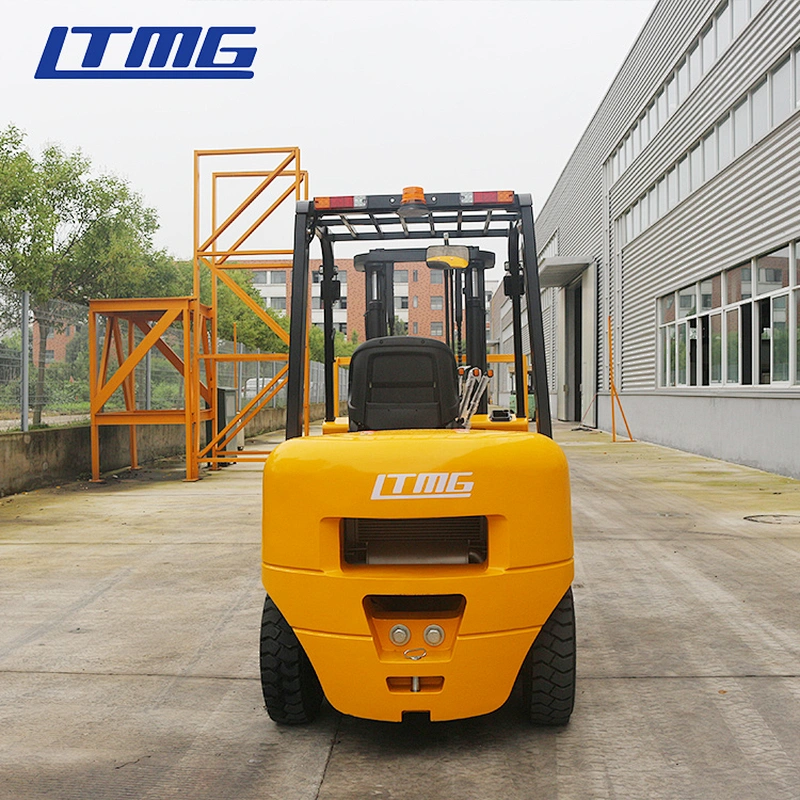

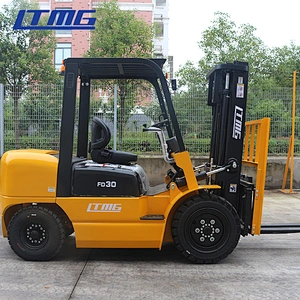

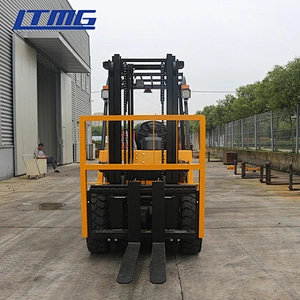

LTMGNew Model 3 ton diese forklift FD30

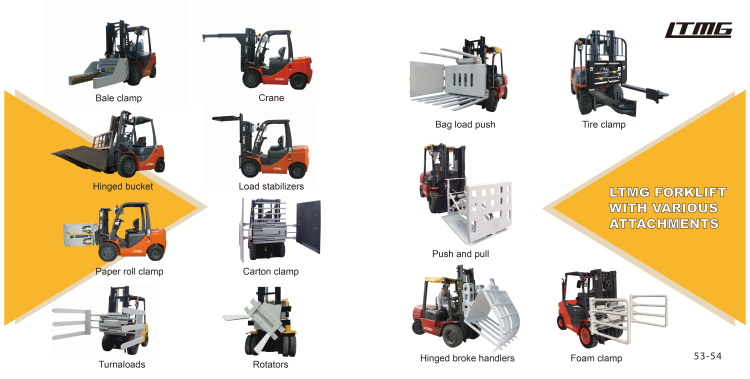

Attachments

LTMG has every attachment for your different usage!

Specification

*The specification for 3 ton diesel forklift FD30*
*The specification for 3 ton diesel forklift FD30*
Manufacturer			LTMG
Model			FD30
Load capacity		kg	3000
Load center		mm	500
Power unit			Diesel
Operator type			Driver/seat
Tire type			Pneumatic
Wheel	Front/rear		2/2
Max. lifting height		mm	3000
Free lift		mm	150
Fork size	LWT	mm	107012545
Tilt range	Mast forward/backward	deg	6/12
Overall length(without fork)		mm	2705
Total width		mm	1225
Mast height (fork lowering)		mm	2075
Overall height fork raised	With backrest	mm	4250
Height to head guard		mm	2140
Turning raduis(outside)		mm	2445
Front face of fork to front axle		mm	480
Min. right angle stacking aisle	without load length&clearence	mm	2925
Speed	Max Travelling full/no load	km/h	18/19.5
		Lifting full/no load	mm/s	450/500
		Lowering full/no load	mm/s	450/450
Max.drawbar pull	Power shift T/M full/no load	kg	1500/1000
Max.drawbar pull		Manual shift T/M full/no load	kg	1550/1000
Gradeability at 1.6km/h	Power shift T/M full/no load	%	18/20
Gradeability at 1.6km/h		Manual shift T/M full/no load	%	18/20
Truck weight		kg	4380
Weight distribution	Full load front/rear	kg	6490/890
Weight distribution		No load front/rear	kg	1670/2700
Tires	Number	front/rear	43133
		Model	front axle	28x9-15-12PR
		Model		rear axle	6.50-10-10PR
Wheelbase		mm	1700
Tread	Front/rear	mm	1000/970
Ground clearence	At lowest point(mast)	mm	120
Ground clearence		Frame	mm	135
Brake	Service brake		Hydraulic-foot pedal
Brake		Parking brake		Mechanical-hand lever
Battery	Voltage/capacity	V/AH	12/80
Engine	Model		ISUZU C240
		Rated power	kw/rpm	34.3/2500
		Rated torque	N.m/rpm	138/1800
		Number of cylinders		4
		Placement	L	2.369
		Fuel tank capacity	L	70
Transmission	Speed forward/backward	Power shift T/M Manual shift T/M	1-1 power shift T/M 2-2 manual shift T/M
Operating pressure	Hydraulic system pressure	kg/cm²

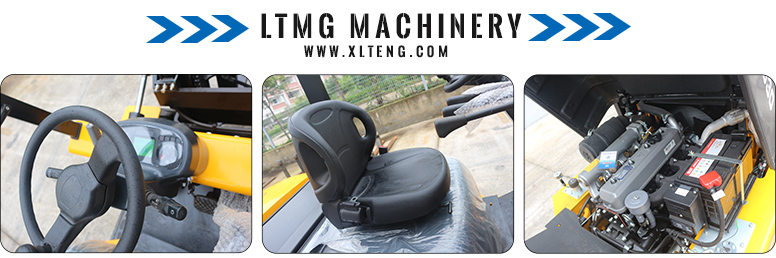

Details of our forklifts

1.Integrated central control box
2.Ergonomical design
3.Energy-saving hydraulic system
4.High-quality hydraulic hoses
5. Wide-view mast

6.3m-6m Lifting Height
7.Full-free Duplex or Triplex Mast
8. Customized Color, air-conditioner Cabin, etc.

9. Optional engines:Japan engine ISUZU or Mitsubishi,EPA kohler engine ,Euro III engine

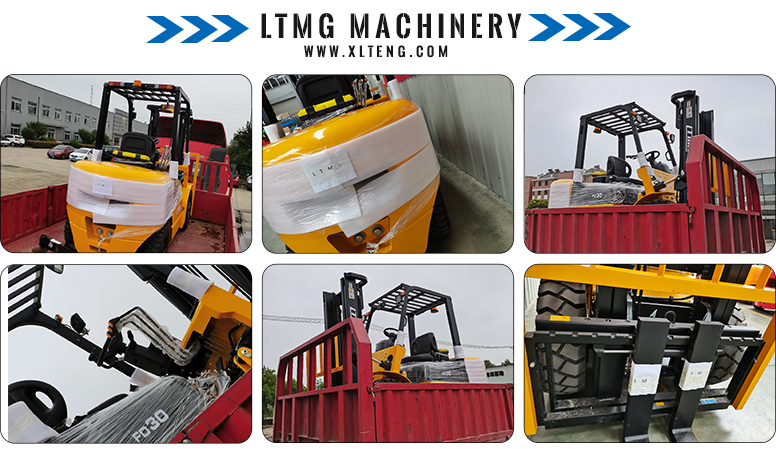

Packing & Delivery

Exhibition and Clients

Our Service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

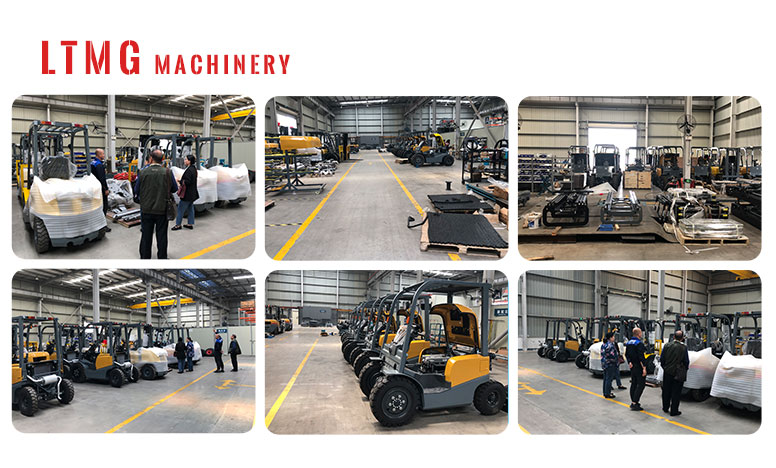

Our Company

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
