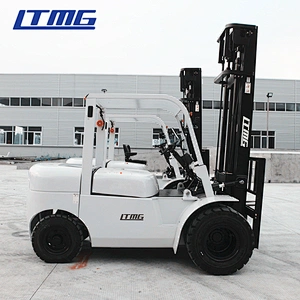

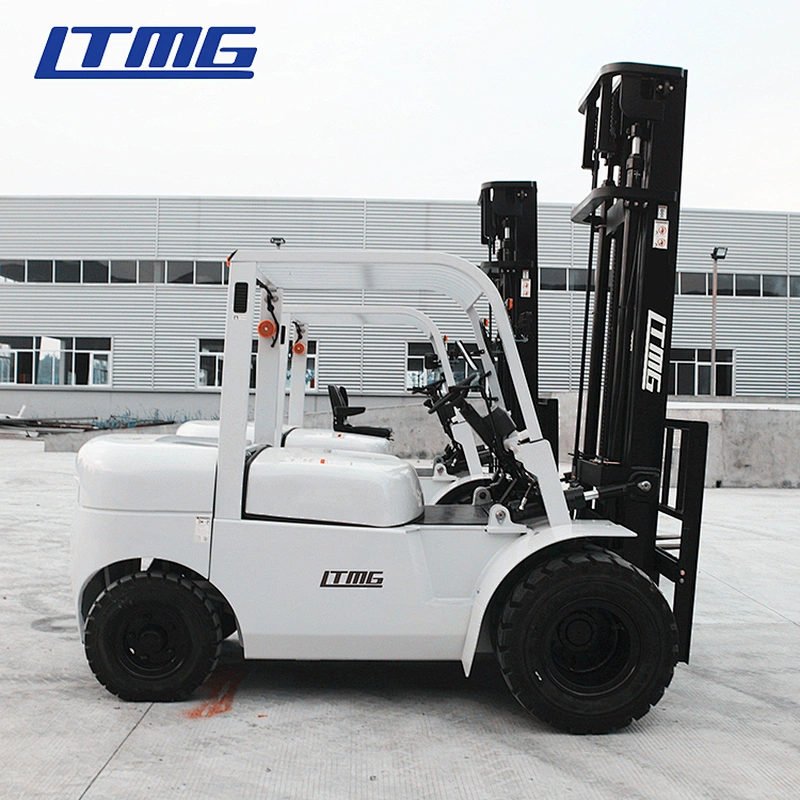

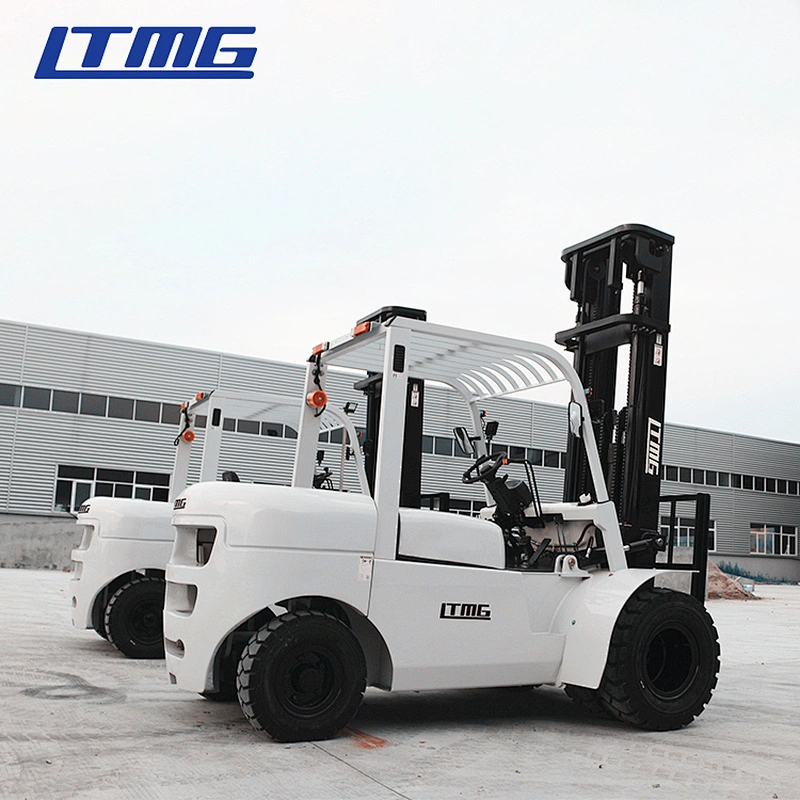

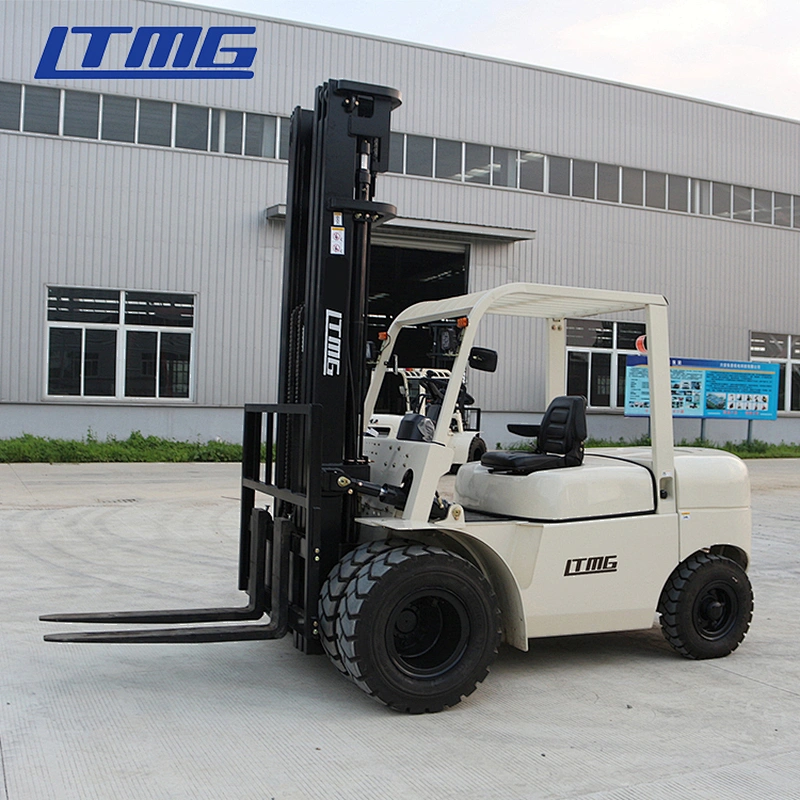

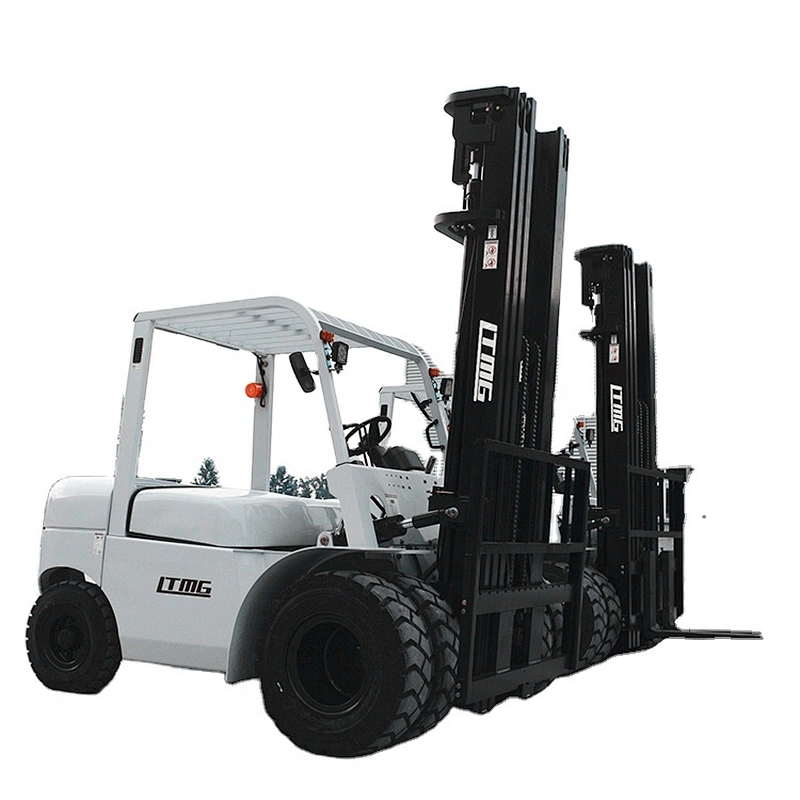

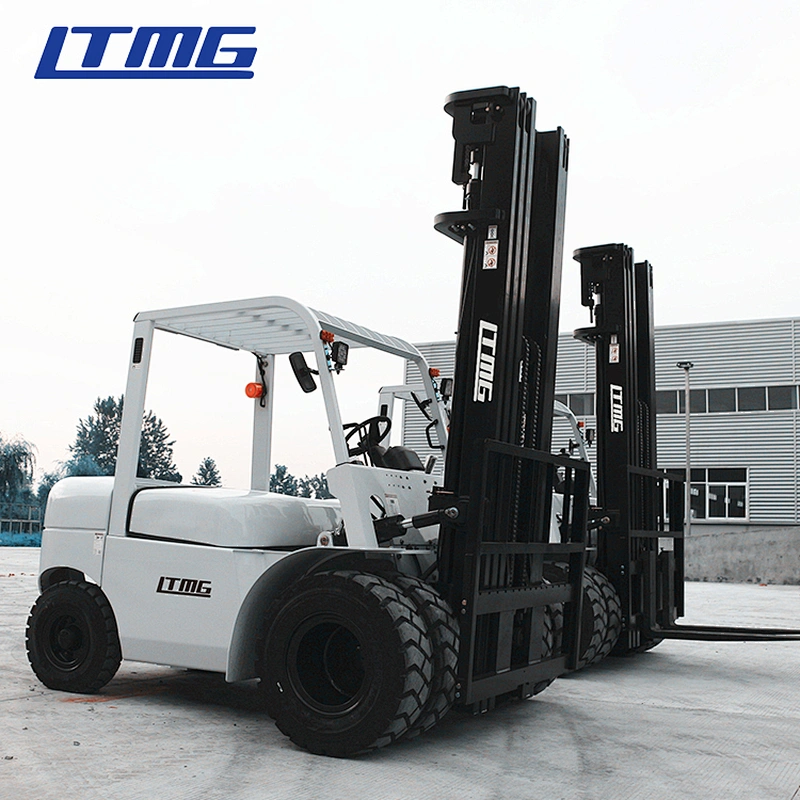

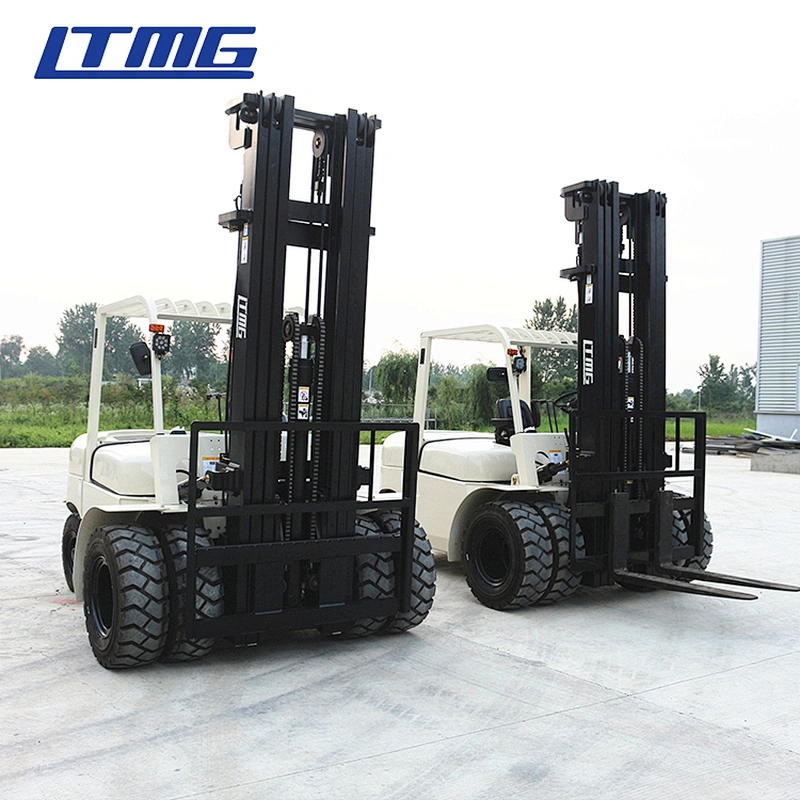

LTMG Chinese brand new forklift diesel 4 ton 4.5 ton 5 ton diesel forklifts

Price:: US $ 18230.00-19288.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 500.0 unit / Month
Country of Origin: Shanghai, China

Quantity:

Product Description

Product Name:LTMG brand new forklift diesel 4 ton 4.5 ton 5 ton diesel forklifts
Item:5 ton forklift
Engine:Chinese Brand engine, Japanese engine optional
Warranty:1 year or 2000 working hours,which occurs first
Service Weight:8150Kg
Brand:LTMG
Wheelbase:2250mm
Lifting height:3000mm
Transmission:Mechanical/Automatic
After-sales Service Provided:Overseas third-party support available
Applicable Industries:Machinery Repair Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Applicable Industries:Warehouse
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
Local Service Location:Egypt
Local Service Location:Canada
Local Service Location:United Kingdom
Local Service Location:United States
Local Service Location:Italy
Local Service Location:France
Local Service Location:Germany
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Saudi Arabia
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Australia
Local Service Location:UAE
Local Service Location:South Africa
Showroom Location:Egypt
Showroom Location:Canada
Showroom Location:United Kingdom
Showroom Location:United States
Showroom Location:France
Showroom Location:Saudi Arabia
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:South Africa
Showroom Location:Malaysia
Showroom Location:Morocco
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Online support
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Pressure vessel
Core Components:Bearing
Core Components:Gear
Core Components:Pump
Core Components:Gearbox
Core Components:Engine
Place of Origin:CN;JIA
Brand Name:LTMG
Min. Lifting Height:200mm
Fork Length:1220mm
Fork Width:150mm
Overall Dimensions:3440*2010*2430mm
Certification:CE/ISO9001:2008

Product Description

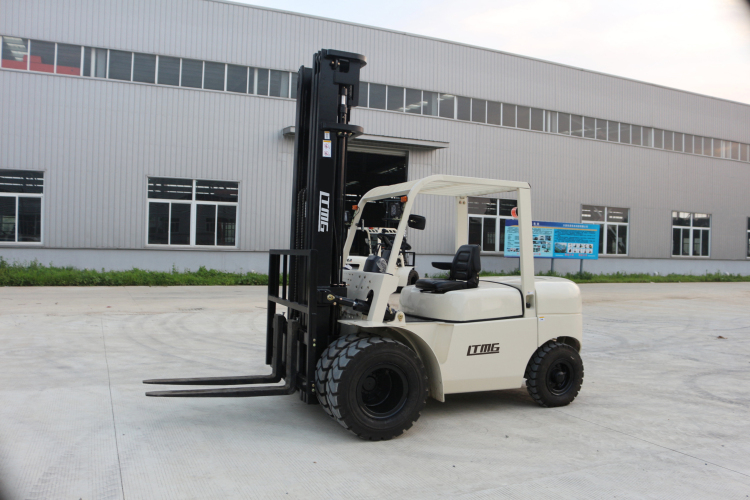

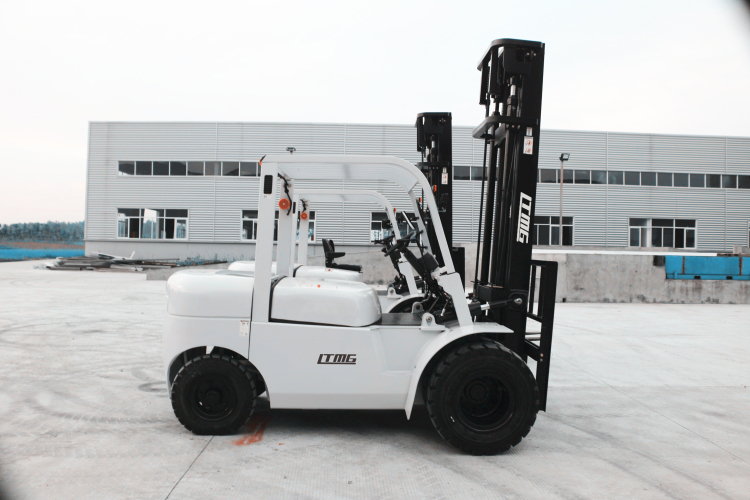

LTMG Chinese brand new forklift diesel 4 ton 4.5 ton 5 ton diesel forklifts

*Specification of LTMG Chinese brand new forklift diesel 5 ton diesel forklifts*
Manufacturer			LTMG
Model		Power shift T/M	FD50
Model			Manual shift T/M	FD50
Load capacity		kg	5000
Load center		mm	600
Power unit			Diesel
Operator type			Driver/seat
Tire type			Pneumatic
Wheel	Front/rear		4/2
Max. lifting height		mm	3000
Ground Clearance		mm	200
Fork size	LWT	mm	122015070
Tilt range	Mast forward/backward	deg	6/12
Overall length(without fork)		mm	3440
Total width		mm	2010
Mast height (fork lowering)		mm	2500
Overall height fork raised	With backrest	mm	4415
Height to head guard		mm	2430
Turning raduis(outside)		mm	3250
Front face of fork to front axle		mm	590
Speed	Max Travelling full/no load	km/h	30
		Lifting full/no load	mm/s	500
		Lowering full/no load	mm/s	550
Truck weight		kg	8150
Tires	Number	front/rear	4/2
		Model	front axle	8.25-15-14PR
		Model		rear axle	8.25-15-14PR
Wheelbase		mm	2250
Brake	Service brake		Hydraulic-foot pedal
Brake		Parking brake		Mechanical-hand lever
Battery	Voltage/capacity	V/AH	12/80
Engine	Model		XiChai or ISUZU
		Rated power	kw/rpm	82.4/2000
		Rated torque	N.m/rpm	416/1600
		Number of cylinders		6
		Placement	L	6.5
		Fuel tank capacity	L	125
Transmission	Speed forward/backward	Power shift T/M Manual shift T/M	2F-2R
Operating pressure	Hydraulic system pressure	kg/cm²

Product Features

--Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.

--Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

--install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust.

--Install heavy-duty driving axle to ensure safety work at bad working conditions.

--Adopt advanced load sense technology which offers flow for steering system to save energy ,protect environment ,and lower the system heat.

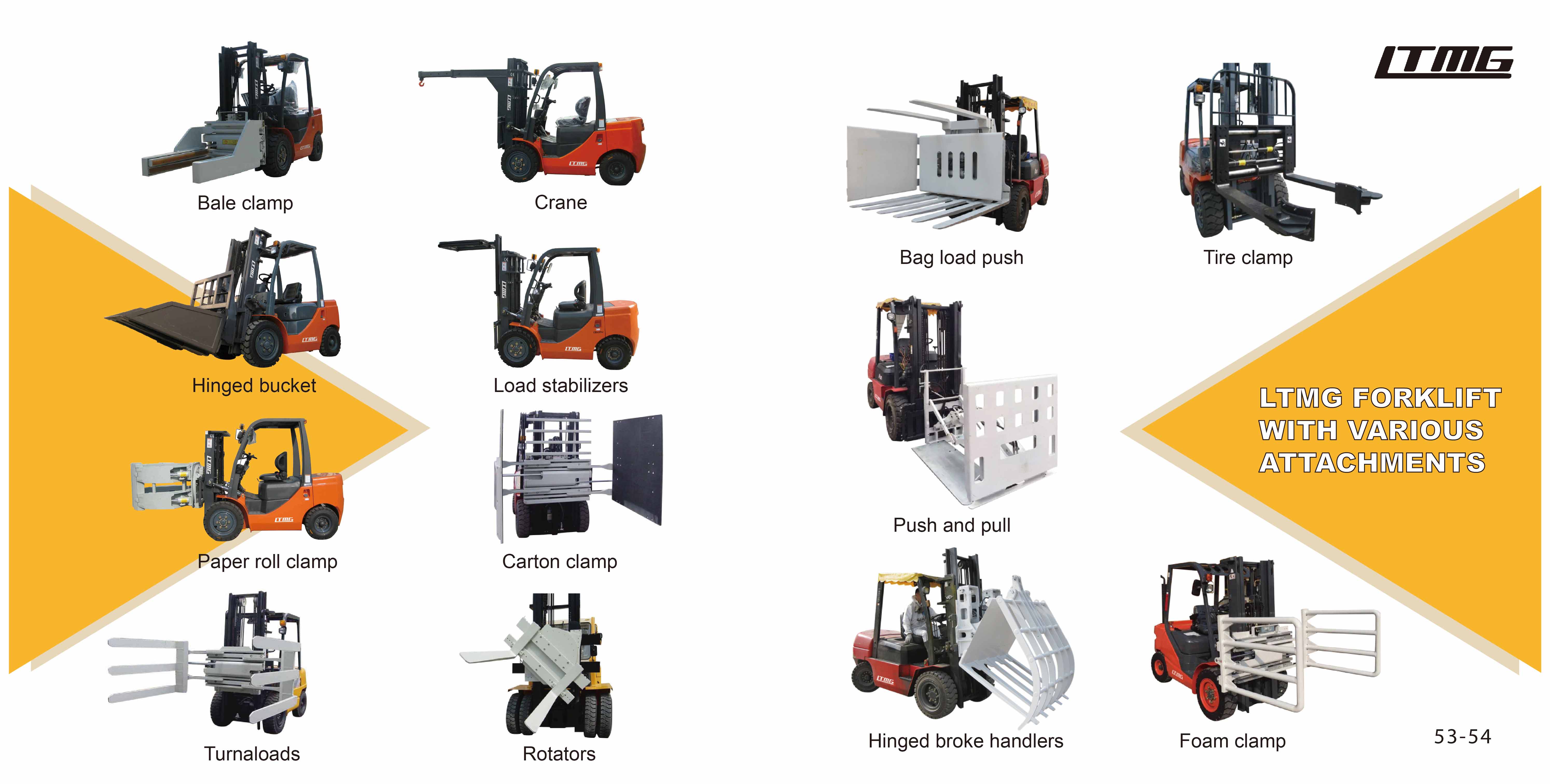

Optional attachment

After-sale Service.

LTMG always treat after-sale service as important as sale.

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with 1 year or 2000 working hours (whichever occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

Q1. Why choose us?
A: As a manufacturer, LTMG machinery is committed to offer not only products with high quality, high performance and competitive price, but also in-time delivery and comprehensive after-services.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.

Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more LTMG machines in local market and supply better service.

Q6. What is your warranty policy?
A: We can supply one year warranty or 2000 hours (which occurs firdt) for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our website to get more videos: http://www.xlteng.com/

Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
