- Brand:LTMG
- Color:Customized
- Load Center:500mm

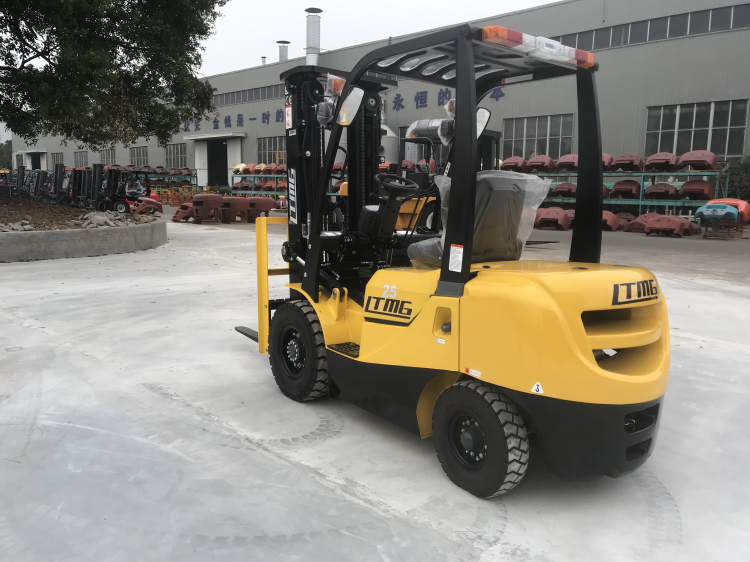

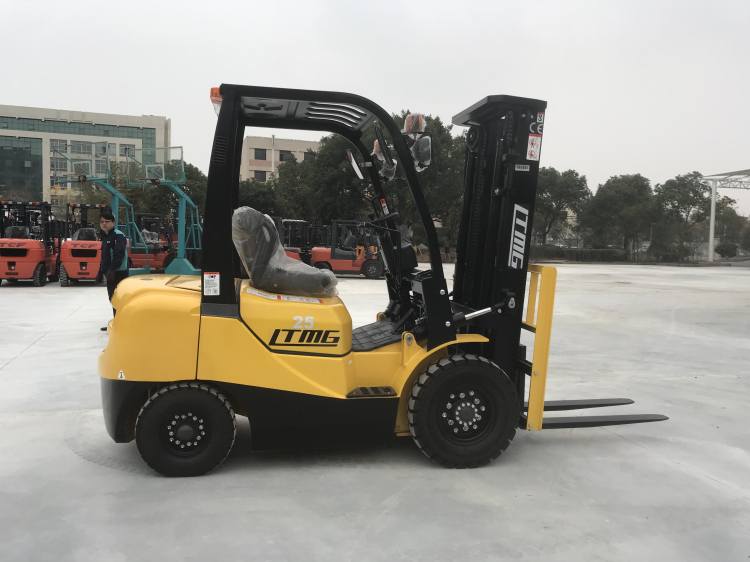

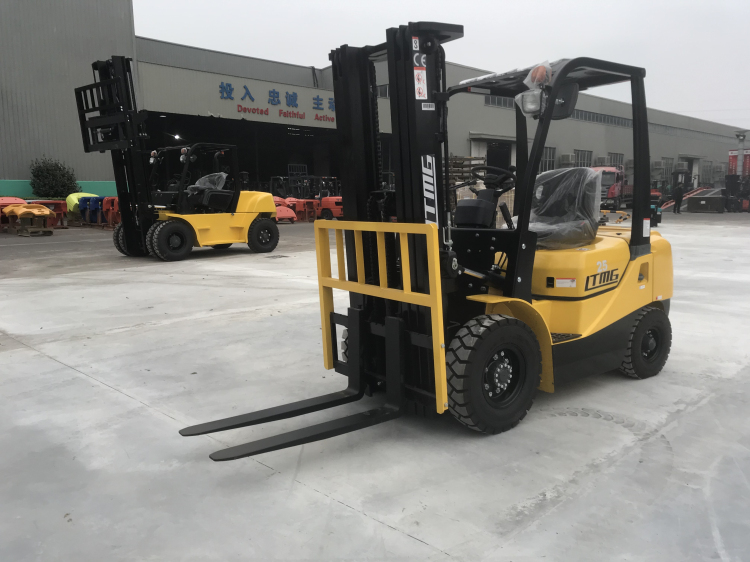

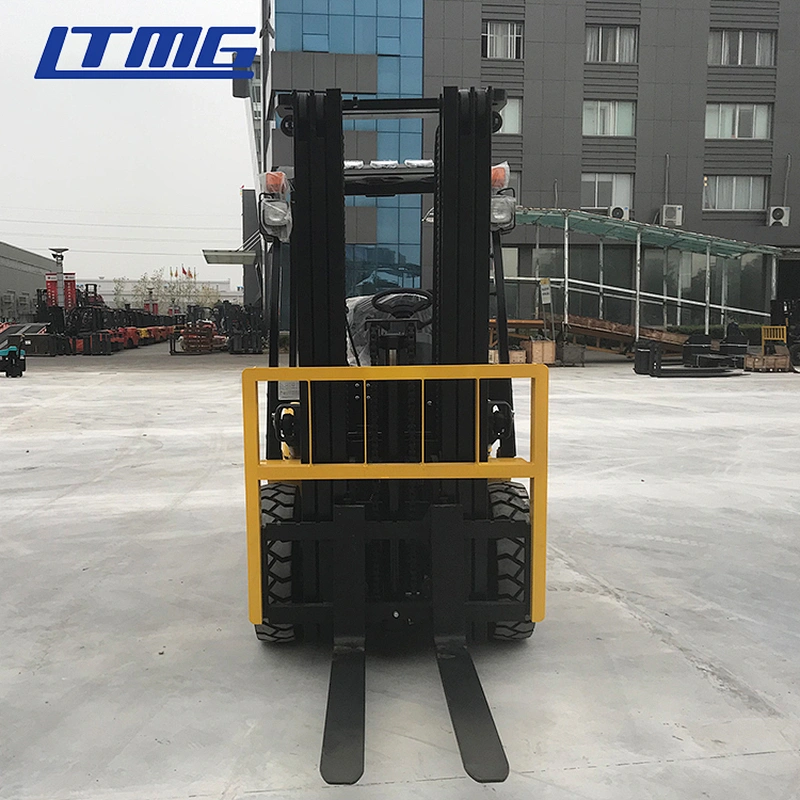

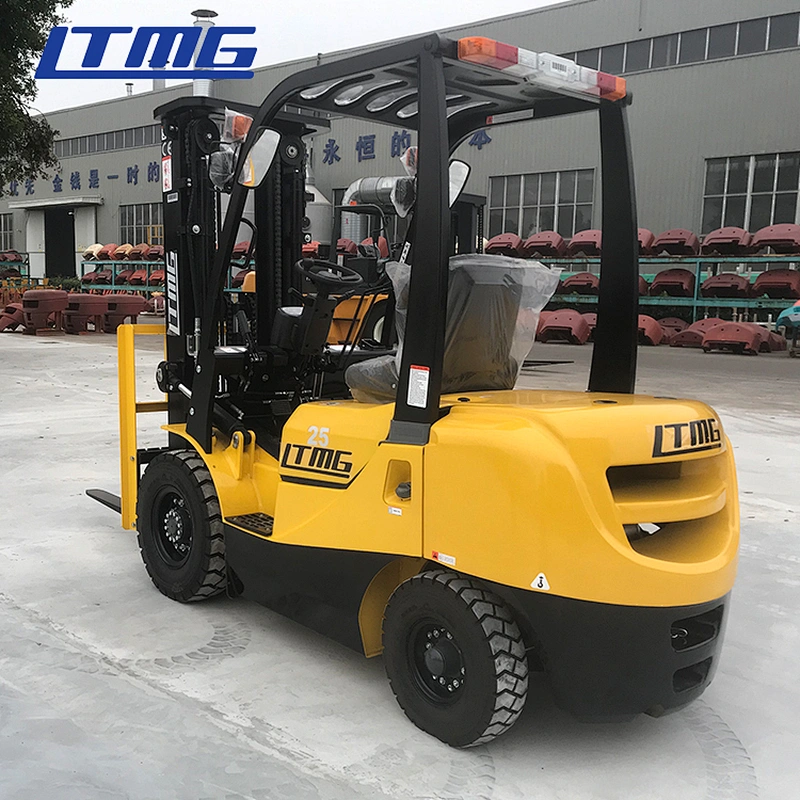

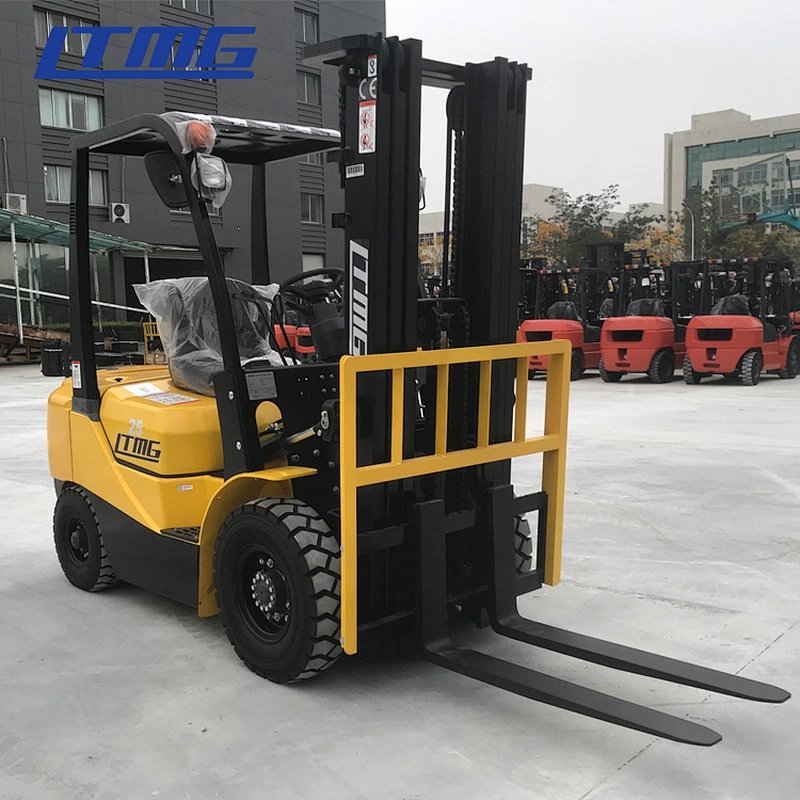

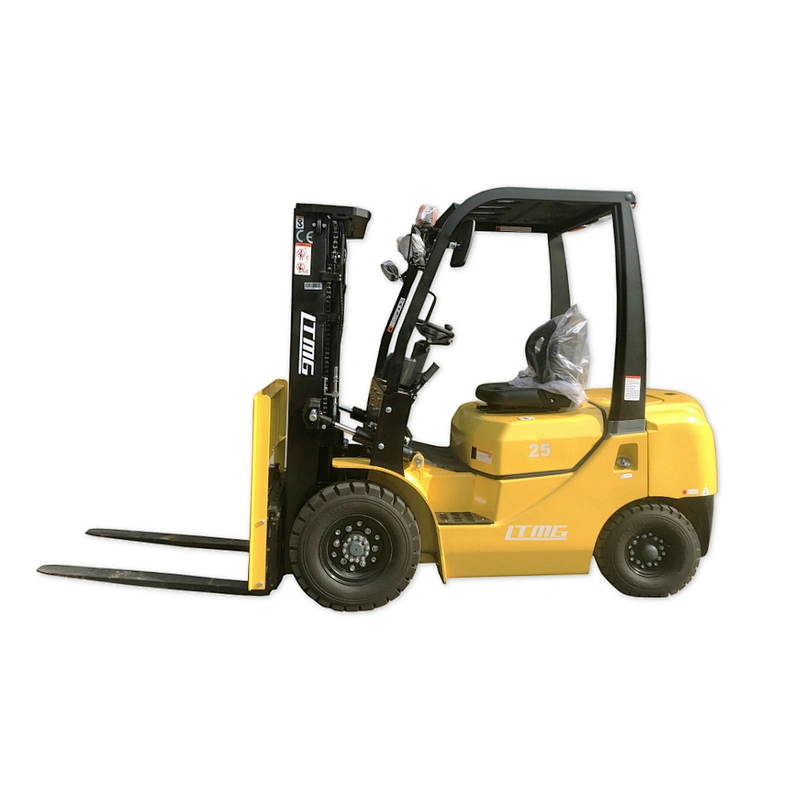

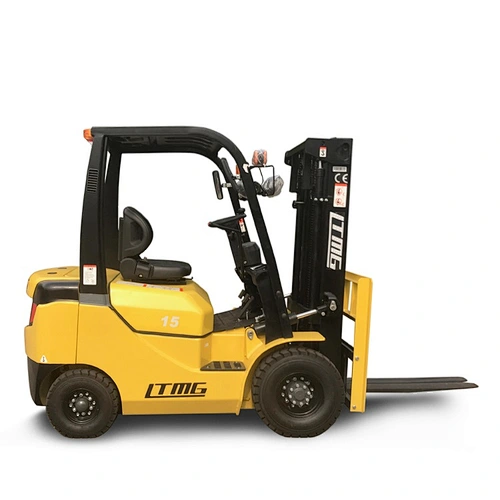

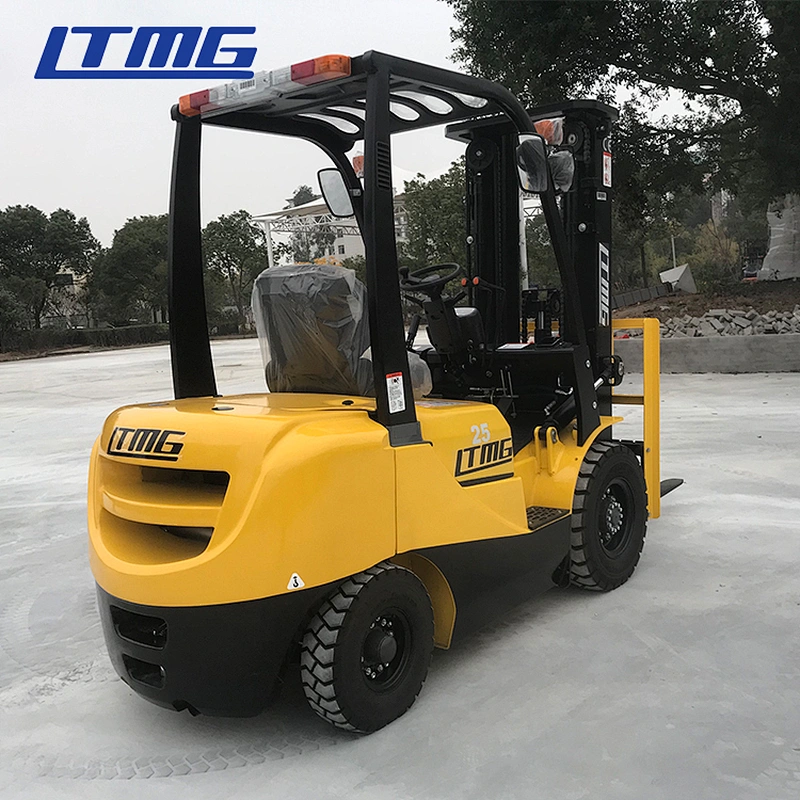

- Product Name:2 ton 3 ton diesel forklift warehouse forklift for sale
- Mast:2 Stage/3 Stage
- Free lift:150mm
- Fork Length:1070mm
- Wheelbase:1700mm
- Transmission type:Automatic Transmission
- optional:side shift, lifting height, enclosed cab, etc
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Peru
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Algeria
- Local Service Location:Romania
- Local Service Location:Ukraine
- Local Service Location:Uzbekistan
- Showroom Location:Canada
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Brazil
- Showroom Location:Russia
- Showroom Location:Kenya
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:Algeria
- Showroom Location:South Africa
- Showroom Location:Tajikistan
- Showroom Location:Japan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Motor
- Core Components:Bearing
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:2705*1225*2075
- Fork Width:125mm
- Fork Length:1070mm
- Certification:CE/ISO9001
- Min. Lifting Height:3000mm
Model | FD20 | FD25 | |||
Power type | Diesel | Diesel | |||
Rated capacity | kg | 2000 | 2500 | ||
Load center | mm | 500 | 500 | ||
Lift height | mm | 3000 | 3000 | ||
Fork size | L*W*T | mm | 1070*120*40 | 1070*120*40 | |
Mast tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |
Front overhang(Wheel center to fork face) | mm | 465 | 465 | ||
Ground clearance(Bottom of mast) | mm | 110 | 110 | ||
Overall Dimension | Length to face of fork(without fork) | mm | 2595 | 2595 | |
Overall width | mm | 1150 | 1150 | ||
Mast lowered height | mm | 2070 | 2070 | ||
Mast extended height(with backrest) | mm | 4070 | 4070 | ||
Overhead guard height | mm | 2070 | 2070 | ||
Turning radius(outside) | mm | 2310 | 2310 | ||
Speed | Travel(Full load) | Km/h | 19 | 19 | |
Lifting(Full load) | mm/s | 530 | 530 | ||
Max gradeability(No load/Full load) | % | 20 | 20 | ||
Tire | Front | mm | 7.00-12-12PR | 7.00-12-12PR | |
Rear | mm | 6.00-9-10PR | 6.00-9-10PR | ||
Wheelbase | mm | 1600 | 1600 | ||
Service weight | kg | 3590 | 3790 | ||
Battery | Voltage/Capacity | V/ah | 12/80 | 12/80 | |

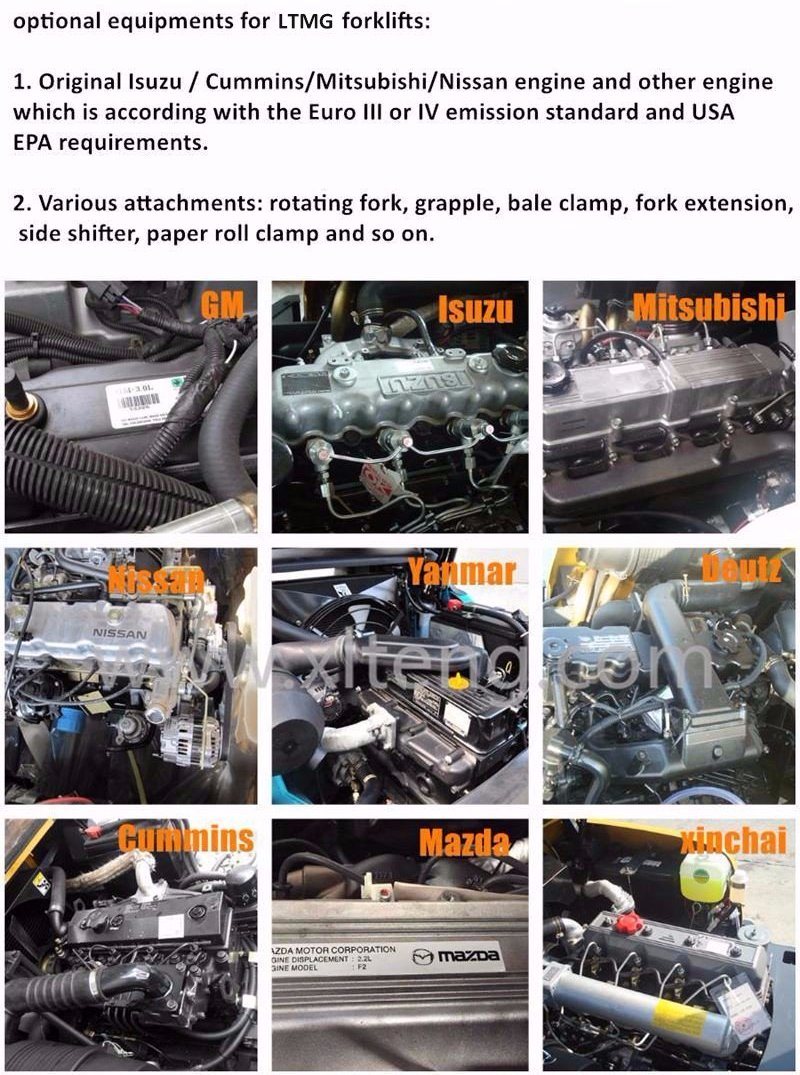

Engine | Model | C240 | C240 | ||
Manufacture | Isuzu | Isuzu | |||
Rated output/rpm | Kw | 35.4/2500 | 35.4/2500 | ||
Rated torque/rpm | N.m | 137.7/1800 | 137.7/1800 | ||
No of cylinder | 4 | 4 | |||
Bore*stroke | mm | 86*102 | 86*102 | ||
Displacement | cc | 2369 | 2369 | ||
Fuel tank | L | 60 | 60 | ||
Transmission | Type | Hydraulic | Hydraulic | ||
Stage FWD/RVS | 1/1 | 1/1 | |||
What are the features of our products?
1.The most reasonable system matching after repeated verification
2.Selection of domestic first-line brands or imported brands parts
3.After 400 hours of continuous enhancement test
4.Adopt high quality automobile paint and advanced paint treatment equipment to ensure the quality of paint
5.Establish detailed process control system to ensure quality
LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
Below is the conutry we sale to at 2017-2019.Can you find your country here?
After-sale Service
Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
