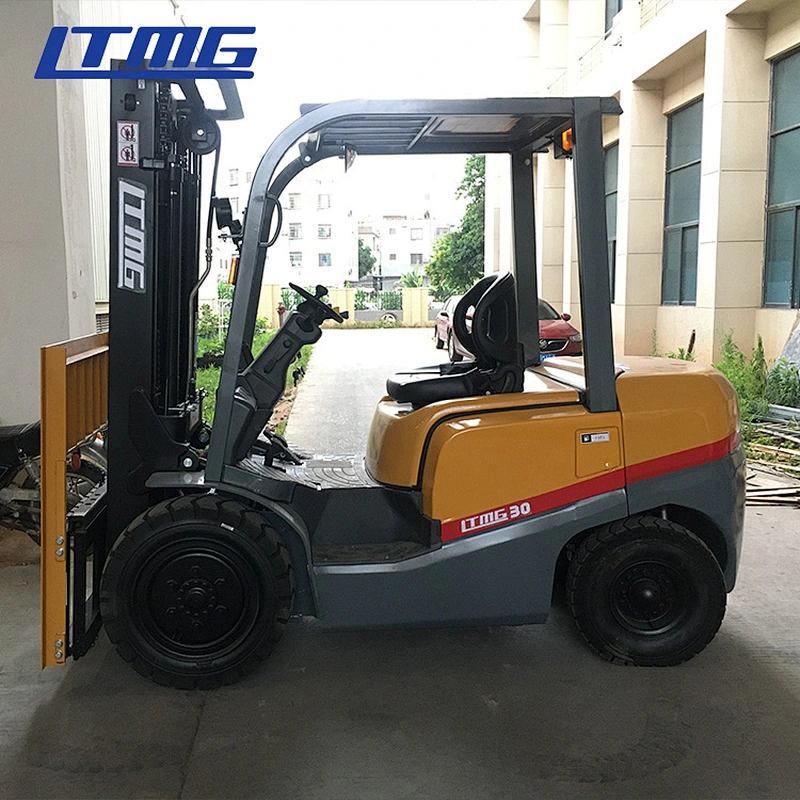

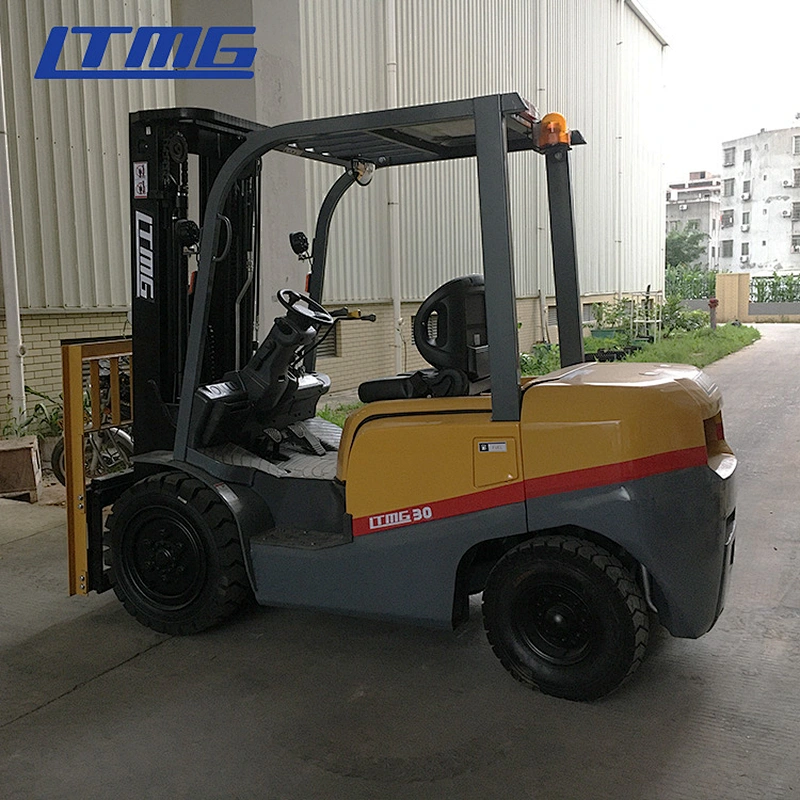

LTMG 1.5t 1.8t 2t 2.5t 3t diesel forklift 3 ton forklift truck with optional engines

LTMG 1.5t 1.8t 2t 2.5t 3t diesel forklift 3 ton forklift truck with optional engines

Price:: US $ 7740.00-7740.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 300.0 unit / Month
Country of Origin: Xiamen Port, China

Quantity:

Product Description

Type:Powered Pallet Truck
Rated Capacity:3000kg
Service Weight:4300kg
Fork Size:1070*125*45mm
Wheelbase:1700mm
Engine:XINCHAI
Ground Clearance:140mm
Turning radius:2440mm
Battery:12V/80Ah
Max.Gradeability:20%
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Construction works
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
Local Service Location:Canada
Local Service Location:France
Local Service Location:Saudi Arabia
Local Service Location:Spain
Local Service Location:Malaysia
Local Service Location:Kenya
Local Service Location:Algeria
Local Service Location:Sri Lanka
Local Service Location:Ukraine
Showroom Location:Canada
Showroom Location:United States
Showroom Location:France
Showroom Location:Saudi Arabia
Showroom Location:Mexico
Showroom Location:Russia
Showroom Location:Kenya
Showroom Location:Chile
Showroom Location:Algeria
Showroom Location:Nigeria
Condition:New
Power Souce:Diesel Engine
Warranty:1 Year
After-sales Service Provided:Video technical support
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Core Components:Bearing
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Min. Lifting Height:0 m
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:2730*1225*2115mm
Certification:CE ISO

Product Description

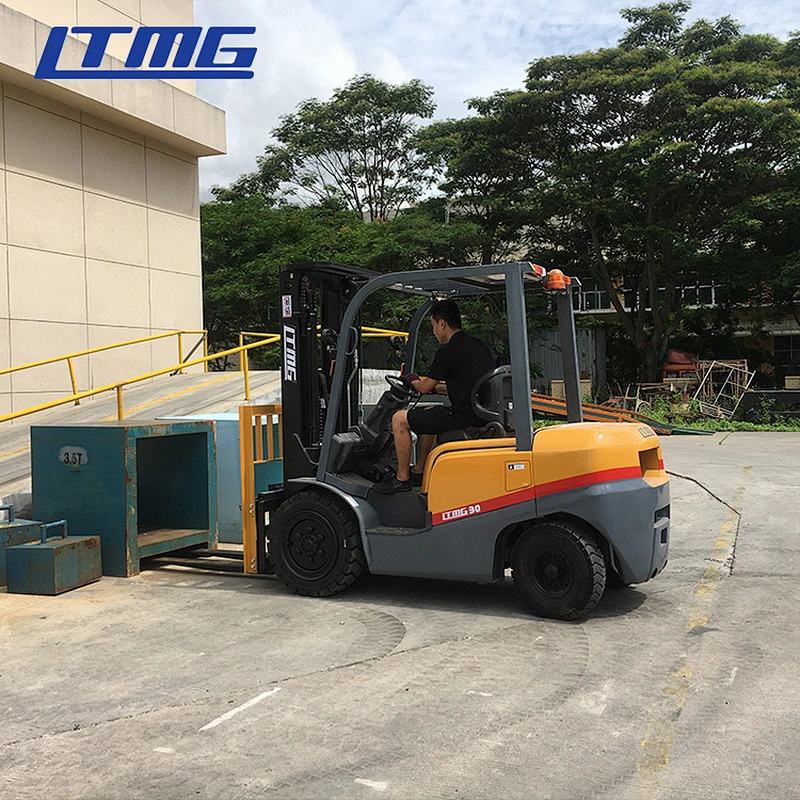

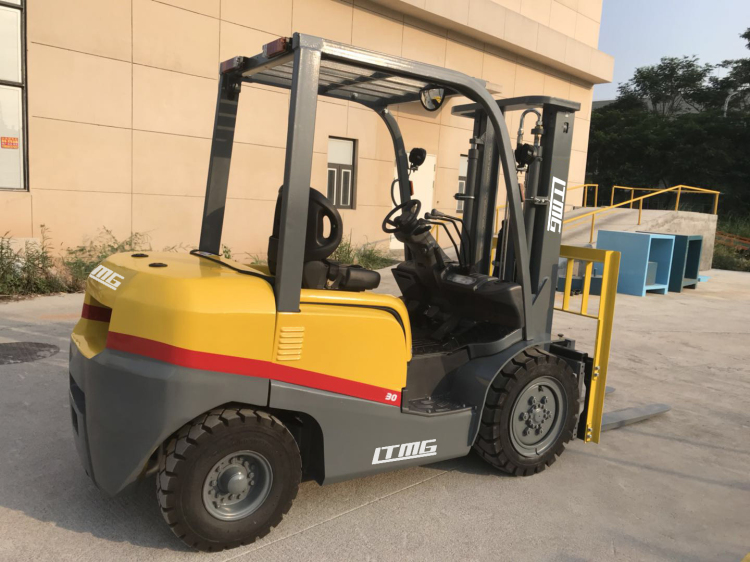

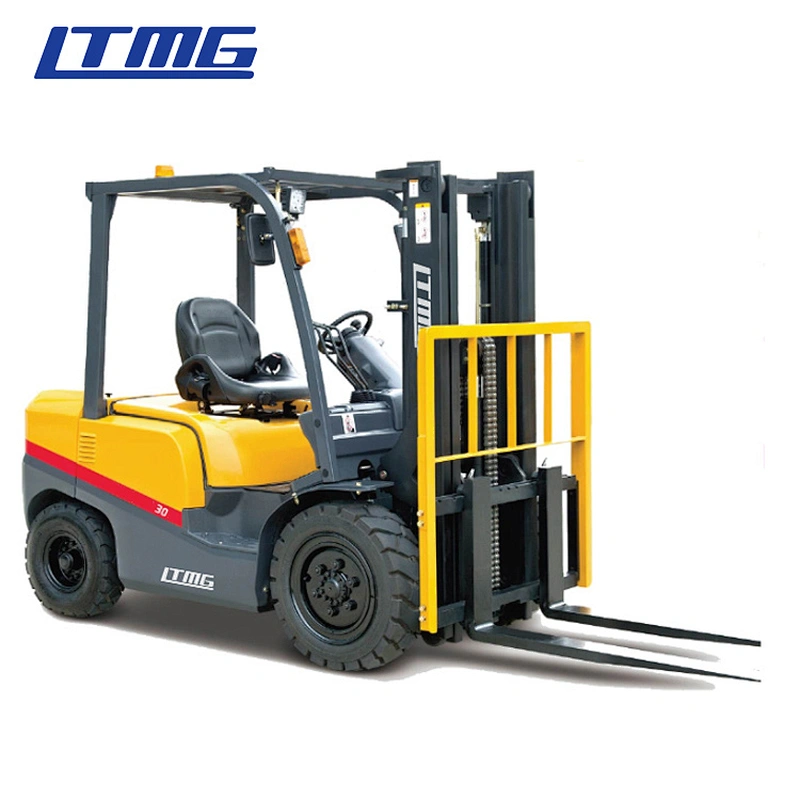

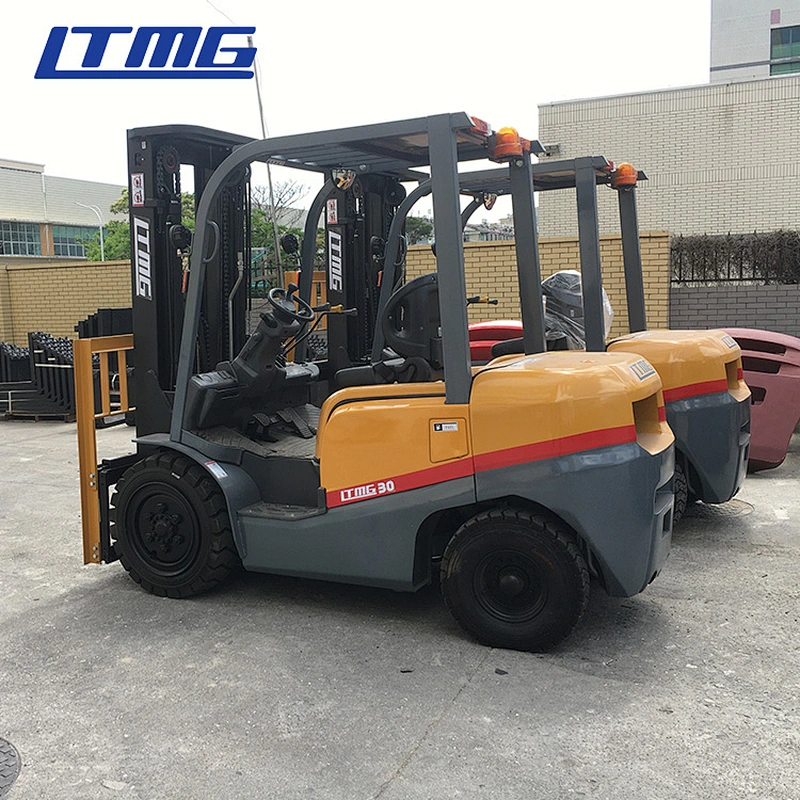

LTMG 3 ton diese forklift with japanese engine optional

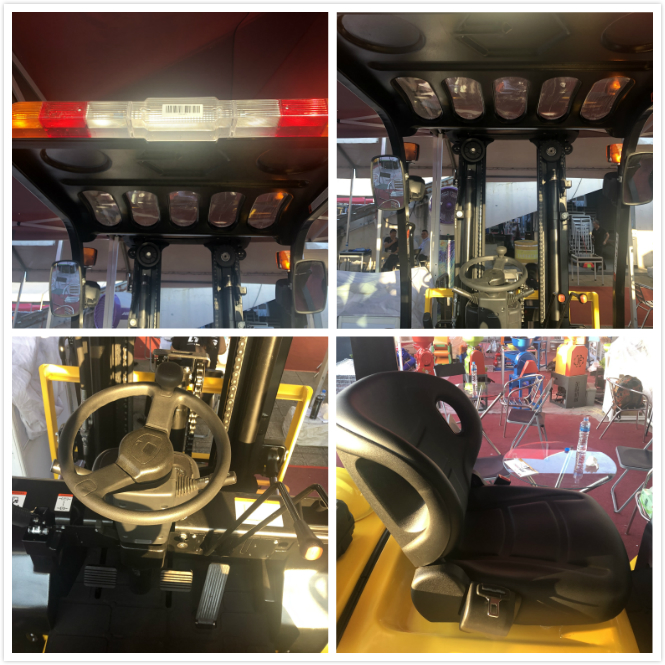

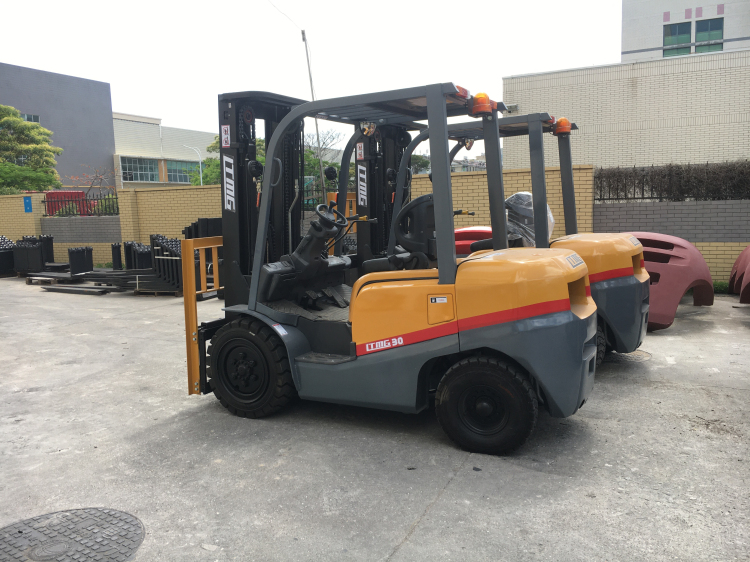

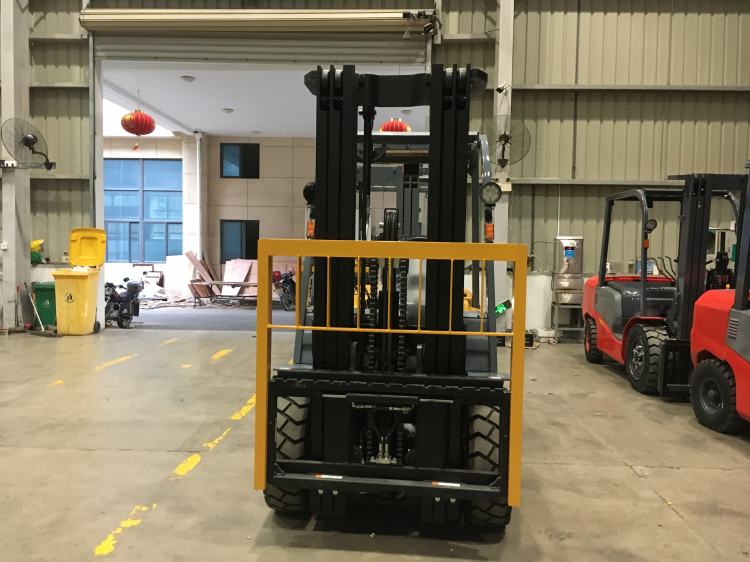

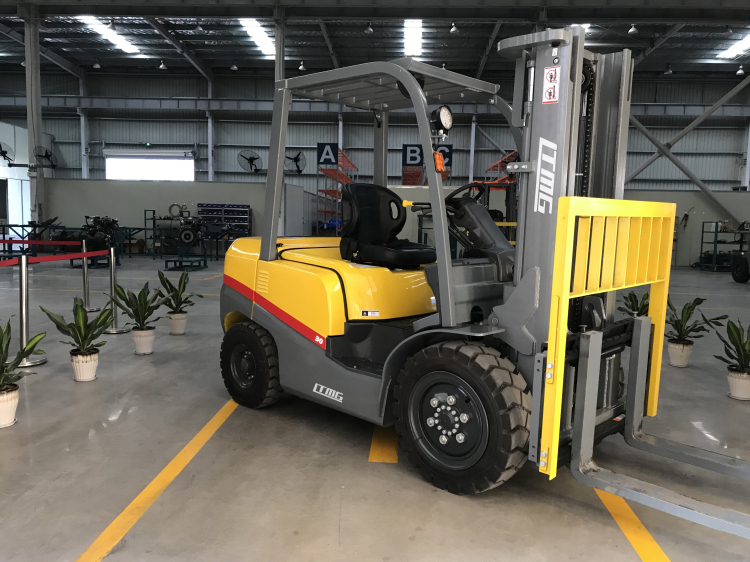

Details of our forklifts

1. Transmission: Chinese famous brand Zhongchai transmission.
2. Steering axle: Integral casting bridge
3. Hydraulic system: Load sensing priority steering hydraulic system
4. Lifting Height: 3m-7m
5. MAST: Full-free Duplex or Triplex Mast
6. Cabin: Customized Color, air-conditioner, etc.
7. Attachments: paper roll clamp,bale clamp ,rotating clamp etc.

8. Optional engines:Japan engine ISUZU or Mitsubishi,EPA kohler engine ,Euro III engine

Specification of LTMG 3 ton Diesel forklift FD30
Feature	1	Manufacturer			LTMG
		2	_Model			Power shift T/M	FD30
		2	_Model					Manual shift T/M	FD30
		3	Load capacity		kg	3000
		4	Load center		mm	500
		5	Power unit			Diesel
		6	Operator type			Driver/seat
		7	Tire type			Pneumatic
		8	Wheel	Front/rear		2/2
Dimension	9	Max. lifting height		mm	3000
		10	Free lift		mm	150
		11	Fork size	LWT	mm	107012545
		12	Tilt range	Mast forward/backward	deg	6/12
		13	Overall length(without fork)		mm	2705
		14	Total width		mm	1225
		15	Mast height (fork lowering)		mm	2075
		16	Overall height fork raised	With backrest	mm	4250
		17	Height to head guard		mm	2140
		18	Turning raduis(outside)		mm	2445
		19	Front face of fork to front axle		mm	480
		20	Min. right angle stacking aisle	without load length&clearence	mm	2925
Performance	21	Speed	Max Travelling full/no load	km/h	18/19.5
			22		Lifting full/no load	mm/s	450/500
			23		Lowering full/no load	mm/s	450/450
		24	Max.drawbar pull	Power shift T/M full/no load	kg	1500/1000
		24	Max.drawbar pull			Manual shift T/M full/no load	kg	1550/1000
		25	Gradeability at 1.6km/h	Power shift T/M full/no load	%	18/20
		25	Gradeability at 1.6km/h			Manual shift T/M full/no load	%	18/20
Weight	26	Truck weight		kg	4380
		27	Weight distribution	Full load front/rear	kg	6490/890
		28	Weight distribution		No load front/rear	kg	1670/2700
Frame	29	Tires	Number	front/rear	2/2
			30		Model	front axle	28x9-15-12PR
			31		Model		rear axle	6.50-10-10PR
		32	Wheelbase		mm	1700
		33	Tread	Front/rear	mm	1000/970
		34	Ground clearence	At lowest point(mast)	mm	120
		34	Ground clearence			Frame	mm	135
		35	Brake	Service brake		Hydraulic-foot pedal
		35	Brake			Parking brake		Mechanical-hand lever
Engine	36	Battery	Voltage/capacity	V/AH	12/80
		37	Engine	Model		ISUZU C240
						Rated power	kw/rpm	34.3/2500
						Rated torque	N.m/rpm	138/1800
						Number of cylinders		4
						Placement	L	2.369
						Fuel tank capacity	L	70
		38	Transmission	Speed forward/backward	Power shift T/M Manual shift T/M	1-1 power shift T/M 2-2 manual shift T/M
		39	Operating pressure	Hydraulic system pressure	kg/cm²	180

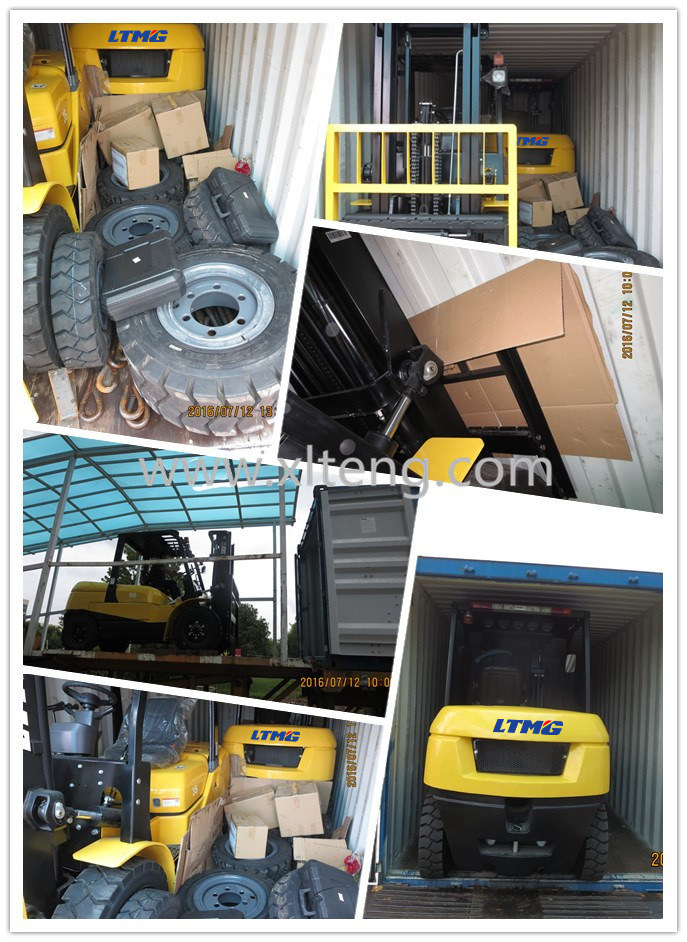

Packing & Delivery

Exhibition and Clients

Our Service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

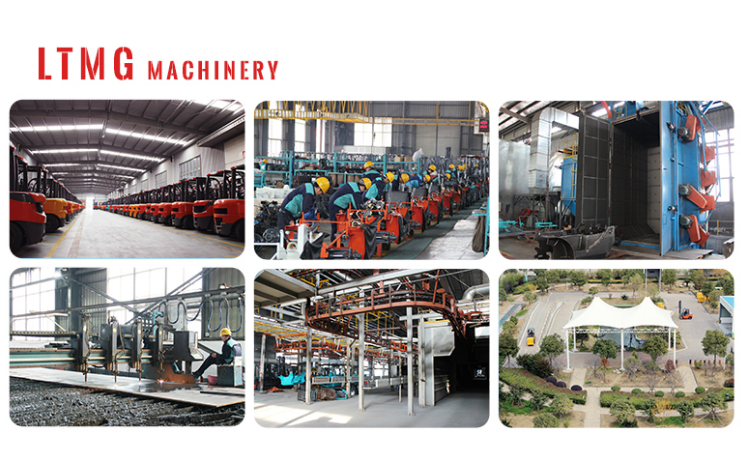

Our Company

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
