- Product type:10 ton 12 ton diesel forklift
- Color:Customer Demanded
- Warranty:1 Year or 2000 Working Hours
- Fork size:1600*180*90
- Standard lifting height:3000mm
- Wheelbase:2950mm
- Ground clearence:300
- Min.turning Radius:4350mm
- Weight:15500kg
- Load Center:600mm
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Spare parts
- Local Service Location:Viet Nam
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Viet Nam
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Applicable Industries:logistics transportation
- Max. Lifting Height:4410
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:6070mm*2230mm*2670mm
- Fork Width:180mm
- Fork Length:1600mm
- Certification:ISO,CE
- Min. Lifting Height:0

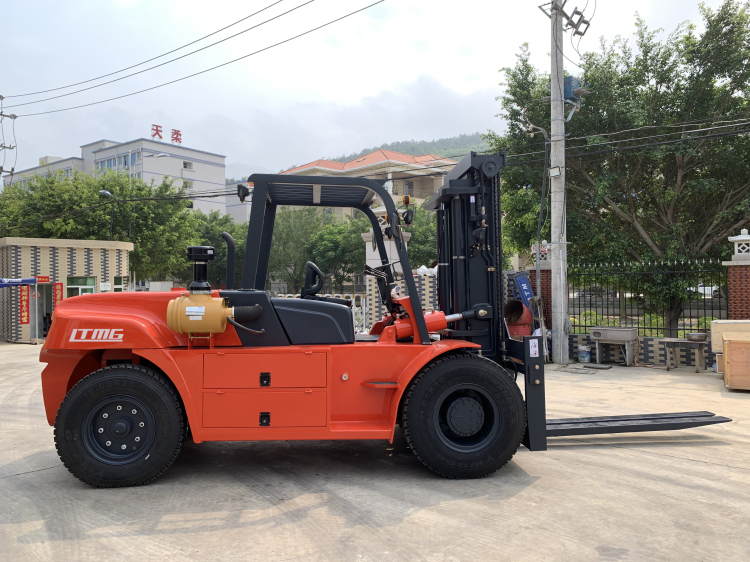

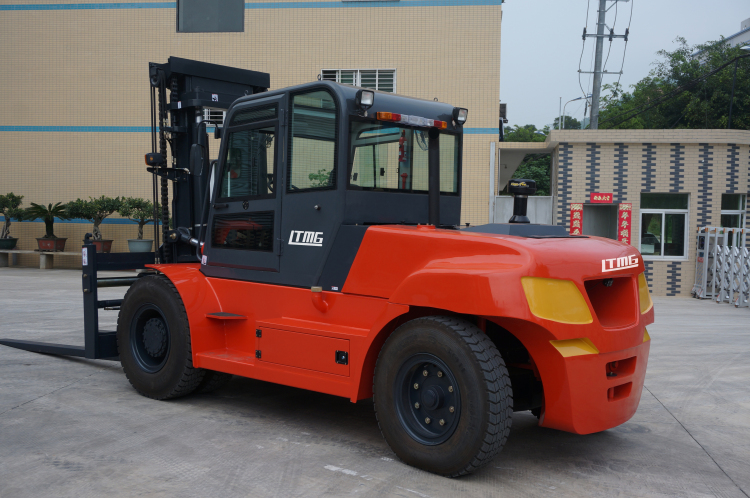

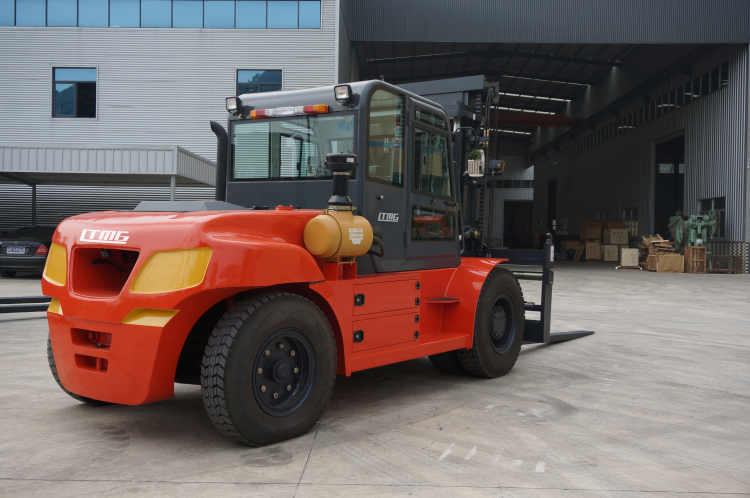

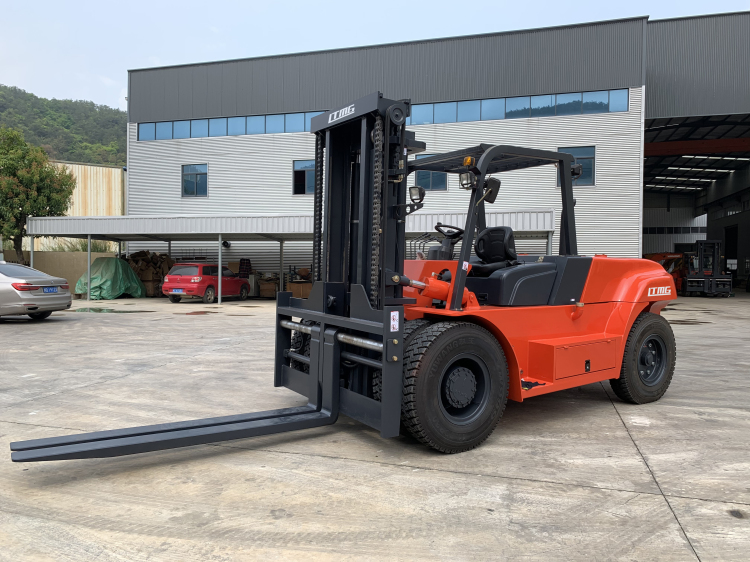

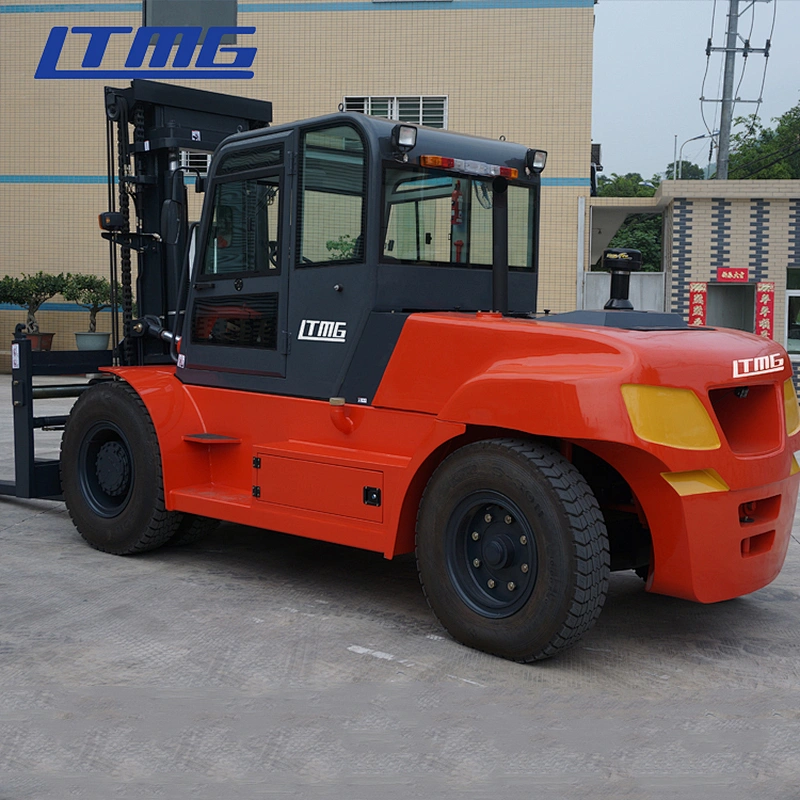

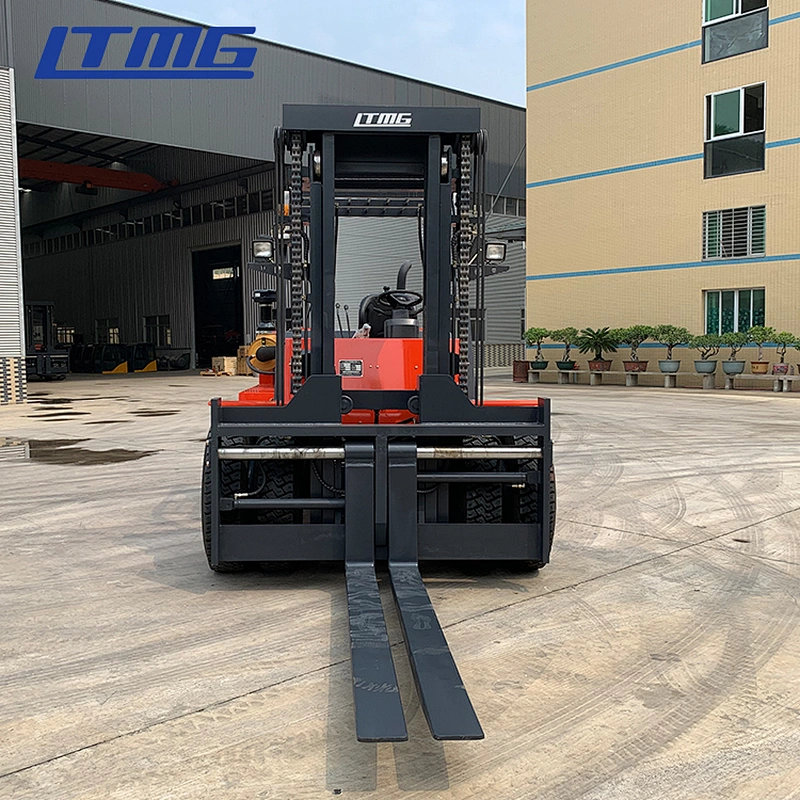

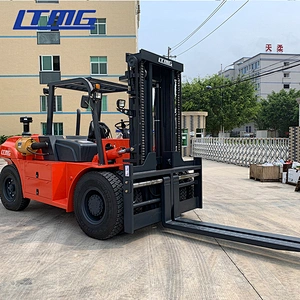

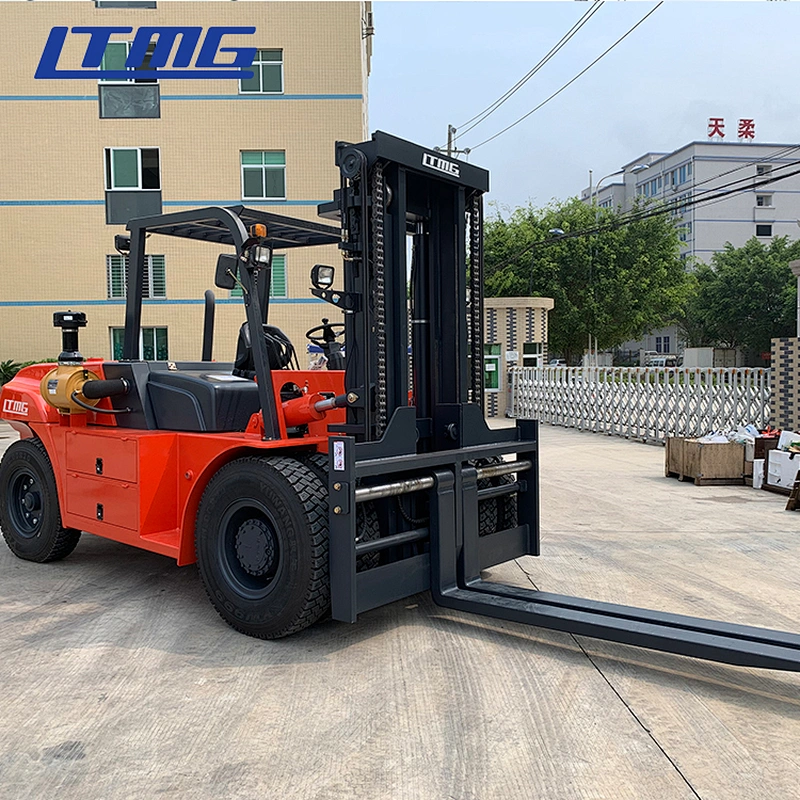

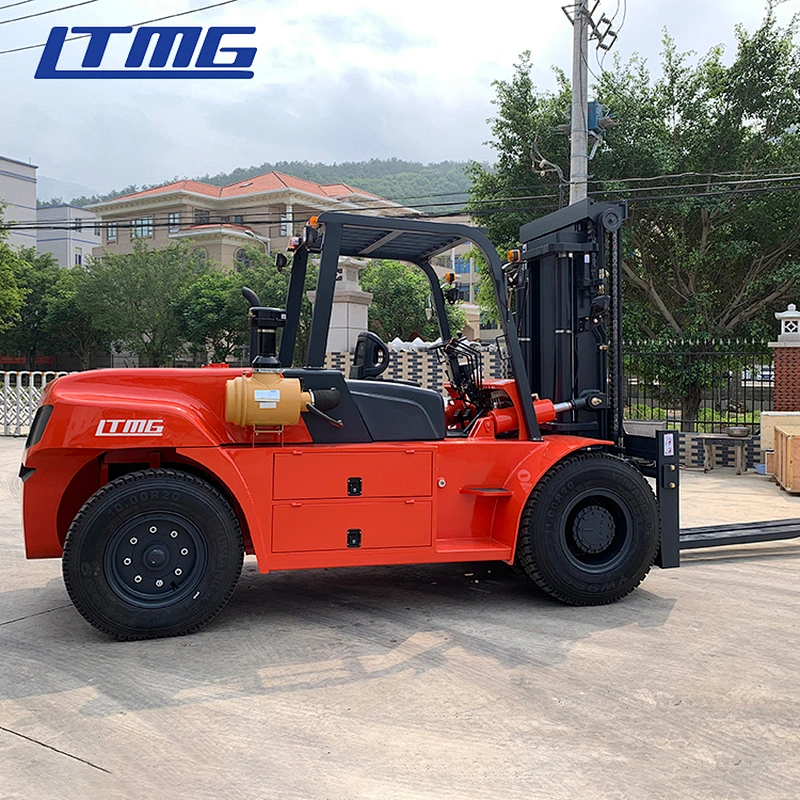

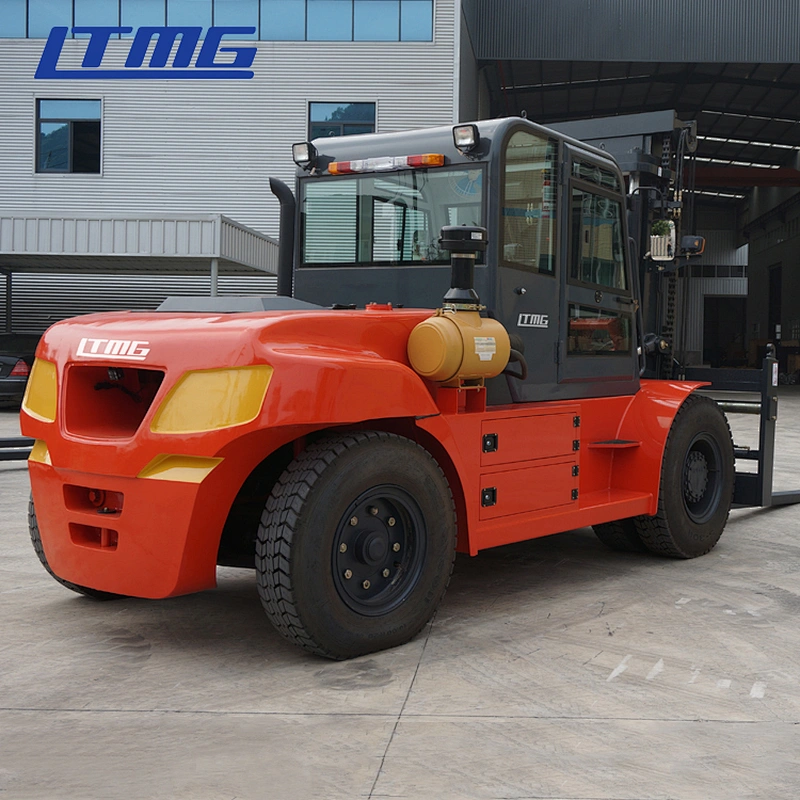

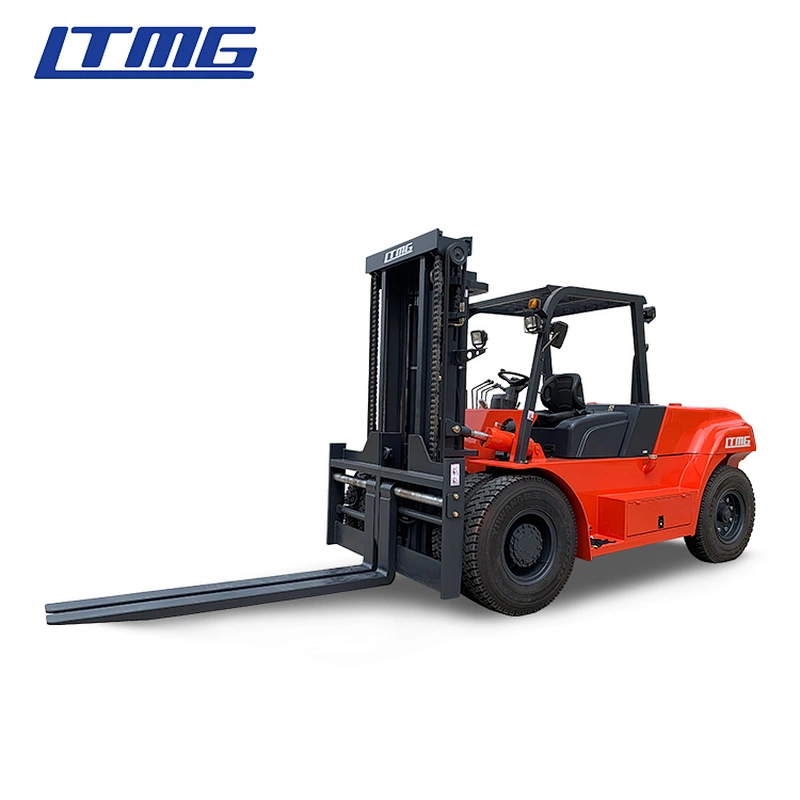

Chinese large forklift truck 12 ton diesel forklift Specifications | ||||||
Item | FD120 | |||||
Features | Rated Load | Q(Kg) | 12000 | |||
Load Center | c(mm) | 600 | ||||
Wheelbase | y(mm) | 2950 | ||||
Weight | Weight | kg | 15500 | |||
Chassis | Tire Specs:Front | 11.00-20-18PR | ||||
Tire Specs:Rear | 10.00-20-18PR | |||||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | |||||
Wheel tread:Front | b3(mm) | 1630 | ||||
Wheel tread:Rear | b4(mm) | 1780 | ||||
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | |||
Mast height(fork lowering) | h1(mm) | 2940 | ||||
Mast lifting height | h2(mm) | 3000 | ||||
Max.height | h3(mm) | 4410 | ||||
height to head guard(height to cab) | h4(mm) | 2670 | ||||
Overall height(with forks) | L3(mm) | 6070 | ||||
Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 4470 | ||||
Overall width | b1(mm) | 2230 | ||||
Fork dimension | (mm) | 1600*180*90 | ||||
Fork carriage width | b2(mm) | 2080 | ||||
Mast min ground(with load) | m1(mm) | 300 | ||||
Wheelbase center min ground(with load) | m2(mm) | 350 | ||||
Min.turning Radius | Wa(mm) | 4350 | ||||
Travel speed(with load/without load) | km/h | 23/28 | ||||
Performance | Max.lifting speed(with load/without load) | mm/s | 220/280 | |||
tractionn | KN | 100 | ||||
gradeability(with load/without load) | % | 20/22 | ||||
Driving brake | Hydraulic clamp disvc | |||||
Engine | Engine brand/model | Optional one | Yuchai Engine | |||
YC6B125-T21 | ||||||
Optional two | Dongfeng cummins | |||||
Rated Output | 110(Kw) | |||||
Cylinder No | 6 | |||||
Others | Transmission gears(Front/rear) | 2/2 | ||||
1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
