- After-sales Service Provided:Overseas third-party support available
- Item:diesel forklift 2.5 ton
- Engine:Chinese Engine
- Mast:Free/3 Stage
- Optional:Isuzu engine / side shifter / solid tires
- Tire:Pneumatic Tire
- Warranty:1 Year/2000 Working Hours
- Web:www.xlteng.com
- Wheelbase:1700mm
- Color:Customer Demanded
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Food & Beverage Shops
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Max. Lifting Height:3000mm
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:2460x1150x1995mm
- Fork Width:150mm
- Fork Length:1070mm
- Certification:CE/ISO9001:2008
- Min. Lifting Height:0mm

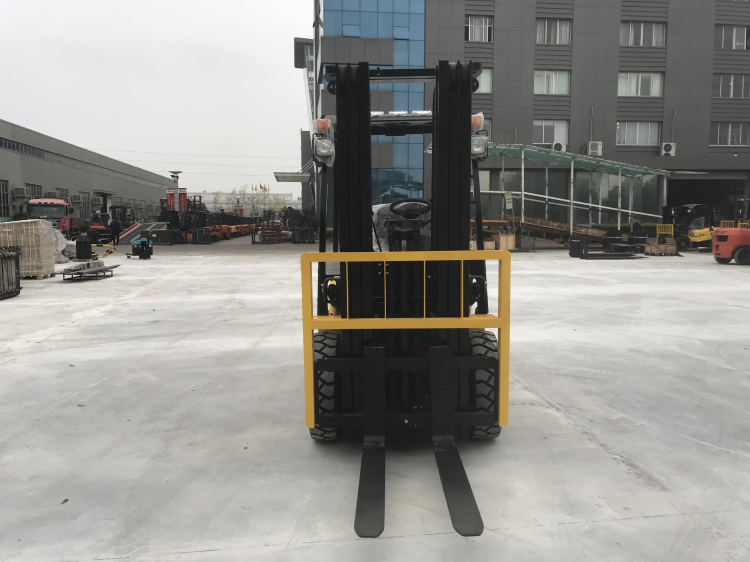

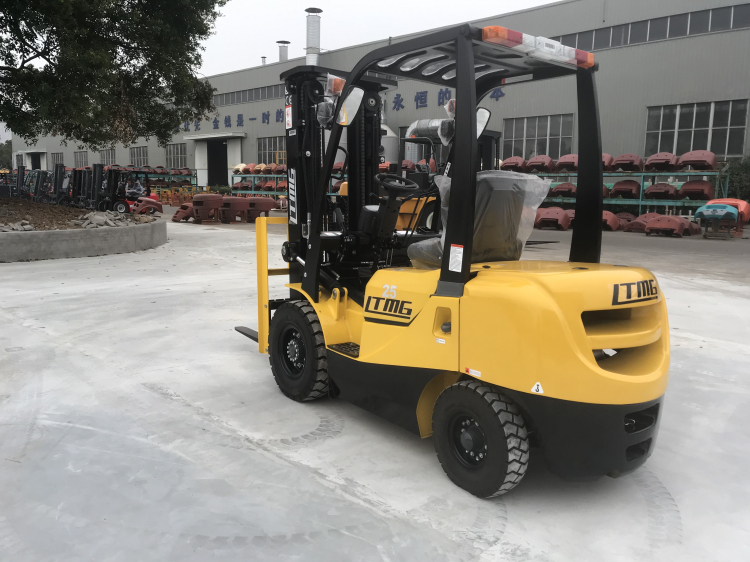

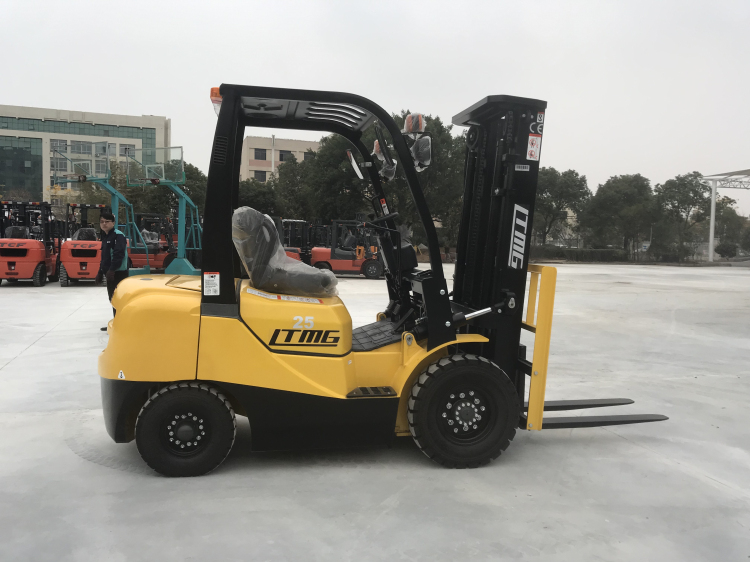

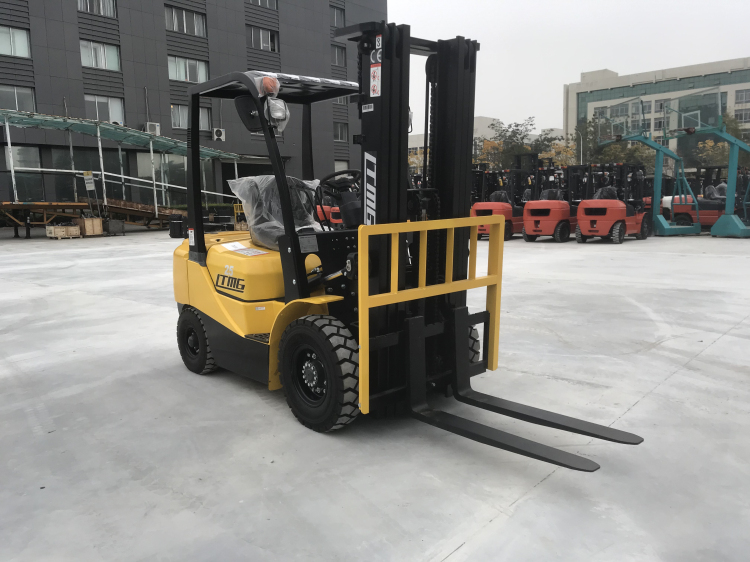

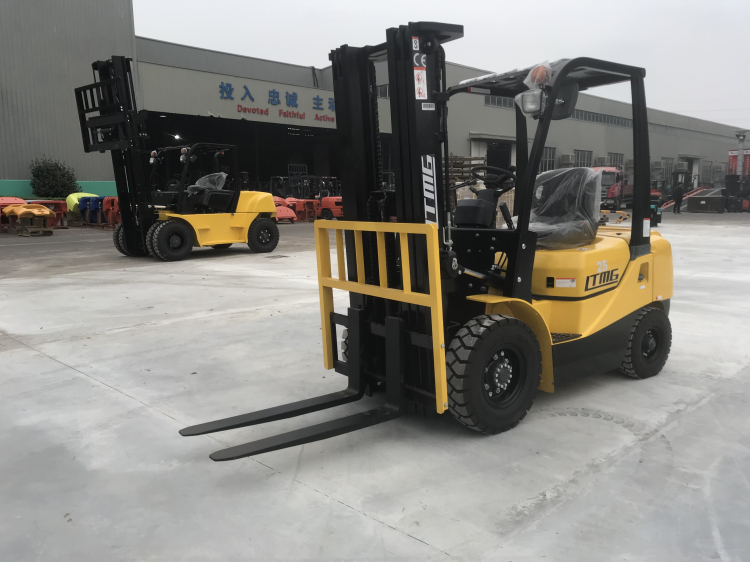

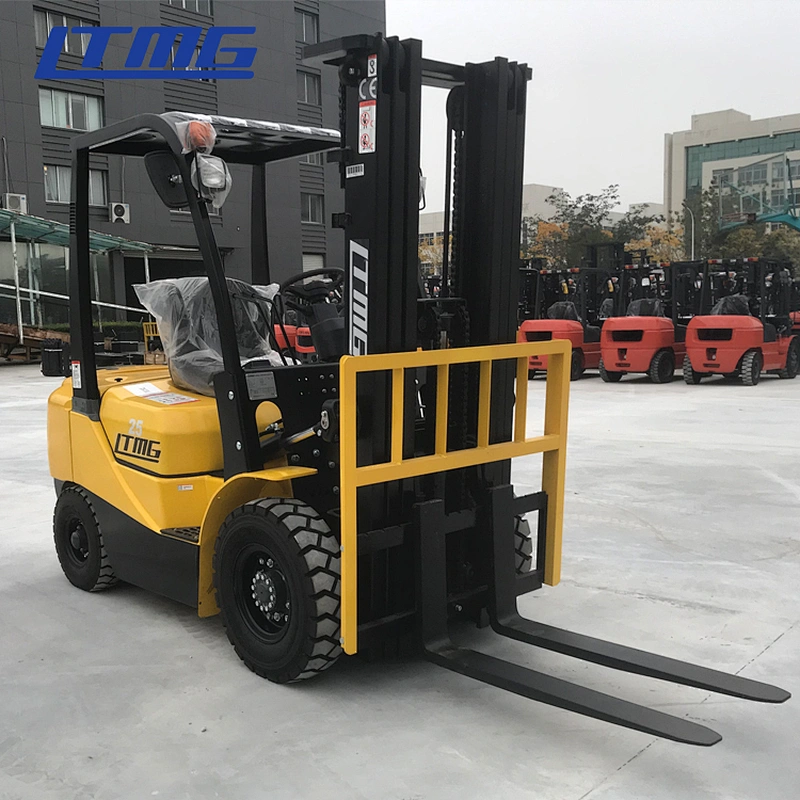

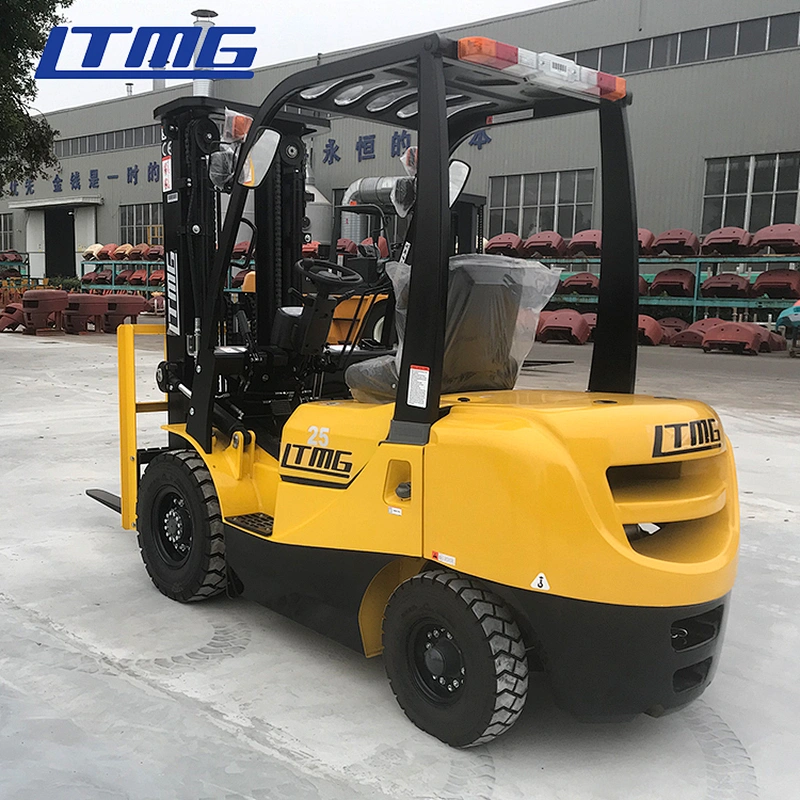

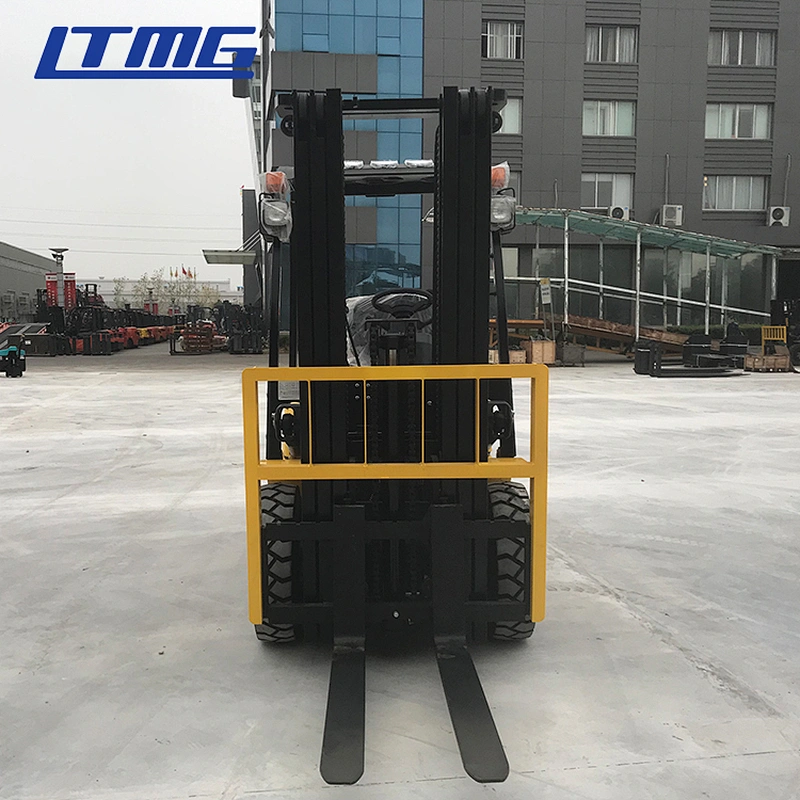

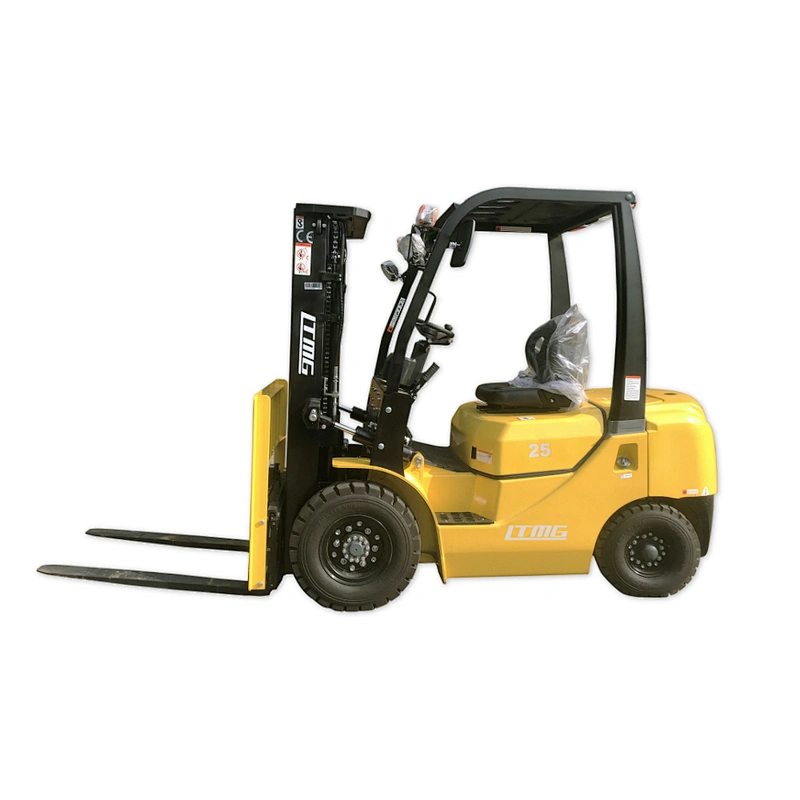

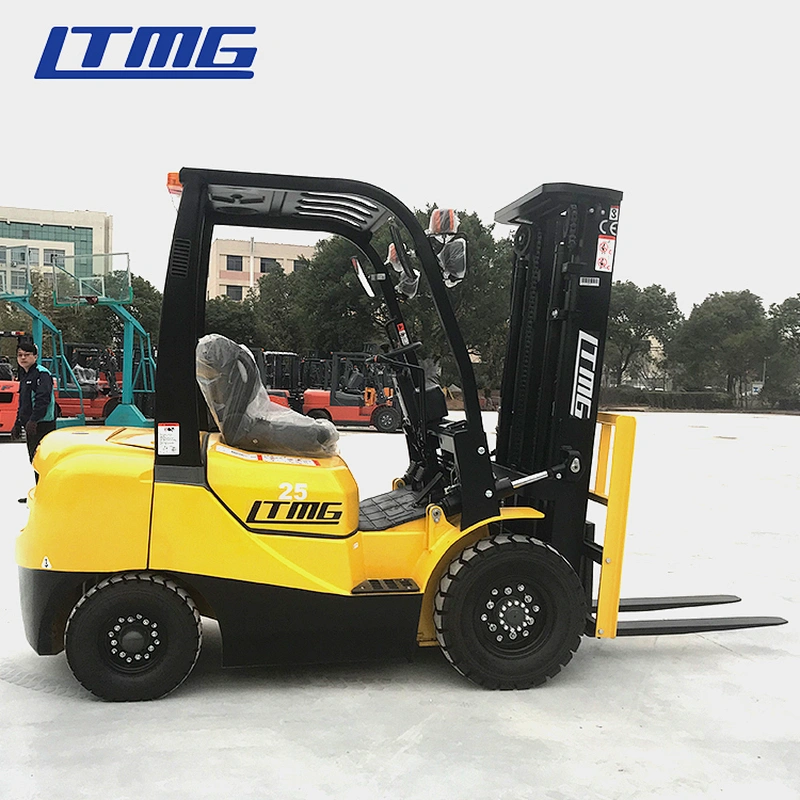

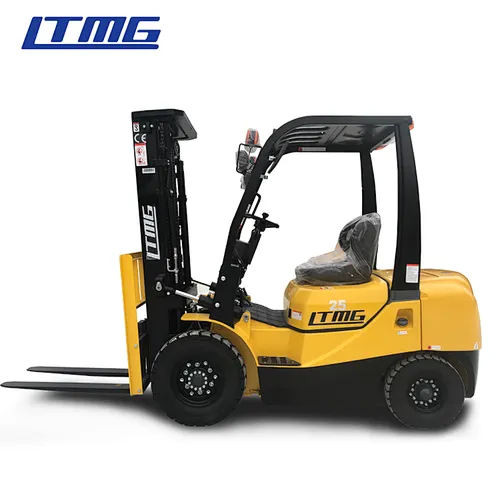

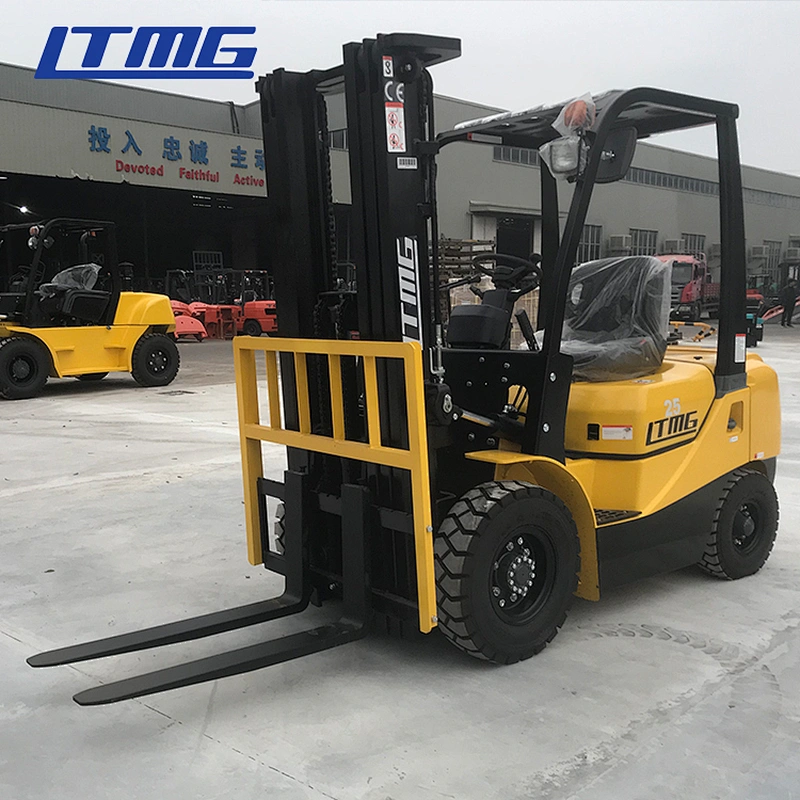

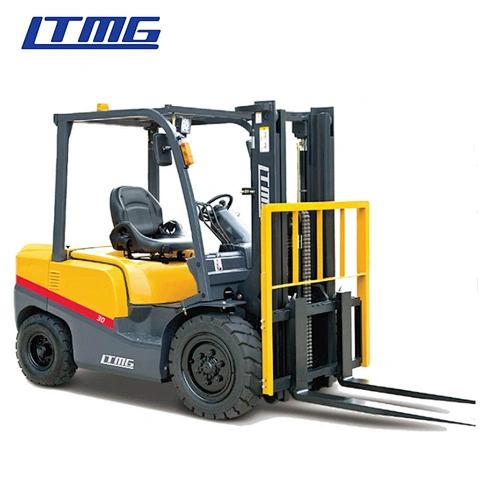

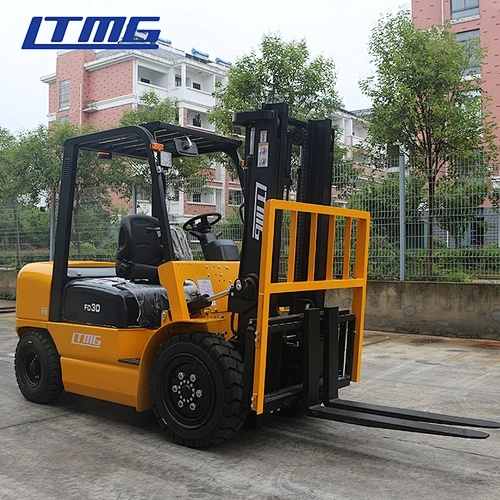

The specification of 2.5ton diesel forklift | ||||
Model | FD25 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 2500 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×120×40 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 465 | ||
Ground Clearance（Bottom of mast） | mm | 110 | ||
Length to face of fork(Without fork) | mm | 2595 | ||
Overall Width | mm | 1150 | ||
Mast Lowered Height | mm | 2070 | ||
Mast Extended Height(With backrest) | mm | 4070 | ||
Overhead Guard Height | mm | 2070 | ||
Turning Radius (outside) | mm | 2310 | ||
Travel Speed(Full load) | km/h | 19 | ||
Lifting Speed(Full load) | mm/s | 530 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Front Tire | mm | 7.00-12-12PR | ||
Rear Tire | mm | 6.00-9-10PR | ||
Wheelbase | mm | 1600 | ||
Service weight | kg | 3790 | ||
Battery(Voltage/Capacity) | V/Ah | 12/80 | ||
Engine Model | C240 | |||
Manufacture | ISUZU | |||
Rated output/r.p.m. | kw | 35.4/2500 | ||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||
No.of Cylinder | 4 | |||
Bore×Stroke | mm | 86×102 | ||
Displacement | cc | 2369 | ||
Fuel Tank Capacity | L | 60 | ||
Transmission Type | Hydraulic | |||
Stage | FWD/RVS | 1/1 | ||

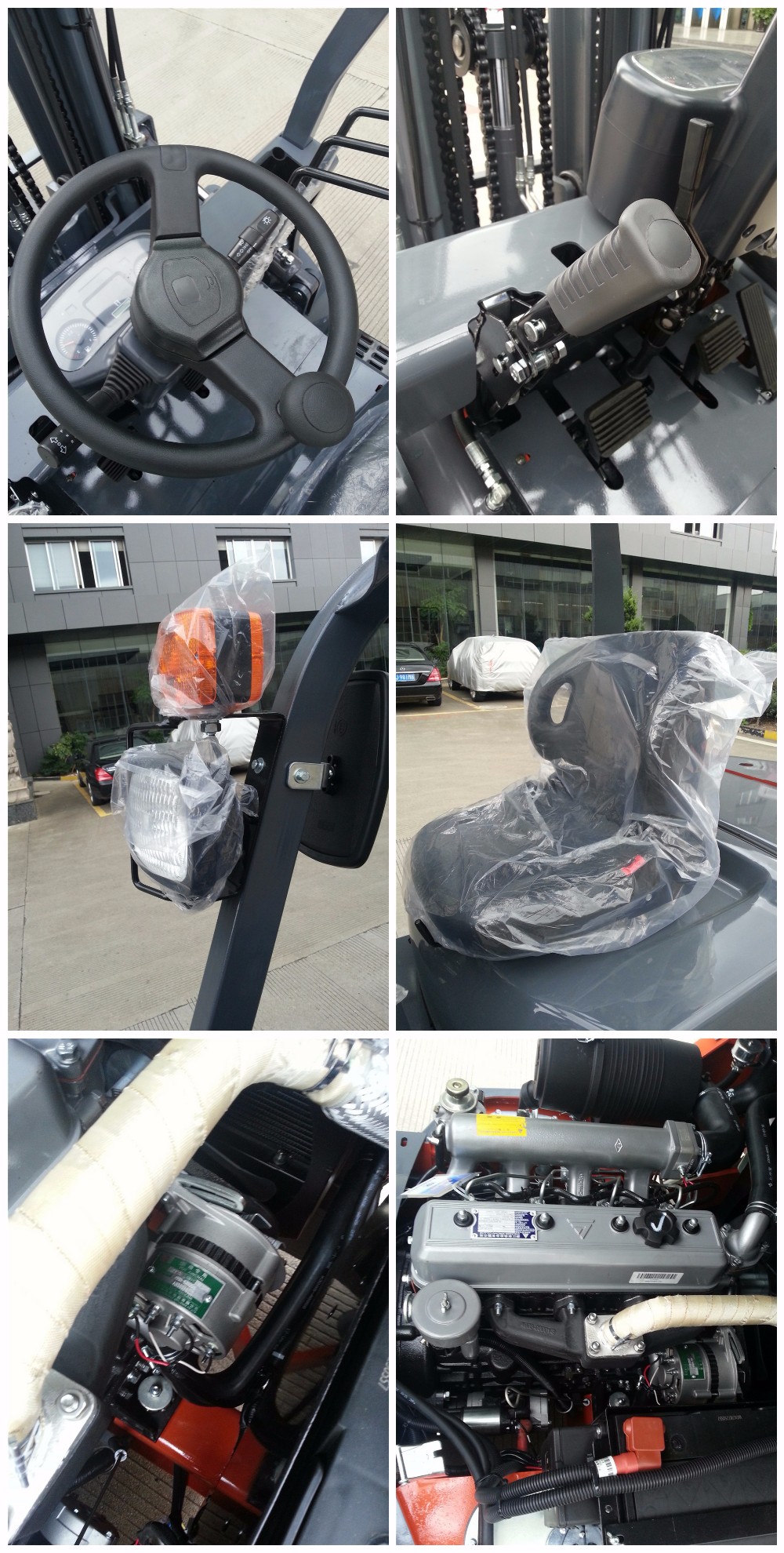

LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
Q1. Why choose us?
A: As a manufacturer, LTMG machinery is committed to offer not only products with high quality, high performance and competitive price, but also in-time delivery and comprehensive after-services.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more LTMA machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty or 2000 hours (which occurs firdt) for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our website to get more videos: http://www.xlteng.com/
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
