- After-sales Service Provided:Overseas third-party support available
- Warranty:1 Year or 2000 Working Hours, Which Occurs Earlier
- Fork size:1800*200*90mm
- Standard lifting height:3500mm
- Load center:600mm
- Ground clearence:250mm
- Battery Voltage/Capacity:(12V/80Ah)x2
- Turning raduis:5400mm
- Wheel base:3600mm
- Fuel tank:300L
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:United States
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Online support
- Applicable Industries:warehouse and logistics
- Max. Lifting Height:3m-5m
- Brand Name:LTMG
- Place of Origin:CN;FUJ
- Overall Dimensions:5400*2750*3500mm
- Fork Width:200mm
- Fork Length:1800mm
- Certification:CE/ISO9001
- Min. Lifting Height:0

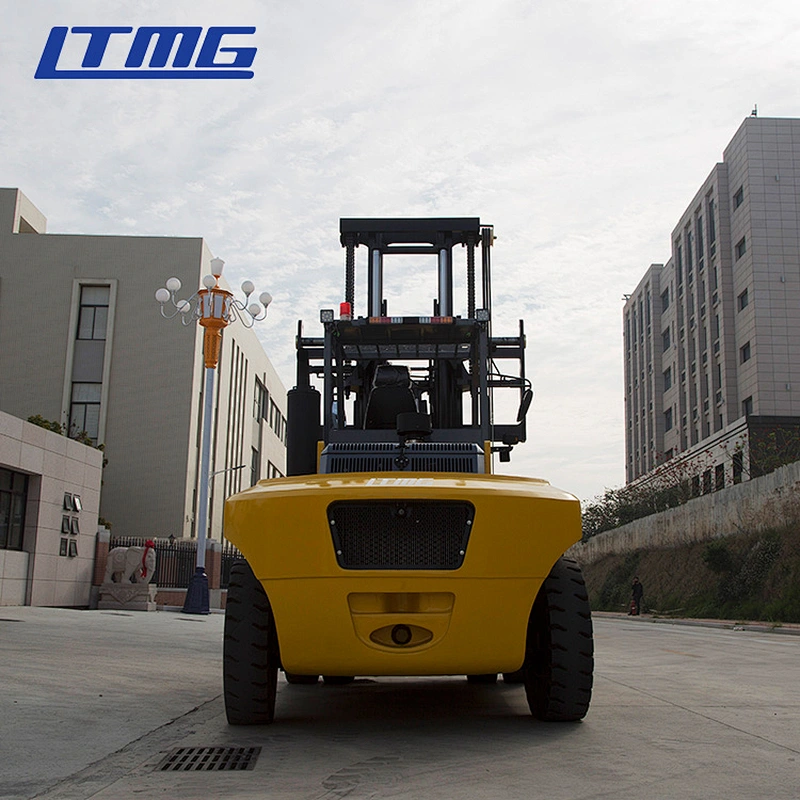

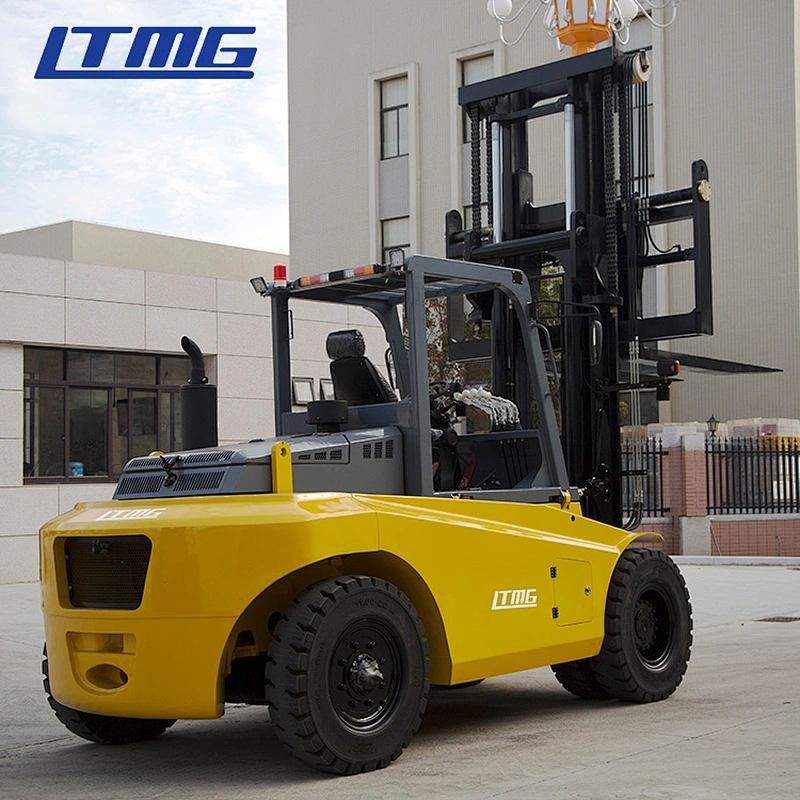

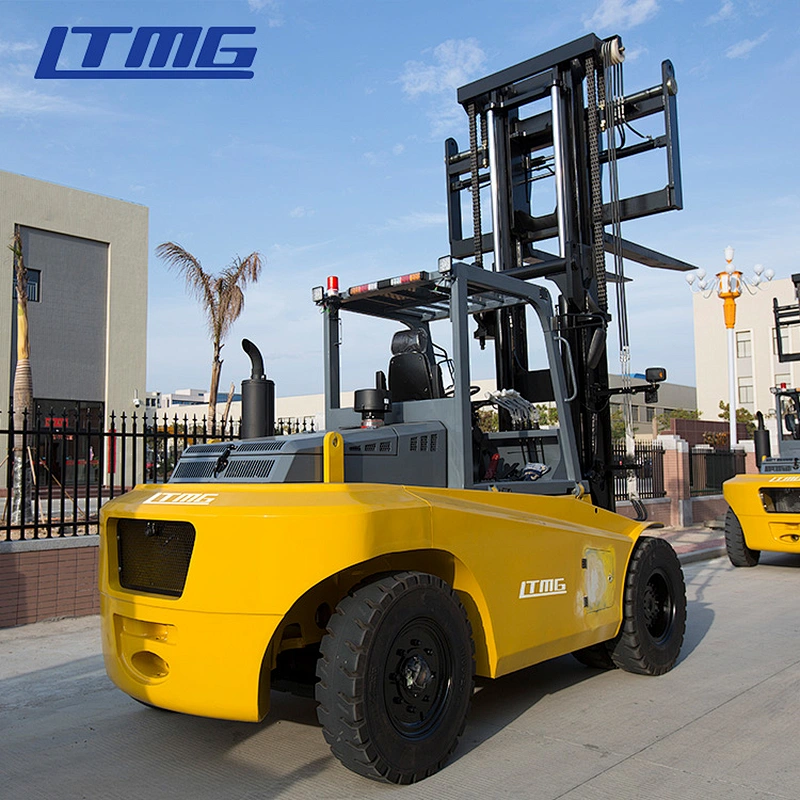

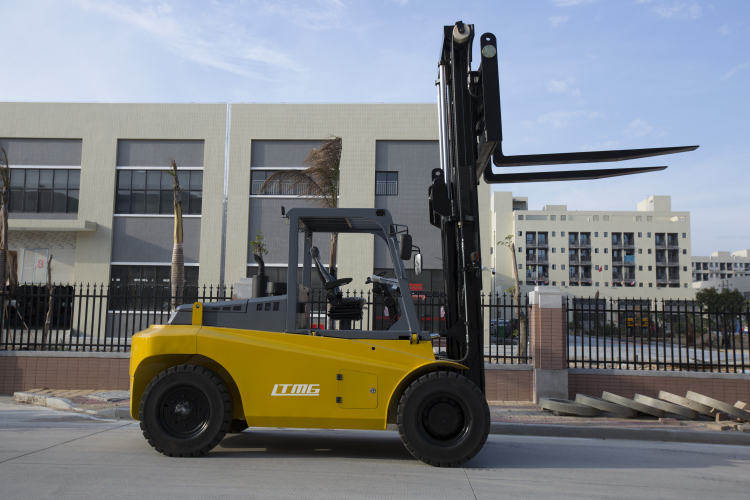

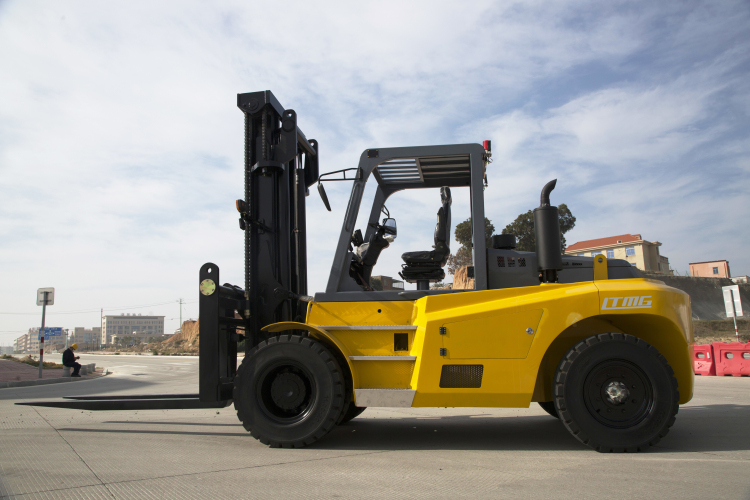

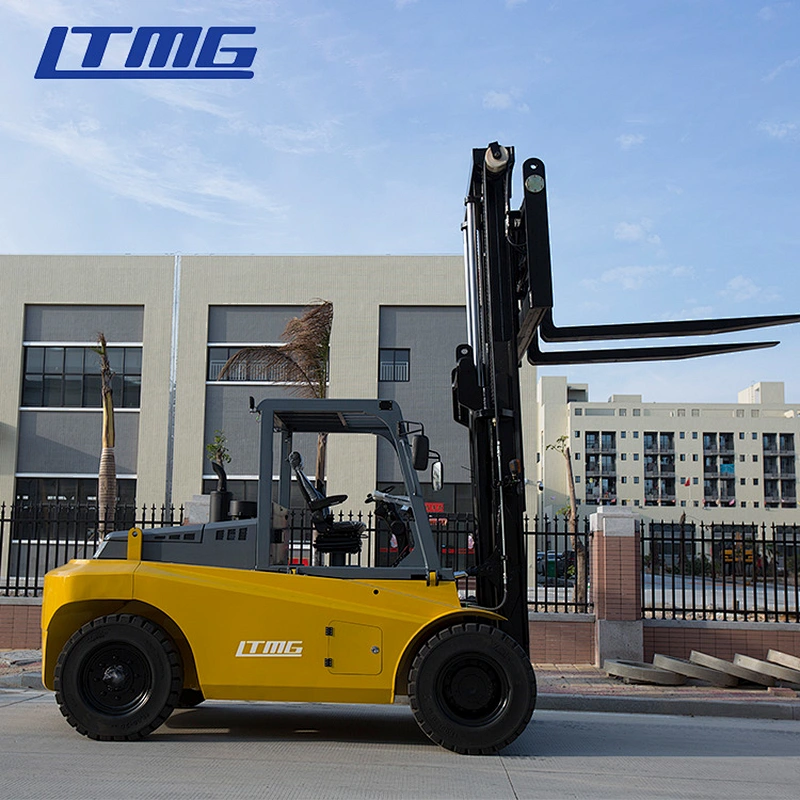

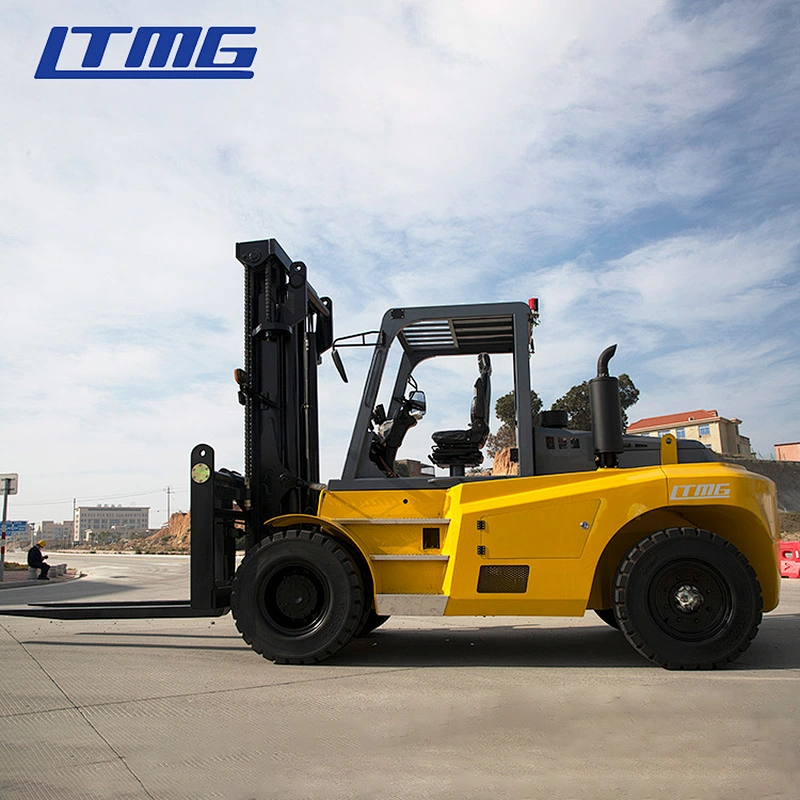

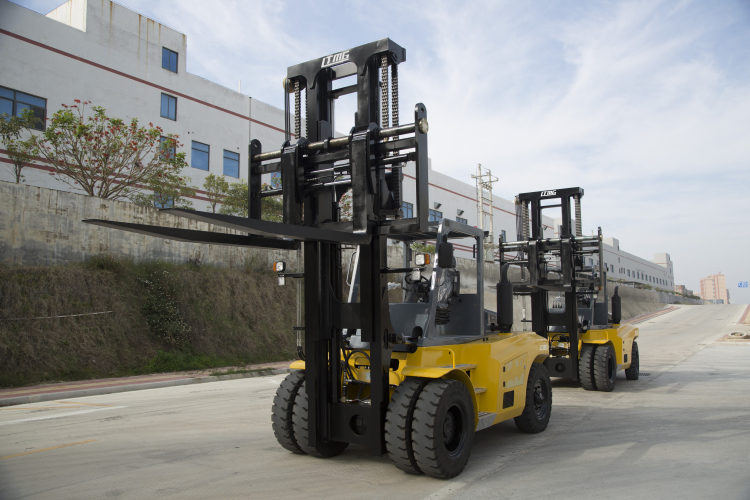

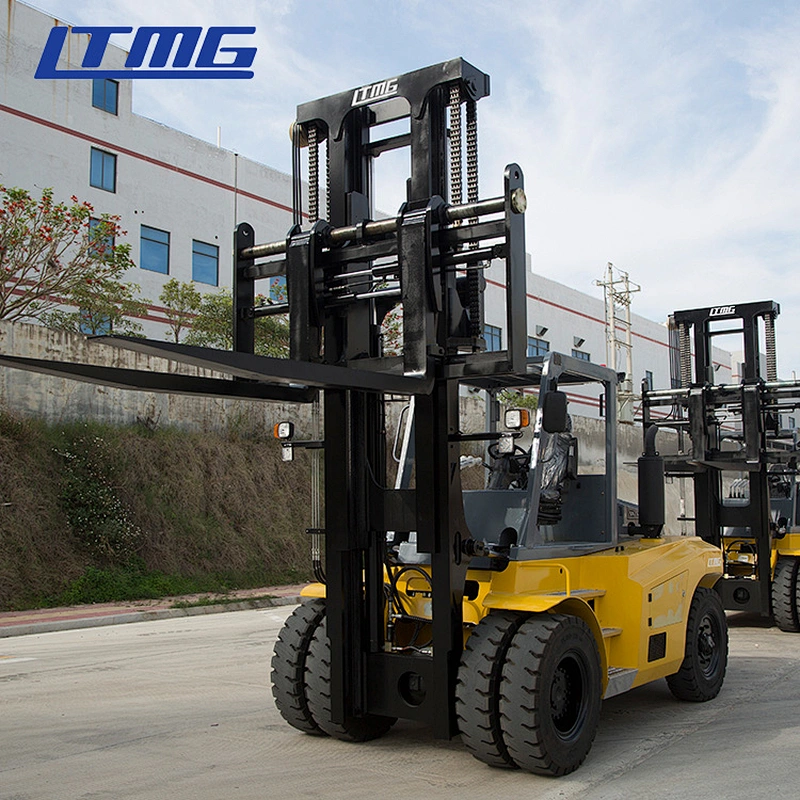

The specification of 16ton diesel forklift | ||||||
Features | Rated Load | Q(Kg) | 16000 | |||
Load Center | c(mm) | 900 | ||||
Wheelbase | y(mm) | 3600 | ||||
Weight | Weight | kg | 21000 | |||
Chassis | Tire Specs:Front | 12.00-24 | ||||
Tire Specs:Rear | 12.00-20 | |||||
Tires Qty,front/rear(X-dreve wheels) | 4/2 | |||||
Wheel tread:Front | b3(mm) | 2070 | ||||
Wheel tread:Rear | b4(mm) | 2130 | ||||
Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | |||
Mast height(fork lowering) | h1(mm) | 3500 | ||||
Mast lifting height | h2(mm) | 3500 | ||||
Max.height | h3(mm) | 5220 | ||||
height to head guard(height to cab) | h4(mm) | 3220 | ||||
Overall height（with forks) | L3(mm) | 7200 | ||||
Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 5400 | ||||
Overall width | b1(mm) | 2750 | ||||
Fork dimension | (mm) | 1800*200*90 | ||||
Fork carriage width | b2(mm) | 2500 | ||||
Mast min ground(with load) | m1(mm) | 270 | ||||
Wheelbase center min ground(with load) | m2(mm) | 310 | ||||
Min.turning Radius | Wa(mm) | 5050 | ||||
Travel speed(with load/without load) | km/h | 22/30 | ||||
Performance | Max.lifting speed(with load/without load) | mm/s | 240/300 | |||
tractionn | KN | 120 | ||||
gradeability(with load/without load) | % | 20/22 | ||||
Driving brake | Hydraulic clamp disvc | |||||
Engine | Engine brand/model | Optional one | Yuchai Engine | |||
YC6B160Z-T20 | ||||||
Optional two | Dongfeng cummins | |||||
Rated Output | 129(Kw) | |||||
Cylinder No | 6 | |||||
Others | Transmission gears(Front/rear) | 2/1 | ||||
1. Original Parker hydraulic valve and pump.
2. Heigh strength 3.5m lifting height mast and 1800mm longer fork.

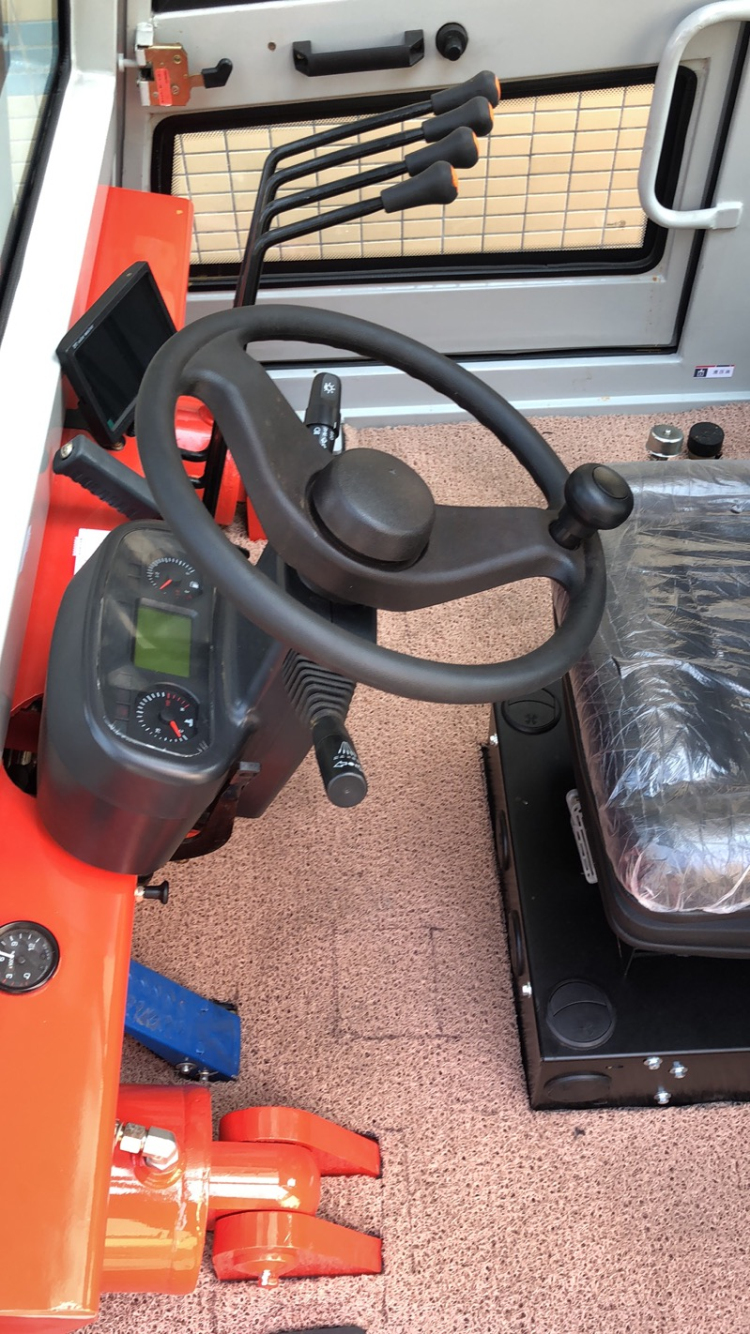

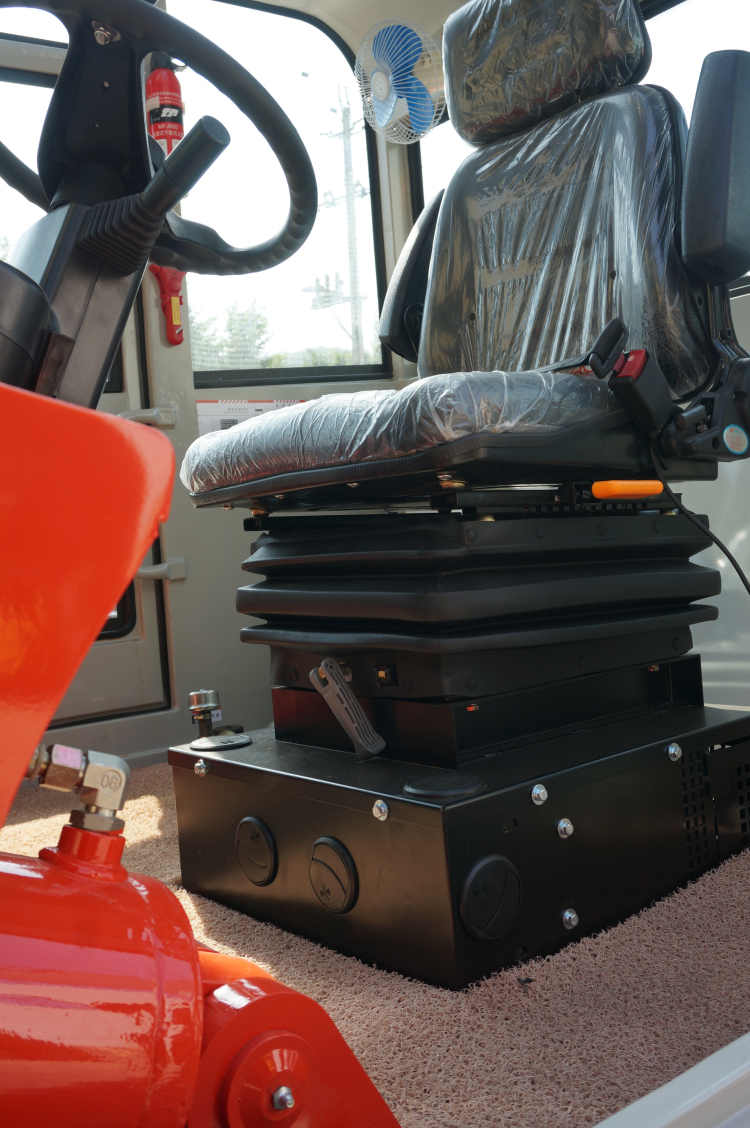

3. FOPS/ROPS cab and OPS/ORS adjustable suspension seat.

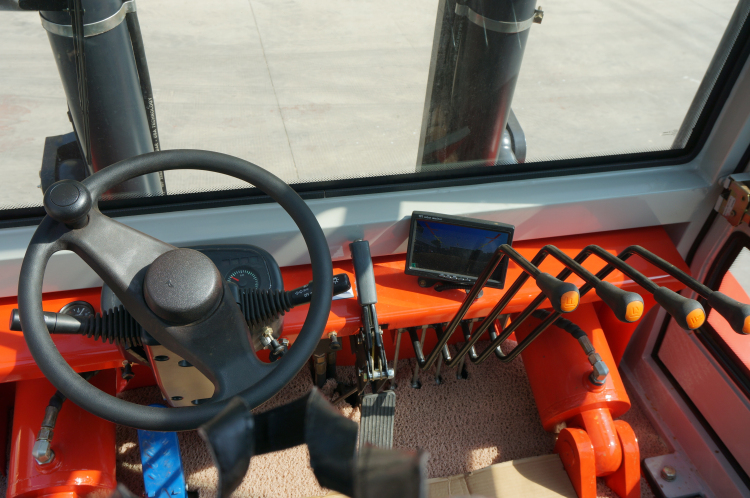

4. Standard enclosed operator cabin, air-conditioner, fork positioner.
5. Optional Cummins engine, HangChi ZF technique transmission.
6. Full LED light, suitable for port night operation
LTMG always treat after-sale as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours(which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

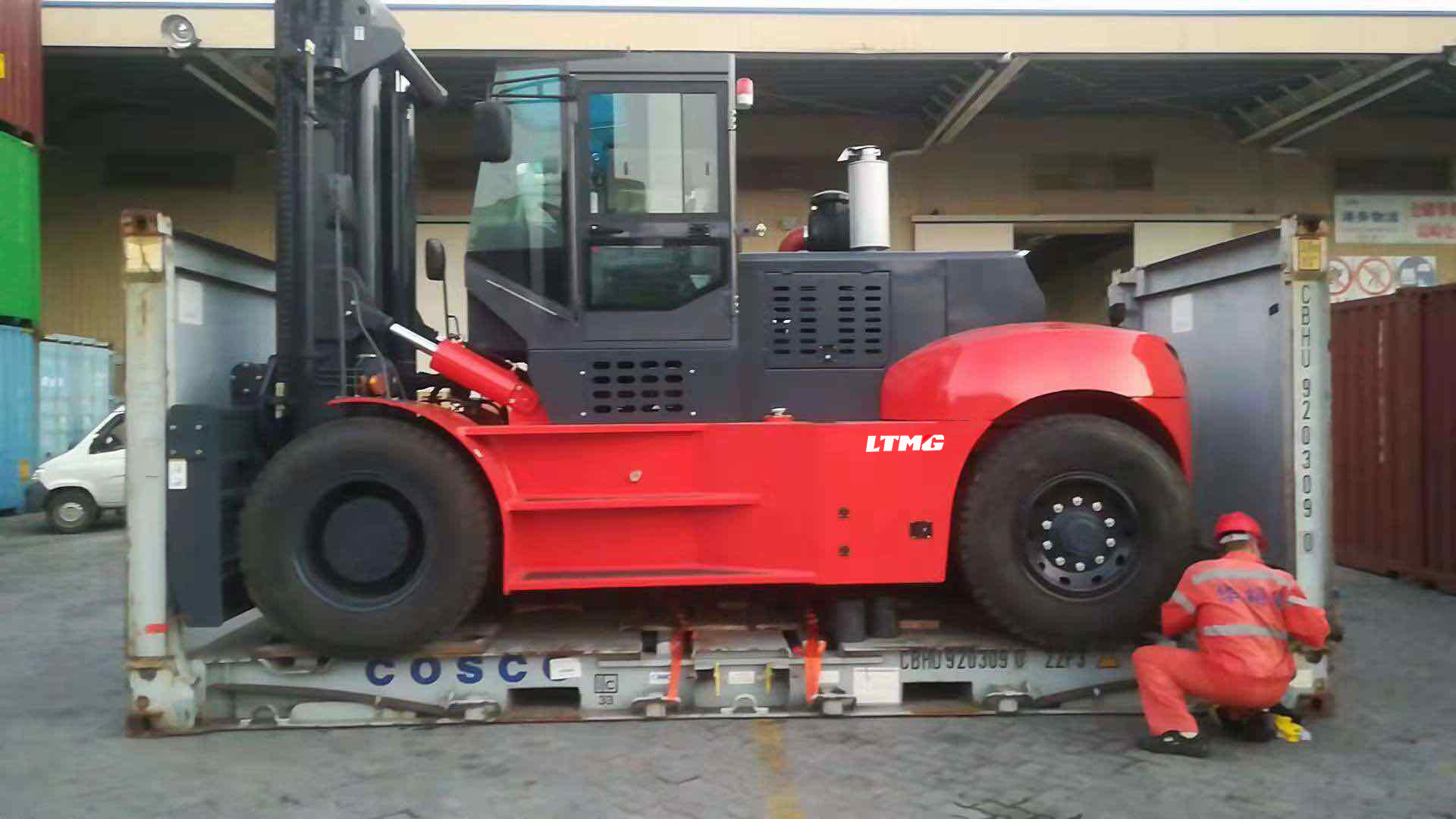

6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
