- Product Type:diesel forklift
- Item:3 ton 4 ton 5 ton forklift
- Load Center:500mm
- Lifting Height:3000mm - 6000mm
- Mast:2 stage mast / 3 stage mast
- Engine:Chinese Xinchai / Japanese Isuzu or Mitsubishi or mitsubishi
- Tires:Pneumatc tires or Solid tires
- Transmission type:Automatic Tranmission
- Color:Customer Demanded

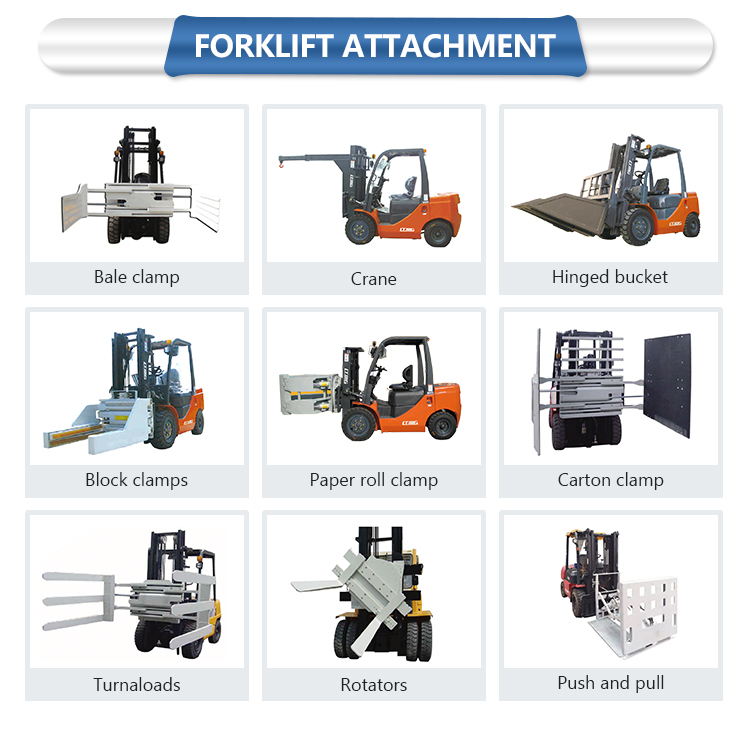

- Optional:Side shifter, Fork positioner, Cabin, Air conditioner
- After Warranty Service:Spare parts
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Egypt
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Chile
- Showroom Location:Colombia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:2 years
- Core Components:Motor
- Core Components:Gear
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Material Handling Equipment
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:150mm
- Overall Dimensions:3260*1460*2340mm
- Certification:CE/ISO9001

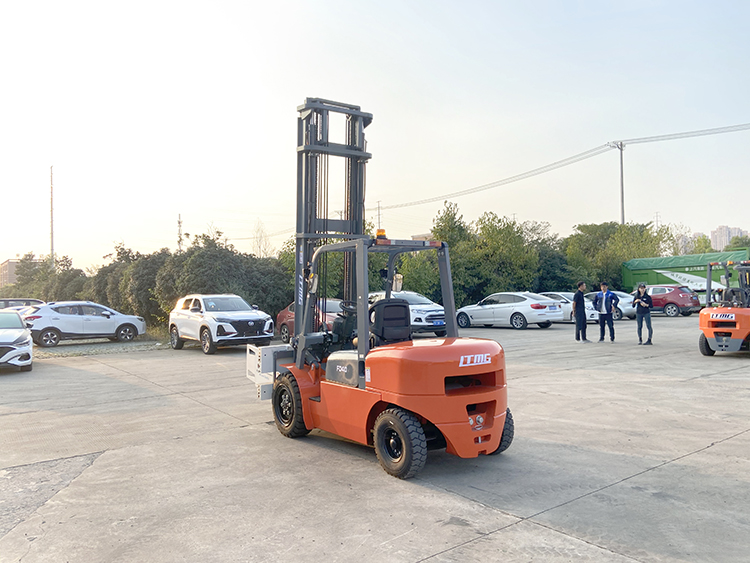

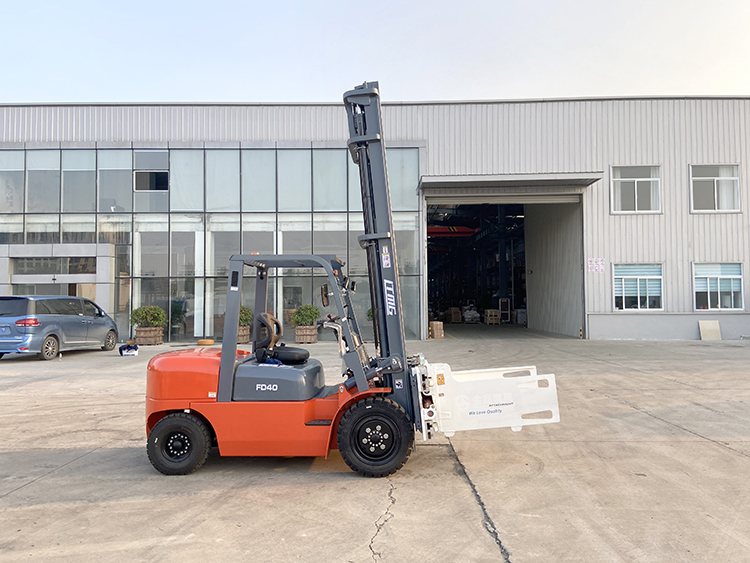

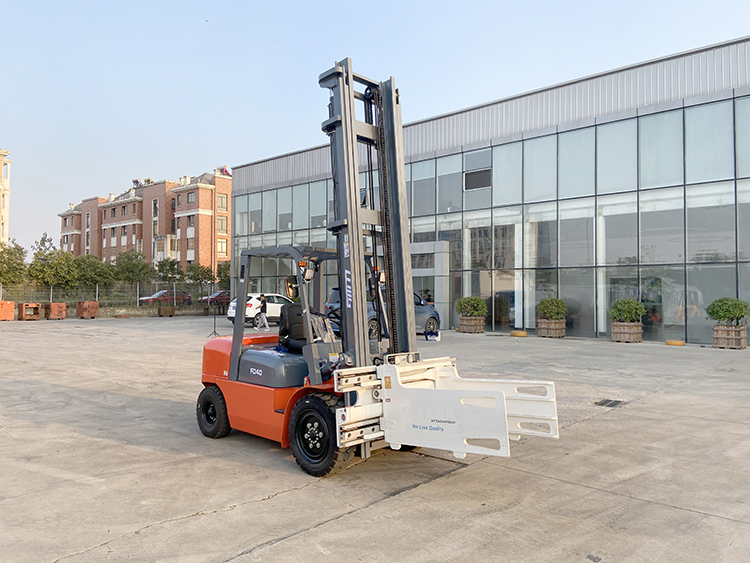

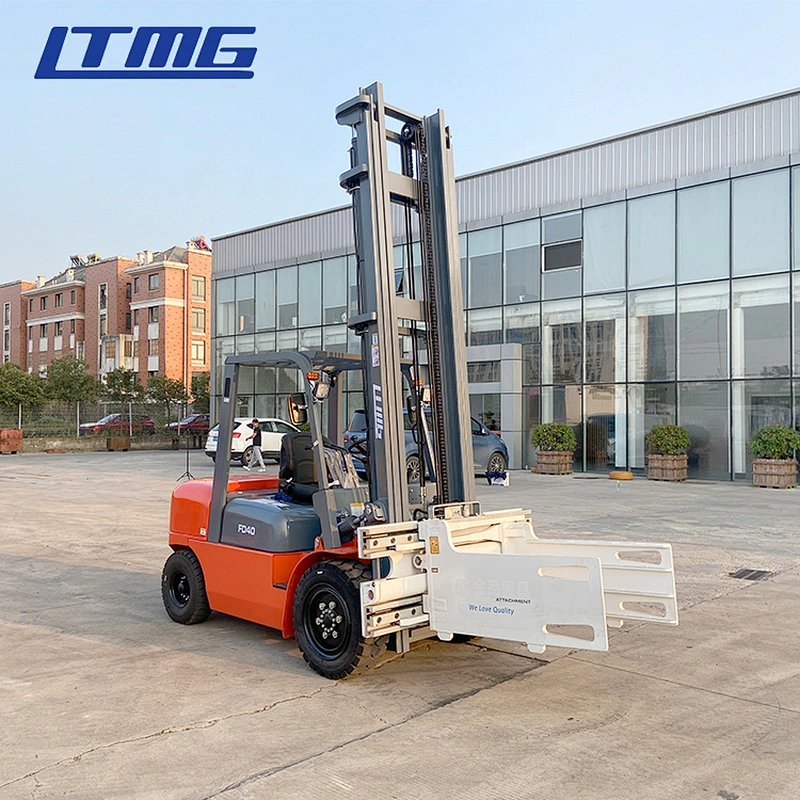

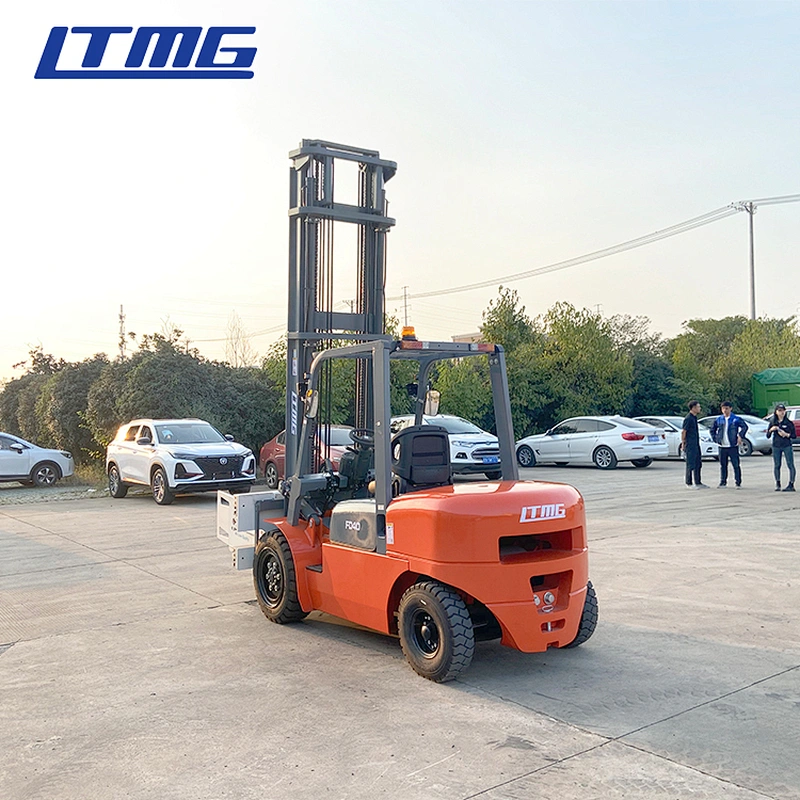

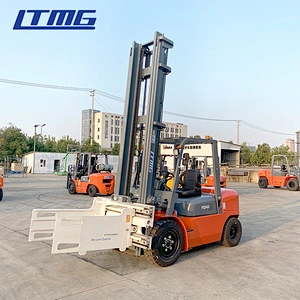

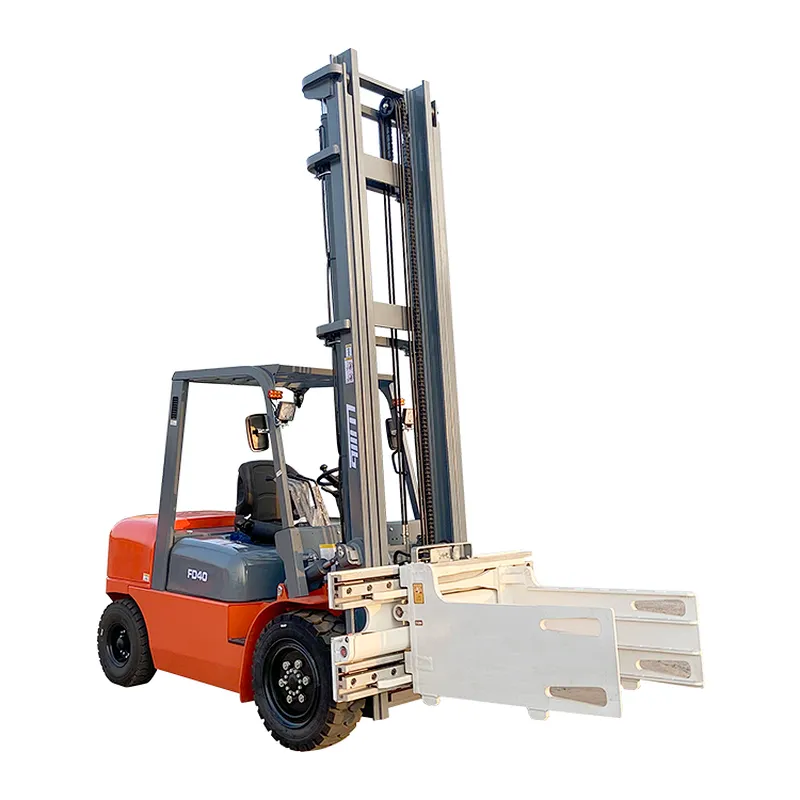

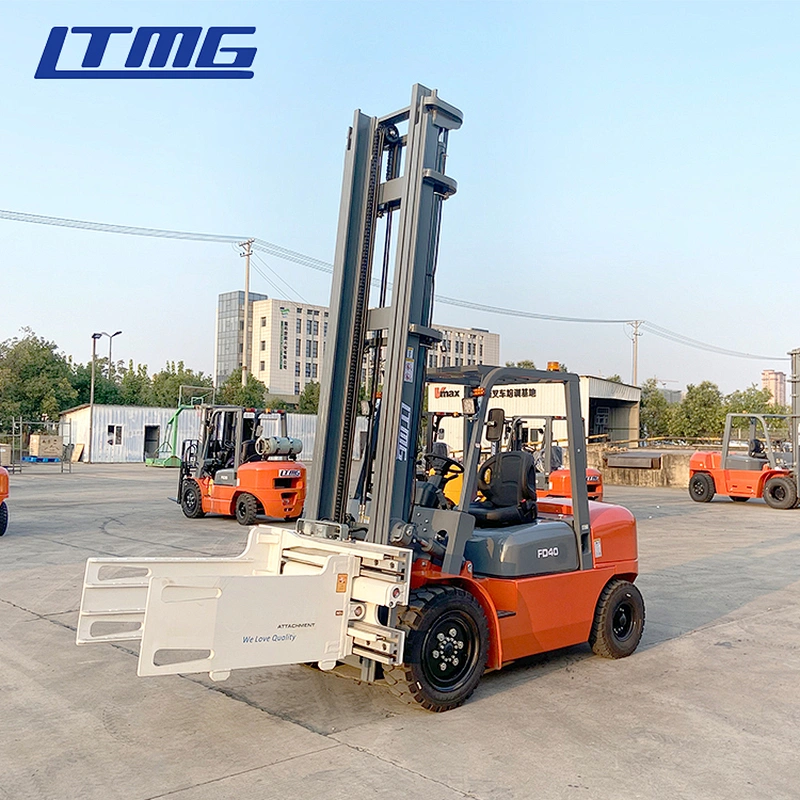

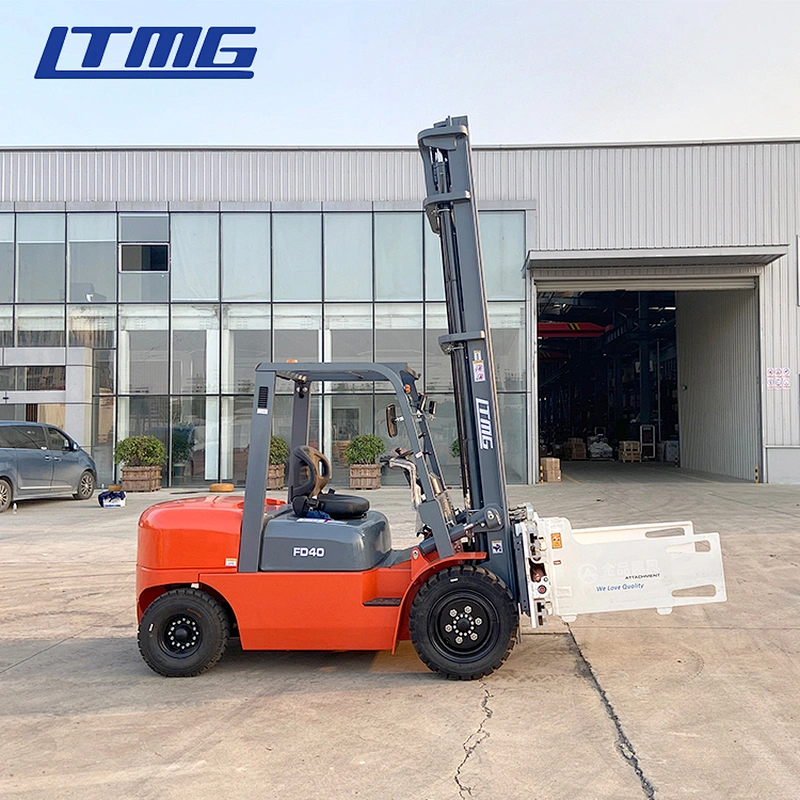

The specification of LTMG 4 ton diesel forklift | ||||||||||
General | Model | FD40 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 4000 | ||||||||
Load Centre | mm | 500 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1070×125×50 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 495 | ||||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2890 | |||||||
Overall Width | mm | 1410 | ||||||||
Mast Lowered Height | mm | 2195 | ||||||||
Mast Extended Height(With backrest) | mm | 4180 | ||||||||
Overhead Guard Height | mm | 2120 | ||||||||
Turning Radius (outside) | mm | 2700 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 19 | ||||||
Lifting (Full load) | mm/s | 320 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 250-15-16PR | ||||||
Rear | mm | 6.50-10-10PR | ||||||||
Wheelbase | mm | 1900 | ||||||||
Service weight | kg | 5100 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||||
Engine | Model | 4TNE98 | ||||||||
Manufacture | YANMAR | |||||||||
Rated output/r.p.m. | kw | 43/2300 | ||||||||
Rated torque/r.p.m. | N·m | 177.6-196.3/1700 | ||||||||
No.of Cylinder | 4 | |||||||||
Bore×Stroke | mm | 98×110 | ||||||||
Displacement | cc | 3318 | ||||||||
Fuel Tank Capacity | L | 70 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 1/1 | ||||||||
