- mast:2 Stage/3 Stage
- Product Name:6 ton 7 ton 8 ton diesel forklift truck
- Engine:Chinese engine or Japan engine
- Rated Capacity:7000kg
- Lift Height:3000mm-6000mm
- Fork Size:1220mm*175mm*75mm
- color:customized
- Turning Radius:3360mm
- Wheelbase:2250mm
- attachment:paper roll clamp, bale clamp, tyre clamp
- Applicable Industries:Building Material Shops
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Retail
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:France
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:Mexico
- Local Service Location:Russia
- Local Service Location:Spain
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Morocco
- Local Service Location:Argentina
- Local Service Location:Chile
- Showroom Location:France
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Pakistan
- Showroom Location:Russia
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Argentina
- Showroom Location:Chile
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0mm
- Fork Length:1220mm
- Fork Width:150mm
- Overall Dimensions:3590*1995*2500mm
- Certification:CE/ISO9001:2008
Specifications of LTMG material handling equipment 7 ton diesel forklift for sale | ||||
Manufacturer | LTMG | |||
Model | FD70 | |||
Load capacity | 7000kg | |||
Load center | 600mm | |||
Operator type | Driver/seat | |||
Tire type | Pneumatic | |||
Wheel | Front/rear | 4/2 | ||
Max. lifting height | 3000mm | |||
Free lift | 210mm | |||
Fork size | L*W*T | 1220*150*65mm | ||
Tilt range | Mast forward/backward | 6/12 deg | ||
Overall length(without fork) | 3590mm | |||
Total width | 1995mm | |||
Mast height (fork lowering) | 2500mm | |||
Overall height fork raised | With backrest | 4220mm | ||
Height to head guard | 2450mm | |||
Turning raduis(outside) | 3360mm | |||
Front face of fork to front axle | 620mm | |||
Min. right angle stacking aisle | pallet size :1100×1100 add clearence | 5620mm | ||
Max Travelling speed | full/no load | 26/30 (km/h) | ||
Lifting speed | full/no load | 450/550(mm/s) | ||
Lowering speed | full/no load | 450/500(mm/s) | ||
Max.drawbar pull | full/no load | 5400/2200kg | ||
Gradeability at 1.6km/h | full load | 0.29 | ||
Max. Gradeability | full/no load | 33/19 % | ||
Truck weight | 9450kg | |||
Weight distribution | Full load (front/rear) | 14520/1930kg | ||
No load front/rear | 3760/5690kg | |||
Tires number | front/rear | 4/2 | ||
Tires model | front/rear axle | 8.25x15-14PR | ||
Wheelbase | 2250mm | |||
Tread | Front/rear | 1470/1700mm | ||
Ground clearence | At lowest point(mast) | 190mm | ||
Frame | 230mm | |||
Brake | Service brake | power brake | ||
Parking brake | Mechanical-hand lever | |||
Battery | Voltage/capacity | 2x12V-80AH(V/AH) | ||
Engine | Model | Chaochai 6102BG | ||
Rated power | 82.3/2500(kw/rpm) | |||
Rated torque | 354/1650(N-m/rpm) | |||
Number of cylinders | 6 | |||
Displacement | 5.785L | |||
Fuel tank capacity | 140 L | |||
Transmission | shift stage(front/rear-type) | 2-2 automatic | ||
Operating pressure | Hydraulic system pressure | 200 kg/cm² | ||
1.Original Mitsubishi S6S engine is optioanl, high quality compliant with worldwide stage IIIA emission standard.The powerful engine ensures LTMG forklift truck high handing performance.
2.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.
3.Thicker reinforcing oil cylinder and plate ensures the safety and efficiency.

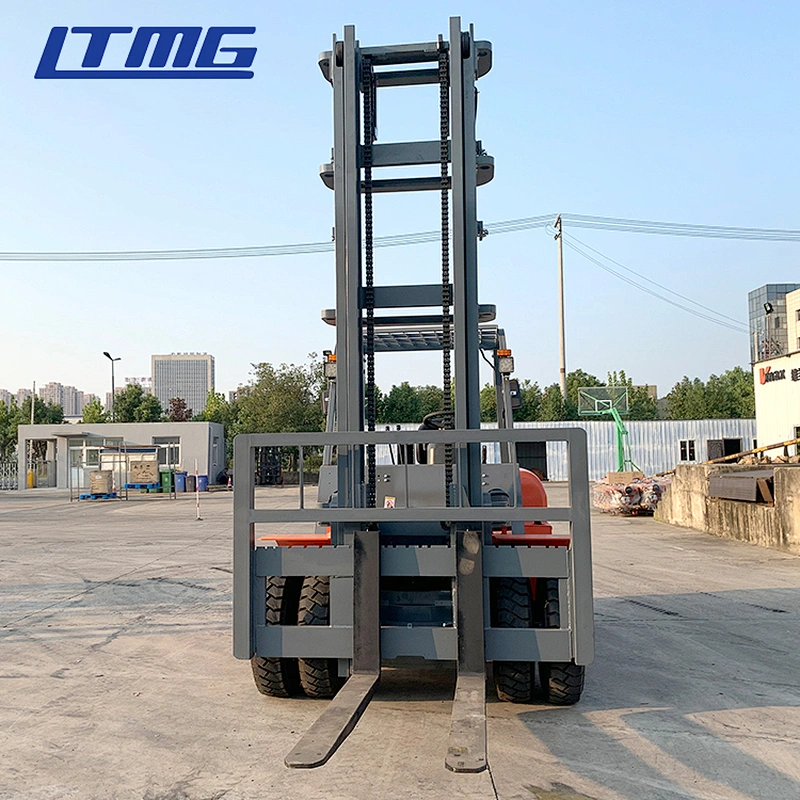

4.Optional front double tires makes the high lift mast working more stable.
5.New designed overhead guard protective device prevent the sudden accidents.
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate
