- Product Type:diesel forklift
- Item:10 ton forklift
- After-sales Service Provided:Overseas third-party support available
- Lifting height:3000mm - 6000mm
- Mast:2 stage mast/3 stage mast
- Load center:600mm
- Wheel base:2800mm
- Tires:Pneumatic tires
- Optional:side shifter, enclosed cabin, solid tires
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Viet Nam
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Showroom Location:Egypt
- Showroom Location:Viet Nam
- Showroom Location:Philippines
- Showroom Location:Saudi Arabia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Australia
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Motor
- Core Components:Gear
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Min. Lifting Height:0
- Fork Length:1520mm
- Fork Width:175mm
- Overall Dimensions:4280*2170*2830mm
- Certification:CE/ISO9001:2008

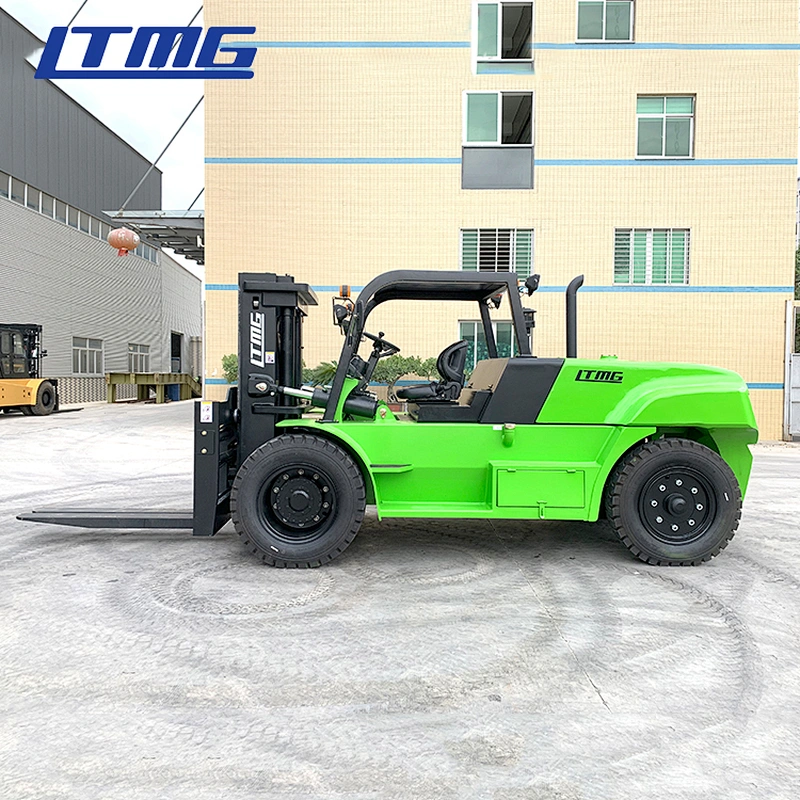

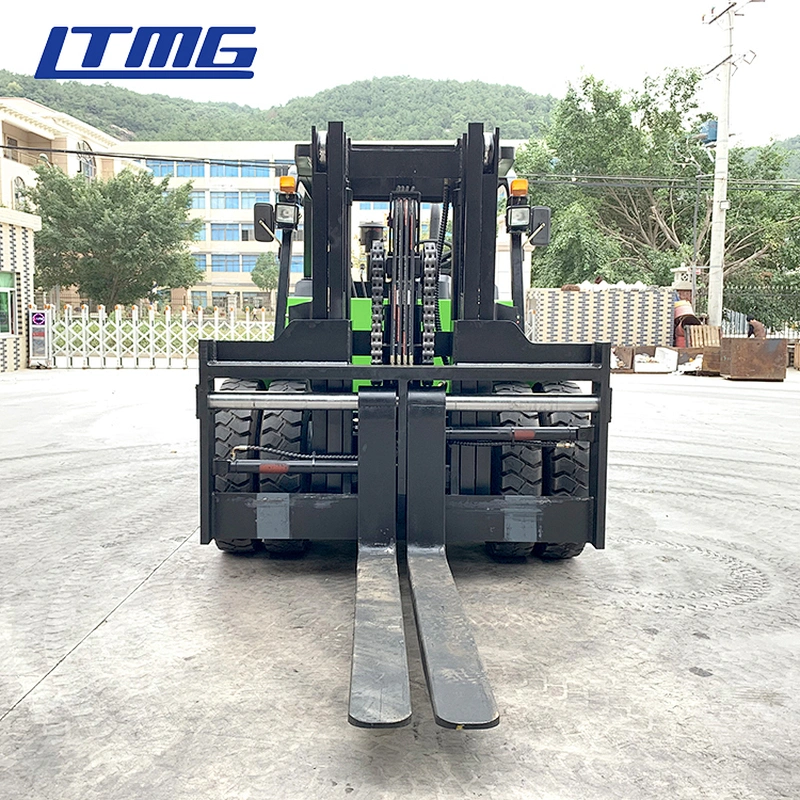

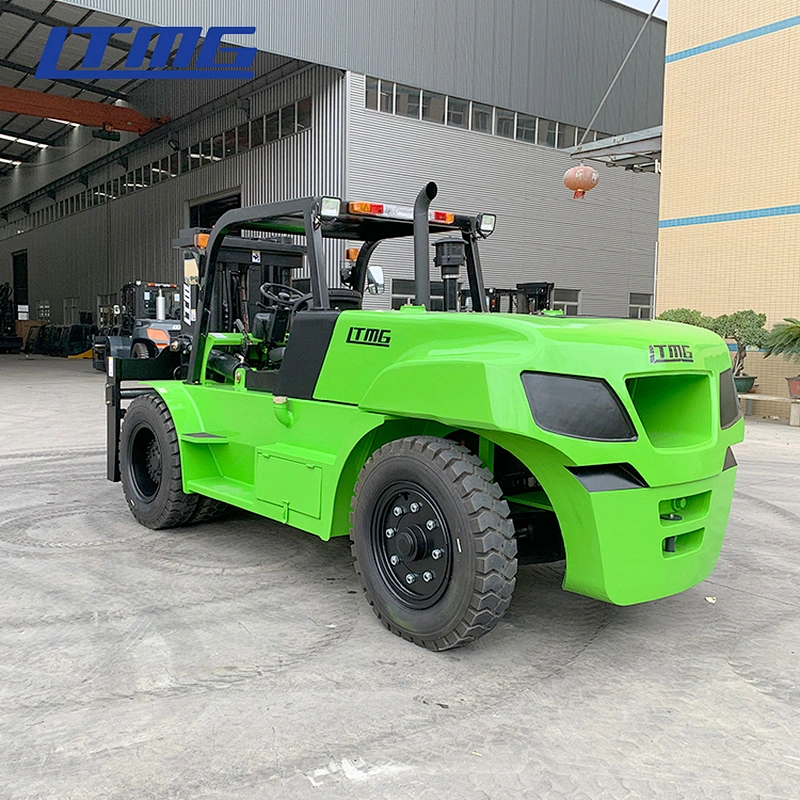

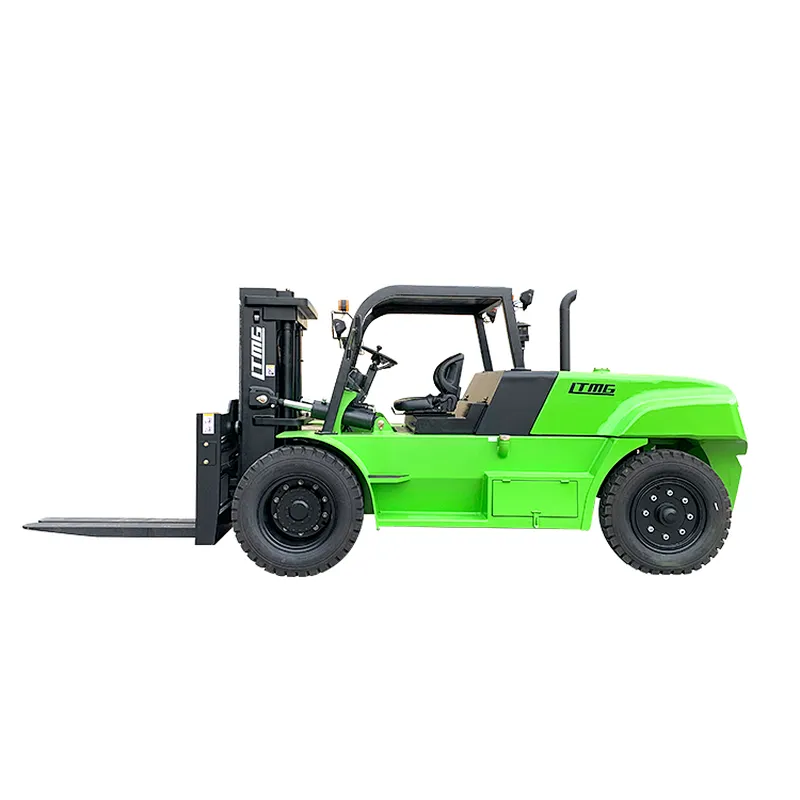

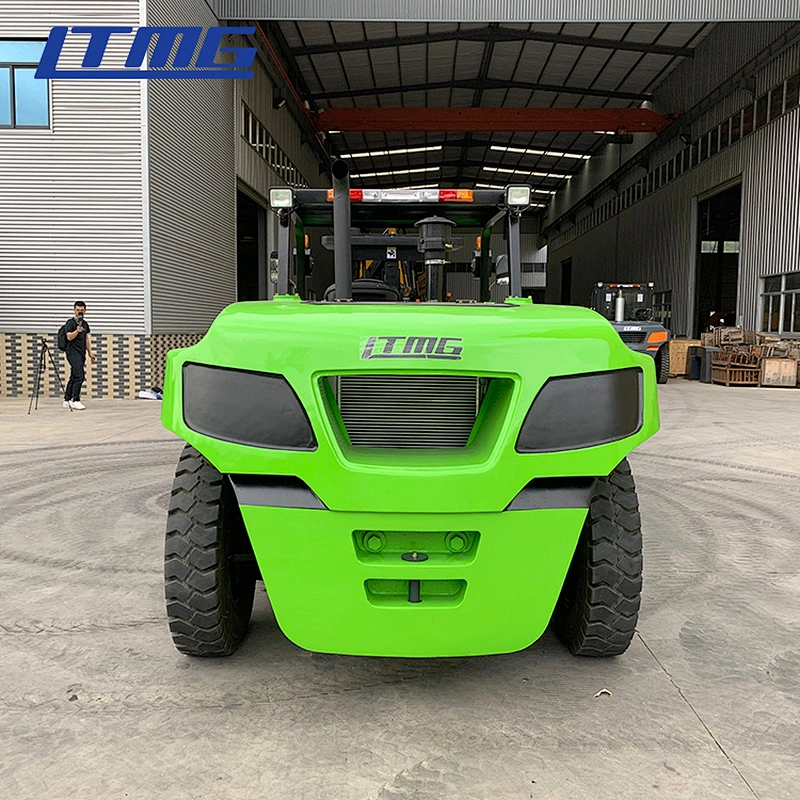

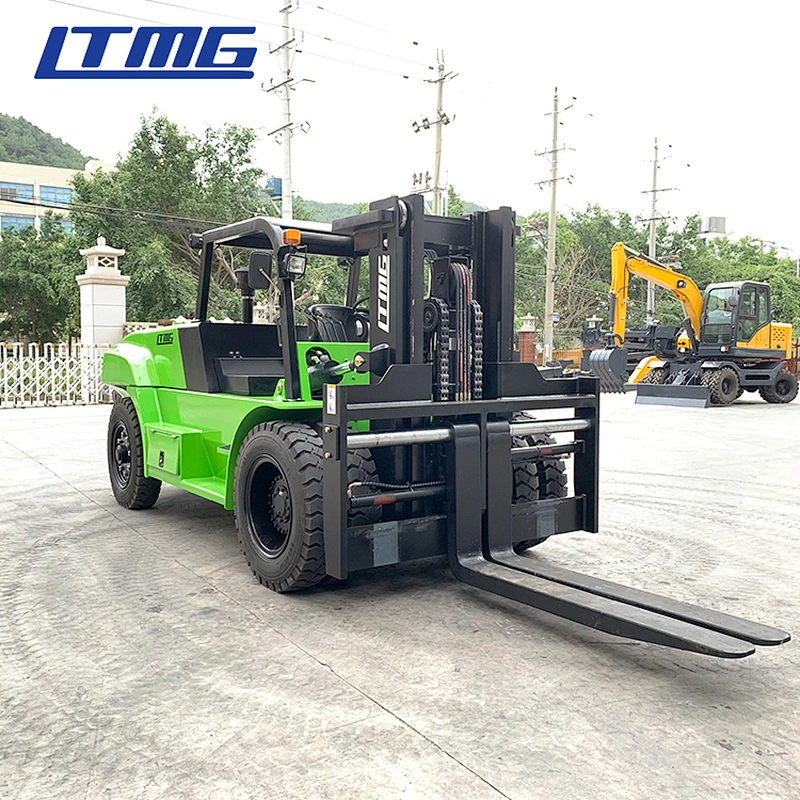

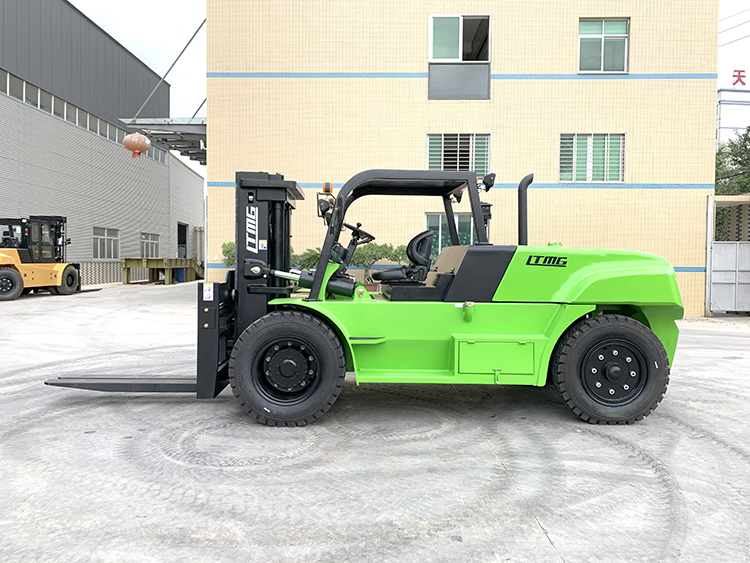

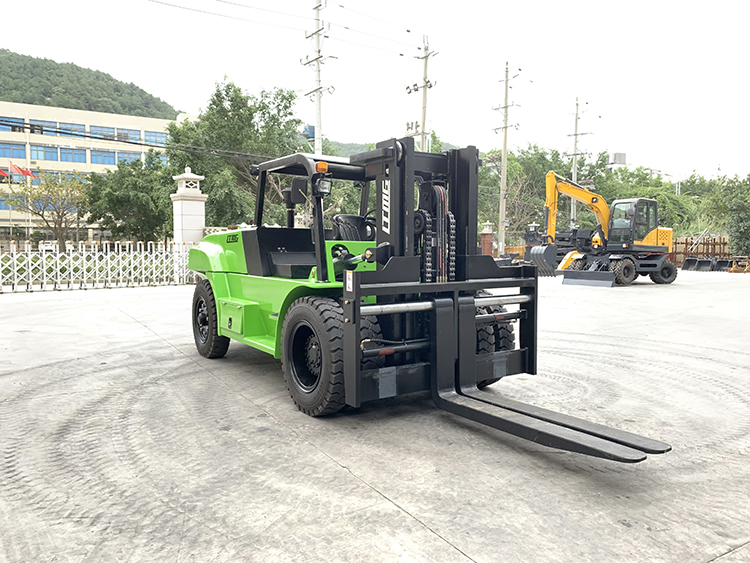

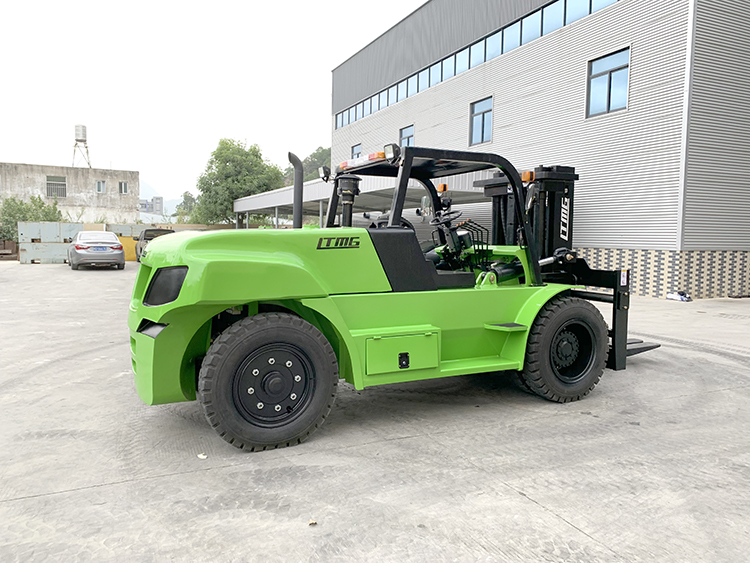

The specification of LTMG 10 ton diesel forklift | ||||||||||
General | Model | FD100 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 10000 | ||||||||
Load Centre | mm | 600 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1520×175×85 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 739 | ||||||||
Ground Clearance(Bottom of mast) | mm | 230 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 4280 | |||||||
Overall Width | mm | 2170 | ||||||||
Mast Lowered Height | mm | 2830 | ||||||||
Mast Extended Height(With backrest) | mm | 4335 | ||||||||
Overhead Guard Height | mm | 2510 | ||||||||
Turning Radius (outside) | mm | 3970 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 30 | ||||||
Lifting (Full load) | mm/s | 270 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 9.00-20-14PR | ||||||
Rear | mm | 9.00-20-14PR | ||||||||
Wheelbase | mm | 2800 | ||||||||
Service weight | kg | 13100 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | ||||||
Engine | Model | 6BG1-QC02 | ||||||||
Manufacture | ISUZU | |||||||||
Rated output/r.p.m. | kw | 82.4/2000 | ||||||||
Rated torque/r.p.m. | N·m | 416/1600 | ||||||||
No.of Cylinder | 6 | |||||||||
Bore×Stroke | mm | 105×125 | ||||||||
Displacement | cc | 6494 | ||||||||
Fuel Tank Capacity | L | 135 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 2/2 | ||||||||
