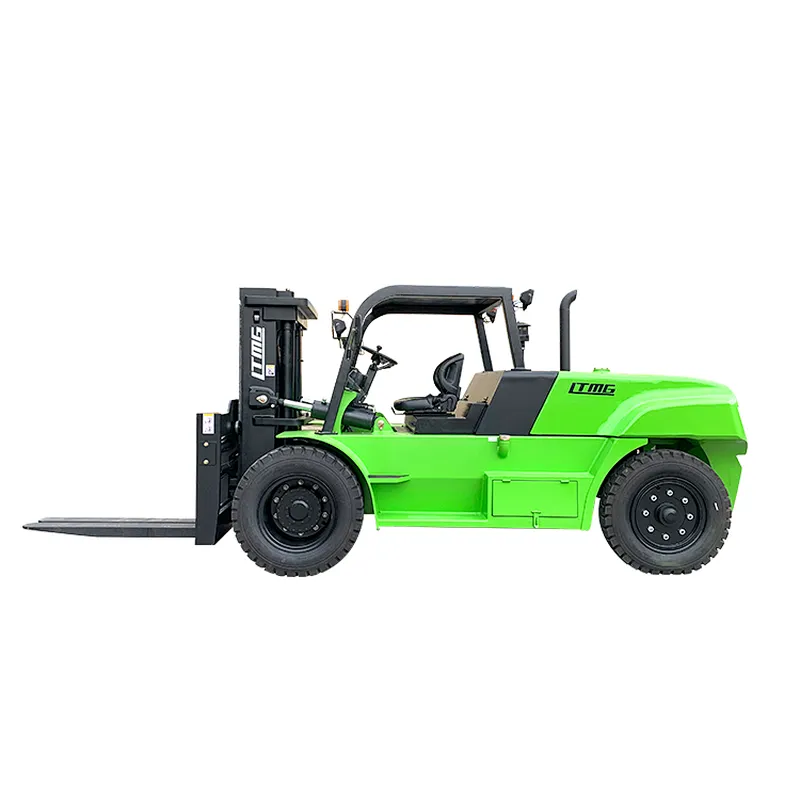

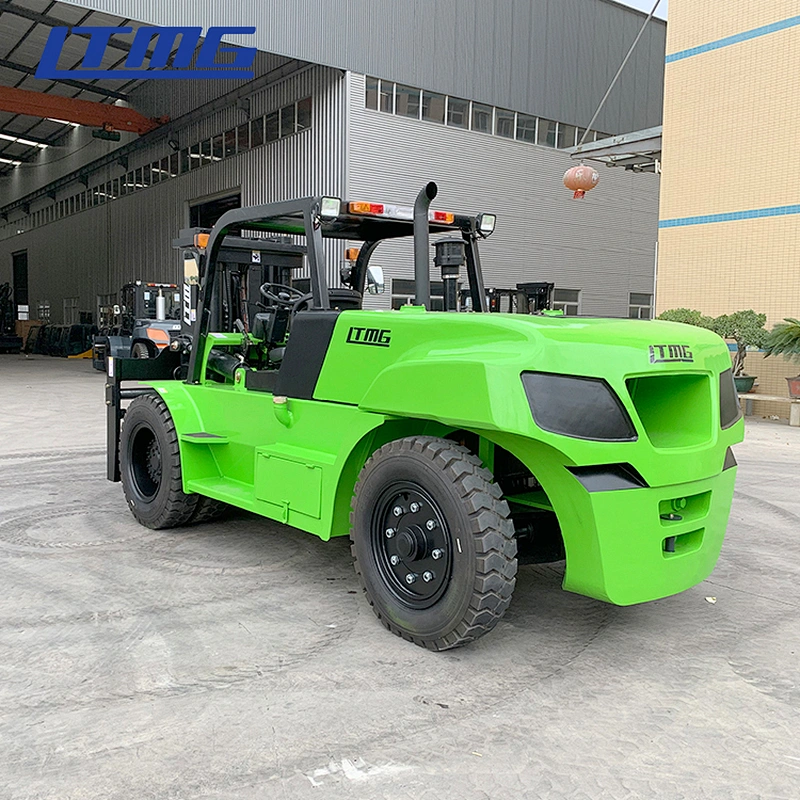

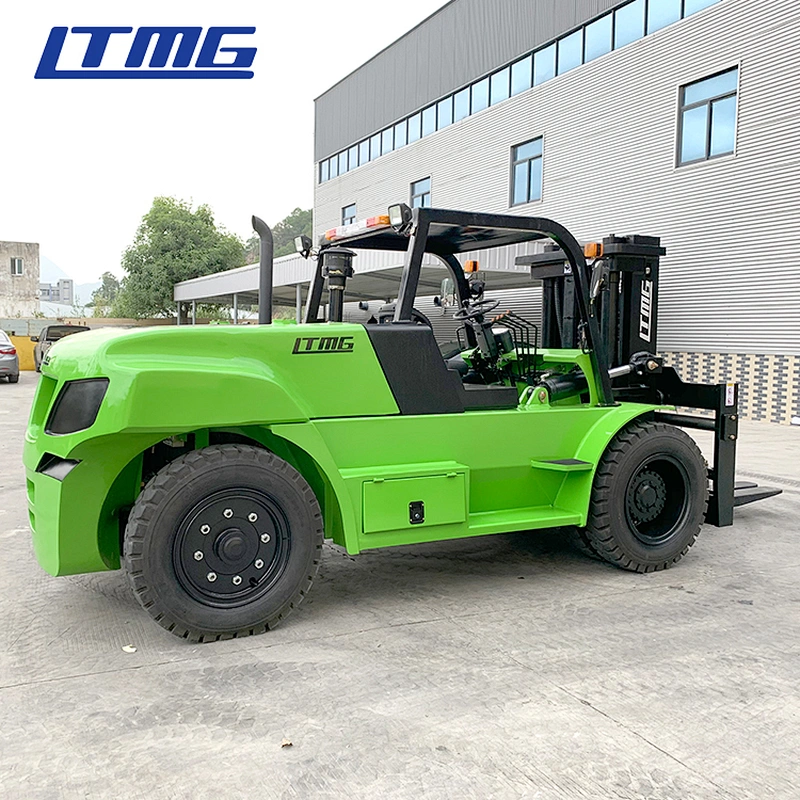

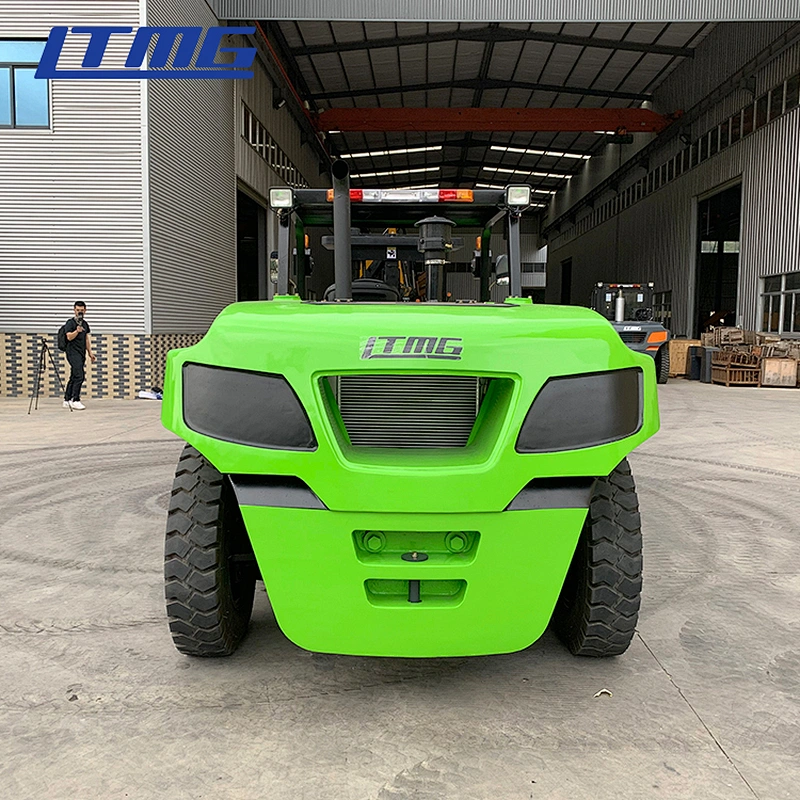

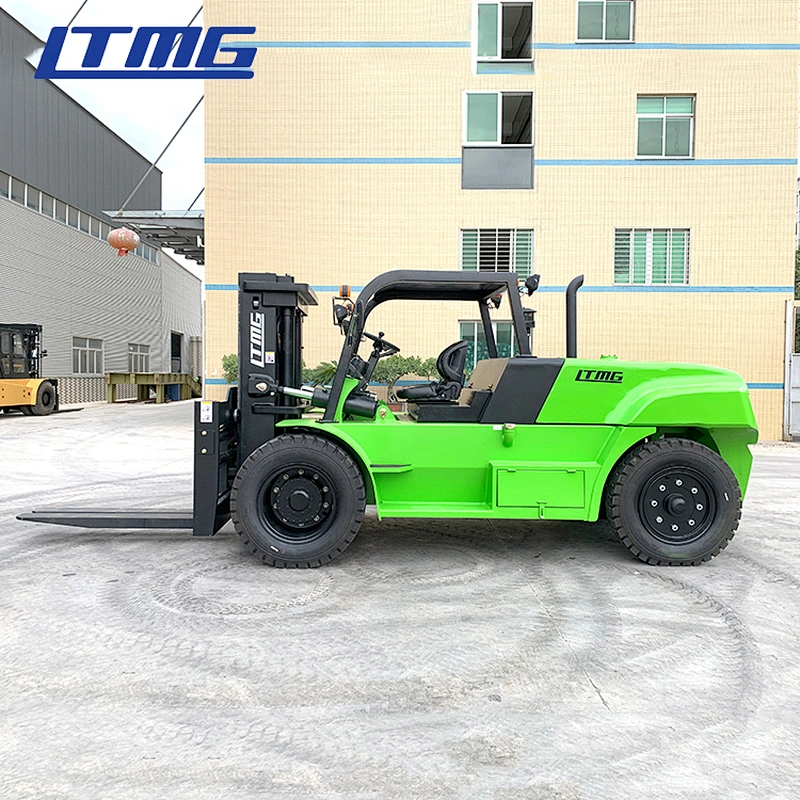

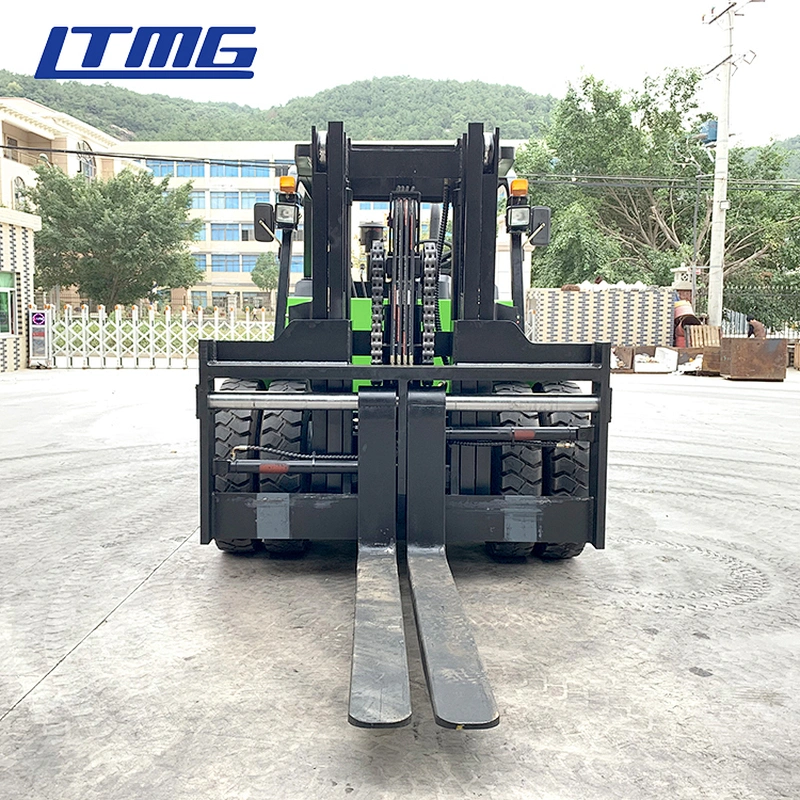

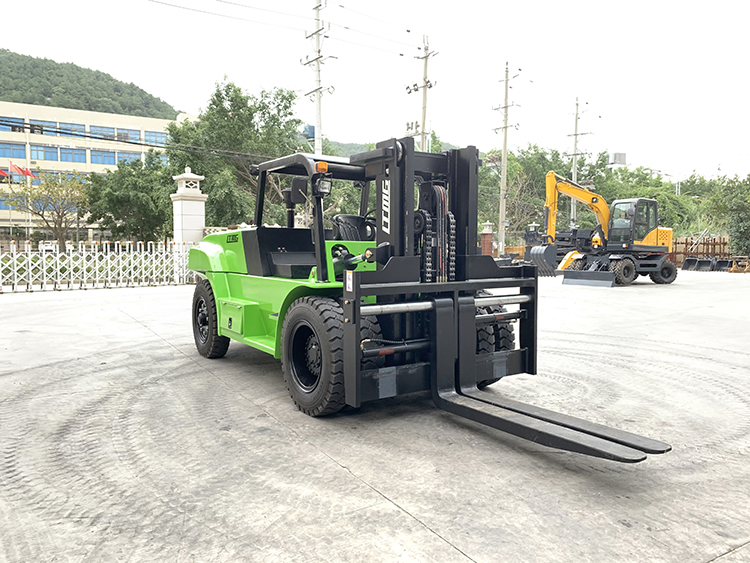

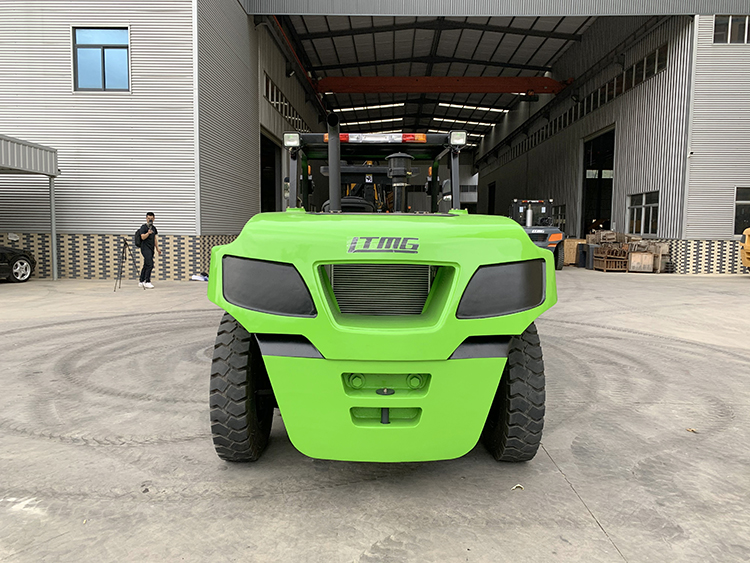

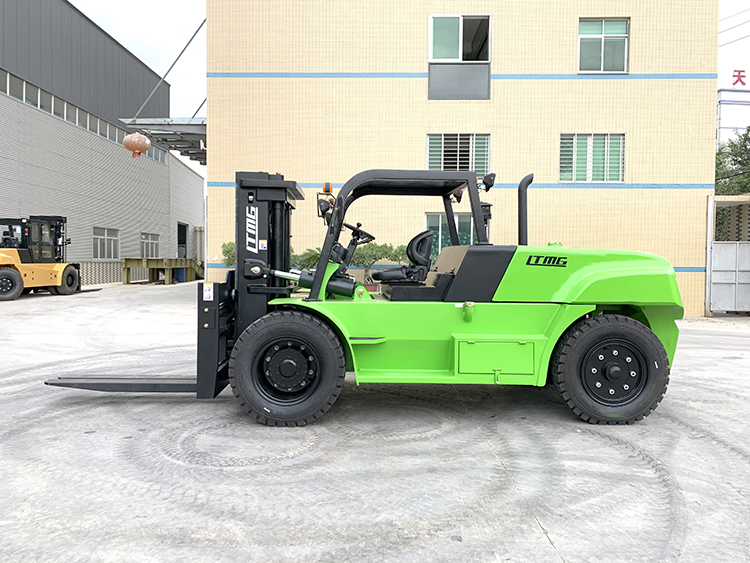

- Product Name:10 ton hydraulic diesel forklift
- Free size:1220*175*75mm
- Load Center:600mm
- Wheel base:2800mm
- Engine:Japanese or Chinese
- optional:air conditioner, solid tyres,closed cabin
- Height to head guard:2560mm
- Color:Customer Requirement
- Tire:double frontPneumatic Tire
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:United States
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Bangladesh
- Local Service Location:Ukraine
- Showroom Location:Italy
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Algeria
- Showroom Location:Ukraine
- Showroom Location:Uzbekistan
- Condition:New
- Power Souce:Diesel Engine
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:Pump
- Core Components:Gearbox
- Core Components:Engine
- Place of Origin:CN;ZHE
- Brand Name:LTMG
- Min. Lifting Height:205mm
- Fork Length:1220mm
- Fork Width:175mm
- Overall Dimensions:2705*1225*2075mm
- Certification:CE/ISO9001:2008
Specifications of 10 ton diesel forklift with Japanese Isuzu engine | ||||||
Manufacturer | LTMG | |||||
Model | FD100 | |||||
Load capacity | 10000kg | |||||
Load center | 600mm | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 4/2 | ||||
Max. lifting height | 3000mm | |||||
Free lift | 205mm | |||||
Fork size | L*W*T | 1220*175*75mm | ||||
Tilt range | Mast forward/backward | 6/12 deg | ||||
Overall length(without fork) | 4255mm | |||||
Total width | 2245mm | |||||
Mast height (fork lowering) | 2850mm | |||||
Overall height fork raised | With backrest | 4330mm | ||||
Height to head guard | 2560mm | |||||
Turning raduis(outside) | 3900mm | |||||
Front face of fork to front axle | 710mm | |||||
Min. right angle stacking aisle | pallet size :1100×1100 add clearence | 6250mm | ||||
Max Travelling speed | full/no load | 24/30 (km/h) | ||||
Lifting speed | full/no load | 390/410(mm/s) | ||||
Lowering speed | full/no load | 470/340(mm/s) | ||||
Max.drawbar pull | full/no load | 5850/3200kg | ||||
Gradeability at 1.6km/h | full load | 22% | ||||
Max. Gradeability | full/no load | 24/20 % | ||||
Truck weight | 12450kg | |||||
Weight distribution | Full load (front/rear) | 20160/2290kg | ||||
No load front/rear | 5480/6970kg | |||||
Tires number | front/rear | 4/2 | ||||
Tires model | front/rear axle | 9.00x20-14PR | ||||
Wheelbase | 2800mm | |||||
Tread | Front/rear | 1600/1700mm | ||||
Ground clearence | At lowest point(mast) | 245mm | ||||
Frame | 320mm | |||||
Brake | Service brake | power brake | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 2x12V-80AH(V/AH) | ||||
Engine | Model | ISUZU 6BG1 | ||||
Rated power | 82.3/2000(kw/rpm) | |||||
Rated torque | 418/1500(N-m/rpm) | |||||
Number of cylinders | 6 | |||||
Displacement | 6.494 L | |||||
Fuel tank capacity | 140 L | |||||
Transmission | shift stage(front/rear-type) | 2-2 automatic | ||||
Operating pressure | Hydraulic system pressure | 200 kg/cm² | ||||
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
